Fadal VMC 8030 HT CNC Vertical Machining Center

SKU 12042

Make/Model Fadal VMC 8030 HT

Out of stock

SKU:	12042
Make/Model:	Fadal VMC 8030 HT

SKU: 12042

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Fadal
Model:	VMC 8030 HT
Year:	2007
Machine Type:	CNC Vertical Machining Center
CNC Control:	FADAL CNC Control (Specific Control Model Not Verified)

Features:
FADAL CNC Control
40-Taper Spindle
21-Position Automatic Tool Changer (ATC)
ChipBLASTER D30 High-Pressure Coolant System
Enclosed Machining Area
High-Torque (HT) Configuration

Table:
Table Size: 82.50″ × 30″
Maximum Table Load: 3,751 lbs.
Floor-to-Table Height: 36″

Travels:
X-Axis Travel: 80″
Y-Axis Travel: 30″
Z-Axis Travel: 30″

Spindle:
Spindle Taper: CAT/BT 40
Spindle Speed: 10,000 RPM

Automatic Tool Changer:
Tool Capacity: 21 Positions

General:
Machine Dimensions (Approx.): 209″ W × 103″ D × 119″ H
Machine Weight (Approx.): 18,000 lbs.

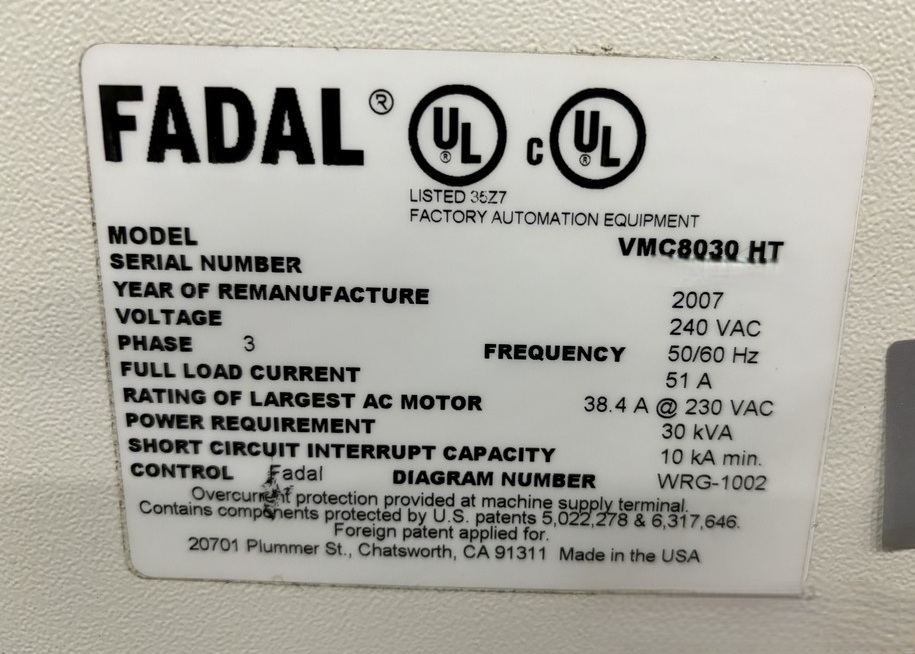

Electrical:
Voltage: 240V
Phase: 3-Phase
Frequency: 50–60 Hz

Table:
Table Size: 2,096 mm × 762 mm
Maximum Table Load: 3,751 lbs.
Floor-to-Table Height: 914 mm

Travels:
X-Axis Travel: 2,032 mm
Y-Axis Travel: 762 mm
Z-Axis Travel: 762 mm

Spindle:
Spindle Taper: CAT/BT 40
Spindle Speed: 10,000 RPM

Automatic Tool Changer:
Tool Capacity: 21 Positions

General:
Machine Dimensions (Approx.): 5,309 mm W × 2,616 mm D × 3,023 mm H
Machine Weight (Approx.): 18,000 lbs.

Electrical:
Voltage: 240V
Phase: 3-Phase
Frequency: 50–60 Hz

Categories	CNC Vertical Machining Centers
Make	Fadal
Model	VMC 8030 HT

FADAL CNC Control
40-Taper Spindle
21-Position Automatic Tool Changer (ATC)
ChipBLASTER D30 High-Pressure Coolant System
Enclosed Machining Area
High-Torque (HT) Configuration

Payment Terms

A booking deposit secures the machine, with the remaining balance due prior to loading or shipment. We accept bank transfer, wire transfer, and approved payment methods.
