*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

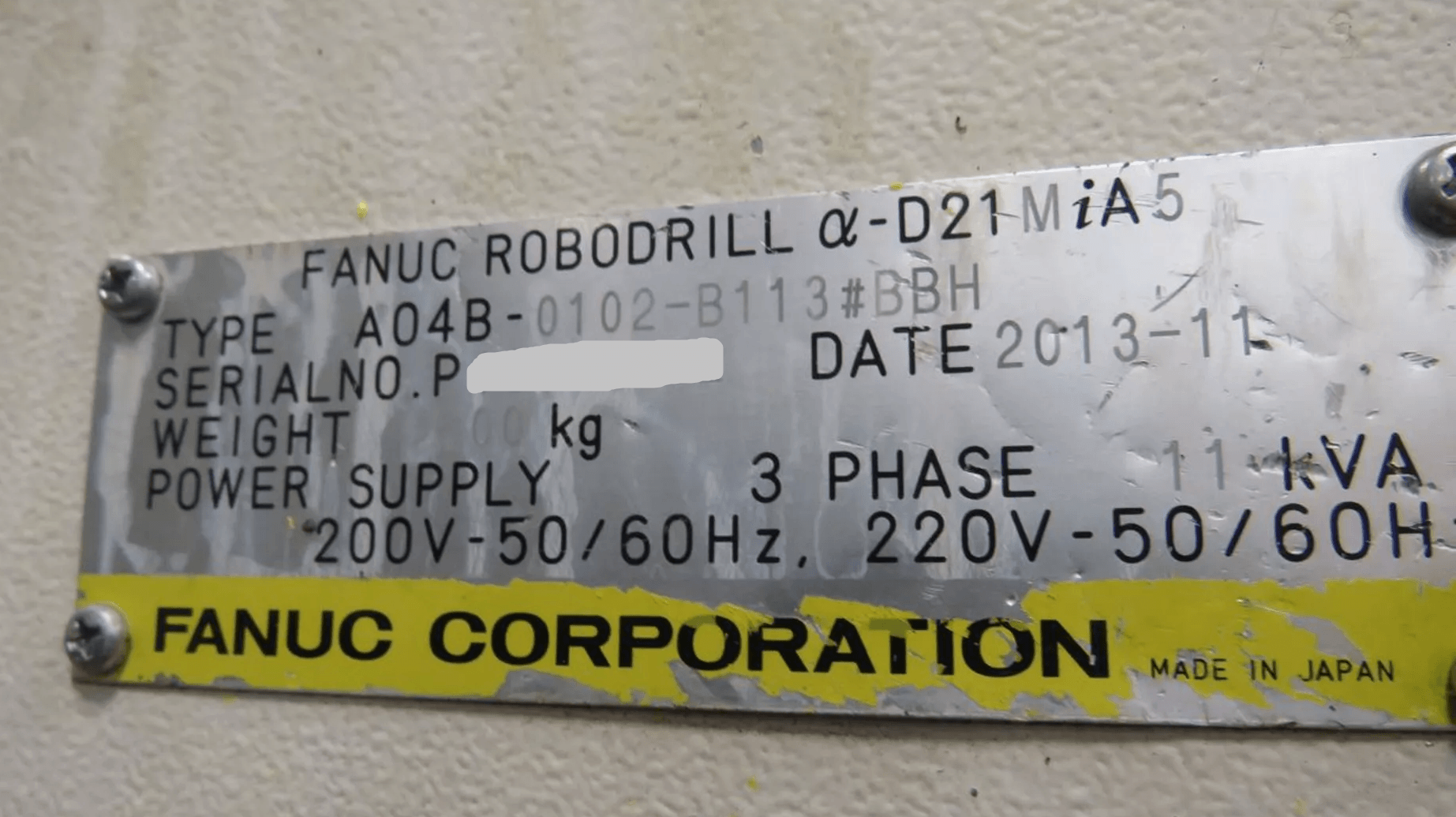

| Make: | Fanuc |
| Model No.: | Robodrill α-D21MiA5 |
| Year: | 2013 |
| Condition: | Used – Good |
| Machine Type: | CNC Vertical Machining Center |

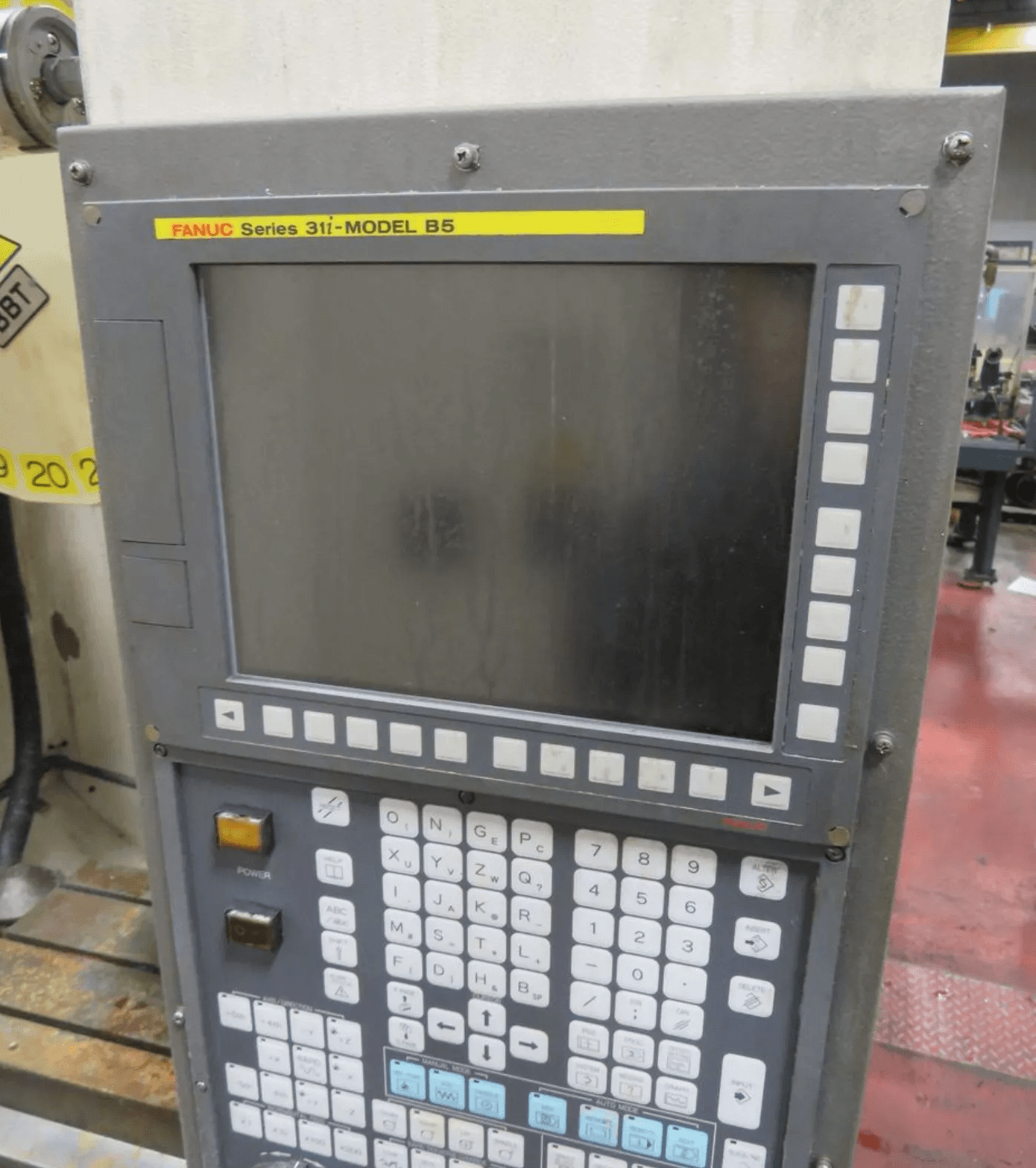

| Control: | FANUC CNC Control |
| Country of Origin: | Japan |
| Features: |
|---|
| FANUC CNC Control |
| BT30 High-Speed Spindle |
| 21 Position Automatic Tool Changer |
| Rigid Tapping |
| Flood Coolant System |
| Fully Enclosed Splash Guard |
| Work Light |
| Servo Driven Axes |
| Travels: |
|---|
| X Axis Travel: 27.6″ |
| Y Axis Travel: 15.7″ |
| Z Axis Travel: 13.0″ |
| Table: |
|---|
| Table Size: 33.5″ x 15.7″ |
| Max Table Load: 660 lbs |
| Table Surface: T-Slotted |
| Spindle: |
|---|
| Spindle Taper: BT30 |
| Spindle Speed: 10,000 RPM |
| Spindle Motor: 10 HP |
| Spindle Type: Direct Drive |
| Feed Rates: |
|---|
| Rapid Traverse (X/Y/Z): 2,126 / 2,126 / 2,126 IPM |
| Tool Changer: |
|---|
| Tool Capacity: 21 Tools |
| Tool Change Type: Carousel Type ATC |
| General: |
|---|
| Power Requirement: 220V / 3-Phase / 50-60 Hz |
| Machine Weight: Approx. 4,850 lbs |
| Overall Dimensions: Approx. 78″ x 65″ x 94″ High |
