*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*
| Make: | Fanuc |
| Model: | Robodrill Alpha-D21LiB5 |
| Type: | High-Speed Vertical Machining Center |
| Year: | 2018 |
| Condition: | Used |
-
Equipped With:

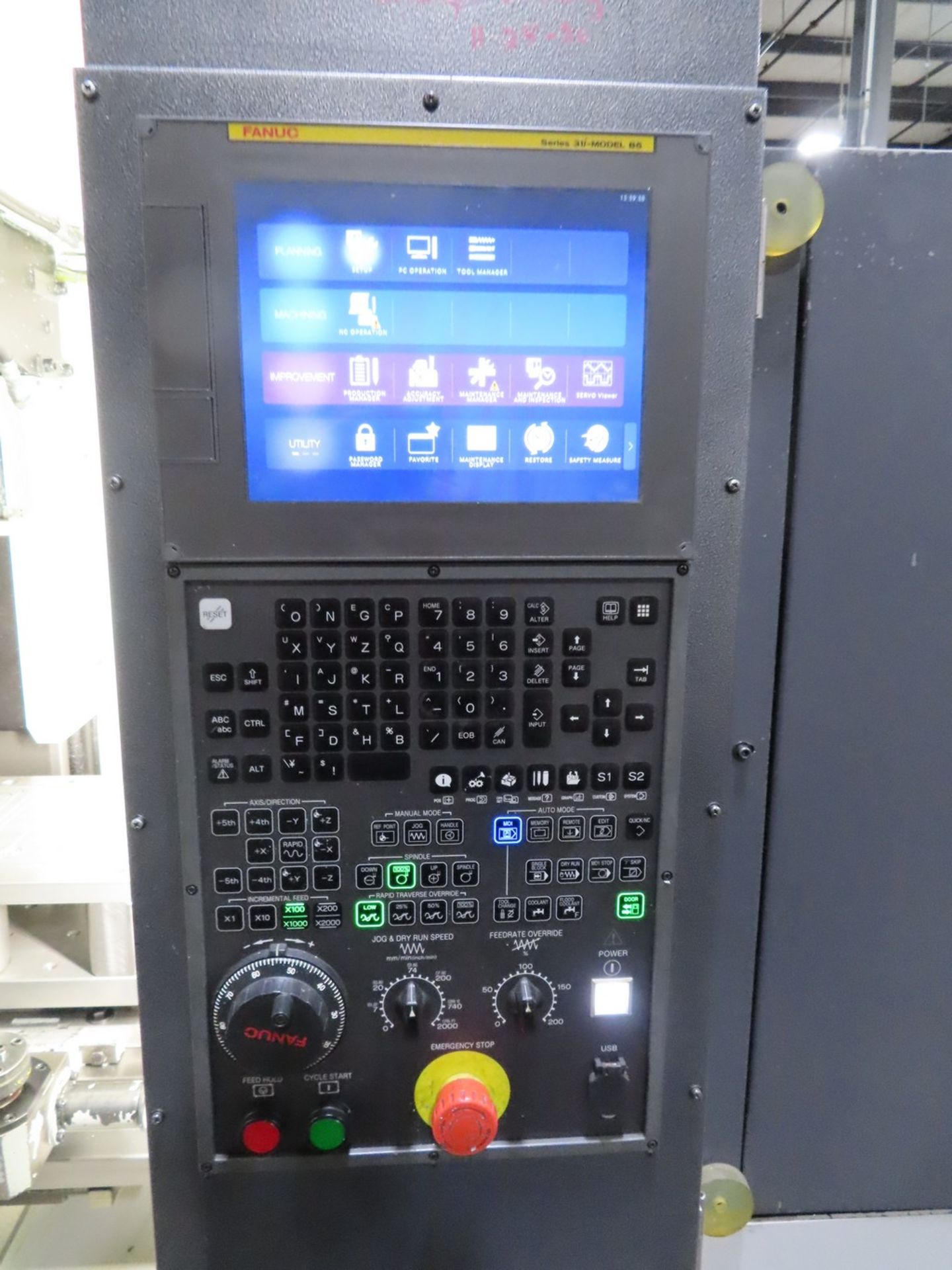

- FANUC 31i-B5 CNC Control
- 10.4″ Color LCD Display
- MANUAL GUIDE i Conversational Programming
- High-Speed Rigid Tapping
- AI Contour Control
- Helical Interpolation
- Coordinate Rotation (G68)
- Servo-Driven 21-Station Automatic Tool Changer
- BIG-PLUS Compatible BBT30 / BT30 Spindle
- Dual Check Safety (DCS)
- Ethernet, USB, and CF Card Connectivity
- Automation & Robot Interface Ready
-
Travels:
- X-Axis Travel: 27.6″
- Y-Axis Travel: 15.7″
- Z-Axis Travel: 13.0″
- Spindle Nose to Table: 5.9″ – 18.9″
- Rapid Traverse X/Y/Z: 2,126 IPM
-
Table:
- Table Size: 33.5″ × 16.1″
- Max Table Load: 661 lbs
-
Spindle:
- Spindle Taper: BBT30 / BT30 (BIG-PLUS)
- Max Spindle Speed: 10,000 RPM
- Optional Spindle Speed: 24,000 RPM
- Spindle Motor Power (Peak): 19 HP
- Continuous Power: 5.4 HP
- High-Speed Rigid Tapping Capability
-
Automatic Tool Changer:
- Tool Capacity: 21 Tools
- Tool-to-Tool Time: 0.9 Sec
- Cut-to-Cut Time: 1.6 Sec
- Max Tool Diameter: 3.1″ / 3.9″ (adjacent)
- Max Tool Length: 9.8″
- Max Tool Weight: 6.6 lbs
-
Feedrates & Accuracy:
- Max Cutting Feedrate: 1,181 IPM
- Acceleration (X/Y/Z): 1.4G / 1.0G / 1.6G
- Positioning Accuracy: < 0.00024″
- Repeatability: < 0.00016″
-
Electrical:
- Power Requirement: 200/220V, 3-Phase, 50/60 Hz
- Power Capacity: 11 kVA
-
General:
- Automation Ready for FANUC Robots
- Optional Through-Spindle Coolant (70 Bar)
- Remote Monitoring (ROBODRILL-LINKi)
- Energy Monitoring & Saving Modes
- Overall Machine Weight: 5,071 lbs
