*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

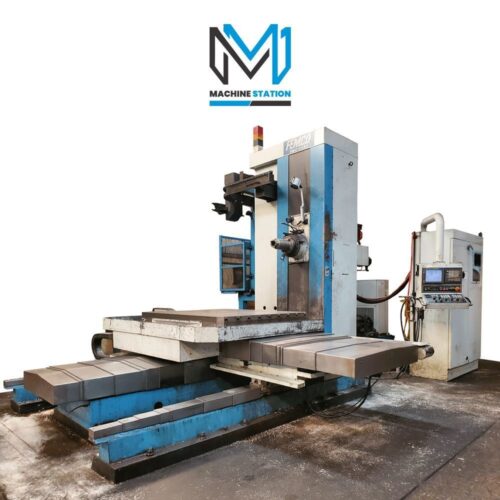

| Make: | Femco |
| Model: | BMC-110R2 |
| Year: | 2007 |
| Condition: | Used – Good |
| Features: |
|---|
| Fanuc 21i-MB CNC Control |
| 4.33″ Spindle Diameter |
| Gear Head Spindle for Powerful Torque |
| Full 4th Axis Rotary Table |
| Heavy Table Load Capacities |
| 60 Tools Side Mount Tool Changer |
| Through Spindle Coolant |
| Remote Jog Handle |
| Rigid Tapping |
| X,Y,Z Axis Linear Scales |
| Telescopic Way Covers |
| Travels: |
|---|
| Table Cross Travel (X Axis): 78.74″ |
| Headstock Travel (Y Axis): 70.87″ |
| Table Longitudinal (Z Axis): 64.96″ |
| Bar Stroke (W Axis): 19.69″ |
| Rotary Table: |
|---|
| Length: 62.99″ |
| Width: 56.69″ |
| Max Weight on Table: 13889 lbs |
| Rapid Rotation of Table: 0.72 RPM |
| Spindle: |
|---|
| Bar Diameter: 4.33″ |
| Spindle Speed: 635 – 2500 RPM |
| Power: 35 HP |
| Spindle Taper: 50 |
| Feed Rates: |
|---|
| Rapid X, Y & Z Axis: 394 Inch Per Minute |
| Rapid W Axis: 157 Inch Per Minute |
| Tool Changer: |
|---|
| Capacity: 60 Tools |
| Taper: 50 |
| Max Tool Size: 4.72″ – 9.84″ |
| Max Tool Length: 15.75″ |
| Max Tool Weight: 55 lbs. |
| Tool to Tool Change Time: 15 Second |
| General: |
|---|
| Air Required: 90 psi, 4 scfm |
| Power: 66FLA / 205-220v / 3-Phase |
| Overall Dimensions: 308″ X 244″ x 147″ High |
| Weight: 41,887 lbs. Approx |
