FERMAT CNC BORING MILL -2014

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

• Features:

• Heavy-Duty CNC Boring & Milling Machine
• High-Rigidity Box-Type Machine Structure
• Built-In High-Torque Spindle
• CNC Rotary / Hydrostatic Table
• Rigid Tapping Capability
• Thermally Stable Machine Design
• Precision Glass Scale Feedback on Linear Axes
• Automatic Central Lubrication System
• Fully Enclosed Machining Area
• High Accuracy & Long-Term Stability

• Travels & Axis Specifications:

• X-Axis Travel: 118.1″
• Y-Axis Travel: 78.7″
• Z-Axis Travel: 63.0″
• W-Axis (Quill) Travel: 31.5″
• Spindle Nose to Table Surface: 0″ – 63.0″

• Table / Pallet:

• Table Size: 55.1″ × 55.1″
• Max Workpiece Size: 78.7″ × 78.7″
• Max Table Load: 17,600 lbs
• Table Indexing: 1°
• Table Type: CNC Rotary / Hydrostatic

• Spindle:

• Spindle Taper: ISO 50
• Spindle Diameter: Ø5.1″
• Max Spindle Speed: 3,000 RPM
• Spindle Motor Power: 50 HP
• Max Spindle Torque: 1,475 ft-lbs
• Automatic Spindle Orientation
• Spindle Cooling System

• Feedrates & Dynamics:

• Rapid Traverse (X/Y/Z/W): 787 IPM
• Cutting Feedrate Range: 0.04 – 394 IPM
• High-Torque Servo Drives
• Precision Ground Ballscrews

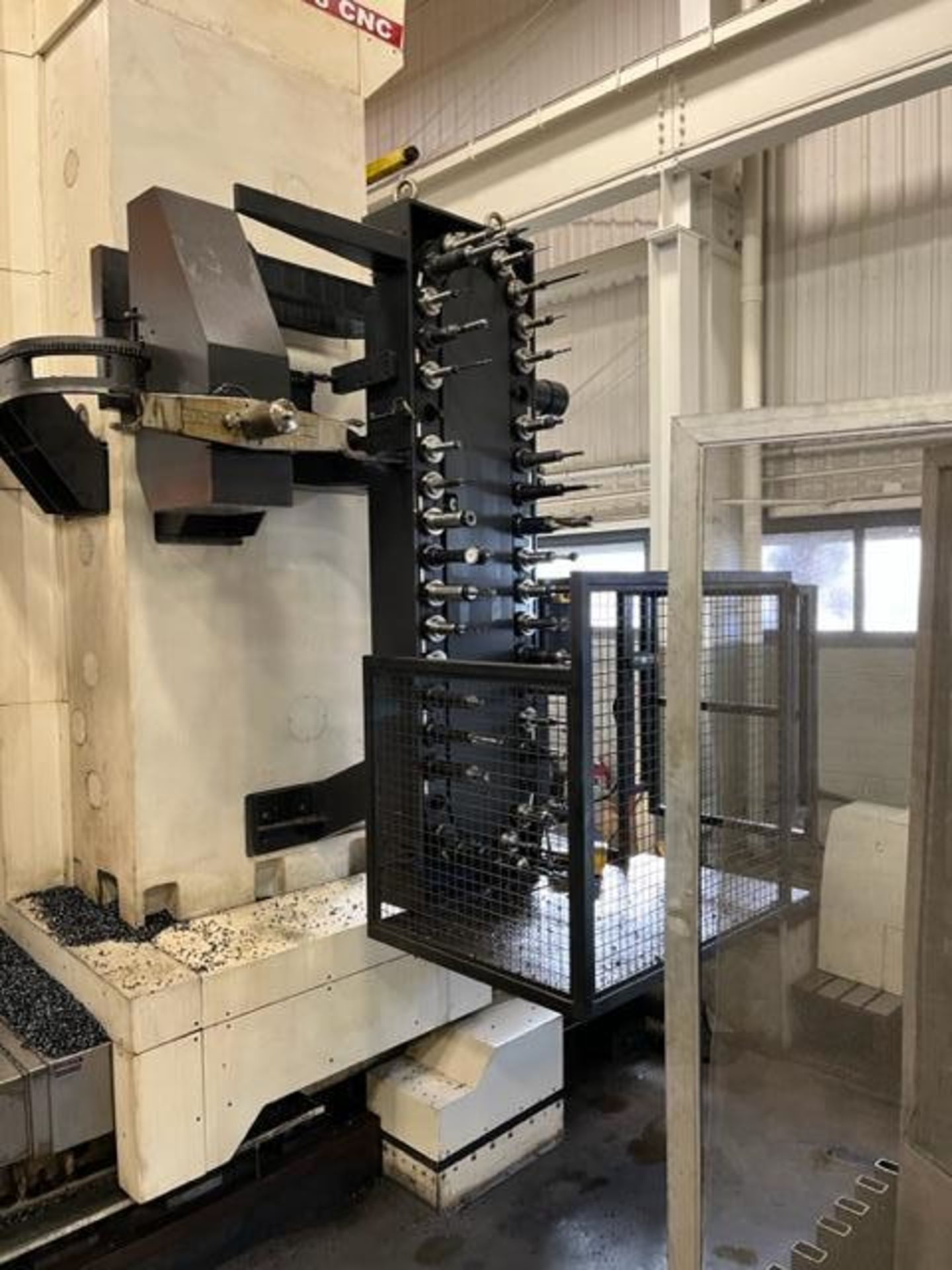

• Automatic Tool Changer:

• Tool Magazine Type: Chain Type
• Tool Capacity: 40 Tools
• Tool Change Time: 10 – 12 Seconds
• Max Tool Diameter: 6.3″
• Max Tool Length: 23.6″
• Max Tool Weight: 44 lbs

• Coolant System:

• Flood Coolant System
• Through-Spindle Coolant: 20 / 40 bar (Optional)
• Coolant Tank Capacity: 264 Gallons
• Coolant Gun & Air Gun

• Chip Management:

• Hinged Belt Chip Conveyor
• Scraper-Type Chip Conveyor
• Auger Chip Removal System
• Oil Skimmer & Mist Collector (Optional)

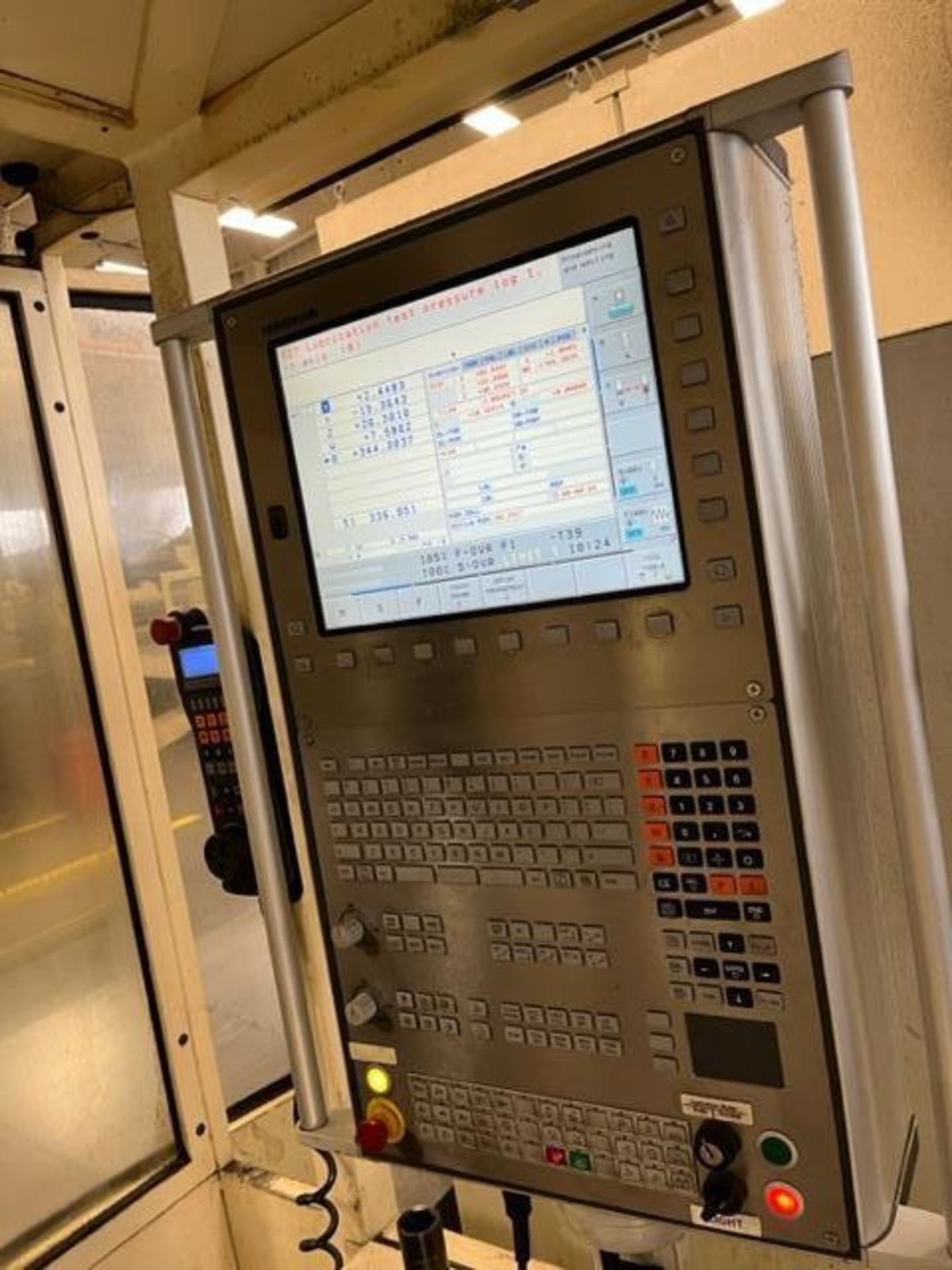

• CNC Control:

• HEIDENHAIN iTNC 530 CNC Control
• 19″ Color LCD Display
• Full QWERTY Keyboard
• Simultaneous 4-Axis Control (X, Y, Z, W)
• Rotary Table Axis (B)
• USB, Ethernet, RS-232 Connectivity
• Advanced Boring & Milling Cycles

• Electrical & Utilities:

• Power Supply: AC 400V / 3-Phase / 50–60 Hz
• Connected Load: Approx. 90 kVA
• Compressed Air Requirement: 6 bar

• Machine Dimensions & Weight:

• Height: 157.5″
• Width: 275.6″
• Length: 393.7″
• Machine Weight: Approx. 88,000 lbs
