*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Fortune |
| Model No.: | V Turn 26 |
| Machine Type: | CNC Turning Center |

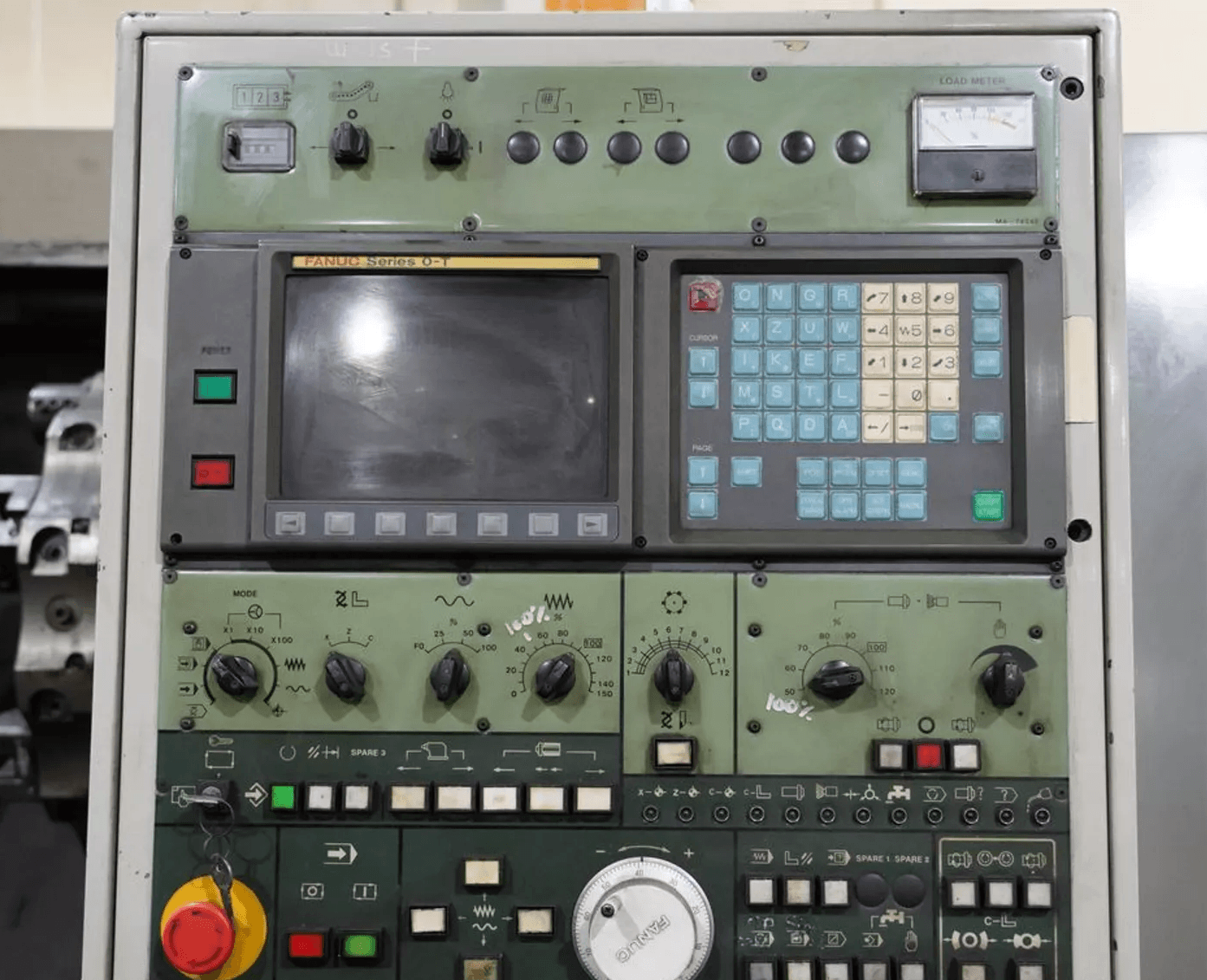

| Control: | Fanuc 0-TC CNC Control |
| Country of Origin: | Taiwan |
| Equipped With: |
|---|
| Fanuc 0-TC CNC Control |
| 10″ 3-Jaw Hydraulic Chuck (Typical) |

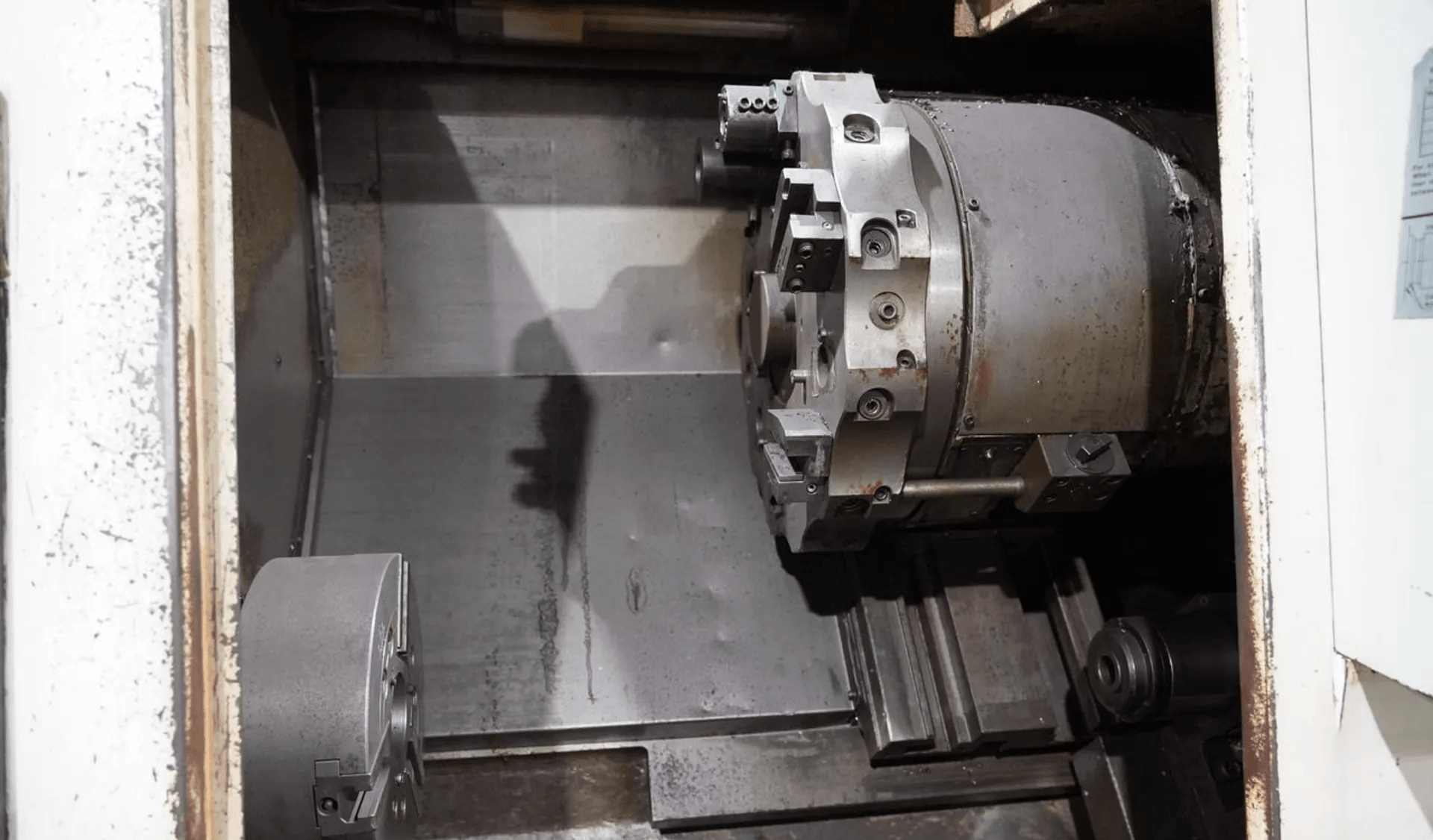

| 12-Station Turret (Typical) |
| Hydraulic Tailstock |
| Coolant System |
| Chip Pan / Conveyor Ready |
| Full Enclosure |
| Capacity: |
|---|
| Max Swing Over Bed: 26″ |
| Max Turning Diameter: 14″ – 16″ (Approx.) |
| Max Turning Length: 20″ – 24″ (Approx.) |
| Bar Capacity: 2.5″ – 3″ (Approx.) |
| Travels: |
|---|
| X-Axis Travel: 8″ – 10″ (Approx.) |
| Z-Axis Travel: 20″ – 24″ (Approx.) |
| Spindle: |
|---|
| Spindle Speed: Up to 3,500 RPM |
| Spindle Motor: 20 – 30 HP (Approx.) |
| Spindle Bore: ~3″ (Approx.) |
| Spindle Nose: A2-6 (Typical) |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Tool Size: 1″ OD / 40mm Boring Bar (Approx.) |
| Feed Rates: |
|---|
| Rapid Traverse (X): ~600 IPM |
| Rapid Traverse (Z): ~800 IPM |

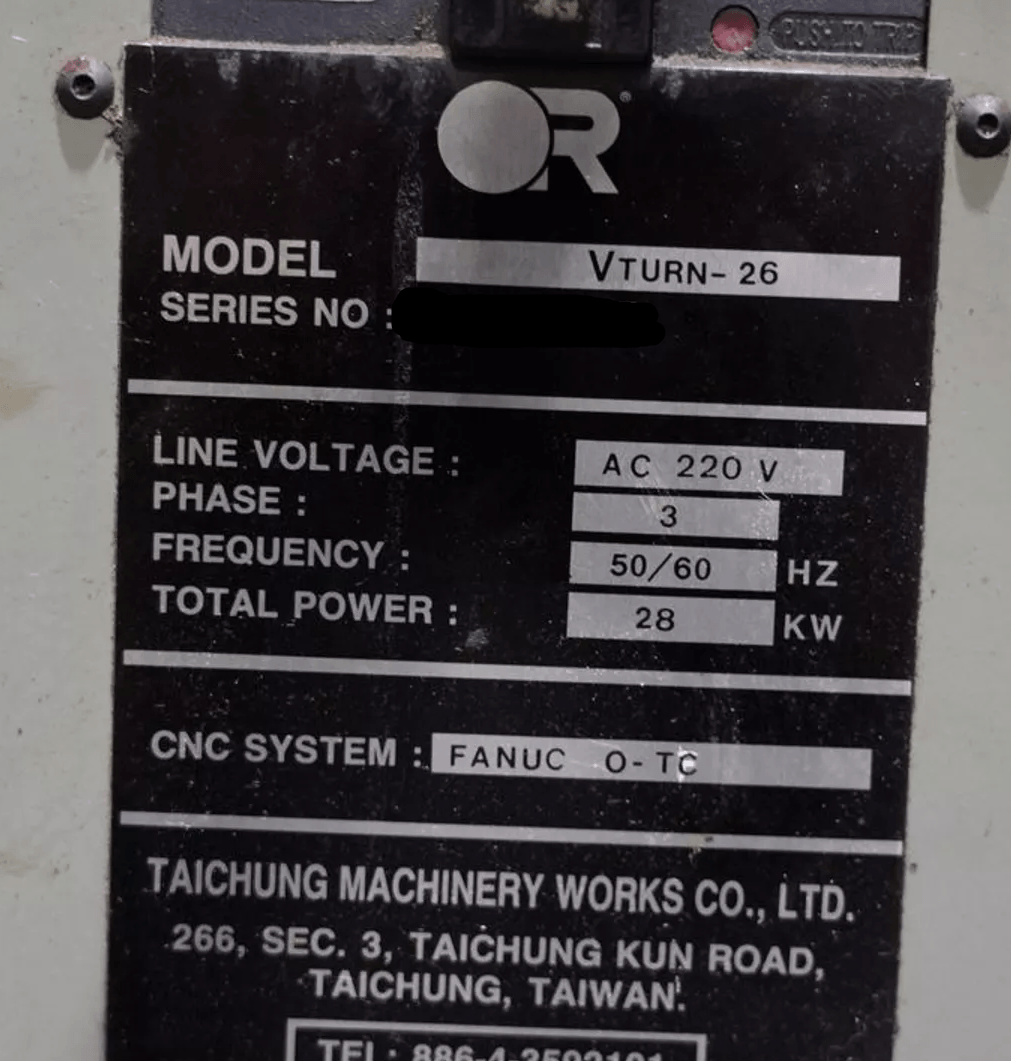

| Electrical: |
|---|
| Voltage: AC 220V |
| Phase: 3 |
| Frequency: 50/60 Hz |
| Total Power: 28 kW |
| General: |
|---|
| Machine Dimensions (L x W x H): 95″ x 65″ x 70″ (Approx.) |
| Machine Weight: 9,000 – 11,000 lbs |
