“One Owner Machine, Fully powered / tested & in Good working condition. Equipped with 2 Chucks, 2 Turrets, Full C Axis, Milling, Sub Spindle and Y Axis. Comes with Parts & chip conveyor, live tool holders.”

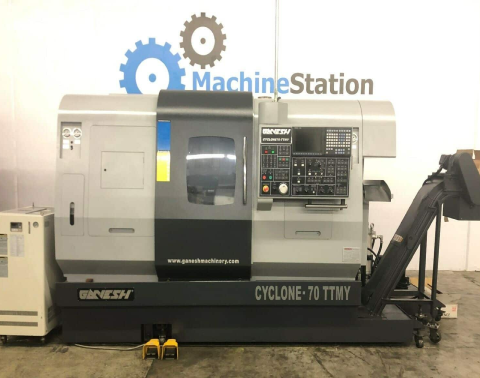

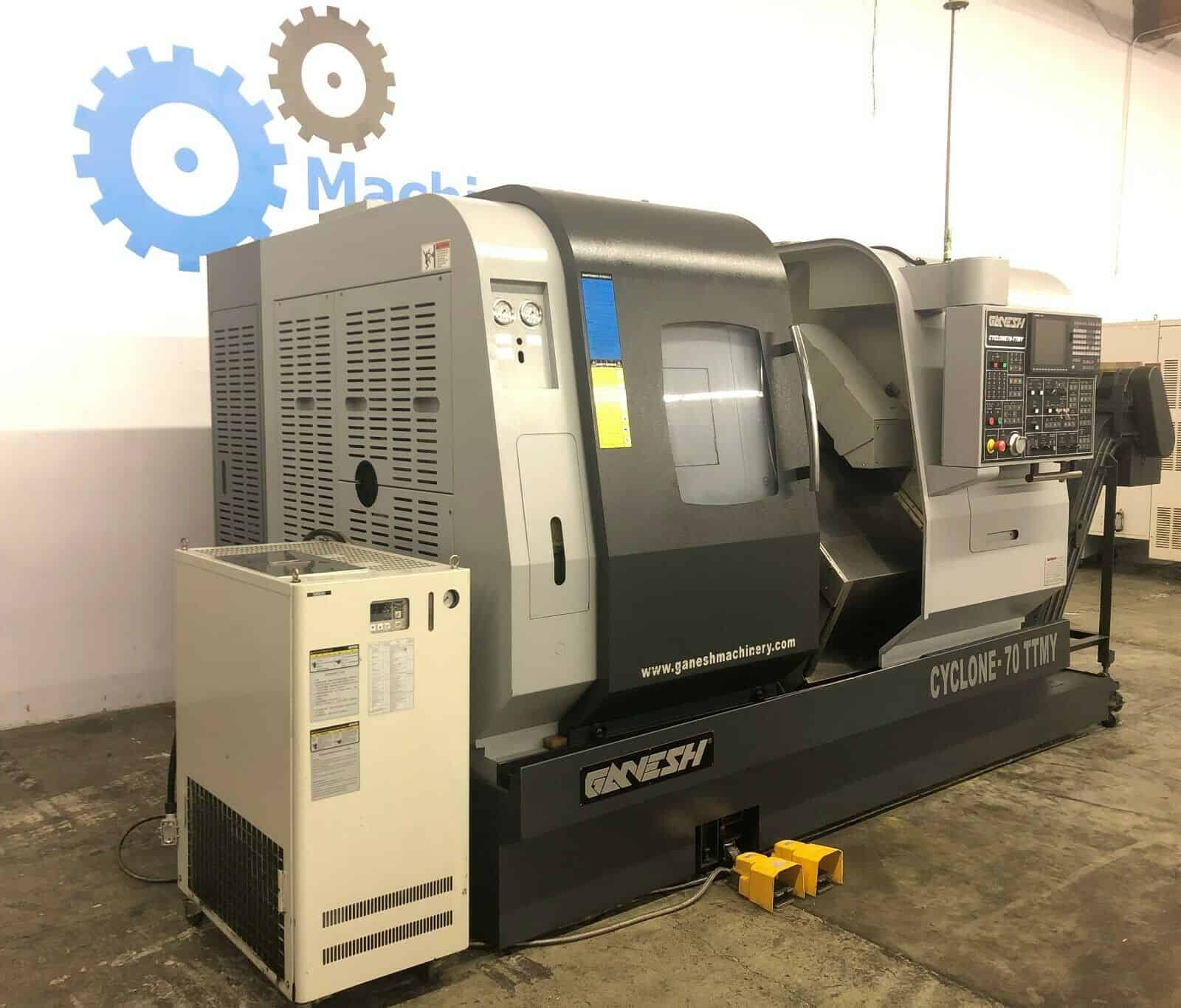

Ganesh Cyclone 70-TTMY CNC Twin Turret Lathe
Out of stock
Description
| GANESH CYCLONE 70-TTMY CNC TWIN TURRET 8 AXIS TURN MILL LATHE | |
|---|---|
| Make | Ganesh |
| Model No. | Cyclone 70-TTMY |
| Year | 2013 |
| Serial # | CT-1020401 |
| Condition | Very Good |

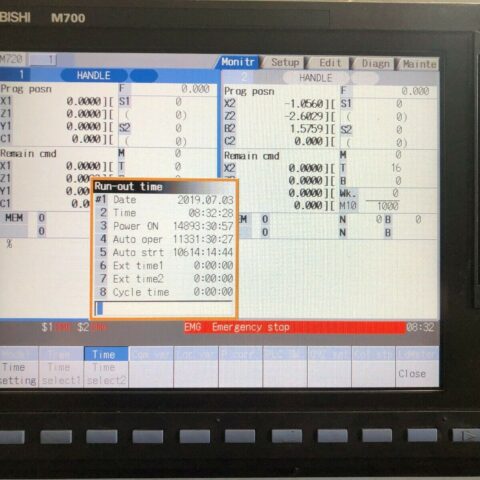

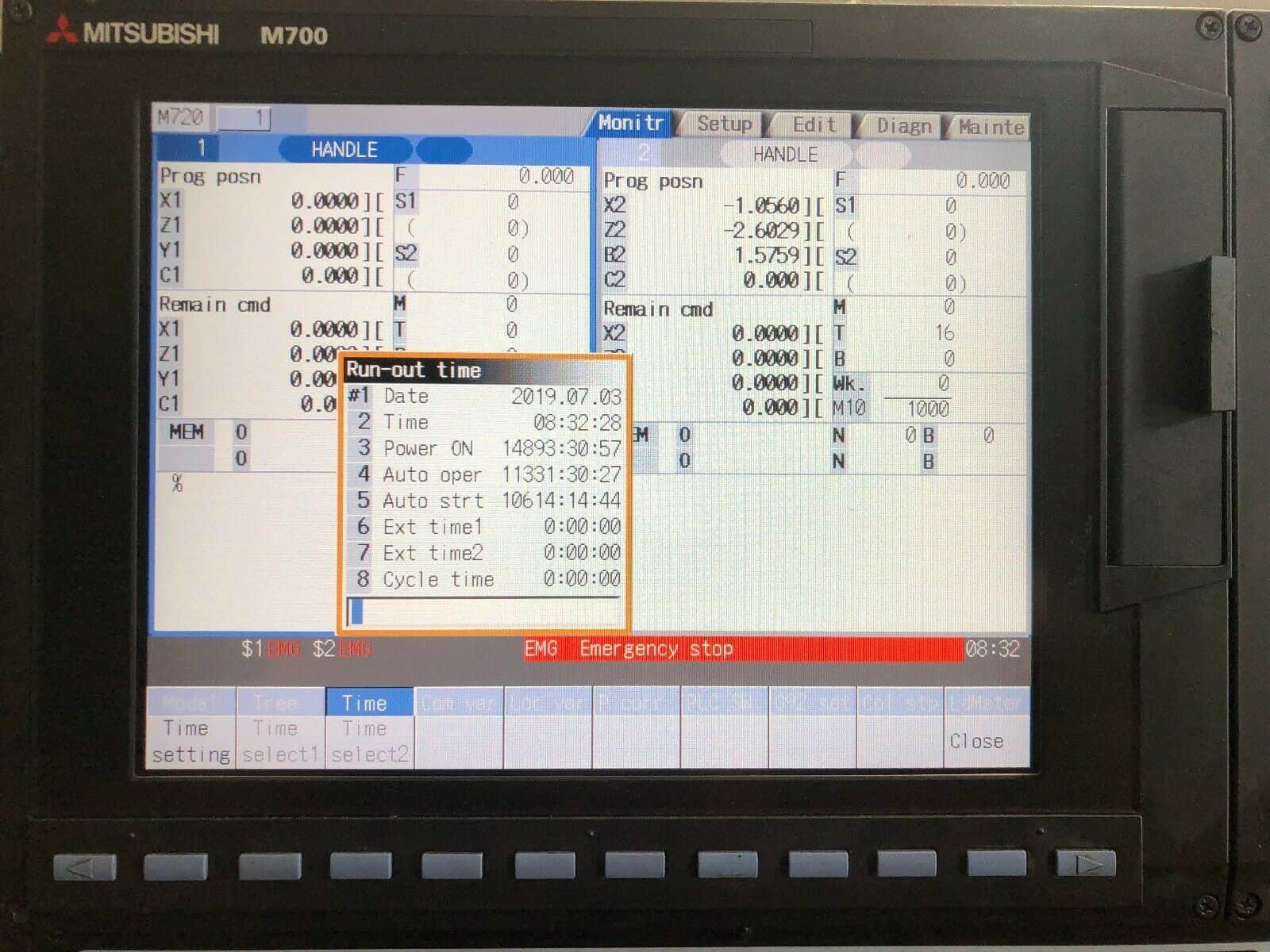

| Comes with 2 X Collet Chucks, Live & Static Tool Holders, Parts & Chip Conveyor Oil Cooler and High Pressure Coolant System. Only 11331 cutting hours. | |
All specifications are approximations and are subject to verification.
- Ganesh Cyclone 70-TTMY Equipped With:

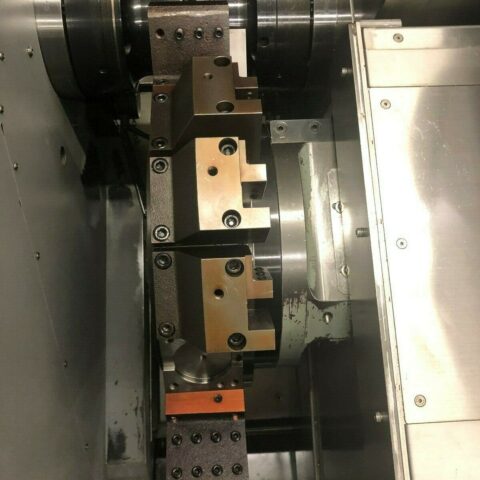

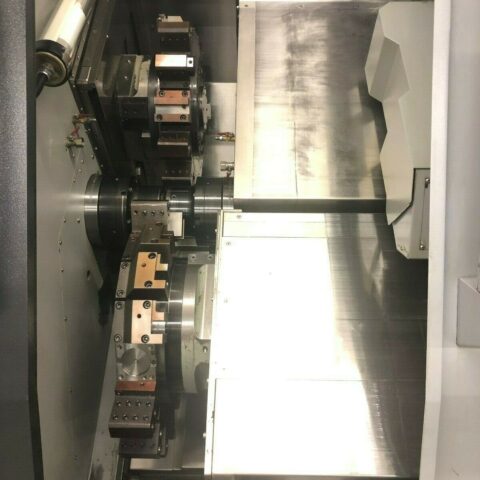

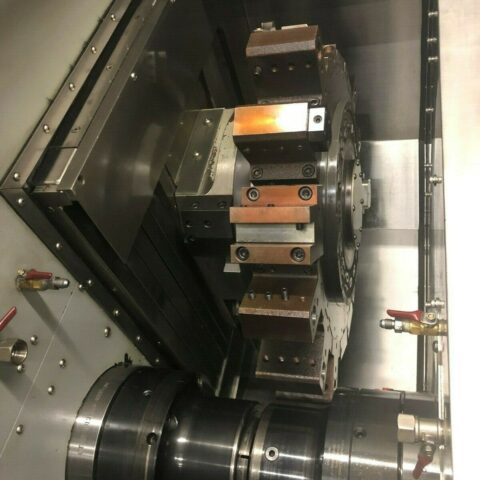

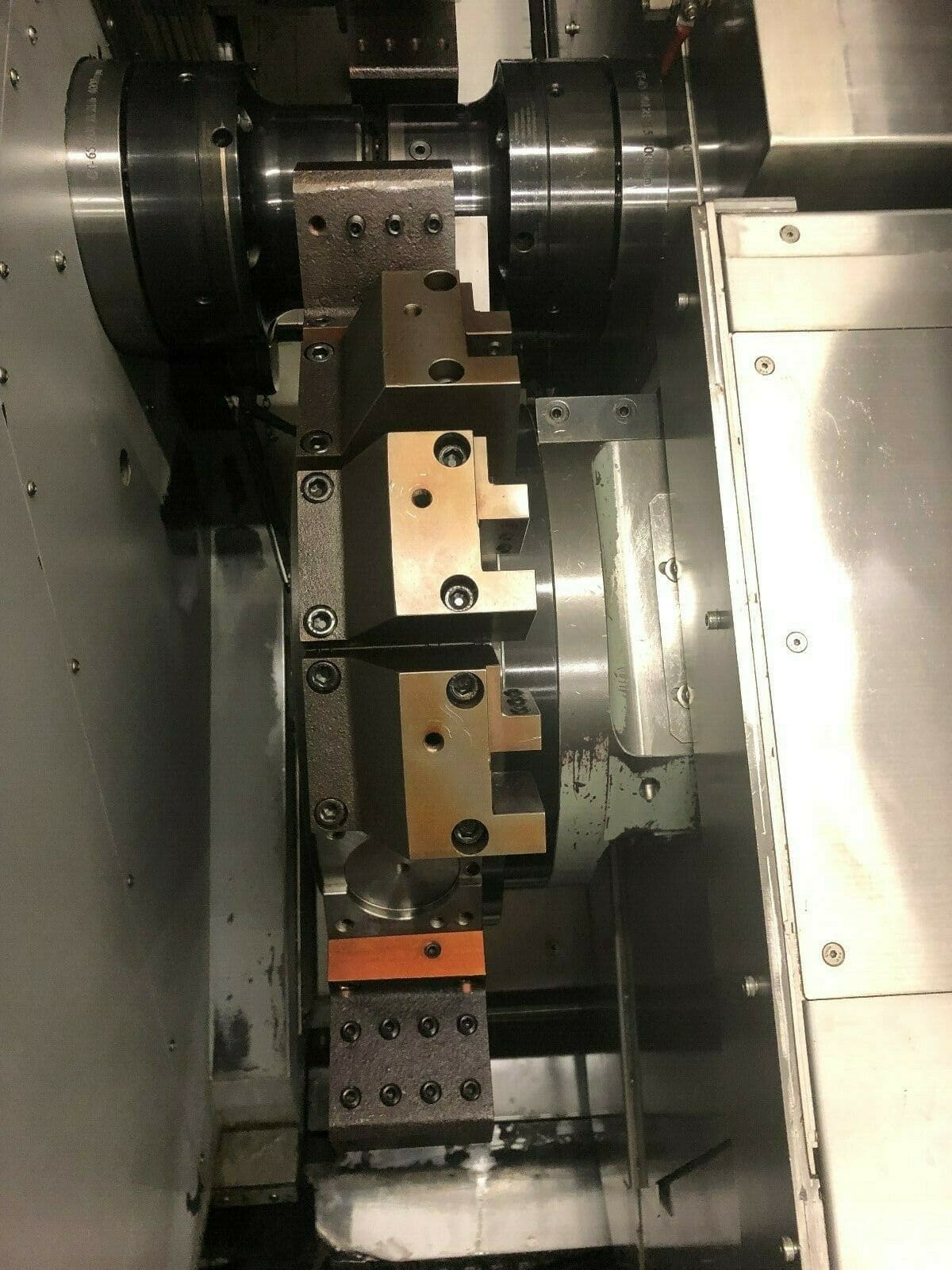

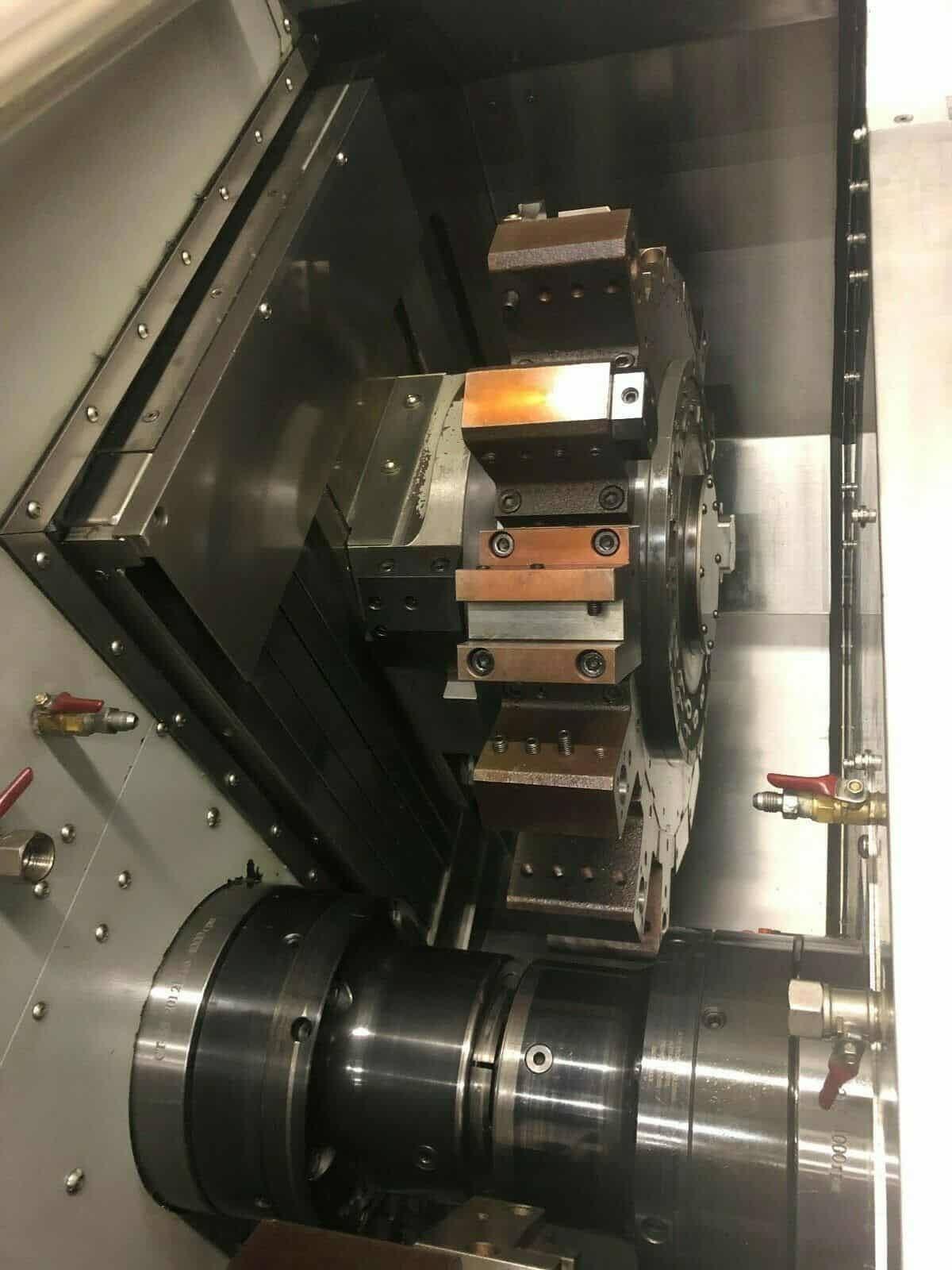

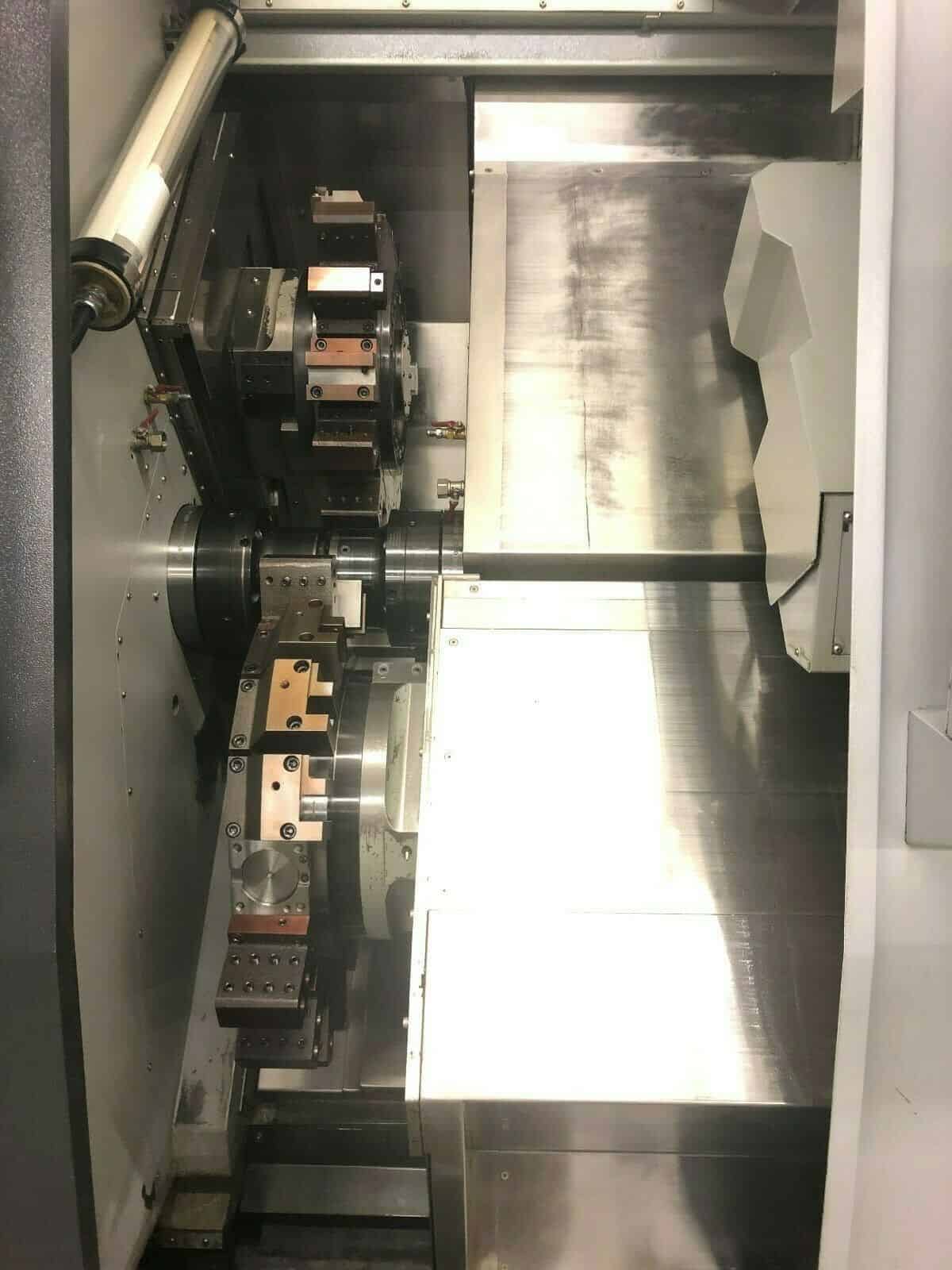

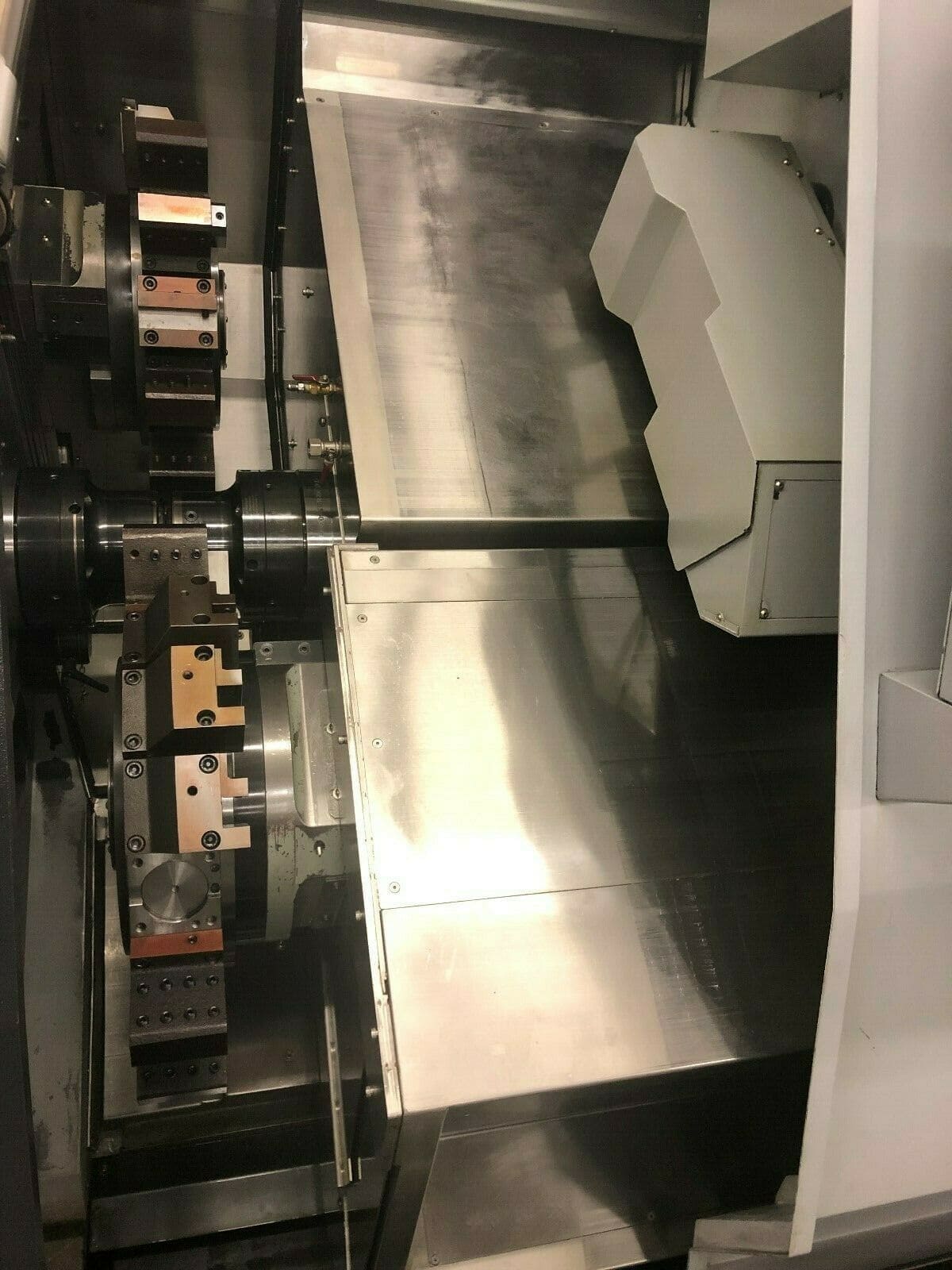

- Twin 16-Station Turret – 32 Live / Rotary Tool Positions

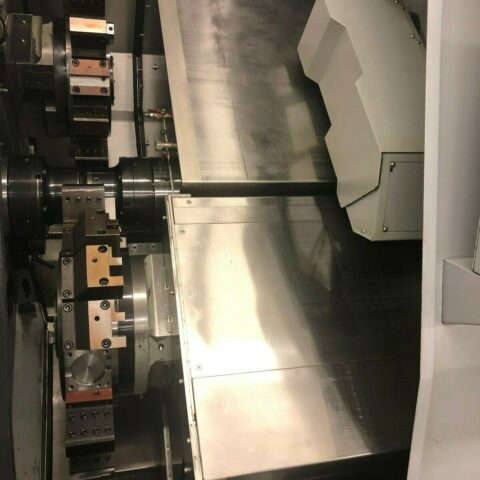

- Simultaneous Main & Sub Spindle Machining
- Servo Controlled Full C-Axis on Both Spindles

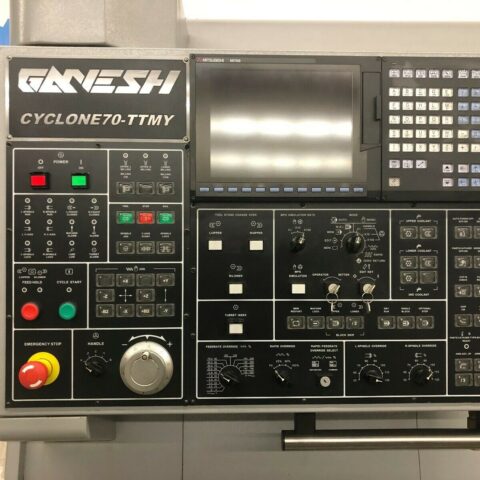

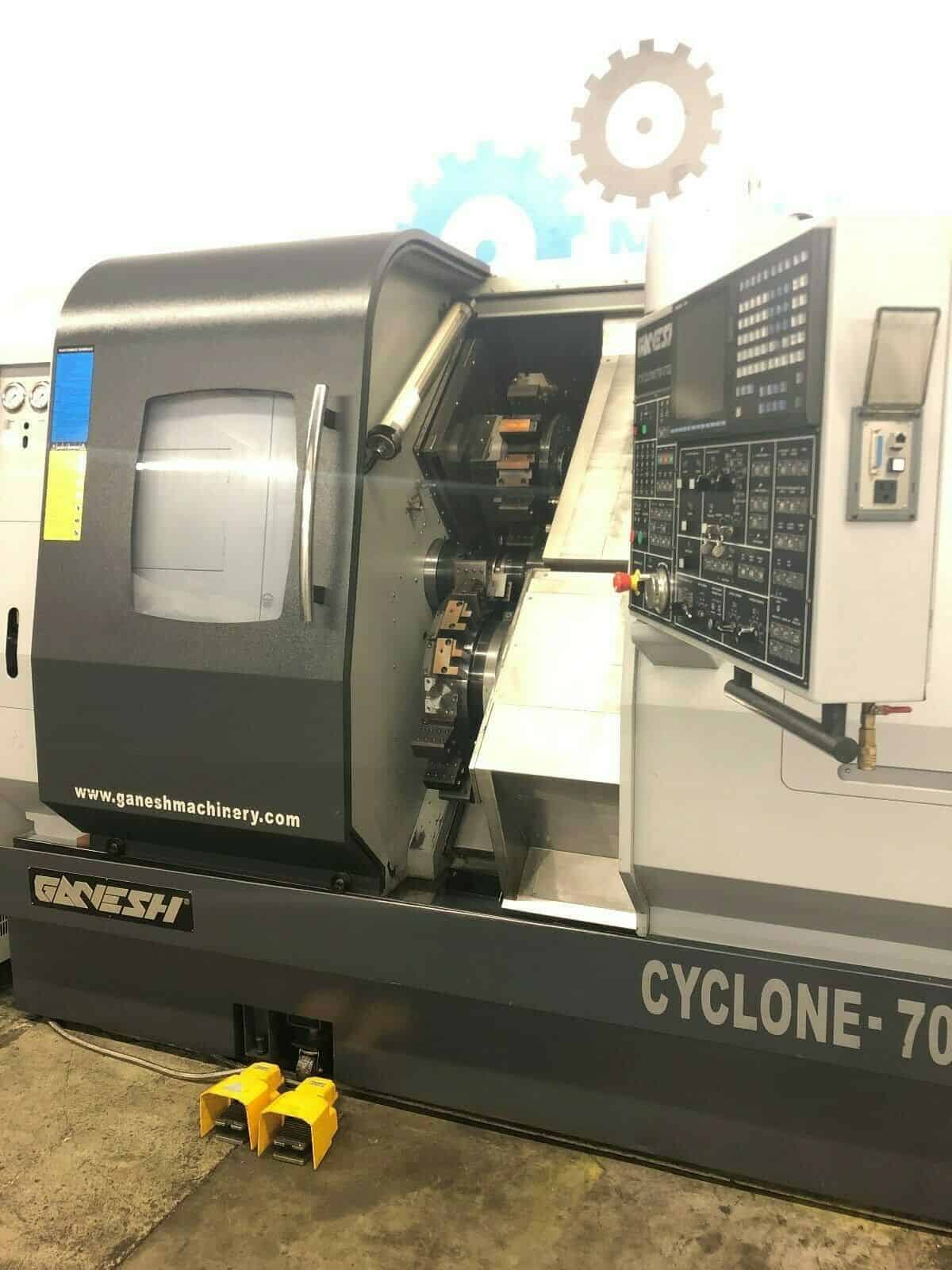

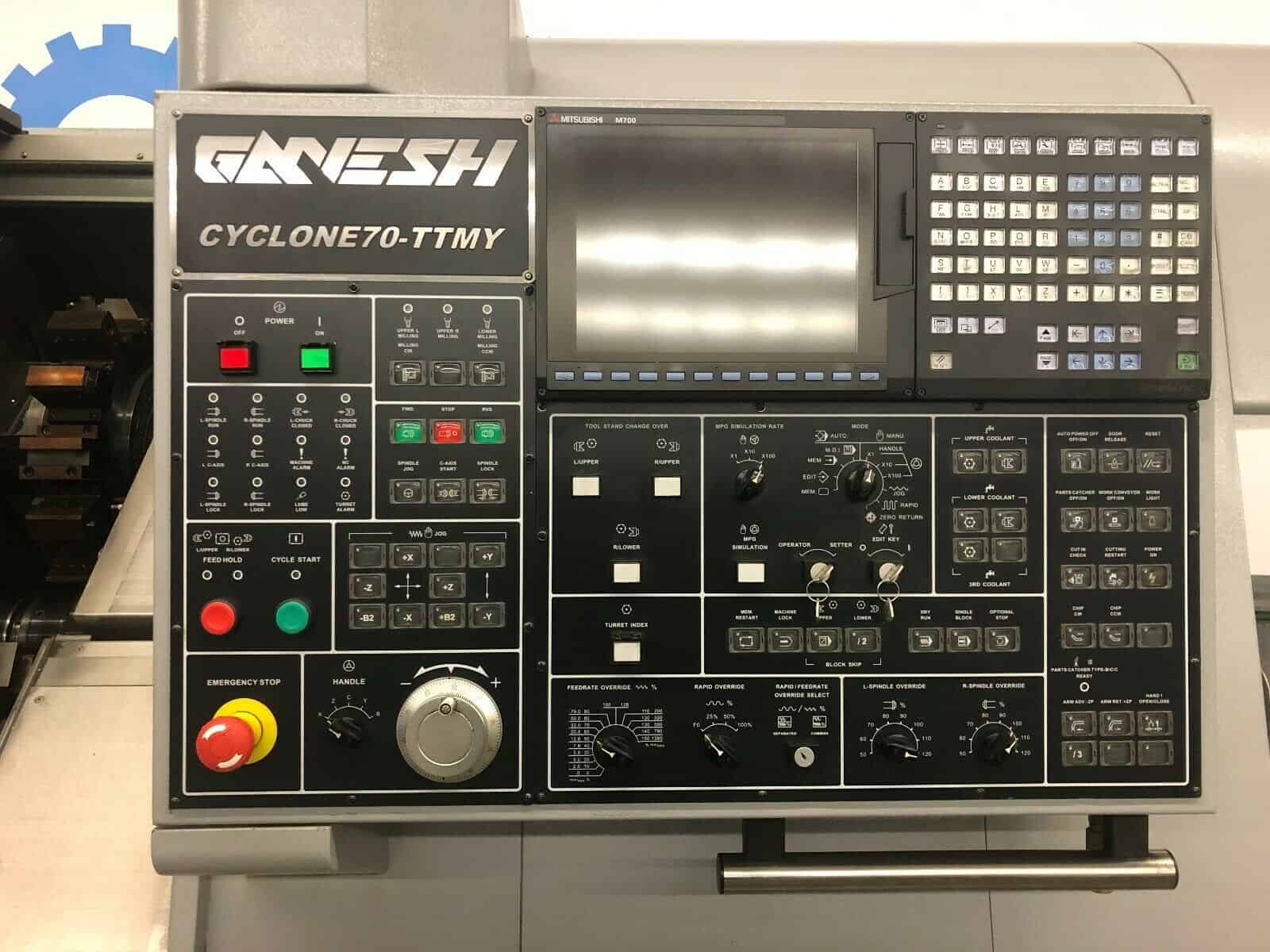

- Mitsubishi M720 CNC Control
- PCMCIA Card Slot
- USB Port
- Tool Presetter
- Parts Catcher
- Parts Conveyor
- ATS Collet Chuck on Main Spindle
- ATS Collet Chuck on Sub Spindle
- Rigid Tapping on Both Spindles
- Foot Operated Control for Chuck

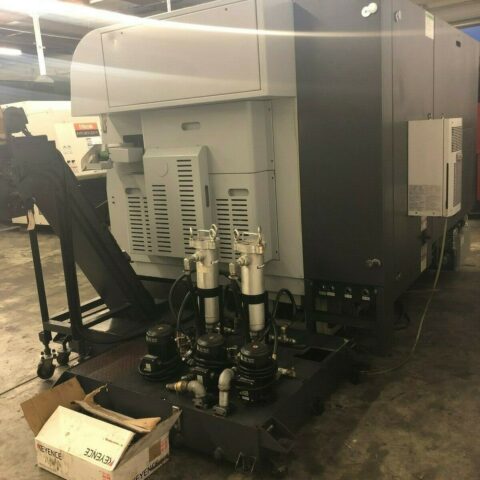

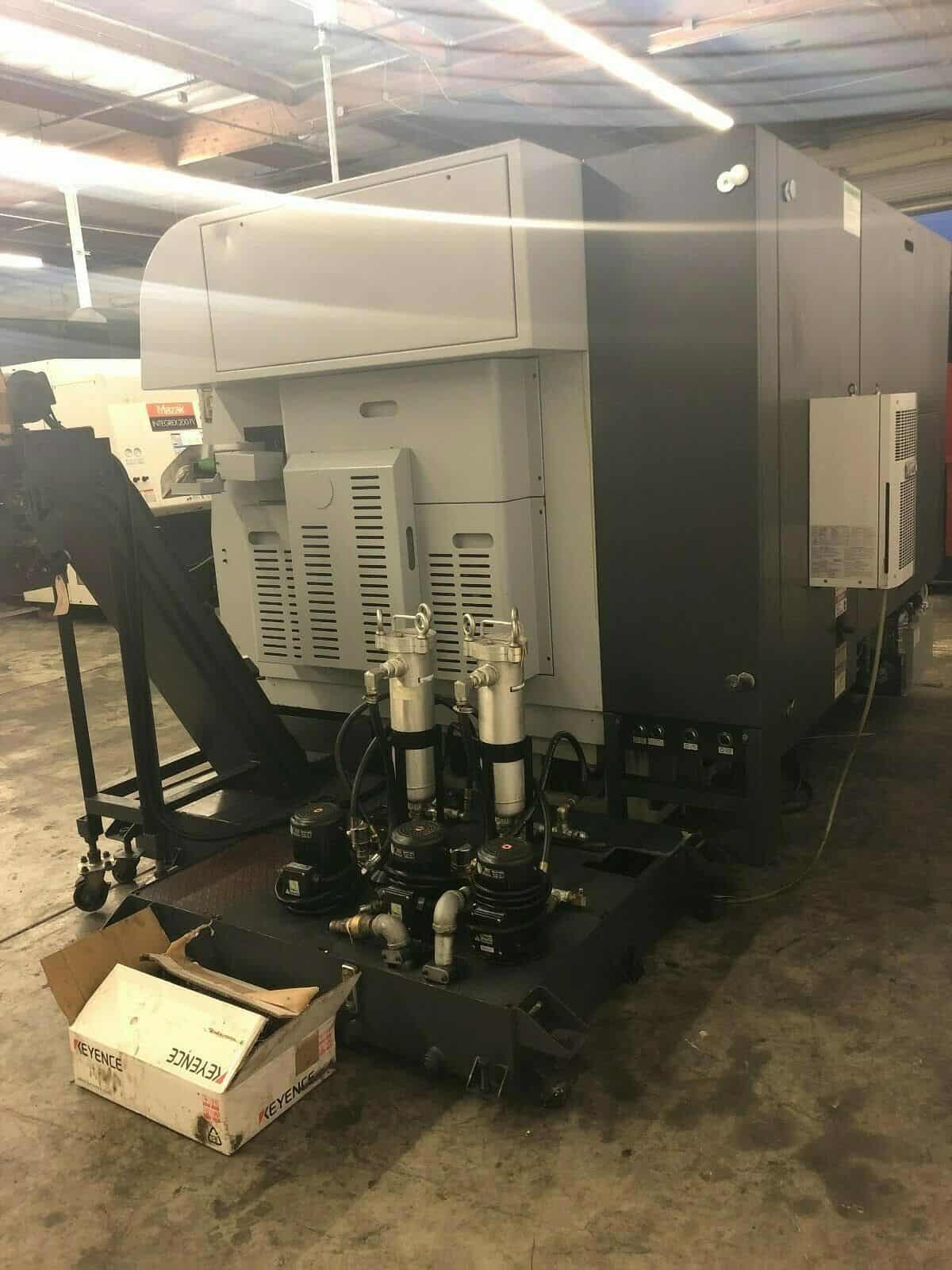

- High Pressure Dual Coolant system

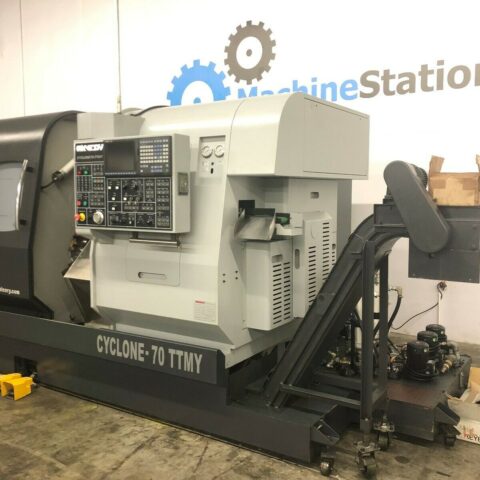

- Chip Conveyor

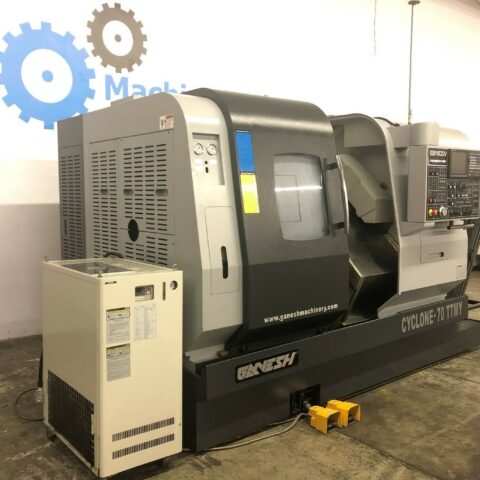

- Oil Chiller Unit
- Comes with Live Tools & some Static Tool Holders
- All Books & Manuals
- Ganesh Cyclone 70-TTMY Specifications:
- Capacity:
- Max Turning Diameter: 7.48″
- Max Turning Length: 15.75″
- Max Bar Capacity: 2.75″
- Max Distance Between Centers: 36.22″
- Travels:
- X1 Axis Travel: 5.9″
- X2 Axis Travel: 9.05″
- Z1 Axis Travel: 17.32″
- Z2 Axis Travel: 17.32″
- Y Axis Travel: 3.93″
- B Axis Travel: 25.59″ ( Sub Spindle )
- C1 Axis: 360° (0.0001°)
- C2 Axis: 360° (0.0001°)
- Feedrate:
- Rapid Traverse X Axis: 630 IPM
- Rapid Traverse Z Axis: 1573 IPM
- Rapid Traverse Y Axis: 236 IPM
- Rapid Traverse B Axis: 1573 IPM
- Spindle:
- Main Spindle Bore: 3.30″
- Sub Spindle Bore: 2.20″
- Main Spindle Nose: A2-8
- Sub Spindle Nose: A2-6
- Main Spindle Speed: 40-4000 RPM
- Sub Spindle Speed: 40-4000 RPM
- Main Spindle Power: 20 HP
- Sub Spindle Power: 15 HP
- Live Tool Spindle Motor: 7 HP
- Turret:
- Capacity: Twin 16 Live Stations
- Turret Index Time: 0.2 Second
- Live Tool Speed: 60-6,000 RPM
- Tool Type: BMT-65
- General:
- Power: 53 kva, 220v / 3-Phase
- Overall Dimensions: 165″ x 88″ x 84″ High
- Overall Dimensions: 182″ x 88″ x 84″ High with Chip Conveyor
- Weight: 27,500 lbs

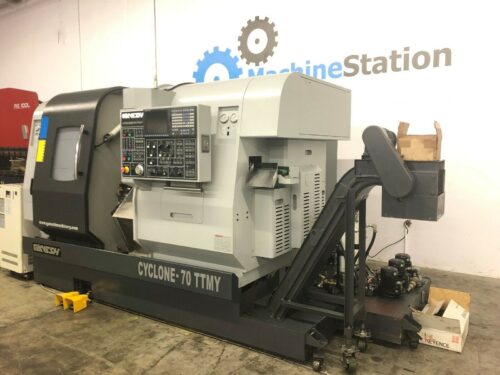

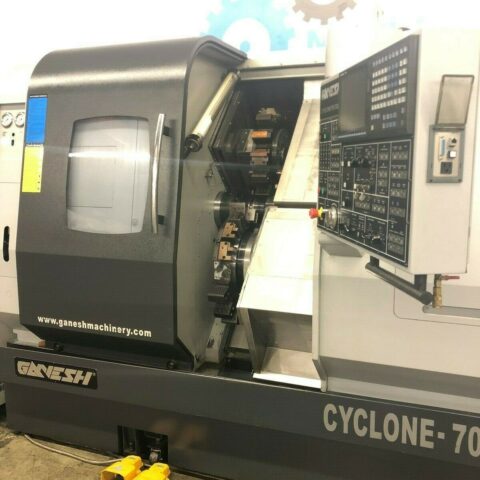

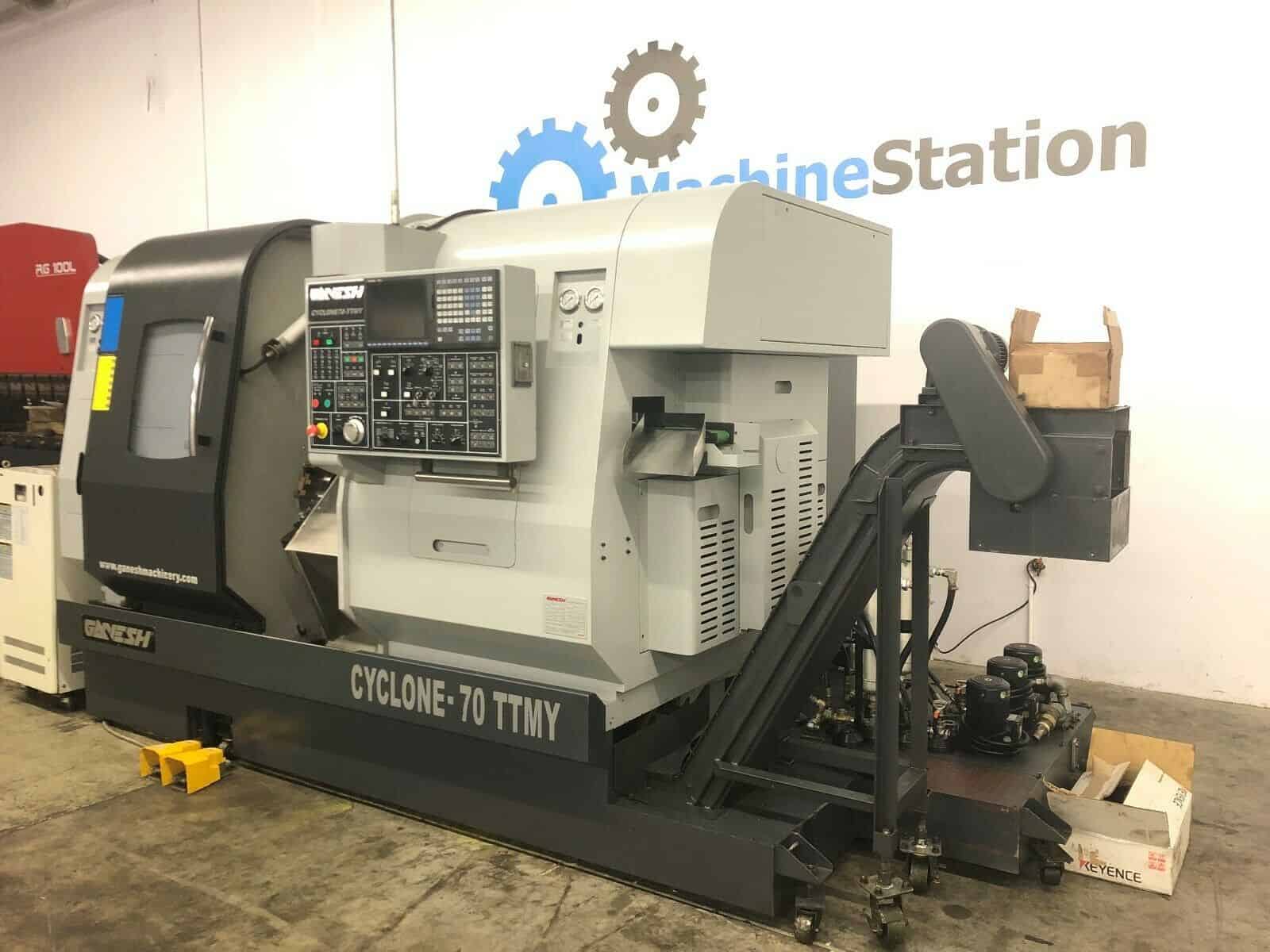

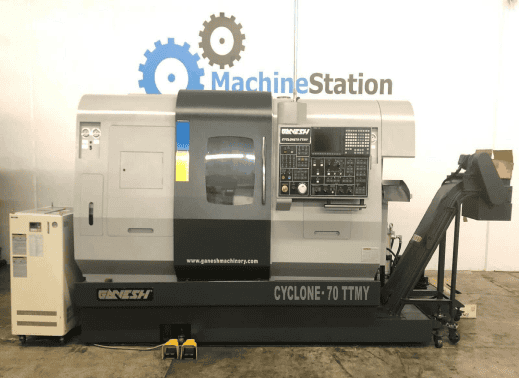

Ganesh Cyclone 70-TTMY Comes as shown in pictures..
