Ganesh Deluxe GMV-3 Vertical Milling Machine

SKU 11639

Make/Model Ganesh Deluxe GMV-3

Year 2014

Condition Used - Good

Video On Request

Out of stock

SKU:	11639
Make/Model:	Ganesh Deluxe GMV-3
Year:	2014
Condition:	Used – Good
Video:	On Request

SKU: 11639

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Ganesh
Model:	Deluxe GMV-3
Year:	2014

EQUIPPED WITH:

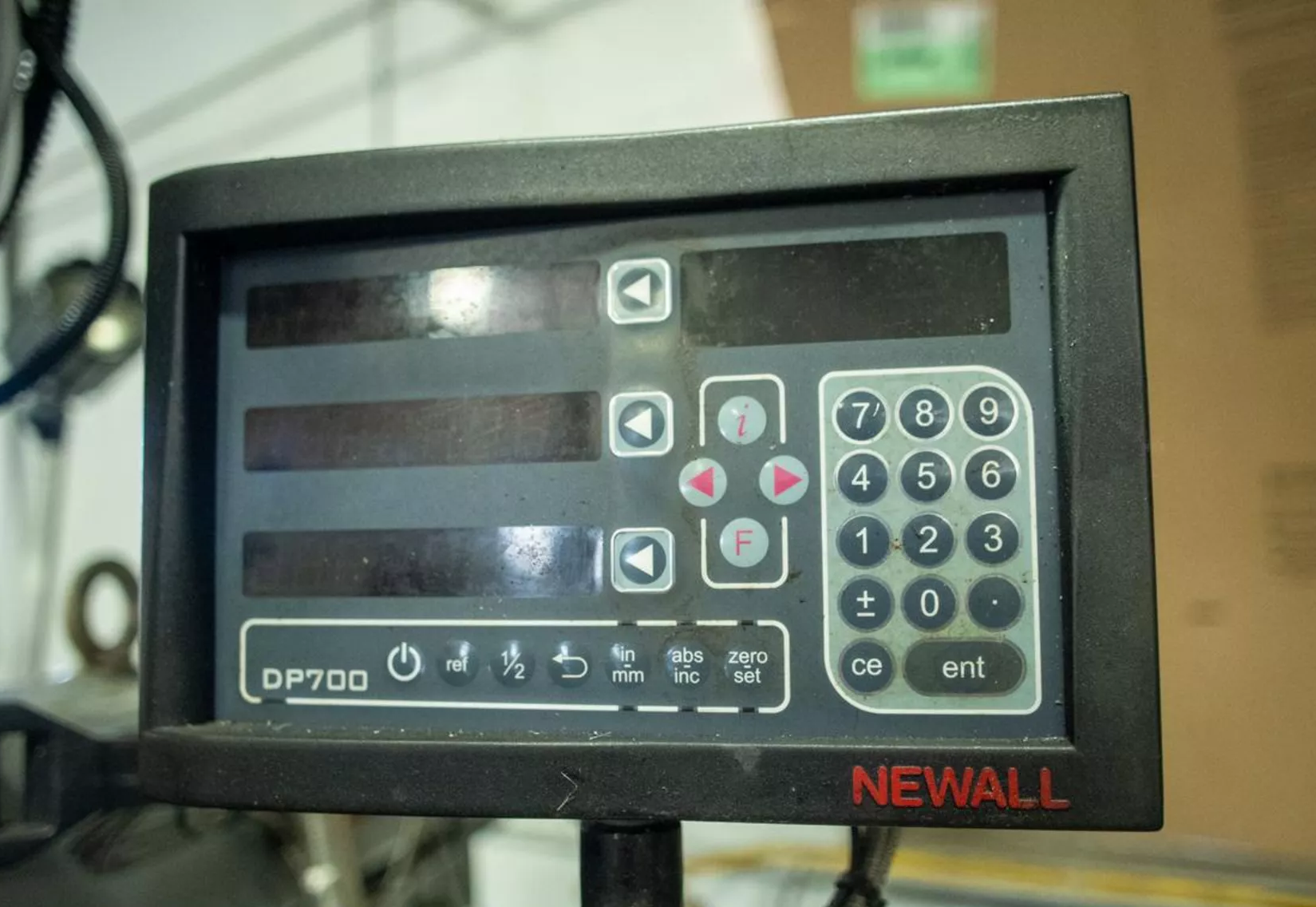

Newall DP700 3-Axis Digital Readout
Kurt D675 6″ Precision Machine Vise
Table Power Feed
One-Shot Automatic Lubrication System
Variable Speed Head
R8 Spindle
Power Drawbar
Work Light
Coolant System
5 HP Main Motor

Capacity:
Table Size: 10″ × 54″
Table Load Capacity: 750 lbs
Longitudinal Travel (X-Axis): 35″
Cross Travel (Y-Axis): 15″
Knee Vertical Travel (Z-Axis): 16″
Quill Travel: 5″
Ram Travel: 12″

Spindle:
Spindle Taper: R8
Spindle Speed Range: Variable, 4,200 RPM
Main Motor: 5 HP

Table:
Table Size: 10″ × 54″
T-Slots: 3
Table Power Feed
Digital Readout: Newall DP700

Electrical:
Voltage: 220 / 440 Volts
Phase: 3 Phase
Frequency: 60 Hz

General:
Machine Dimensions (Approx.): 72″ × 70″ × 88″
Machine Weight (Approx.): 2,800 lbs

Categories	CNC Milling & Engraving Machine
Make	Ganesh
Model	Deluxe GMV-3

Payment Terms

A booking advance secures this machine, with the balance due prior to loading. We accept bank transfer, Stripe, and Letter of Credit for qualifying export orders.
