Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
| Features: |
|---|

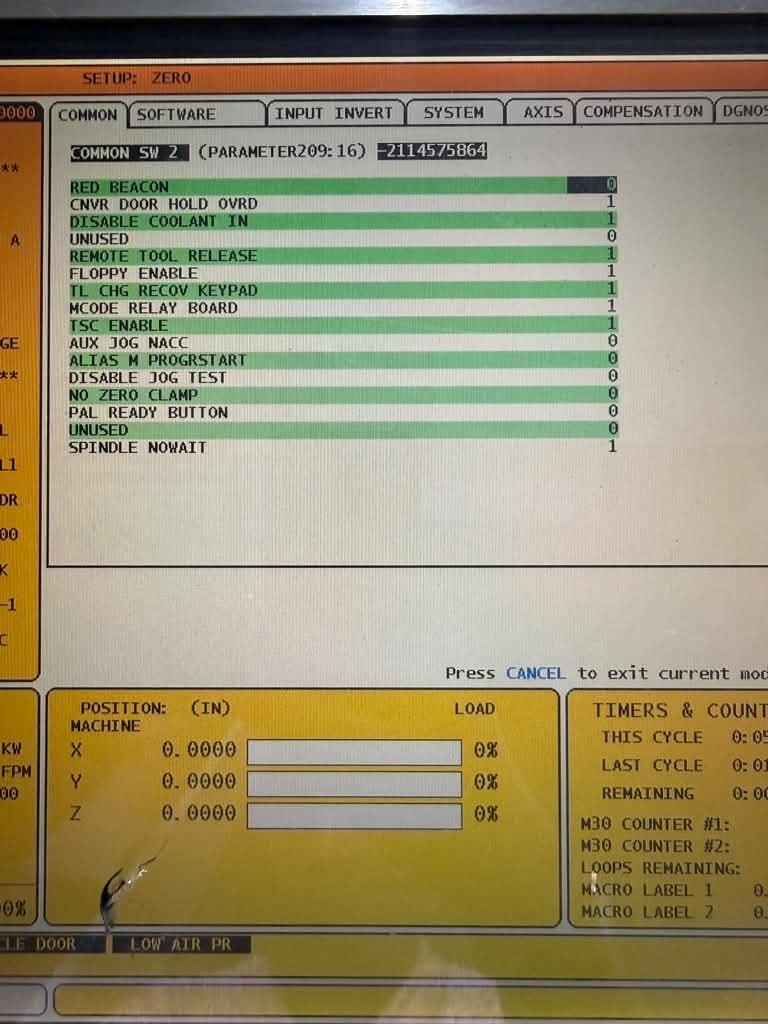

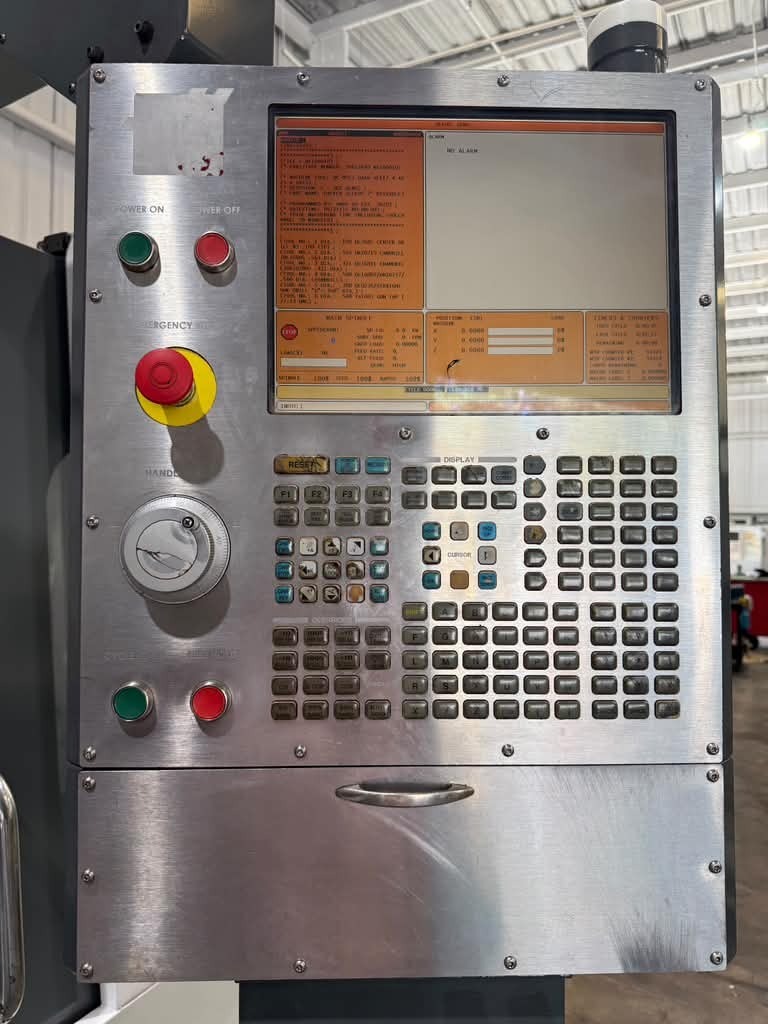

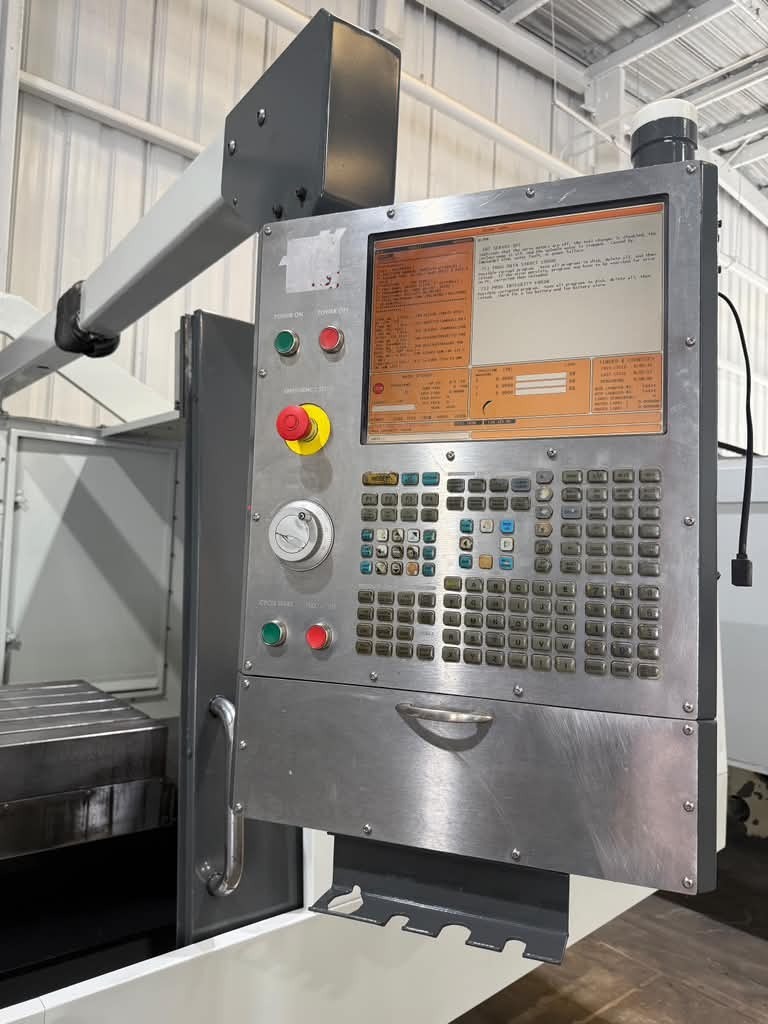

| Haas CNC Control |
| 4th Axis Ready |

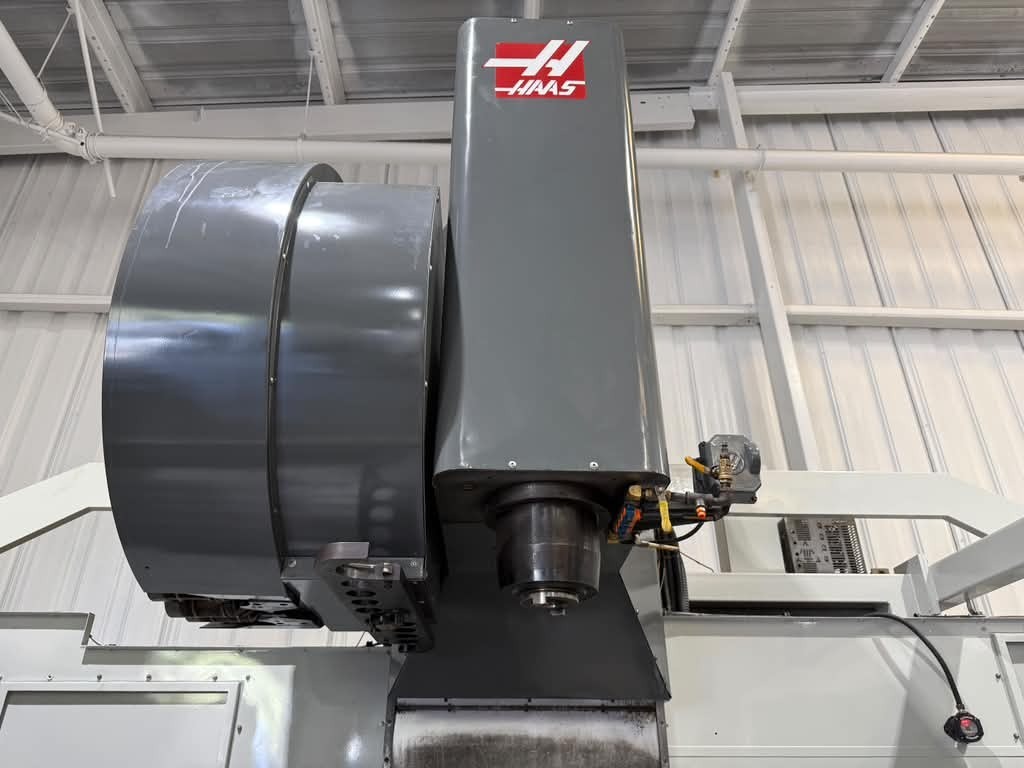

| 7,500 RPM CAT-50 Taper Spindle |
| 30 HP 2-Speed Gear Haas Vector Drive |
| 30-Station Automatic Tool Changer |
| Through-Spindle Coolant |
| Renishaw Receiver Installed |
| Tool Presetter |
| High Speed Machining |
| Rigid Tapping |

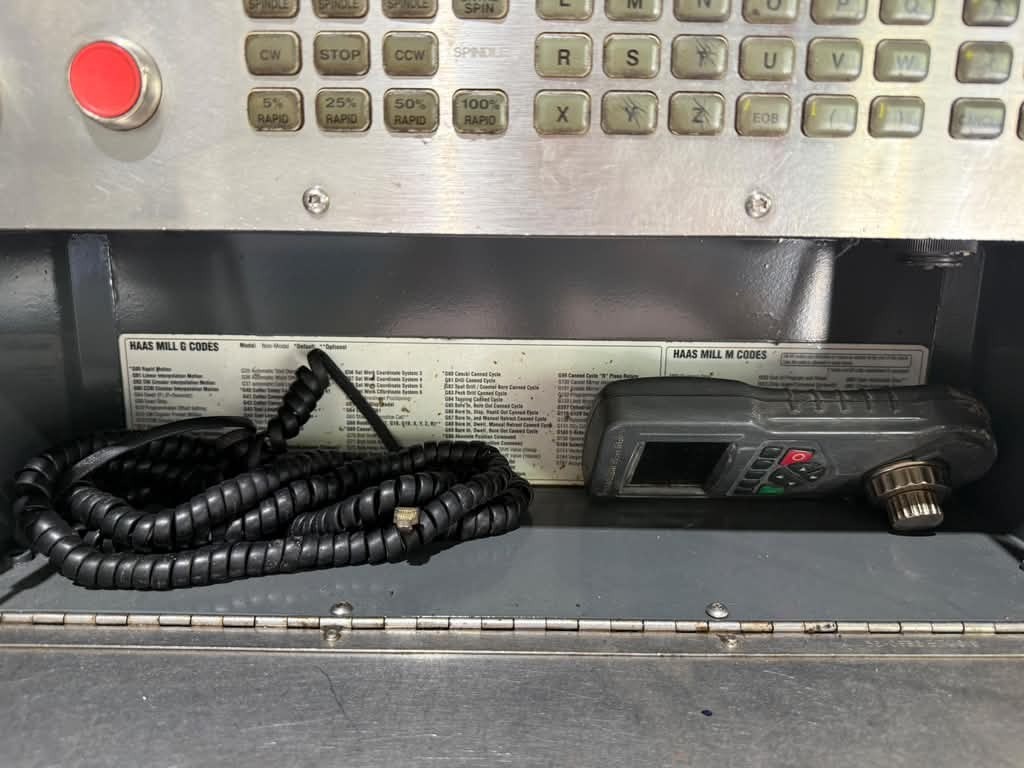

| MPG Handwheel Control |
| Rotation and Scaling |
| Floppy Enable |
| Enable DNC |
| M19 Spindle Orientation |
| Enable Macro |
| Quick Code |
| Expanded Memory |
| Advanced Tool Management |
| Extra Large Tools |
| Coolant Tank |
| Chip Auger |

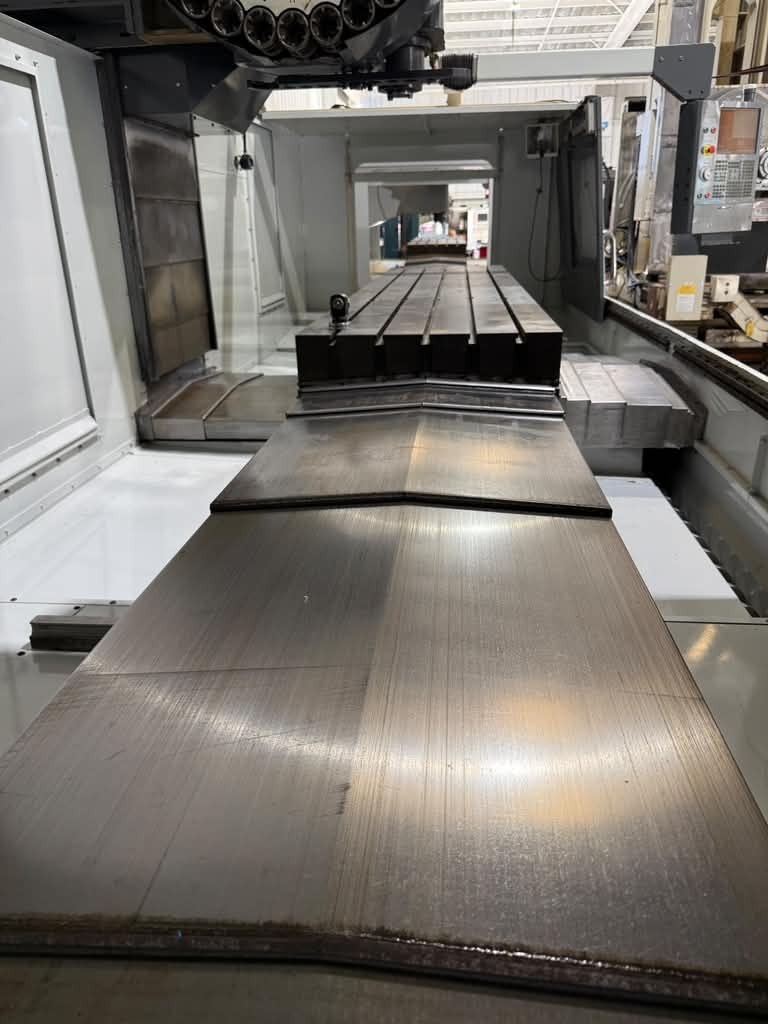

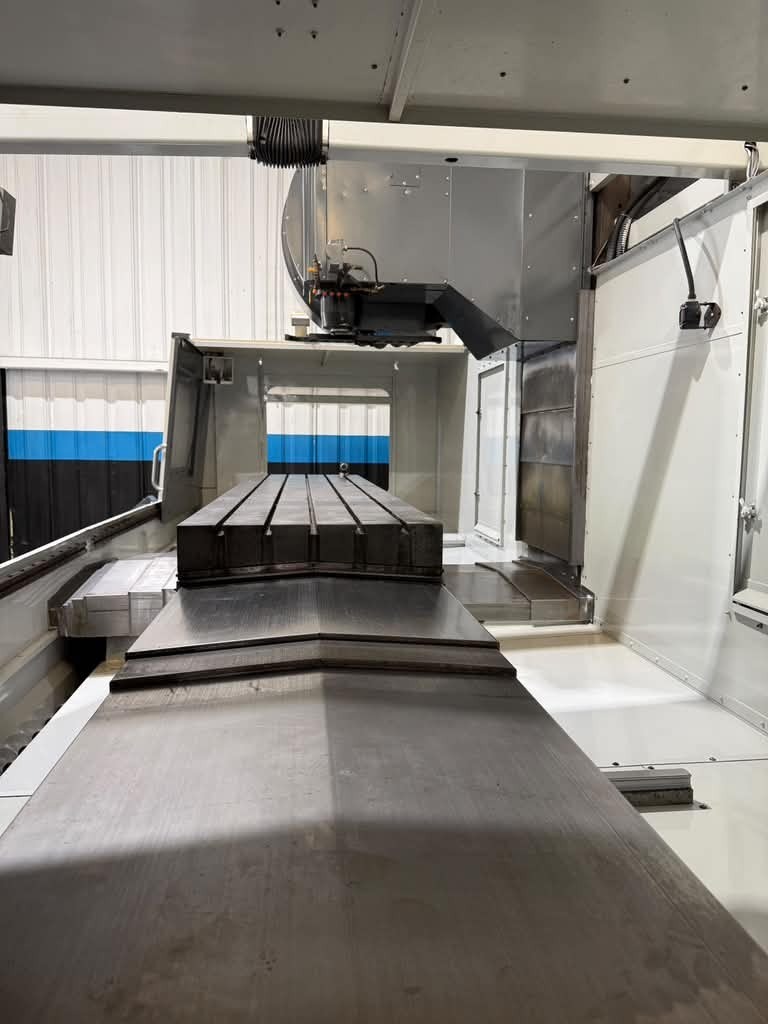

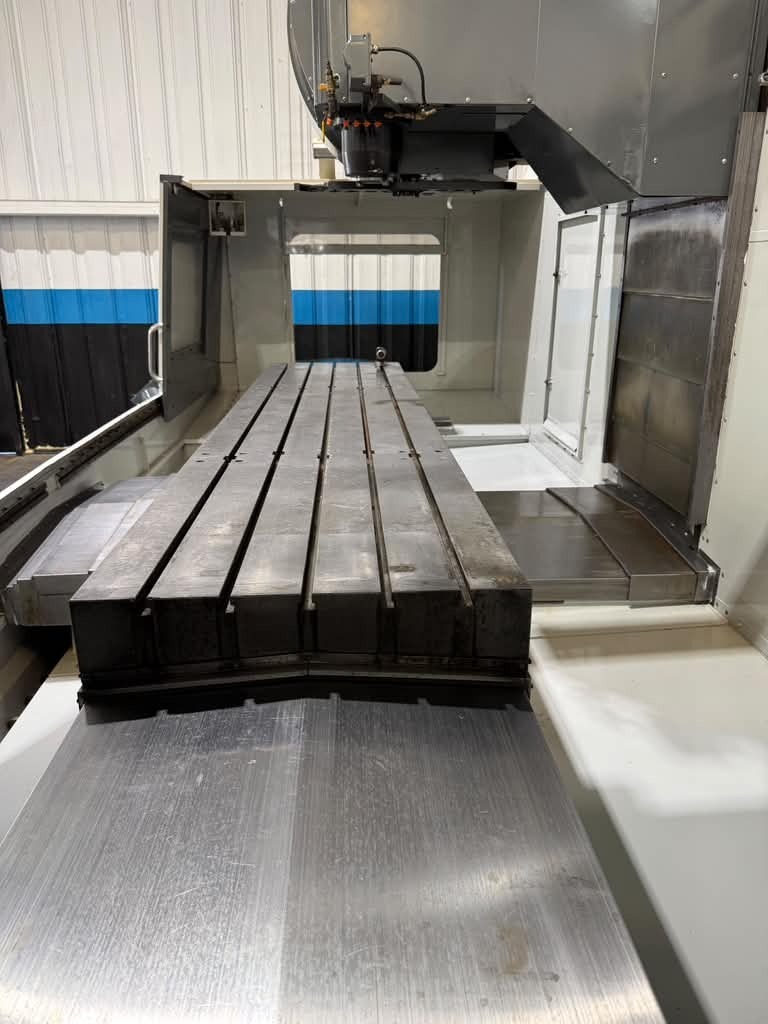

| Table: |
|---|
| Length: 120″ |
| Width: 28″ |
| Number of Standard T-Slots: 5 |
| T-Slot Width: 0.626″ |
| Maximum Weight on Table: 4,000 lbs |
| Travel: |
|---|
| X-Axis Travel: 120″ |
| Y-Axis Travel: 40″ |
| Z-Axis Travel: 30″ |
| Rapid Traverse X-Axis: 360 IPM |
| Rapid Traverse Y-Axis: 600 IPM |
| Rapid Traverse Z-Axis: 600 IPM |
| Cutting Feed Rate: 360 IPM |
| Spindle Nose to Table (Min.-Max.): 5″ – 35″ |

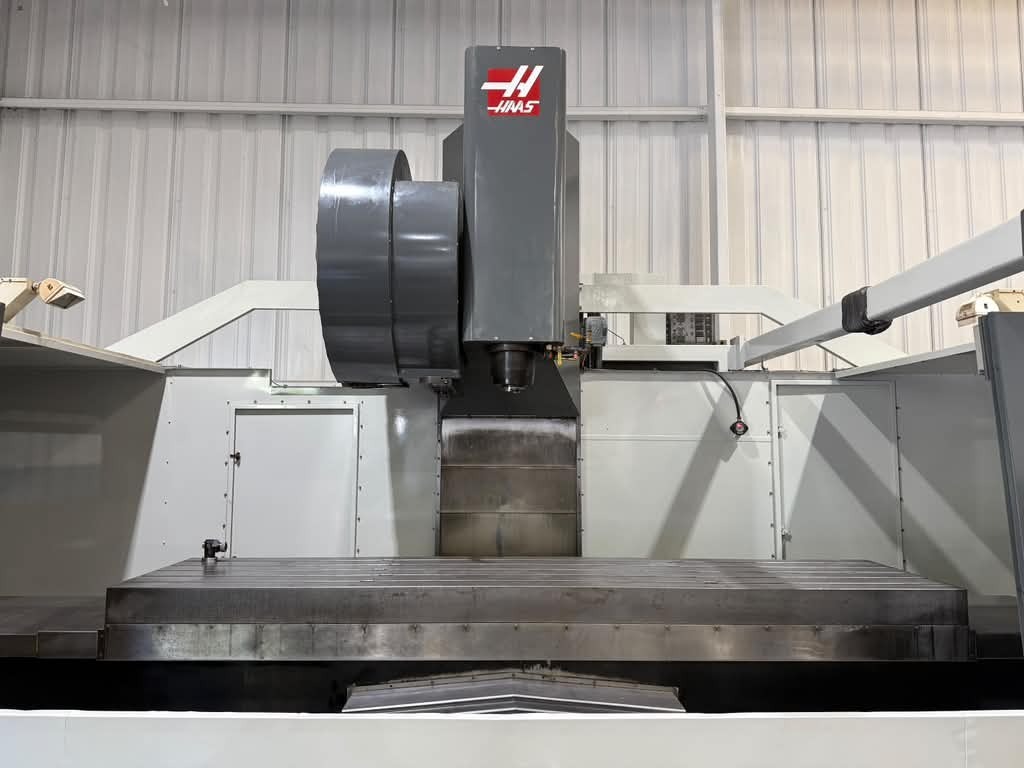

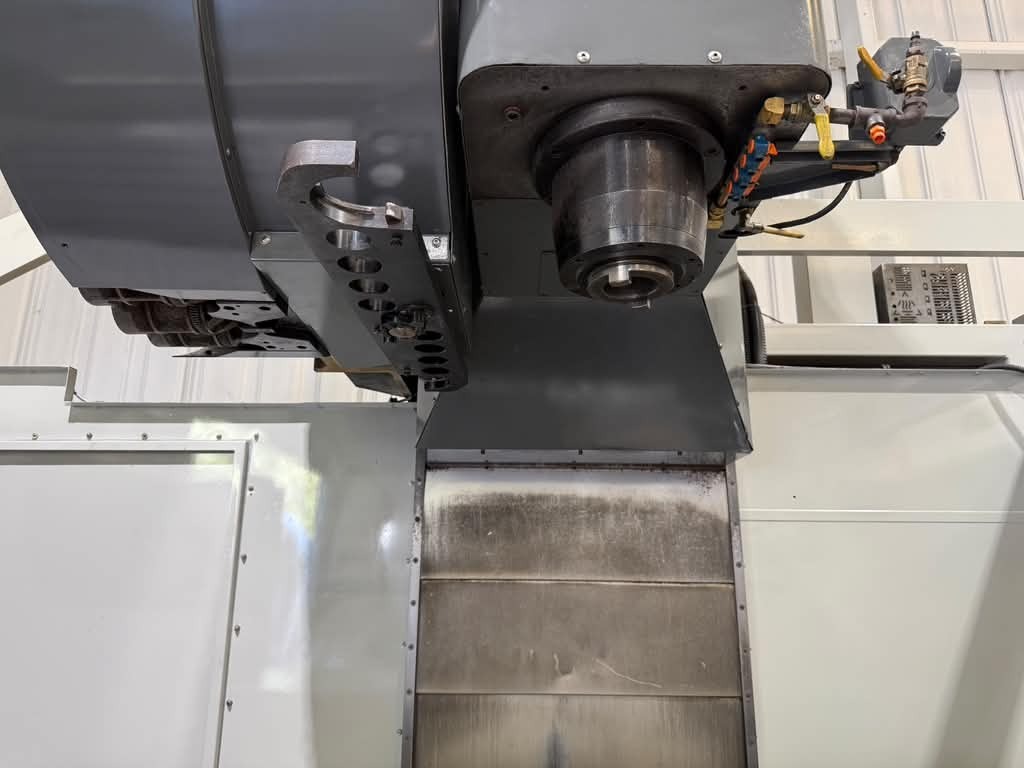

| Spindle: |
|---|
| Taper Size: CAT-50 |
| Speed Range: 7,500 RPM |
| Spindle Power: 30 HP |
| Drive System: 2-Speed Gear Drive |

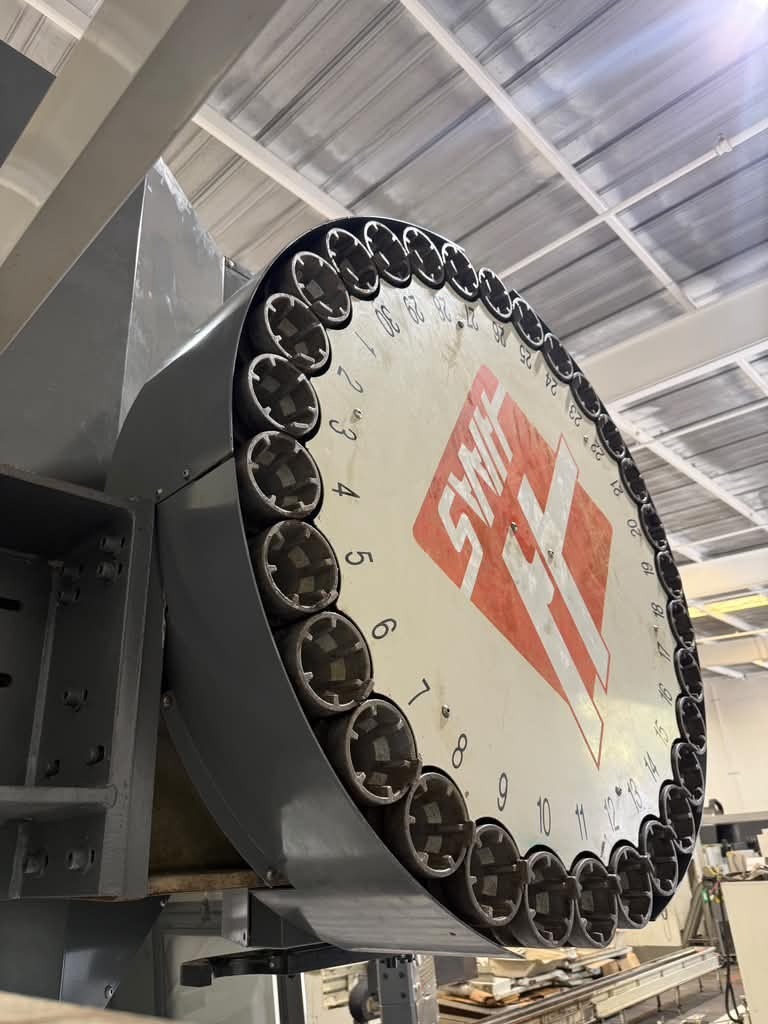

| Automatic Tool Changer: |
|---|
| Capacity: 30 Stations |
| Maximum Tool Diameter (Full): 4.02″ |
| Maximum Tool Length: 16.00″ |
| Maximum Tool Weight: 30 lbs |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

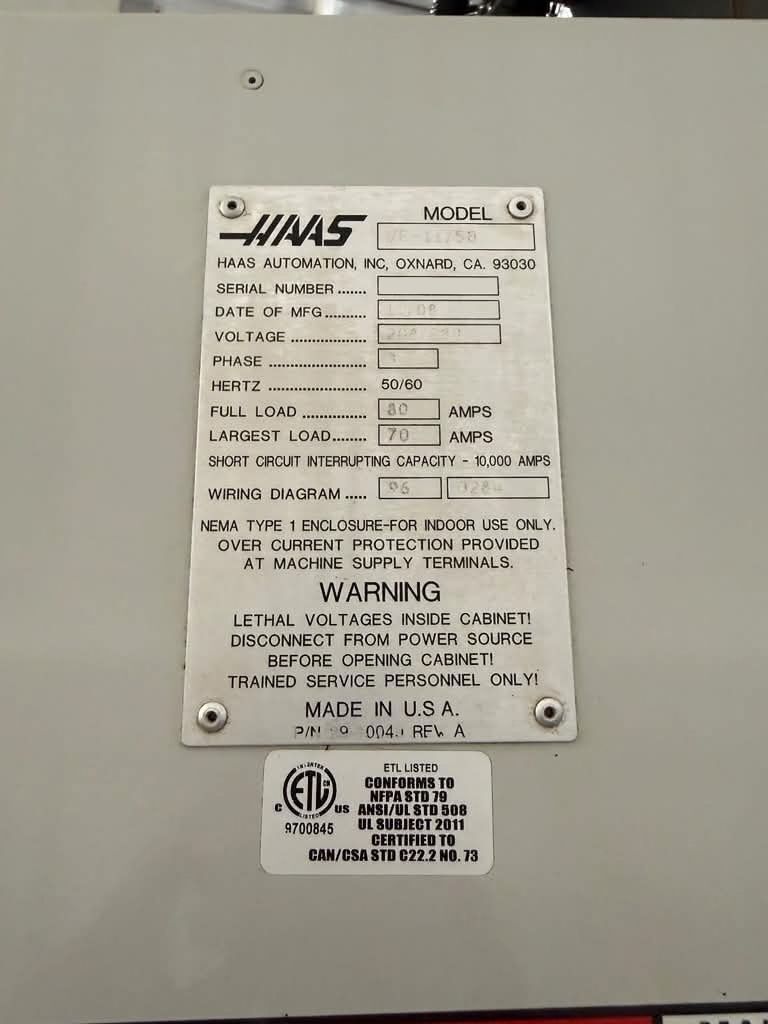

| Power: 208-230V / 3-Phase / 50-60 Hz |
| Overall Dimensions: 288″ × 120″ × 131″ High |
| Weight: 35,700 lbs Approx. |
