*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Ganesh |
| Model: | GT38120 |
| Condition: | Used – Good |

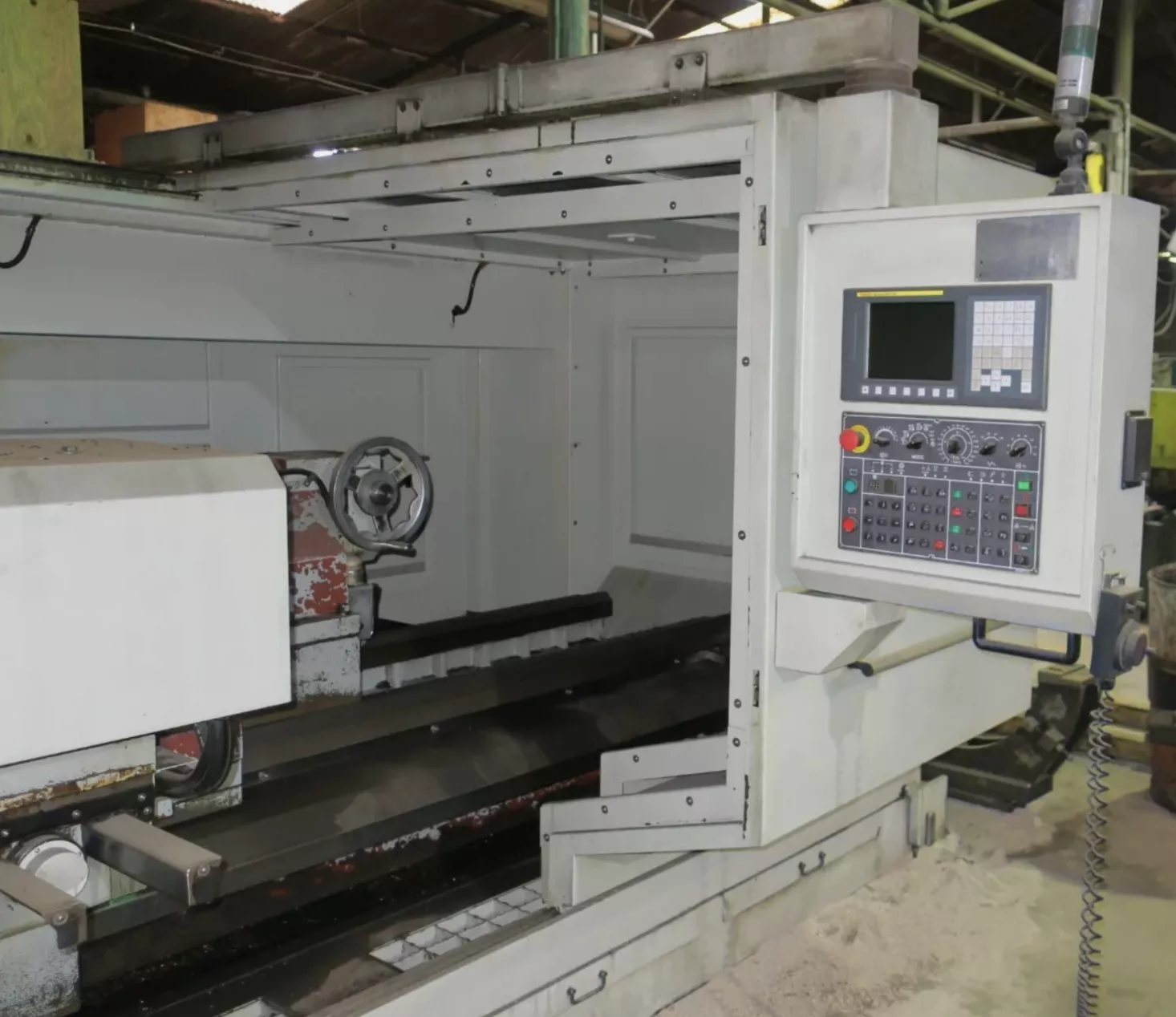

| Machine Type: | Heavy-Duty CNC Lathe / Turning Center |
| CNC Control: | Fanuc CNC Control |
| Equipped With: |
|---|
| Fanuc CNC Control |

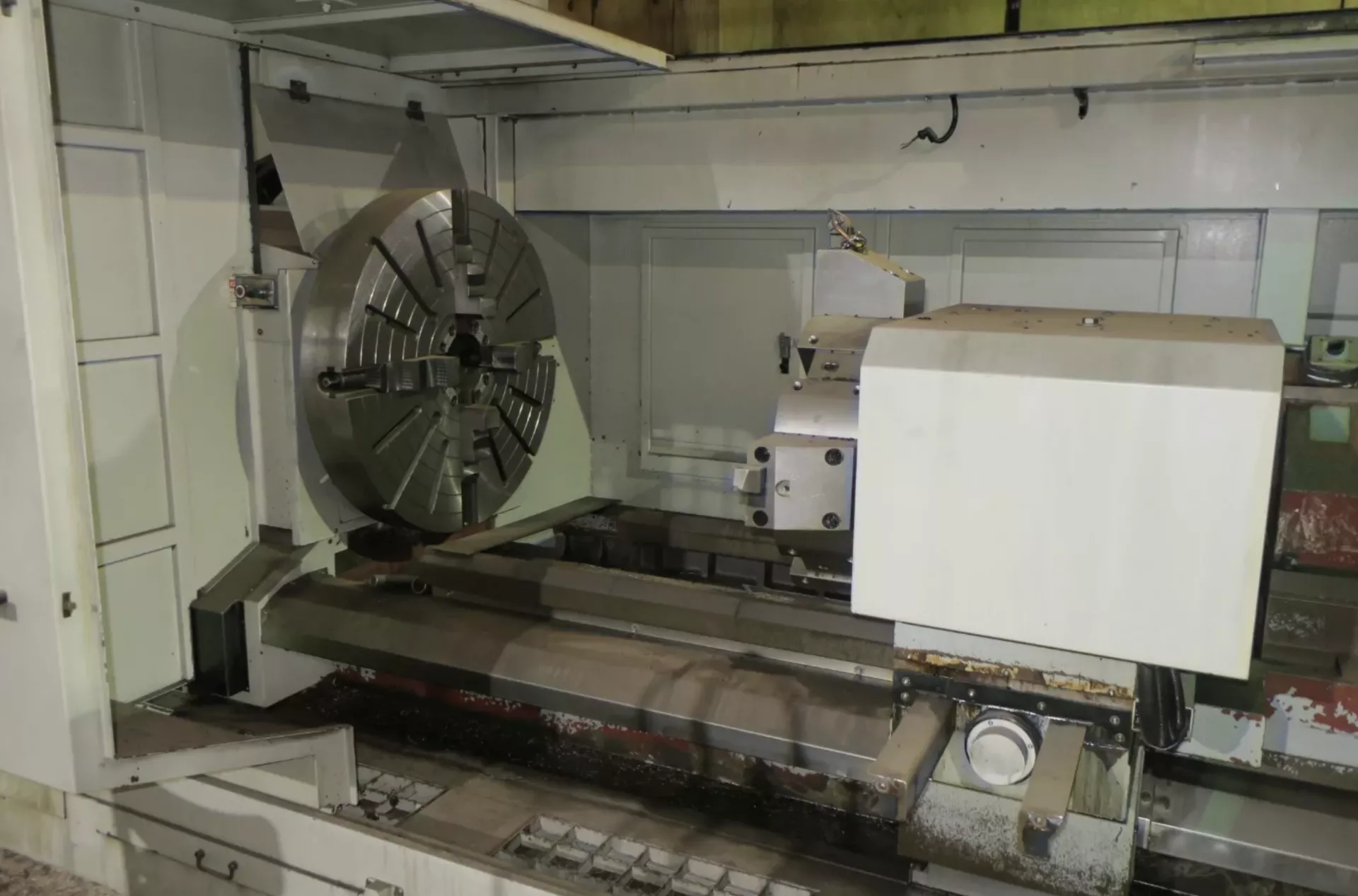

| 3-Jaw Hydraulic Chuck |
| 4-Way / 6-Way Tool Post |
| Tailstock with Quill |
| Coolant System |
| Work Light |
| Automatic Lubrication System |
| Foot Pedal Chuck Control |
| Full Machine Enclosure |
| Capacity: |
|---|
| Swing Over Bed: 38″ (965 mm) |
| Swing Over Cross Slide: Approx. 24″ (610 mm) |
| Maximum Turning Diameter: Approx. 37.8″ (960 mm) |
| Maximum Turning Length: 120″ (3,048 mm) |
| Distance Between Centers: 120″ (3,048 mm) |
| Spindle: |
|---|
| Spindle Bore: Approx. 6.1″ (155 mm) |
| Spindle Speed Range: 20 – 800 RPM |
| Spindle Motor Power: Approx. 30 HP |
| Spindle Nose: A2-11 |
| Travel: |
|---|
| X-Axis Travel: Approx. 19.7″ (500 mm) |
| Z-Axis Travel: Approx. 122″ (3,100 mm) |
| Feedrates: |
|---|
| Rapid Traverse (X-Axis): Approx. 6 m/min |
| Rapid Traverse (Z-Axis): Approx. 8 m/min |
| Tailstock: |
|---|
| Tailstock Quill Diameter: Approx. 4.9″ (125 mm) |
| Tailstock Quill Travel: Approx. 7.9″ (200 mm) |
| Tailstock Taper: MT-6 |
| Electrical: |
|---|
| Power Requirement: Approx. 35 – 45 kVA |
| Voltage: 220 / 380 / 440 V |
| Phase: 3-Phase |
| General: |
|---|
| Machine Length: Approx. 216″ (5,500 mm) |
| Machine Width: Approx. 86″ (2,200 mm) |
| Machine Height: Approx. 83″ (2,100 mm) |
| Machine Weight: Approx. 22,000 lbs (10,000 kg) |
| Features: |
|---|
| Heavy-Duty CNC Lathe Designed for Large Diameter Turning Applications |
| Large 38″ Swing Over Bed for Oversized Workpieces |
| Long Turning Capacity up to 120″ Between Centers |
| High Torque Spindle Motor for Heavy Cutting Operations |
| Rigid Cast Iron Bed Construction for Stability and Accuracy |
| Large Spindle Bore Ideal for Pipe and Shaft Machining |
| User-Friendly CNC Control for Reliable Operation |
| Ideal for Oil & Gas Components, Shafts, Heavy Industrial Parts, and Large Cylindrical Components |
