*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

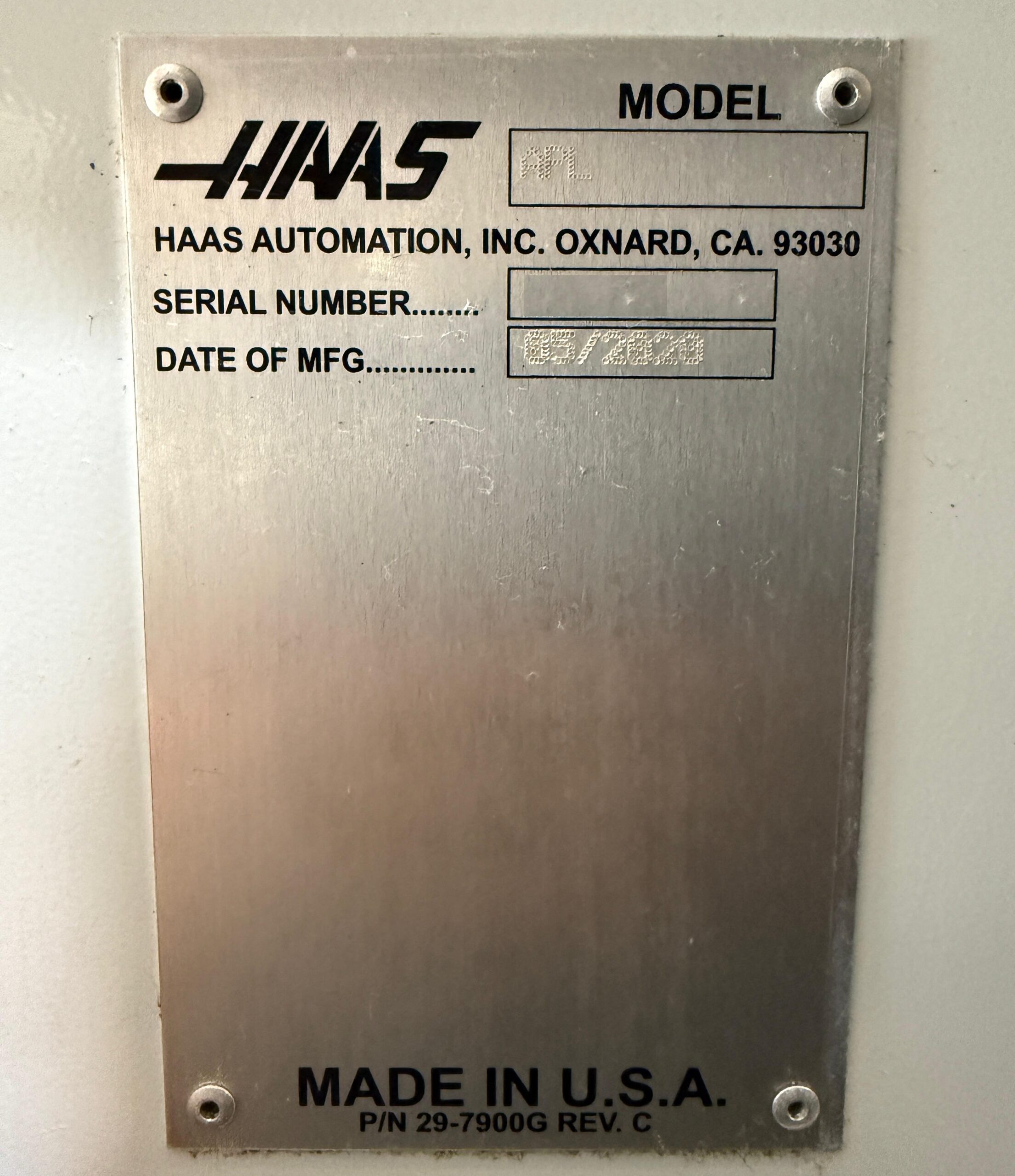

| Make: | Haas |

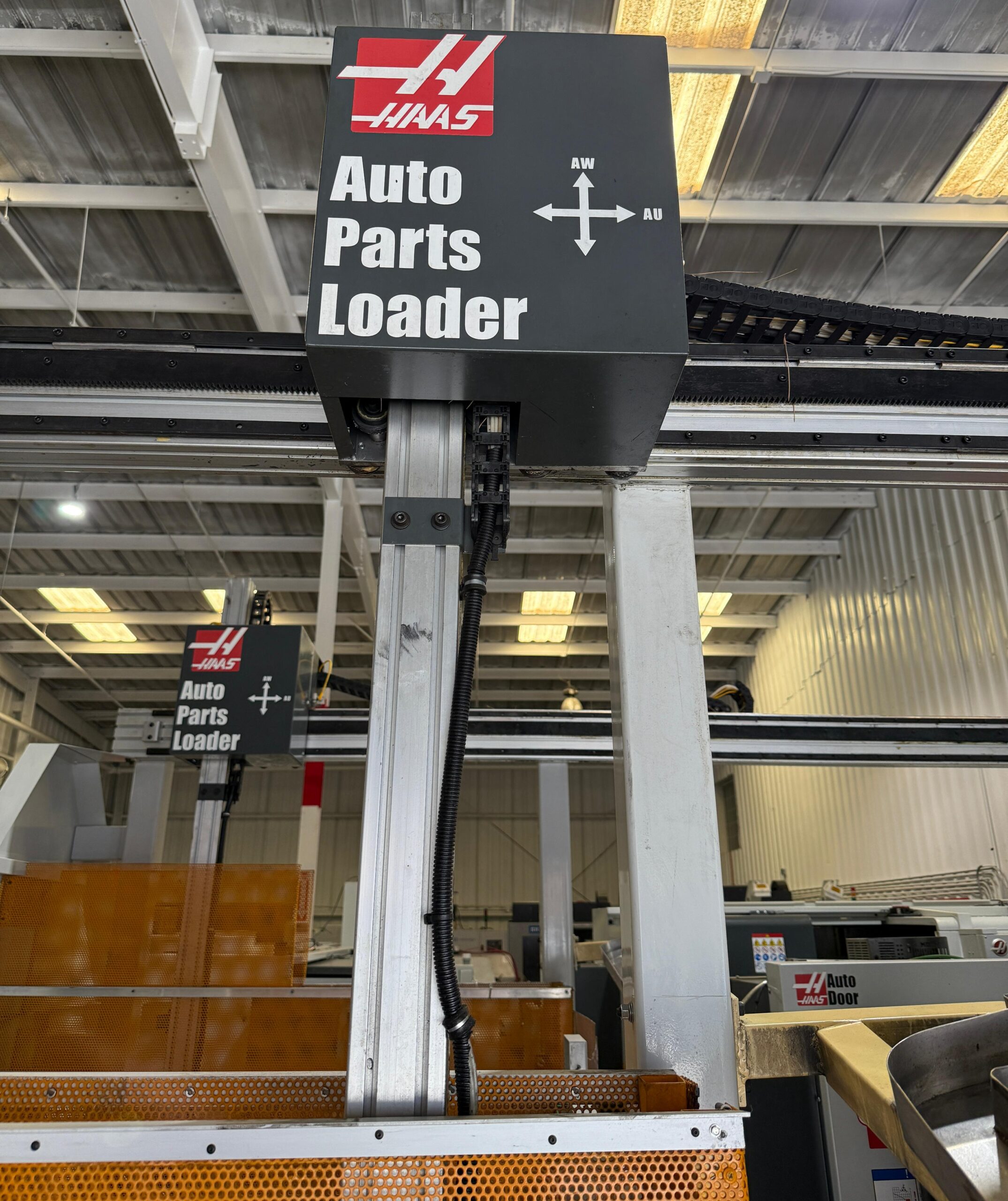

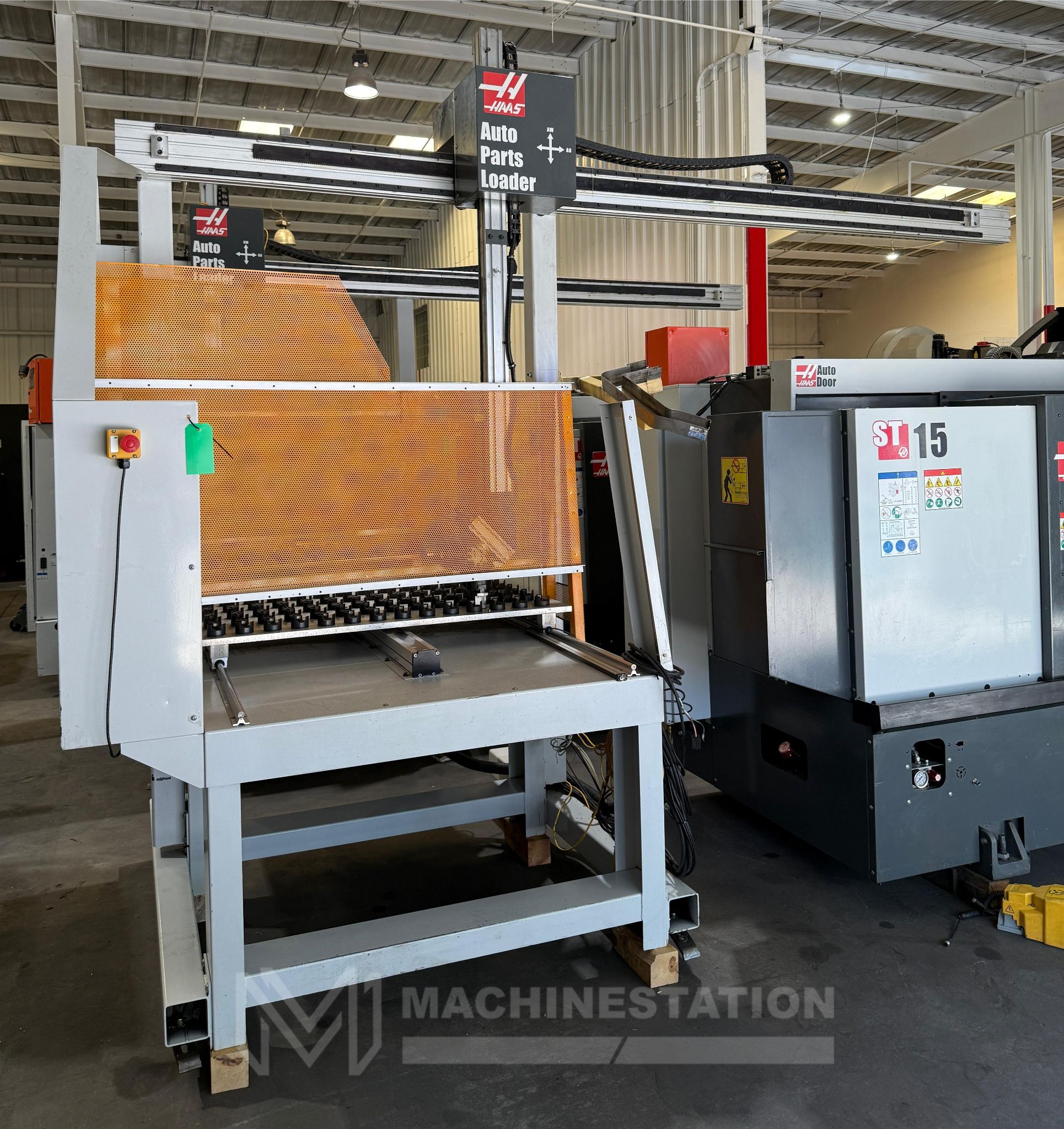

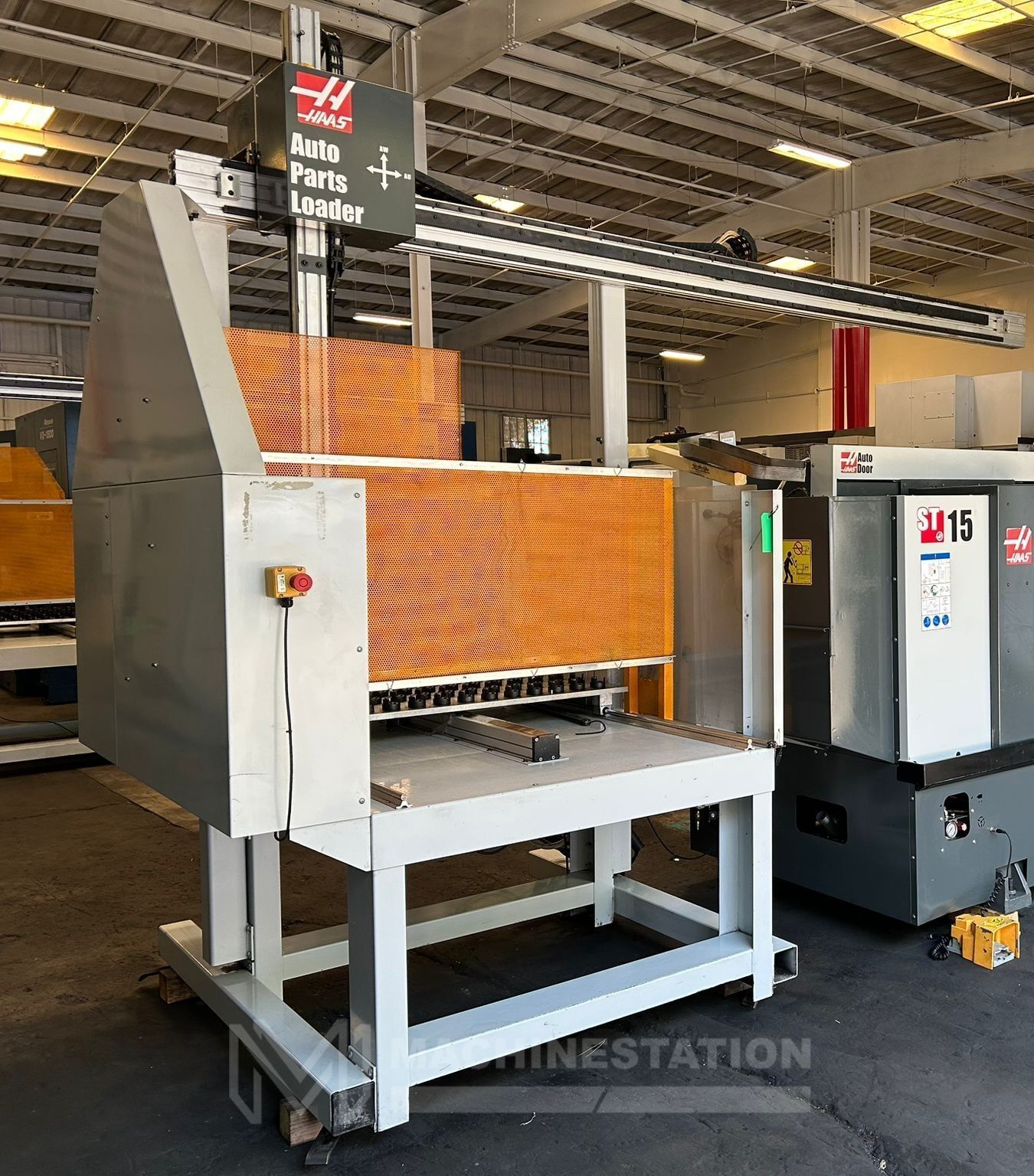

| Model: | Auto Parts Loader – APL |
| Year: | 2020 |
| Features: |
|---|
| Interfaces Directly with the Haas control |
| Easy-to-use interface in the Haas control |
| Accommodates parts up to 5.8″ diameter x 5″ length x 10 lb |
| Compatible with with Haas ST-10Y/ST10Y, ST-15/ST15, ST-15Y/ST15Y, ST-20/ST20, ST-20Y/ST20Y, ST-25/ST25, ST-25Y/ST25Y, ST-28/ST28, and ST-28Y/ST28Y CNC Lathes |
| Travels: |
|---|
| AU Axis Travel : 111″ |
| AV Axis Travel : 28″ |
| AW Axis Travel : 46″ |
| Feedrates: |
|---|
| Rapid Traverse AU Axis: 1417 IPM |
| Rapid Traverse AV Axis: 318 IPM |
| Rapid Traverse AW Axis: 1417 IPM |
| Part Size: |
|---|
| Max Part Diameter: 5.8″ |
| Max Part Length: 5.0″ |
| Max Part Weight (per gripper): 10 lbs |
| Gripper Rotation: 90 ° |

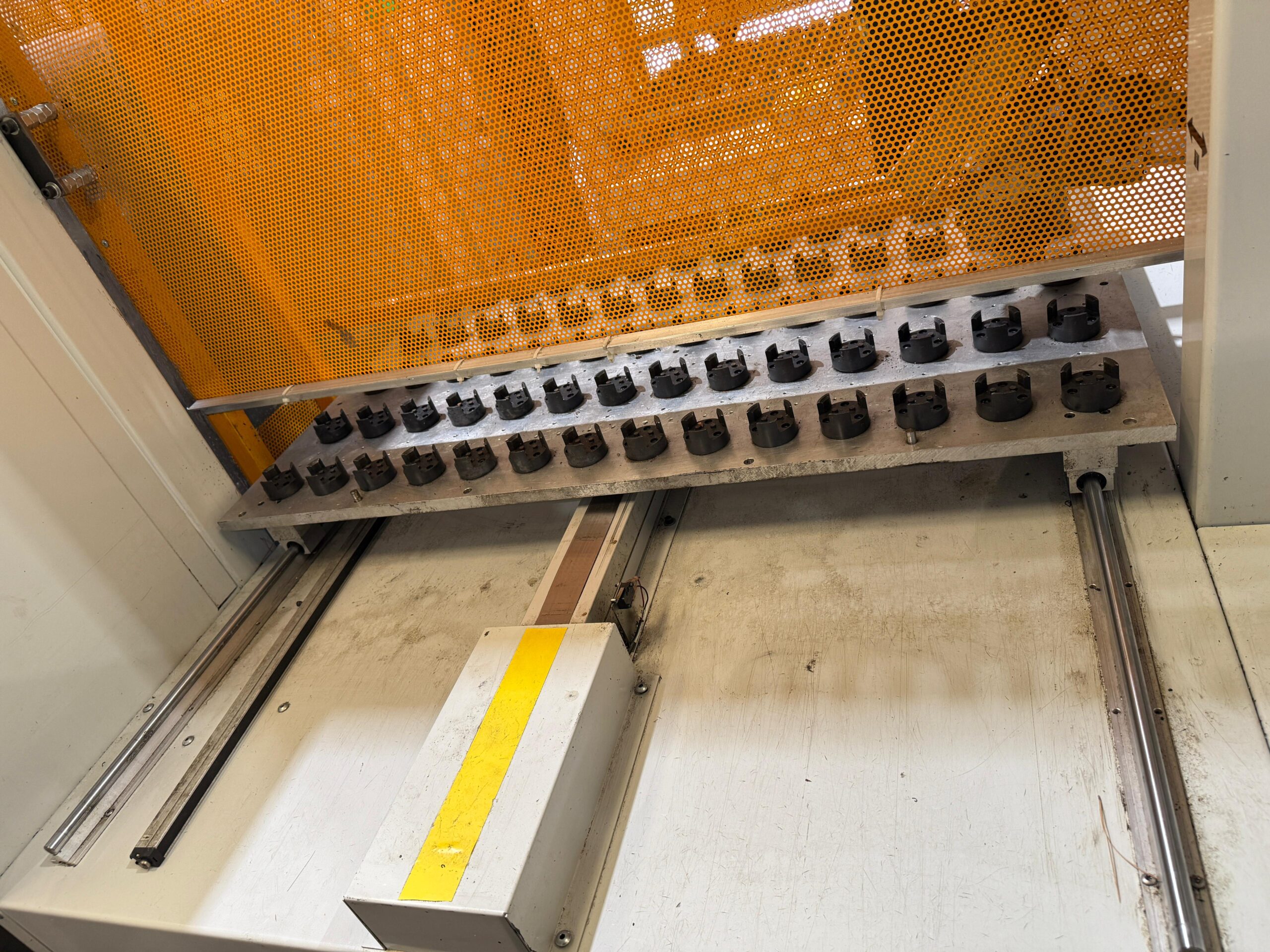

| Table: |
|---|
| Table Length: 48″ |
| Table Width: 28″ |
| Table Load Capacity: 1000 lbs |
| General: |
|---|
| Dimensions: 158″ x 72.” x 124″ High |
| Machine Weight: 2300 lbs Approx. |
