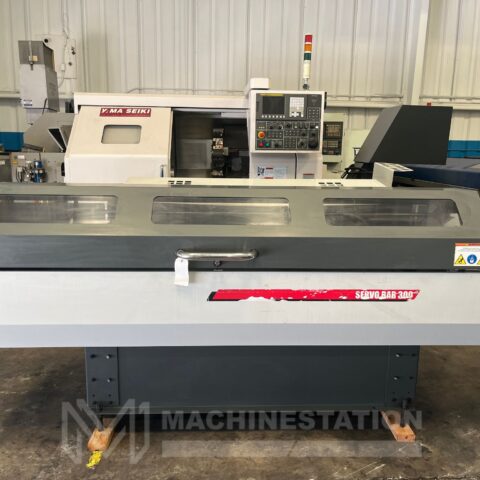

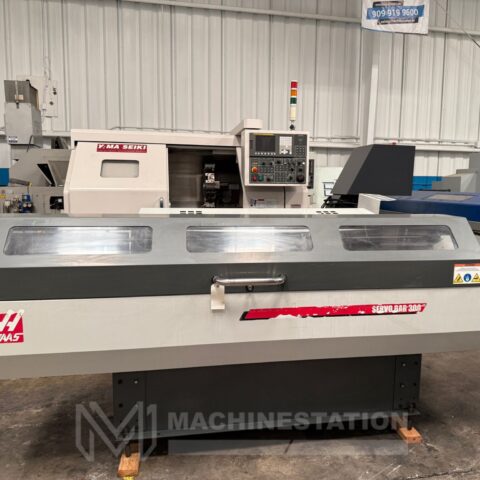

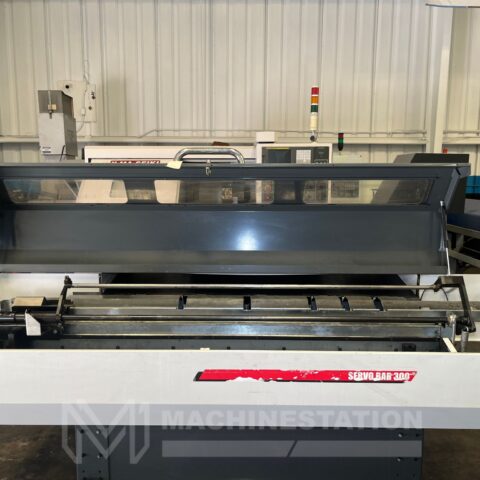

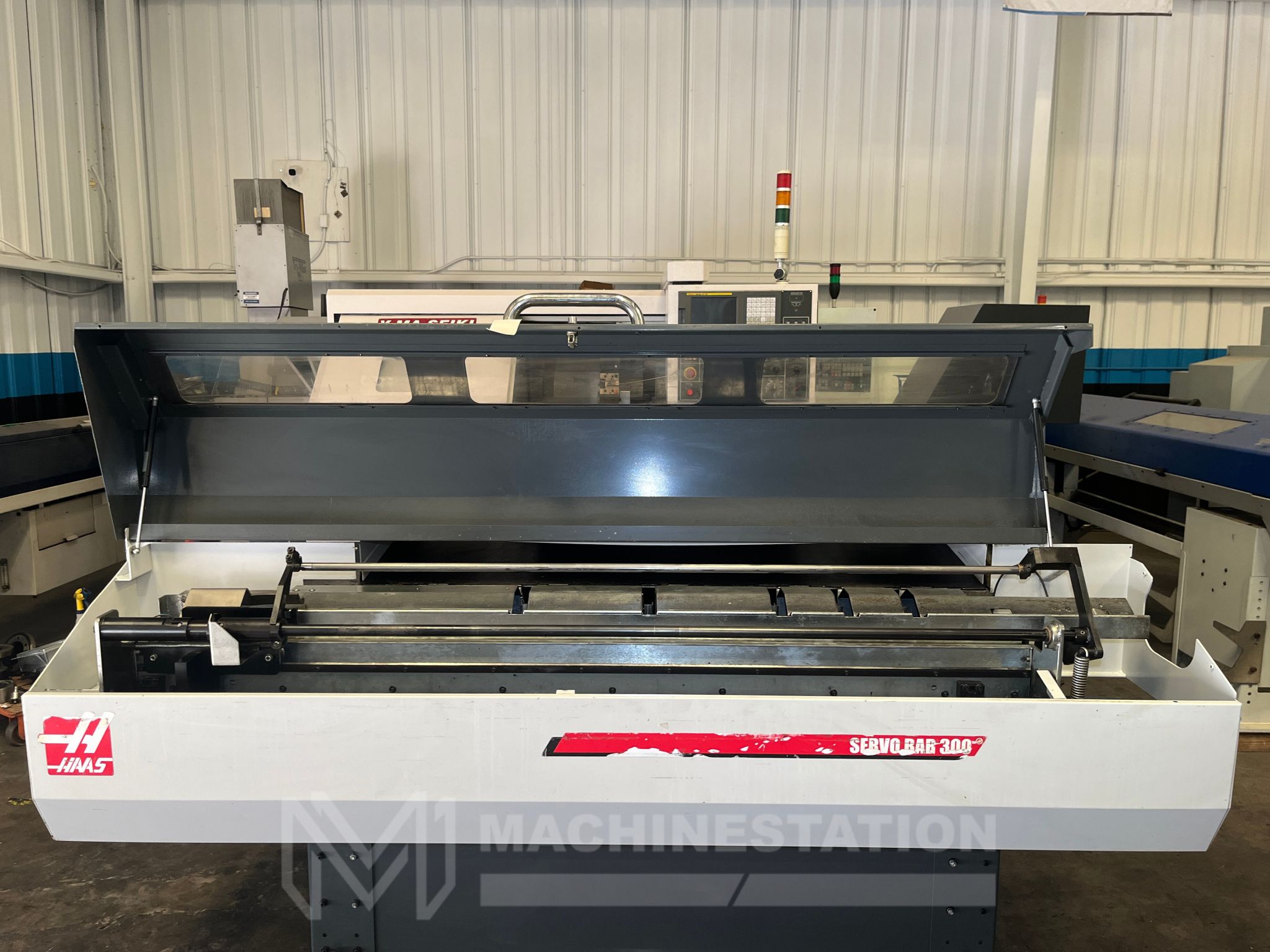

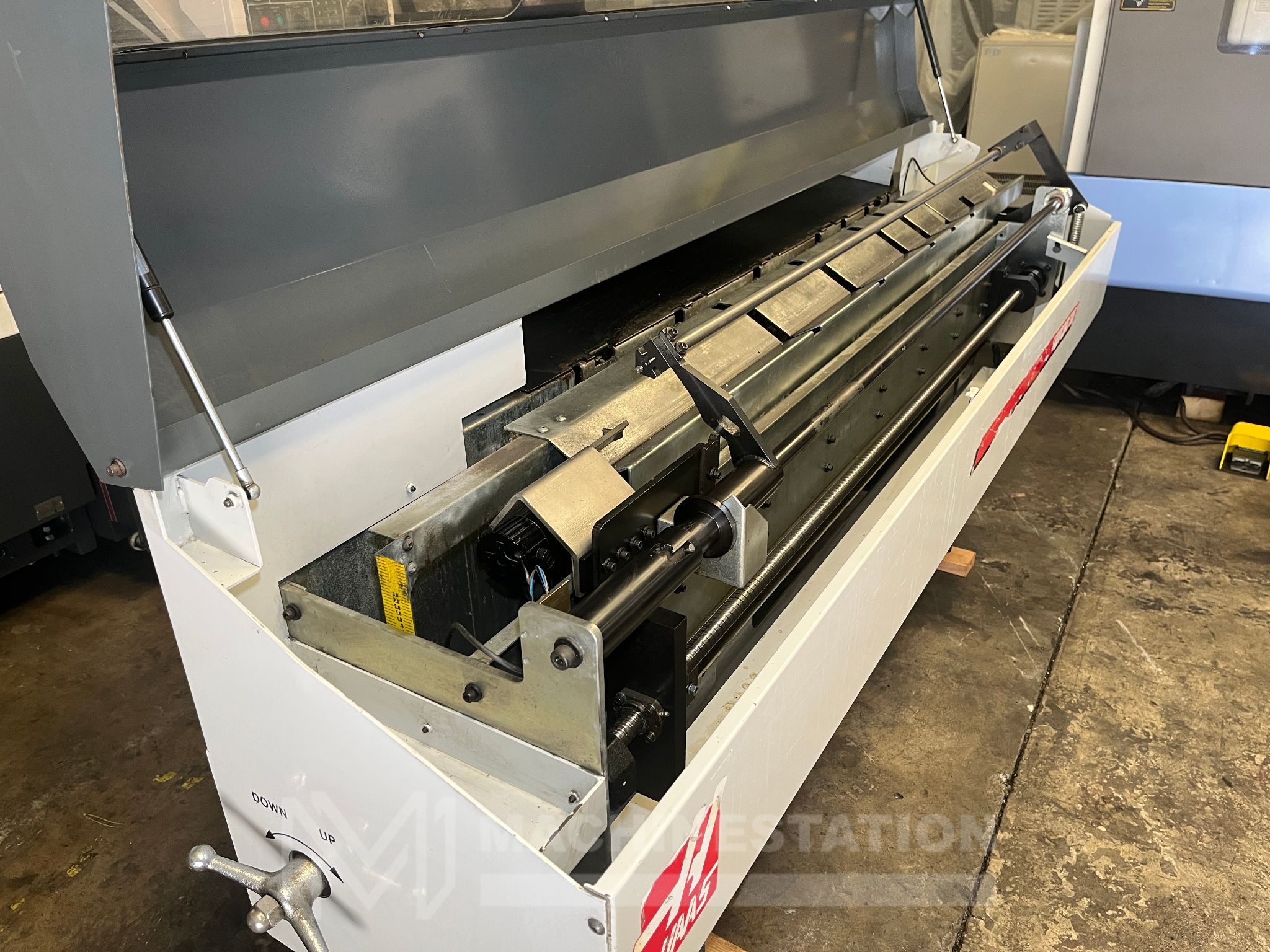

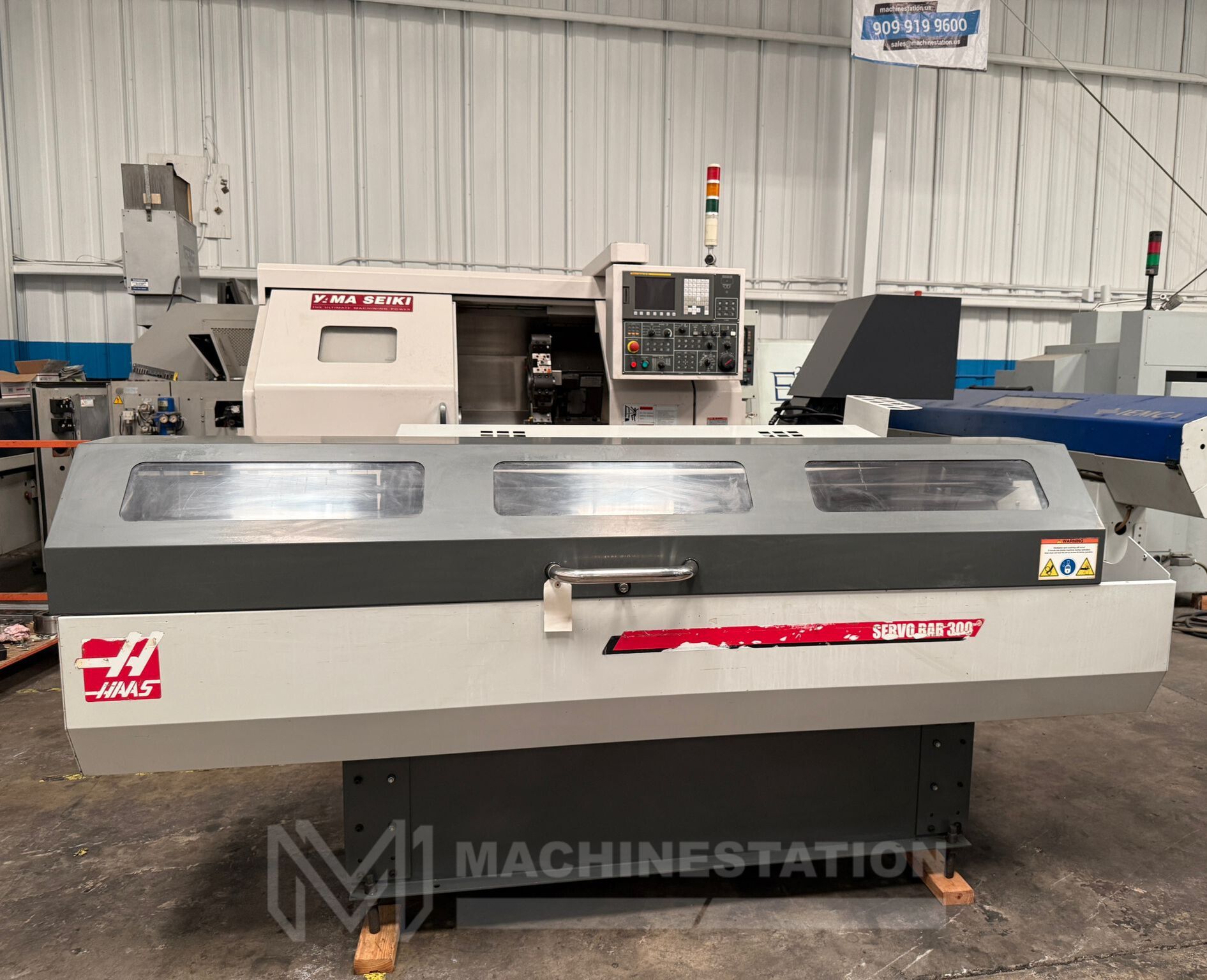

Haas BAR48A Automatic Bar Feeder
Out of stock
| Location: | Lake Elsinore, CA |
| SKU: | 112773B |

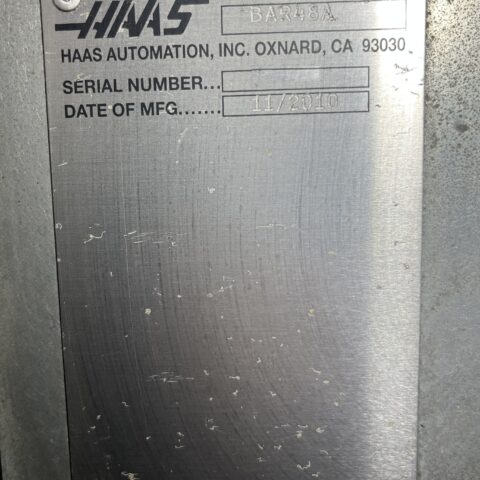

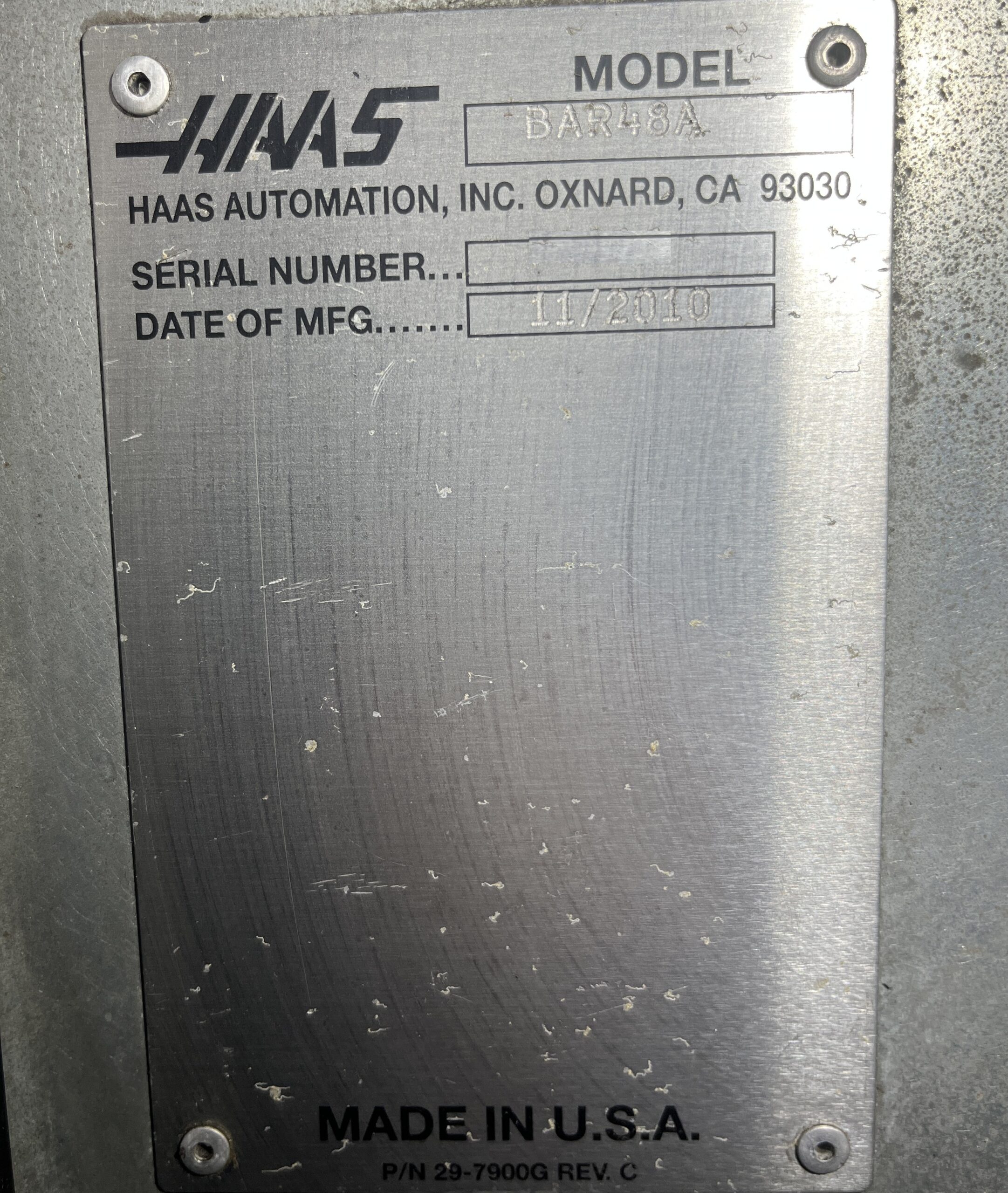

| Make/Model: | Haas BAR48A |
| Year: | 2010 |
| Condition: | Used – Good |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model: | BAR48A |
| Year: | 2010 |
| Features: |
|---|
| Exclusively For Use on Haas CNC Lathes |
| Easy Access For Quick Liner Changes |
| High Pushrod Speed For Shorter Part-to-Part Cycle Times |
| Ability to Use the Pushrod as a Stop |
| Easy Bar Diameter Changeover |
| Quick-change Pushrod Design |
| Storage for both Pushrod Diameters 3/8″ (9.5 mm) and 3/4″ (20 mm) |

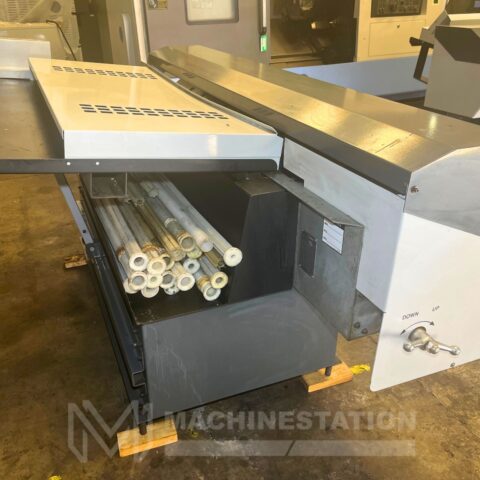

| Easily Accessible Storage For All Extruded Liners |
| Capacity: |
|---|
| Bar Diameter Range (varies w/lathe model): 0.375″ to 3.00″ |
| Bar Length Capacity: 48″ |
| Recommended Max Bar in Spindle: 48″ |
| Minimum Bar Length: 10″ |

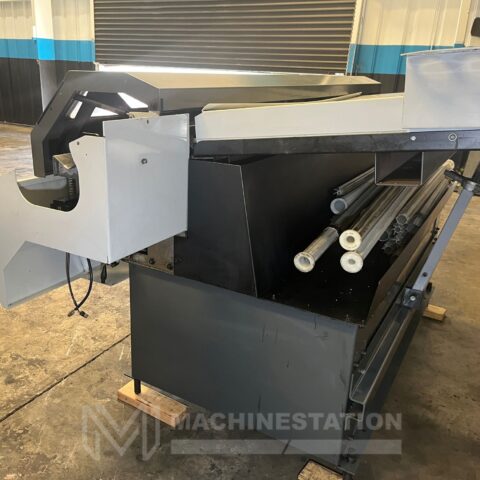

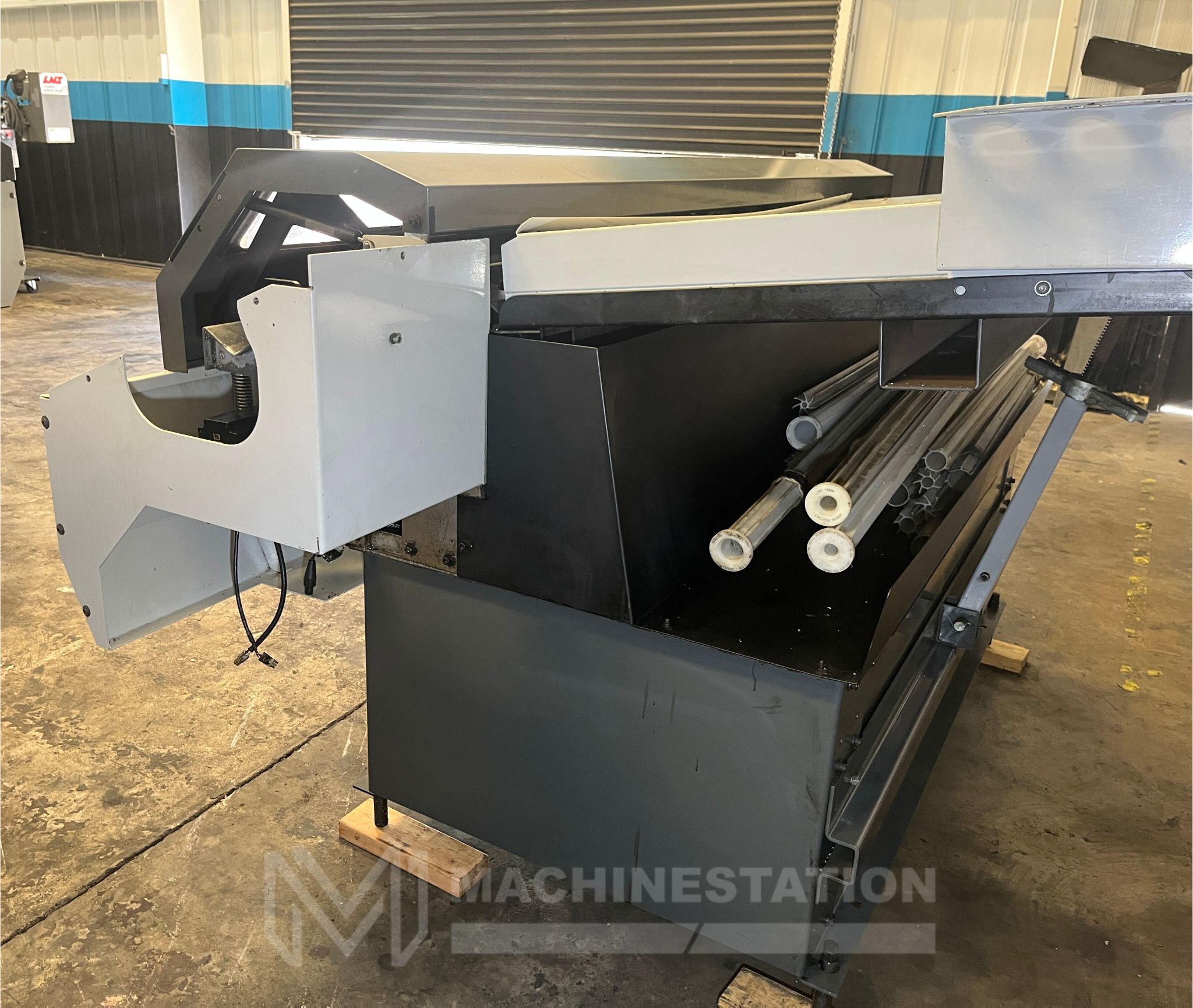

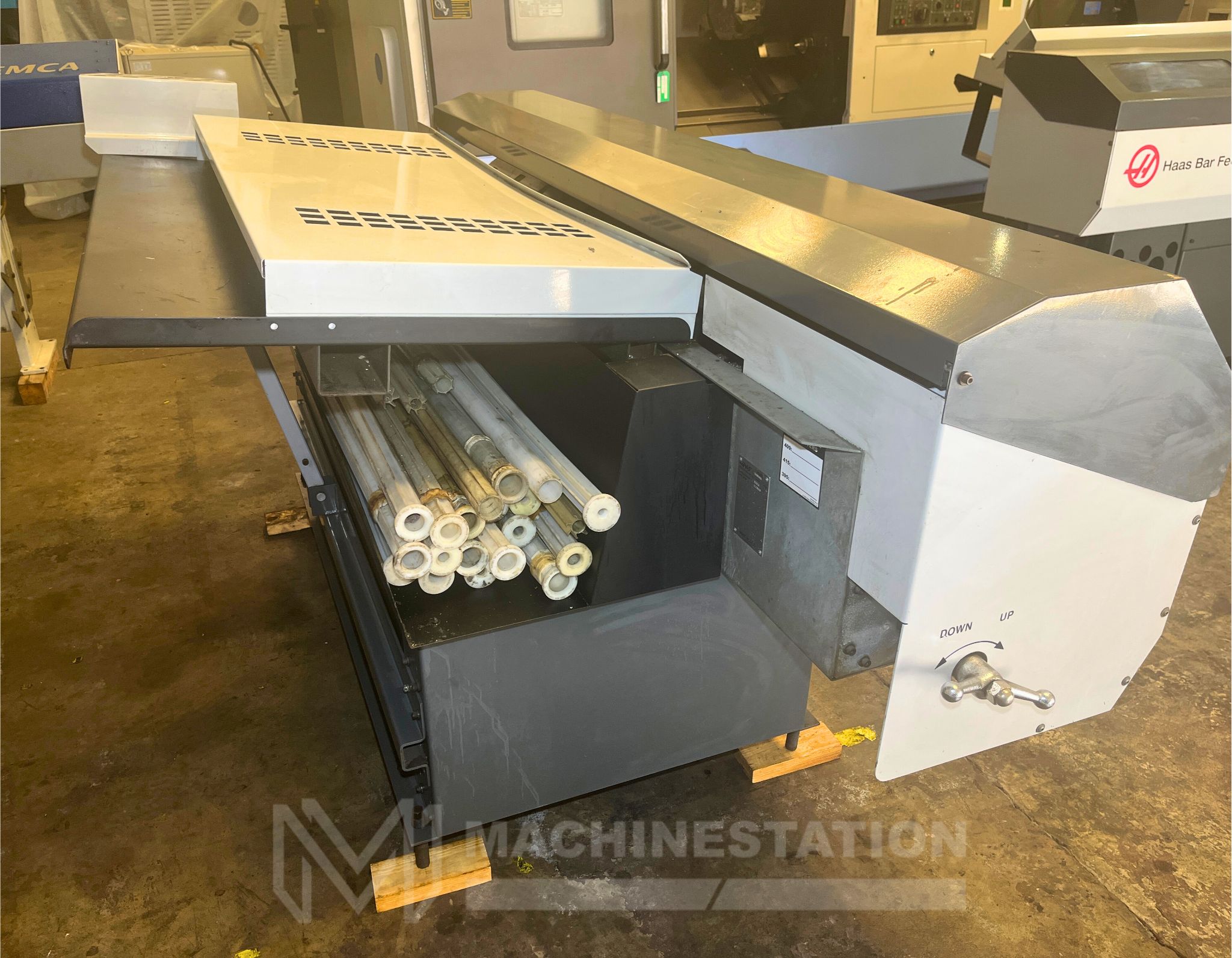

| Charging Tray: |
|---|
| Tray Capacity: 30 EA x 1″ |
| Staging Area Width: 30″ |
| Max Weight of Total Bars: 650 lbs |
| Max Bar Weight Capacity: |
|---|
| Lift Arm Max Weight Limit: 80 lbs |

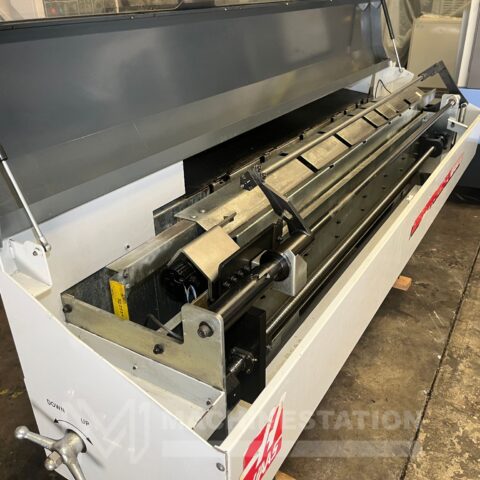

| Pushrod: |
|---|
| Maximum Thrust Push Limit: 100 lbf |
| General: |
|---|
| Power: 220v/ 3-Phase/ 50-60 Hz |
| Overall Dimensions: 90″ x 66″ x 56″ High Approx. |
| Weight: 1300 lbs Approx. |
| Make | |
|---|---|
| Model | 48A |
| Categories | Bar Feeder |
