*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

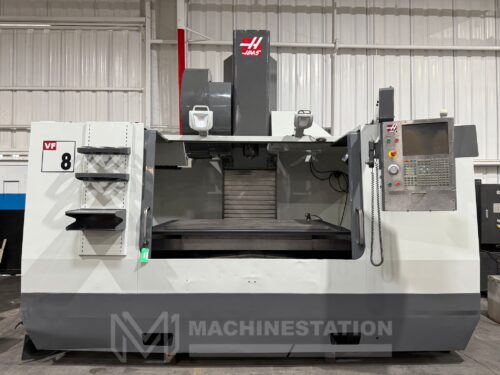

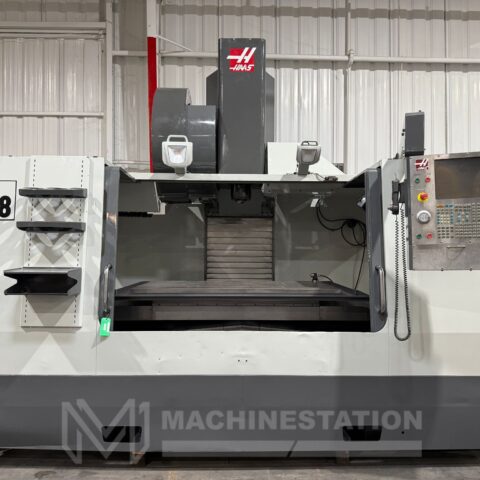

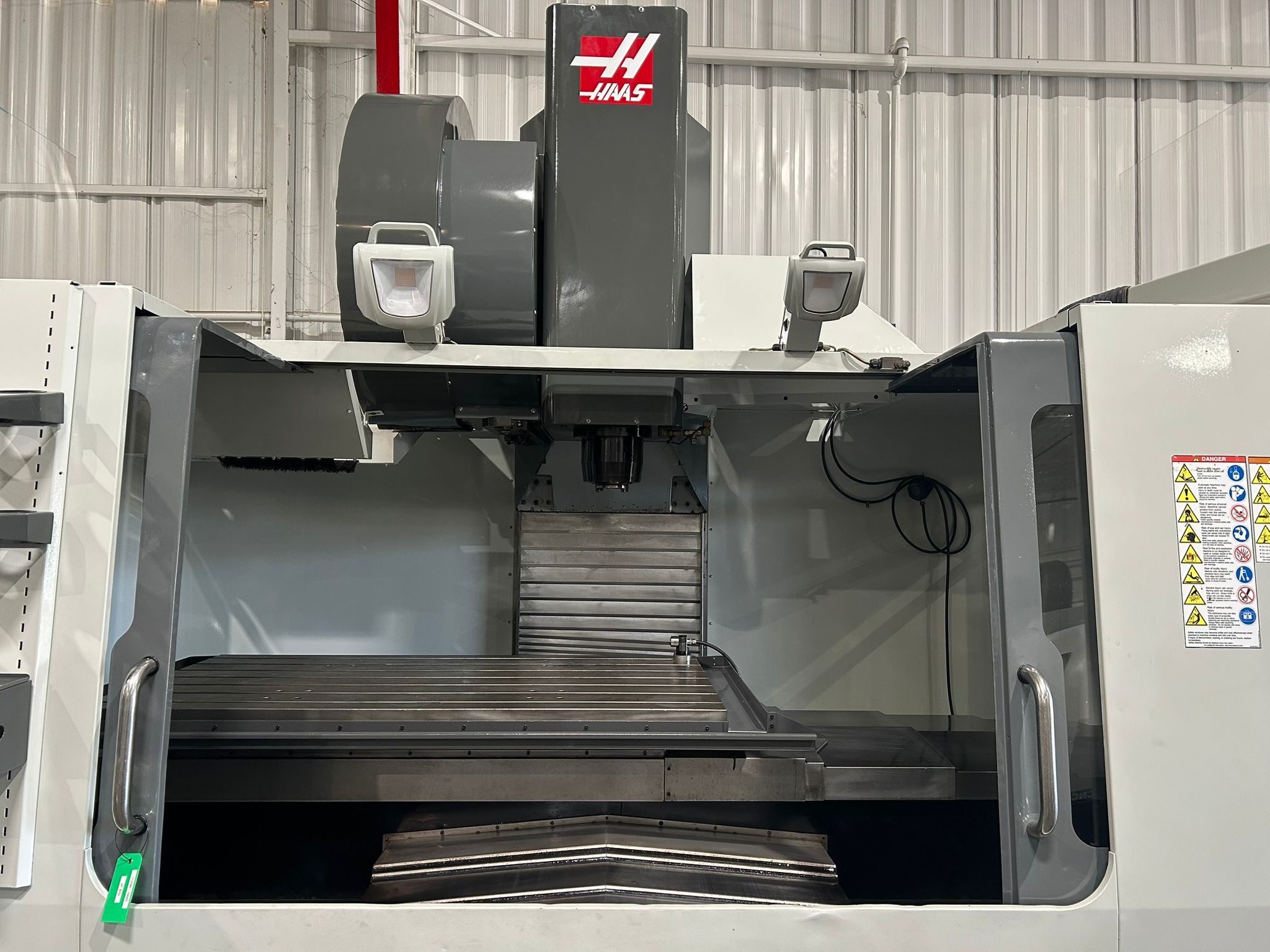

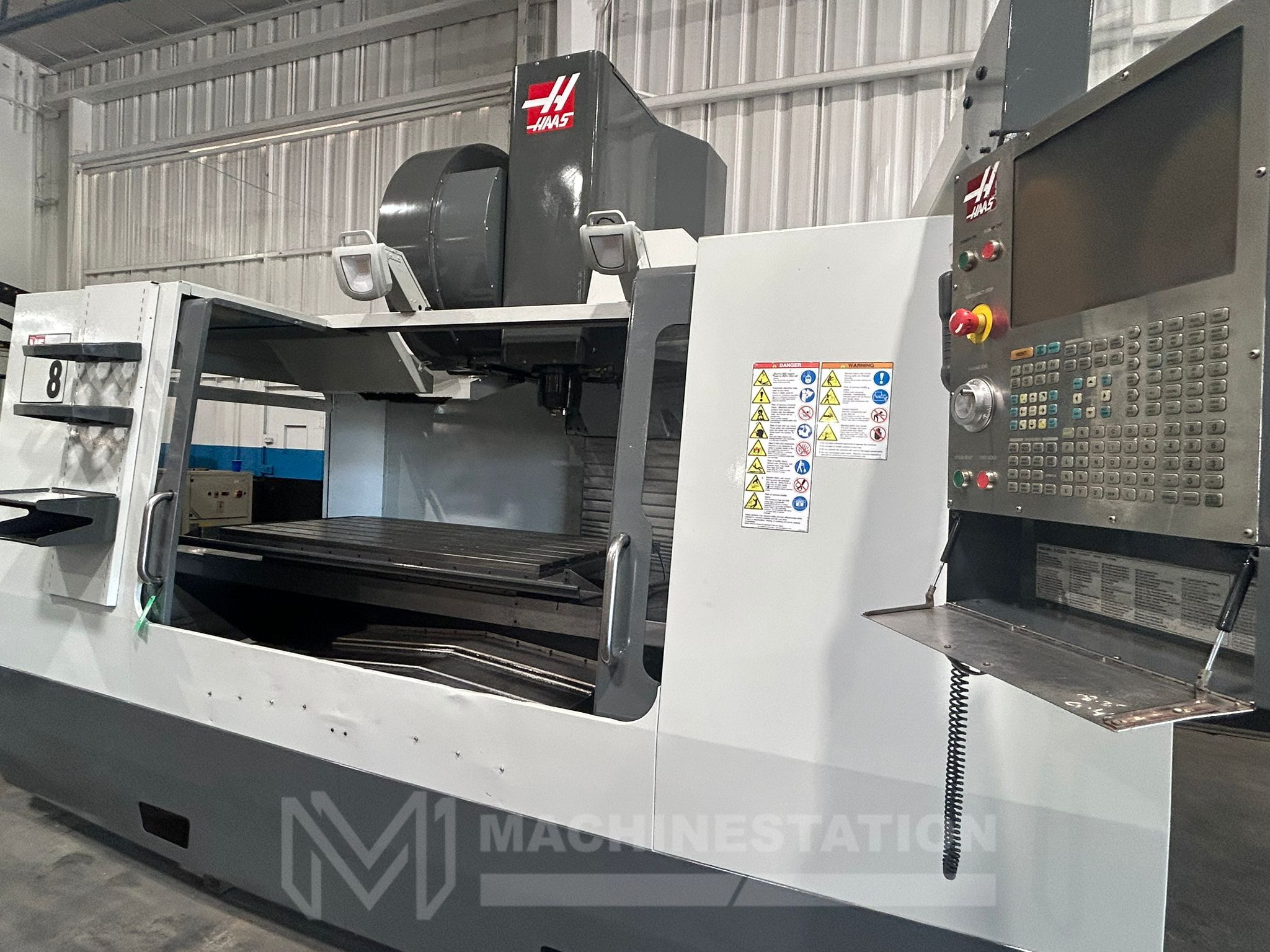

| Make: | HAAS |
| Model: | VF8/50 |
| Year: | 2006 |
| Key Features of the Haas VF-8/50: |
|---|

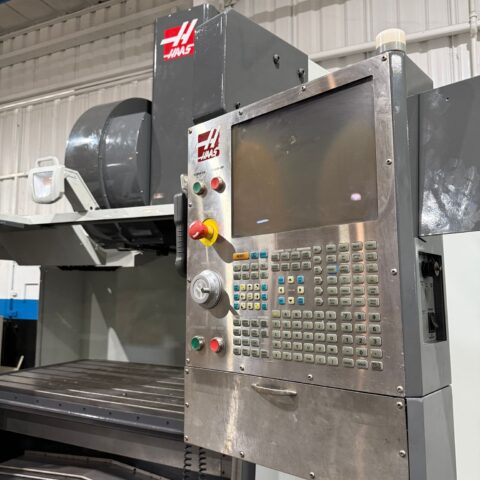

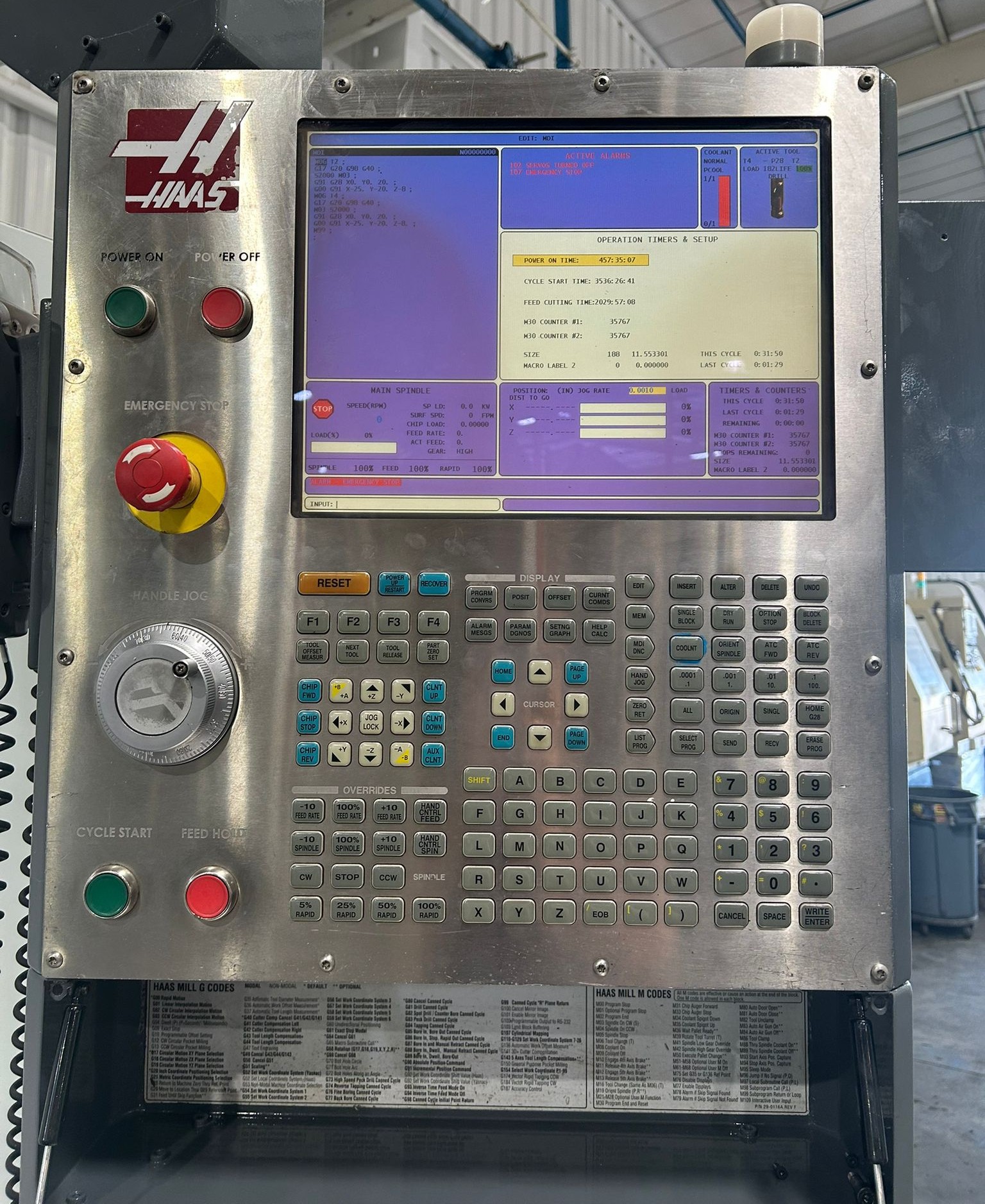

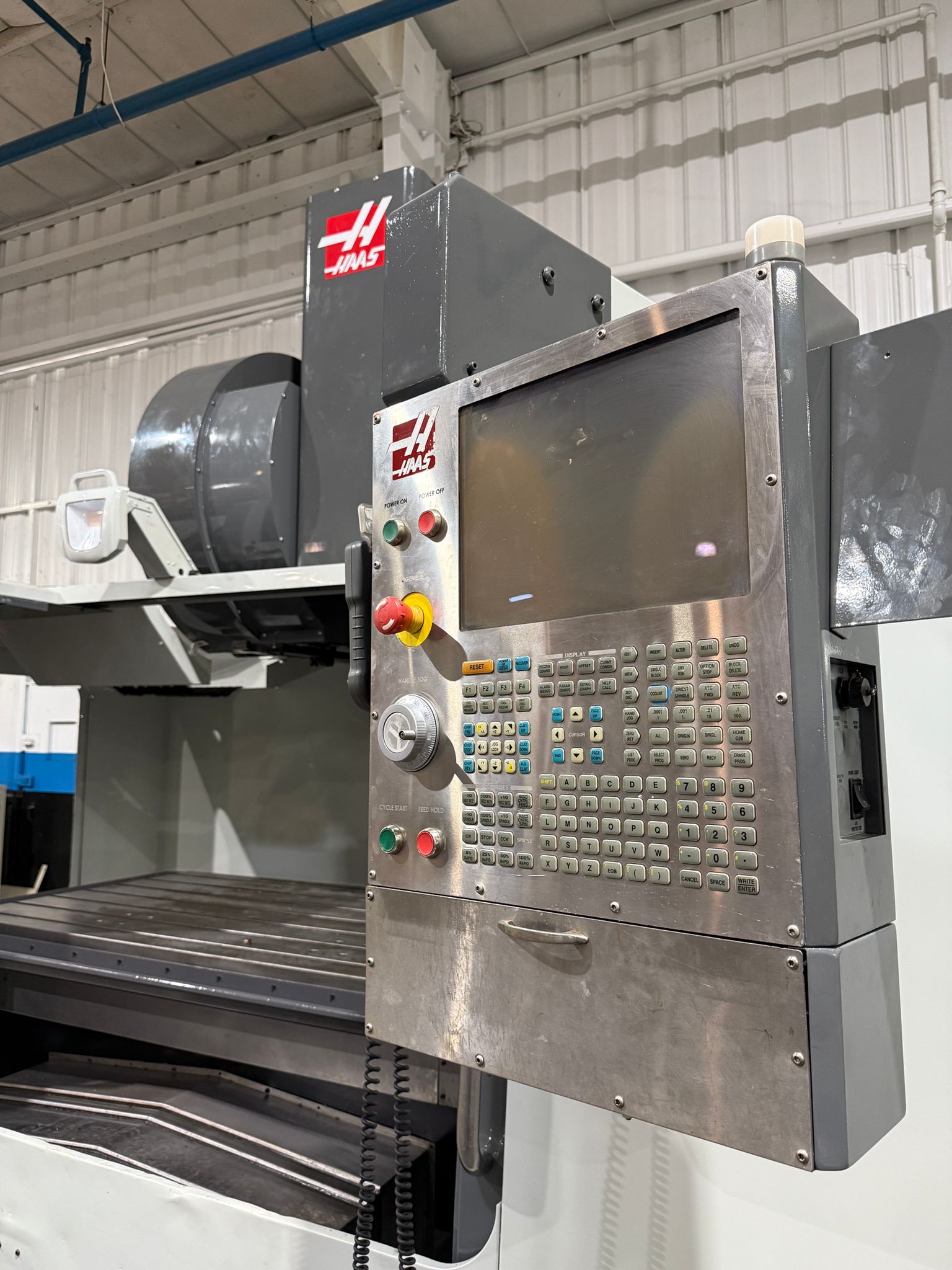

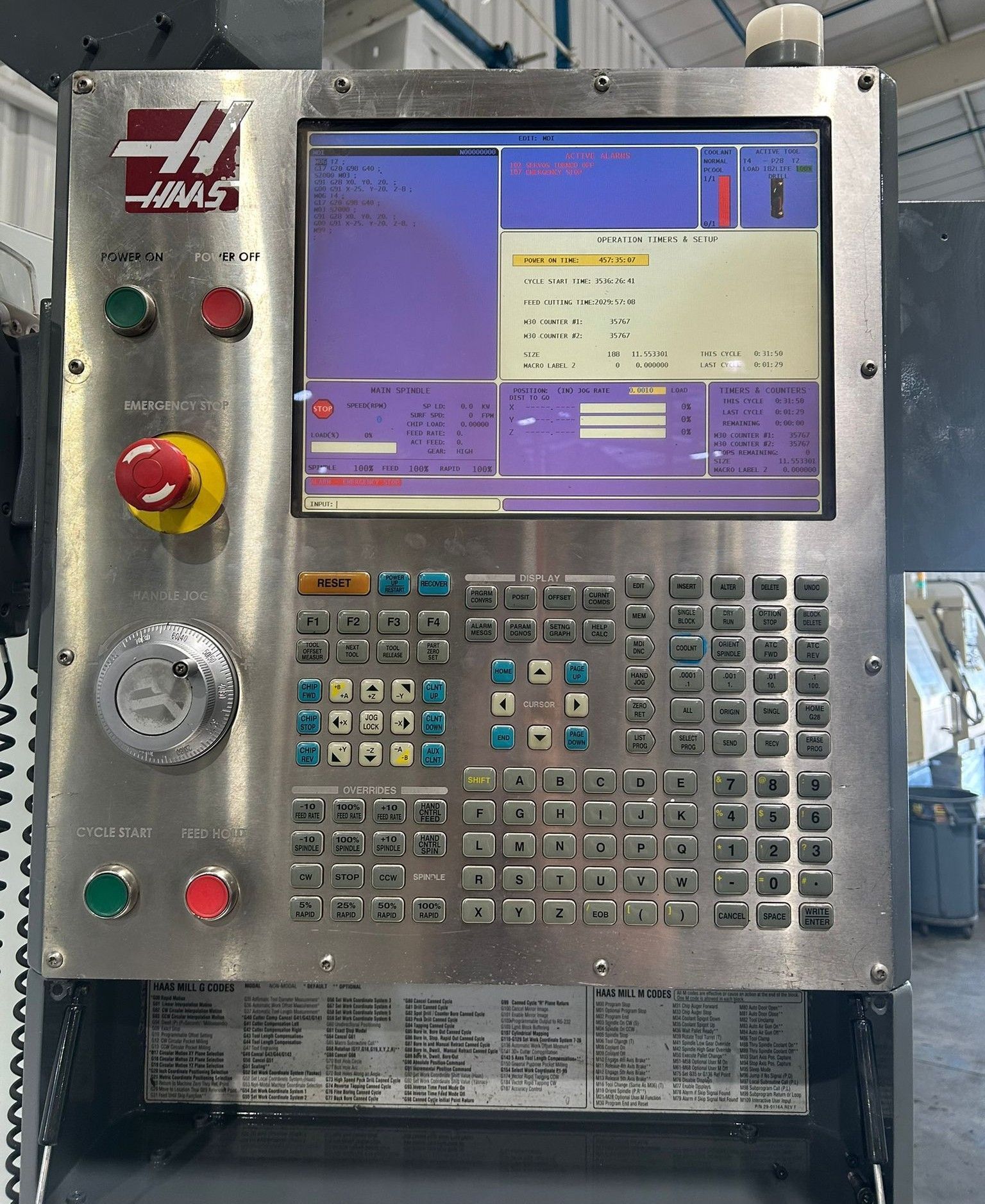

| Haas CNC Control |
| 7500 RPM High-Speed Spindle |
| 50 Taper Spindle |

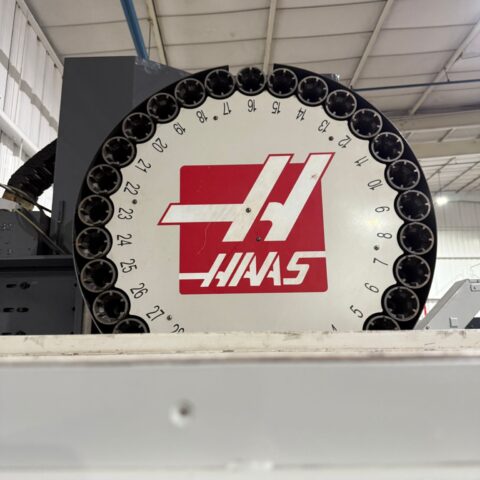

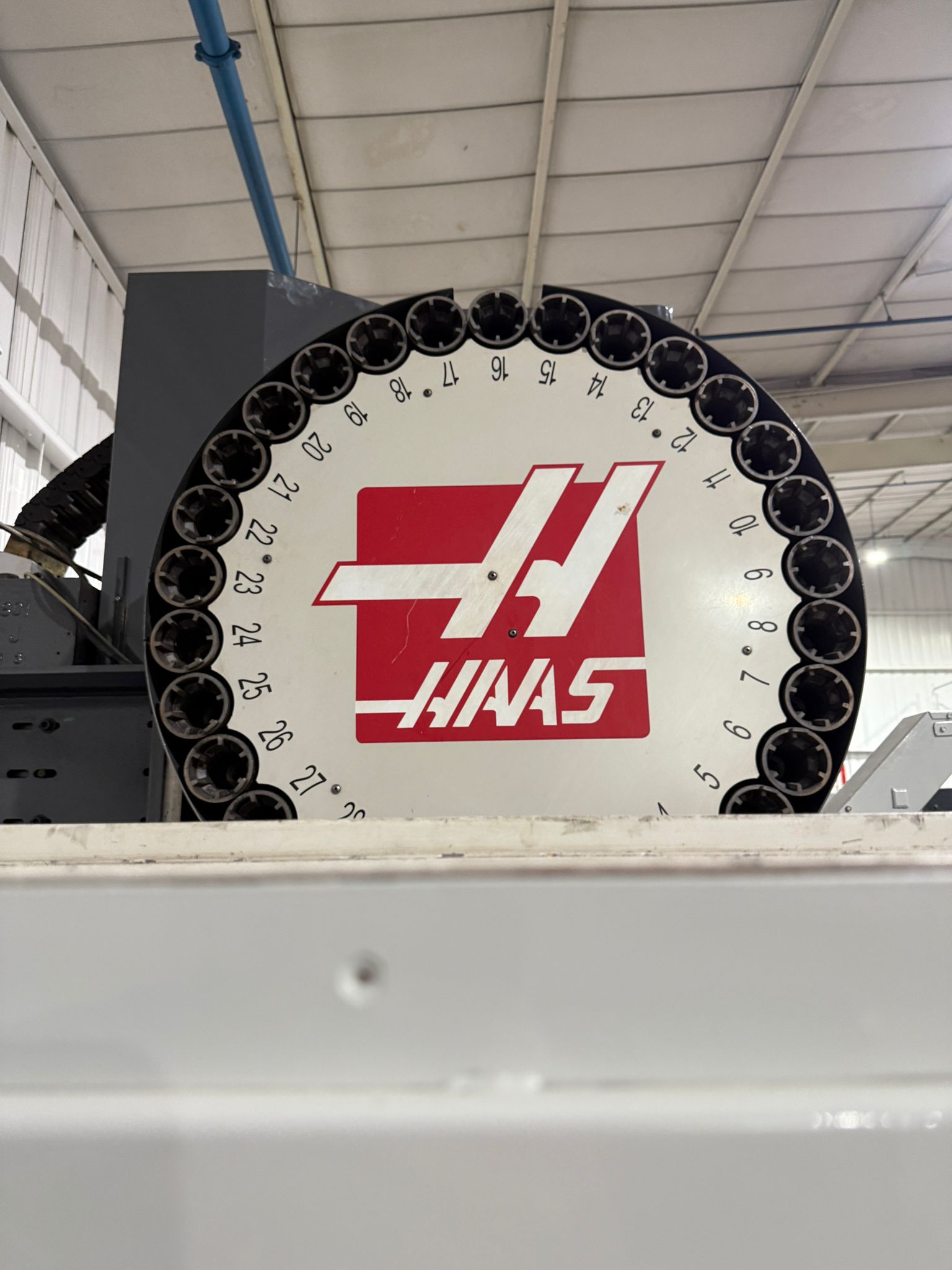

| 30 Station Side Mounted Tool Changer |
| 30 HP High Torque Spindle. |
| Renishaw Probing System (Probe Needed) |

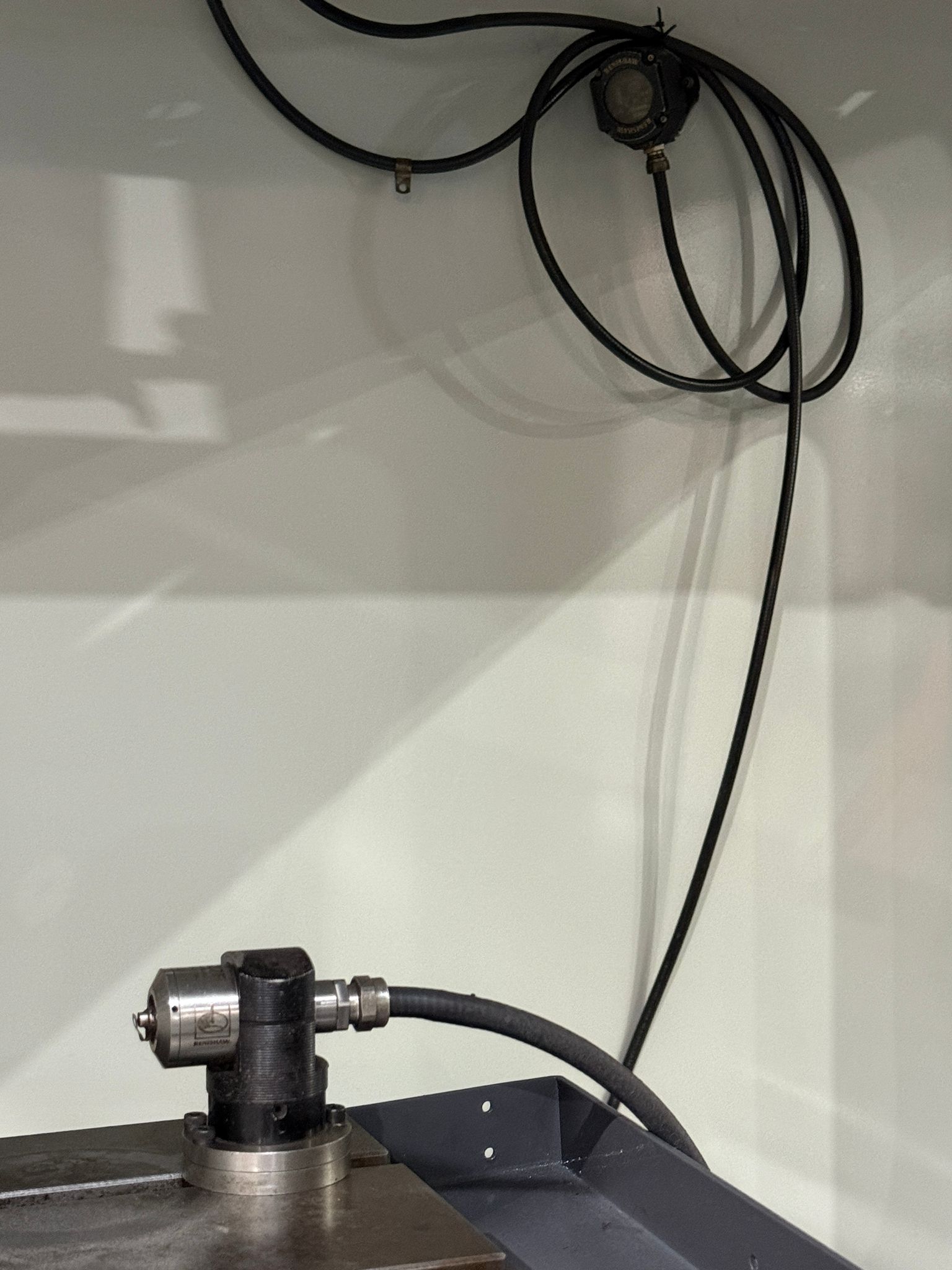

| Tool Presetter (Incomplete) |
| MPG Handwheel Control |
| Rigid Tapping |
| Coolant System |
| Chip Auger |
| Travel: |
|---|
| X-Axis: 64″ |
| Y-Axis: 40″ |
| Z-Axis: 30″ |
| Rapid Traverse Rates: 600 Inch Per Minute |
| Cutting Feed Rates: 500 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 34″ |

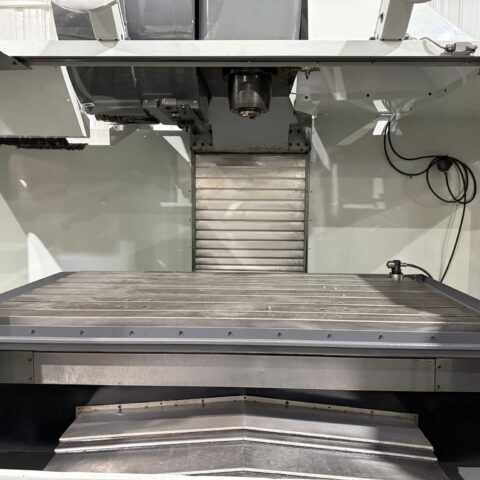

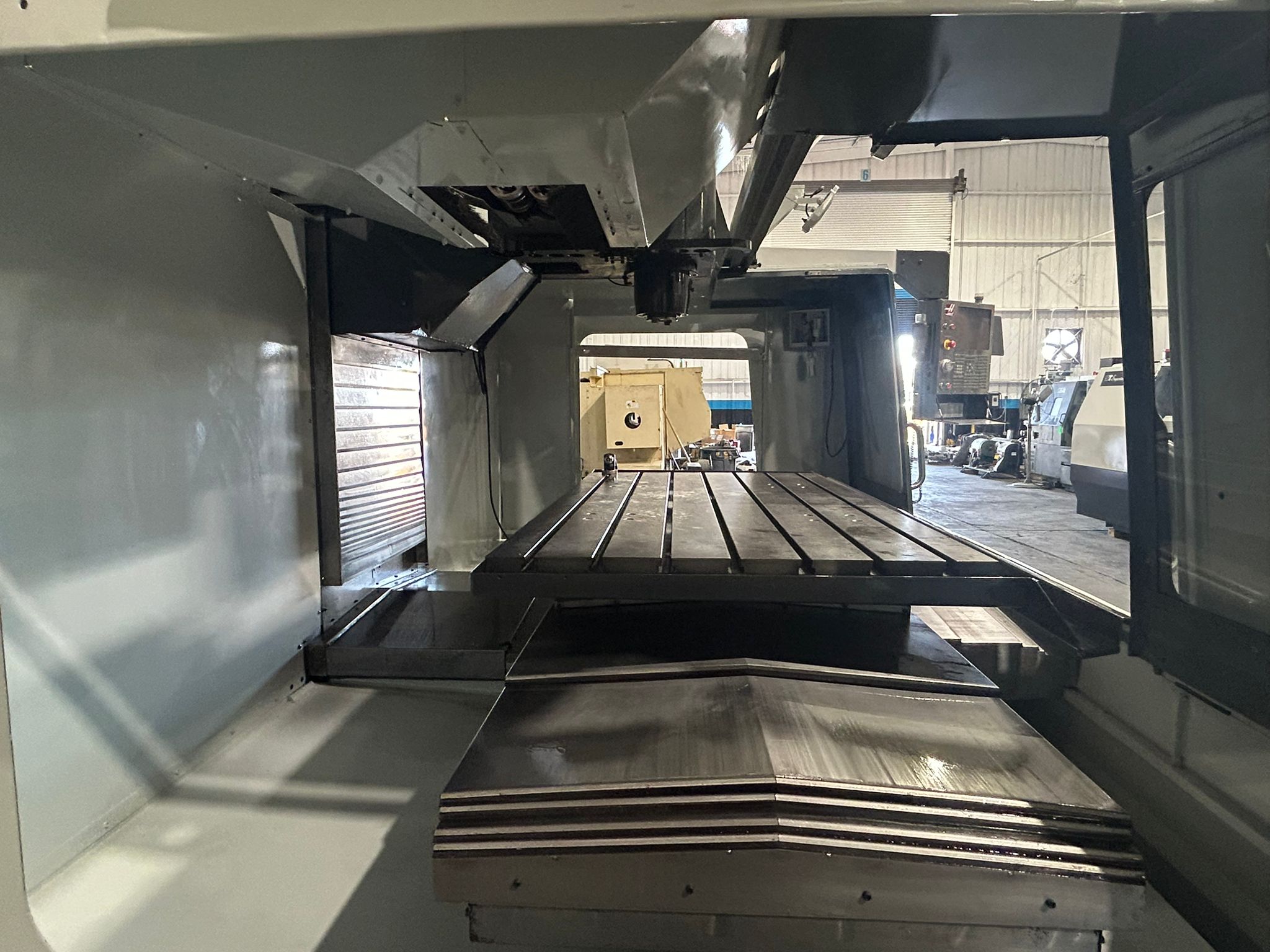

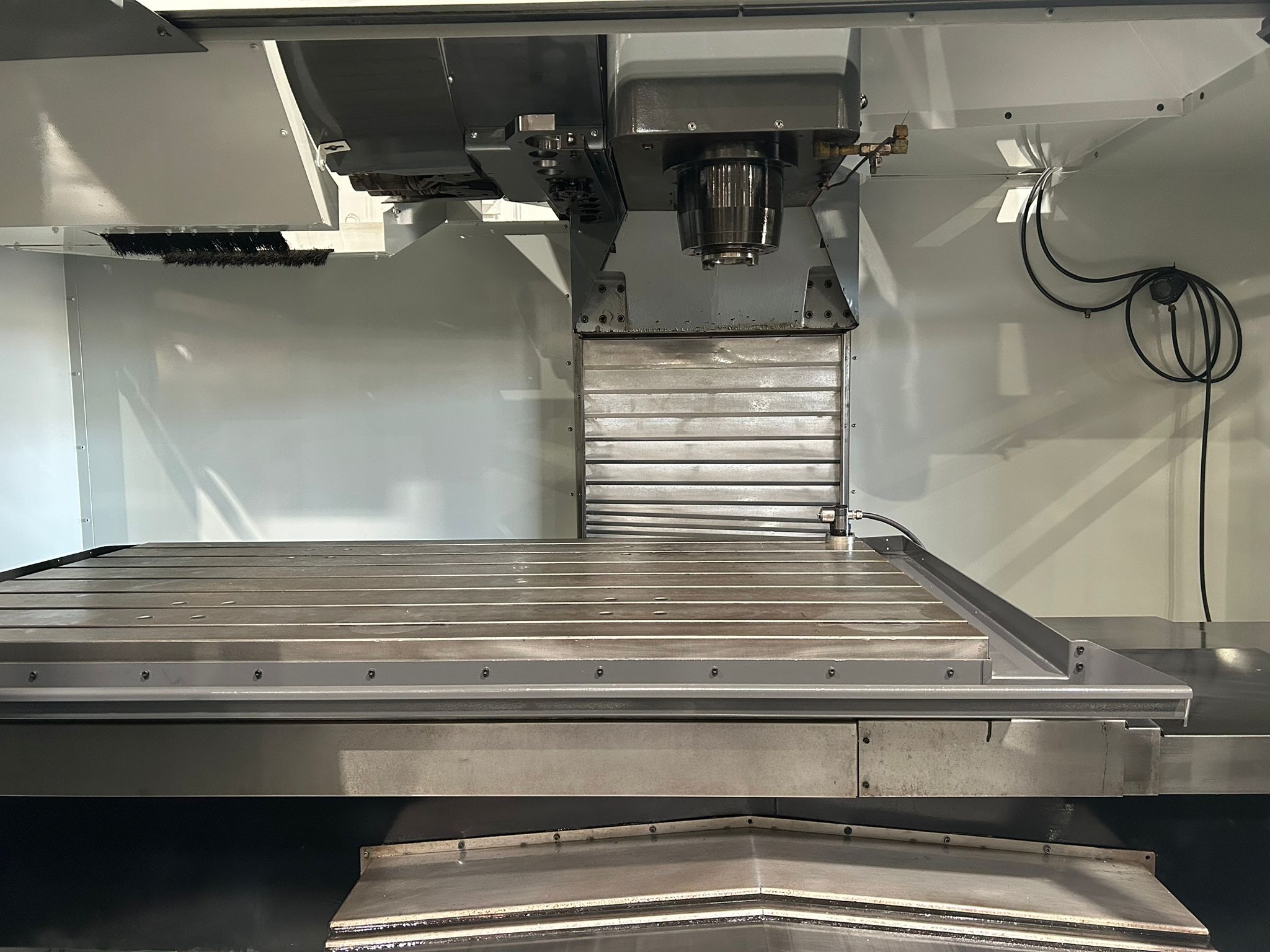

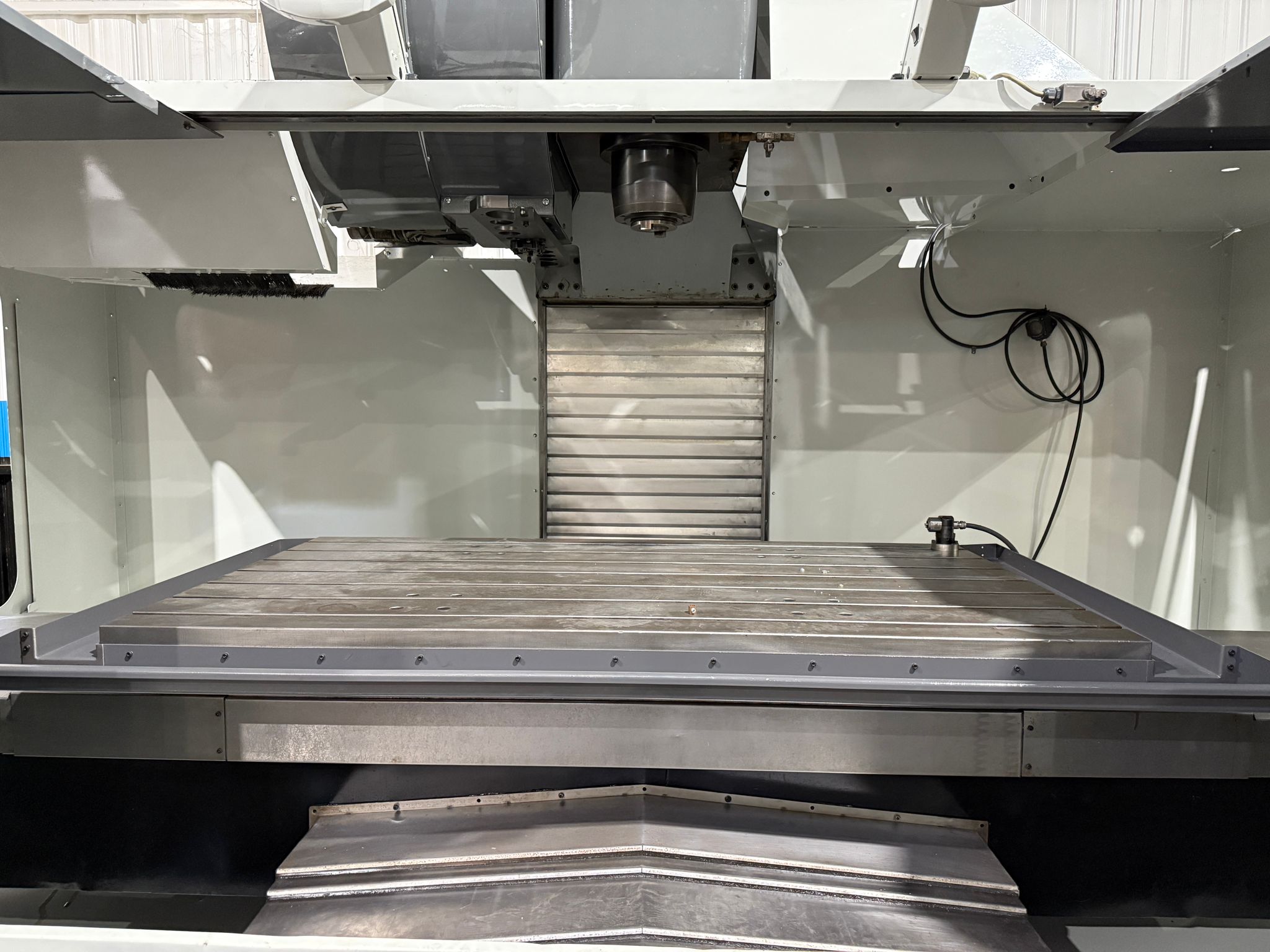

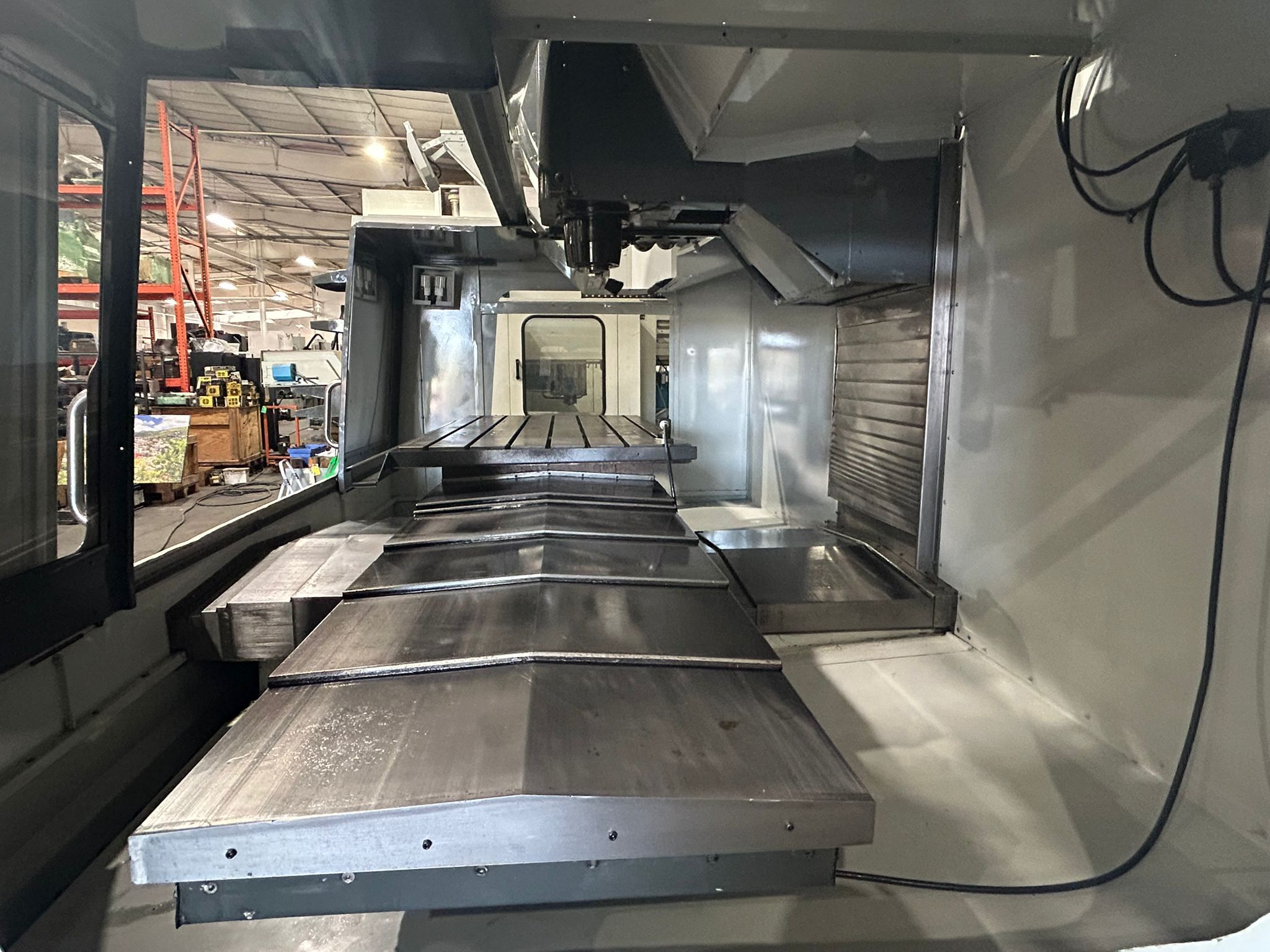

| Table: |
|---|
| Length: 64″ |
| Width: 36″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 4000 lbs |

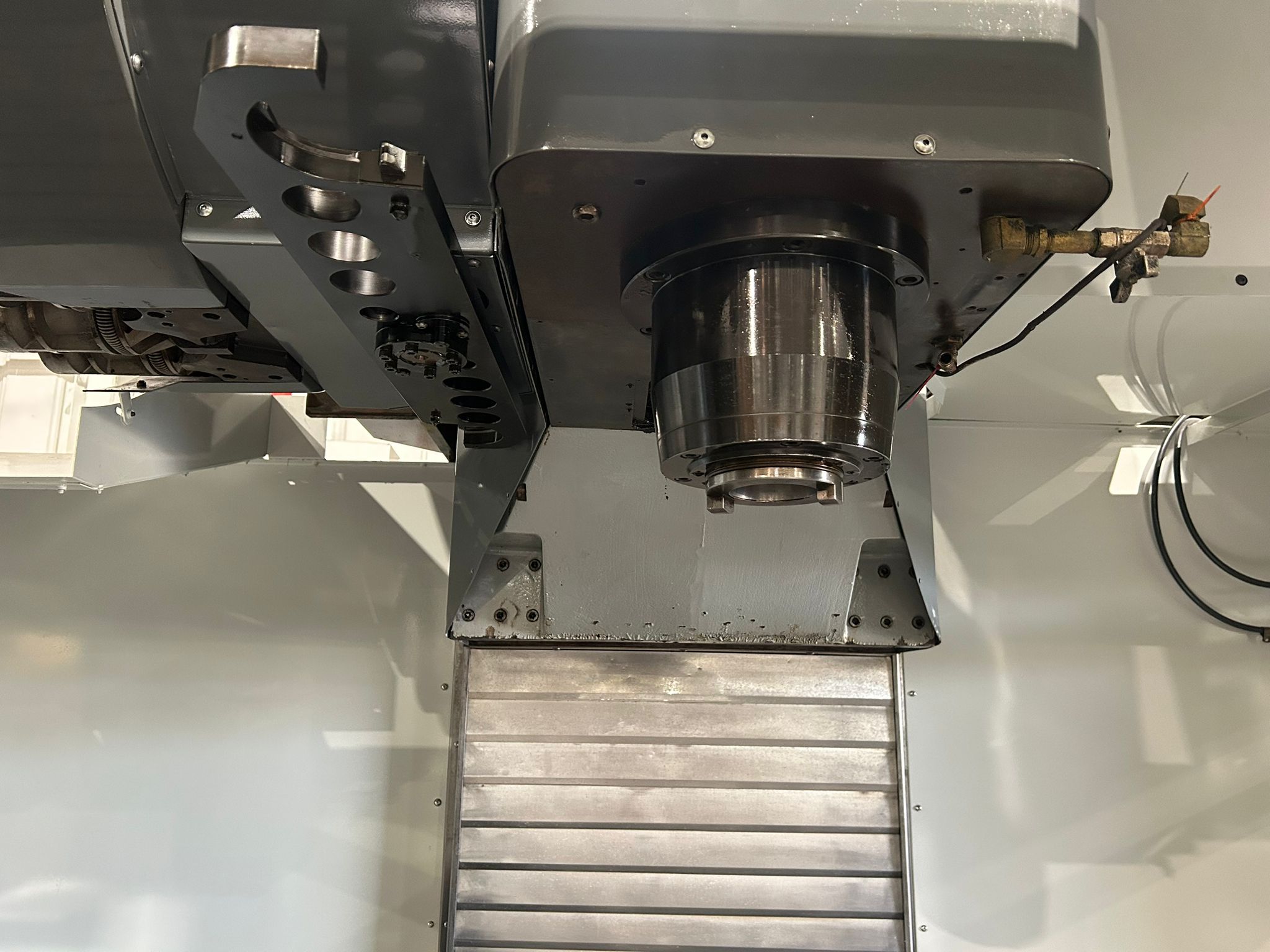

| Spindle: |
|---|
| Taper Size: 50 |
| Speed Range: 7500 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Tools |
| Max Tool Weight: 17 lbs |
| Max Tool Dia: 6″ |
| Max Tool Length: 16″ |
| Tool Changing Time: 2.4 Seconds |
| General: |
|---|
| Air Required: 100 psi 4 scfm |

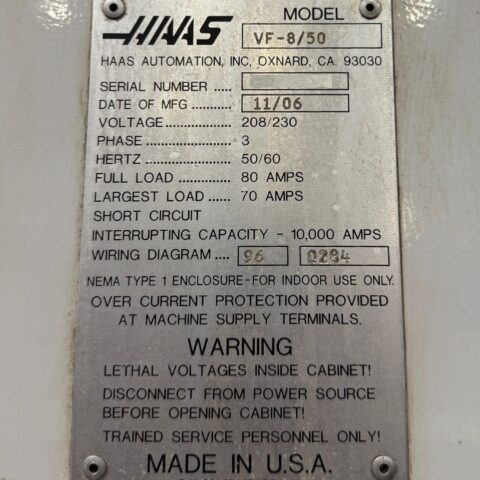

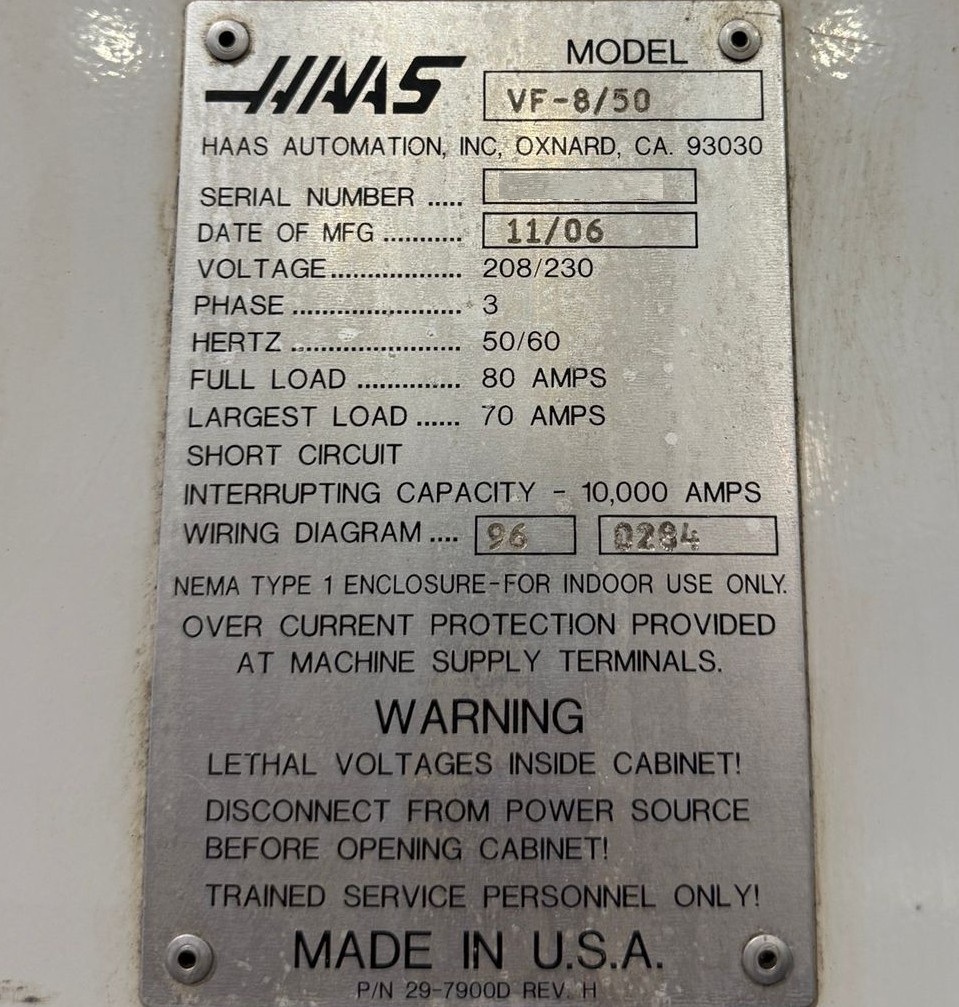

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 158″ x 98″ x 118″ High |
| Weight: 24,500 lbs Approx. |
