*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

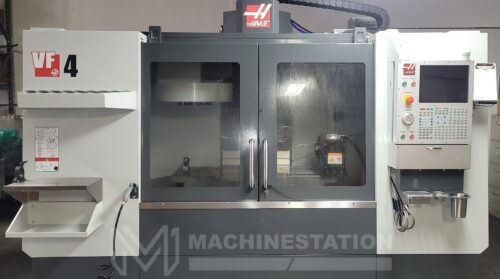

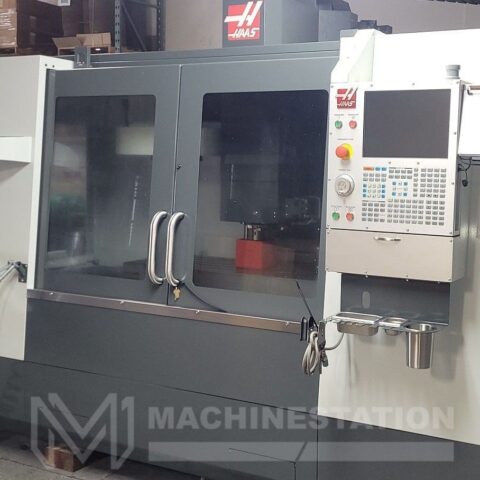

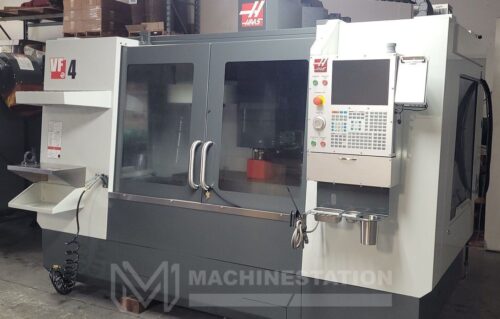

| Make: | HAAS |
| Model: | VF4 |
| Year: | 2020 |
| Condition: | Used – Excellent |

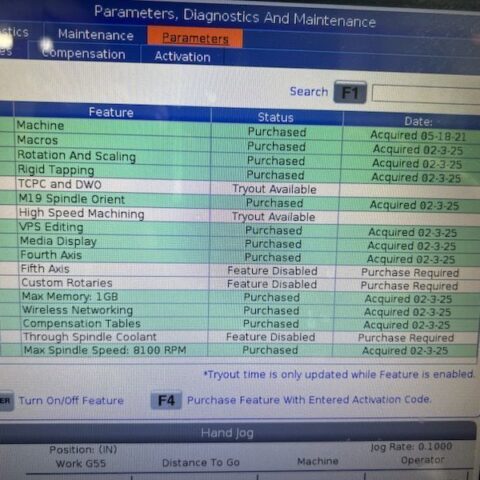

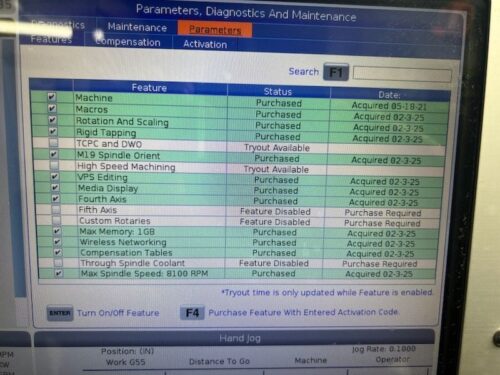

| Features: |
|---|

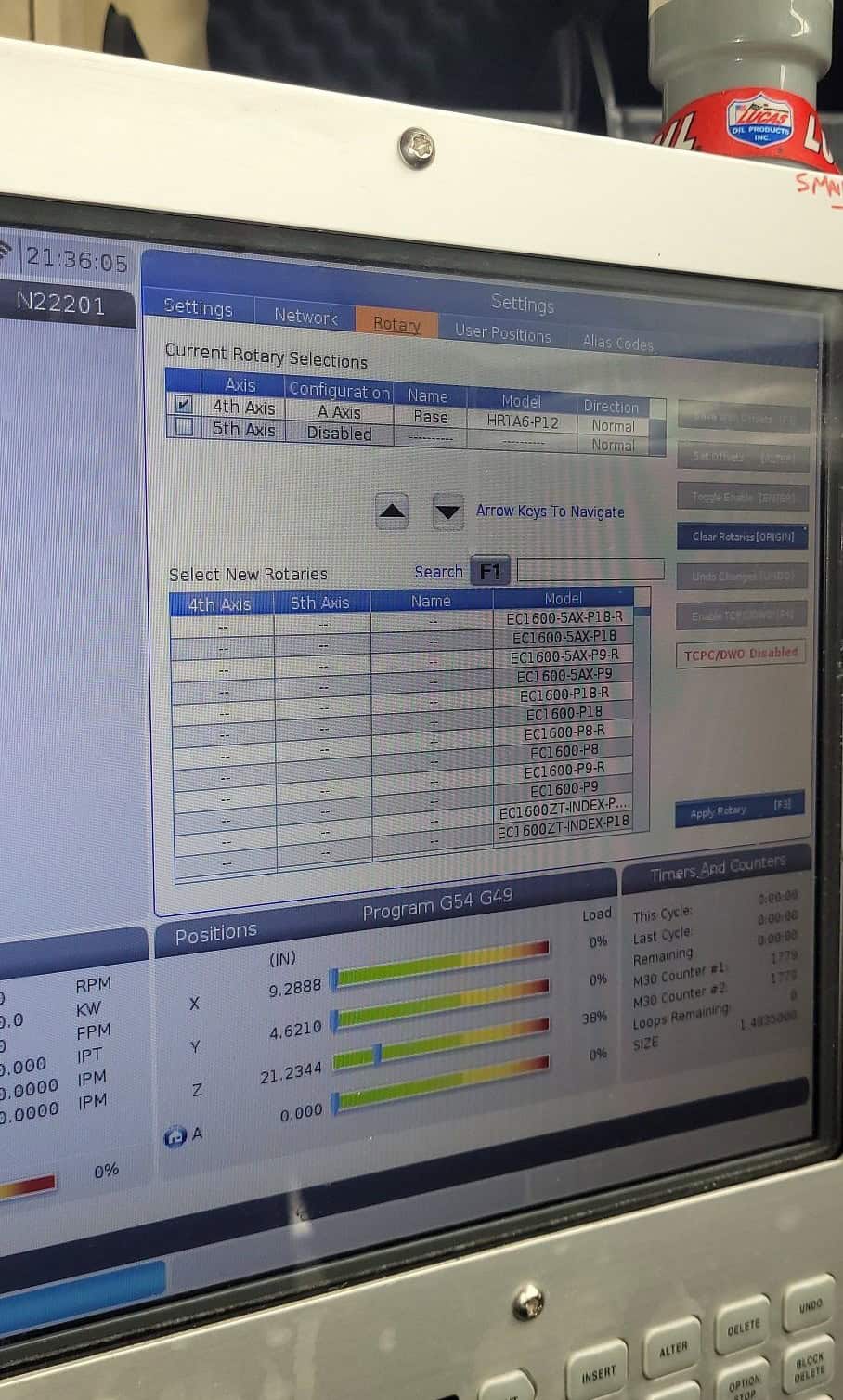

| Haas CNC Control |

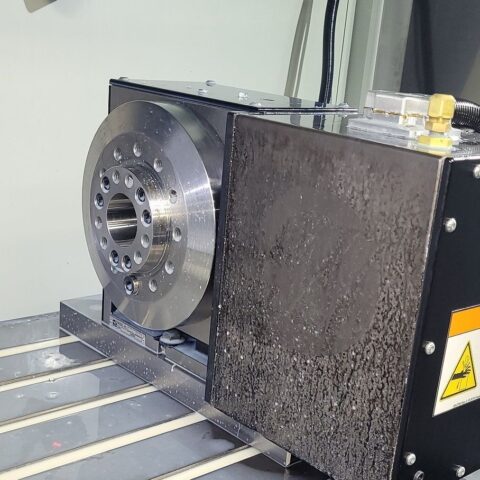

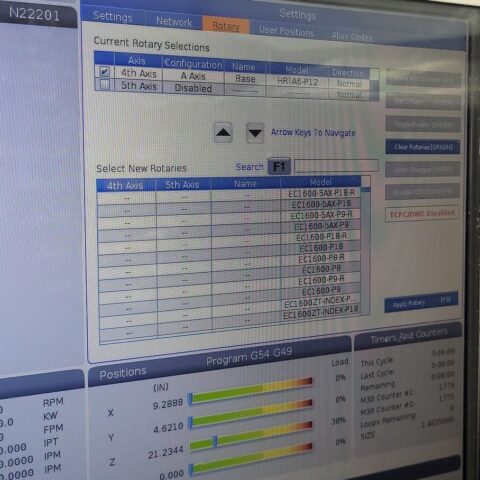

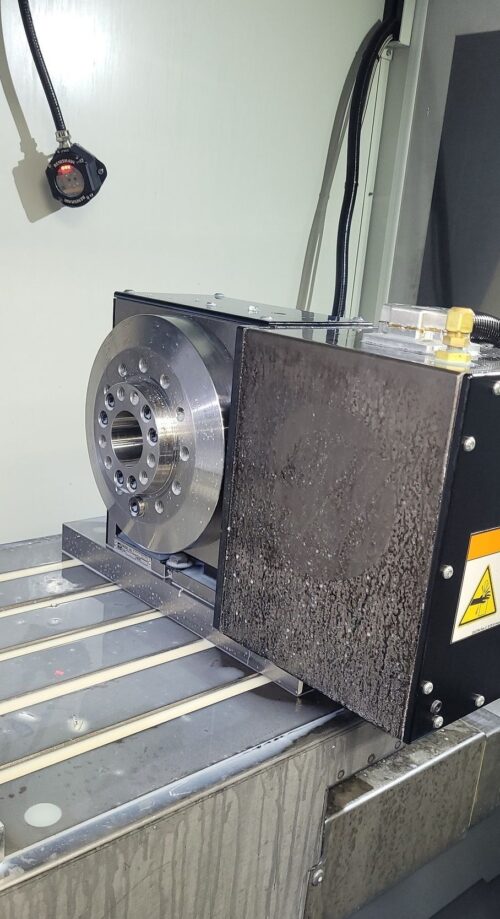

| Haas HRT-A6 4th Axis Rotary Table (Upgraded $15,895 value Included) |
| Renishaw Probing System Ready (Upgraded $5,795 value Included) |
| 20 Station Automatic Tool changer |
| Rotation & Scaling |
| User-Definable Macros |
| Visual Part Programming System |
| Rigid Tapping |
| Spindle Orientation |

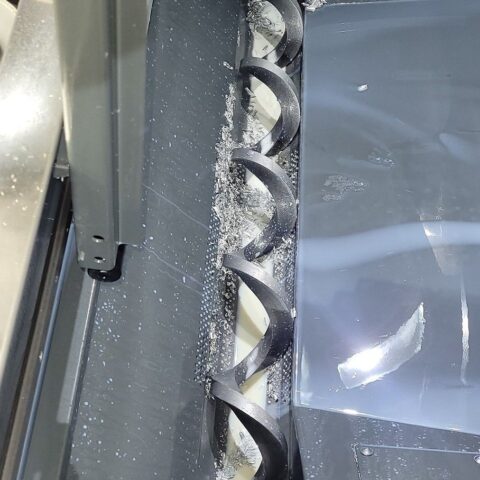

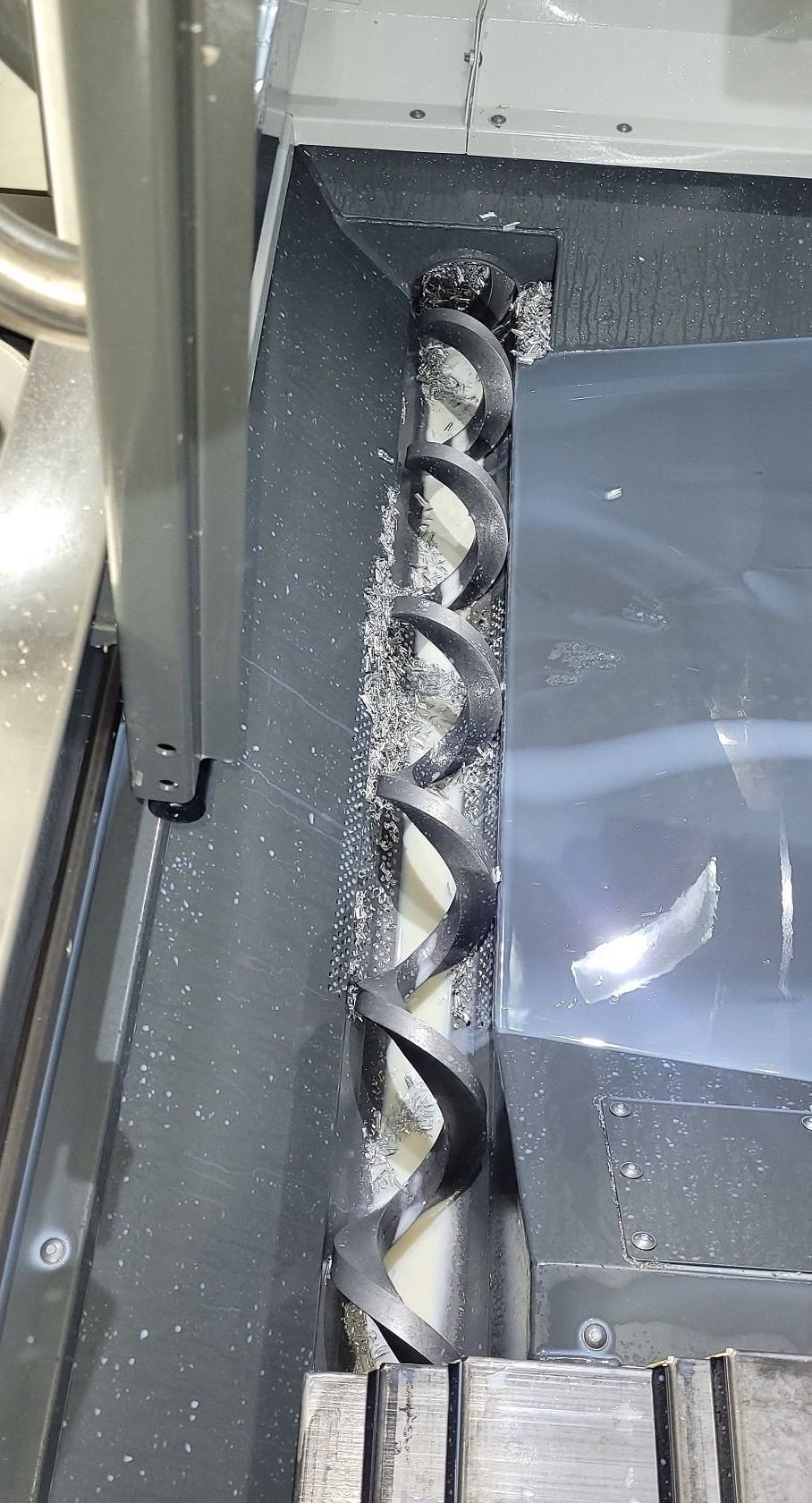

| Chip Auger (Upgraded $3,695 value Included) |
| Misc. Tool Holders |
| Note: Vice and Fixture are not included with the machine |
| Travels: |
|---|
| X-Axis: 50.0″ |
| Y-Axis: 20.0″ |
| Z-Axis: 25.0″ |
| Rapid Traverse Rates: 1000 IPM |
| Cutting Feed Rates: 650 IPM |
| Spindle Nose to Table (Min.- Max.): 4.2″ – 29.2″ |

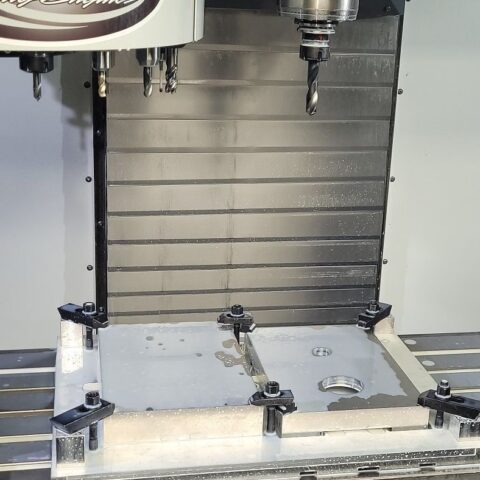

| Table |
|---|
| Length: 52.0″ |
| Width: 19.5″ |
| Max Weight on Table (evenly distributed): 3500 lbs |
| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 8100 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 20 Station Carousel Type |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 3.5″ |
| Tool Changing Time : 4.20 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 152″ x 99 x 106” High |
| Weight: 11,720 lbs |
