*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | HAAS |
| Model: | DM2 |
| Year: | 2018 |
| Condition: | Used – Excellent |
| Features: |
|---|

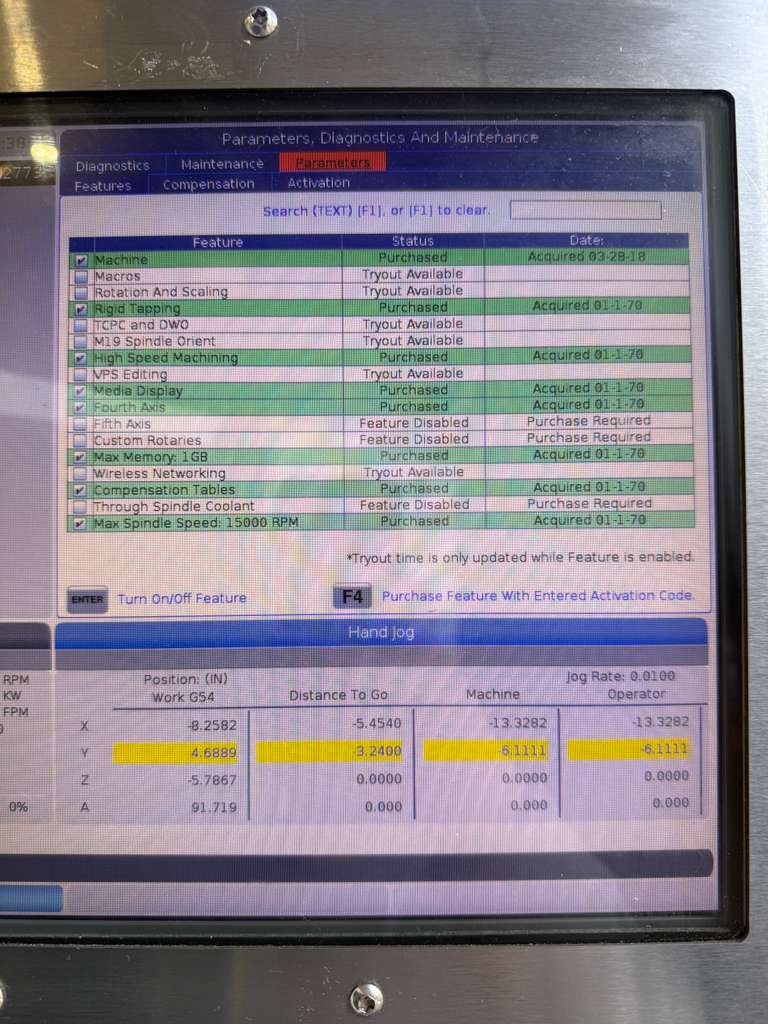

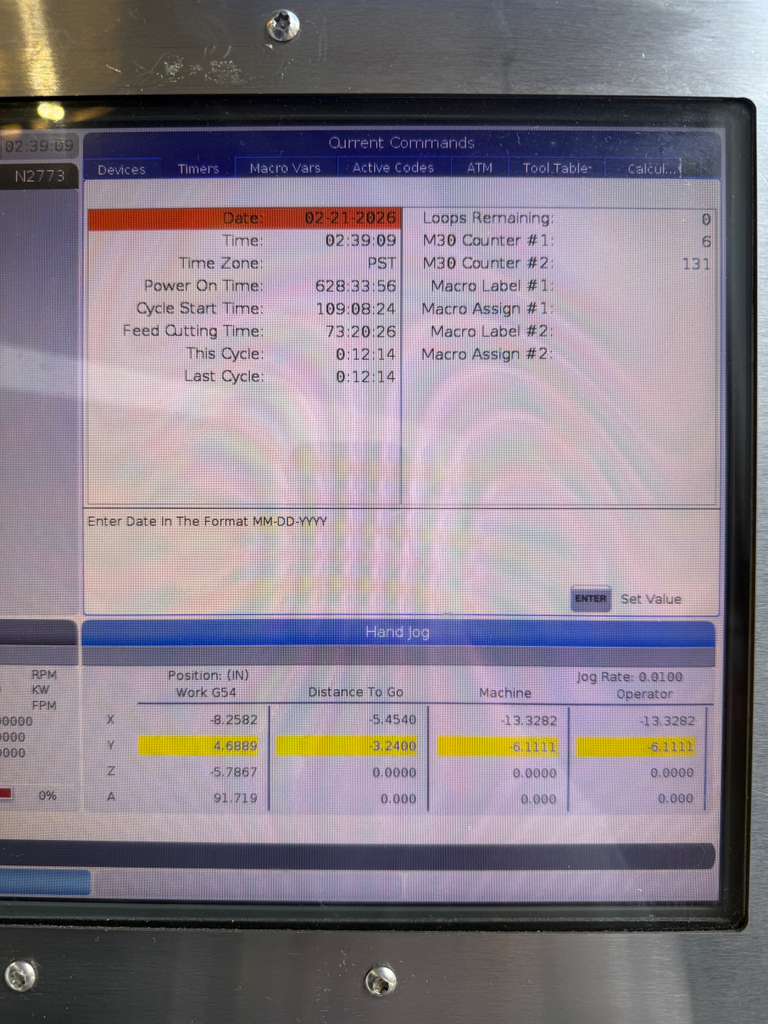

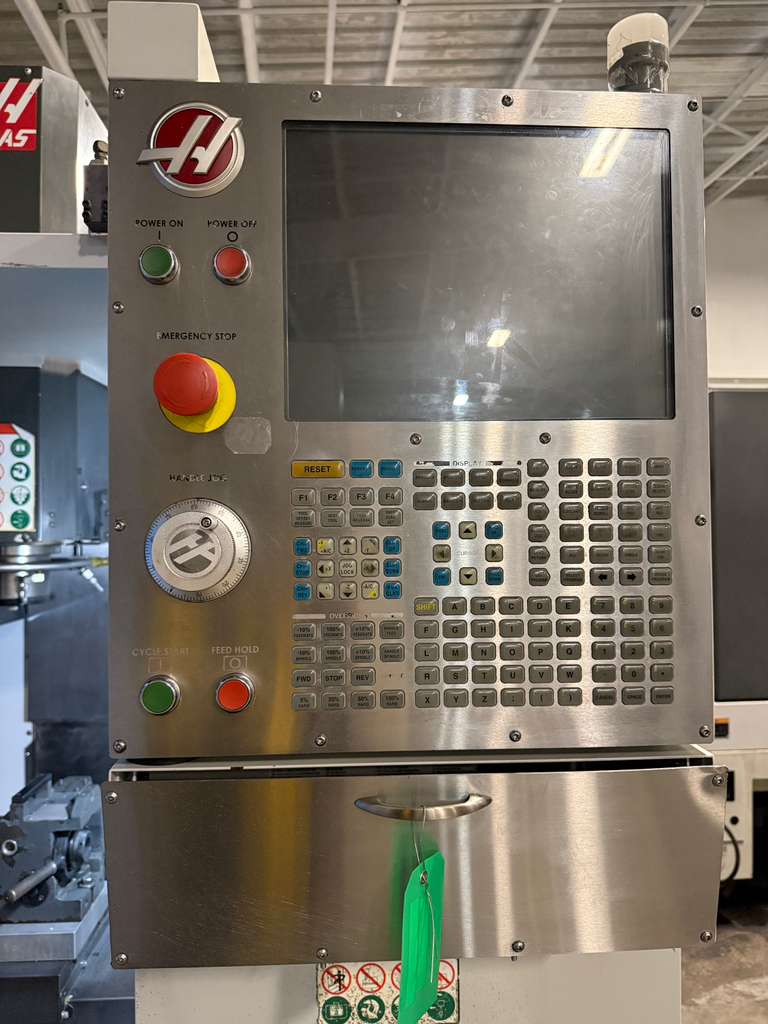

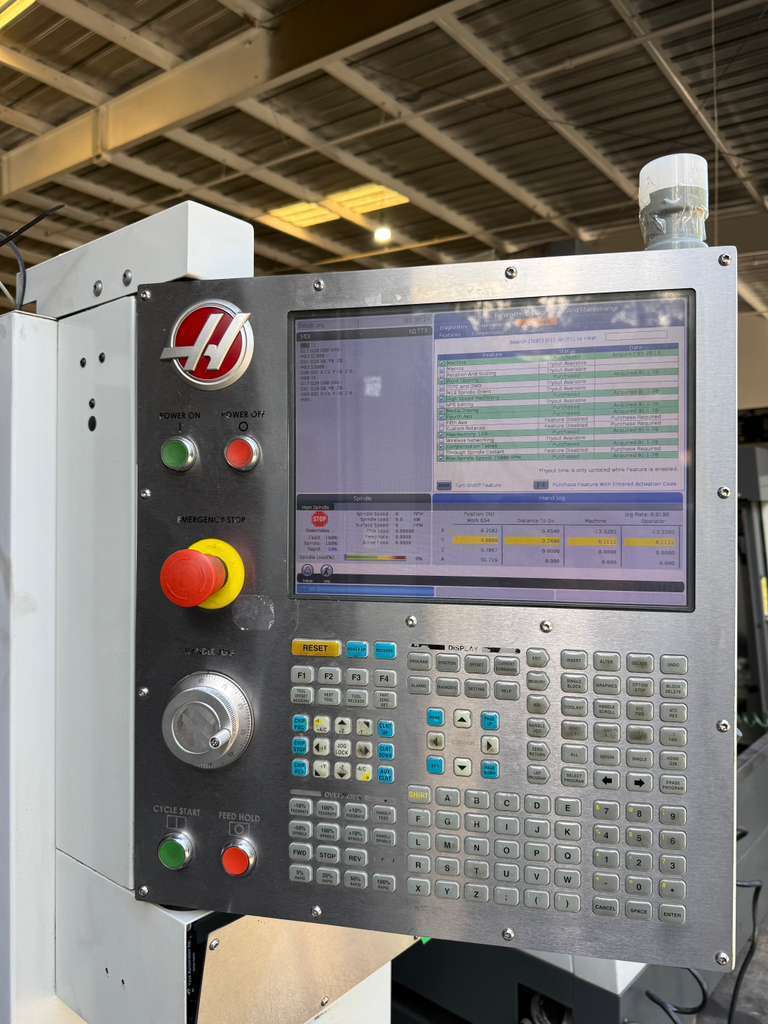

| Haas CNC Control |

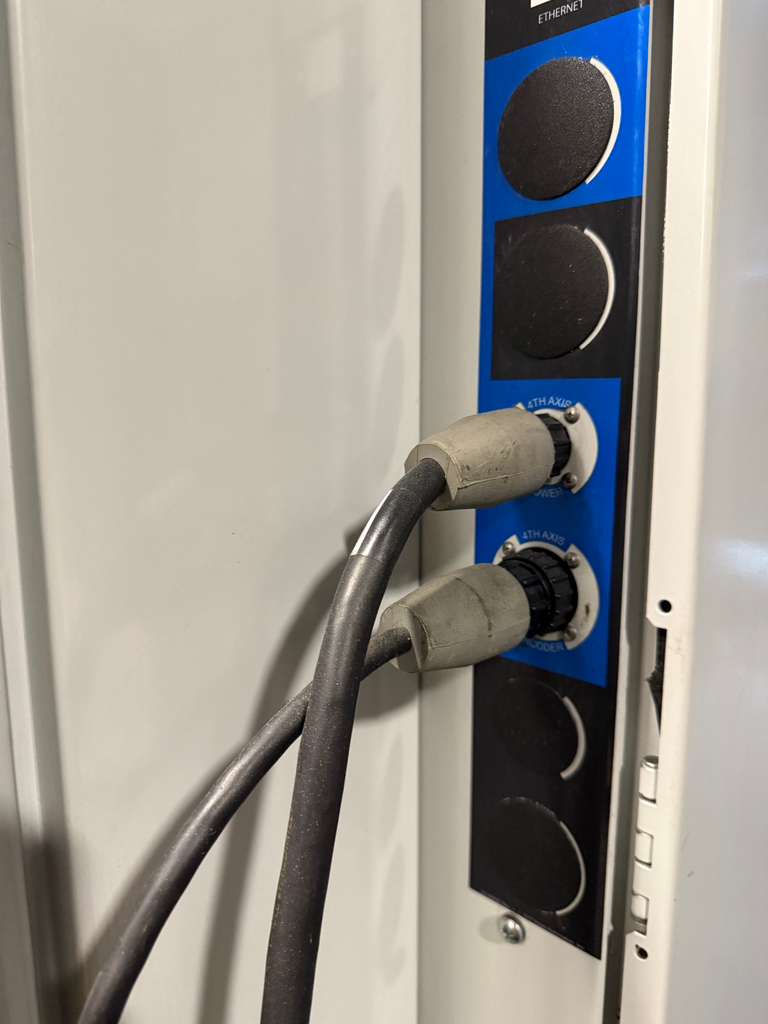

| 4th Axis Wiring and Drive (Upgraded $3,595 value Included) |

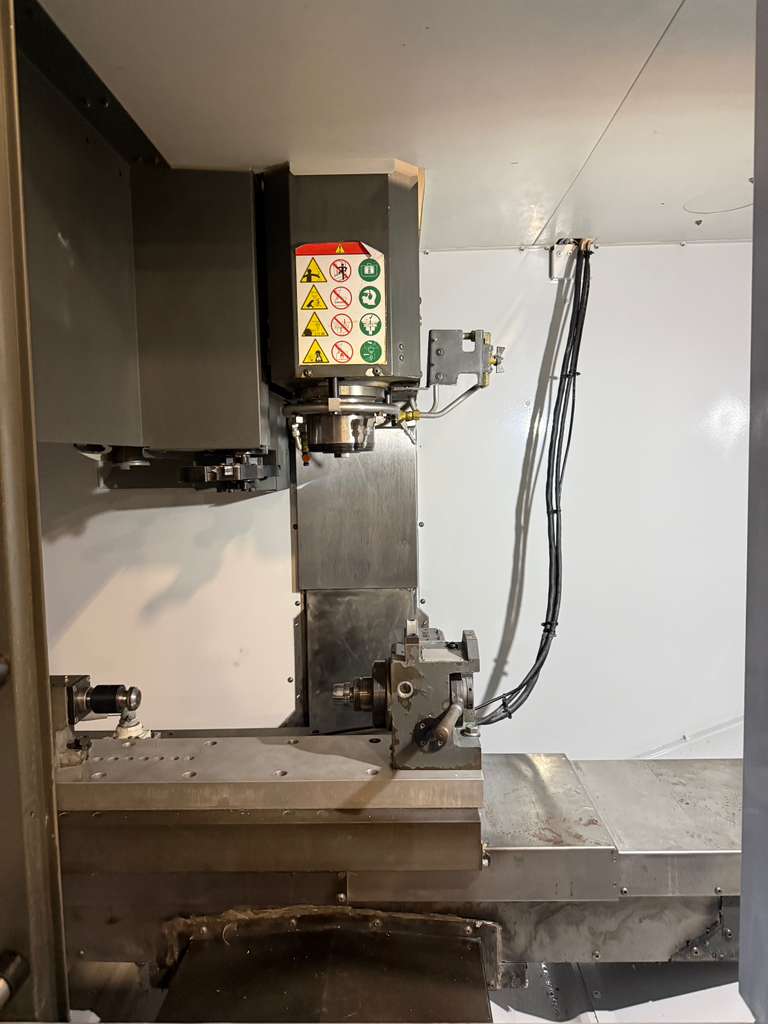

| Haas HA5C-T 4th Axis Indexer with Tailstock (Upgraded $13,895 value Included) ? |
| 10,000 RPM Spindle |
| CAT-40 Taper Spindle |
| 18 Station Automatic Tool Changer |
| Rigid Tapping |
| Coolant System |

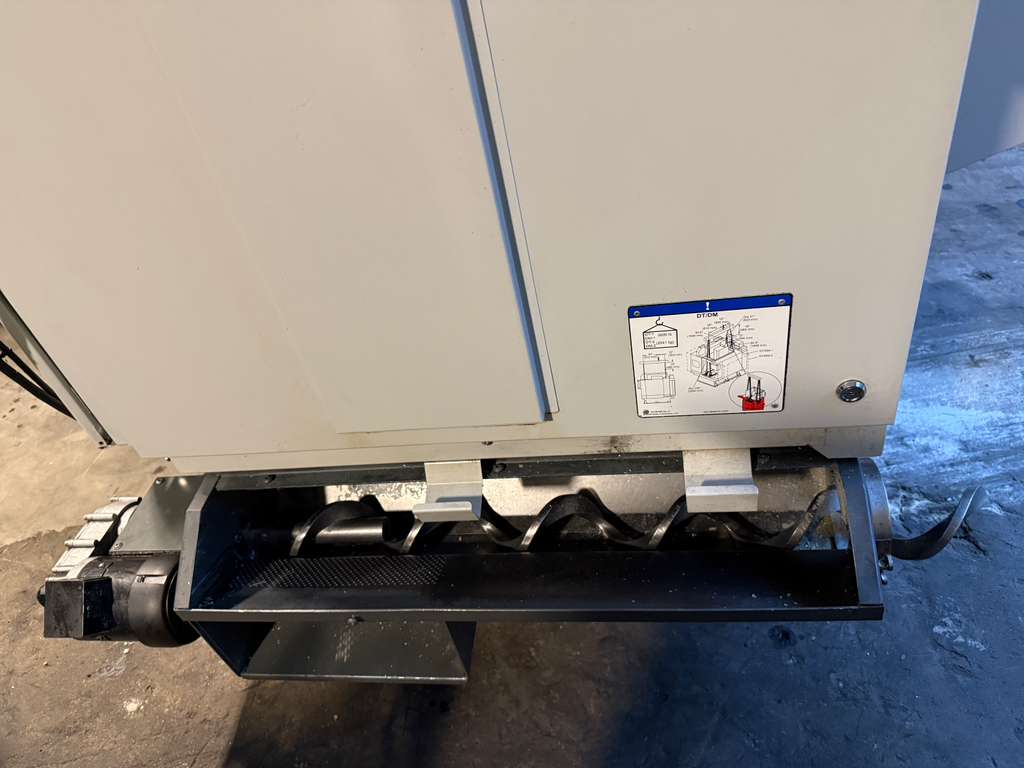

| Chip Auger (Upgraded $4,095 value Included) |
| Travel: |
|---|
| X-Axis: 28.0″ |
| Y-Axis: 16.0″ |
| Z-Axis: 15.5″ |
| Rapid Traverse Rates: 2400 Inch Per Minute |
| Cutting Feed Rates: 1200 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 6″ – 21.5″ |
| Table: |
|---|
| Length: 34.0″ |
| Width: 15.0″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 500 lbs |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 10,000 RPM |
| Spindle Power: 15 HP |

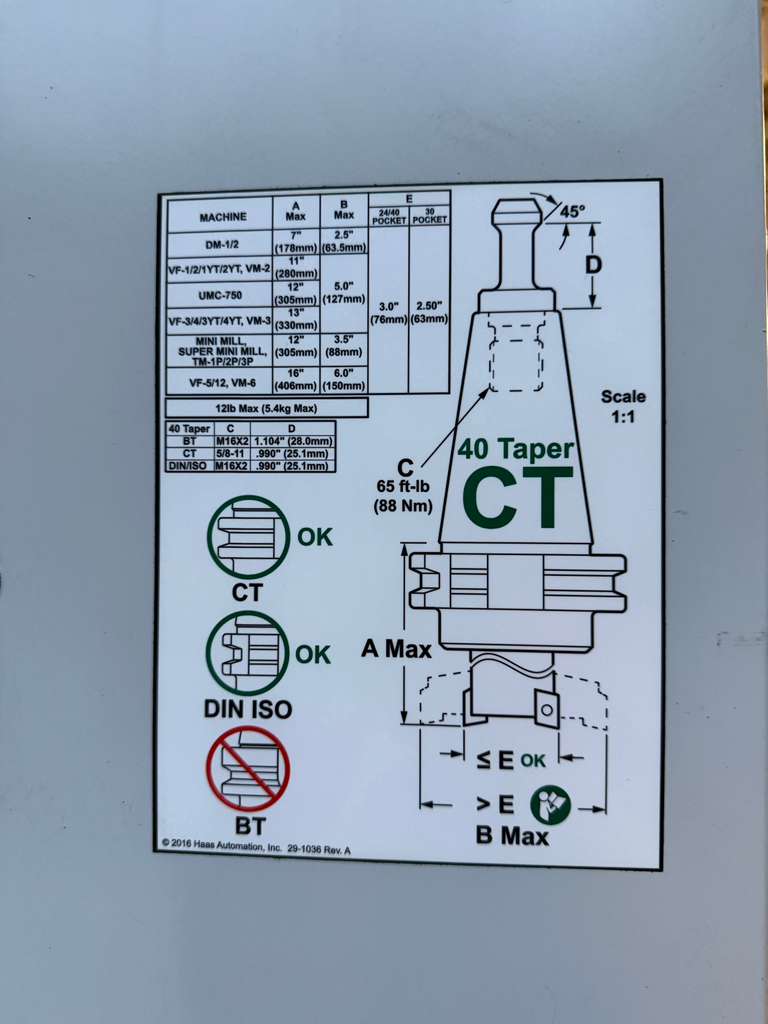

| Automatic Tool Changer: |
|---|
| Capacity: 18 Stations Side Mounted |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 2.5″ |
| Max Tool Length: 7.0″ |
| Tool Changing Time: 1.75 Seconds |
| General: |
|---|

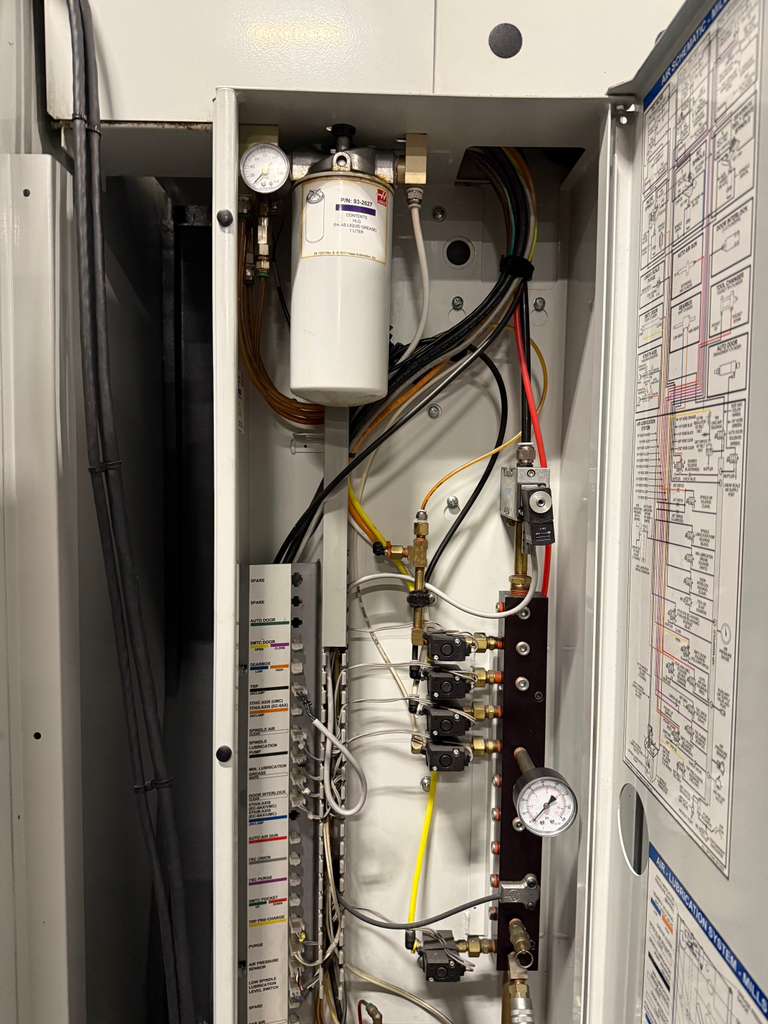

| Air Required: 100 psi 4 scfm |

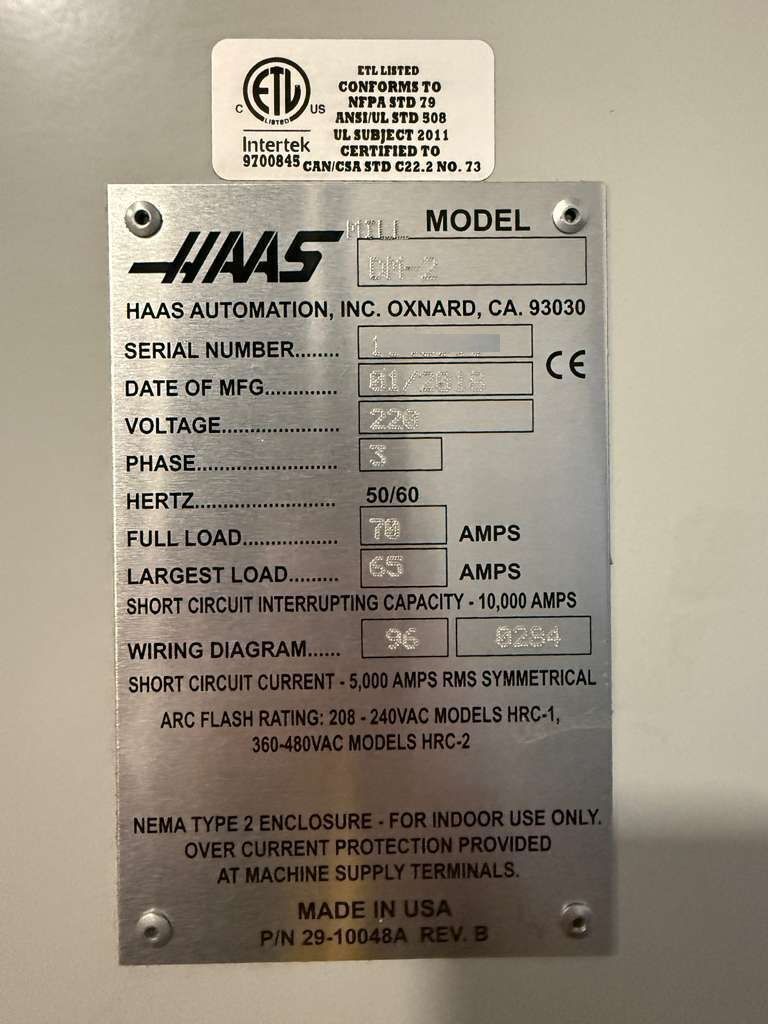

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 91″ x 100″ x 98″ High |
| Weight: 5,350 lbs |
