Haas DS-30SSY CNC Big Bore Sub Spindle

All specifications are approximations and are subject to verification.

• Haas DS-30SSY Equipped With:

• 24-Live Station BMT-65 Turret –  ( $4500 option )
• 3″ Big Bore 4500 RPM Main Spindle
• Full C-Axis on Both Spindles

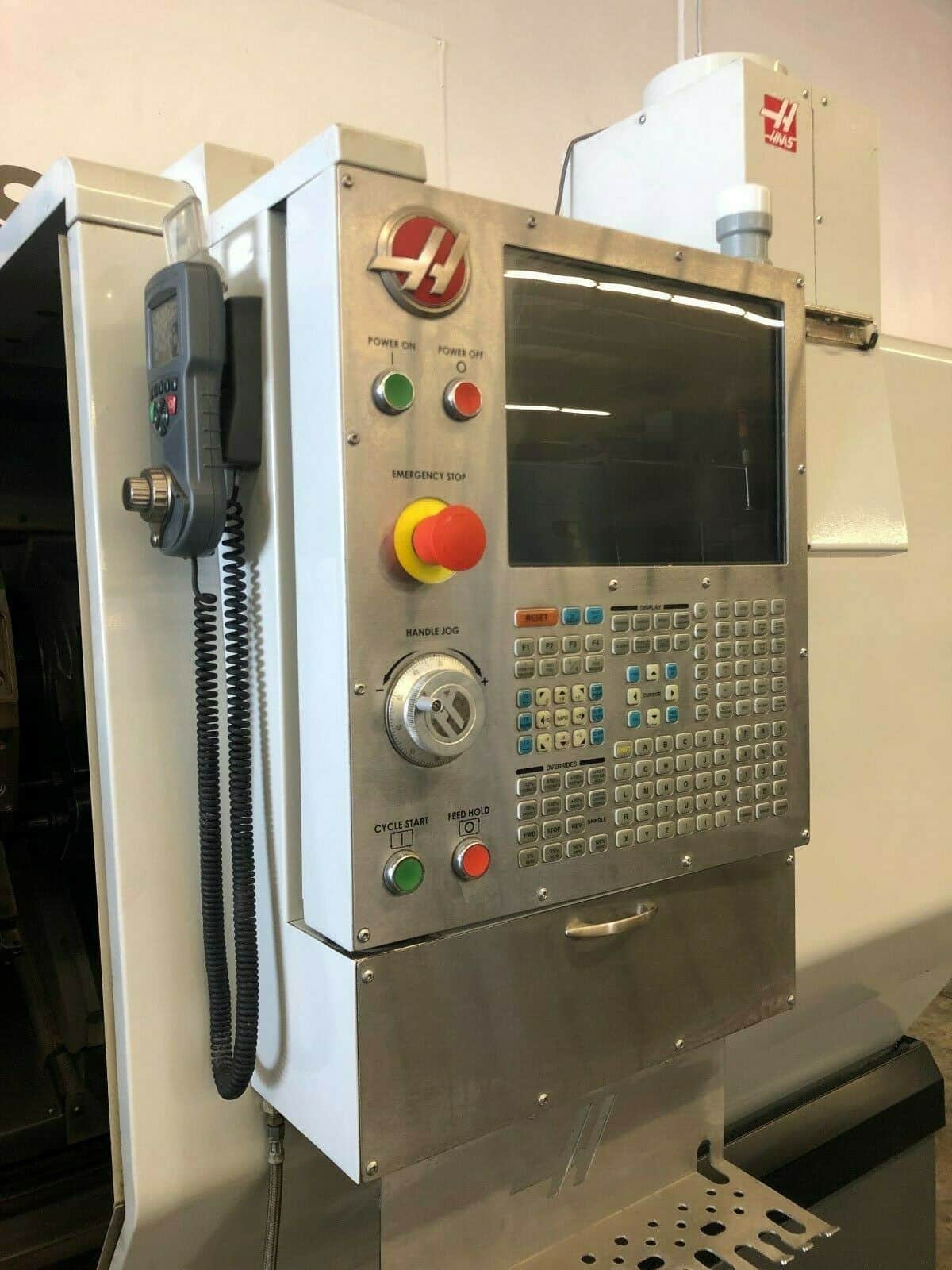

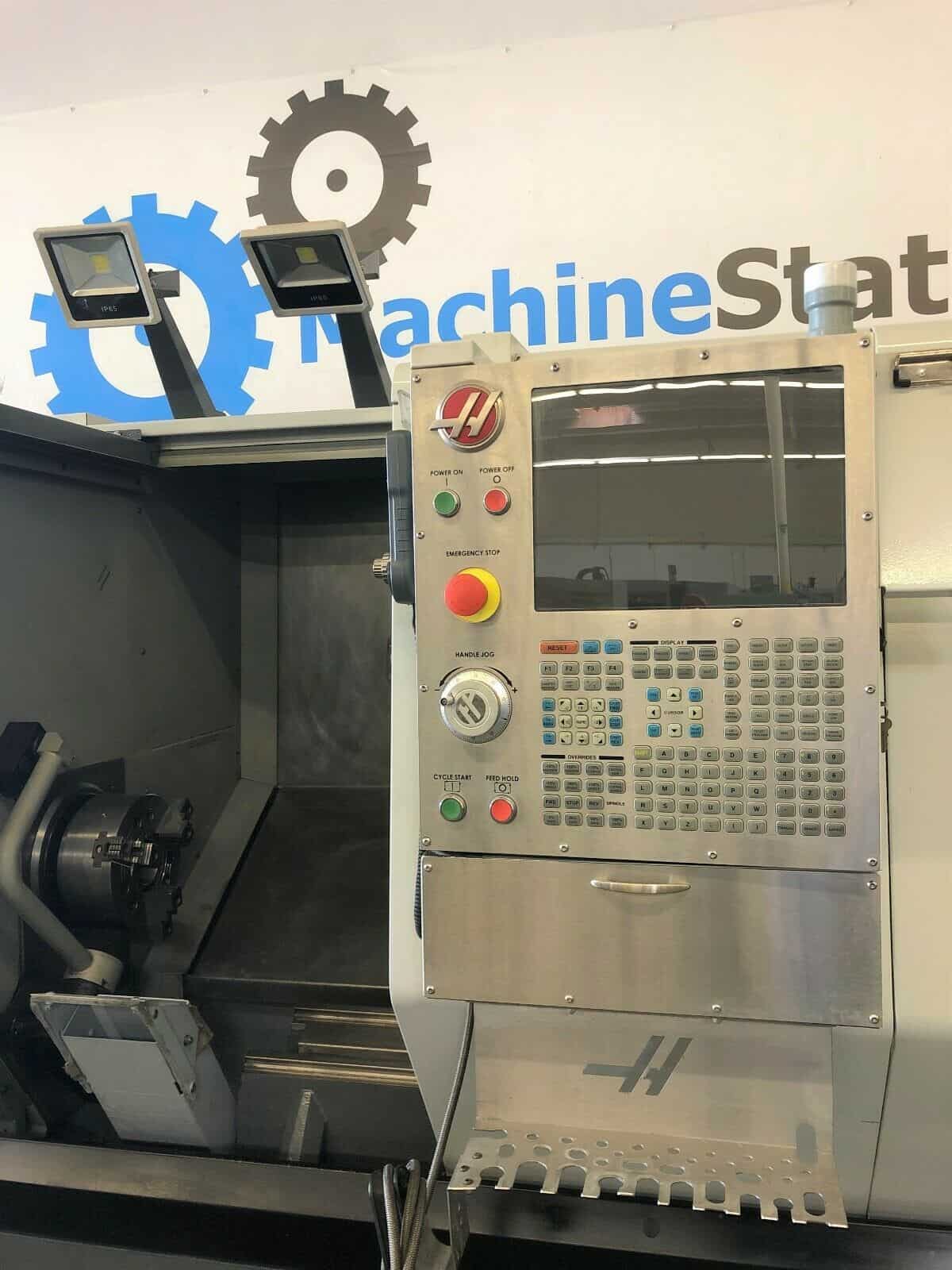

• LCD MPG Control ( $ option )
• Visual Part Programming System ( Option )

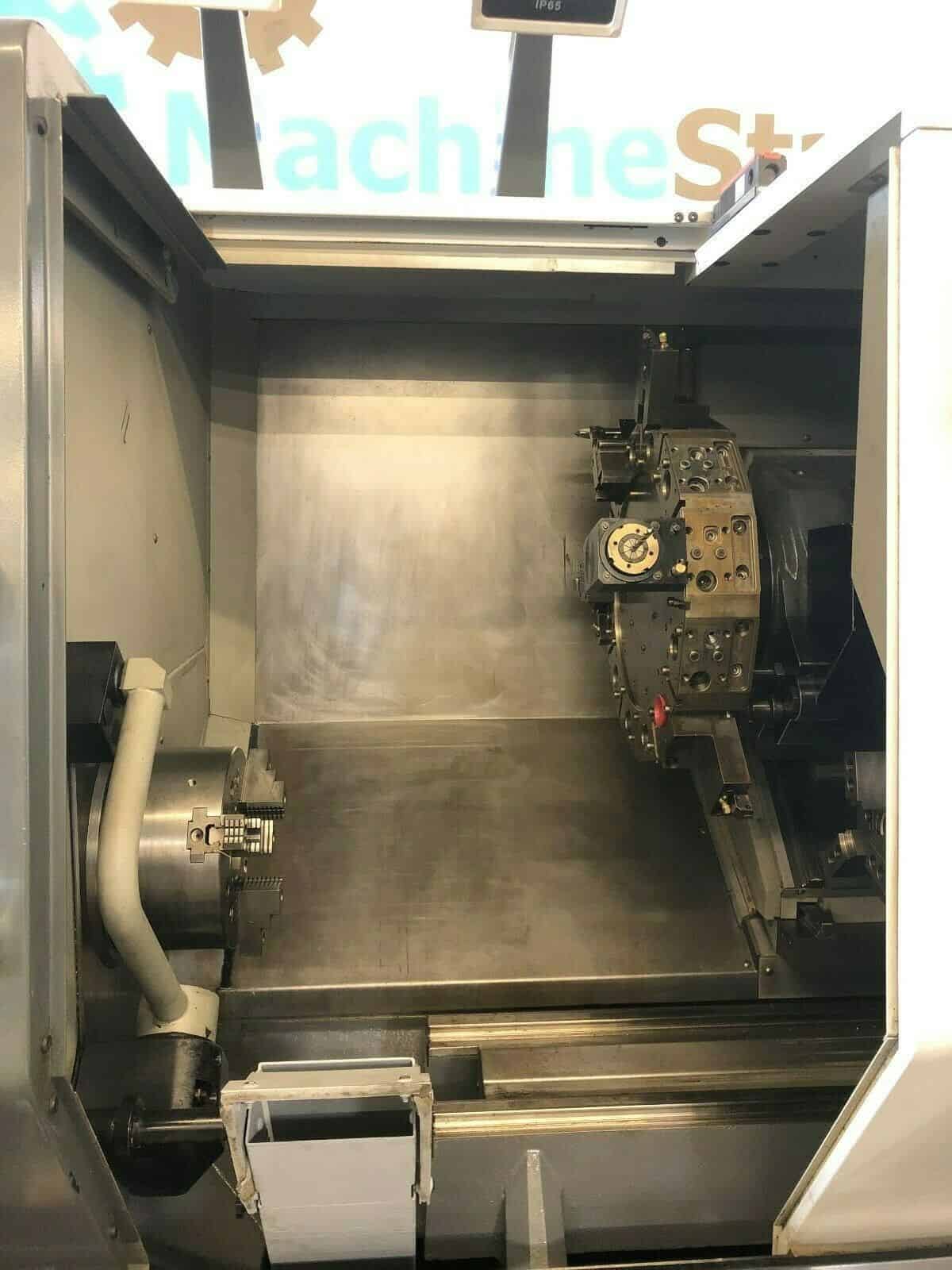

• 10″ Chuck on Main Spindle – ( 12″ Capable )
• 8″ Chuck on Sub Spindle
• Tool Presetter ( Option )
• Parts Catcher ( Option )
• 1GB Memory
• Wifi Connection for Control ( Option )
• Enclosure Exhaust system ( Option )
• Auxiliary Coolant Filter ( Option )
• Rigid Tapping on Both Spindles
• Spindle Orientation
• Foot Operated Control for Chuck
• CNC Control Cabinet Cooler ( Option )
• Media Display M-Code – M130 ( Option )
• High Intensity Lighting ( Option )

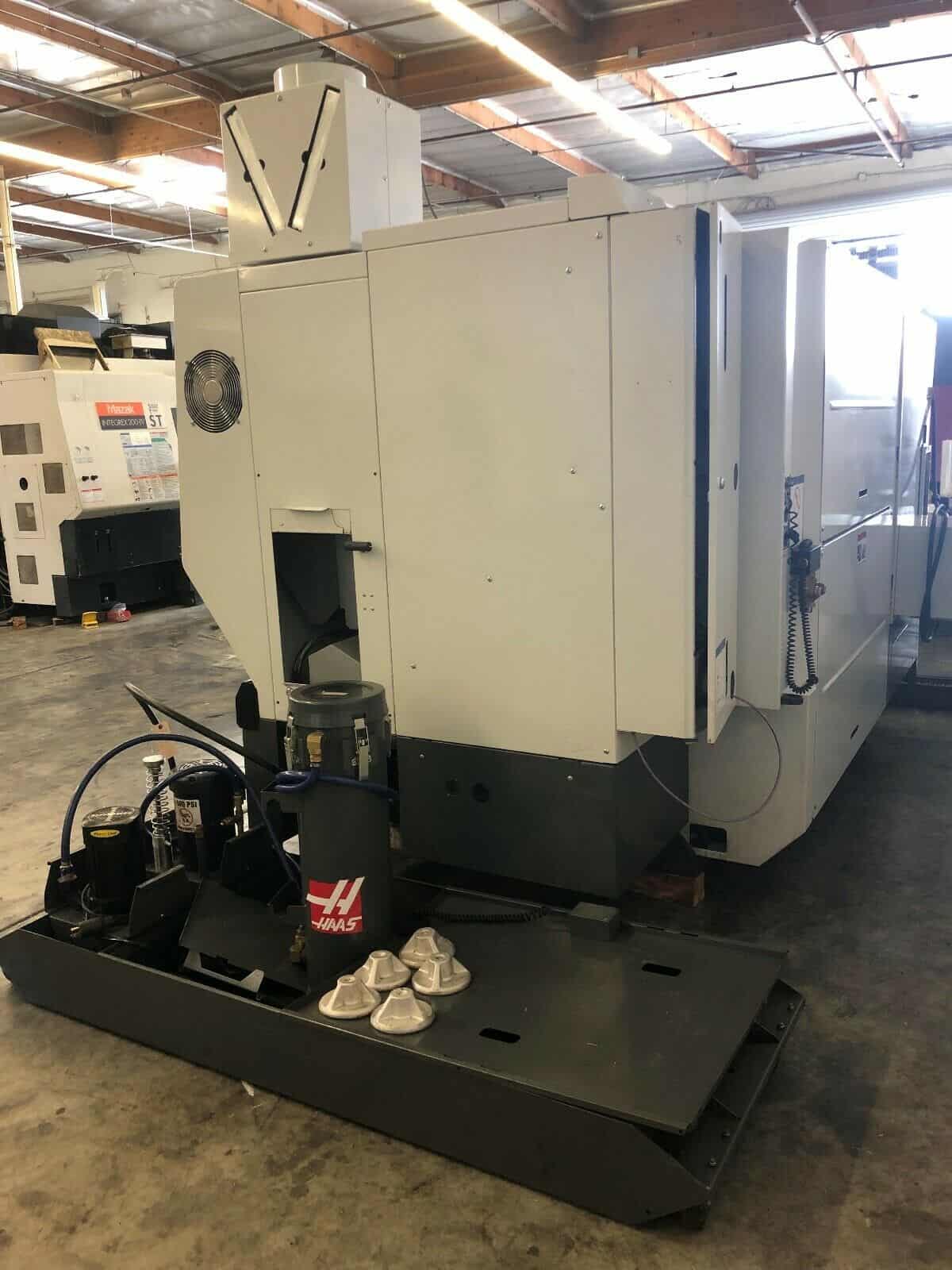

• 1000 PSI High Pressure Coolant System ( Option )

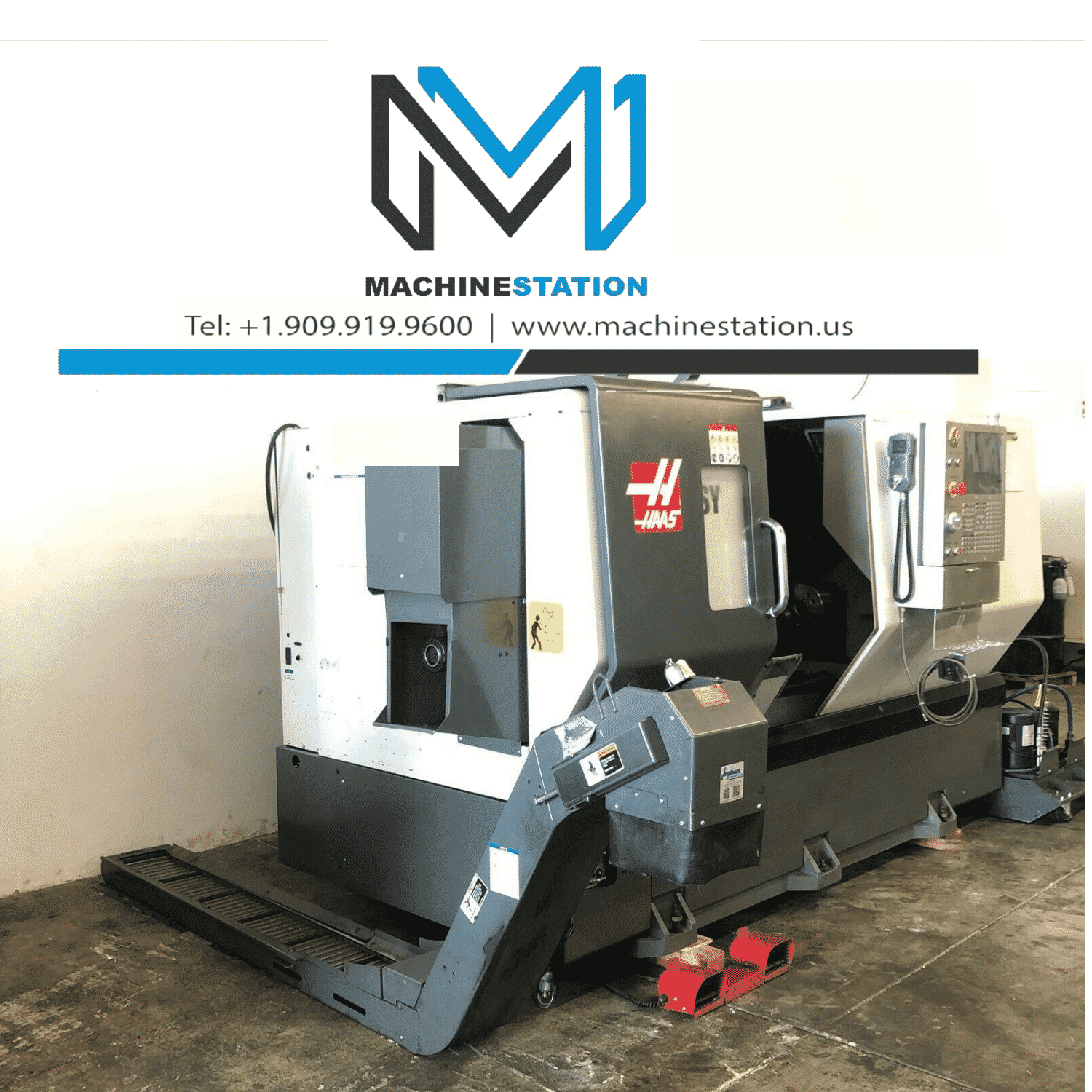

• Belt Type Chip Conveyor ( Option )
• Comes with Live Tools & some Static Tool Holders

• Haas DS-30SSY Specifications:

• Capacity:
• Max Turning Diameter: 18.0″
• Max Turning Length: 23.0″
• Max Bar Capacity: 3.0″
• Swing Over Bed: 31.80″
• Swing over the Saddle: 20.80″

• Travels:

• X Axis Travel: 12.5″
• Z Axis Travel: 23.0″
• Y Axis Travel: 4″
• B Axis Travel: 32.68″ ( Sub Spindle )
• C Axis: 360° (0.001°) Both Spindle

• Feedrate:

• Rapid Traverse X Axis: 472 IPM
• Rapid Traverse Z Axis: 945 IPM
• Rapid Traverse Y Axis: 472 IPM
• Rapid Traverse B Axis: 787 IPM

• Spindle:

• Main Spindle Bore: 3.50″
• Sub Spindle Bore: 2.0″
• Main Spindle Nose: A2-6
• Sub Spindle Nose: A2-5
• Main Spindle Speed: 45-4500 RPM
• Sub Spindle Speed: 60-4800 RPM
• Main Spindle Power: 22 kw
• Sub Spindle Power: 14.9 kw
• Live Tool Spindle Motor: 3.7 kw
• Live Tooling: 6000 RPM

• Turret:

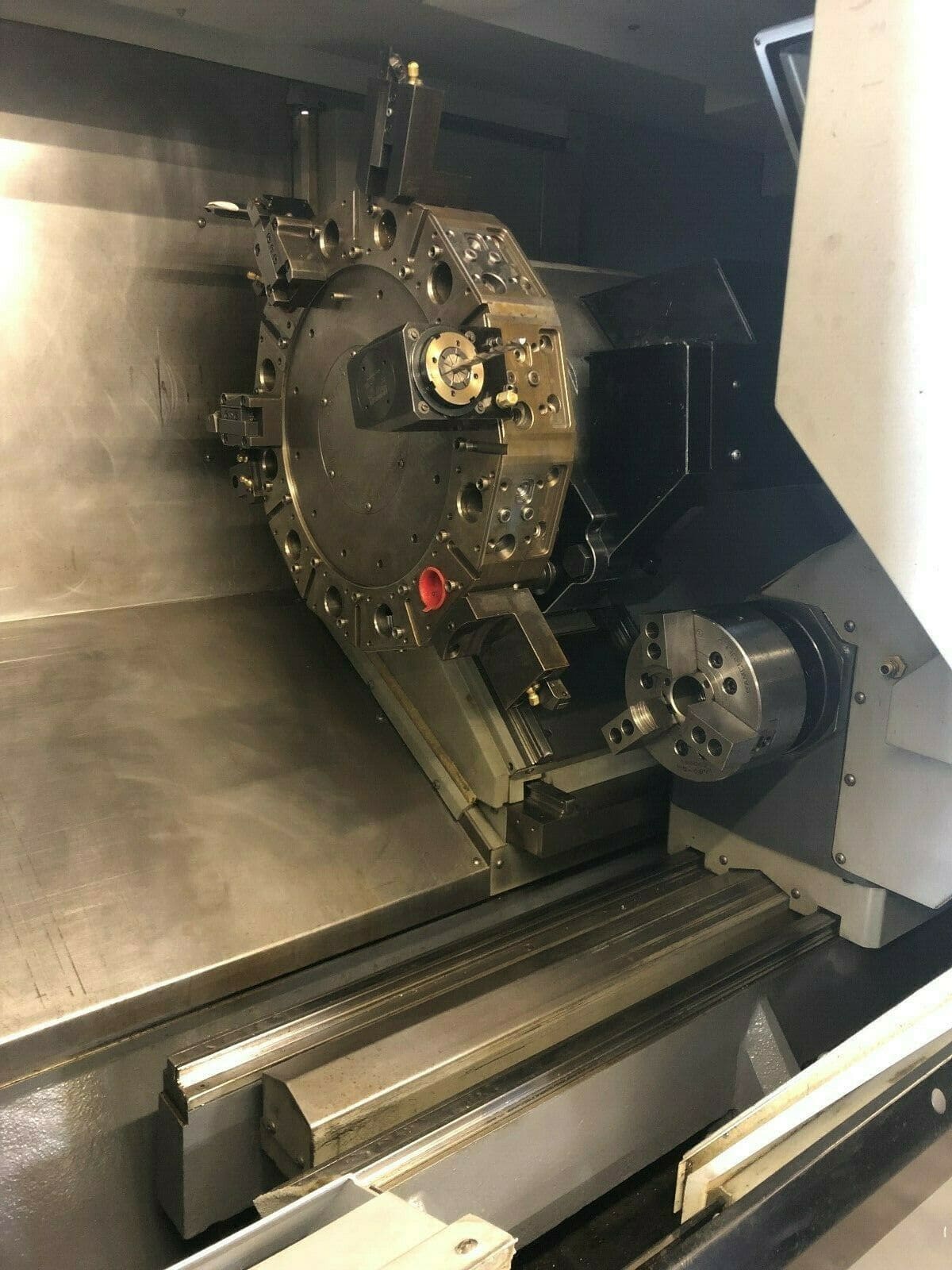

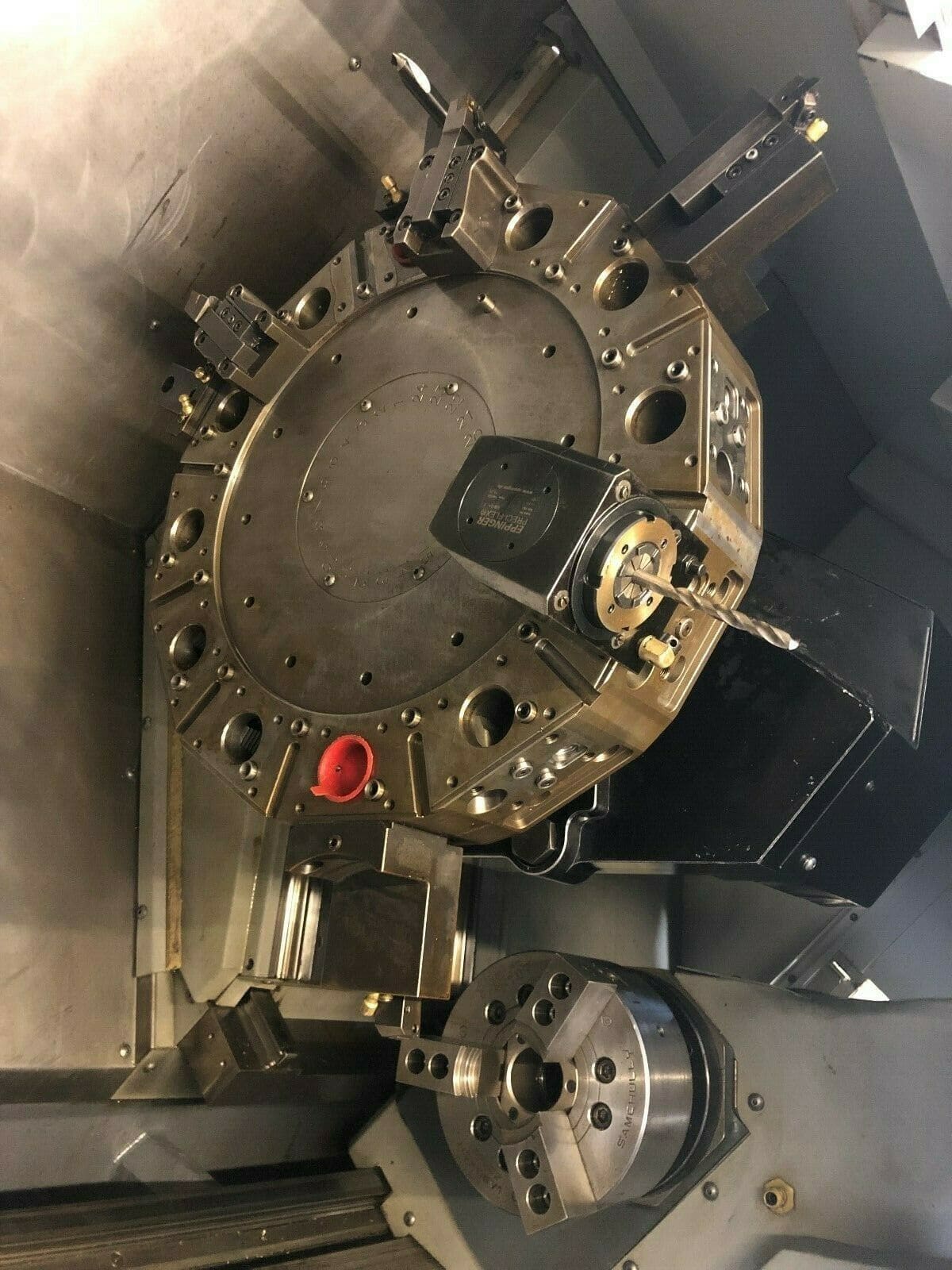

• Capacity: 24 Live Station BMT-65 Turret
• Turret Index Time: 0.1 Second
• Live Tool Speed: 60-6,000 RPM

• General:

• Power: 70 kva, 440v / 3-Phase
• Air Required: 100 PSI
• Overall Dimensions: 130″ x 67″ x 72″ High
• Overall Dimensions: 146″ x 67″ x 72″ High with Chip Conveyor
• Weight: 16,000 lbs
