*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

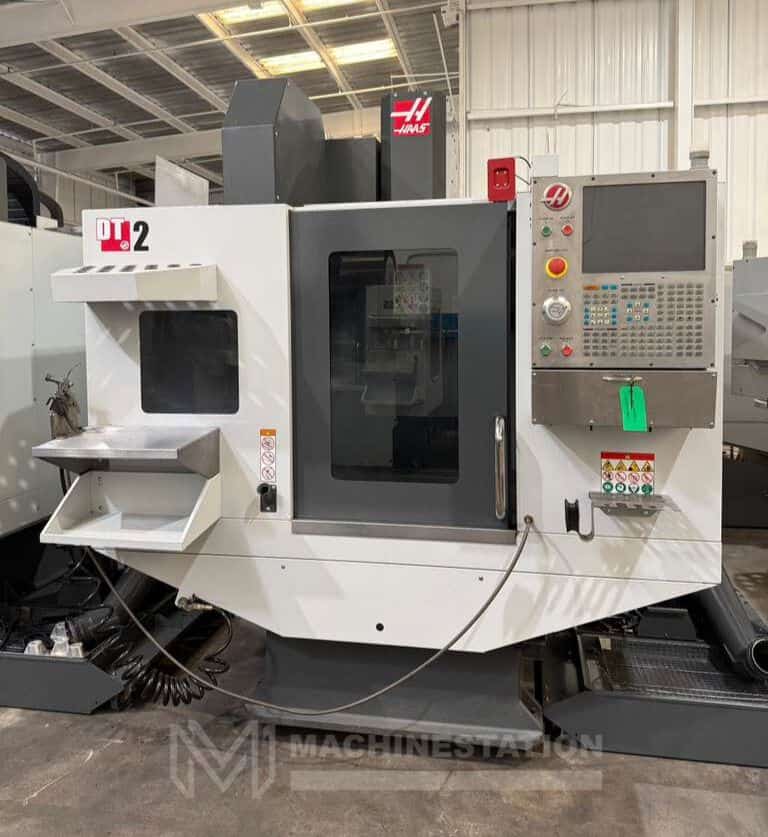

| Make: | HAAS |
| Model: | DT-2 |
| Year: | 2017 (Installed in 2018) |

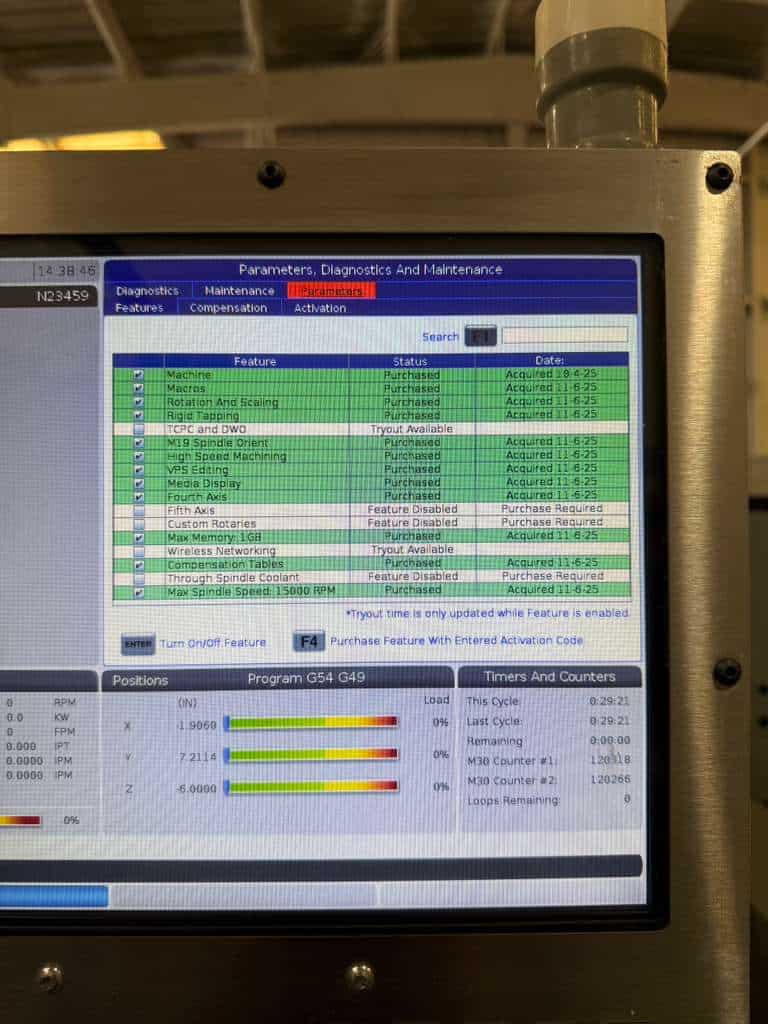

| Features: |
|---|

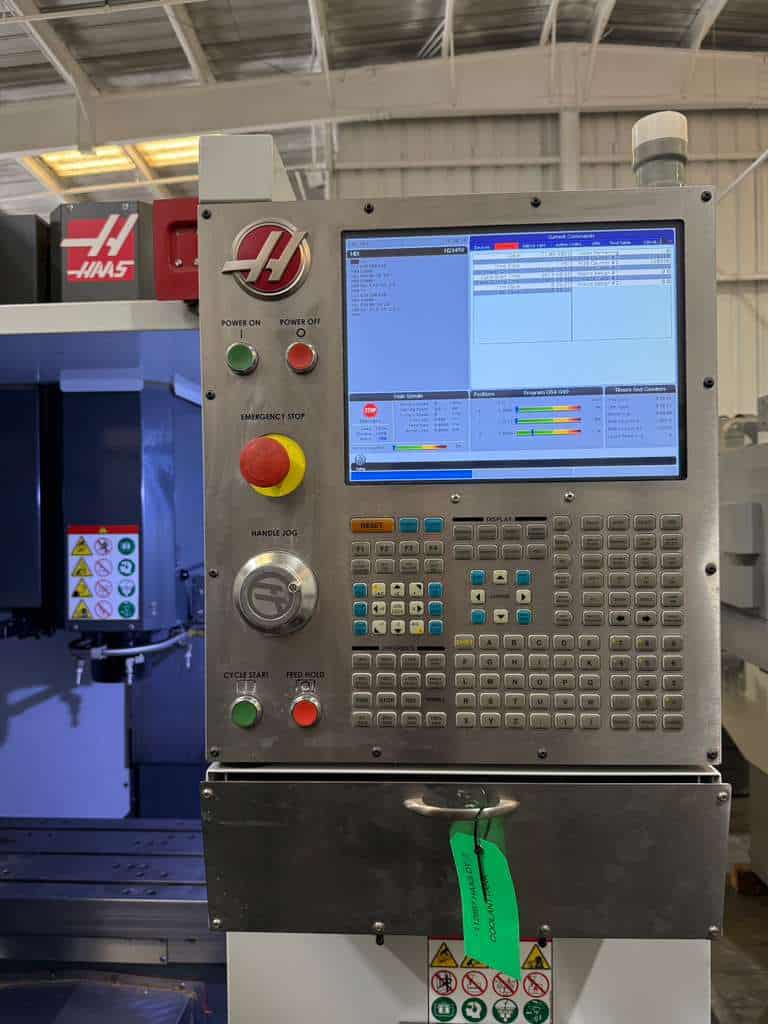

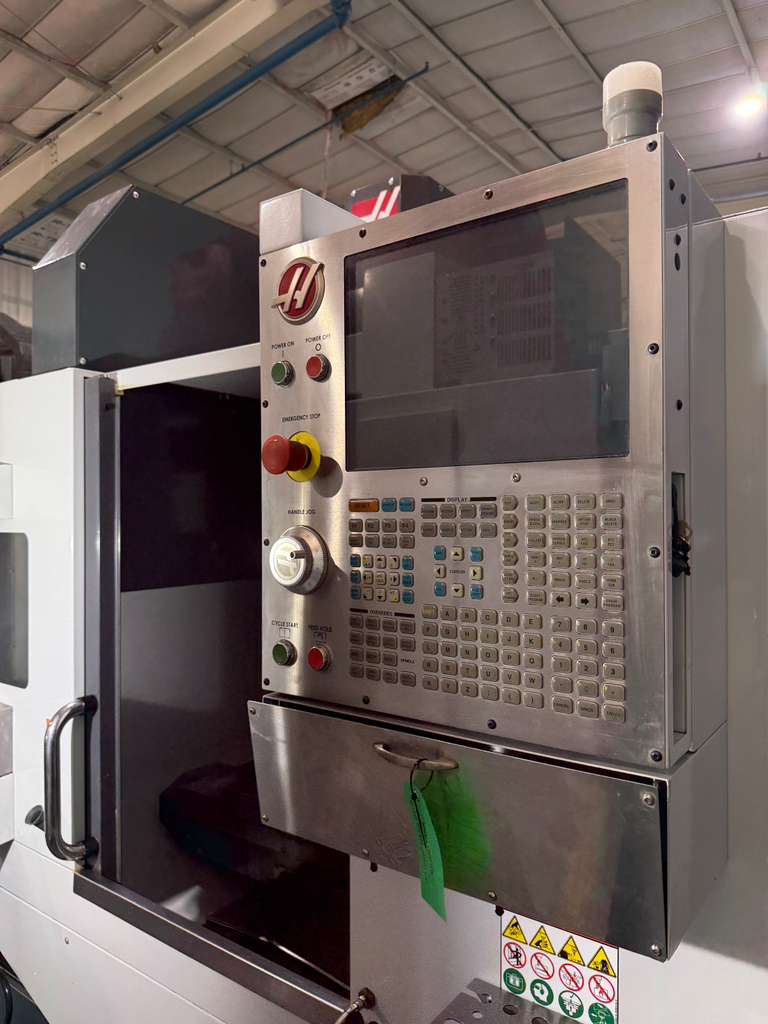

| Haas CNC Control |
| Linear Ways Construction |

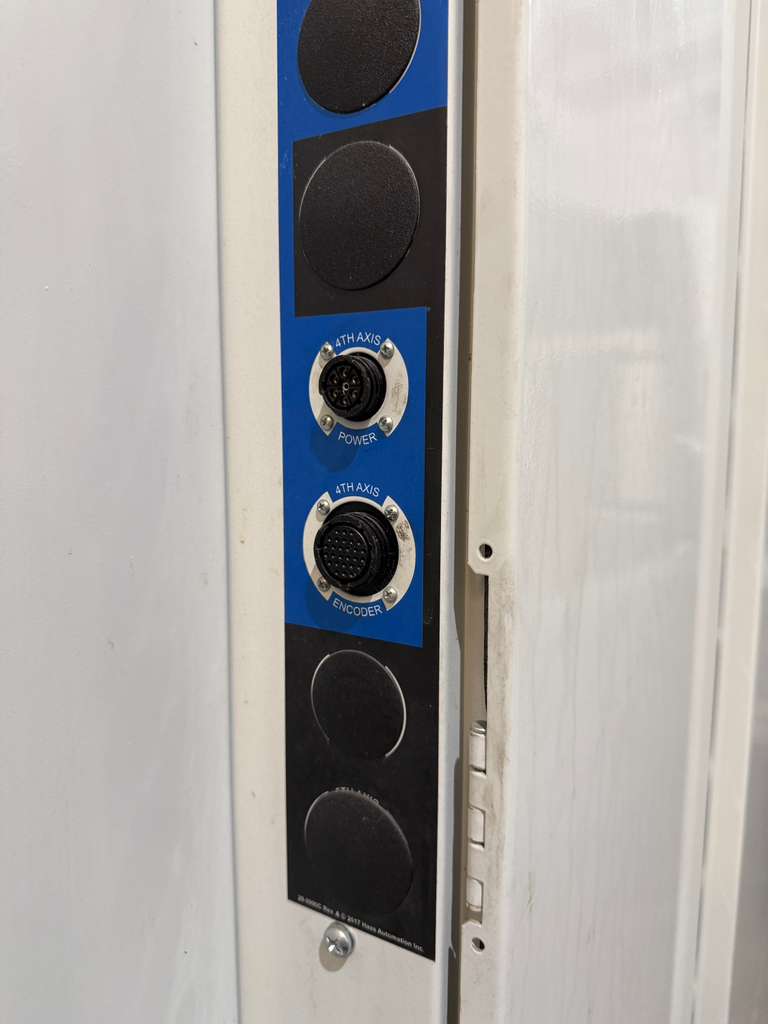

| 4th-Axis Drive and Wiring (Upgraded $3,595 value Included) |
| 15,000 RPM Spindle (Upgraded $13,995 value Included) |

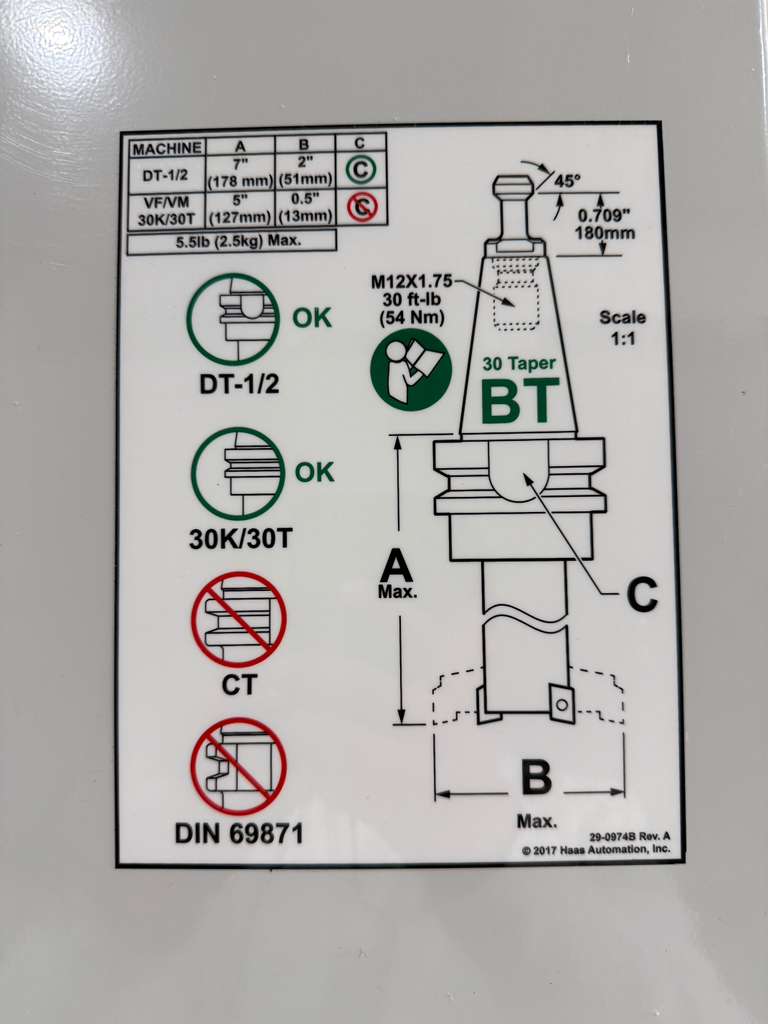

| BT-30 Spindle Taper |

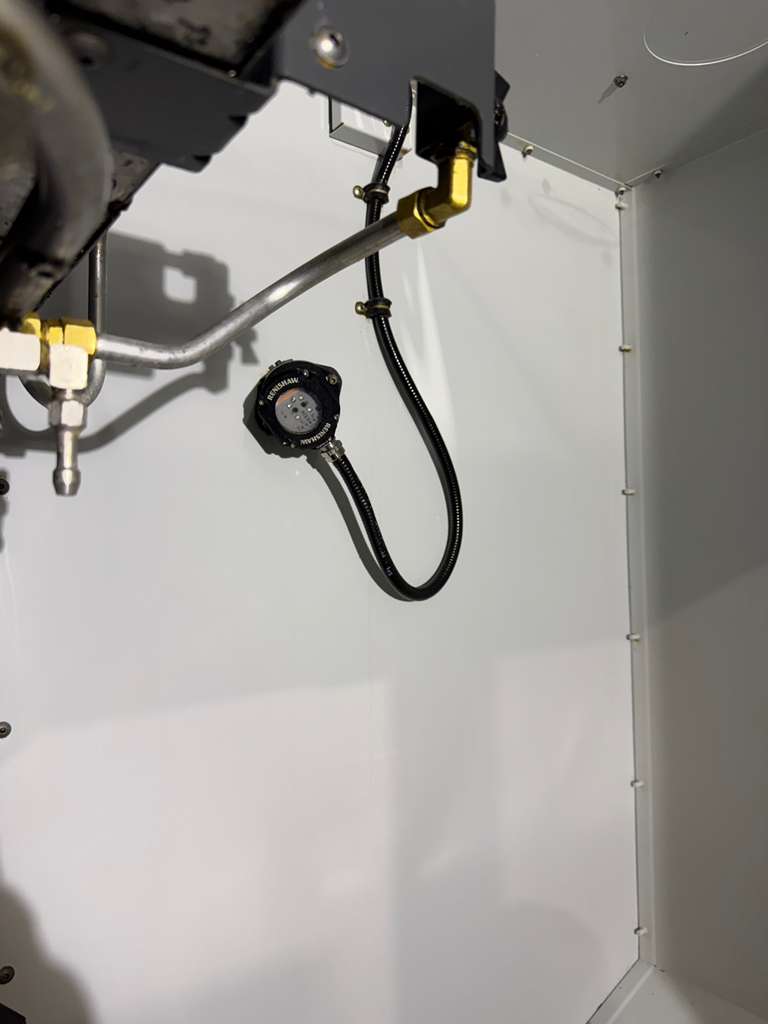

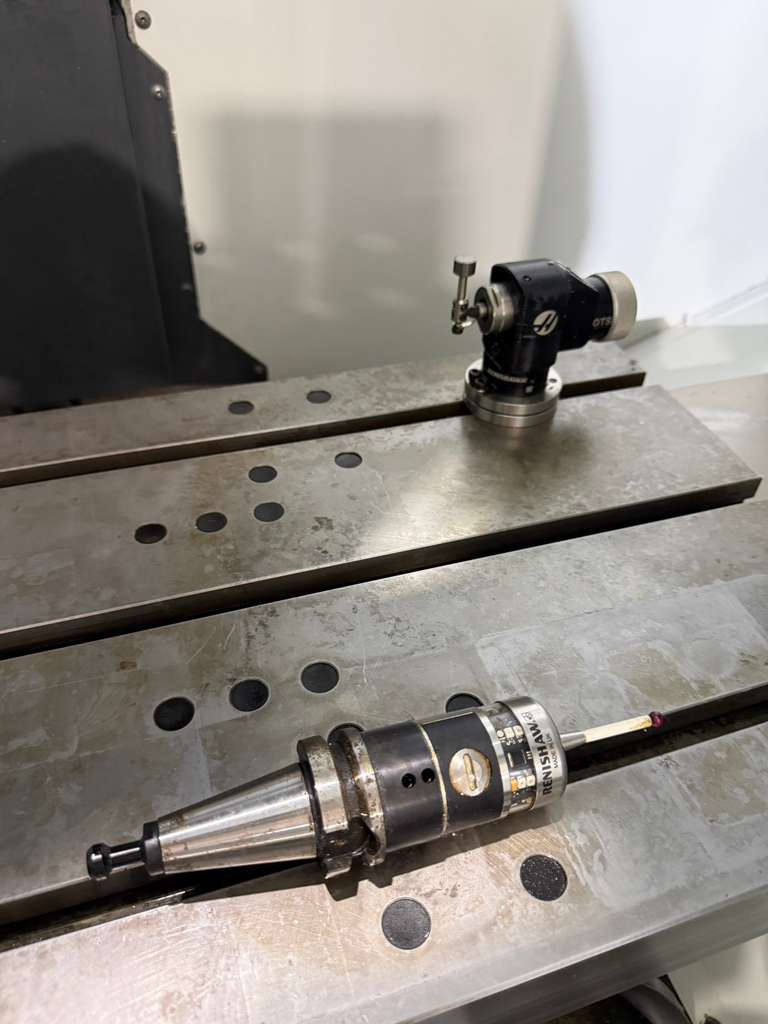

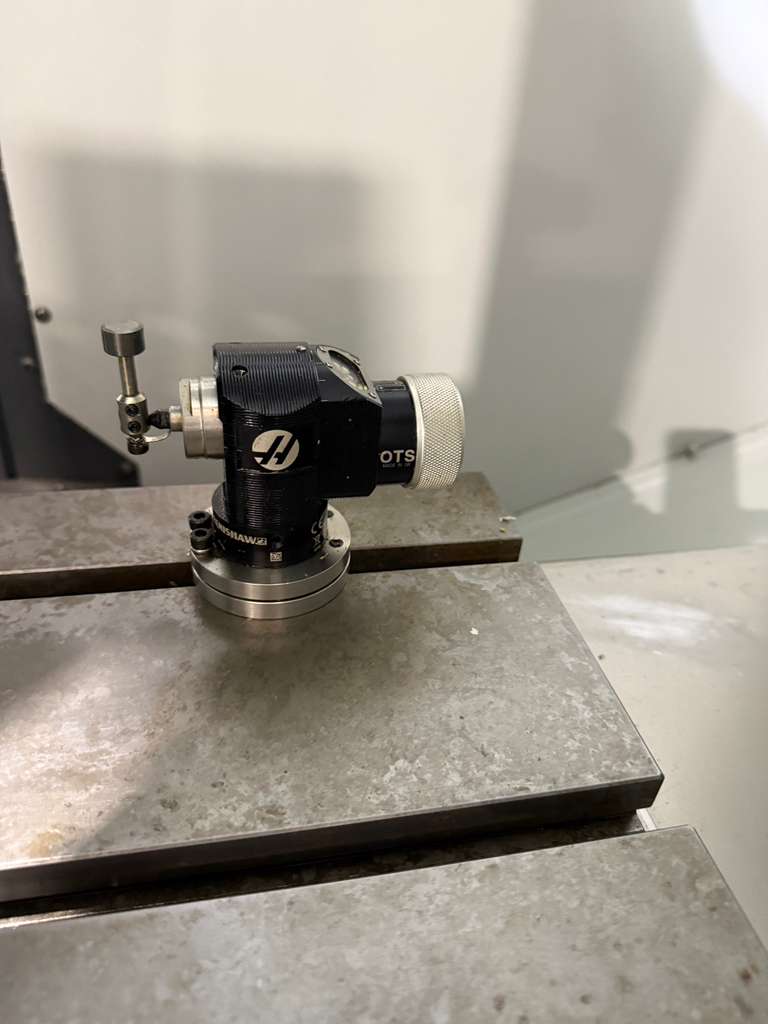

| Wireless Intuitive Probing System (Probe Included) (Upgraded $6,395 value Included) |
| High Speed Machining (Upgraded $3,895 value Included) |
| 20 Station Automatic Tool Changer |
| Advance Tool Management |
| Rigid Tapping |
| Spindle Orientation |
| 1GB Memory |
| Visual Part Programming System |
| User-Definable Macros |
| Coordinate Rotation and Scaling |

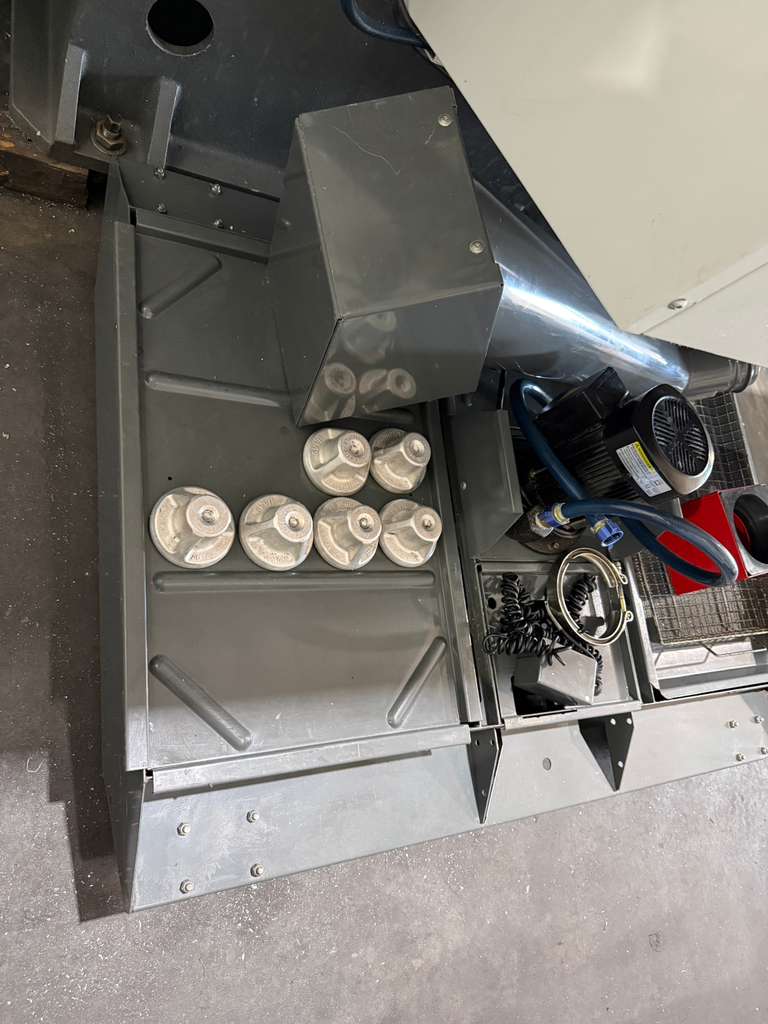

| Coolant System |

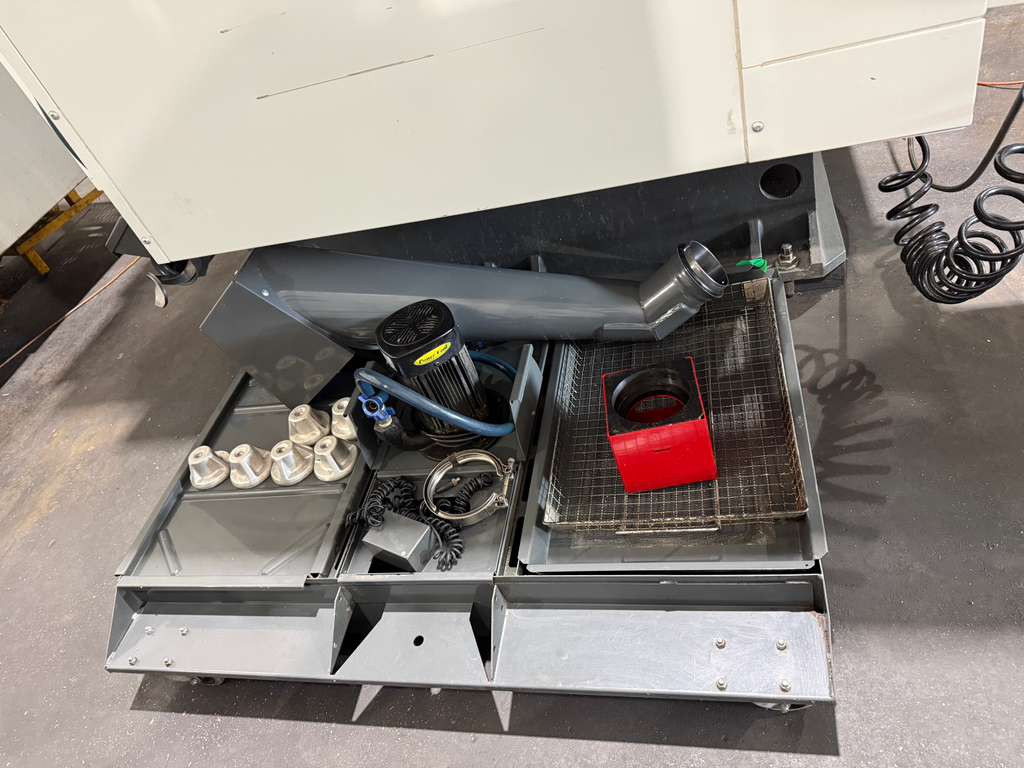

| Dual Chip Auger (Upgraded $4,095 value Included) |
| Levelling Pads |
| Travels: |
|---|
| X-Axis: 28.0″ |
| Y-Axis: 16.0″ |
| Z-Axis: 15.5″ |
| Rapid Traverse Rates: 2400 Inch Per Minute |
| Cutting Feed Rates: 1200 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 6″ – 21.5″ |

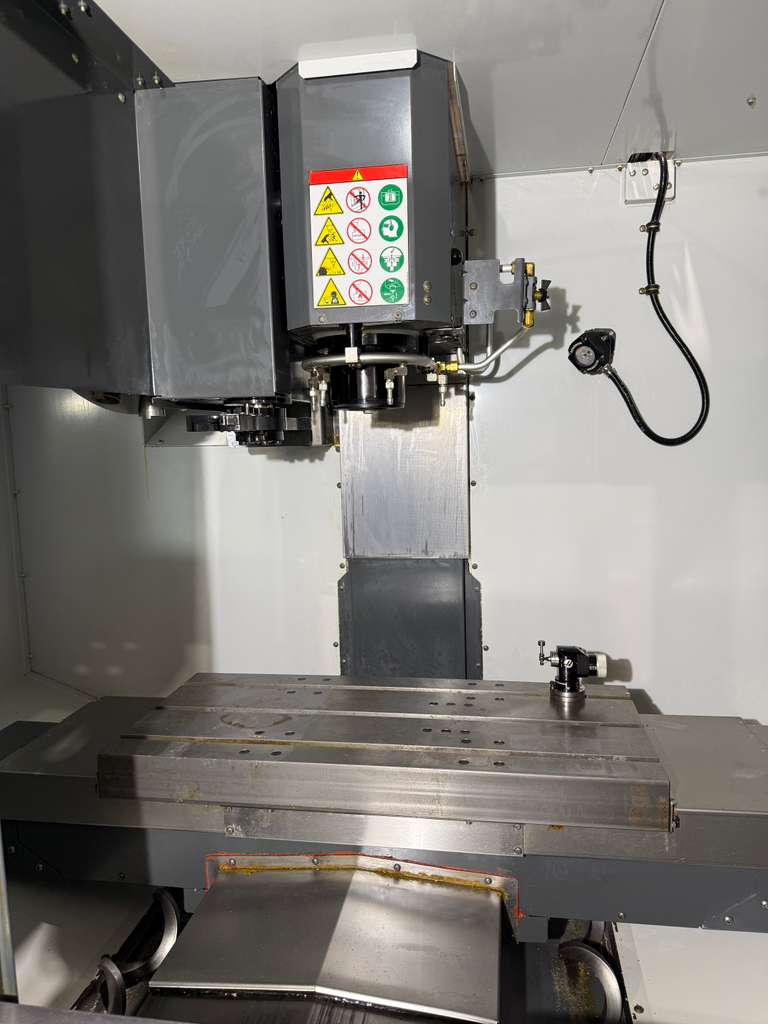

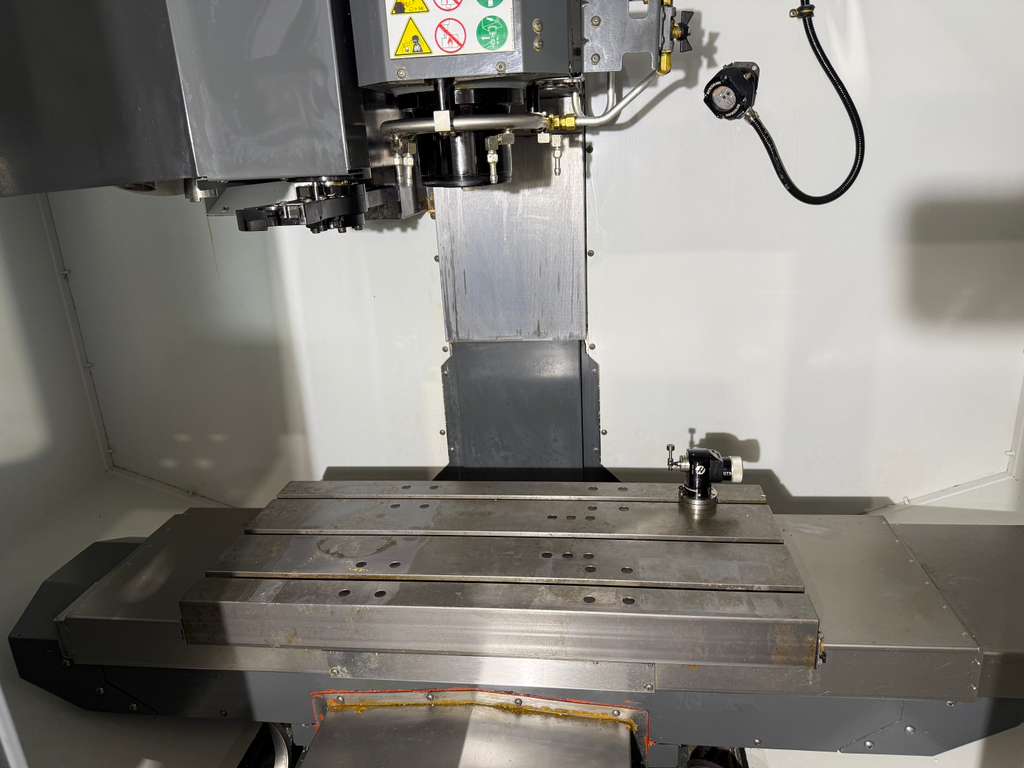

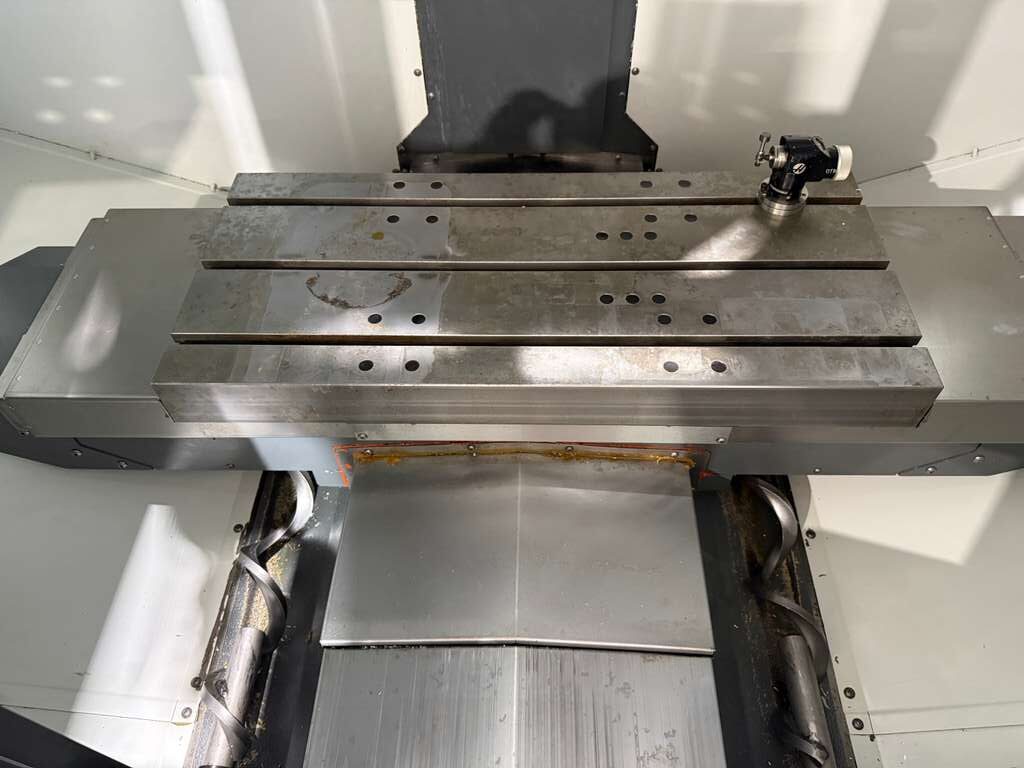

| Table: |
|---|
| Length: 34.0″ |
| Width: 15.0″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 500 lbs |
| Spindle: |
|---|
| Taper Size: BT-30 |
| Max Speed: 15,000 RPM |
| Max Tapping Speed: 5,000 RPM |
| Spindle Power: 15 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 20 Tools |
| Max Tool Weight: 5.5 lbs |
| Max Tool Dia: 2.0″ |
| Max Tool Length: 7″ |
| Tool Changing Time: 2 Seconds |
| General: |
|---|
| Air Required: 100 psi 4 scfm |

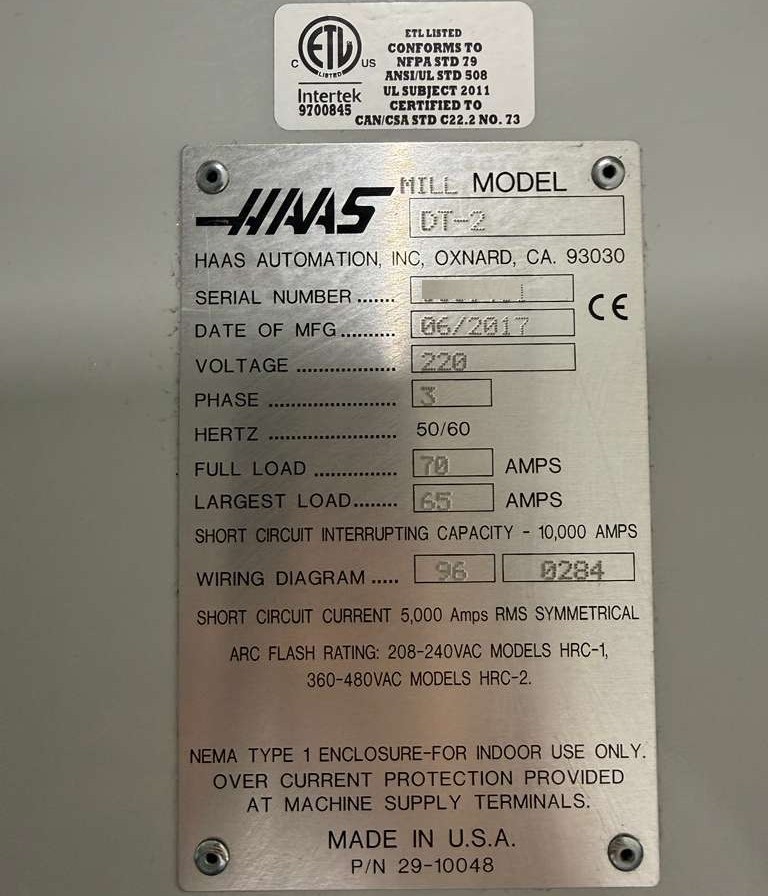

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 100″ x 91″ x 99″ High |
| Weight: 5,350 lbs |
