Sold
Haas EC-1600 CNC Horizontal Machining Center – 64″ Pallet, 50-Taper
Out of stock
| SKU: | 11281 |
| Make/Model: | Haas EC-1600 |
| Year: | 2013 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model No.: | EC-1600 |
| Year of Manufacture: | 2013 |
| Condition: | Used |
| Machine Type: | CNC Horizontal Machining Center |

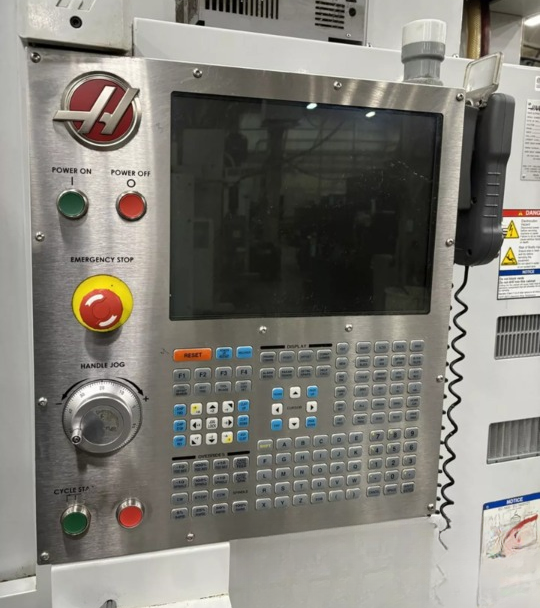

| CNC Control: | Haas CNC Control |
| Country of Origin: | USA |
| Equipped With: |
|---|
| Haas CNC Control |
| Chip Conveyor |
| Coolant System |
| Remote Jog Handle |
| Work Light |
| Fully Enclosed Guarding |
| Heavy Duty Box Way Construction |
| Travels: |
|---|
| X-Axis Travel: 64″ |
| Y-Axis Travel: 50″ |
| Z-Axis Travel: 32″ |
| Rapid Traverse (X/Y/Z): 700 IPM |
| Table / Pallet: |
|---|
| Pallet Size: 64″ × 50″ |
| Max Table Load Capacity: 10,000 lbs |
| Table Type: Single Pallet (APC Optional) |
| Spindle: |
|---|
| Spindle Taper: CAT 50 |
| Spindle Speed: 7,500 RPM |
| Optional Speed: 10,000 RPM |
| Spindle Motor: 30 HP |
| Drive Type: Inline Direct Drive |
| Tool Changer: |
|---|
| Tool Capacity: 30+1 ATC |
| Optional Capacity: 50 / 70 Tools |
| Tool Type: CAT 50 |
| Max Tool Diameter: 5″ |
| Max Tool Length: 16″ |
| Max Tool Weight: 30 lbs |
| Accuracy: |
|---|
| Positioning Accuracy: ±0.0004″ |
| Repeatability: ±0.0002″ |

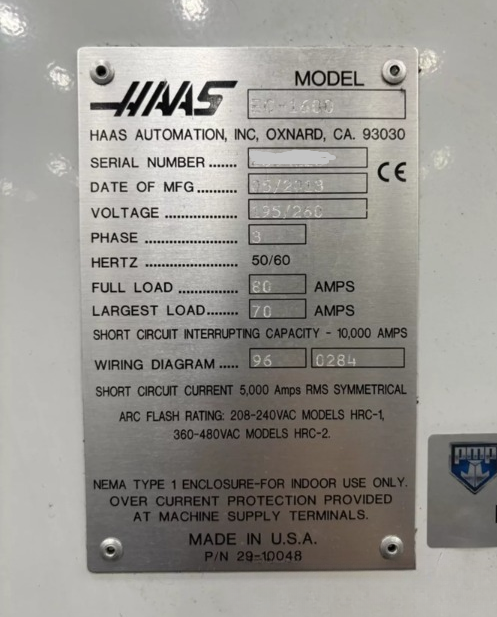

| Electrical: |
|---|
| Voltage: 195–260V |
| Phase: 3 Phase |
| Frequency: 50/60 Hz |
| Full Load: 80 Amps |
| Largest Load: 70 Amps |
| Short Circuit Interrupting Capacity: 10,000 Amps |
| General: |
|---|
| Machine Dimensions: 246″ × 165″ × 132″ |
| Machine Weight: 30,000 lbs |
| Categories | CNC Horizontal Machining Center |
|---|---|
| Make | |
| Model | EC-1600 |
