Sold
Haas EC-1600YZT CNC Horizontal Machining Center 4-Axis, 30HP, 7,500 RPM
Out of stock
| SKU: | 11265 |
| Make/Model: | Haas EC-1600YZT |
| Year: | 2012 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model No.: | EC-1600YZT |
| Year of Manufacture: | 2012 |
| Condition: | Used |
| Machine Type: | CNC Horizontal Machining Center (HMC) |
| CNC Control: | Haas CNC Control |
| Country of Origin: | USA |
| Equipped With: |
|---|

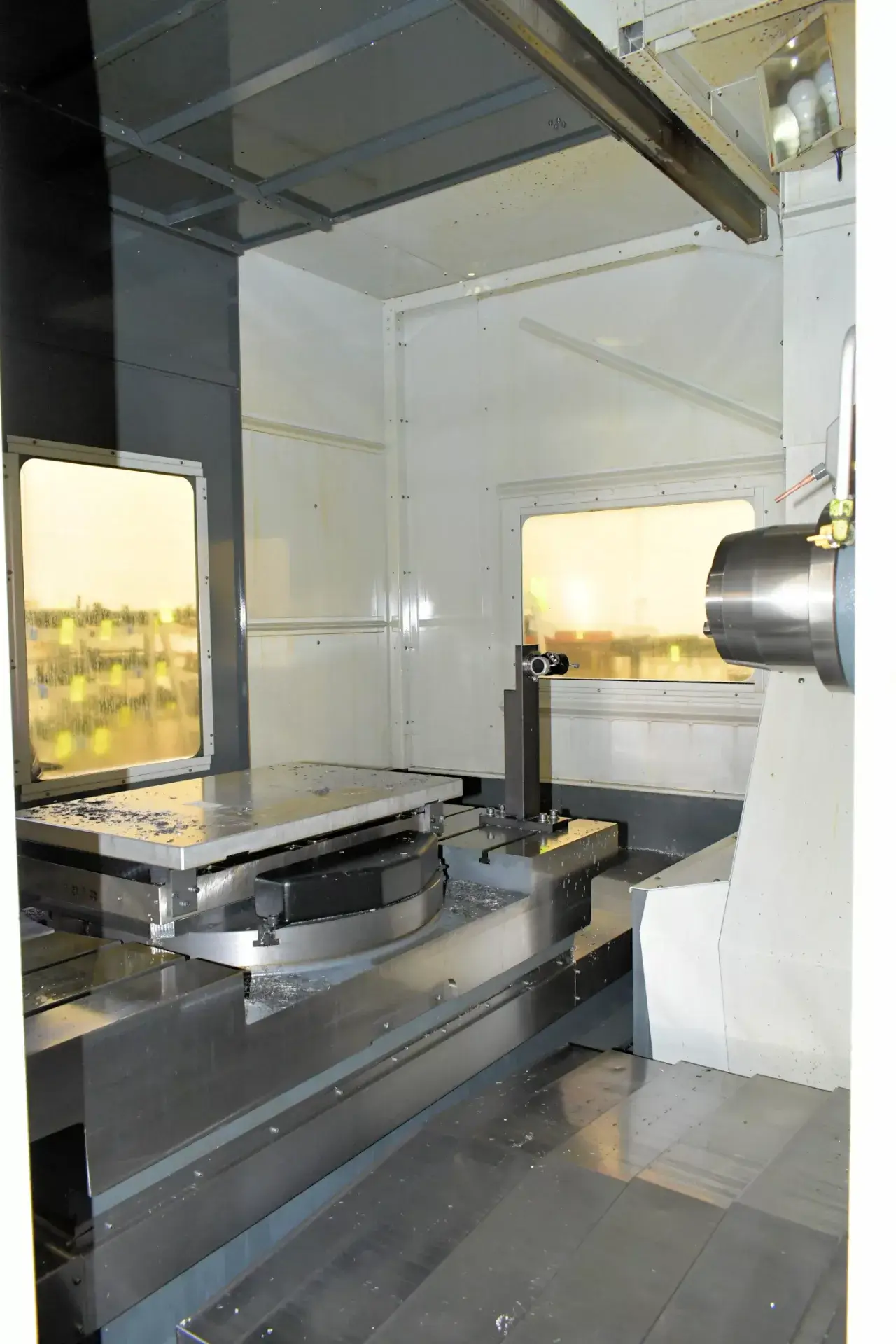

| Full 4th Axis Rotary Table (B-Axis) |
| Side-Mount Tool Changer (SMTC) |
| Chip Conveyor System |
| Through-Spindle Coolant (TSC Ready / Optional) |
| Rigid Tapping |
| Programmable Coolant Nozzle |
| Renishaw Probing (optional) |
| Ethernet & USB Connectivity |
| Work Light & Fully Enclosed Guarding |
| High Rigidity Cast Construction |

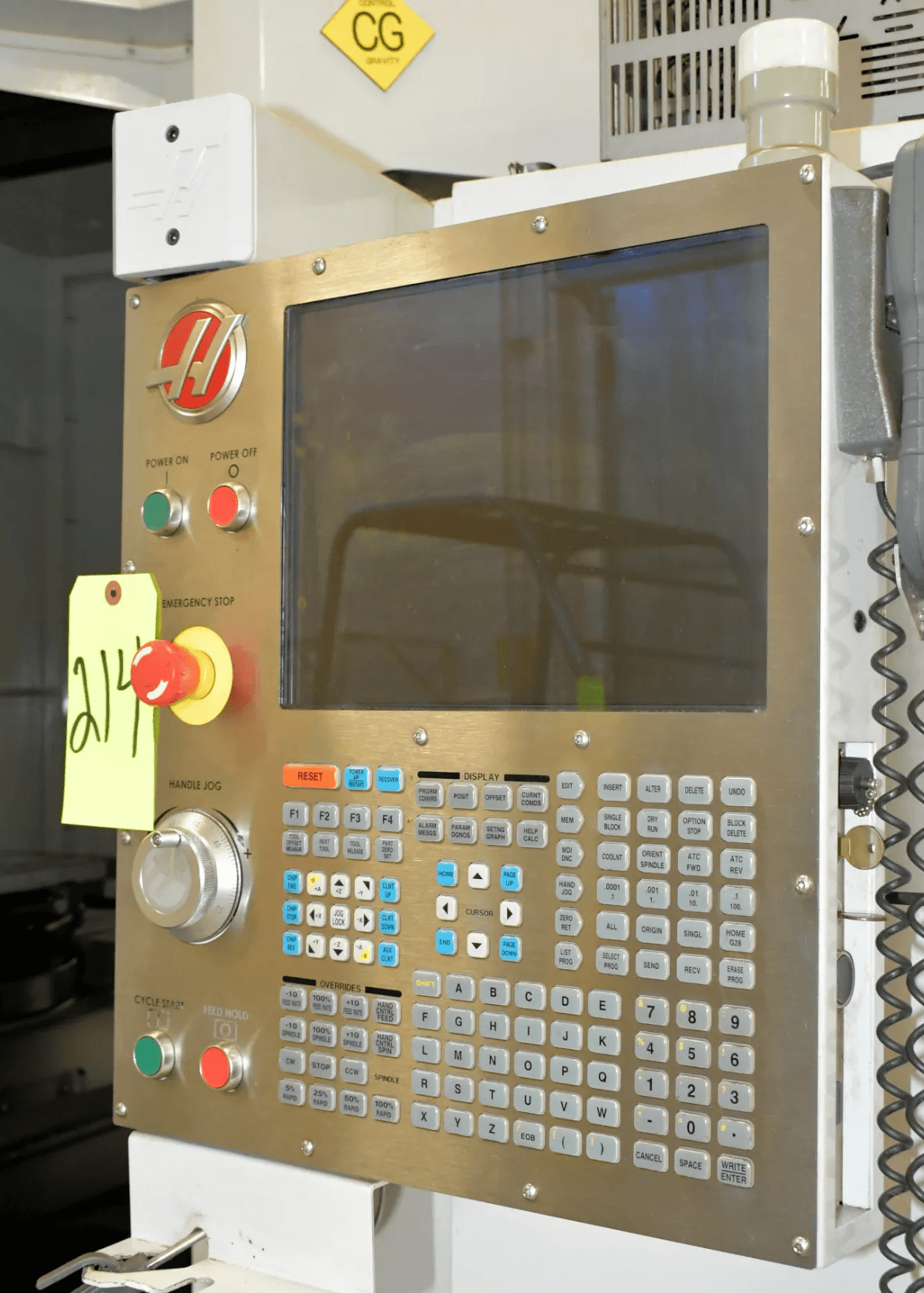

| Haas Intuitive CNC Control |
| Capacity: |
|---|
| Pallet Size: 64″ × 50″ (1,626 × 1,270 mm) |
| Max Table Load: 10,000 lbs (4,536 kg) |
| Table Indexing (B-Axis): 1° (Full 4th Axis) |
| Travels: |
|---|
| X-Axis Travel: 64″ (1,626 mm) |
| Y-Axis Travel: 50″ (1,270 mm) |
| Z-Axis Travel: 32″ (813 mm) |
| Rapid Traverse: 710 IPM (~18 m/min) |
| Cutting Feedrate: Up to 500 IPM (~12.7 m/min) |
| Spindle: |
|---|
| Spindle Speed: 7,500 RPM |
| Spindle Taper: CAT 50 |
| Spindle Motor: 30 HP Vector Drive |
| High torque spindle for heavy cutting |
| Tooling System: |
|---|
| Tool Capacity: 30 Tools (40+ optional) |
| Type: Side-Mount Tool Changer |

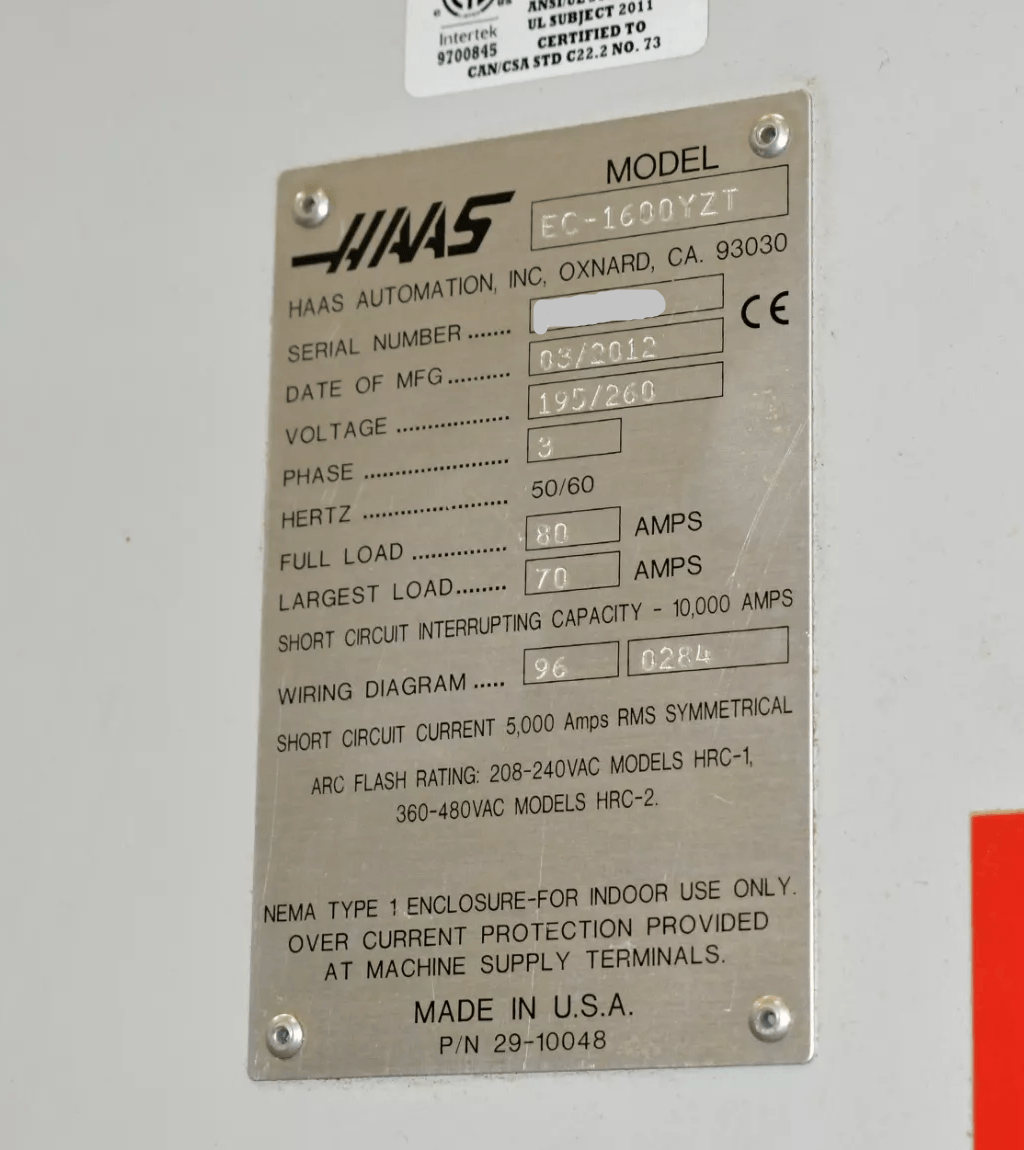

| Electrical: |
|---|
| Voltage: 195–260V |
| Phase: 3 Phase |
| Frequency: 50/60 Hz |
| Full Load: 80 Amps |
| General: |
|---|
| Machine Weight: ~30,000 lbs (13,600 kg) |
| Footprint: ~5 m × 3 m |
| Categories | CNC Horizontal Machining Center |
|---|---|
| Make | |
| Model | EC-1600YZT |
