*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

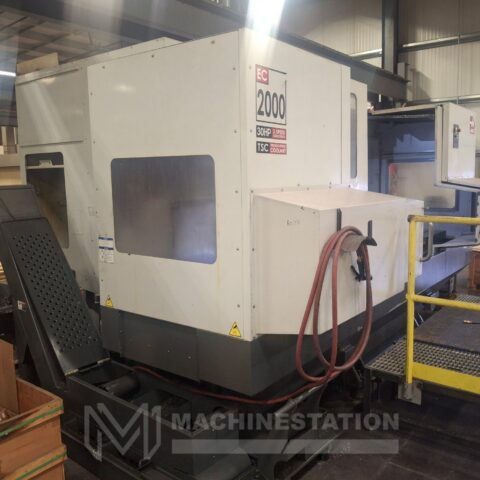

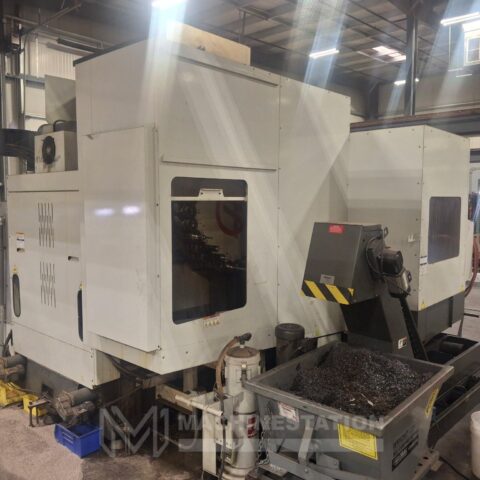

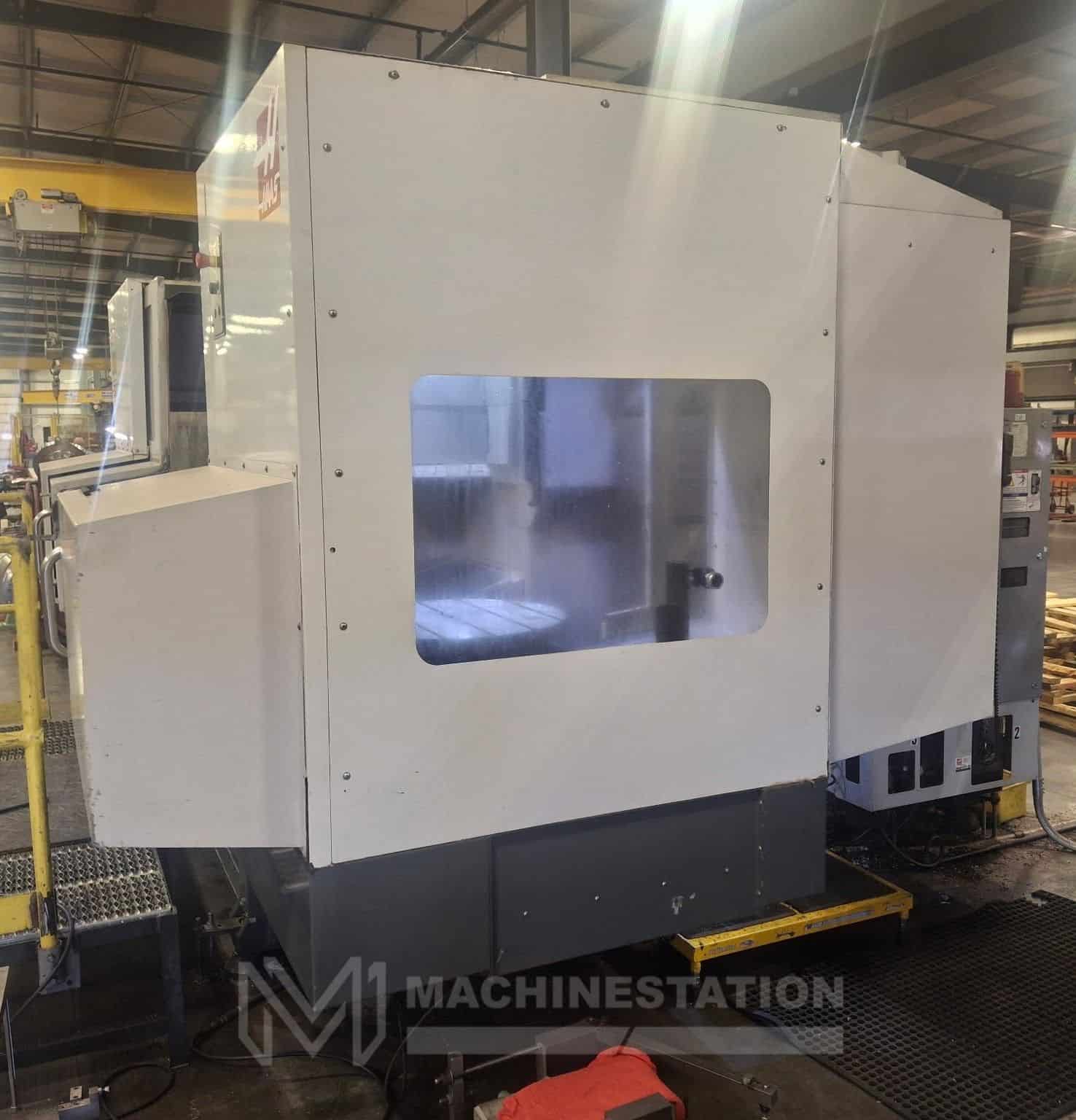

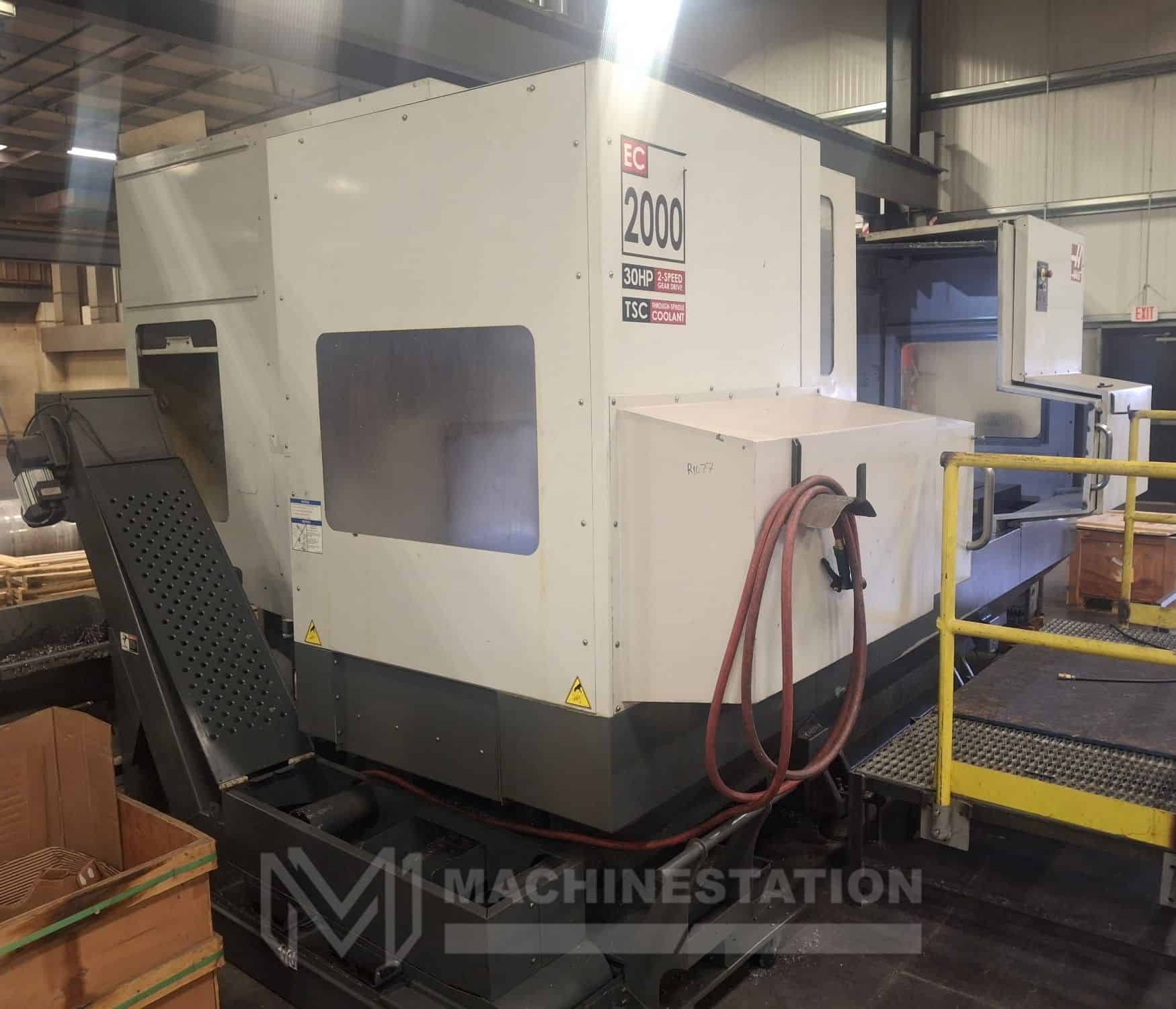

| Make: | HAAS |
| Model: | EC-000 |
| Year: | 2010 |
| Condition: | Used – Good |
| Features: |
|---|

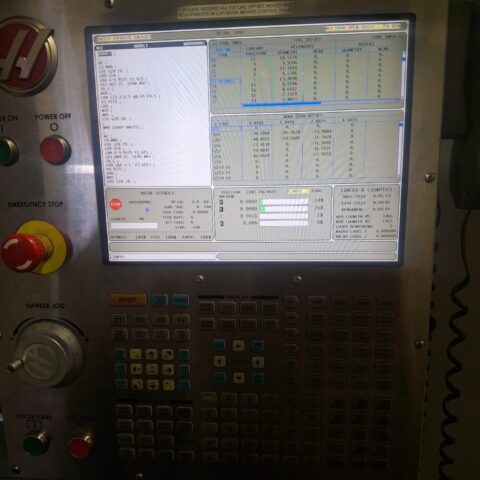

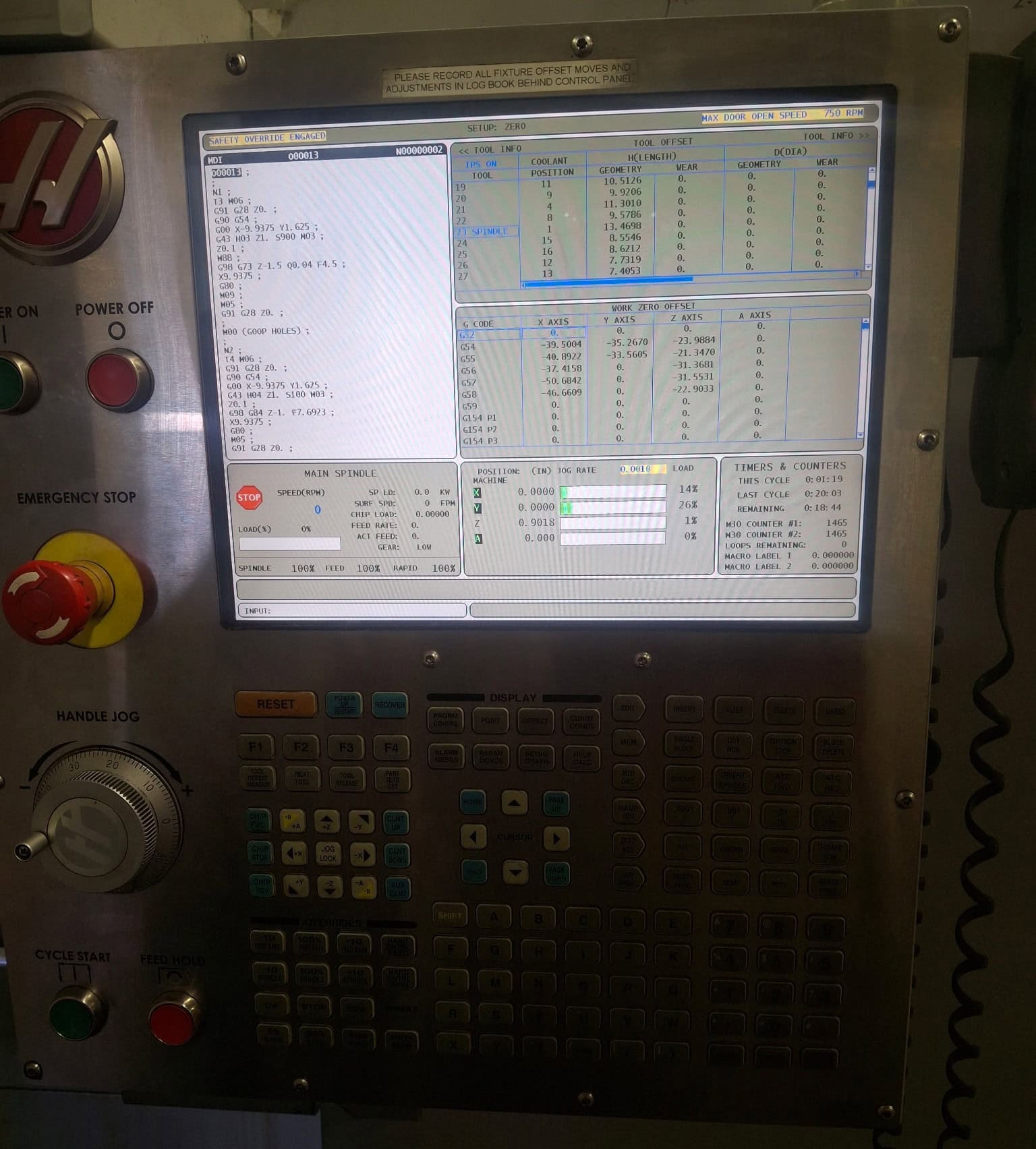

| Haas CNC Control |
| 30″ Diameter Built In Rotary Table Full 4th Axis |

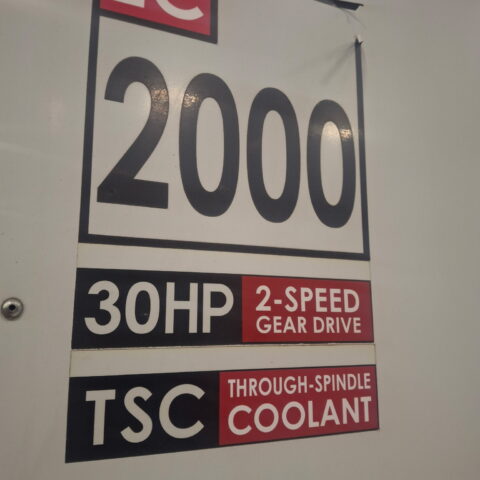

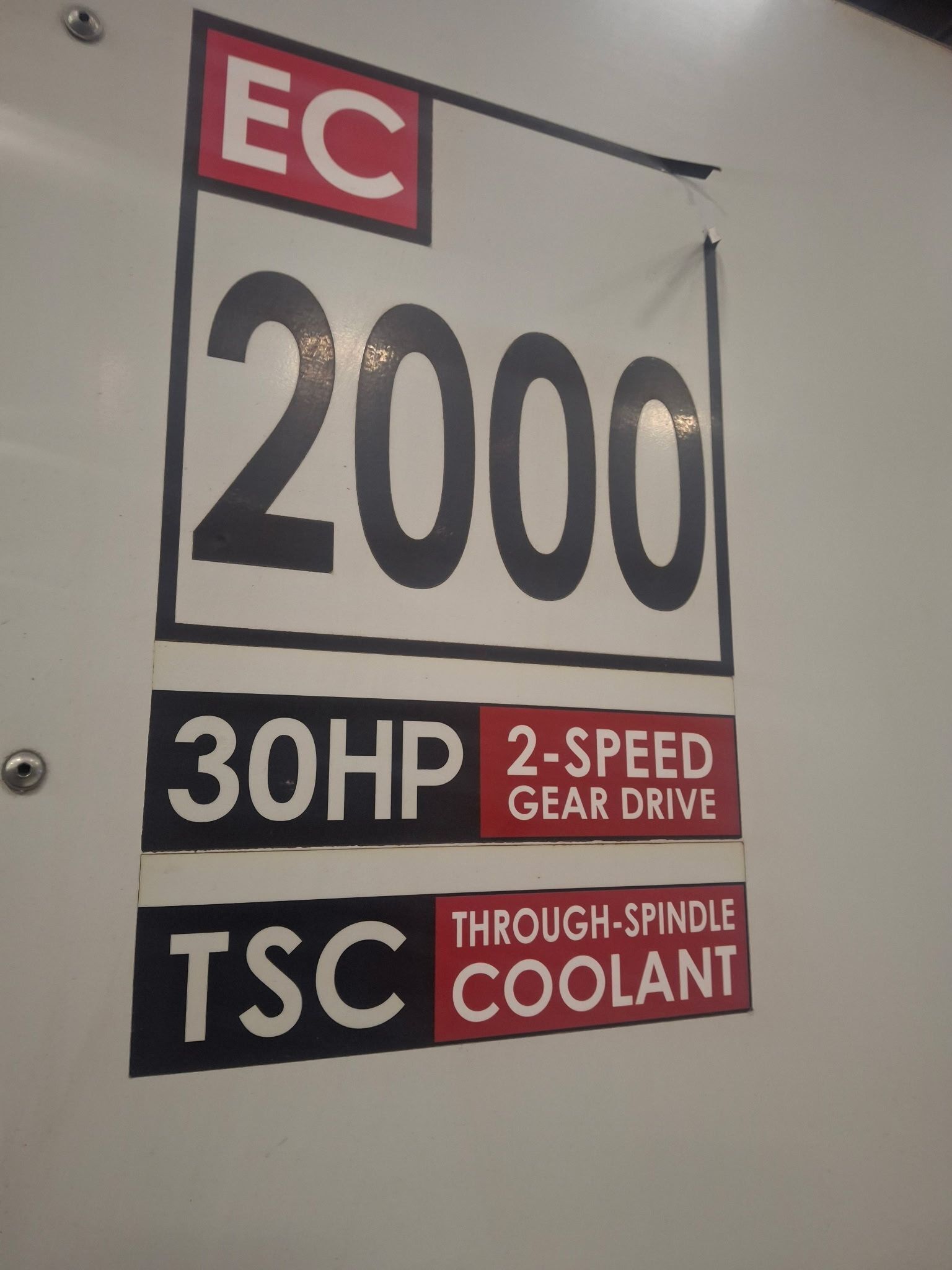

| 30 HP 2-Speed Gear Drive |
| Through Spindle Coolant – 1000 psi |
| 6,000 RPM CAT-50 Taper Spindle |
| 30 Tools Automatic Tool Changer |
| Renishaw Probing System (Probe Needed) |
| Rotary Table Riser Block |
| MPG Handwheel Control |
| Rigid Tapping |

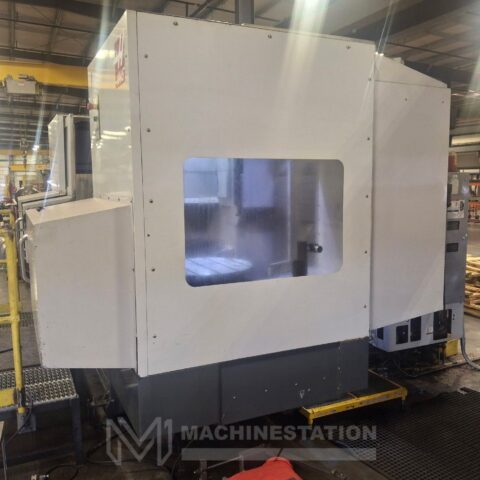

| Full Guarding |
| Coolant System |

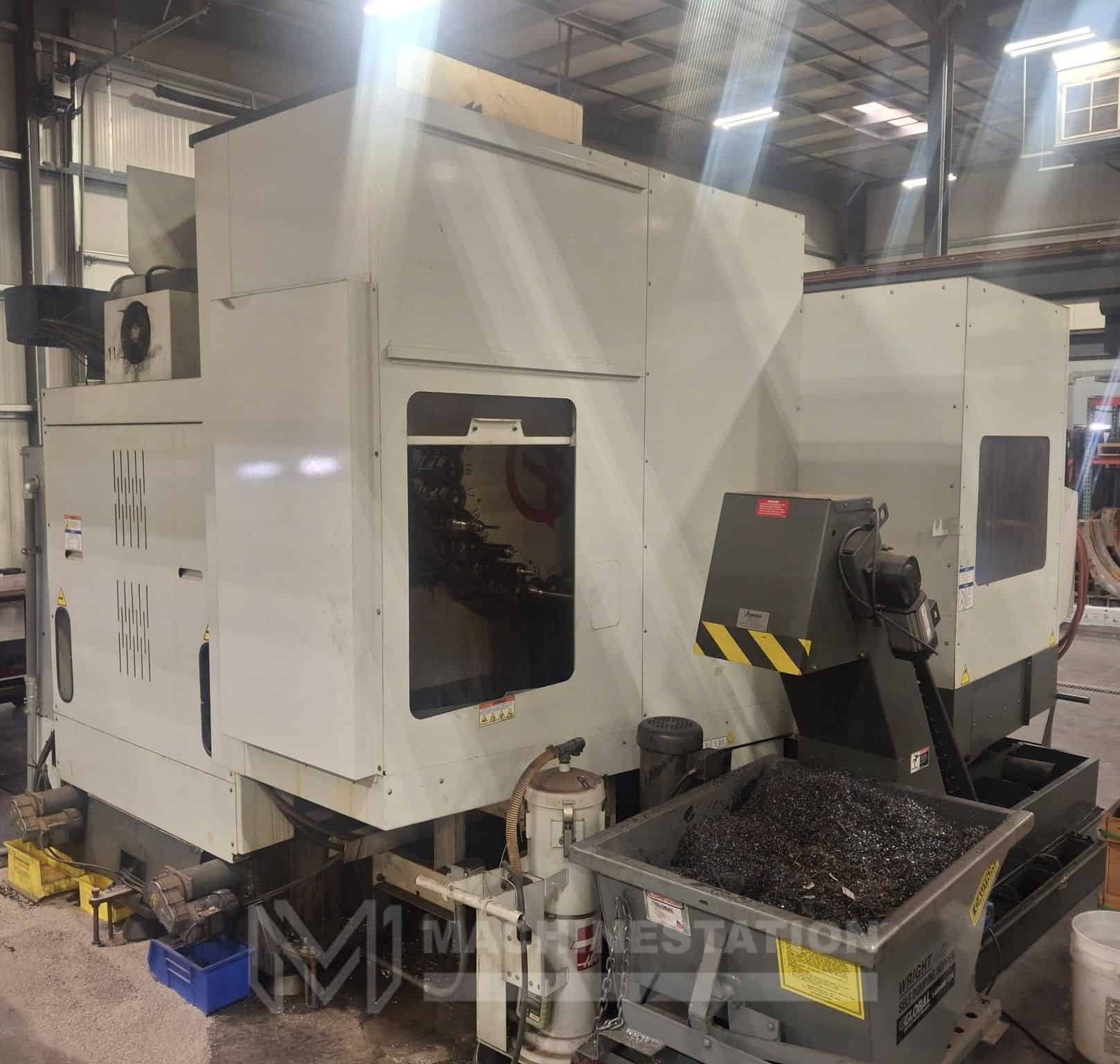

| Chip Conveyor |
| Travels: |
|---|
| X Axis: 84″ |
| Y Axis: 40″ |
| Z Axis: 32″ |
| B Axis (Rotary Table): 0.001° ( Full 4th ) |
| Table: |
|---|
| Length: 84″ |
| Width: 36″ |

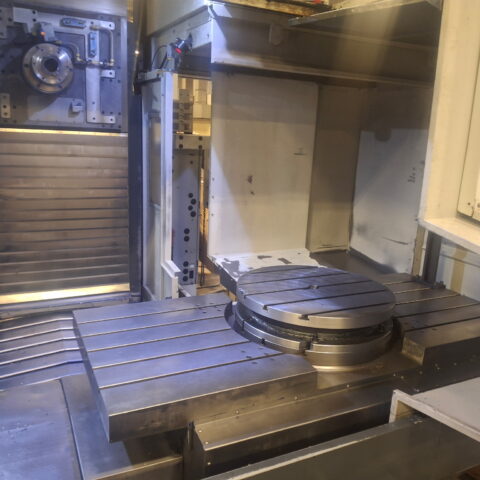

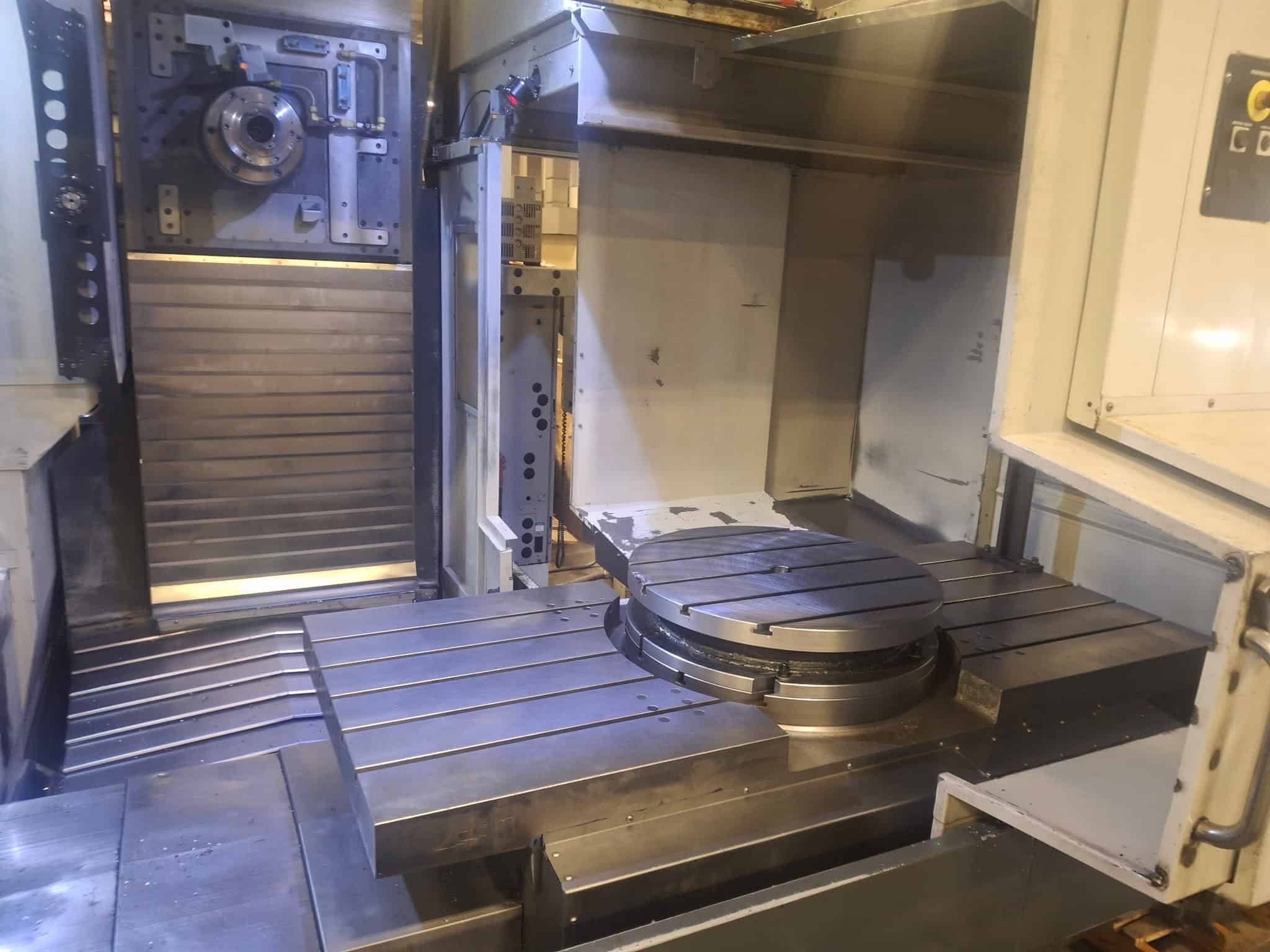

| Built In Rotary Table Diameter: 30″ |
| Max Weight on Table: 4536 lbs |
| Spindle: |
|---|
| Taper Size: CAT-50 |
| Spindle Speed: 6,000 RPM |
| Spindle Power: 30 HP |
| Tool changer: |
|---|
| Capacity: 30 Station |
| Max Tool Diameter: 5″ |
| Max Tool Length: 16″ |
| Max Tool Weight: 30 lbs. |
| General: |
|---|
| Air Required: 100 psi 4 scfm |

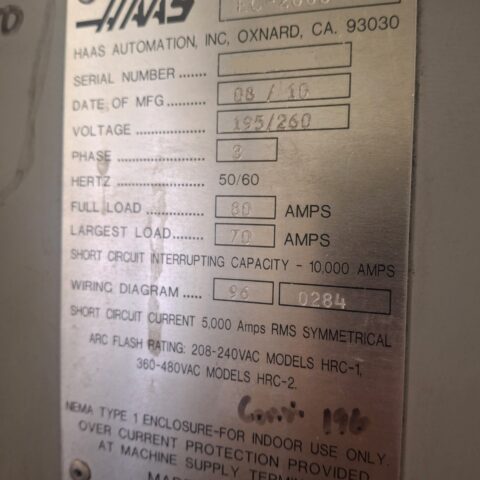

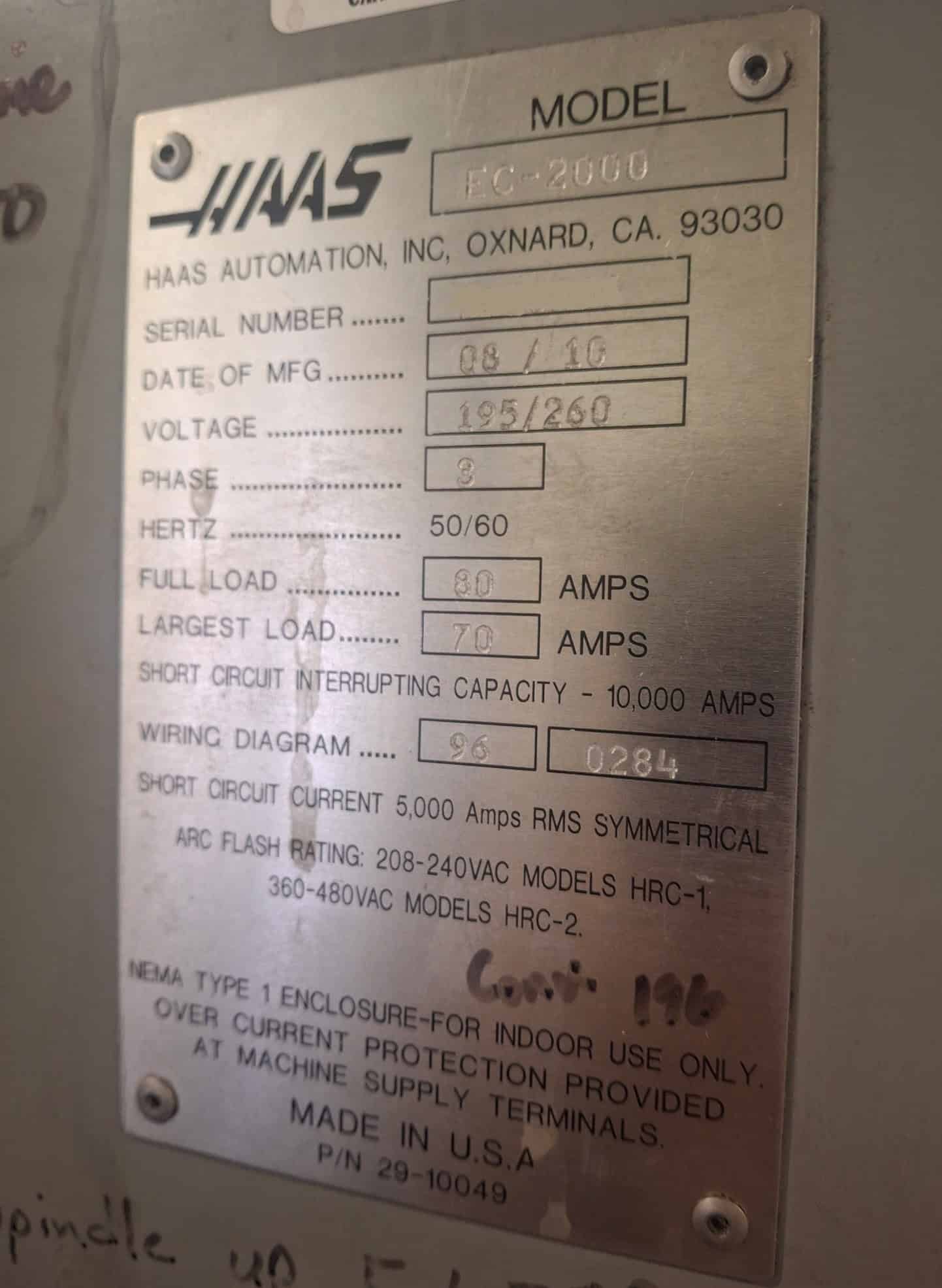

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 177″ x 142″ x 119″ High Approx. |
| Weight: 35,500 lbs Approx. |
