Sold

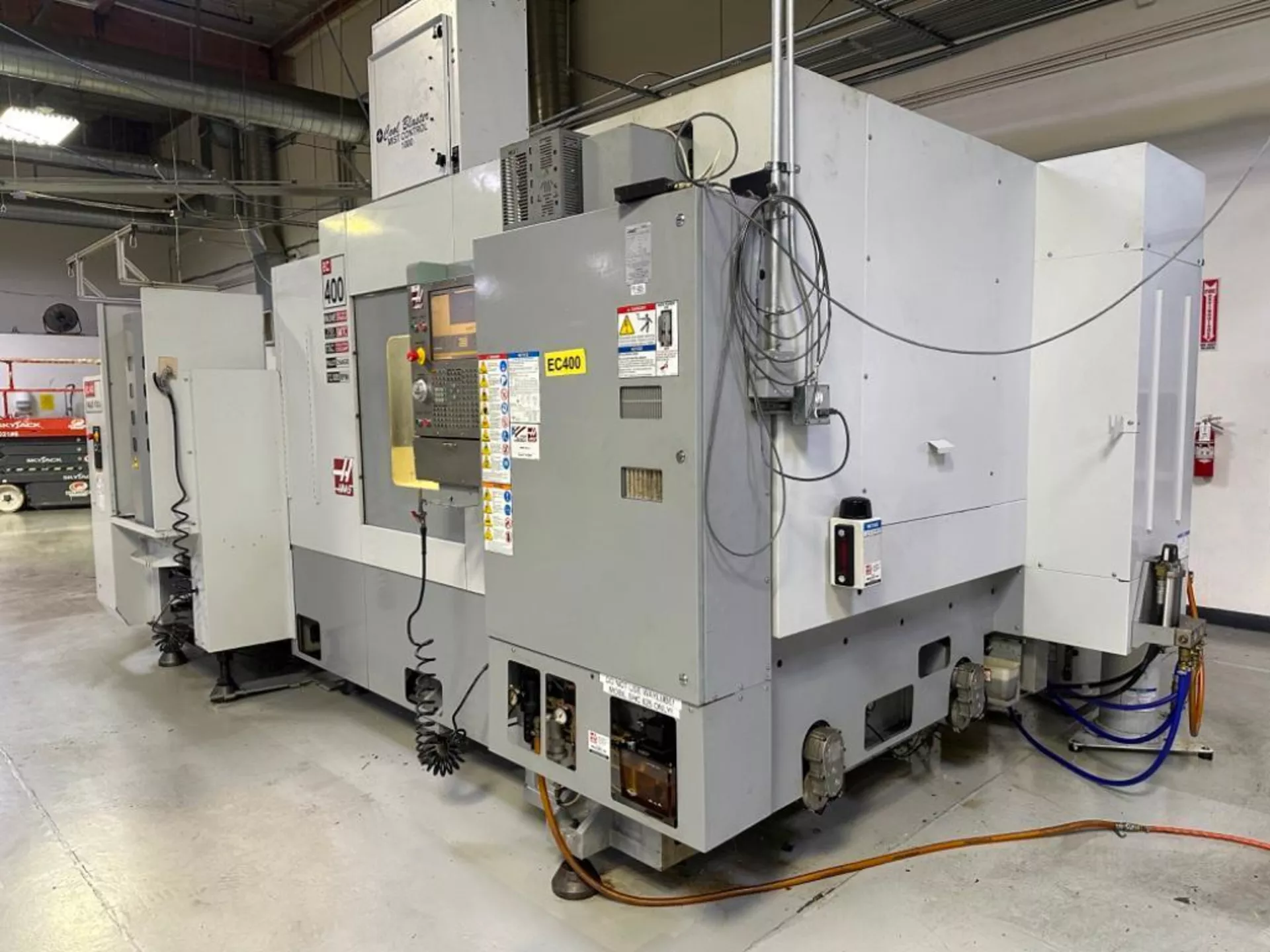

Haas EC-400PP Horizontal Machining Center with Pallet Pool & 12,000 RPM Spindle
Out of stock
| SKU: | 11186 |
| Make/Model: | Haas EC-400PP |
| Year: | 2009 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model No.: | EC-400PP |
| Year of Manufacture: | 2009 |
| Condition: | Used – Good |
| Machine Type: | CNC Horizontal Machining Center |

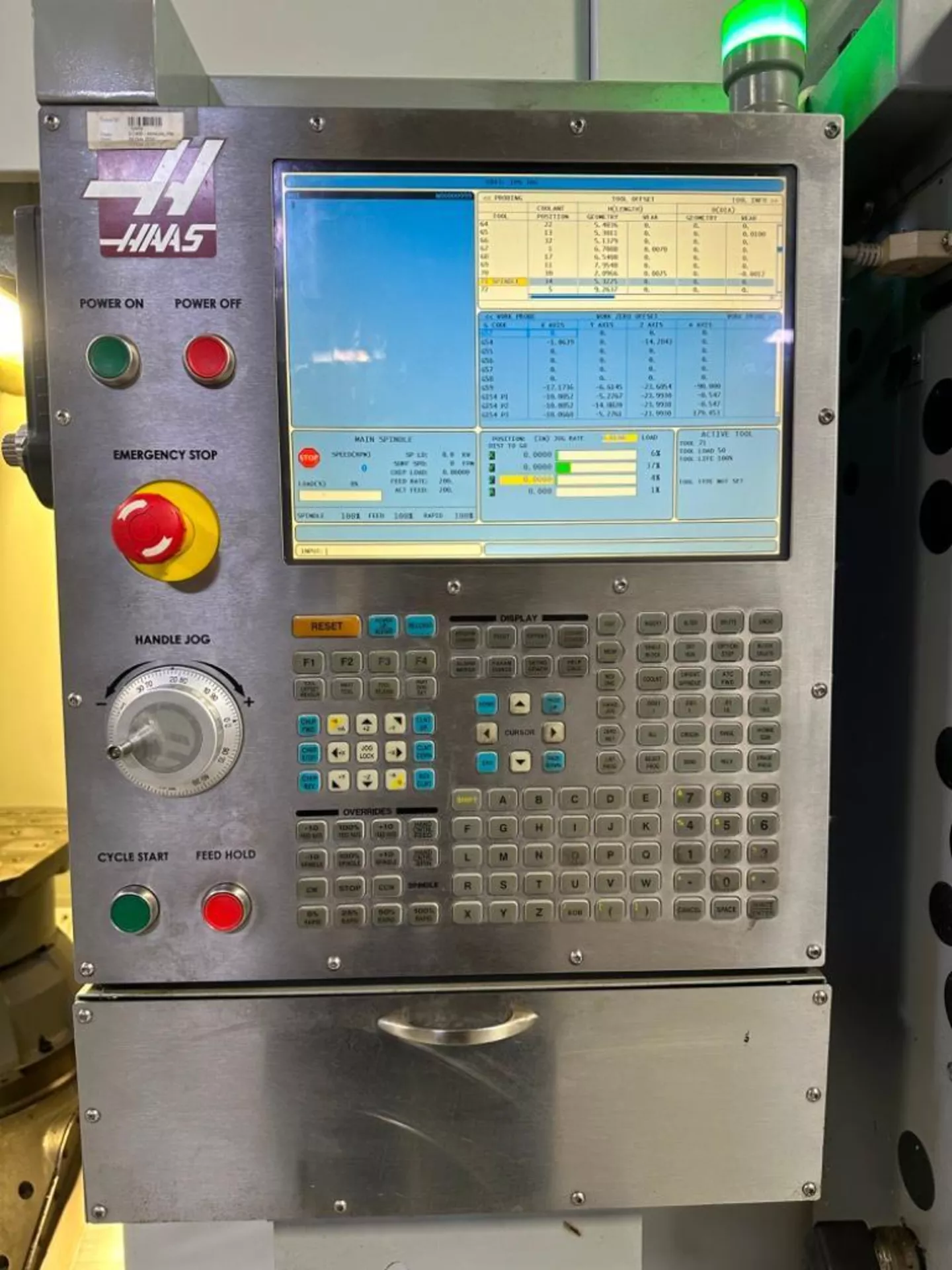

| CNC Control: | Haas CNC Control |
| Equipped With: |
|---|
| Haas CNC Control |
| 2-Pallet Automatic Pallet Changer (PP – Pallet Pool) |
| Inline Direct-Drive Spindle |
| 12,000 RPM High-Speed Spindle |
| Through-Spindle Coolant (TSC) |
| Chip Conveyor |
| Cool Blaster Mist Control 1000 |
| Automatic Tool Changer |
| Renishaw Probe Ready |
| Rigid Tapping |
| High-Pressure Coolant System |
| Fully Enclosed Splash Guard |
| Capacity: |
|---|
| Pallet Size: 15.75″ × 15.75″ (400 × 400 mm) |
| Maximum Table Load: 880 lbs (400 kg) |
| Number of Pallets: 2 |
| Travel: |
|---|
| X-Axis Travel: 22″ (559 mm) |
| Y-Axis Travel: 22″ (559 mm) |
| Z-Axis Travel: 22″ (559 mm) |
| Spindle: |
|---|
| Spindle Speed: 12,000 RPM |
| Spindle Motor: 30 HP (22.4 kW) |
| Spindle Taper: CAT-40 |
| Spindle Type: Inline Direct-Drive |
| Tool Changer: |
|---|
| Tool Capacity: 40 Tools (Side-Mount ATC) |
| Tool Change Time: Approx. 2.8 sec |
| Maximum Tool Diameter: 3″ – 5″ (Depending on Position) |
| Maximum Tool Weight: 12 lbs |
| Feedrates: |
|---|
| Rapid Traverse (X / Y / Z): 1,200 IPM (30.5 m/min) |
| Cutting Feed Rate: Up to 833 IPM |
| Electrical: |
|---|
| Voltage: 195 – 260 V |
| Phase: 3 Phase |
| Frequency: 50 / 60 Hz |
| Full Load Current: 80 Amps |
| General: |
|---|
| Machine Weight: Approx. 15,000 lbs (6,800 kg) |
| Footprint: Approx. 120″ × 110″ |
| Features: |
|---|
| Horizontal spindle design improves chip evacuation and heavy cutting performance |
| 2-Pallet automatic pallet changer allows continuous machining and reduced downtime |
| 12,000 RPM inline spindle for high-speed machining |
| Large work envelope with compact footprint |
| Ideal for automotive, aerospace, mold, and production machining |
| Categories | CNC Horizontal Machining Center |
|---|---|
| Make | |
| Model | EC-400PP |
