Haas EC-500 CNC Horizontal Machining Center (2023), 4-Axis, 12,000 RPM, Dual Palle
Out of stock
| SKU: | 11266 |
| Make/Model: | Haas EC-500 |
| Year: | 2023 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model No.: | EC-500 |
| Year of Manufacture: | 2023 |
| Condition: | Used |
| Machine Type: | CNC Horizontal Machining Center (HMC) |

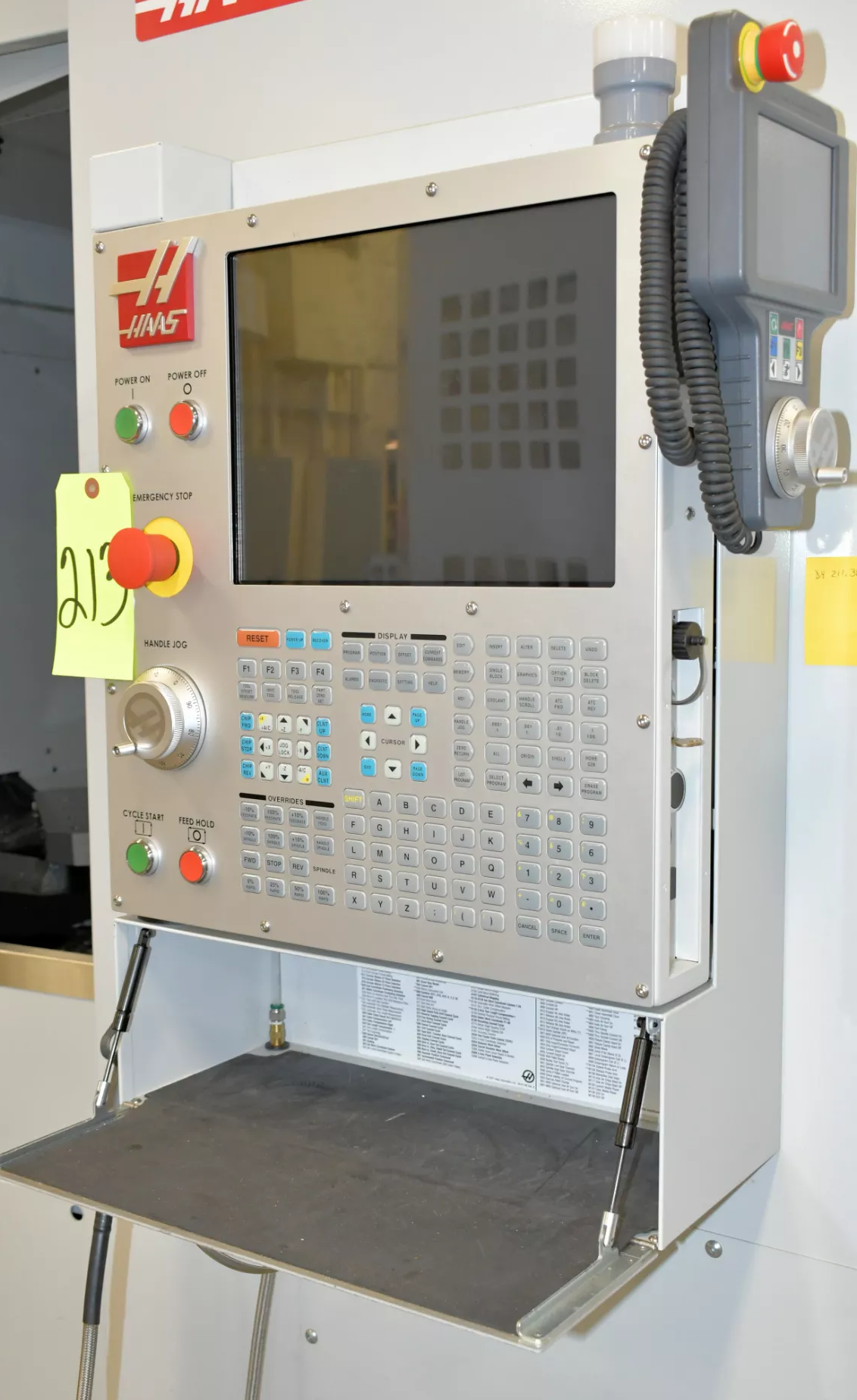

| CNC Control: | Haas CNC Control |
| Country of Origin: | USA |
| Equipped With: |
|---|
| Dual Pallet Automatic Pallet Changer (APC) |

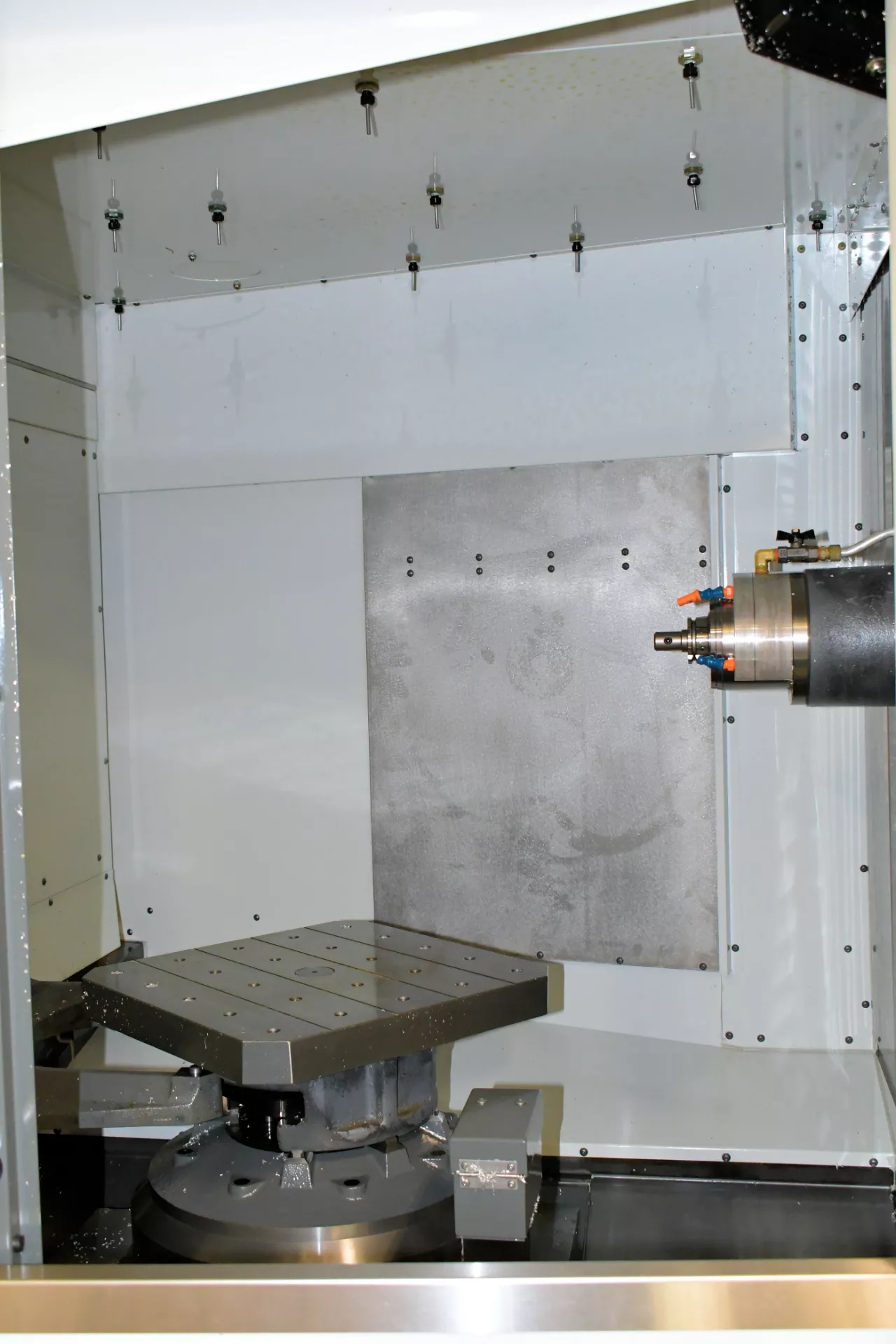

| Full 4th Axis Rotary Table (B-Axis) |
| High-Speed Machining Capability |
| Through-Spindle Coolant (up to 1,000 PSI) |
| Side-Mount Tool Changer (30+1 / 50+1 / 100+1) |
| Wireless Intuitive Probing System (WIPS) |
| Dynamic Work Offsets & TCP |
| Chip Conveyor & Filtration System |
| User Definable Macros |
| Ethernet & USB Connectivity |
| Remote Jog Handle |
| Fully Enclosed Splash Guarding |
| High Rigidity Cast Iron Construction |
| Capacity: |
|---|
| Pallet Size: 19.7″ × 19.7″ (500 × 500 mm) |
| Number of Pallets: 2 (APC) |
| Max Pallet Load: 880 lbs (400 kg) |
| Pallet Indexing (B-Axis): 0.001° (Full 4th Axis) |
| Max Part Diameter: 29.5″ (749 mm) |
| Max Part Height: 36.5″ (927 mm) |
| Travels: |
|---|
| X-Axis Travel: 32″ (813 mm) |
| Y-Axis Travel: 25″ (635 mm) |
| Z-Axis Travel: 28″ (711 mm) |
| Rapid Traverse: 1,400 IPM (~35.6 m/min) |
| Cutting Feed Rate: Up to 833 IPM |
| Spindle: |
|---|
| Spindle Speed: 12,000 RPM (15,000 RPM optional) |
| Spindle Taper: CAT 40 / HSK-63 |
| Spindle Motor: 30 HP Vector Drive |
| Tooling System: |
|---|
| Tool Capacity: 30+1 (50+1 / 100+1 optional) |
| Type: Side-Mount Tool Changer (SMTC) |

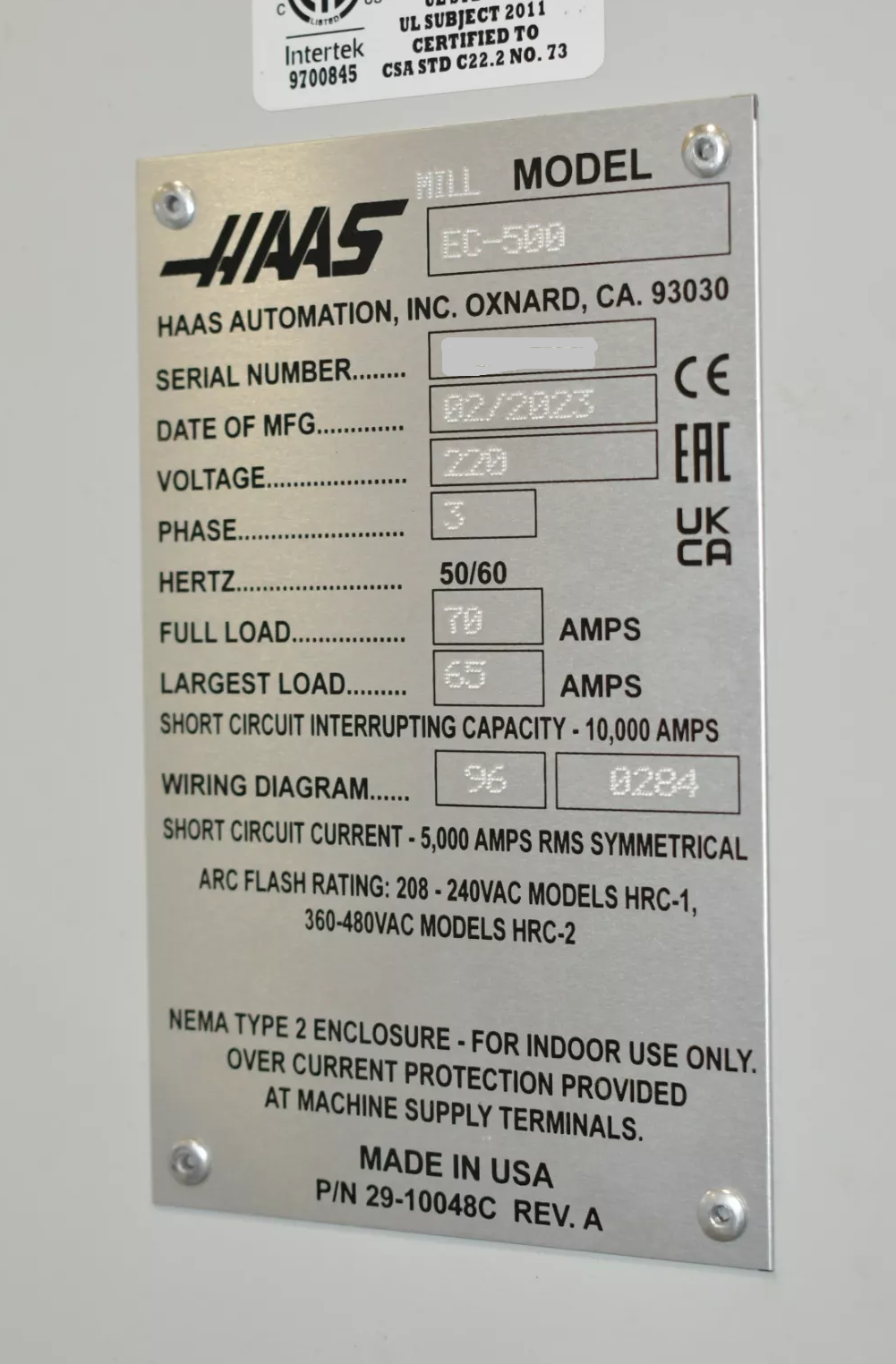

| Electrical: |
|---|
| Voltage: 220V |
| Phase: 3 Phase |
| Frequency: 50/60 Hz |
| Full Load Current: 70 Amps |
| General: |
|---|
| Machine Weight: ~20,500 lbs (9,300 kg) |
| Footprint: ~197″ × 92″ × 101″ |
