*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

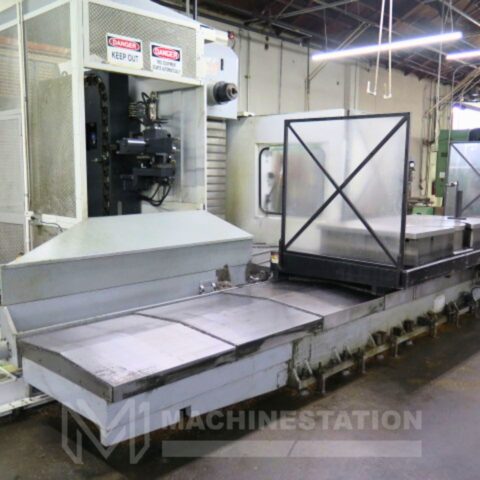

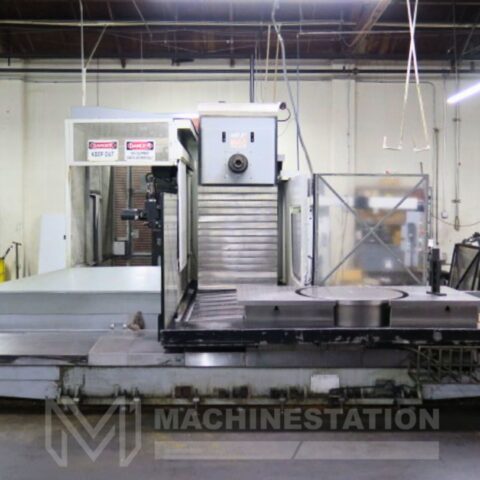

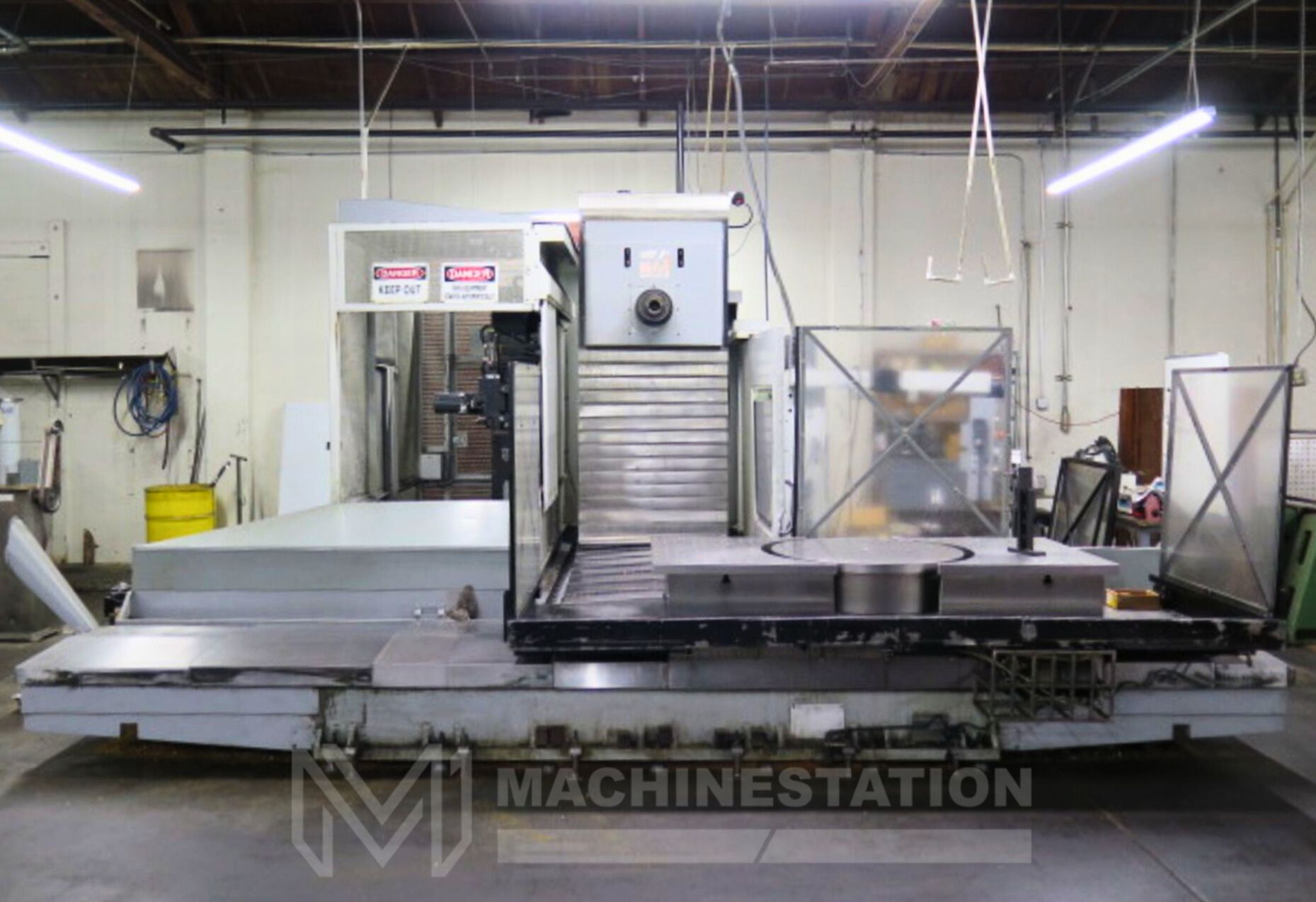

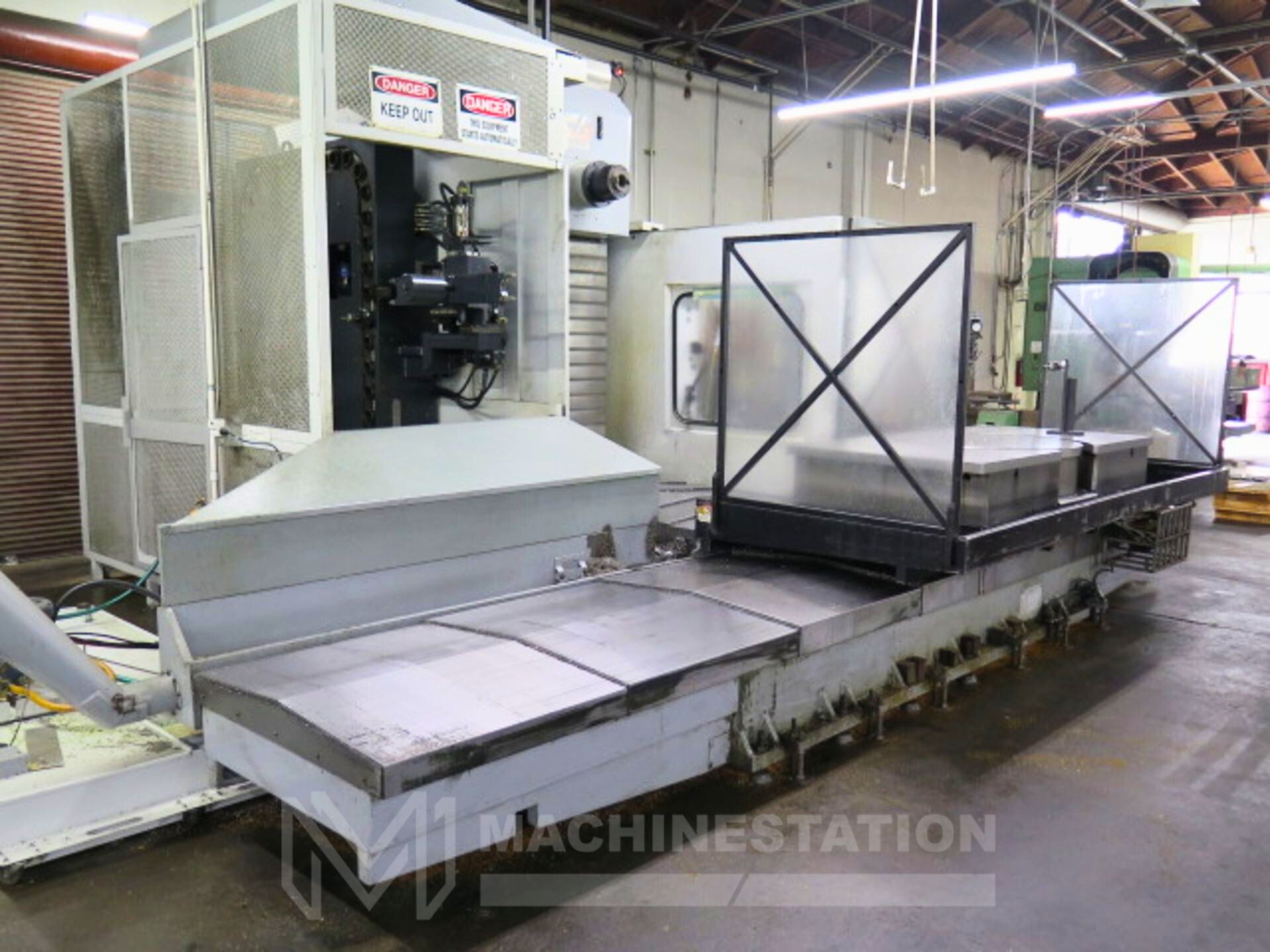

| Make: | HAAS |
| Model: | HS-6R |
| Year: | 2007 |
| Condition: | Used – Good |
| Equipped With: |
|---|

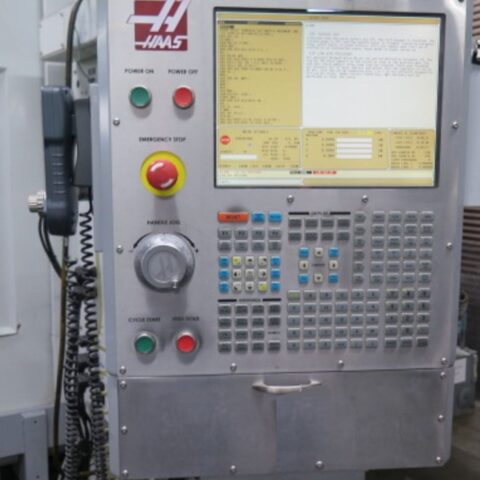

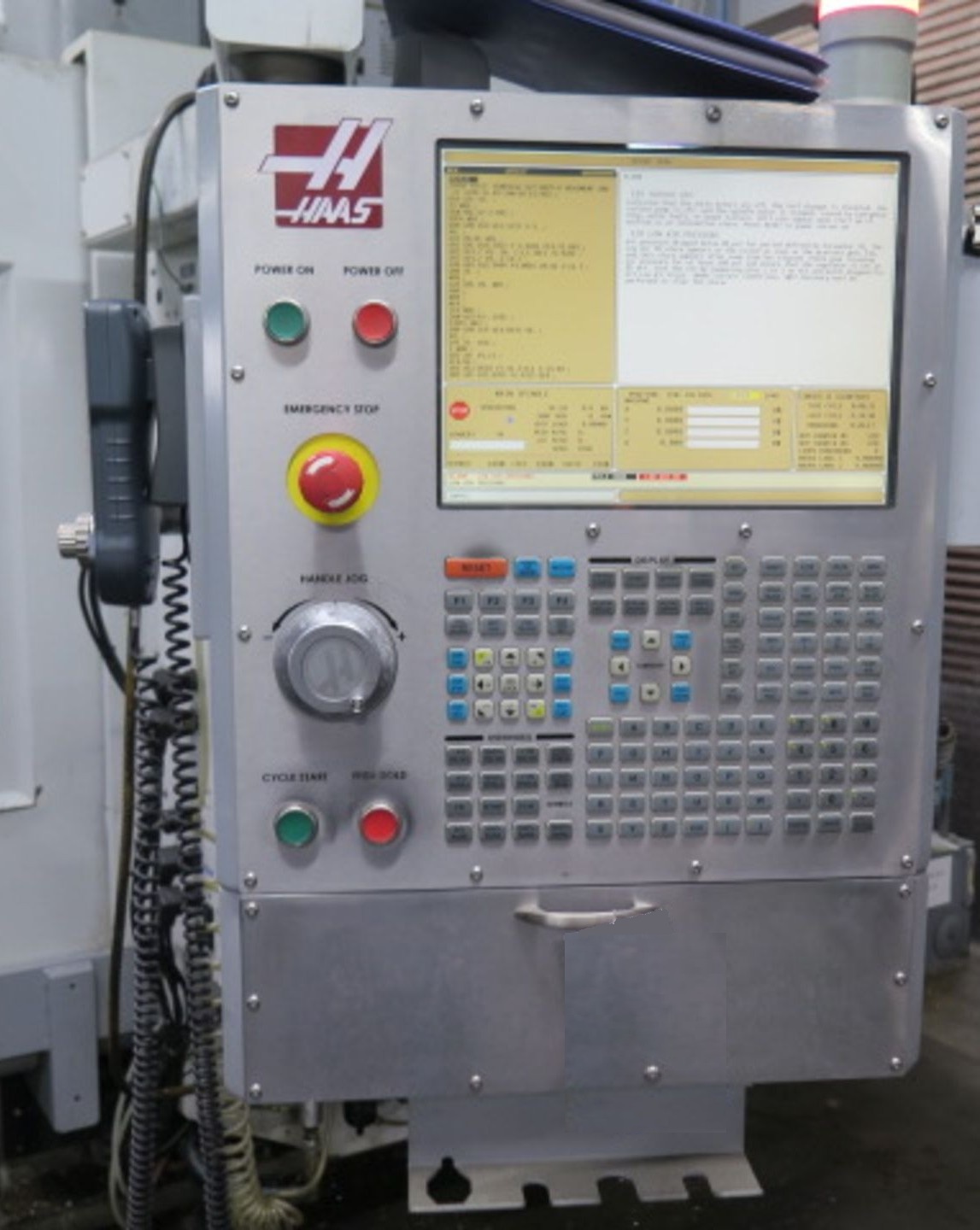

| Haas CNC Control |
| 5th Axis Ready |

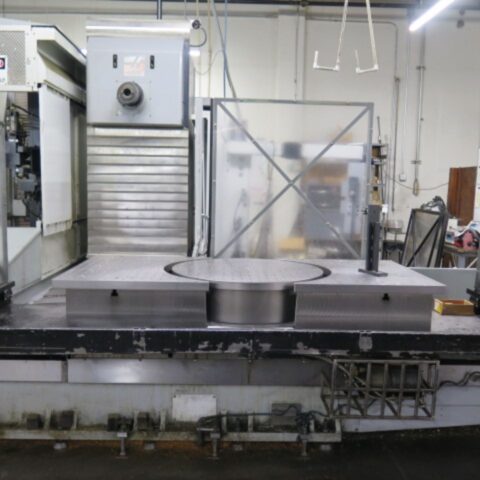

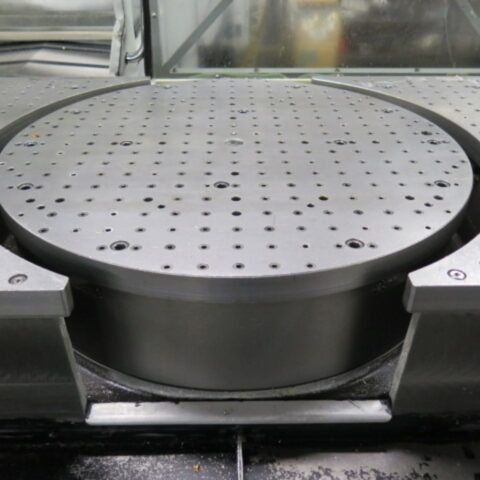

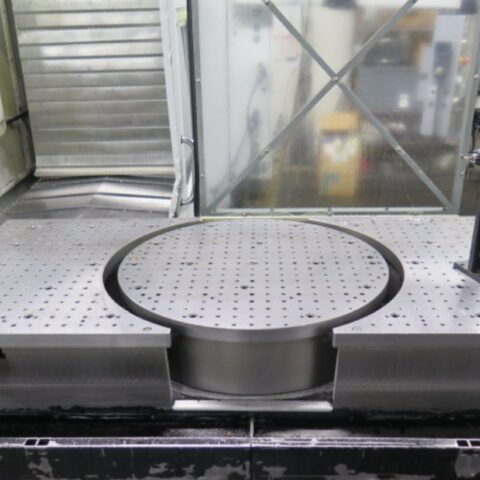

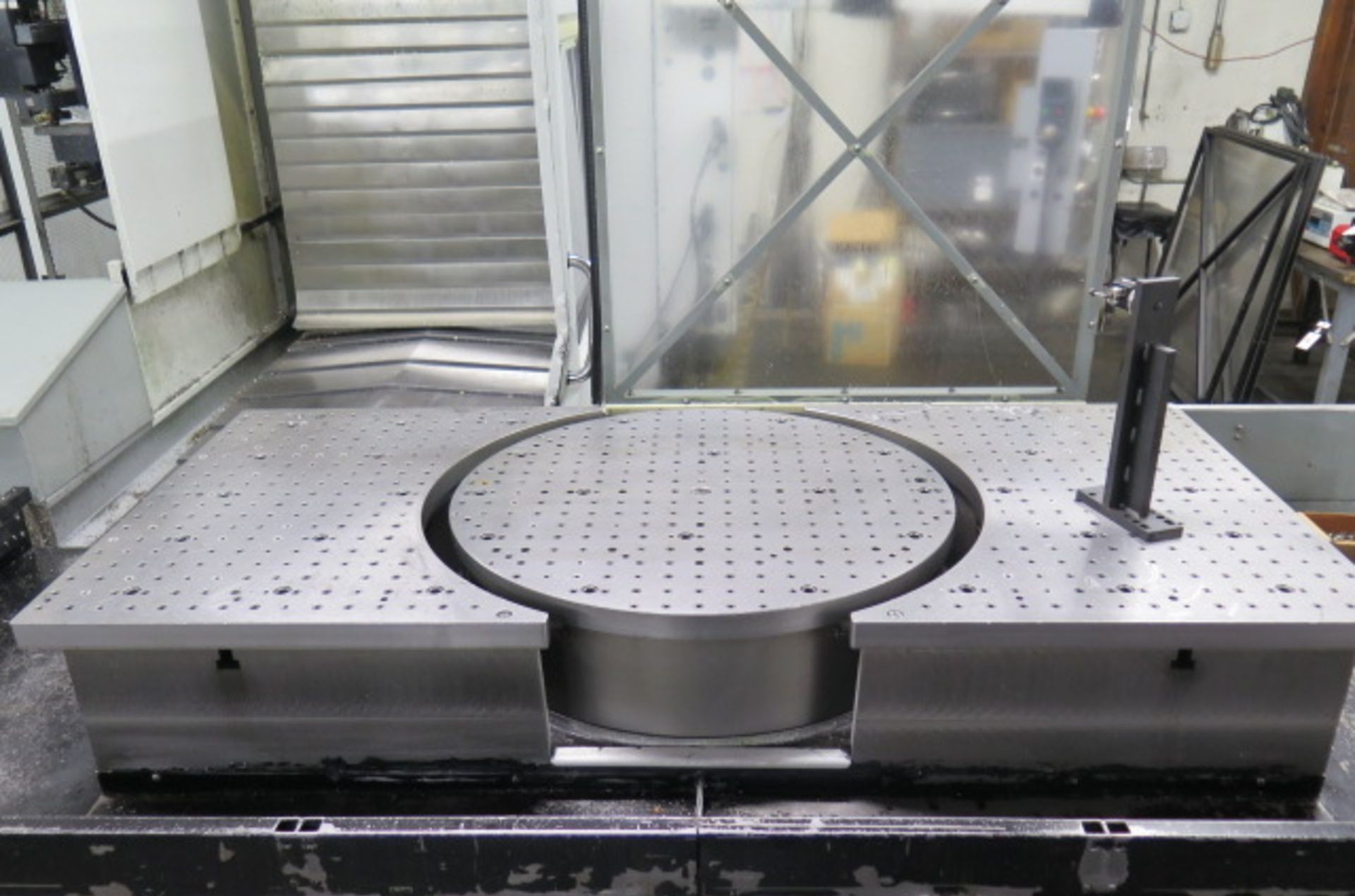

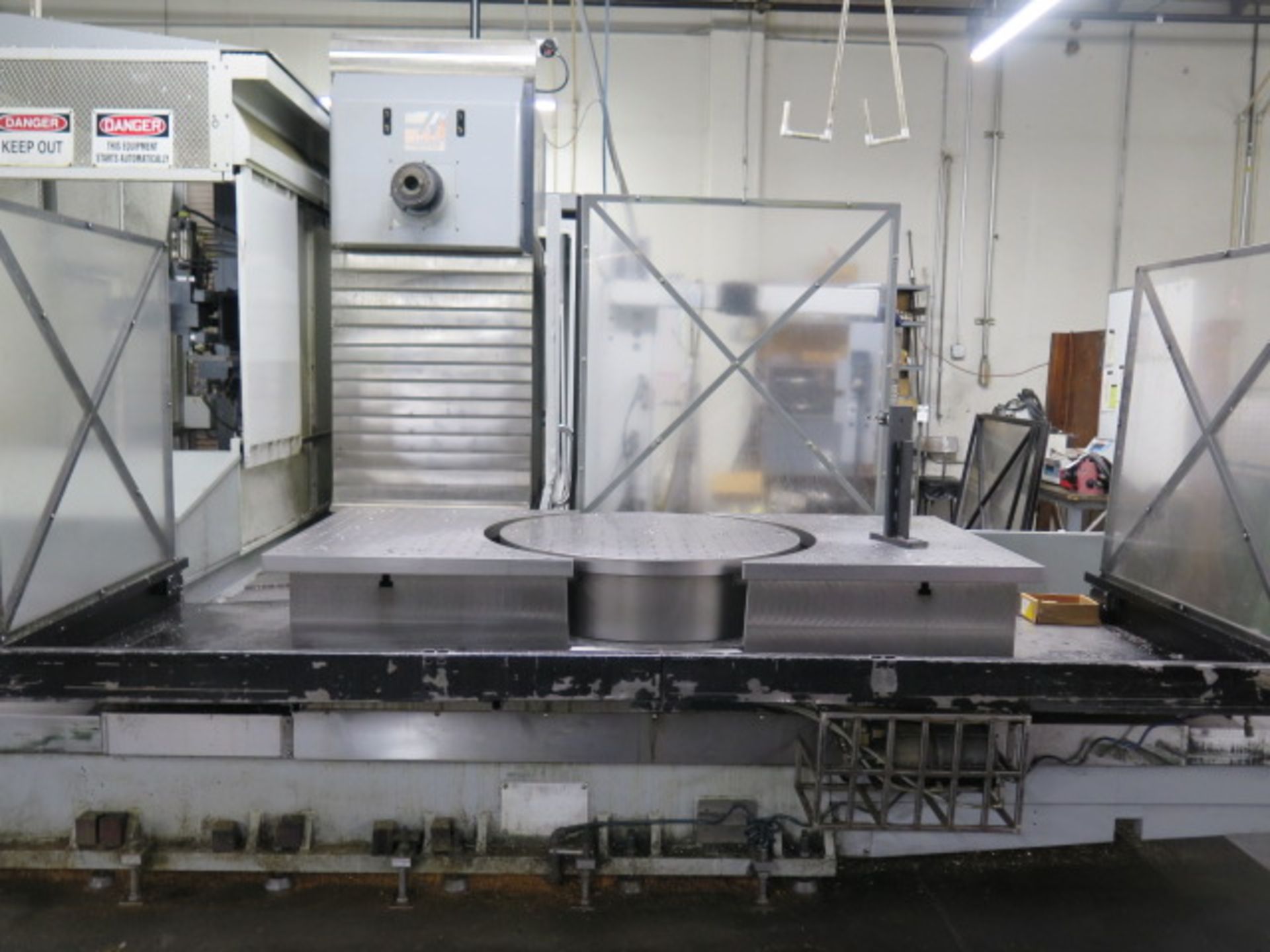

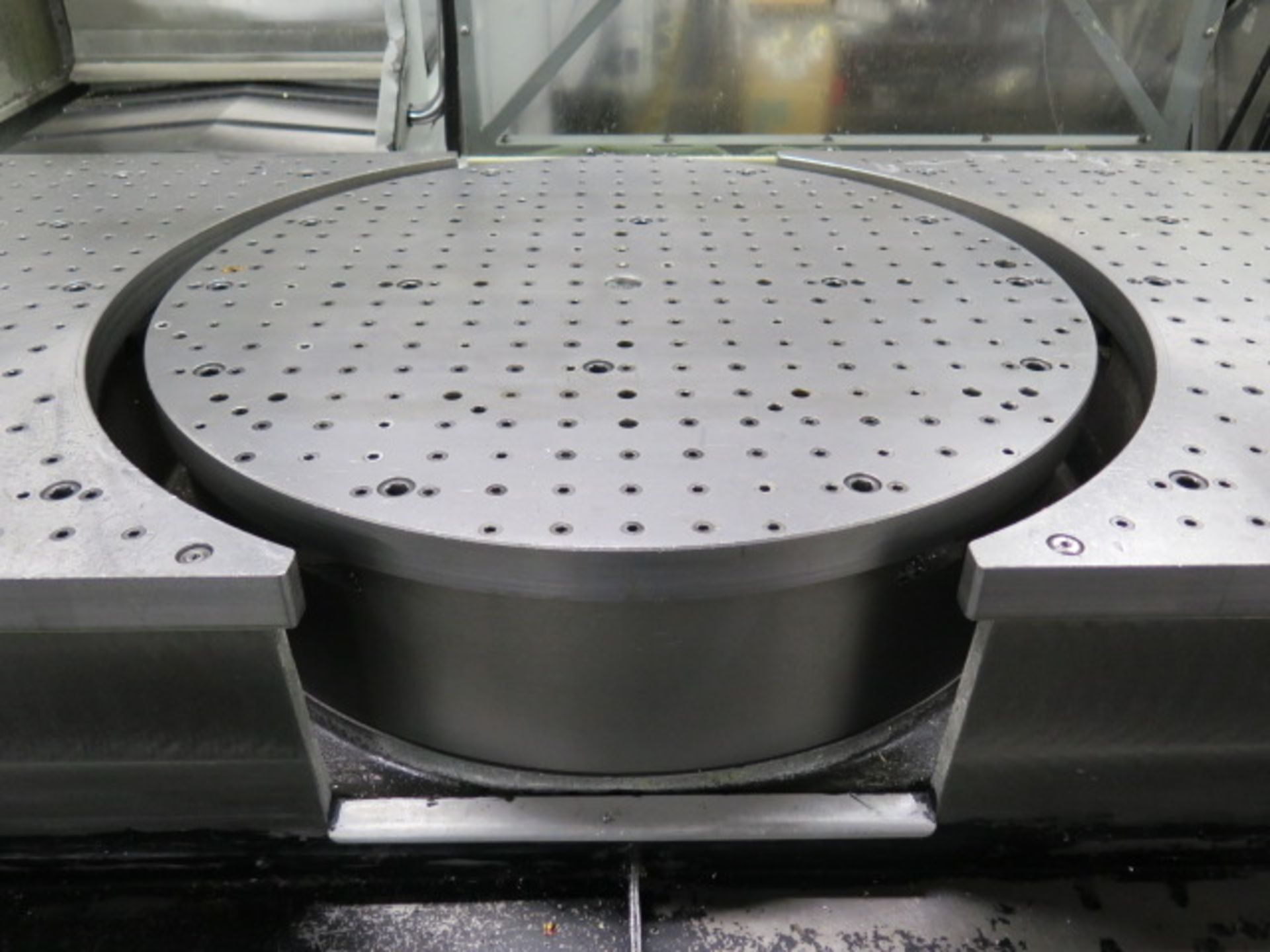

| 37” Diameter Built-In Full 4th Axis Rotary Table |
| 5,000 RPM 2-Speed Gear Head Spindle |
| Through Spinde Coolant |

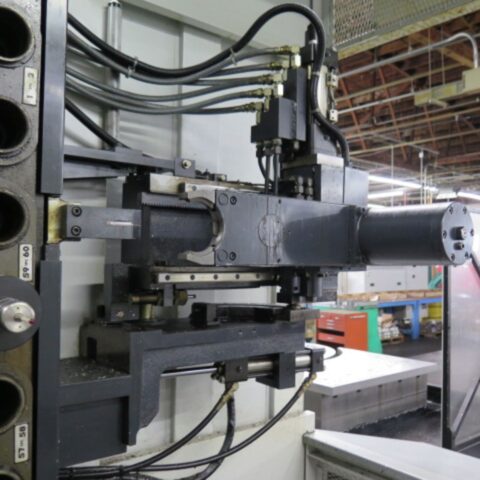

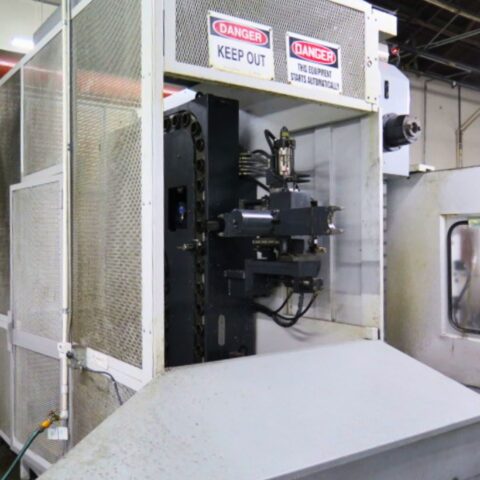

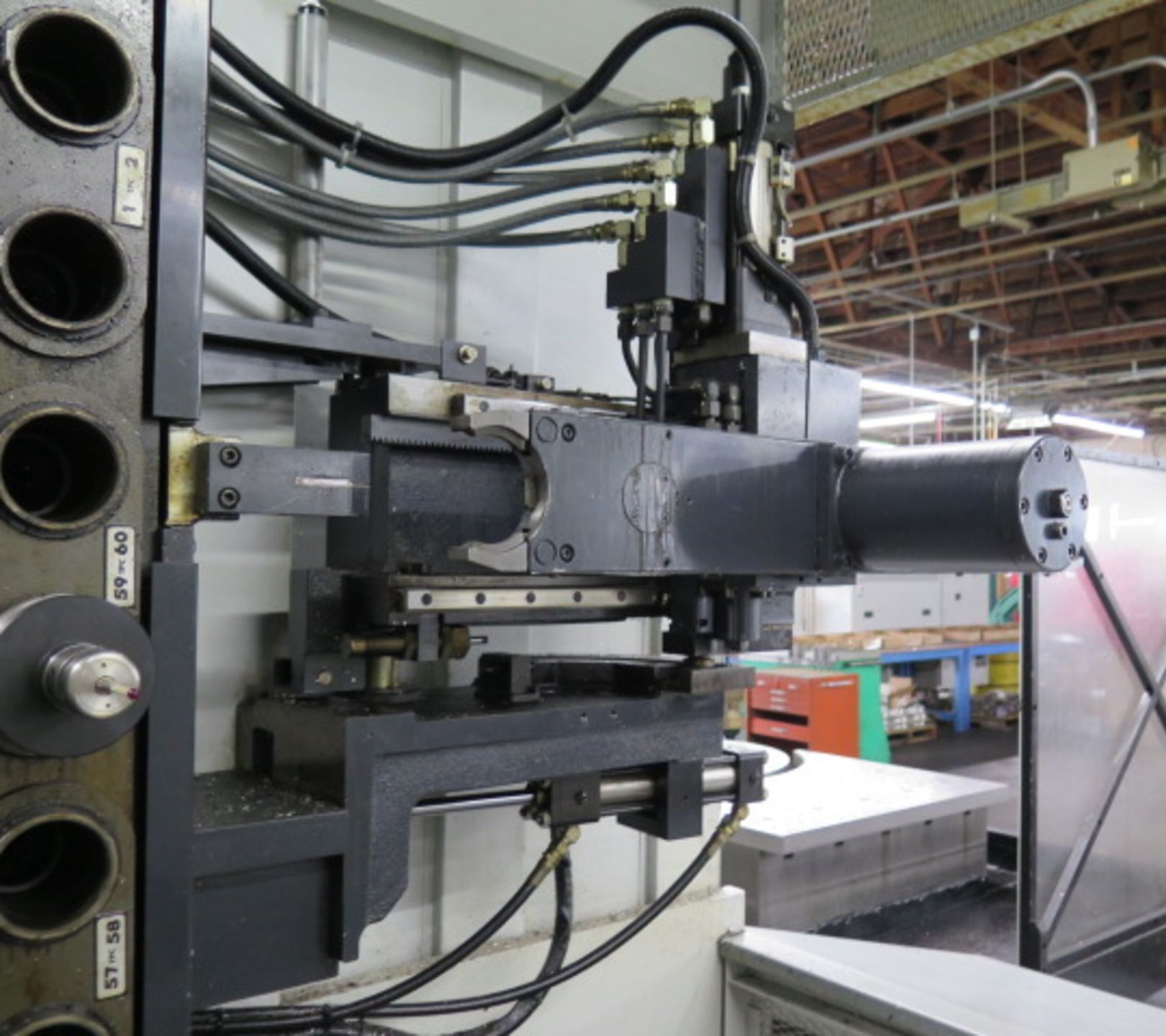

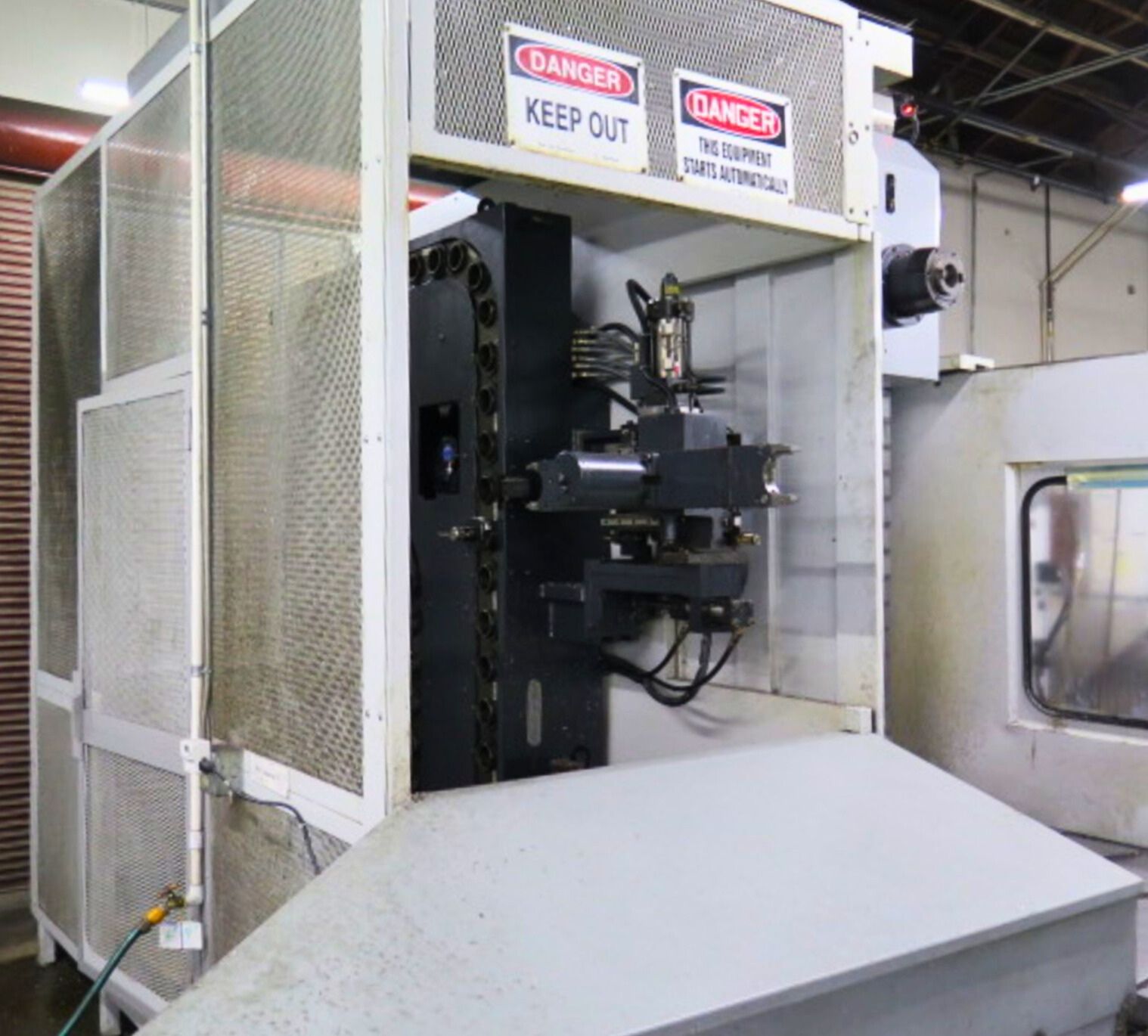

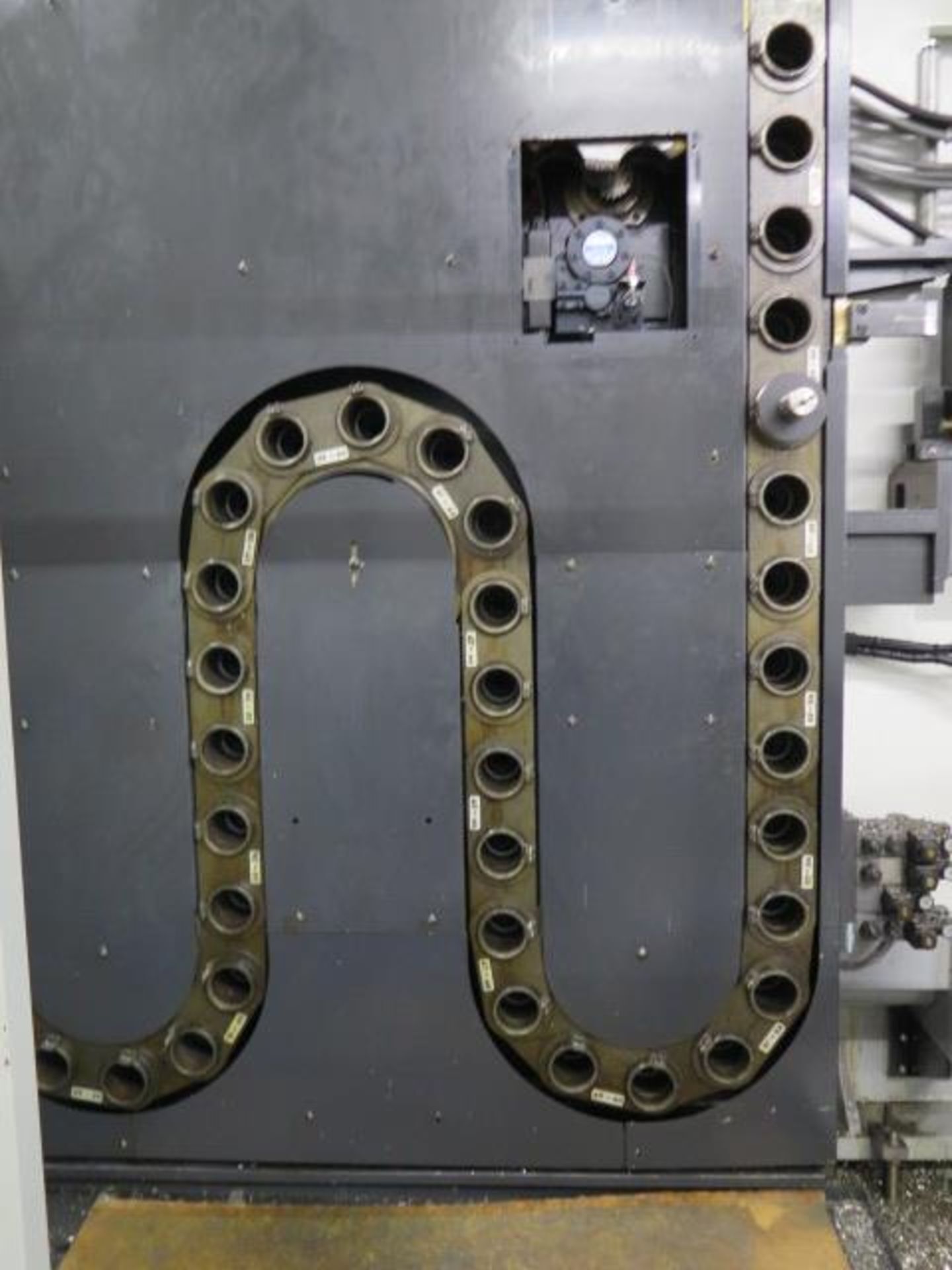

| 60 Station Automatic Tool Changer |
| BT-50 Taper Spindle |

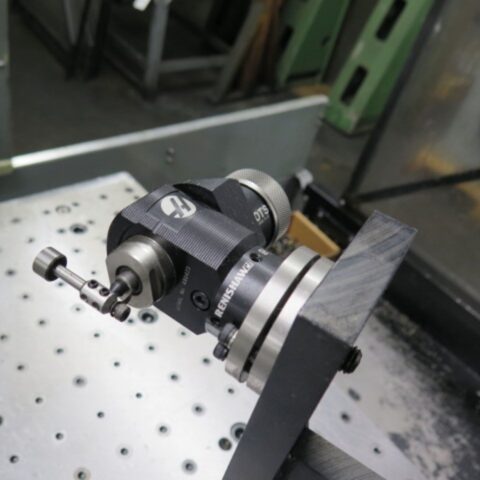

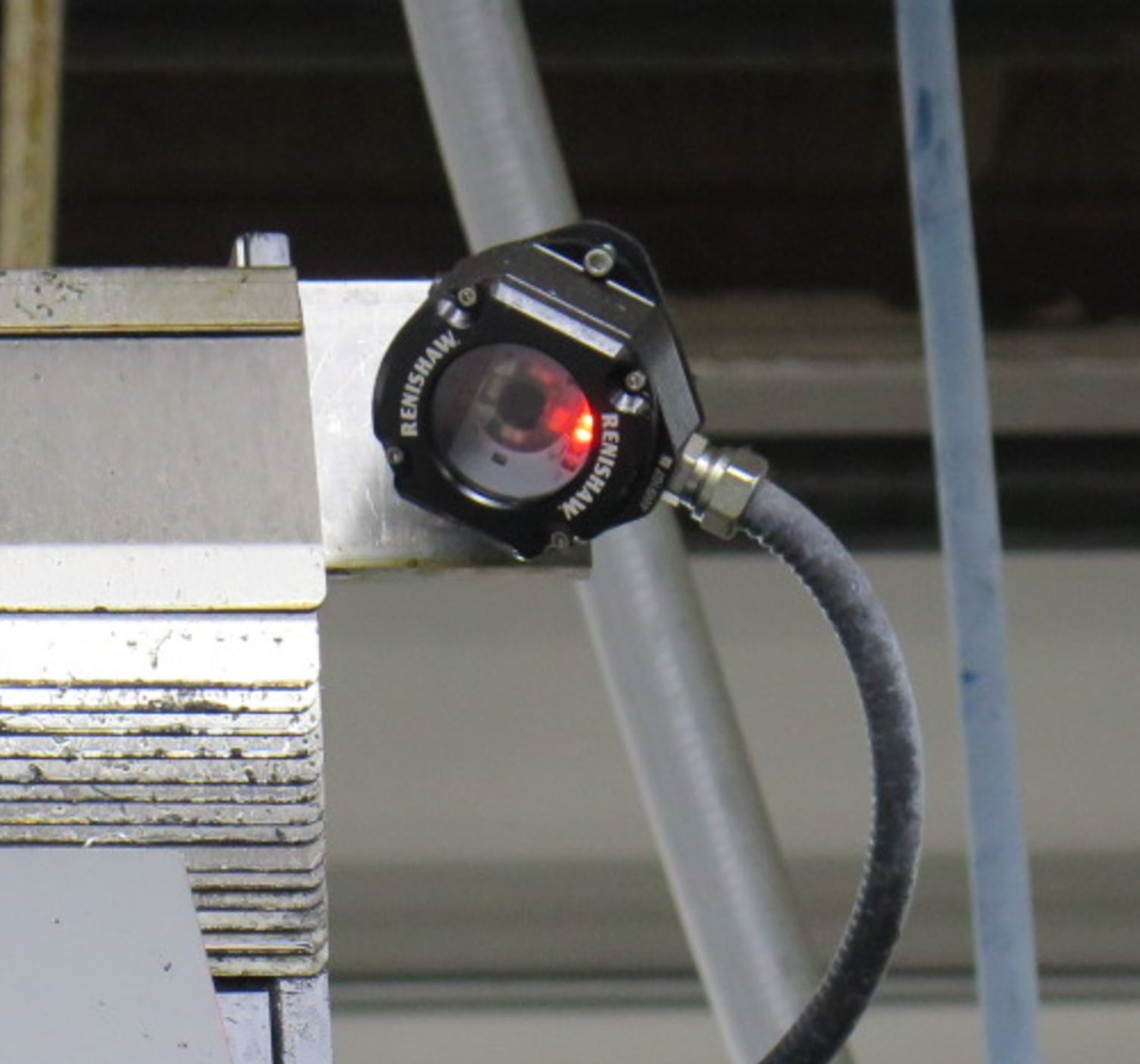

| Renishaw Probing System Ready (Probe Needed) |

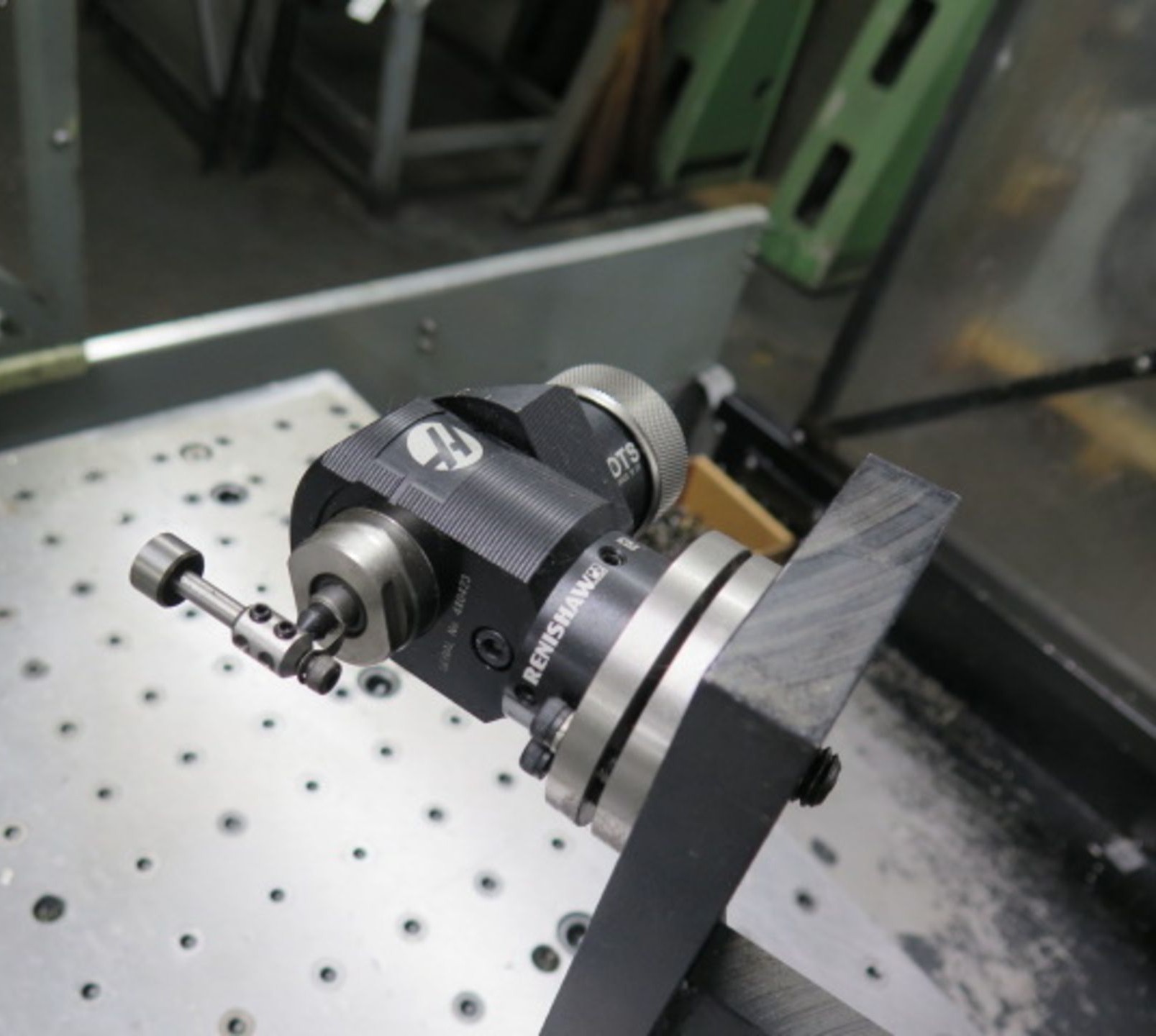

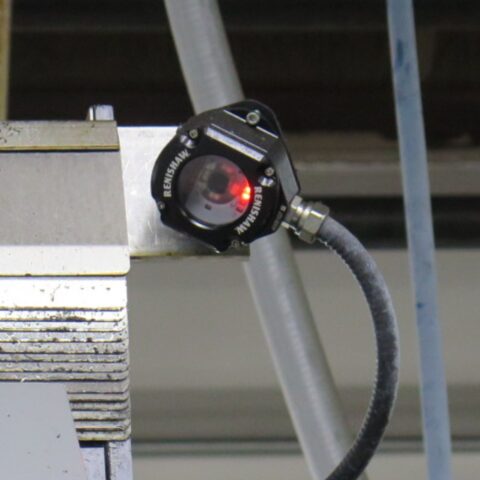

| Tool Presetter |
| High Speed Machining |
| 16mb Expanded Memory |
| Rigid Tapping |
| Spindle Orientation |

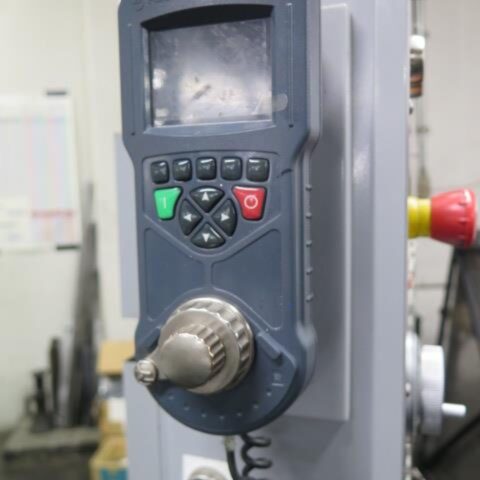

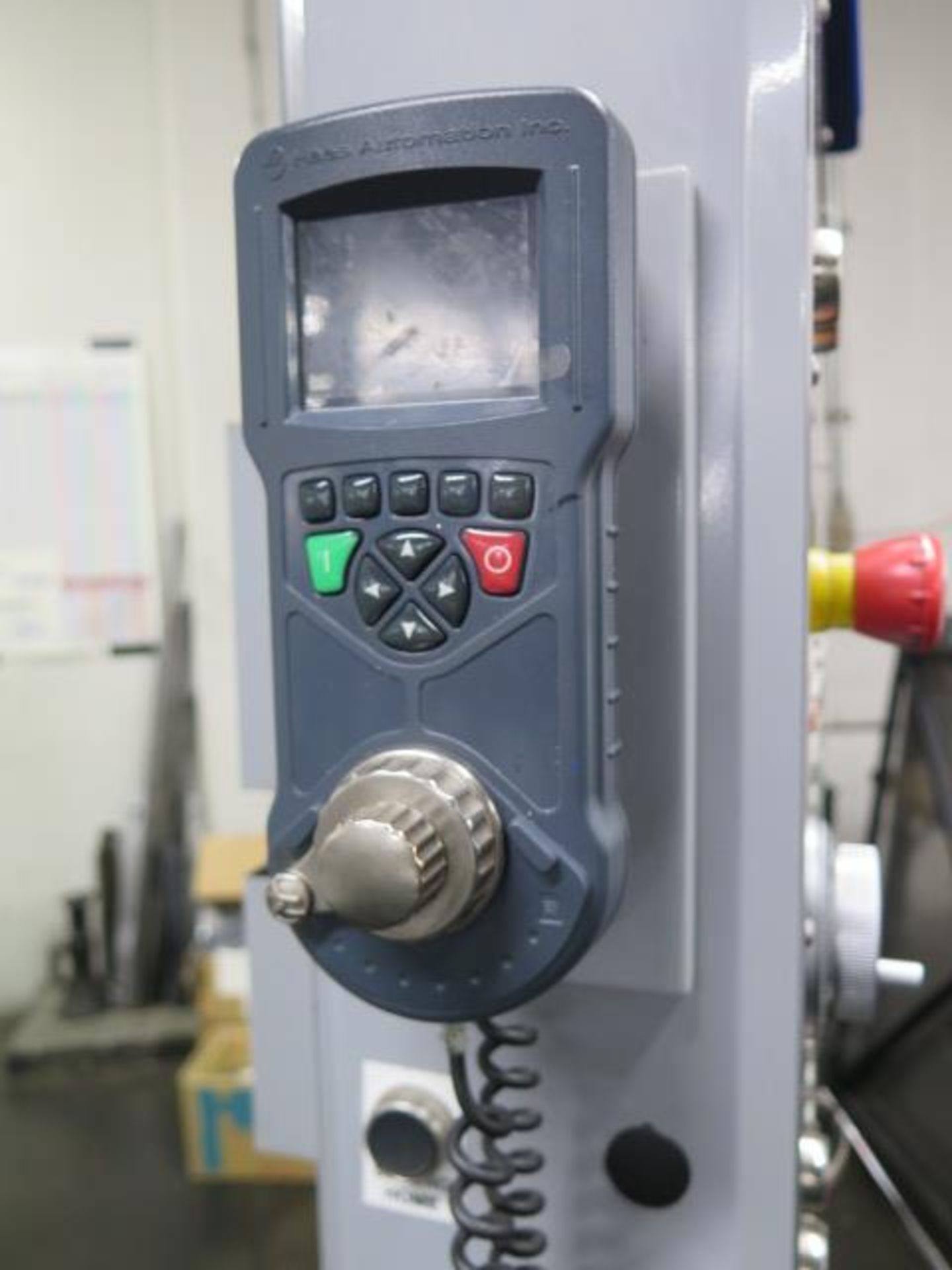

| Remote Jog Handle |
| Power Failure Module |
| Macros |
| Quick Code Programming |
| Advance Tool Management |
| Coolant system |
| Telescopic way covers |

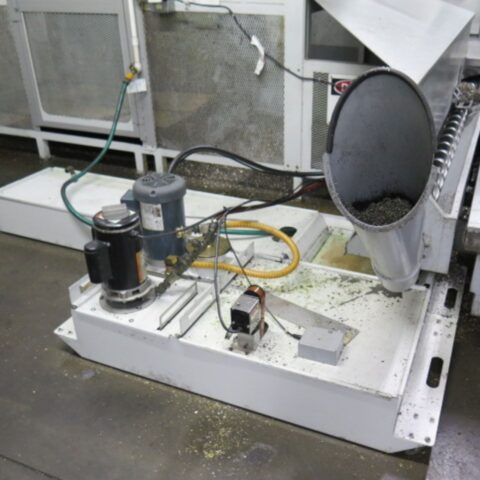

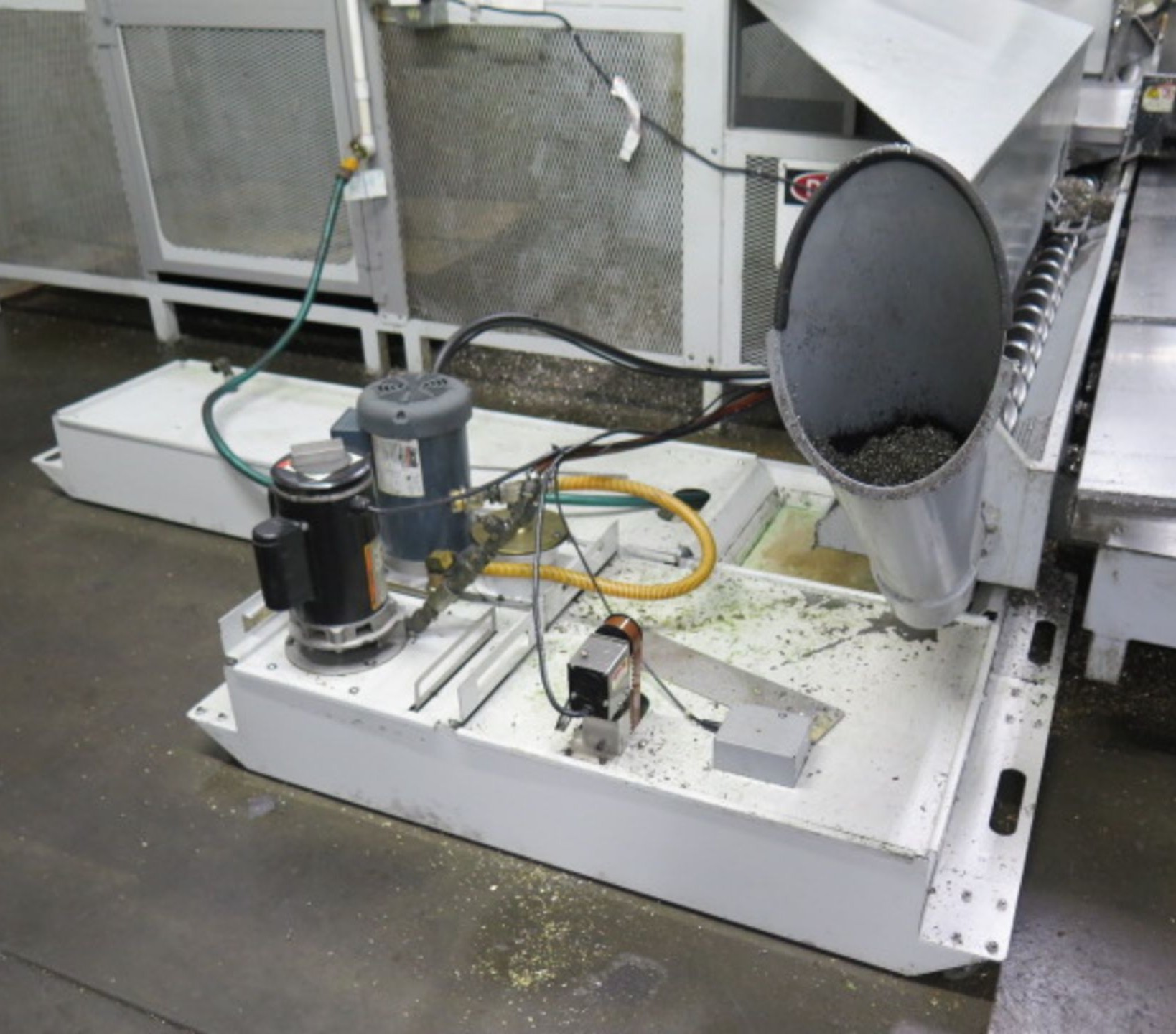

| Chip Auger |
| Travels: |
|---|
| X Axis: 84″ |
| Y Axis: 50″ |
| Z Axis: 60″ |
| B Axis: 360° ( 0.001° Indexing ) |

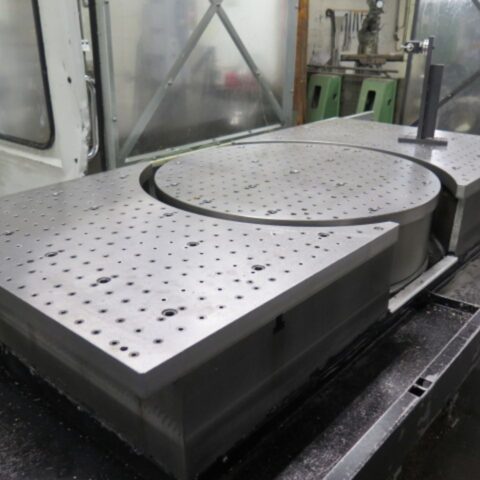

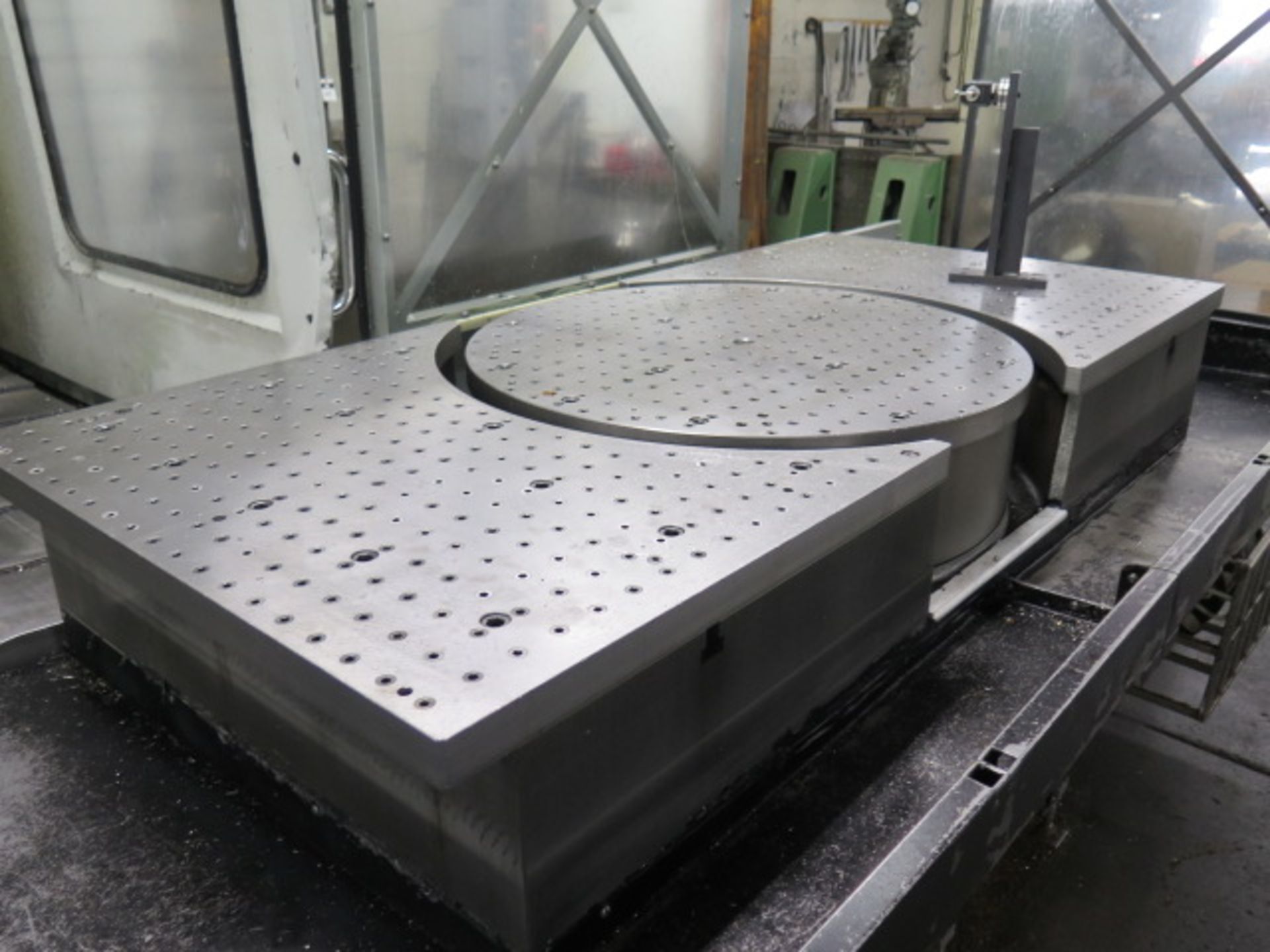

| Table: |
|---|
| Table Length: 80″ |
| Table Width: 40″ |
| T-Slot Width: 0.86″ |
| Max Weight on Table: 10,000 lbs |

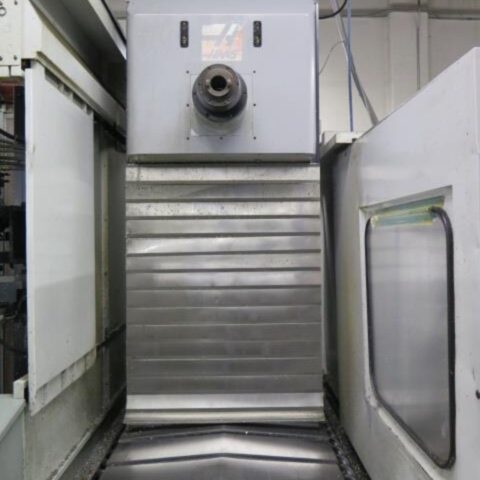

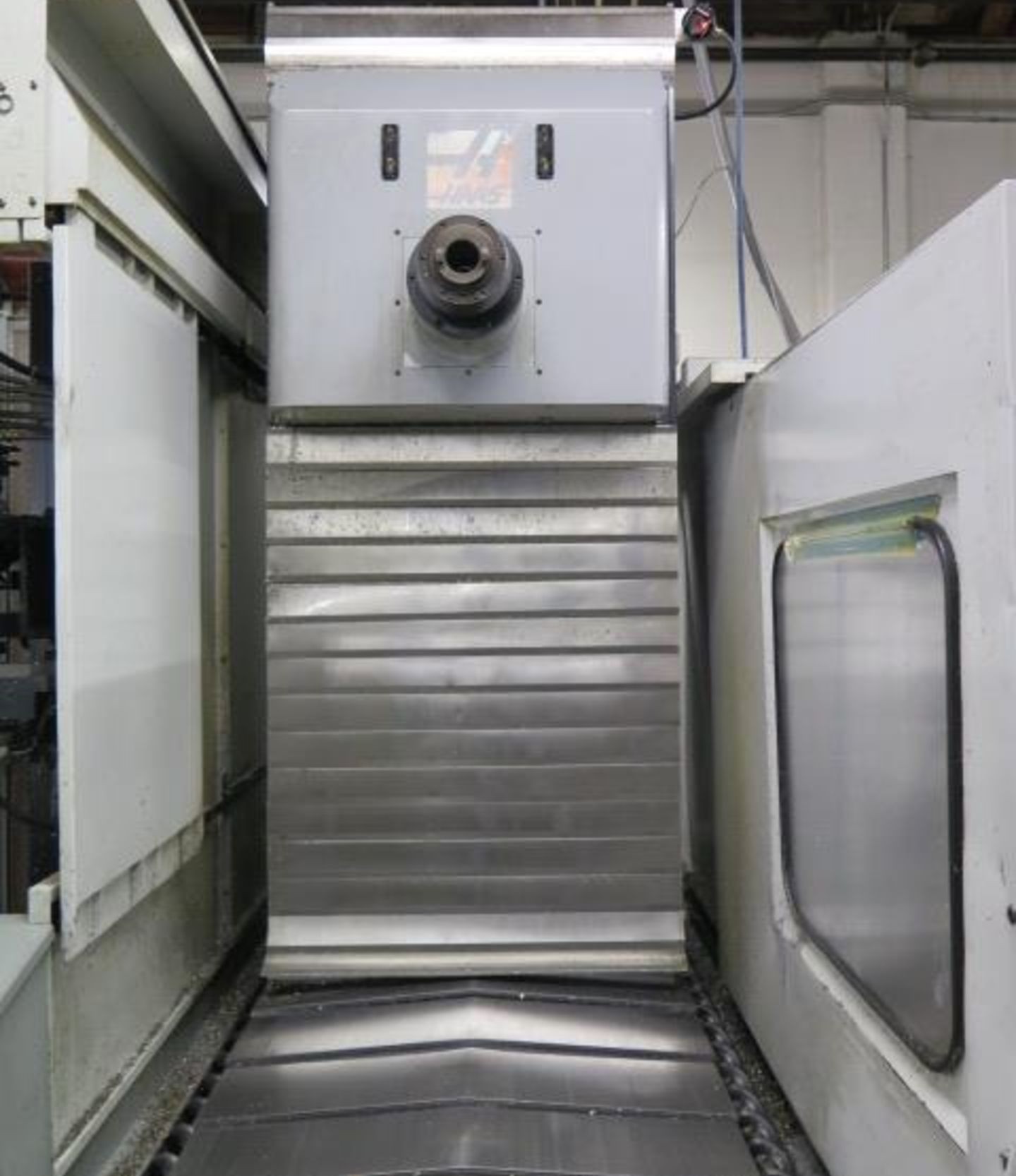

| Spindle: |
|---|
| Taper Size: BT-50 |
| Spindle Speed: 5000 RPM |
| Driven System: 2-Speed Gear Head |
| Spindle Power: 30 HP |
| Feed rates: |
|---|
| Rapid Traverse Rates X, Y Axis: 500 Inch Per Minute |
| Rapid Traverse Rates Z Axis: 708 Inch Per Minute |
| Cutting Feed Rates: 500 Inch Per Minute |
| Tool changer: |
|---|

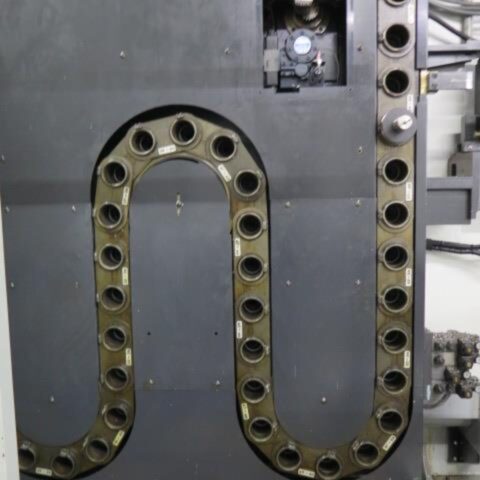

| Capacity: 60 Station |
| Max Tool Diameter : 9.84″ |
| Tool Change Time (Chip To Chip): 15.8 Second |
| Tool Change Time (Tool to Tool): 4.9 Second |
| General: |
|---|
| Air Required: 100 psi 4 scfm |

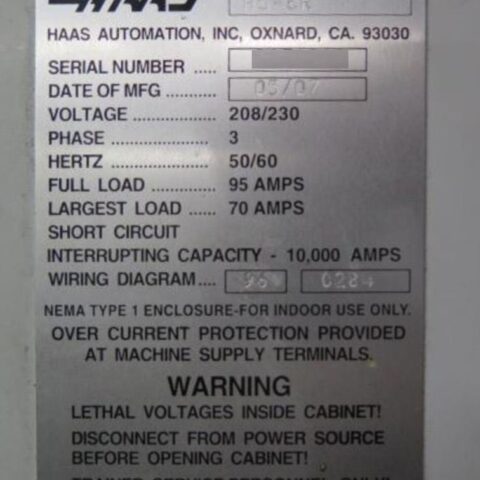

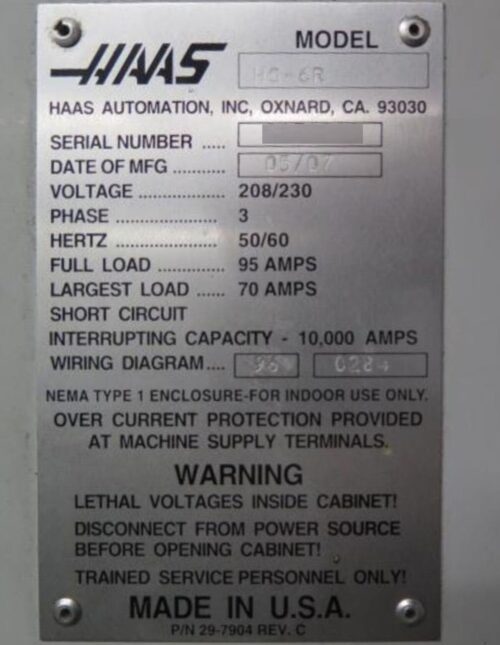

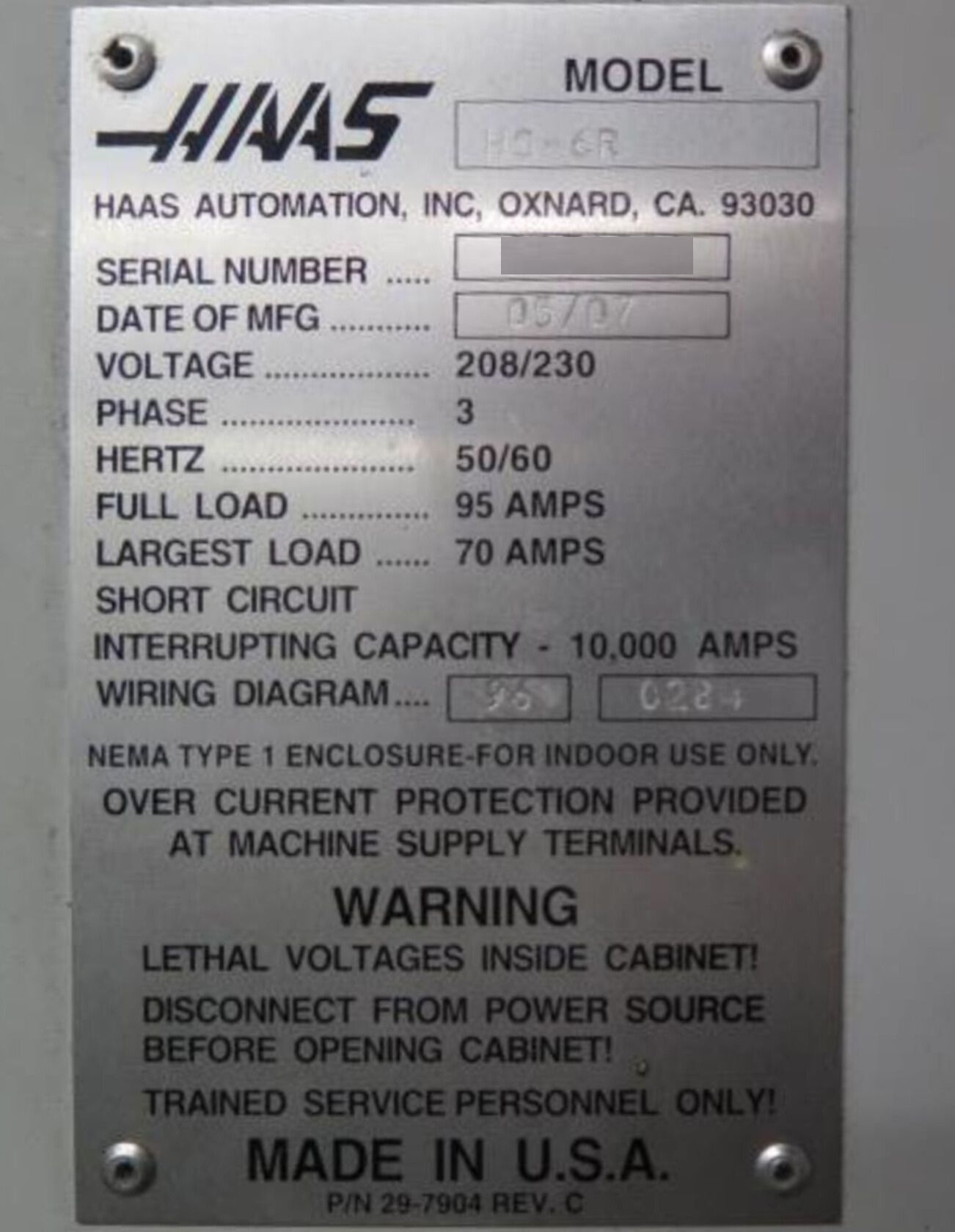

| Power: 220v / 66FLA / 3-Phase |
| Overall Shipping Dimensions: 253″ x 189″ x 152″ High Approx. |
| Weight: 57,500 lbs Approx. |
