*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 115104 |
| Make: | Haas |

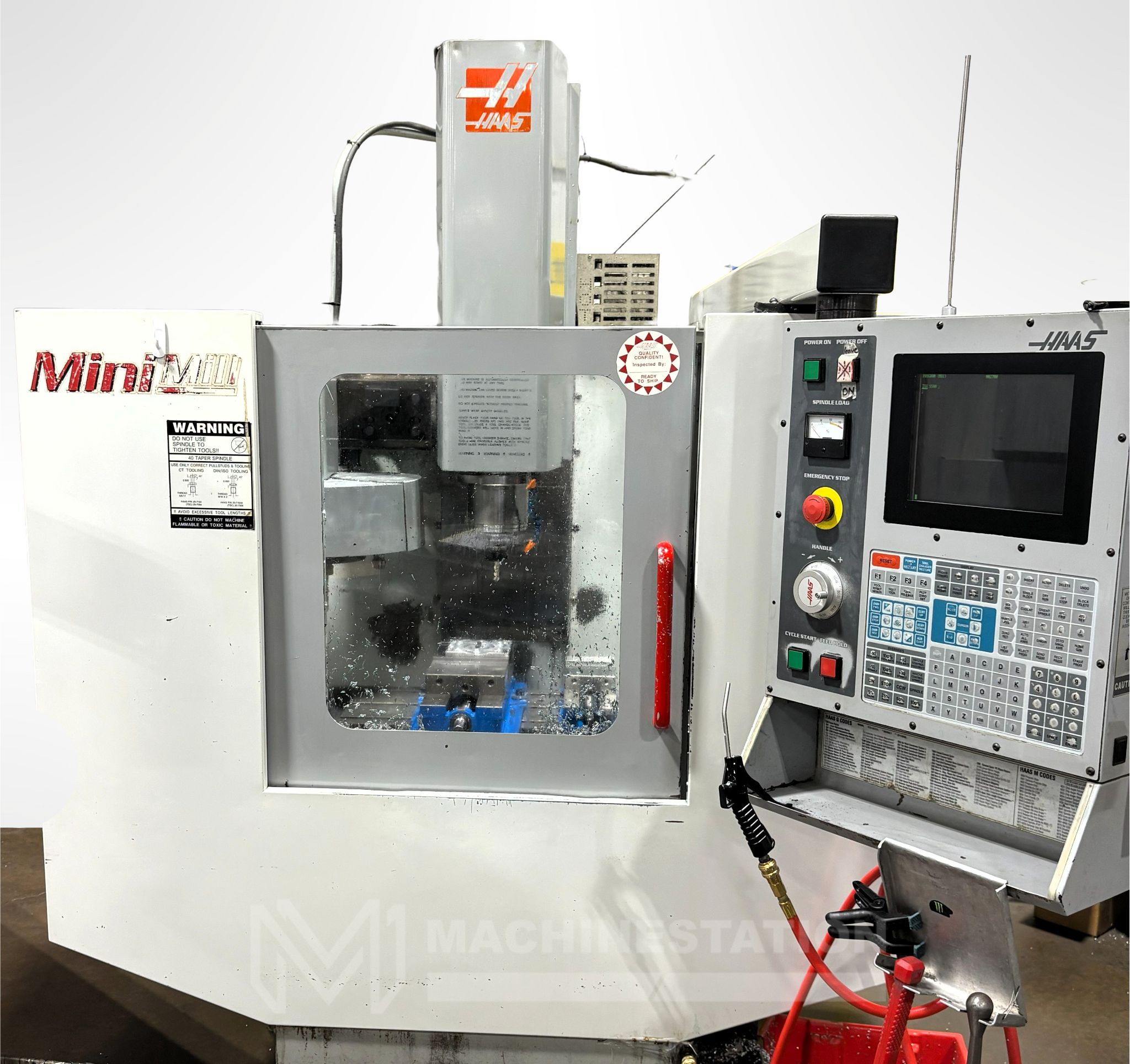

| Model: | Mini Mill |
| Year of Manufacture: | 2002 |
| Equipped With: |
|---|

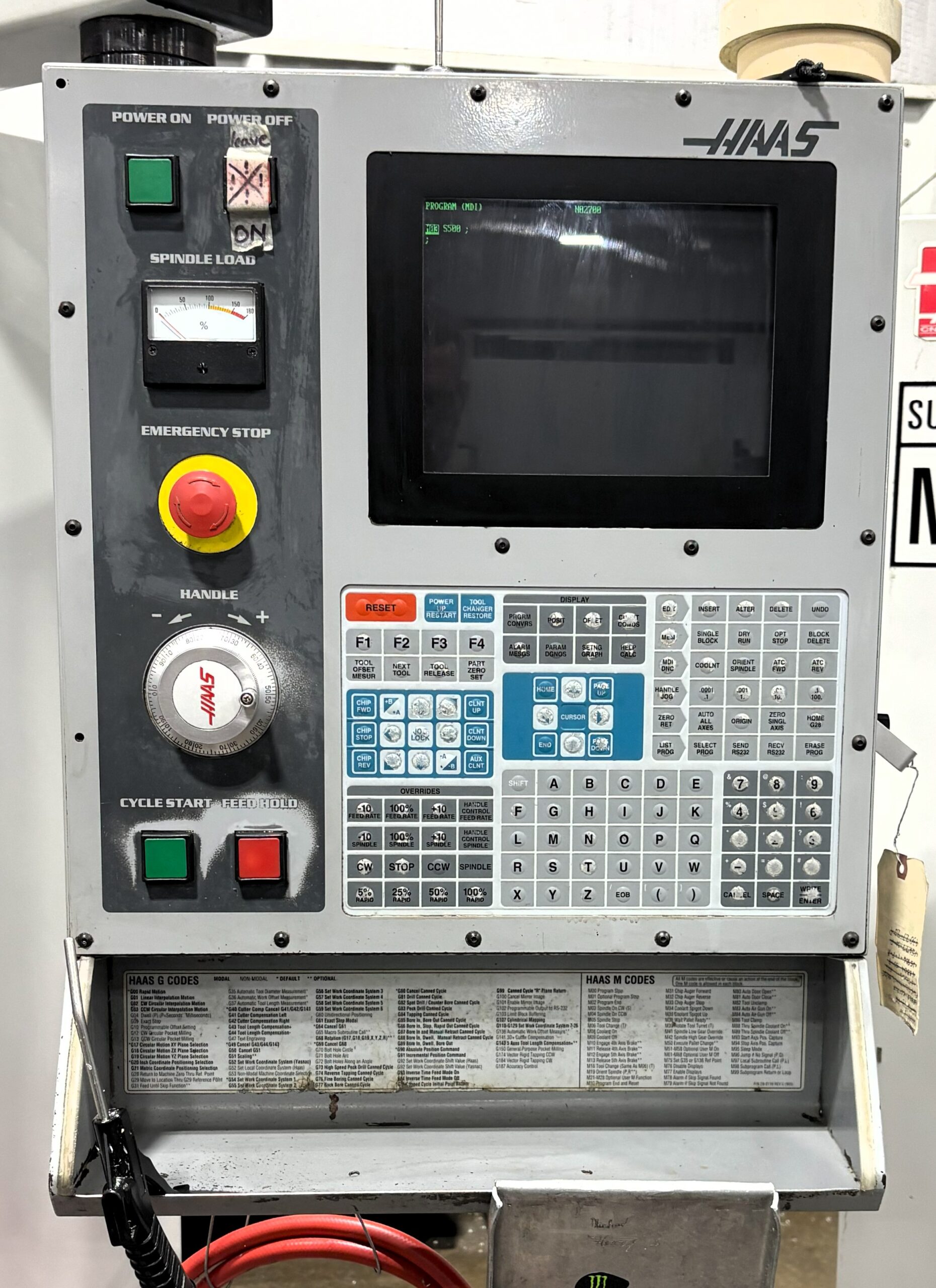

- Haas CNC Control
- 6000 RPM Spindle
- 40 Taper Spindle
- 10 Station Automatic Tool Changer
- Rigid Tapping
- Telescopic way covers
- Coolant System
- Note: Vises are not included with the machine
|

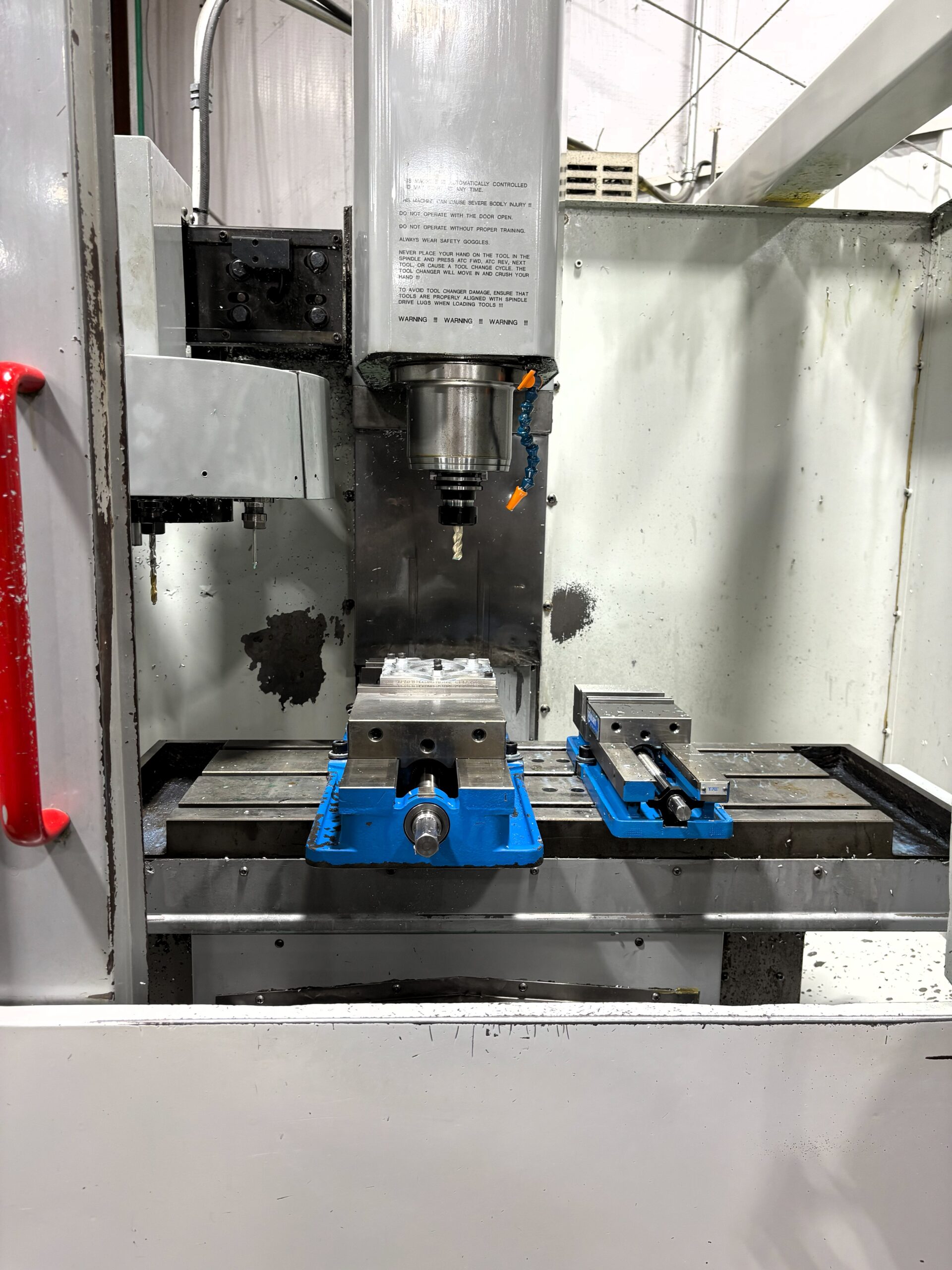

| Table: |
|---|
- Length: 36.0″
- Width: 12″
- Number of Std T-Slots: 3
- T-Slot Width: 5/8″
- Max Weight on Table: 500 lbs
|
| Travel: |
|---|
- X-Axis: 16″
- Y-Axis: 12″
- Z-Axis: 10″
- Rapid Traverse Rates: 600 Inch Per Minute
- Cutting Feed Rates: 500 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 14″
|
| Automatic Tool Changer: |
|---|
- Capacity: 10 Station
- Max Tool Weight: 12 lbs
- Max Tool Dia: 3.5″
- Tool Change Time: 4.2 Sec.
|
| Spindle: |
|---|
- Taper Size: 40
- Speed Range: 6000 RPM
- Spindle Power: 15 HP
- Max Torque: 33.0 ft-lbf @ 1200 rpm
|
| General: |
|---|
- Air Required: 100 psi, 4 scfm

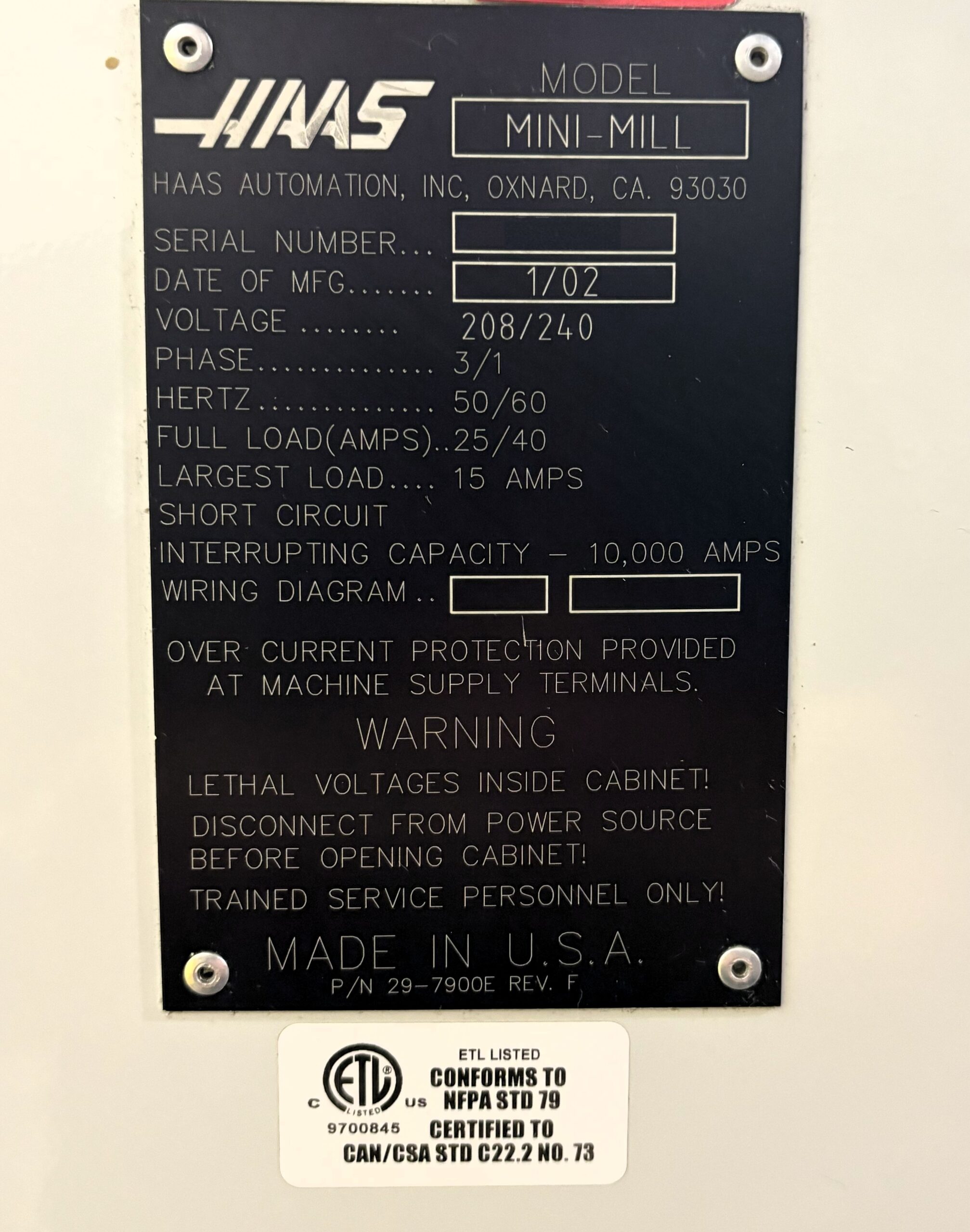

- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 90″ x 64″ x 100″ High
- Weight: 4000 lbs
|
