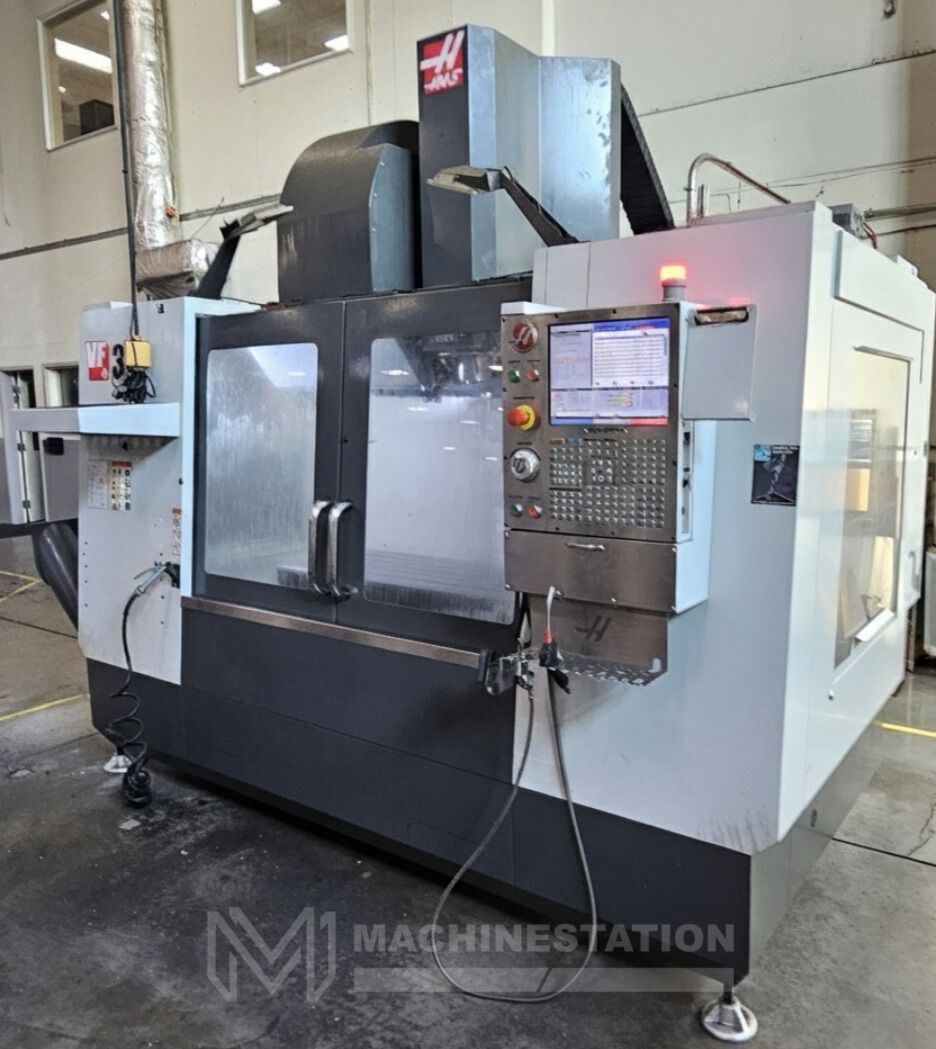

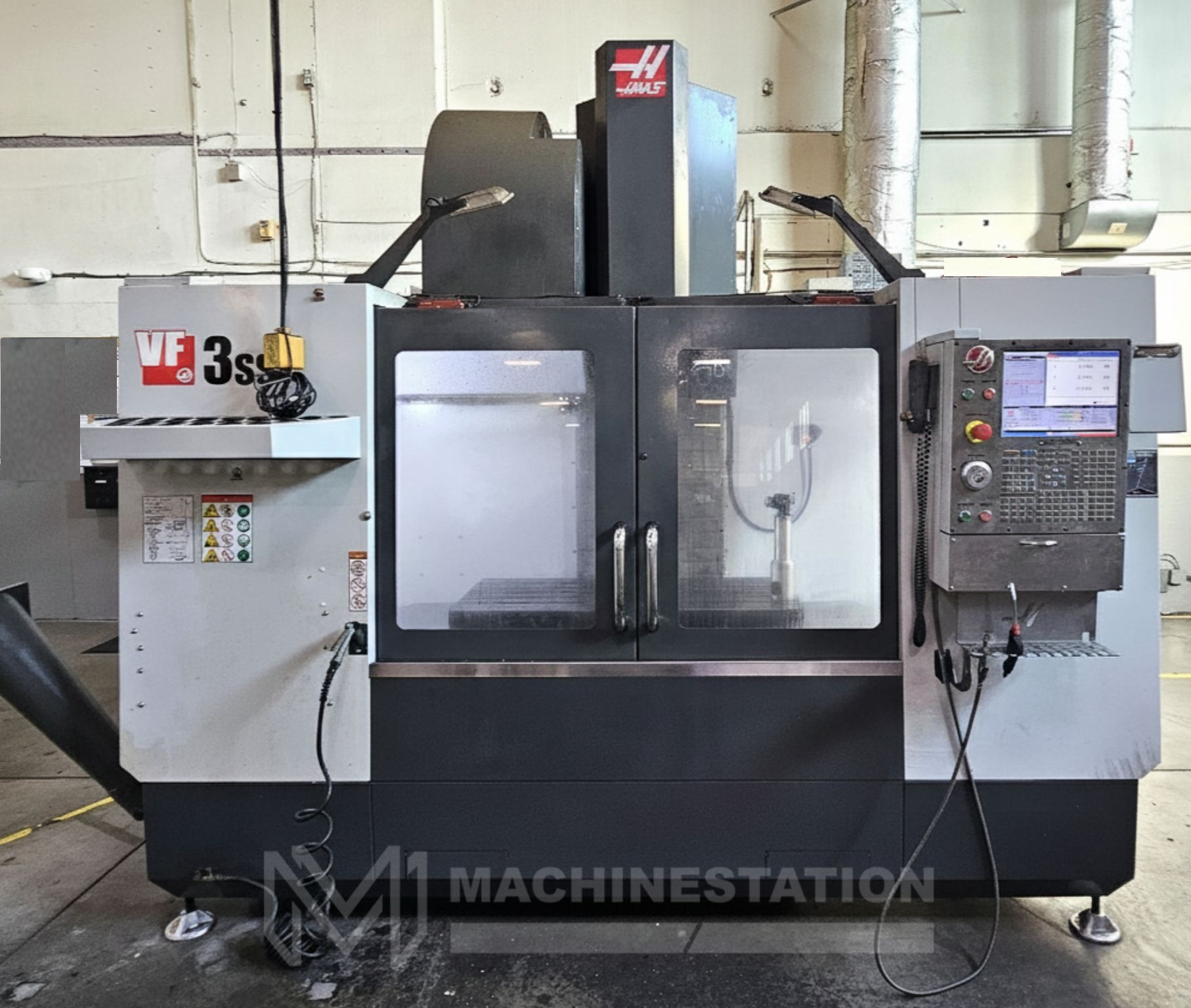

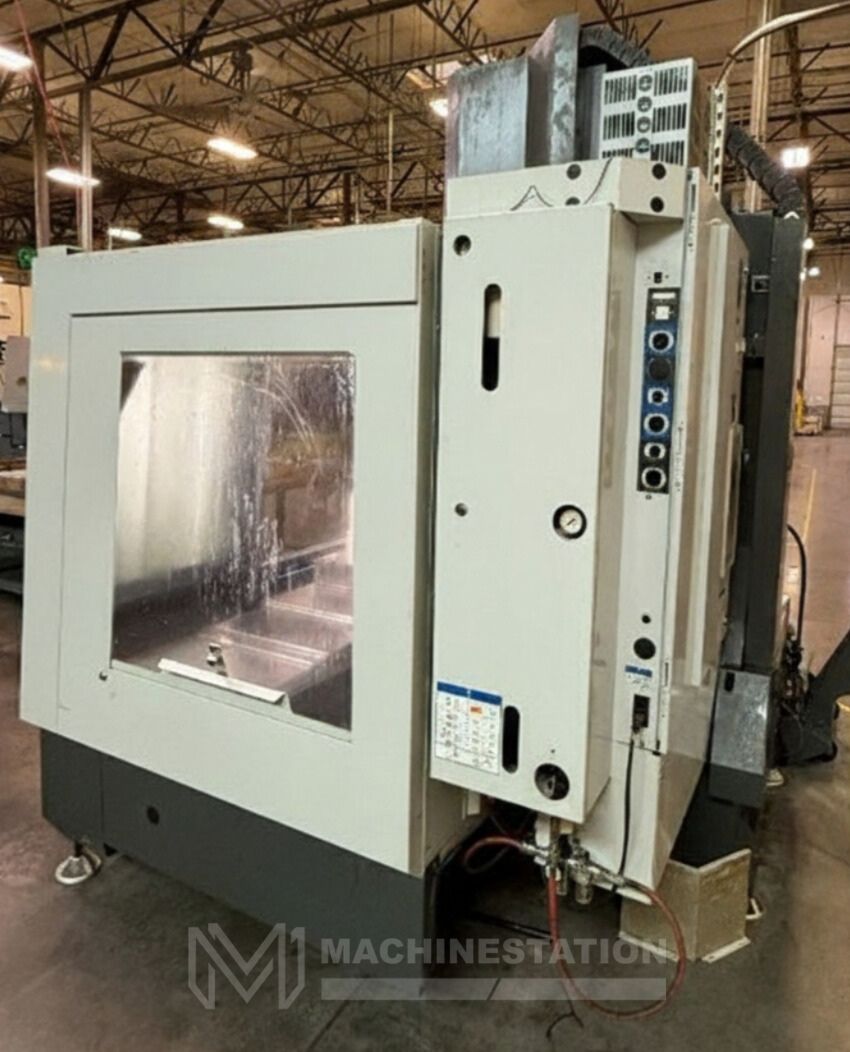

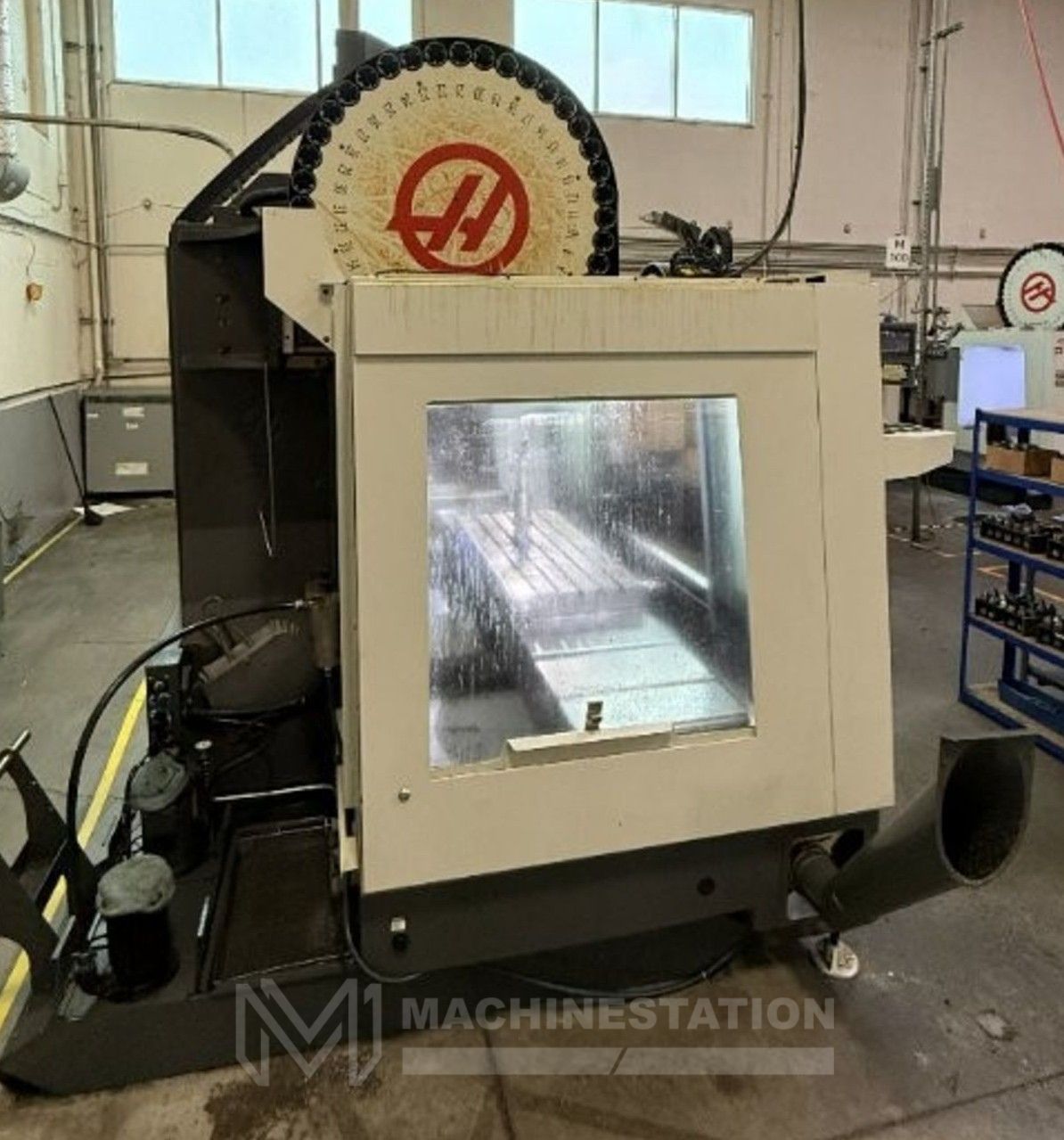

Avoid Paying More! New Haas prices just went up 5% as of May 1st — plus, long lead times on new machines mean delays and higher costs. This 2017 Haas VF-3SS is fully equipped with 4th & 5th Axis Drive & Wiring, 15,000 RPM High Speed Spindle, 40 Station Automatic Tool Changer, WIPS, TSC, HSM, Programmable Coolant, High-Intensity Lighting and Chip Auger.
“Replacement Cost Over $158,000 with Similar Options”
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
HAAS |
| Model: |
VF-3SS |
| Year: |
2017 |
| Travel: |
| X-Axis: 40″ |
| Y-Axis: 20″ |
| Z-Axis: 25″ |
| Rapid Traverse Rates: 1400 Inch Per Minute |
| Cutting Feed Rates: 833 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4.2″ – 29.2″ |

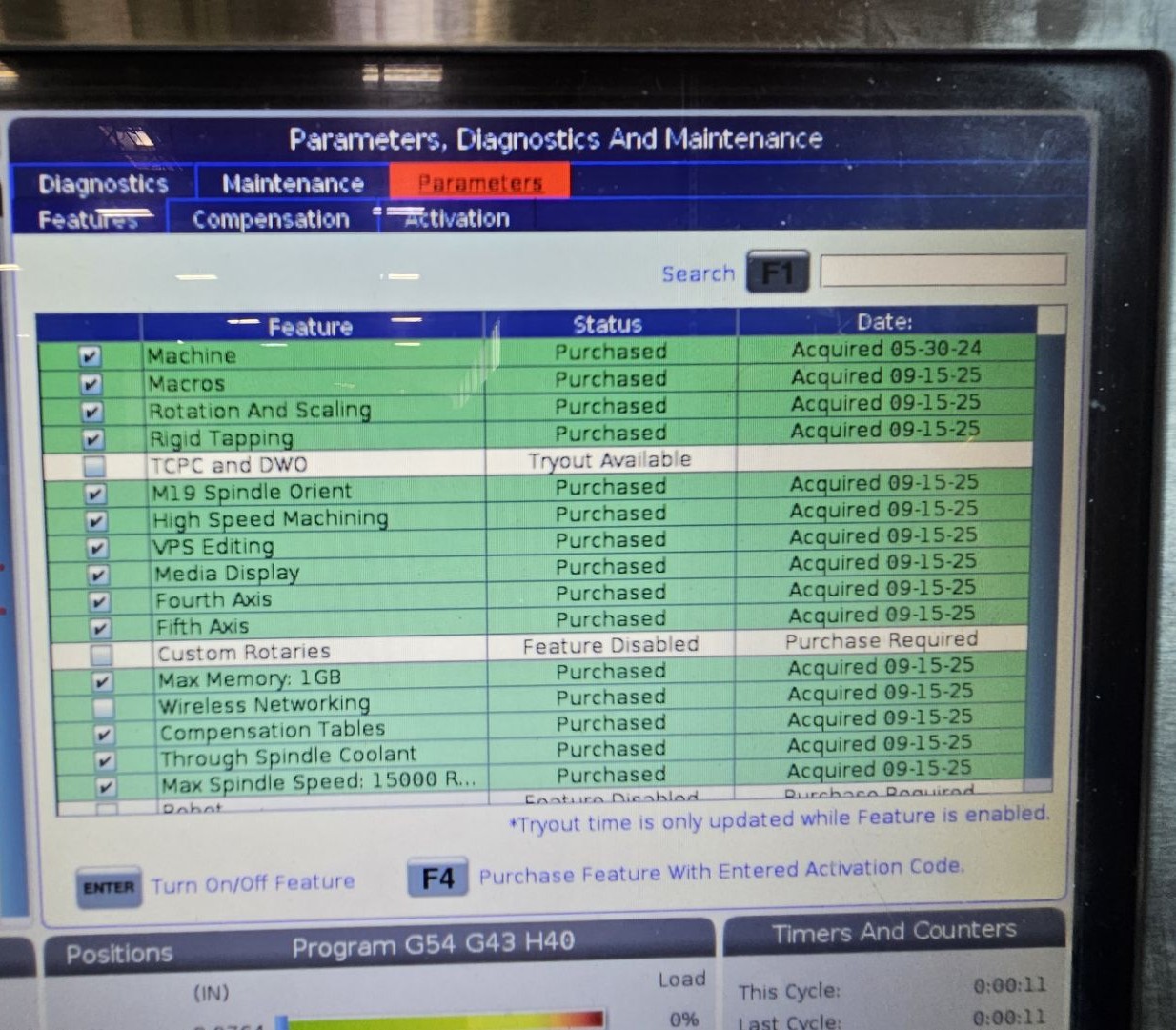

| Features of the Haas VF-3SS: |

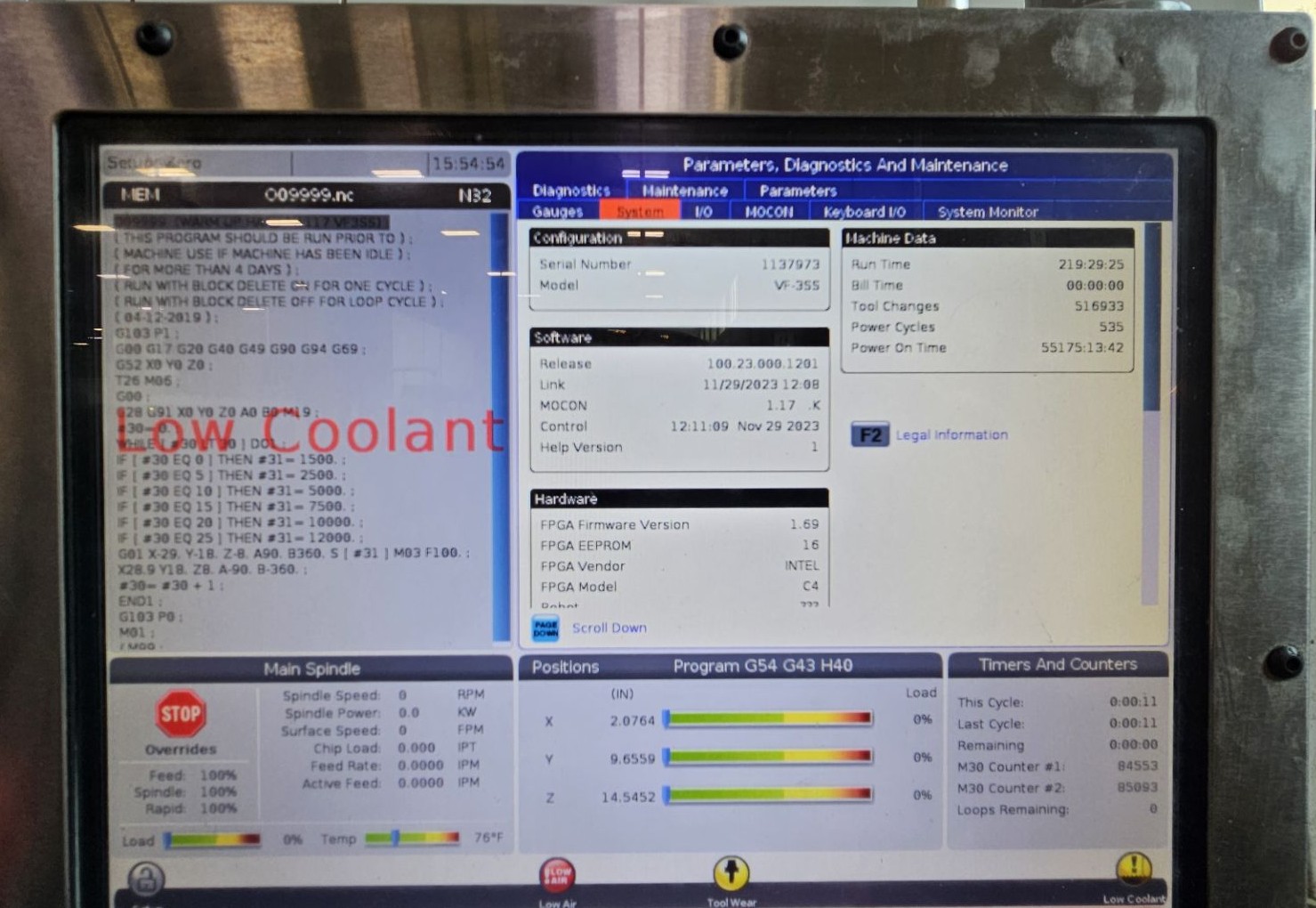

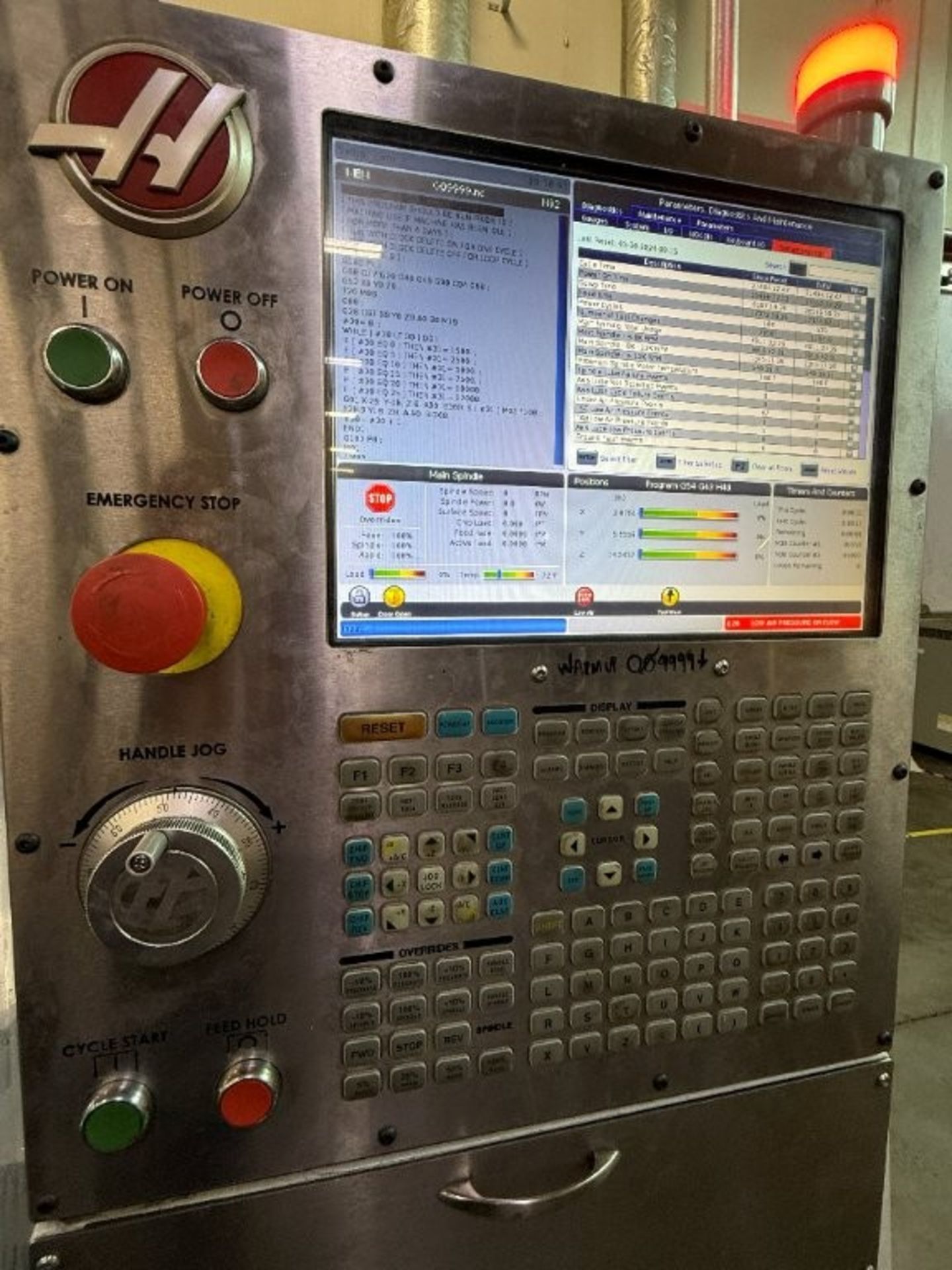

| Haas CNC Control |

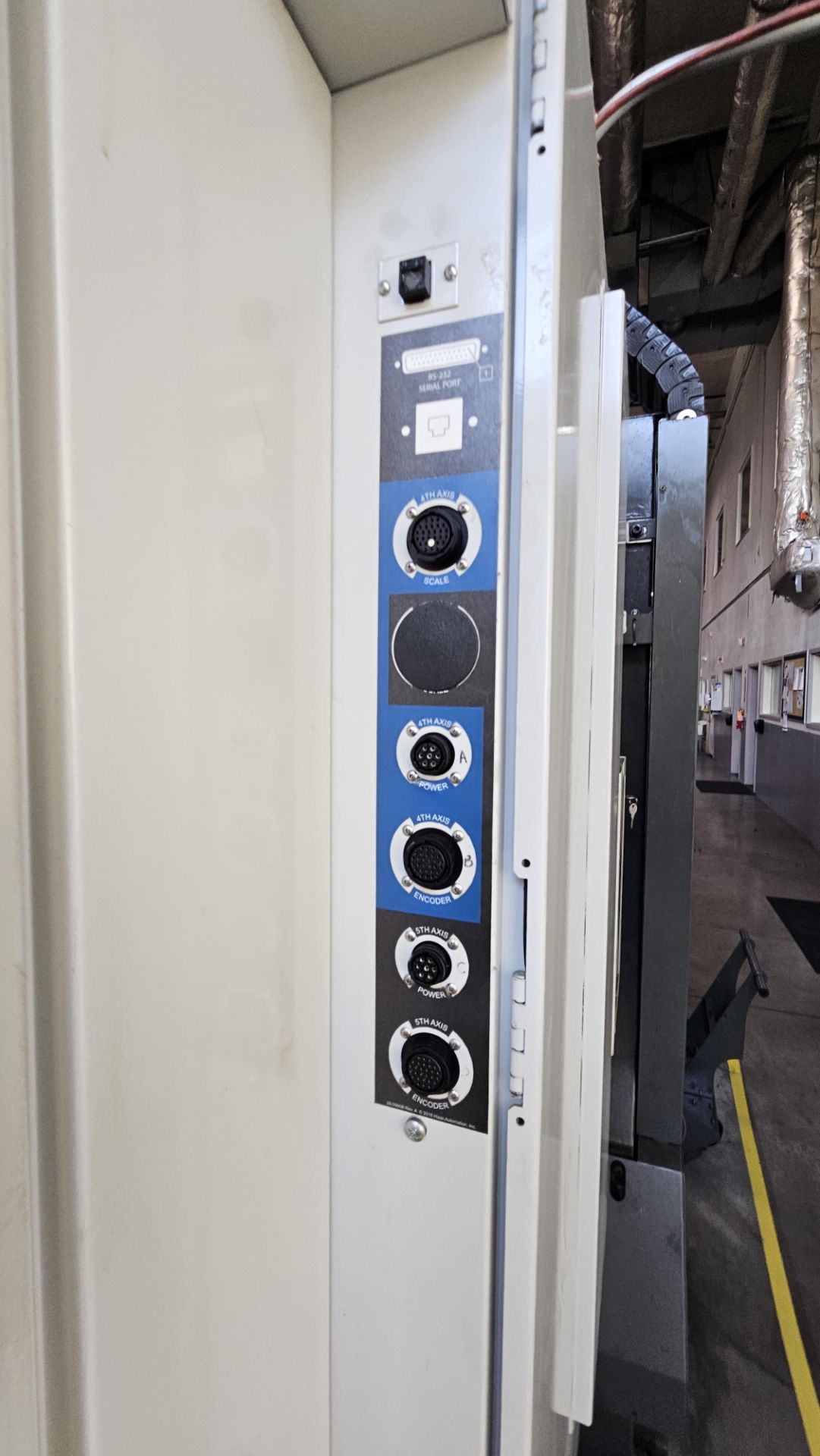

| 4th-Axis Drive and Wiring (Upgraded $3,595 value Included) |
| 5th-Axis Drive and Wiring (Upgraded $10,495 value Included) |
| 15,000 RPM High-Speed Spindle (Upgraded $8,895 value Included) |
| WIPS-R Renishaw Probing System (Probe Needed) (Upgraded $6,395 value Included) |
| Probe Riser Block (Upgraded $695 value Included) |
| 40 Station High-Speed Tool Changer (Upgraded $12,595 value Included) |

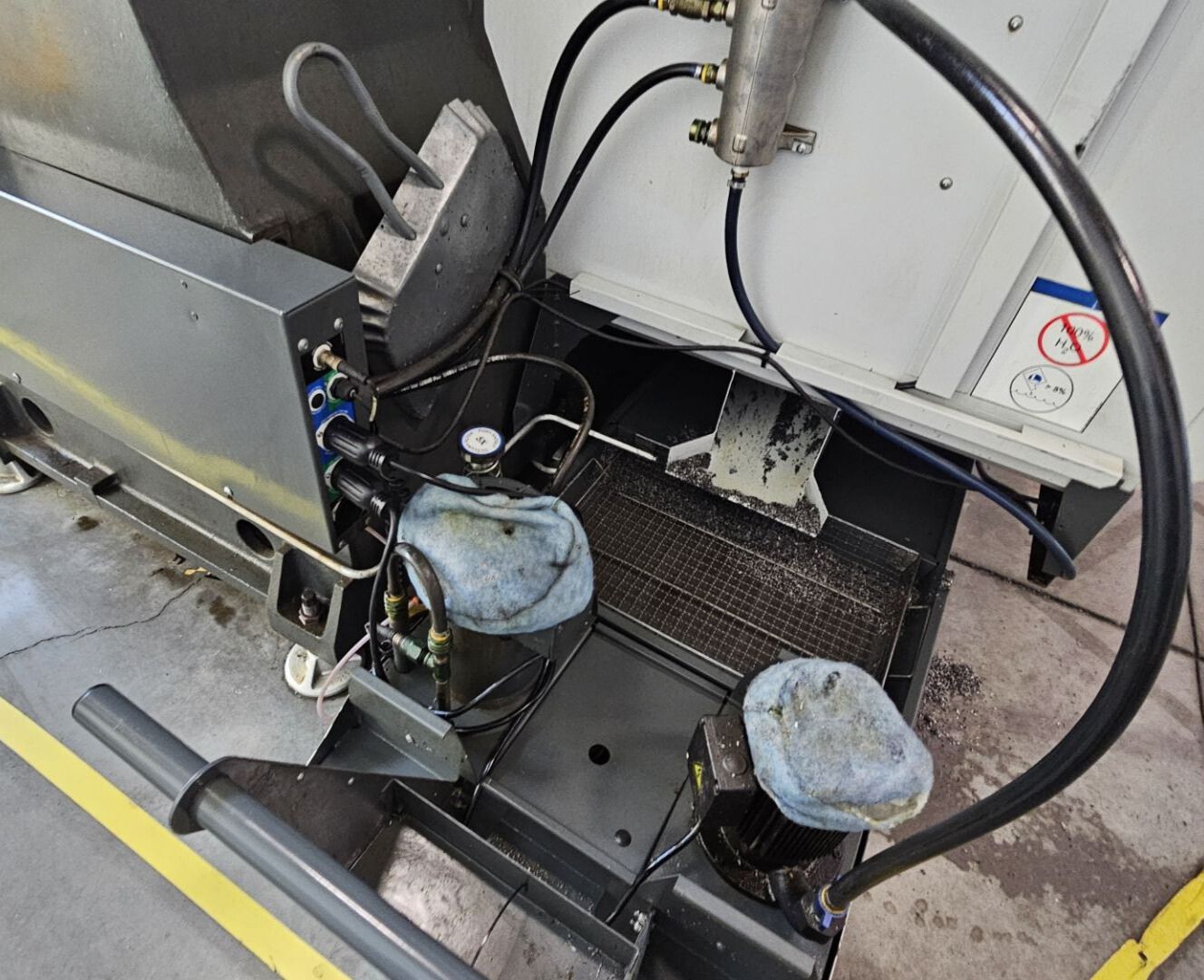

| Through Spindle Coolant – 300 psi (Upgraded $7,095 value Included) |
| High-Speed Machining (Upgraded $3,895 value Included) |
| Programmable Coolant Nozzle (Upgraded $2,395 value Included) |
| 1400 IPM Fast Rapid Traverse |
| 40 HP Vector Drive |
| Large Remote Jog Handle |
| Rigid Tapping |
| Spindle Orientation |
| VPS Editing |
| Media Display |
| Macros |
| Rotation & Scalling |
| 1 GB Memory |
| Wireless Networking |
| Compensation Tables |
| High-Intensity Lighting (Upgraded $1,295 value Included) |
| Coolant System |
| Chip Auger (Upgraded $4,095 value Included) |

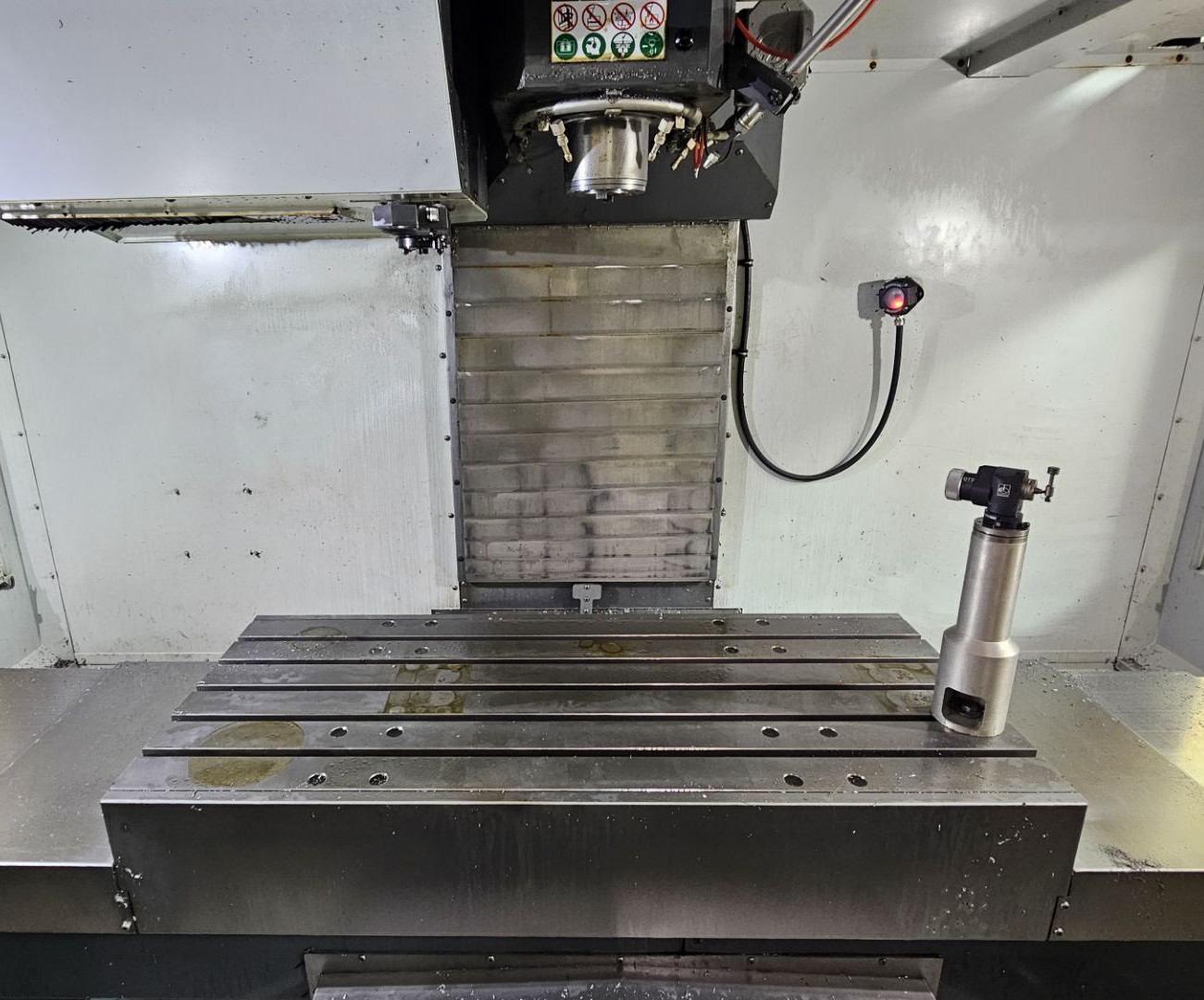

| Table: |
| Length: 48″ |
| Width: 18″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1750 lbs |
| Spindle: |
| Taper Size: CAT-40 |
| Speed Range: 15,000 RPM |
| Spindle Power: 40 HP |
| Automatic Tool Changer: |
| Capacity: 40 Tools |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 2.5″ – 5.0″ |
| Max Tool Length: 13″ |
| Tool Changing Time: 1.80 Seconds |
| General: |
| Air Required: 100 psi 4 scfm |

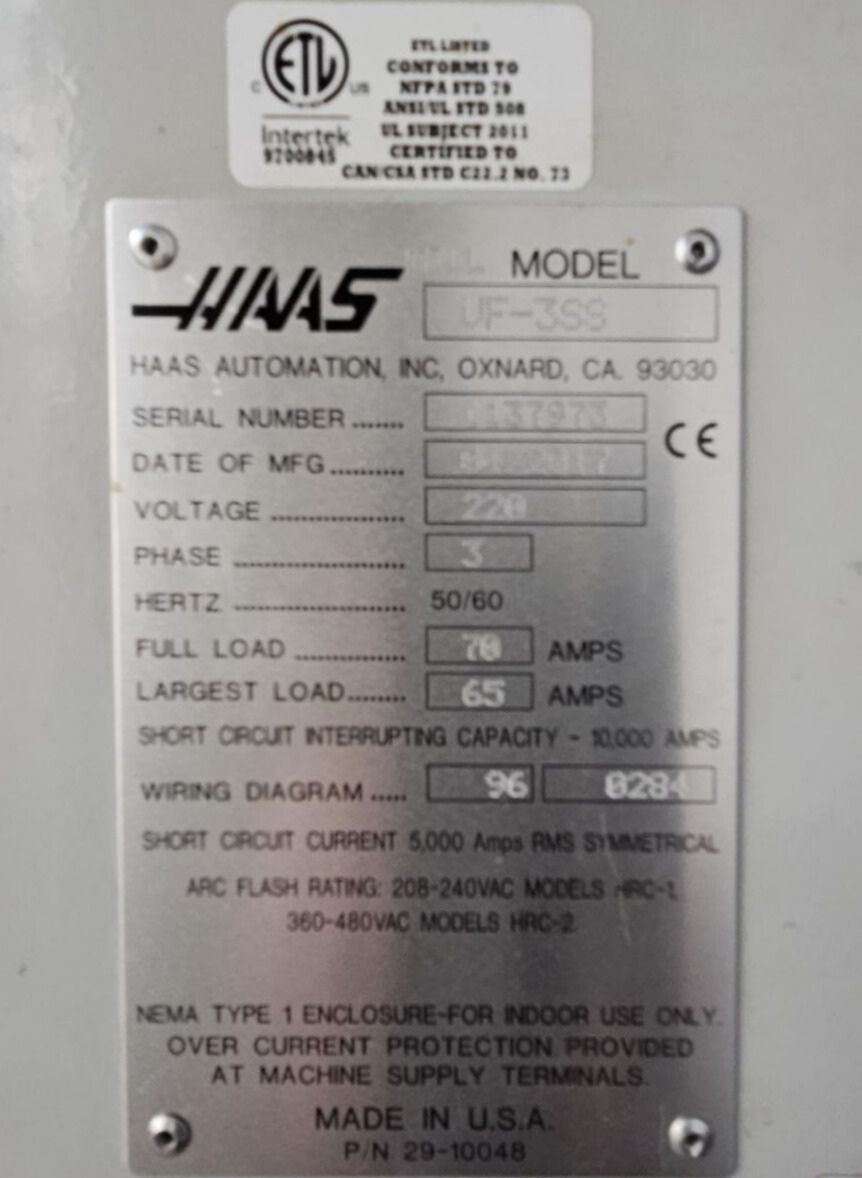

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 152″ x 99″ x 106″ High |
| Weight: 11,720 lbs Approx. |
