*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

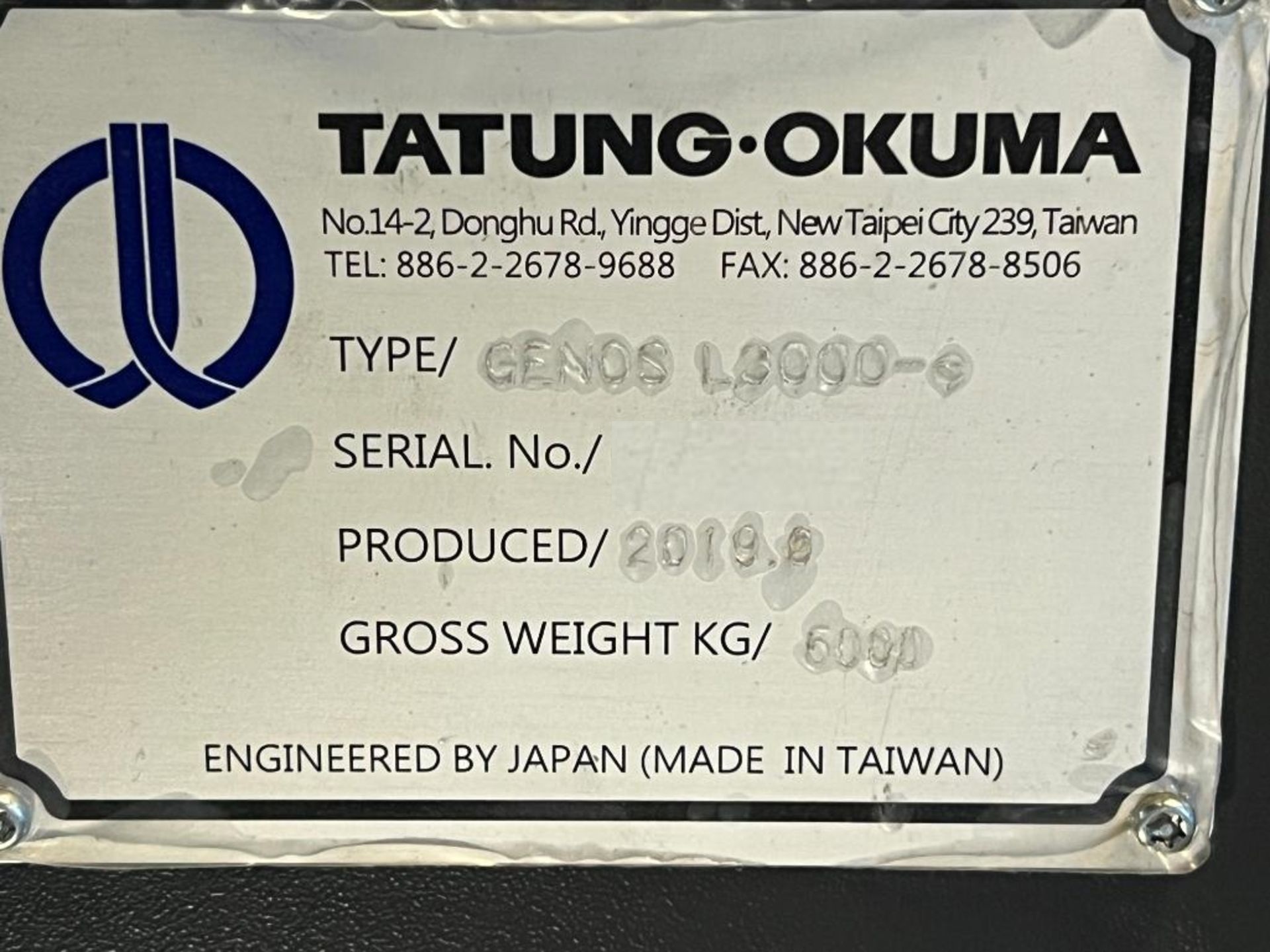

| Make: | Okuma |
| Model: | GENOS L3000-e |
| Year: | 2019 (Sold & Installed in 2020) |
| Equipped With: |
|---|

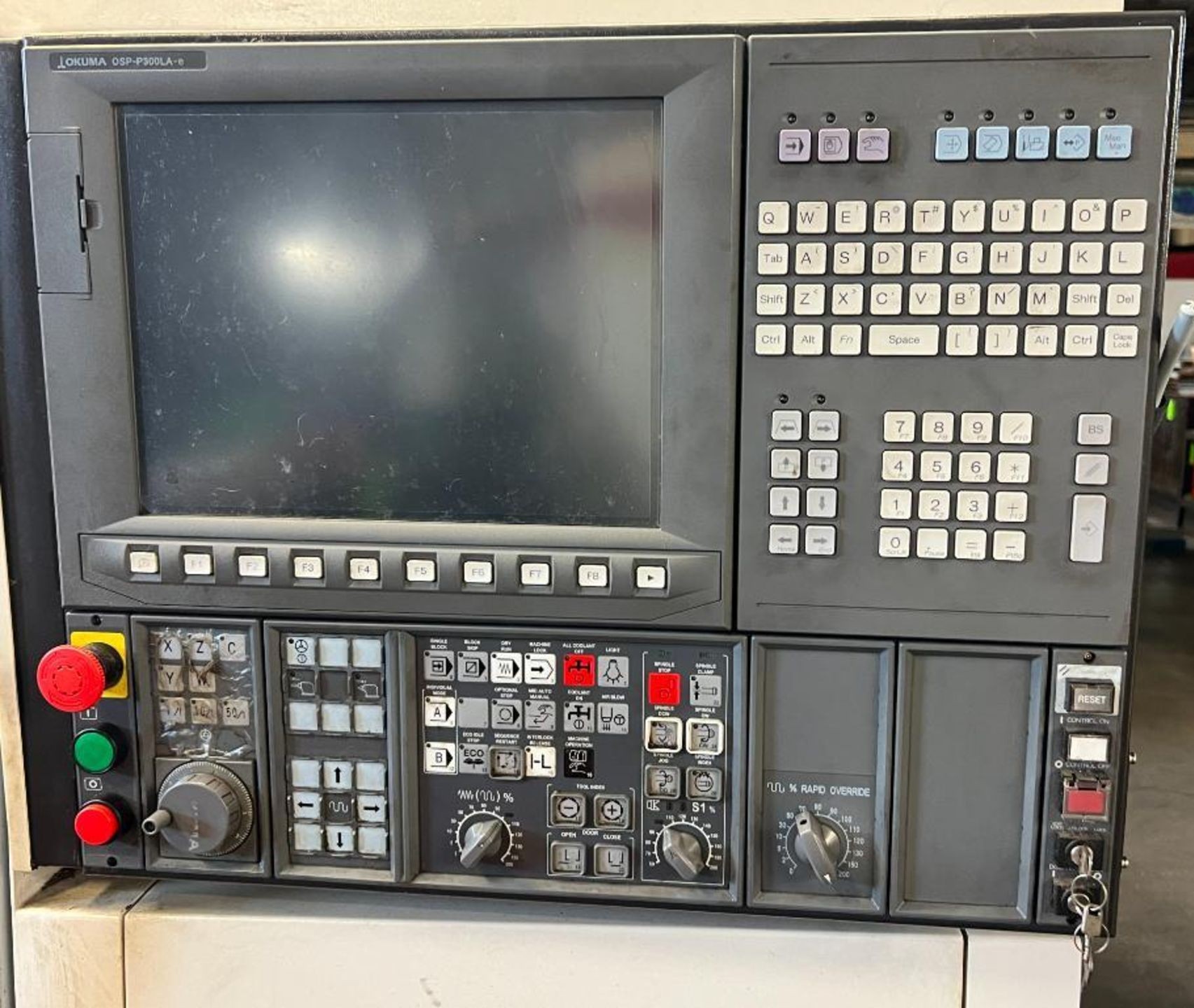

| Okuma OSP-P300LA-e CNC Control |
| Box Way Construction |

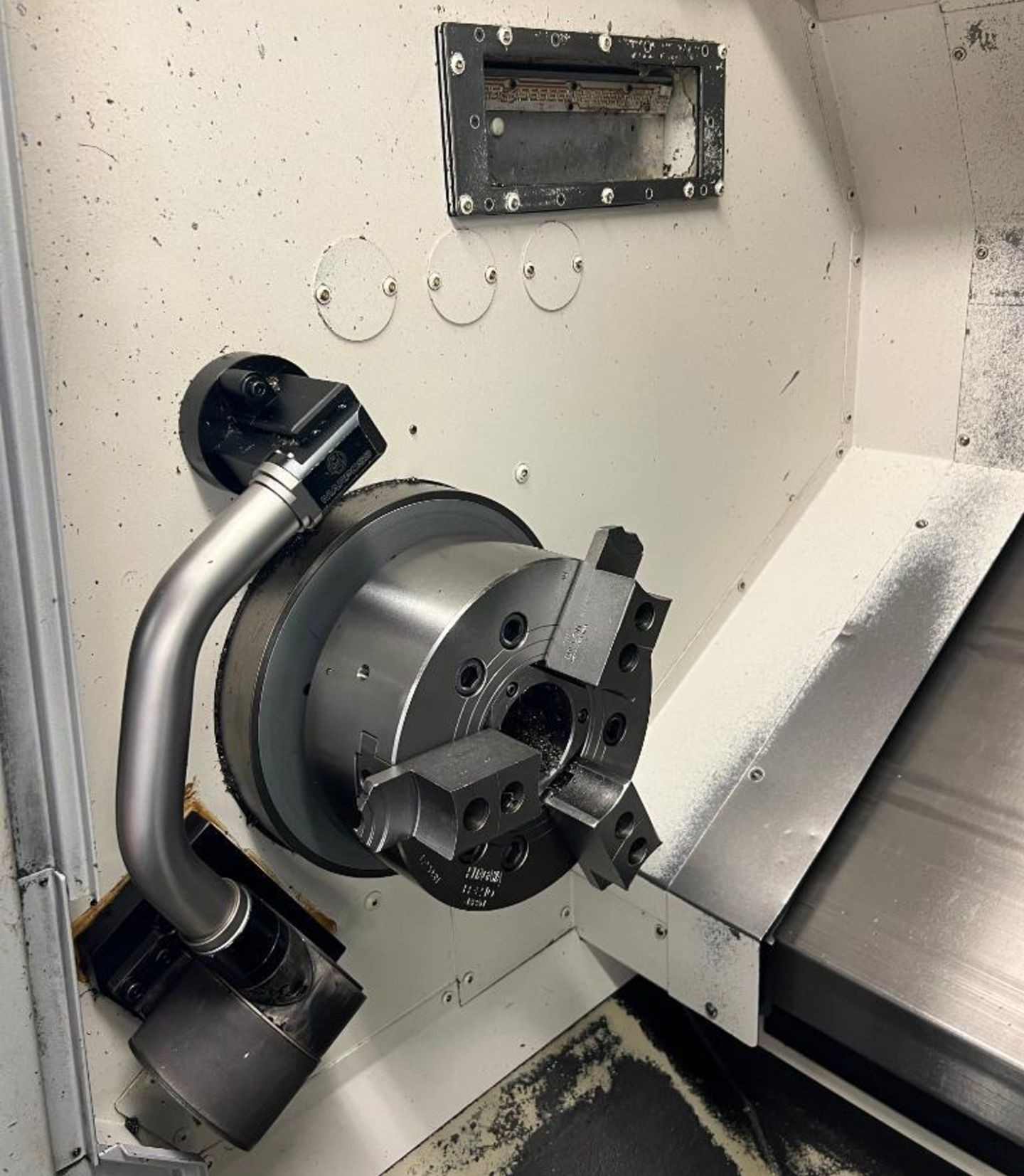

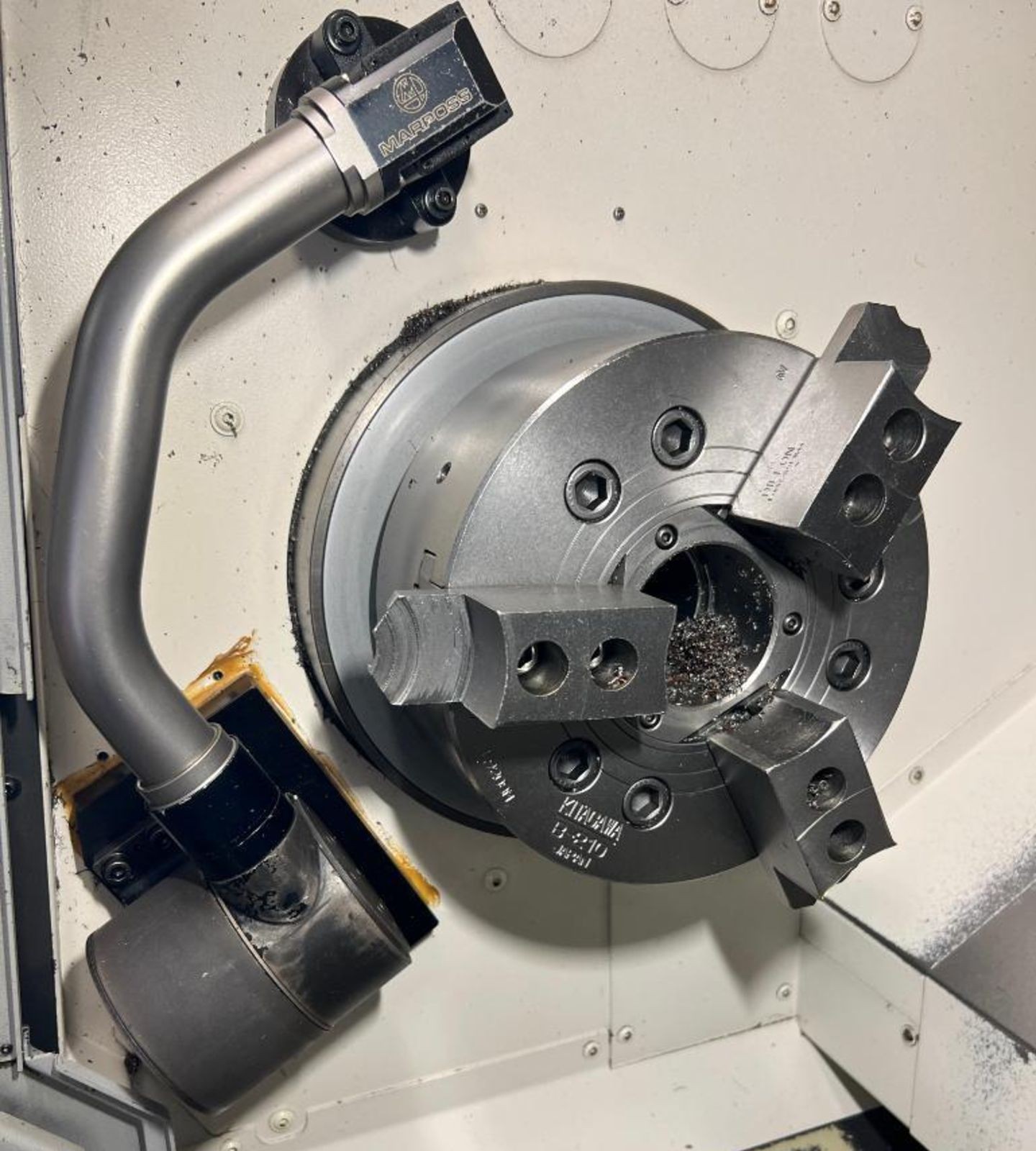

| 10″ 3-Jaw Kitagawa B-210 Chuck |
| 12-Station Automatic Turret |
| A2-8 Spindle Nose |
| Tool Presetter |
| Tailstock |
| Rigid Tapping |
| Coolant System |

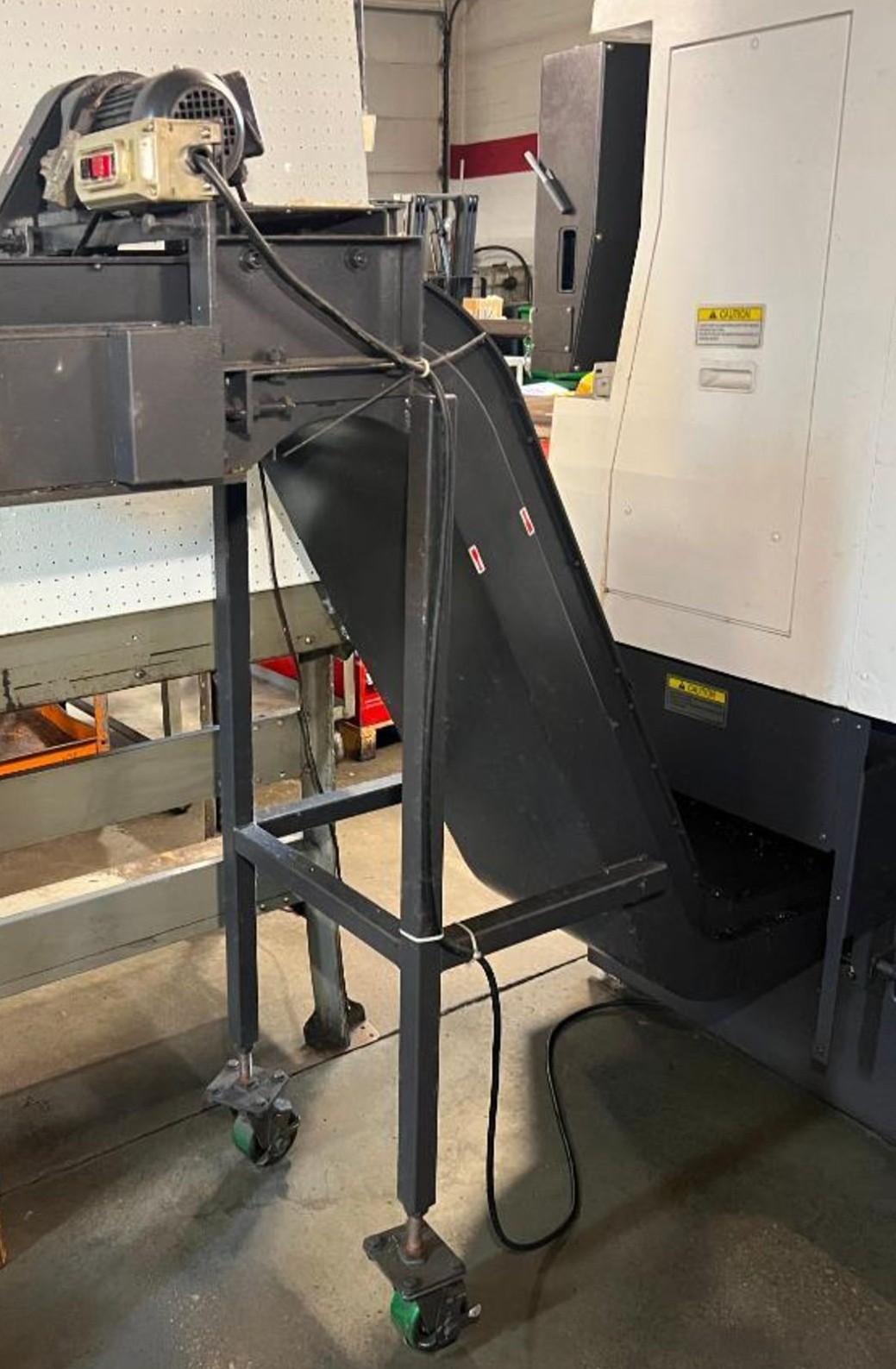

| Chip Conveyor |
| Foot Swiches |
| Note: Tool holders mounted on the turret are not included with the machine. |
| Capacity: |
|---|
| Max Turning Diameter: 13.39″ |
| Max Turning Length: 19.69″ |
| Swing Over Bed: 20.47″ |
| Swing Over Saddle: 15.75″ |
| Max Bar Capacity: 2.54″ |
| Travels: |
|---|
| X Axis Travel: 9.25″ |
| Z Axis Travel: 20.47″ |
| Rapid Traverse X Axis: 984 IPM |
| Rapid Traverse Z Axis: 1181 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.15″ |
| Spindle Speed: 3,800 RPM |
| Spindle Motor Power: 30 HP |

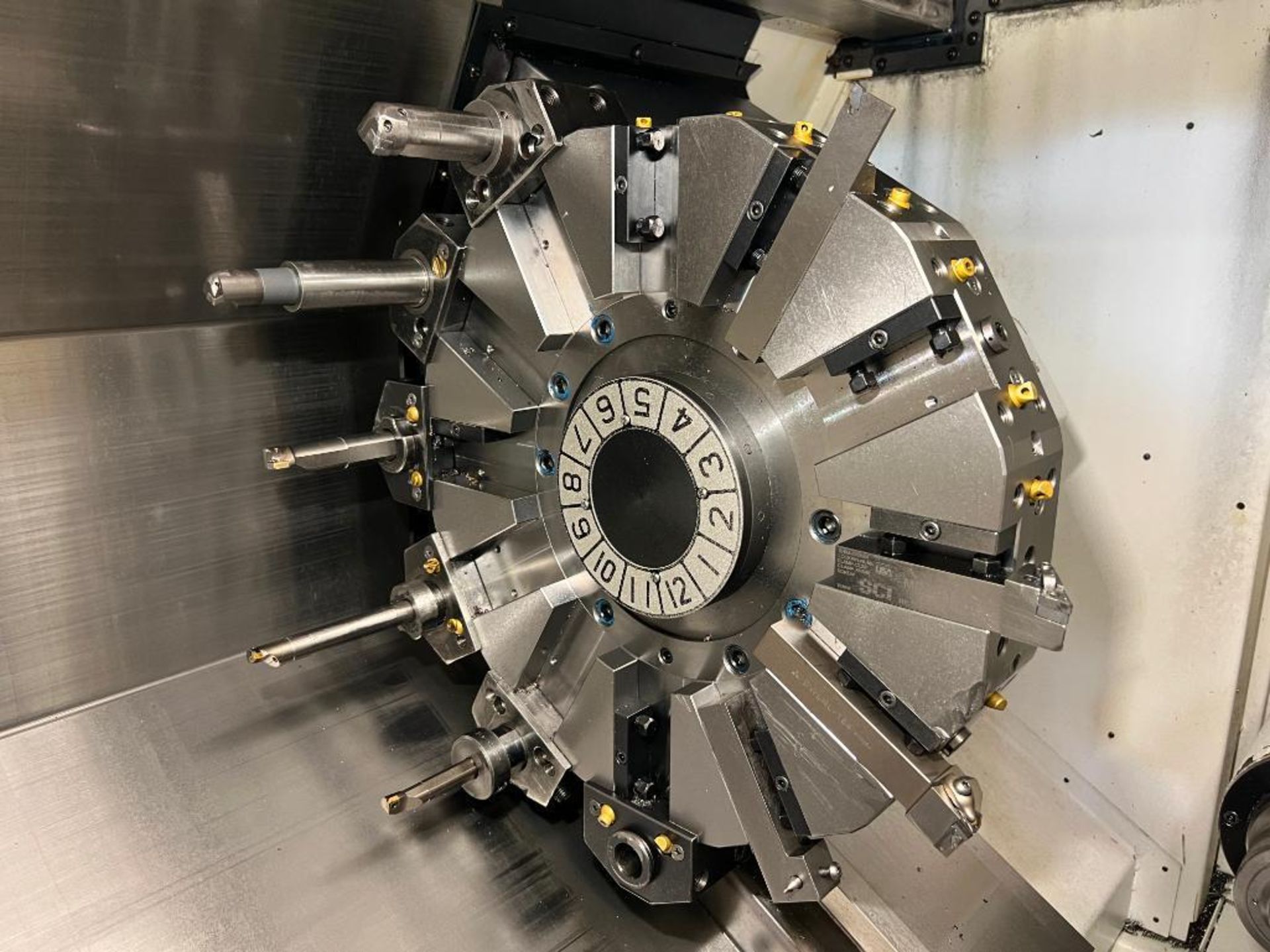

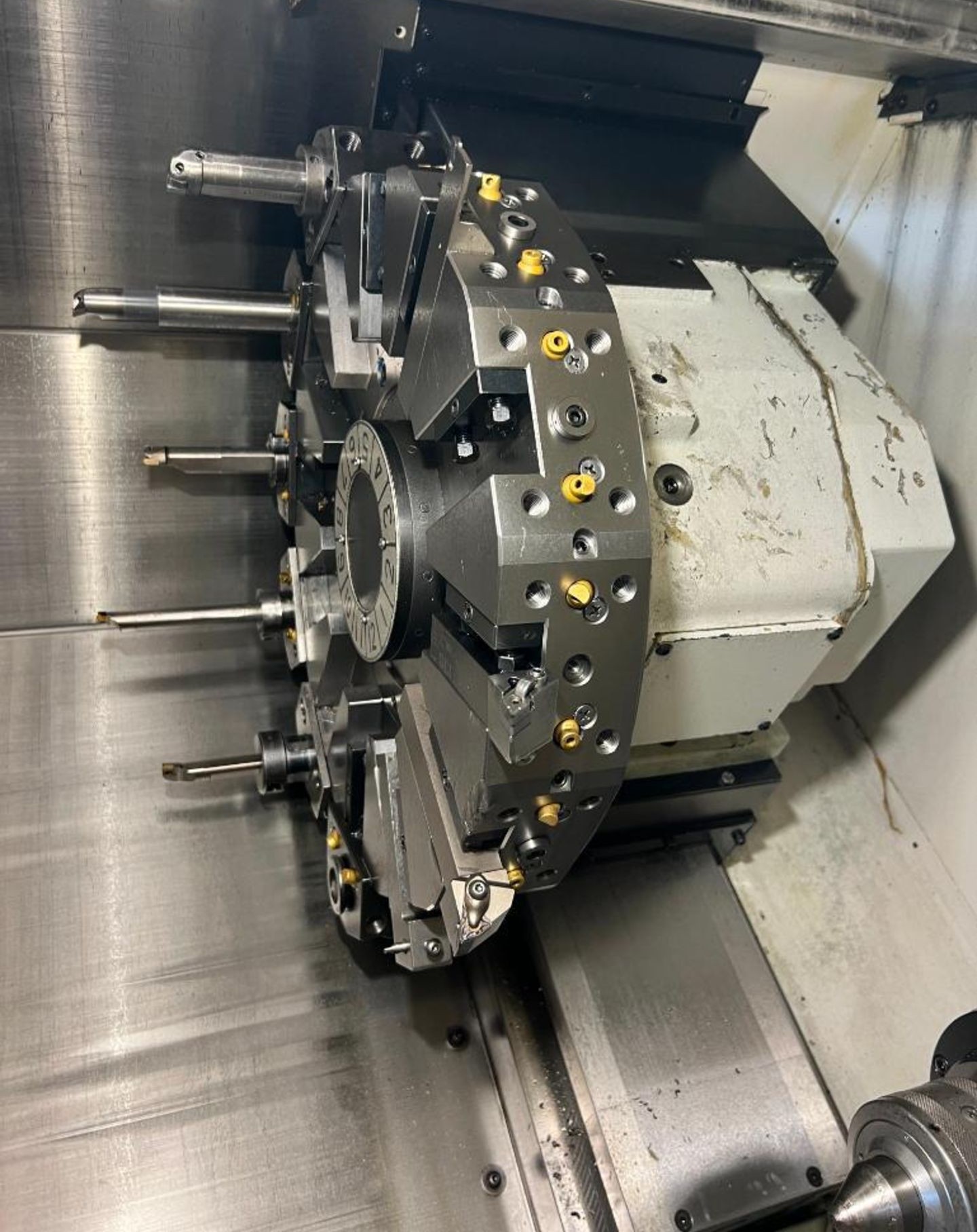

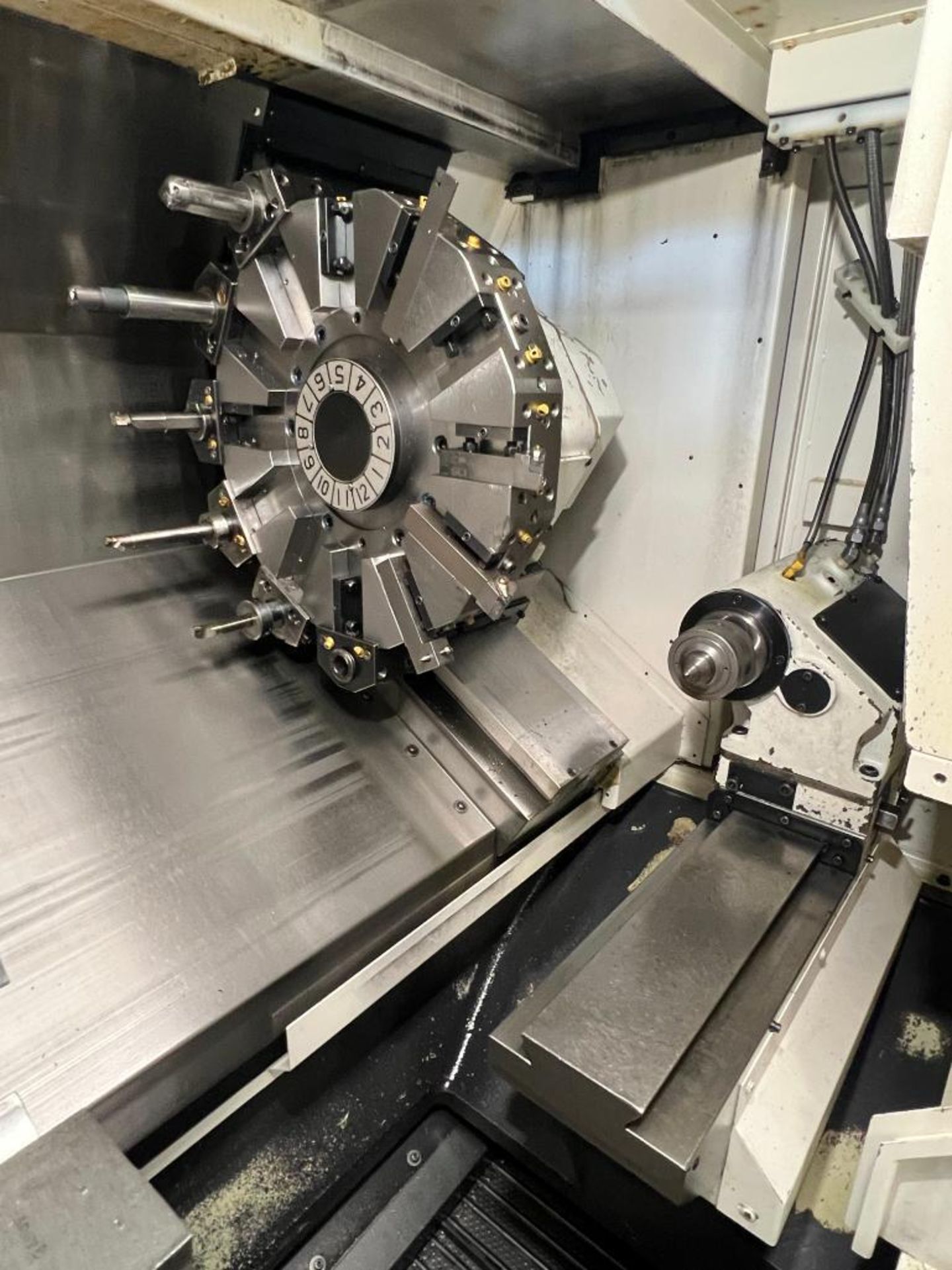

| Turret: |
|---|
| Capacity: 12 Stations |
| OD Tool Size: 01″ × 01″ |
| ID Tool Size: 1.25″ |
| Index Time: 0.3 sec/index |

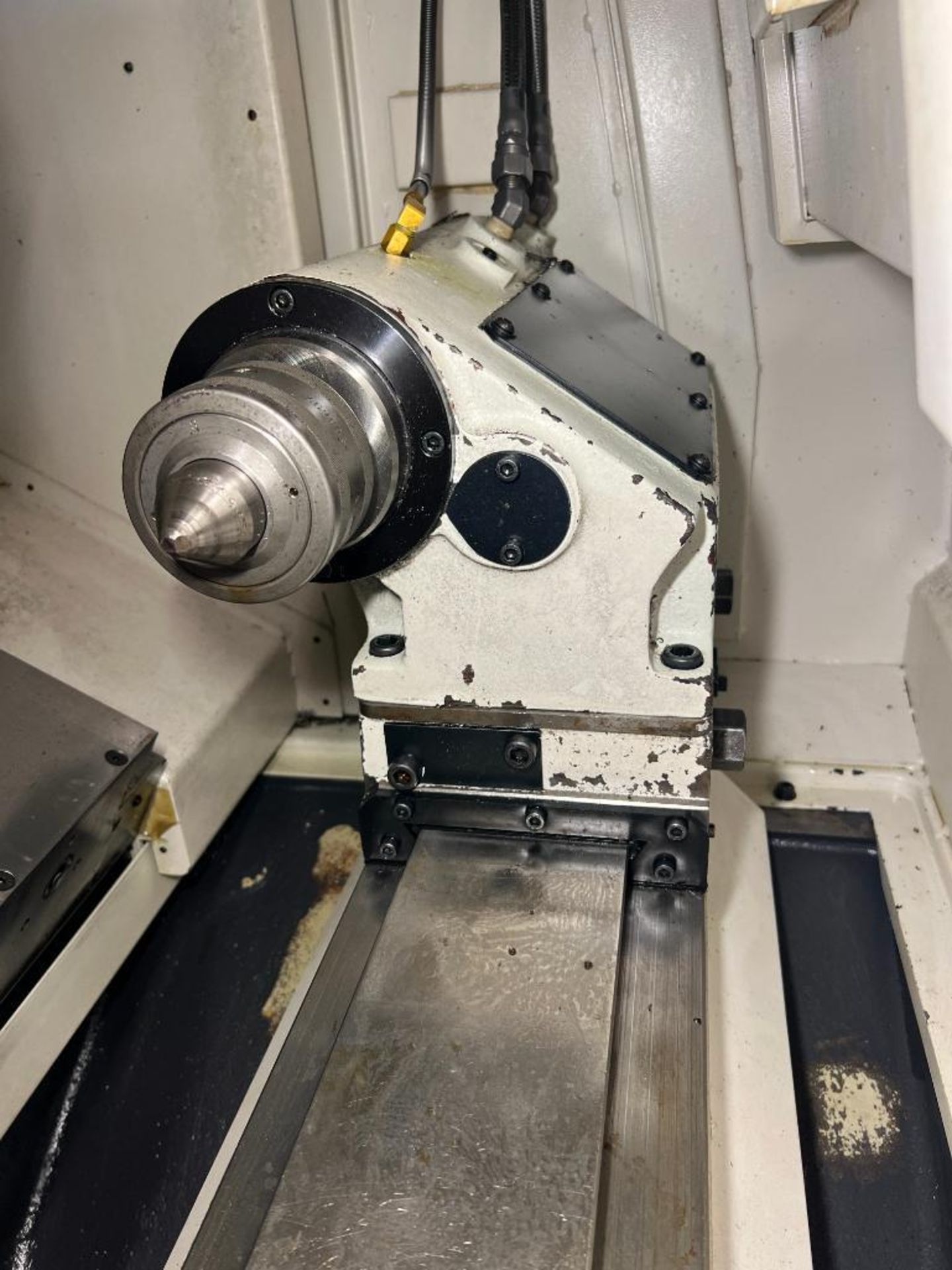

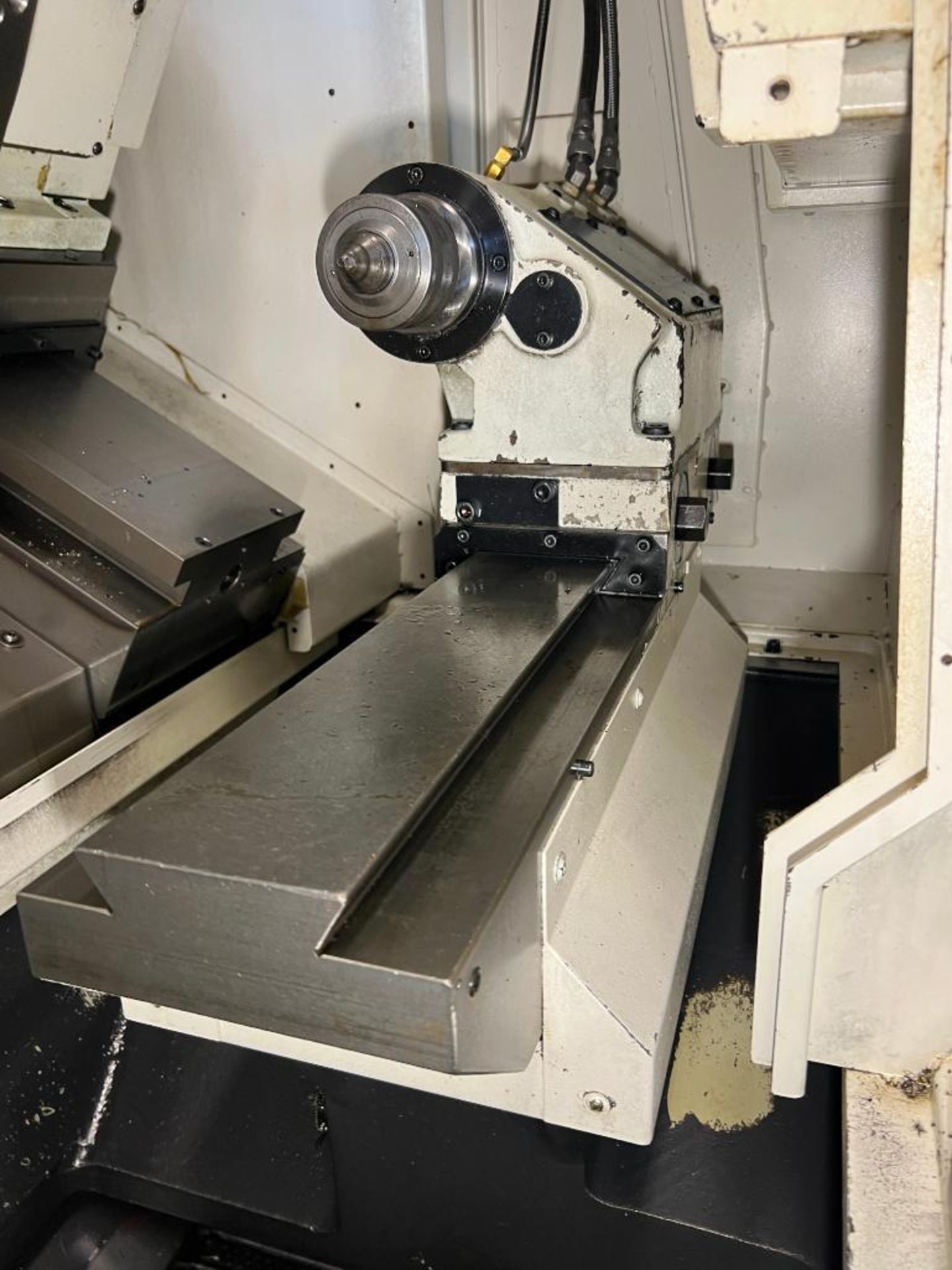

| Tailstock: |
|---|
| Tailstock Type: NC-Controlled |
| Taper: MT5 |
| Tailstock Travel: 16.5″ |
| General: |
|---|

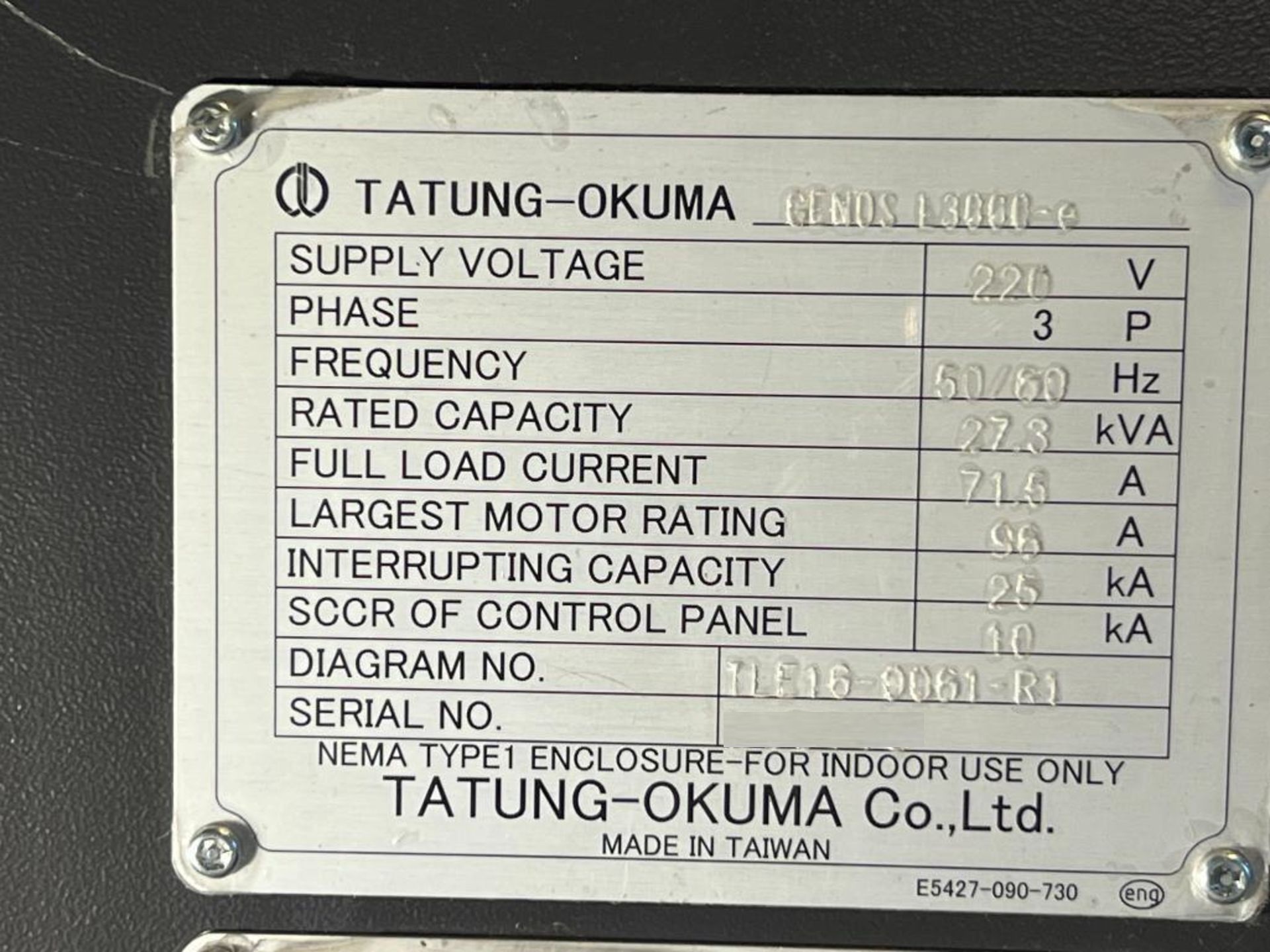

| Power Requirement: 27.3 kVA / 220V / 3-Phase |
| Machine Floor Dimensions: 140″ × 96″ |
| Weight: 13,422 lbs |
