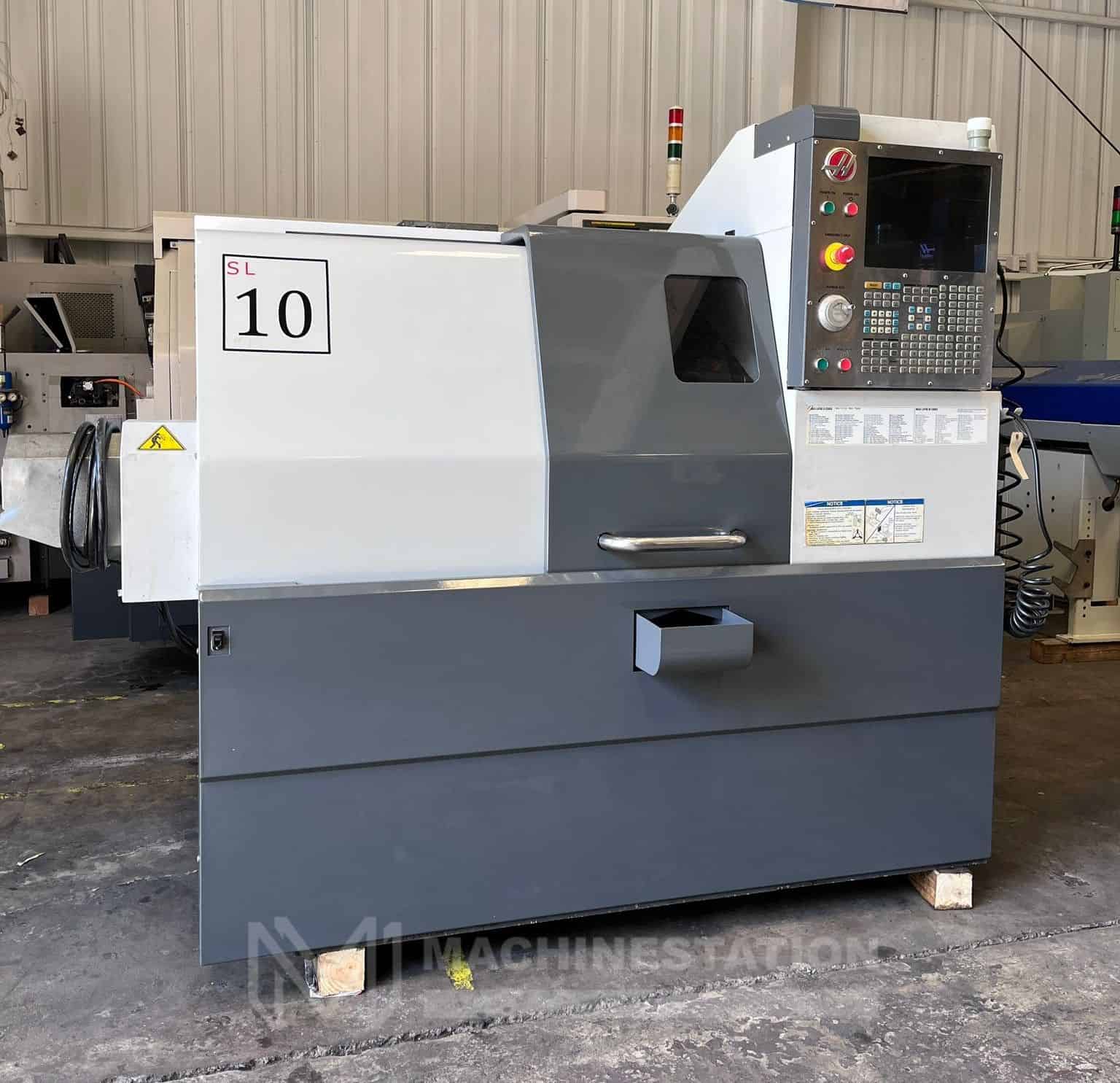

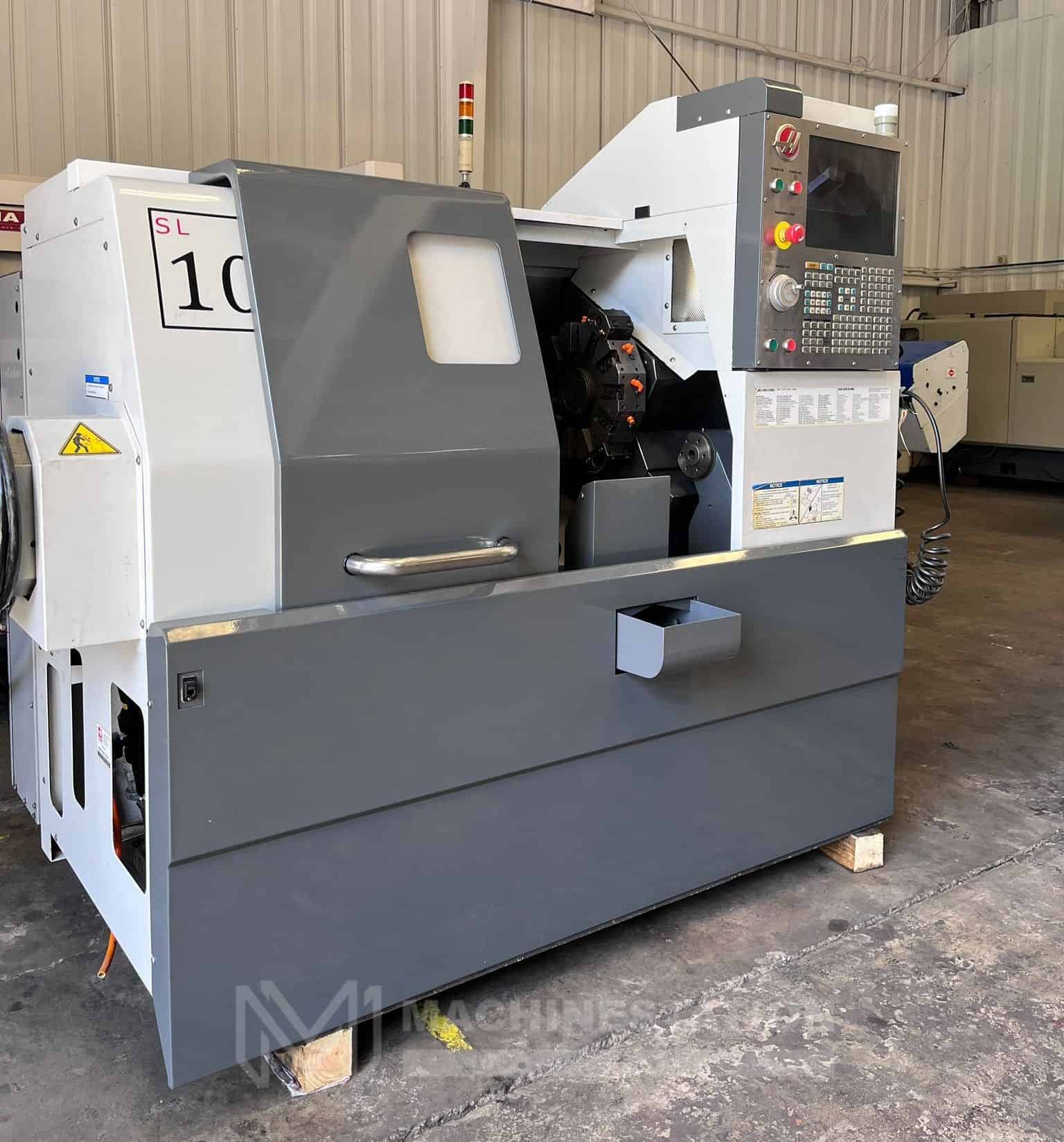

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

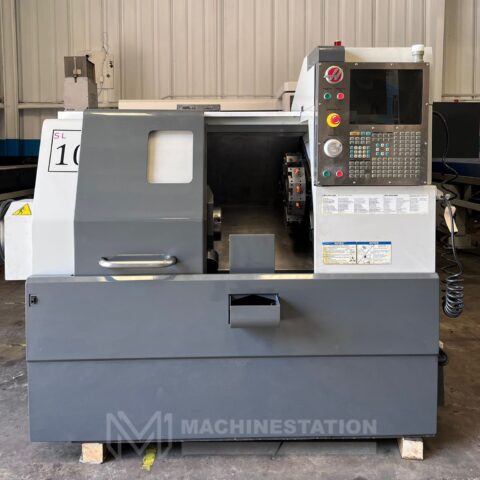

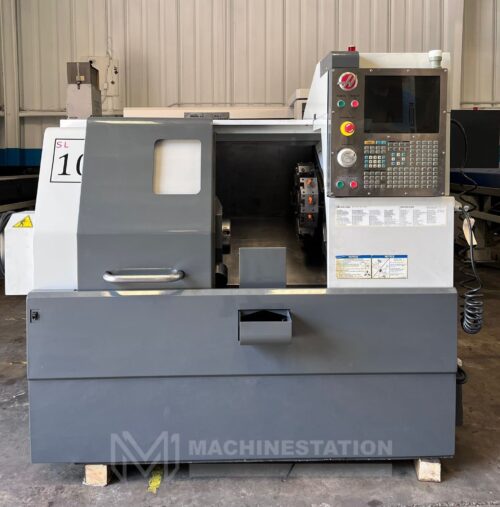

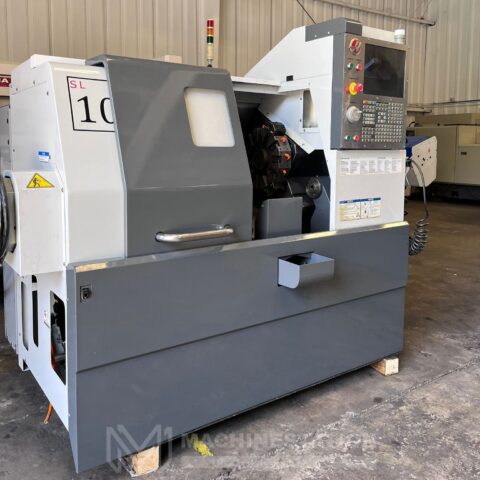

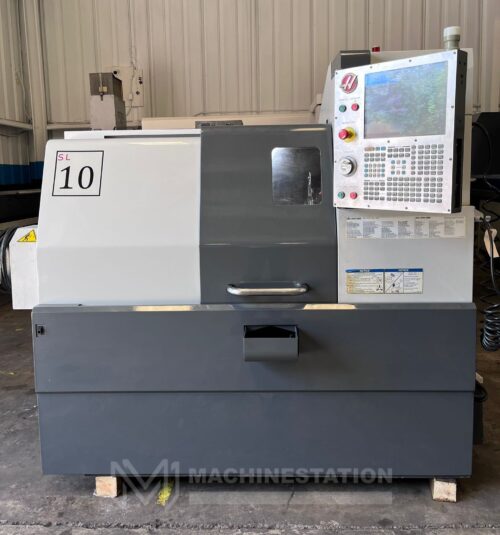

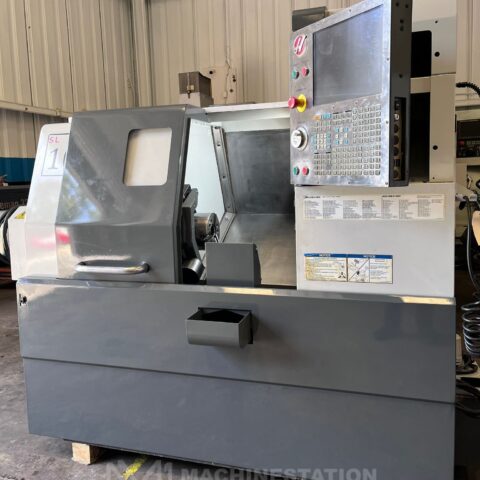

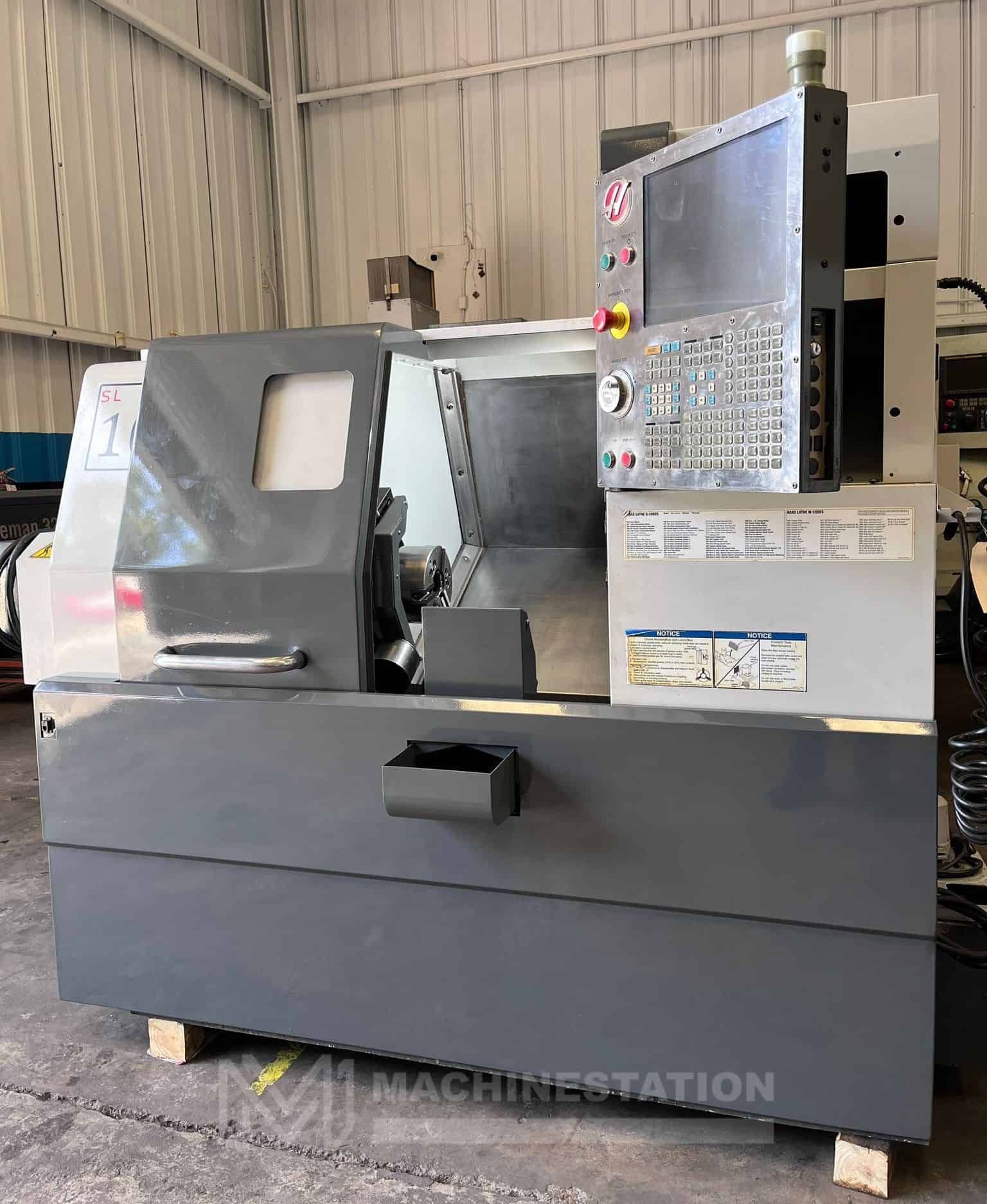

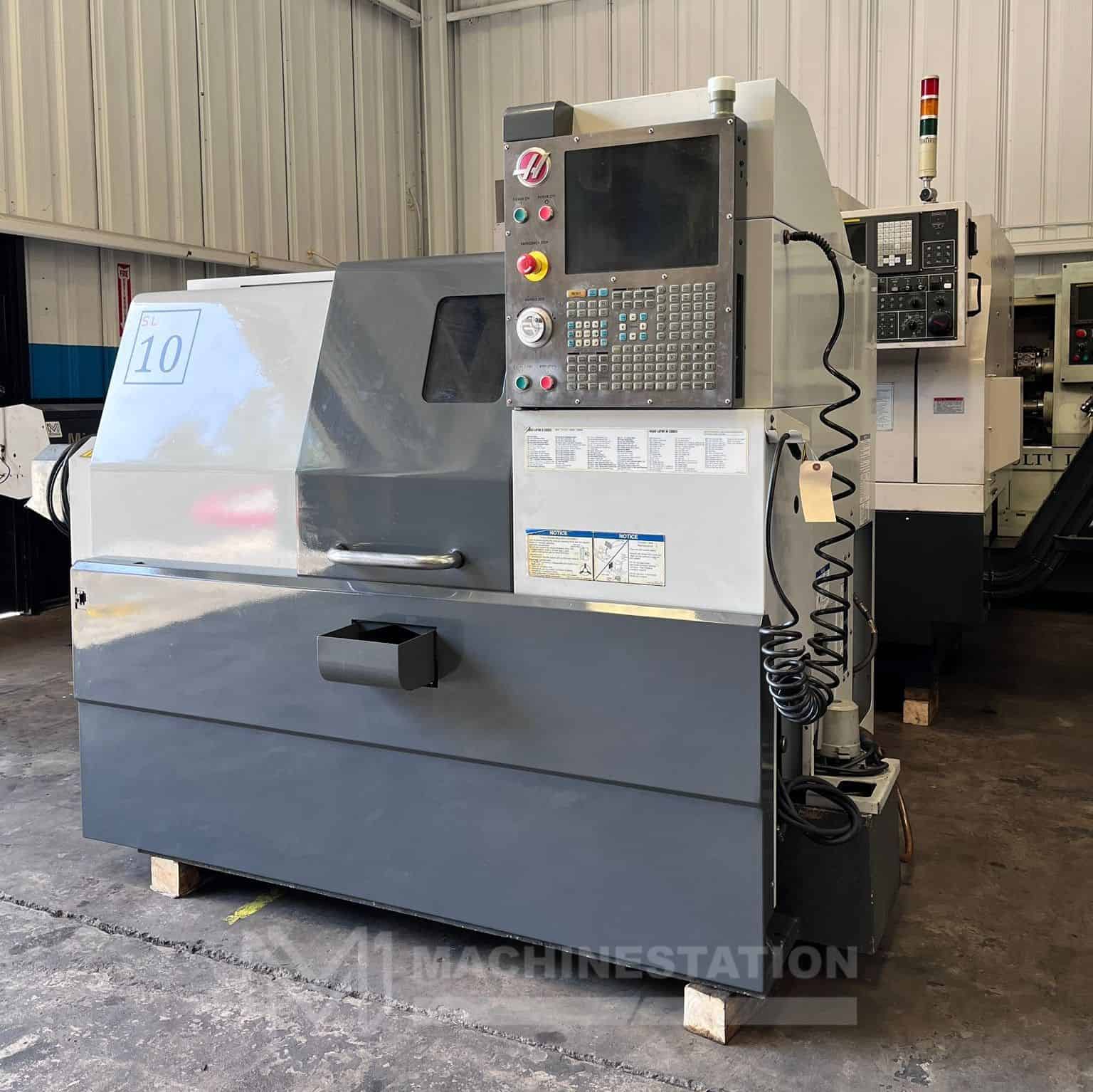

| Make: | Haas |
| Model: | SL-10 |
| Year: | 2010 |
| Condition: | Used – Good |
| Equipped With: |
|---|

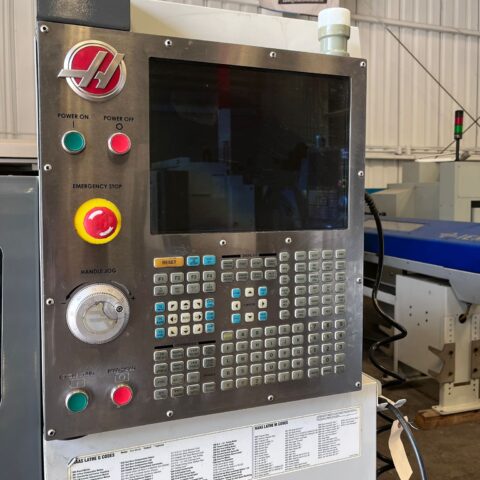

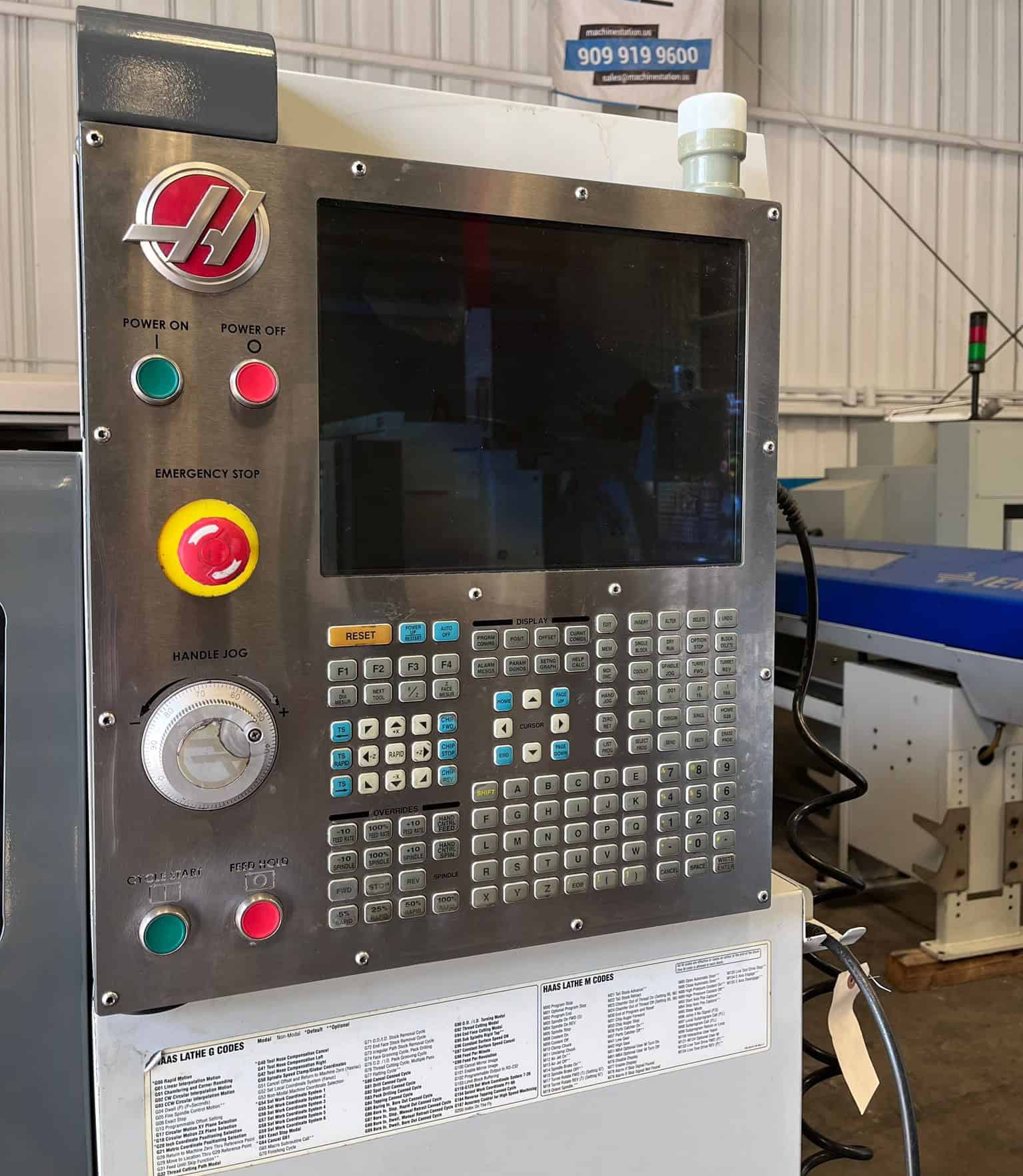

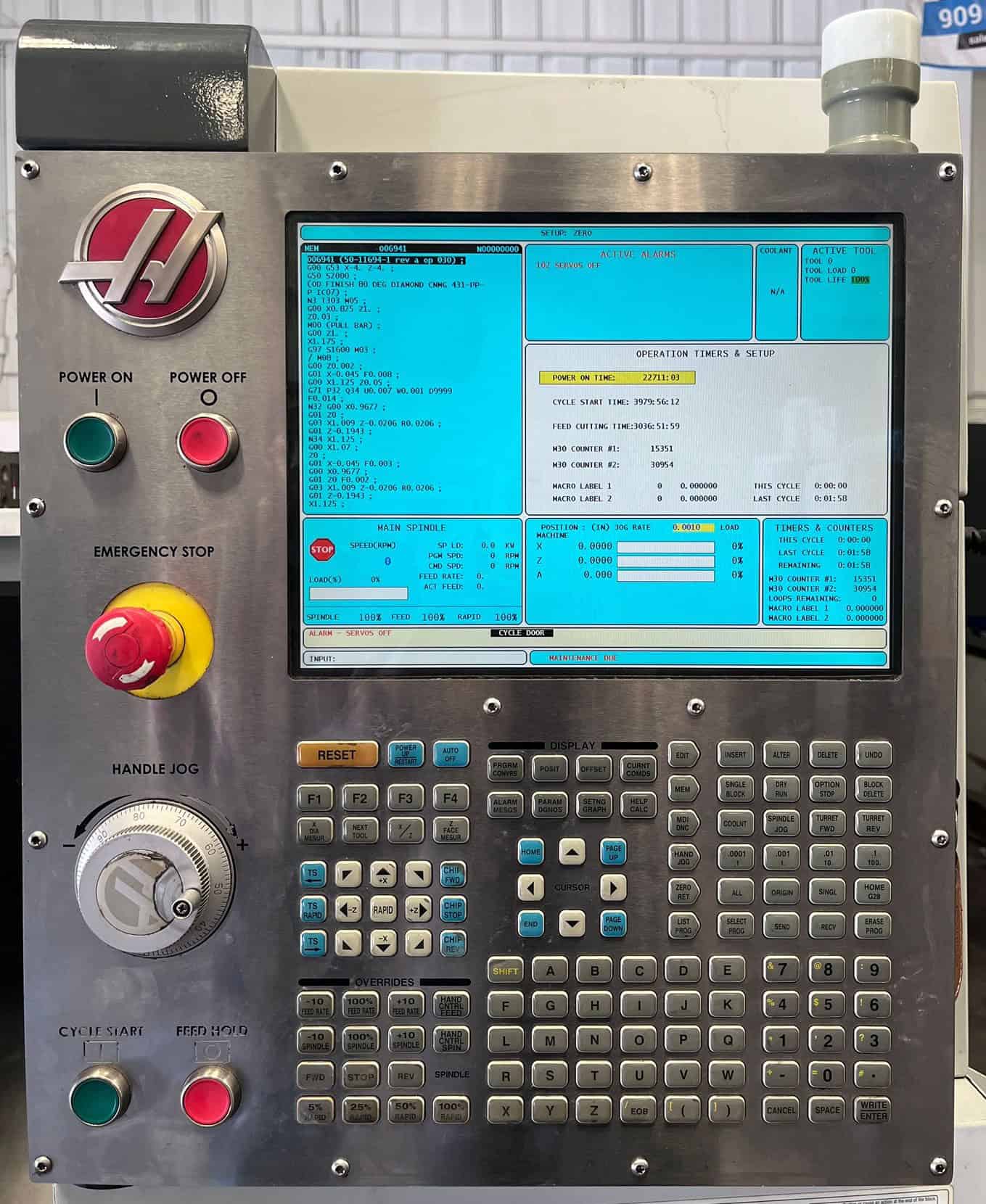

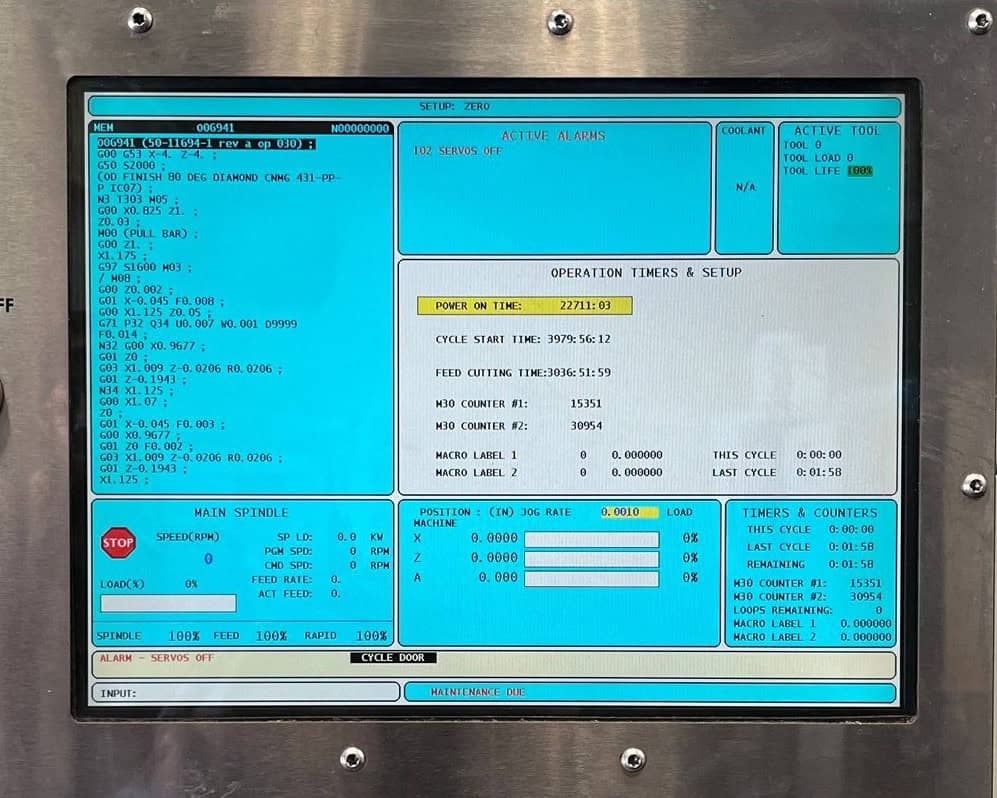

| Haas CNC Control |

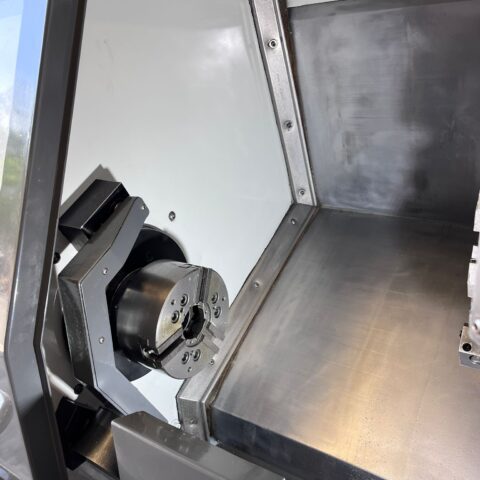

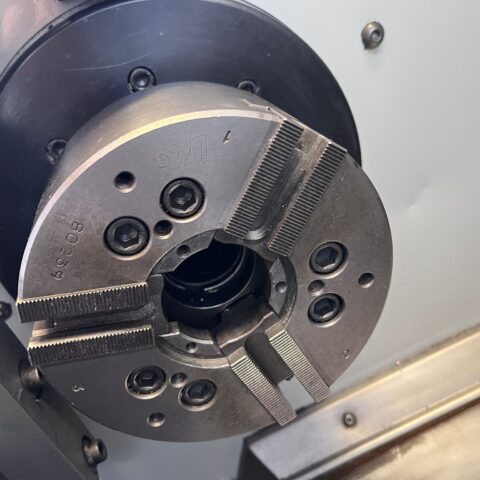

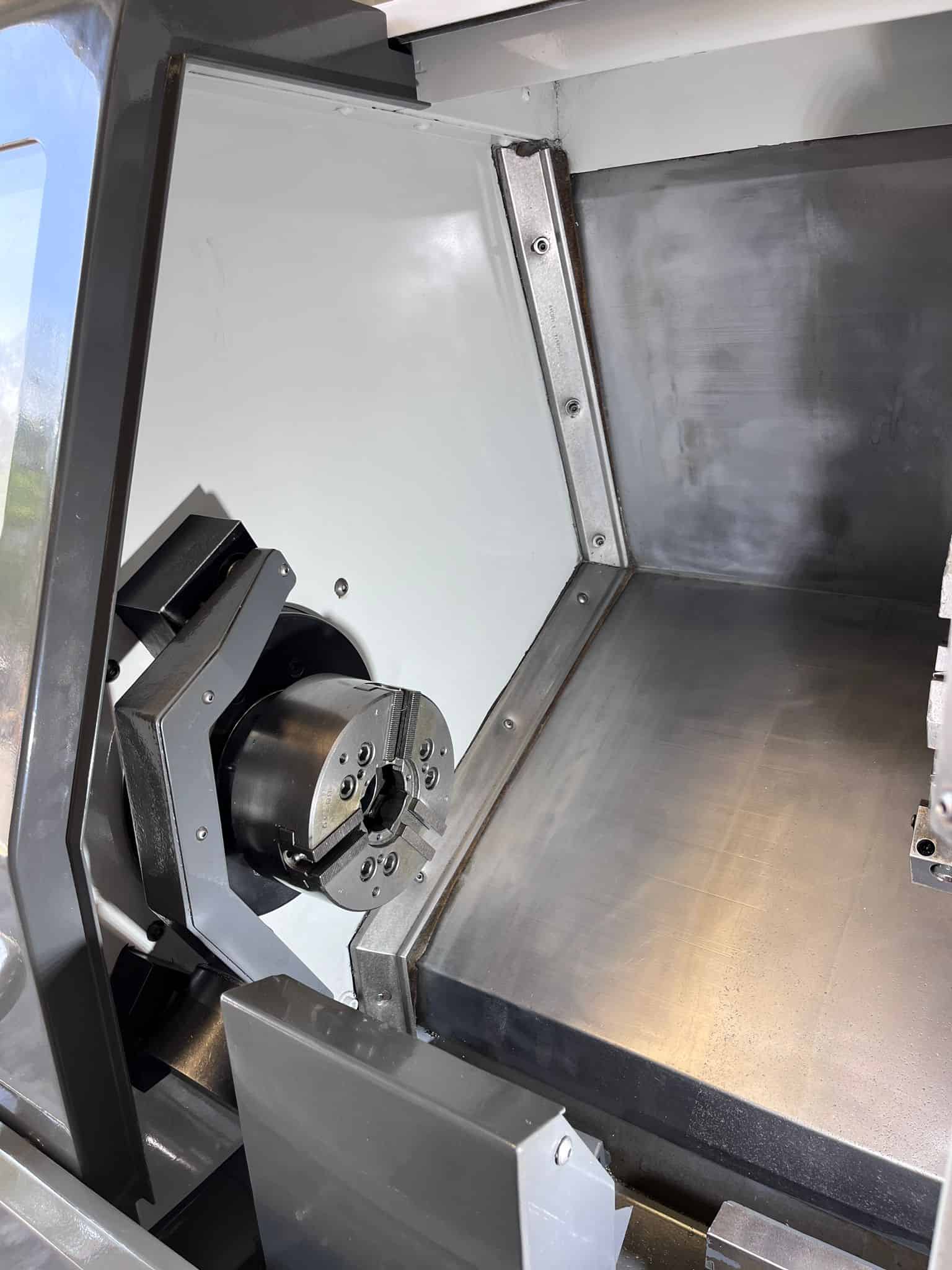

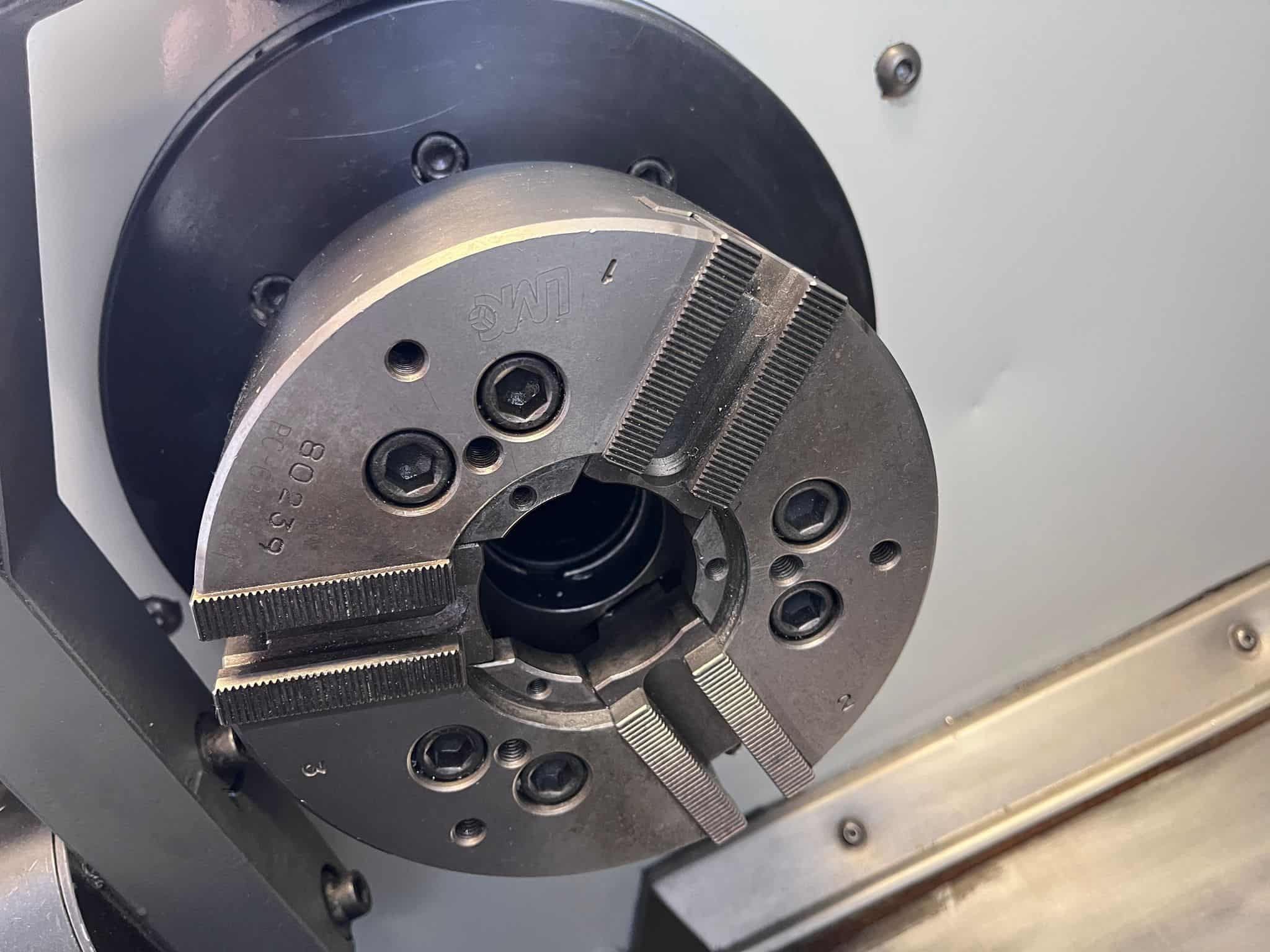

| 6.5″ 3-Jaw Hydraulic Chuck |

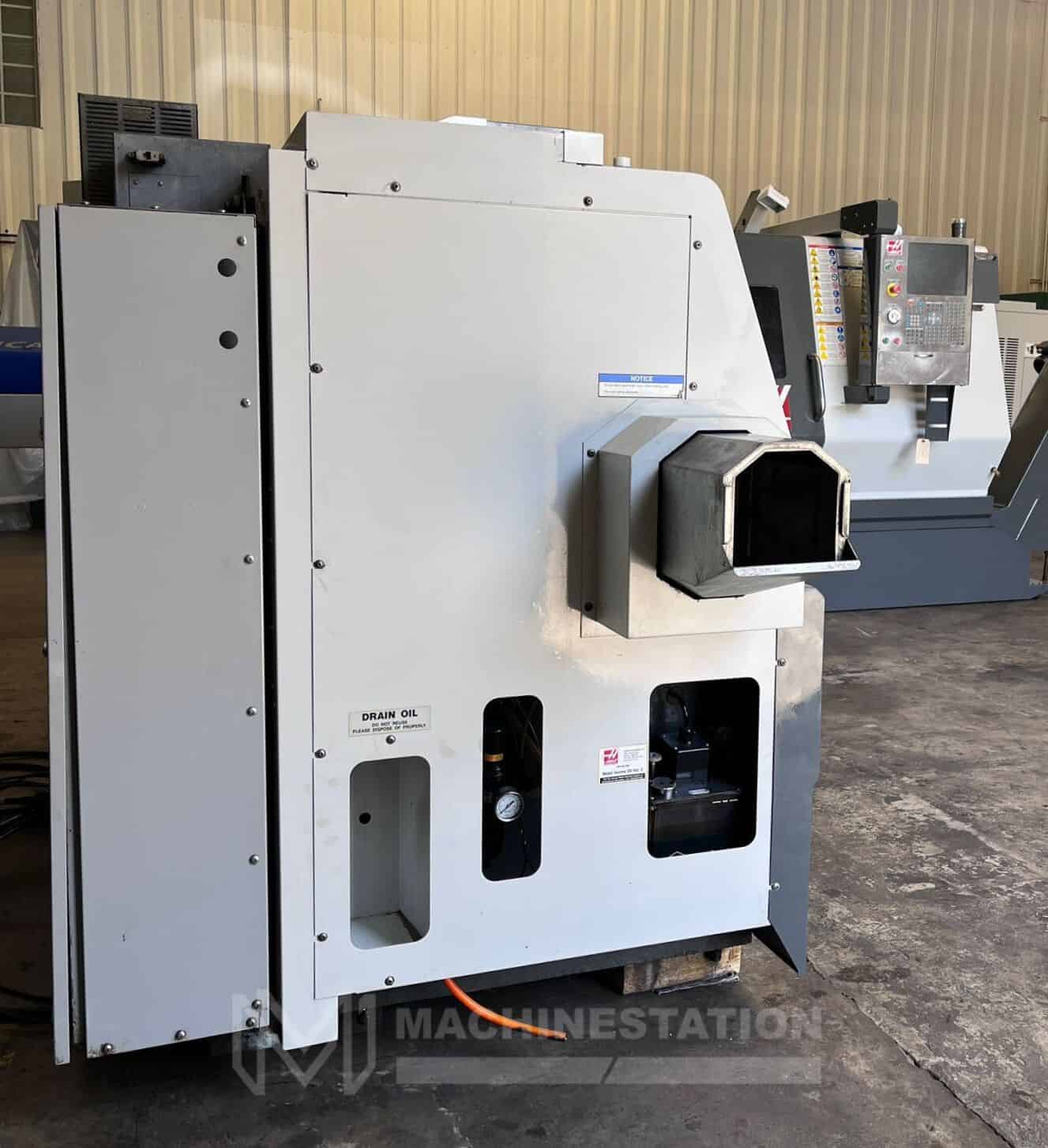

| Bar Feeder Interface |

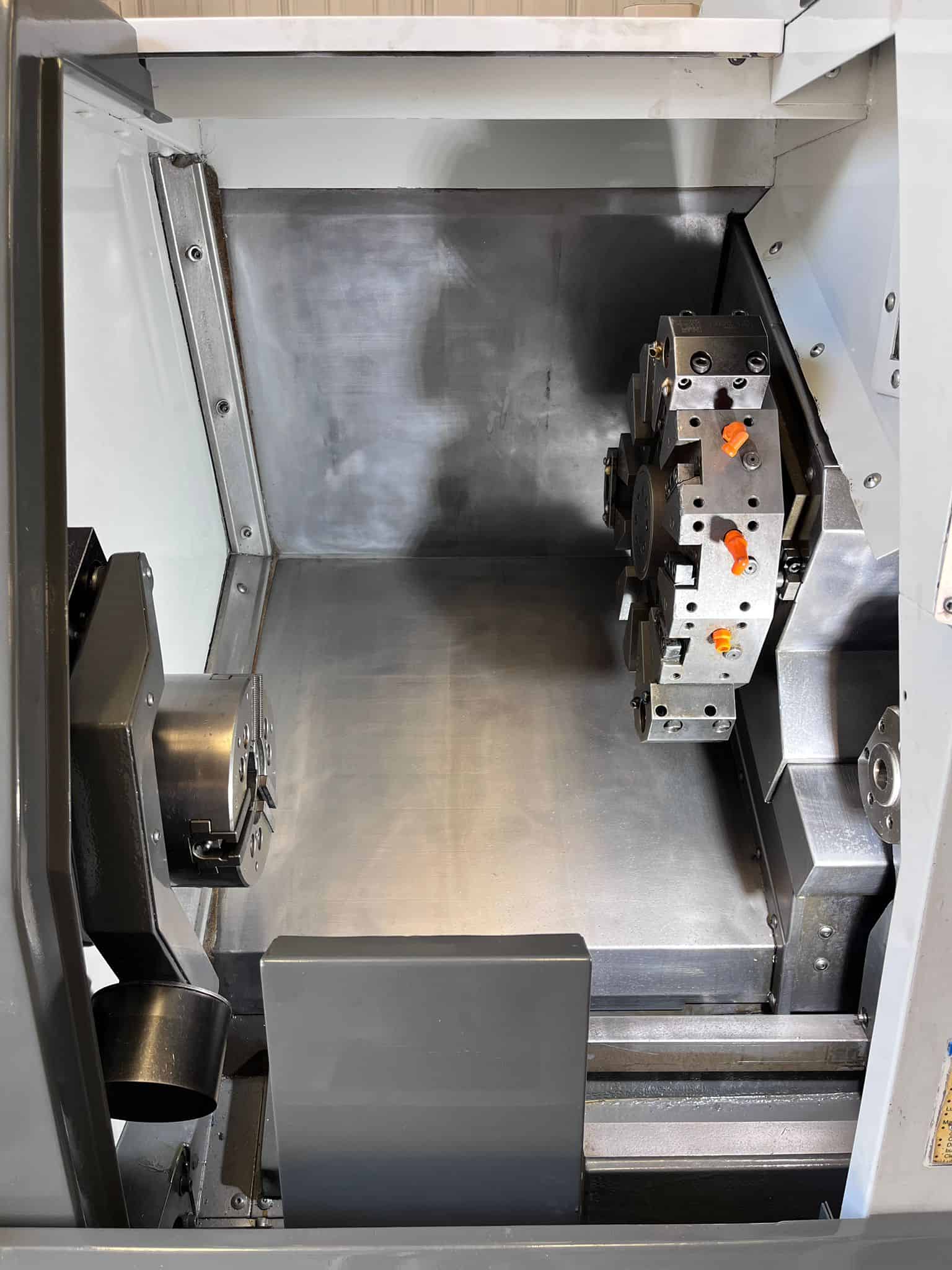

| 12 Station Automatic Turret |
| Tool Presetter |
| Part Catcher |

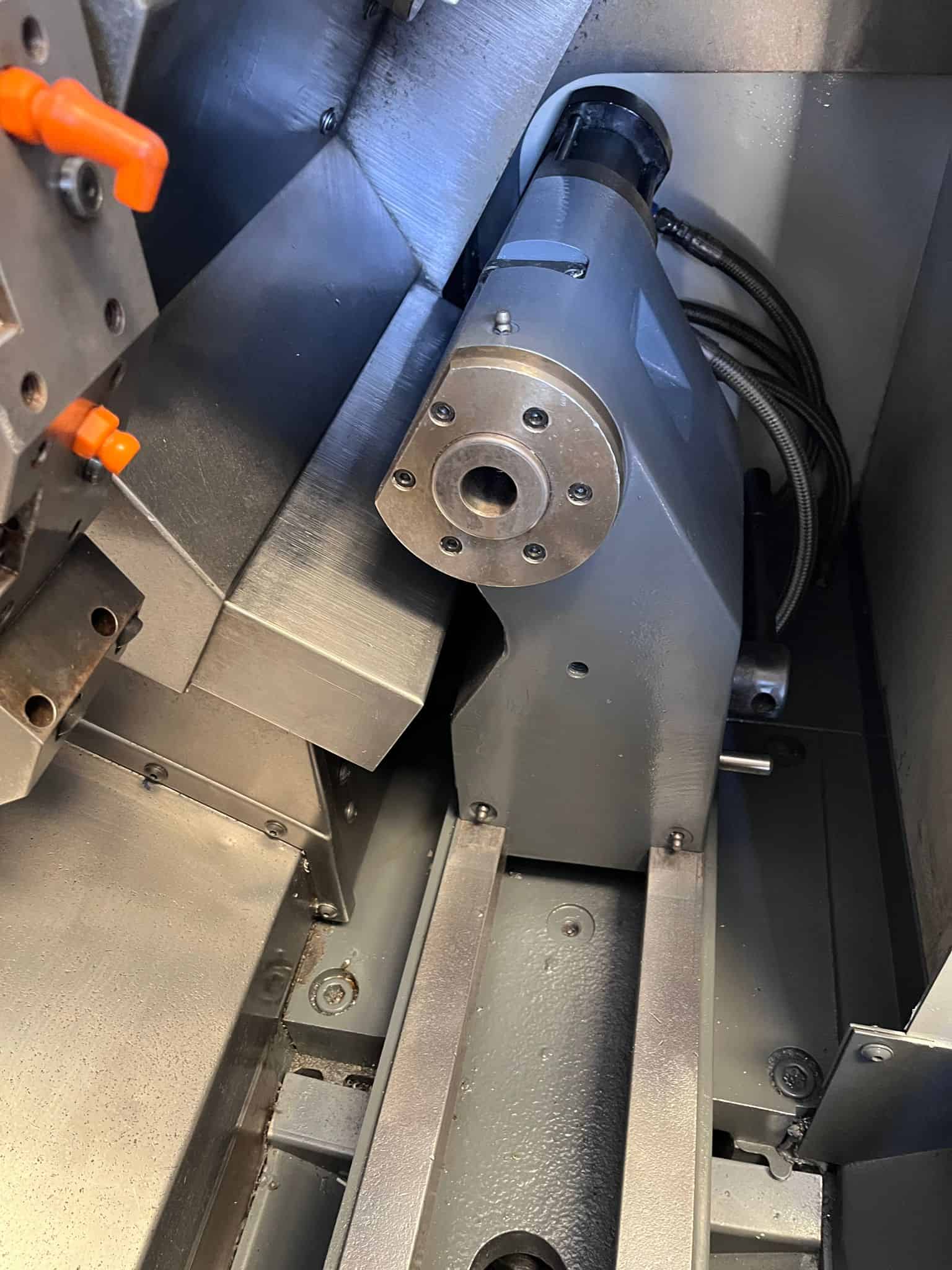

| Tailstock |

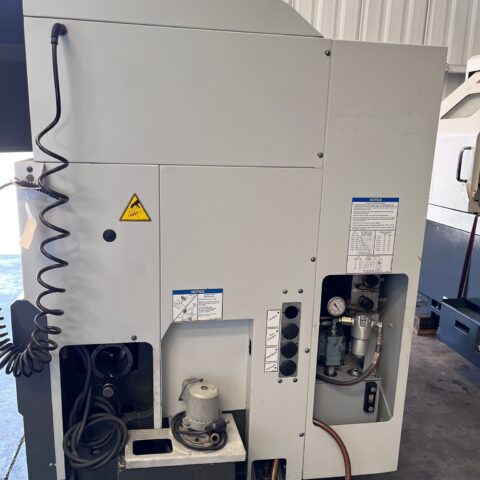

| Coolant System |

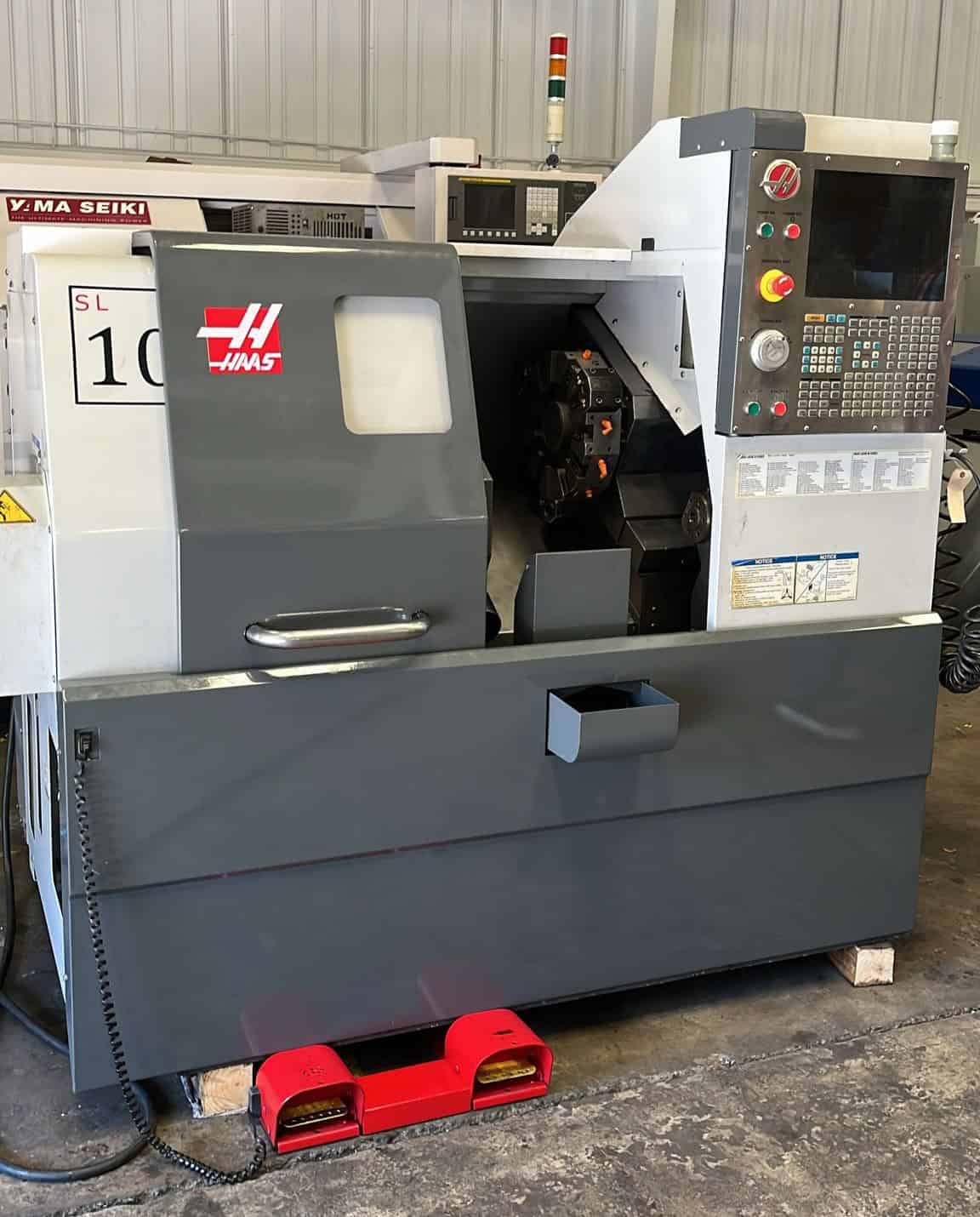

| Foot Switch |
| (3) Boring Tool Holders Mounted on Turret (As shown in the images) |
| Capacity: |
|---|
| Maximum Swing over Bed : 16.25″ |
| Maximum Turning Diameter :12.0 |
| Maximum Turning Length : 16.0″ |
| Maximum Bar Capacity : 1.75″ |
| Travels: |
|---|
| X-Axis Travel : 7.88″ |
| Z-Axis Travel : 16.0″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 710 IPM |
| Rapid Traverse Z Axis: 710 IPM |
| Spindle: |
|---|
| Spindle Nose : A2-5 |
| Spindle Bore : 2.31″ |
| Spindle Speed : 6,000 RPM |
| Spindle Motor : 15 HP |

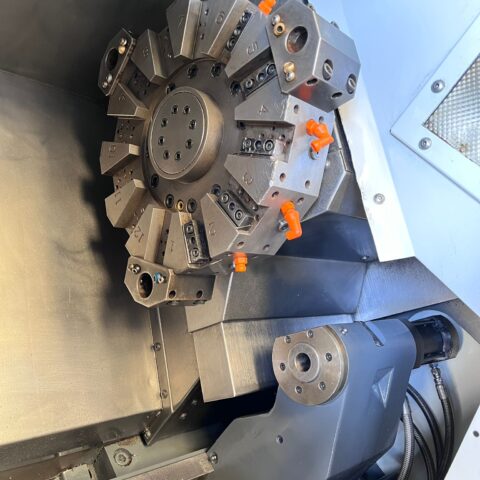

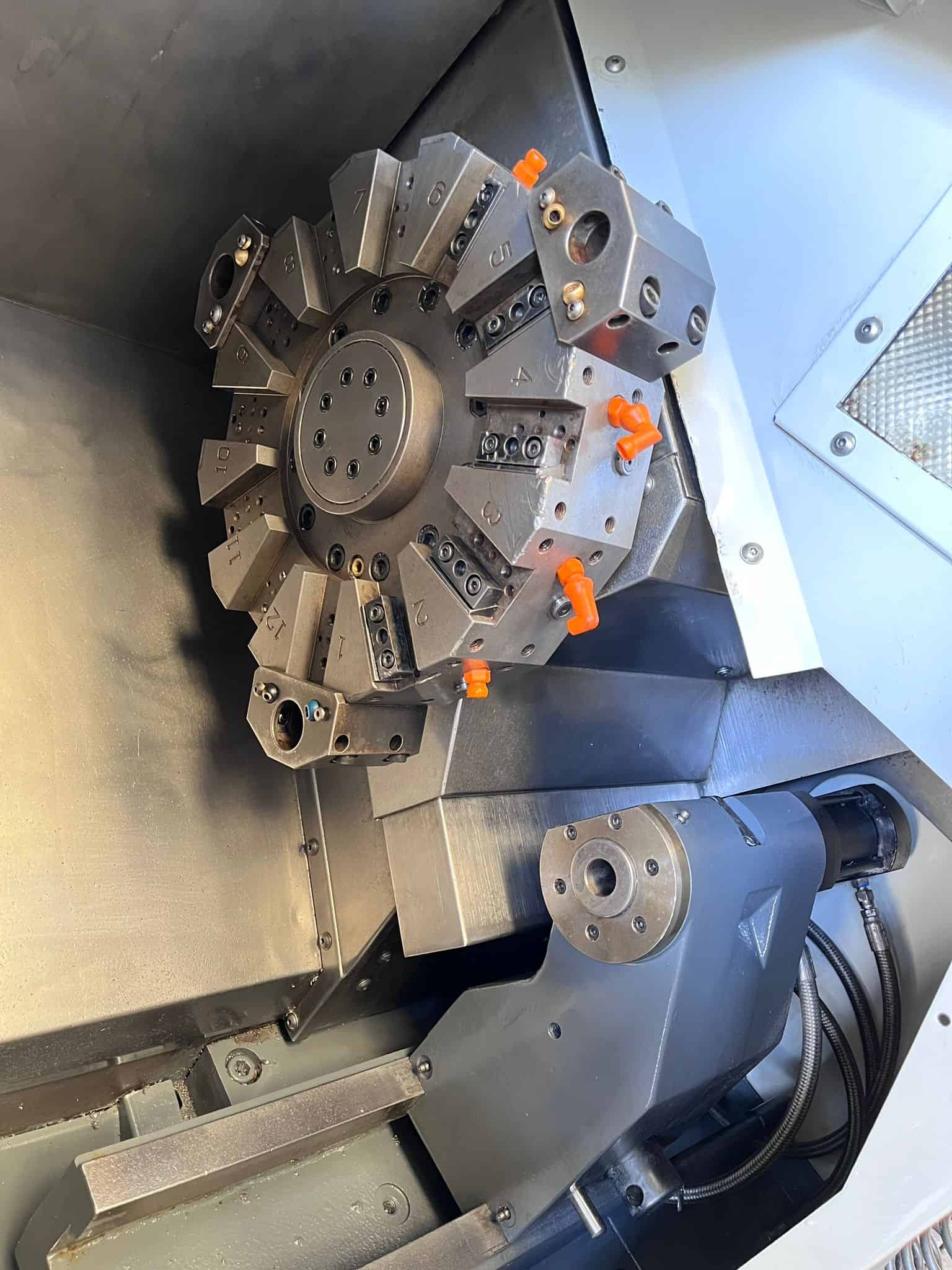

| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.15 Second |
| Turret Type: Bolt On Turret |

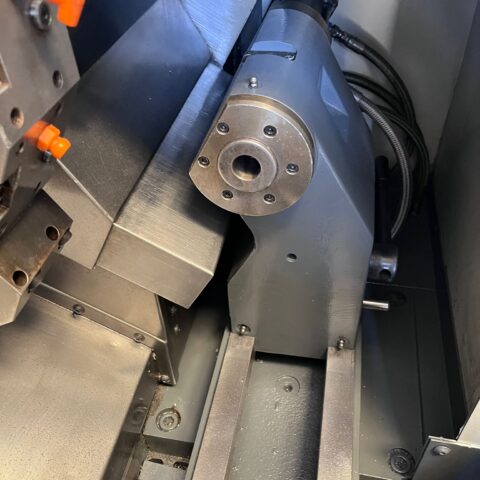

| Tailstock: |
|---|
| Tailstock Taper: MT-3 |
| Tailstock Quill Travel: 3.8″ |
| General: |
|---|
| Air Requirement: 4 scfm @ 100 psi |

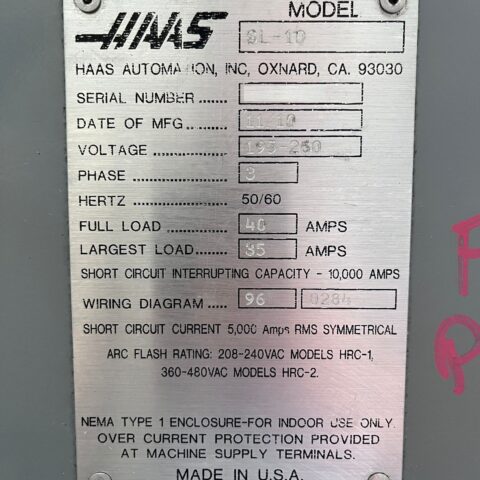

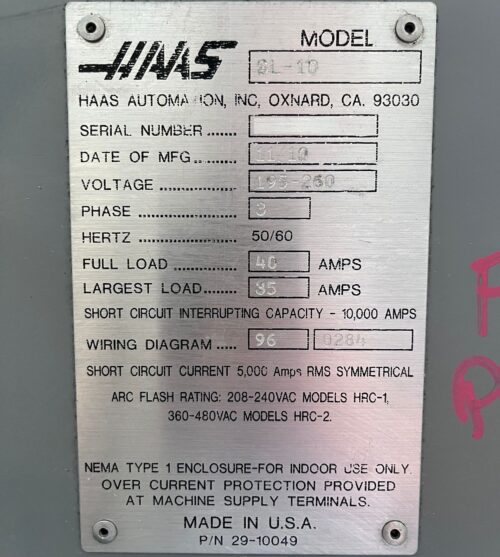

| Power Source: AC 220v / 3-Phase / 60 Hz |
| Machine Dimensions: 126″ x 70″ x 81″ High Approx. |
| Machine Weight : 7,900 lbs. Approx. |
