*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

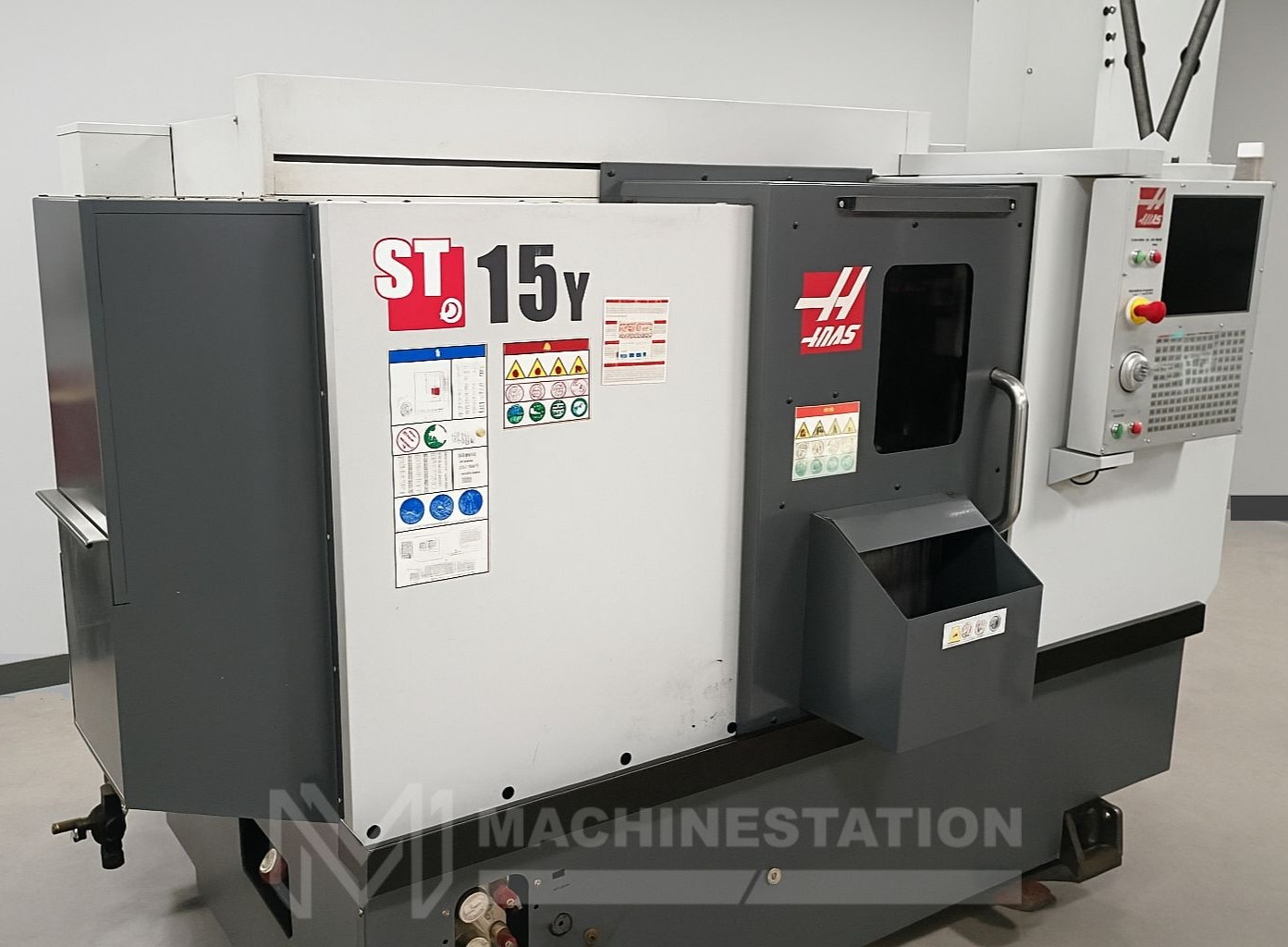

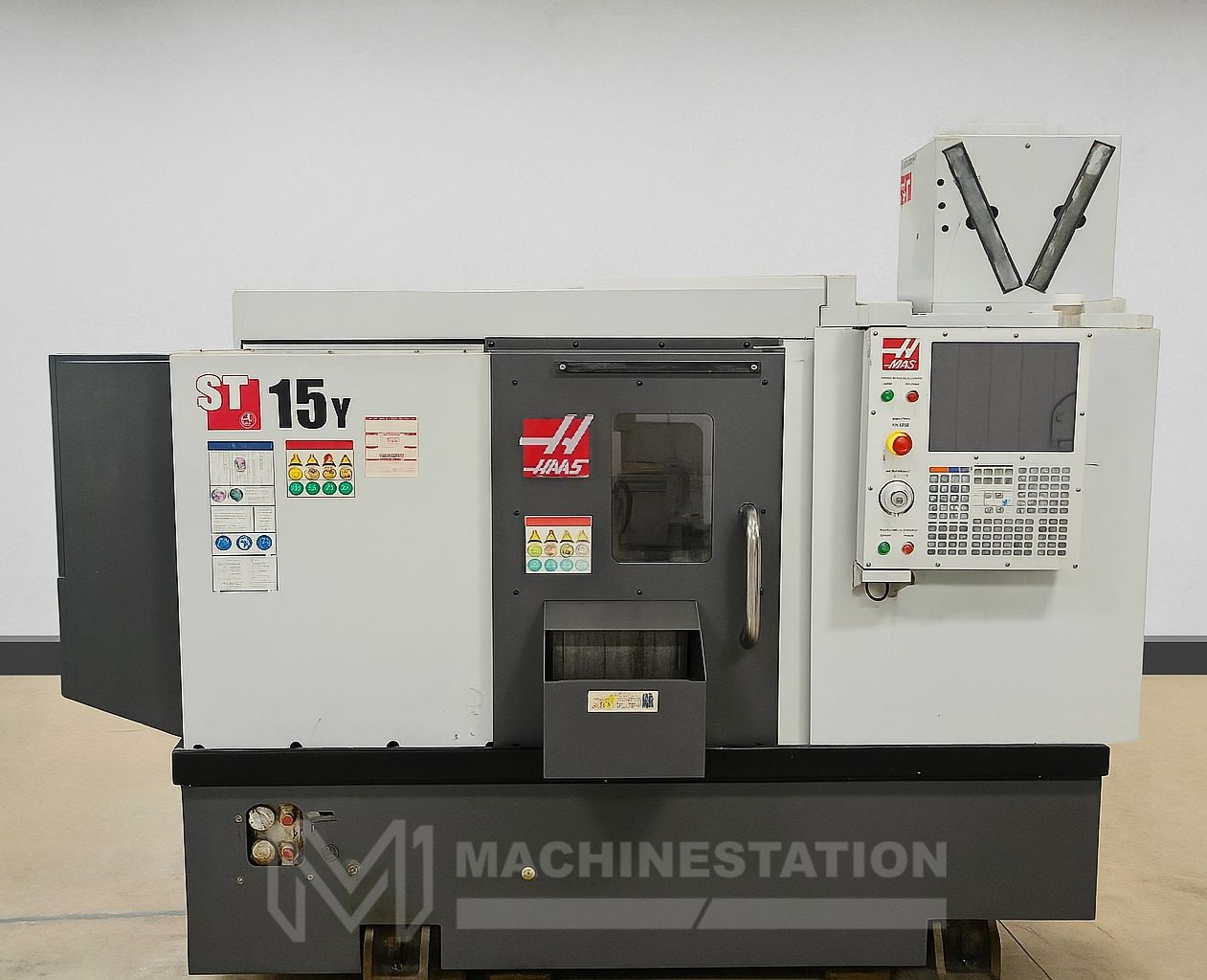

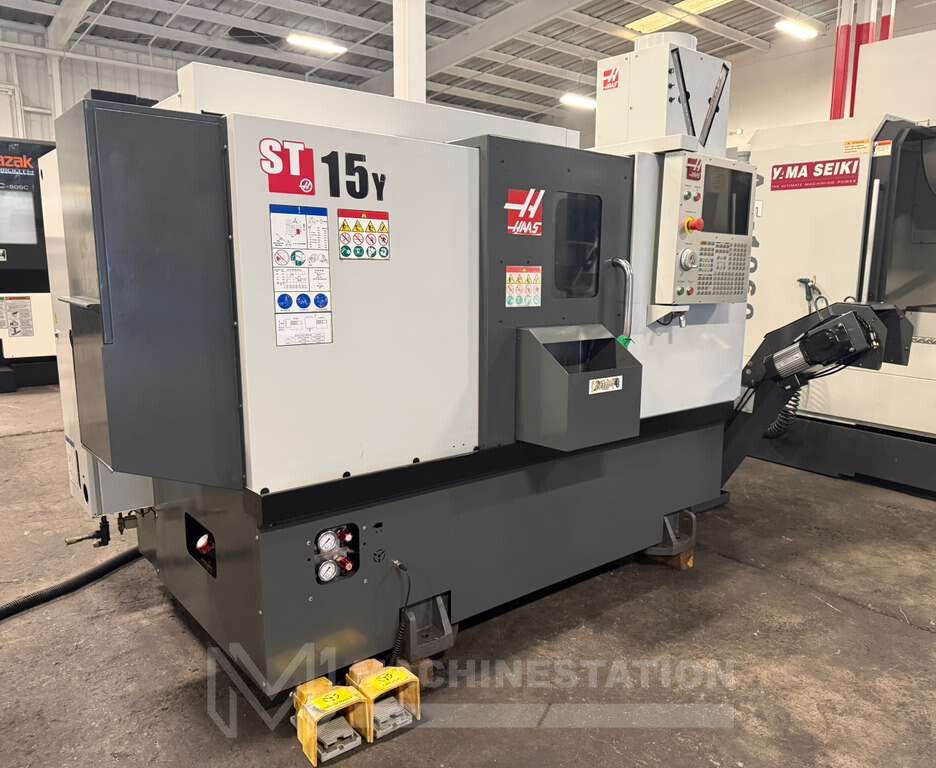

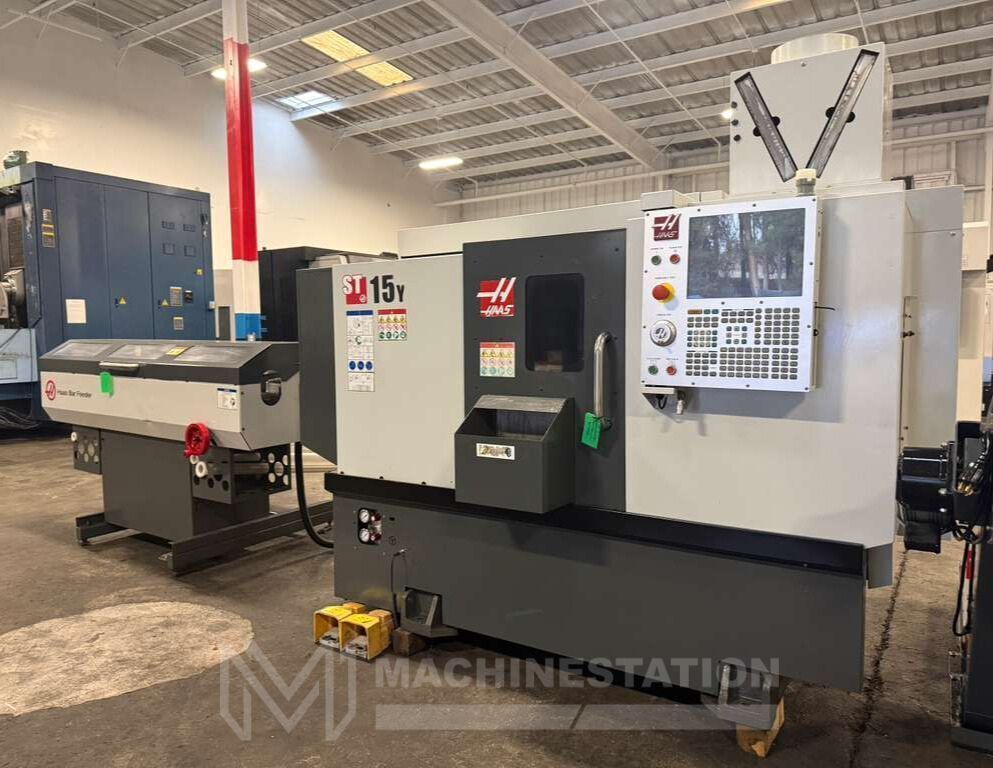

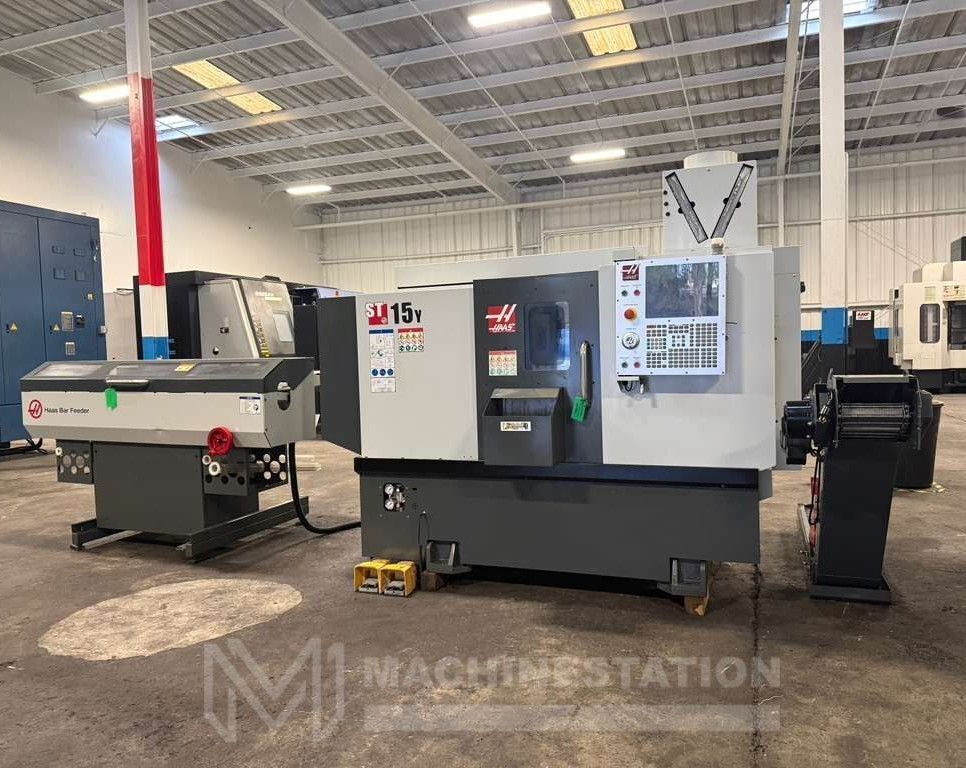

| Make: | Haas |
| Model: | ST-15Y |

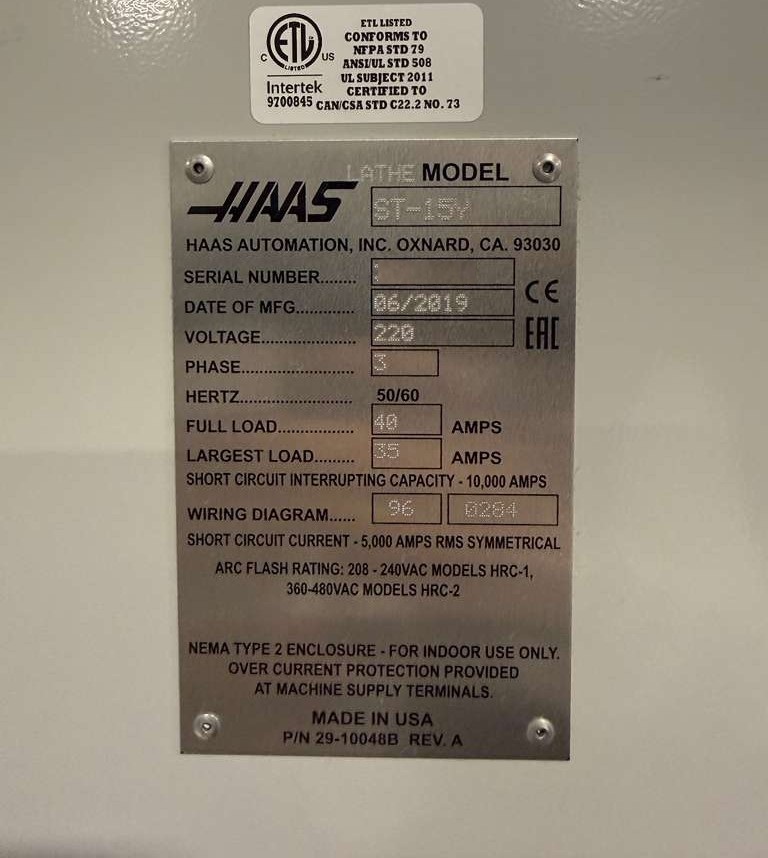

| Year: | 2019 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

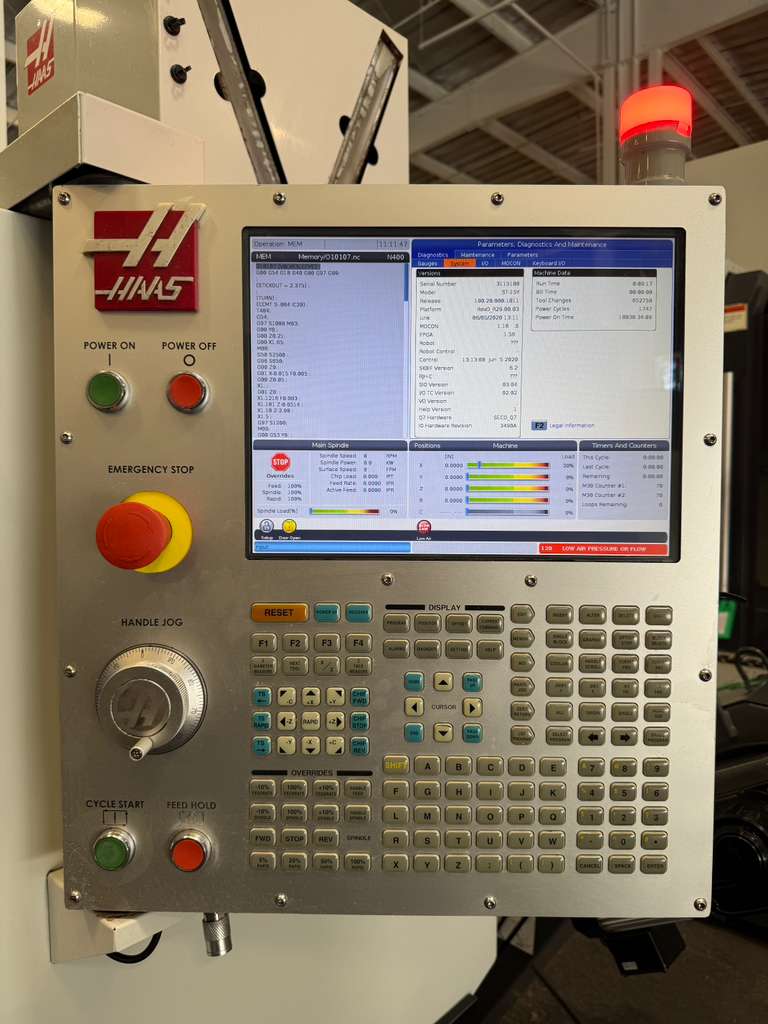

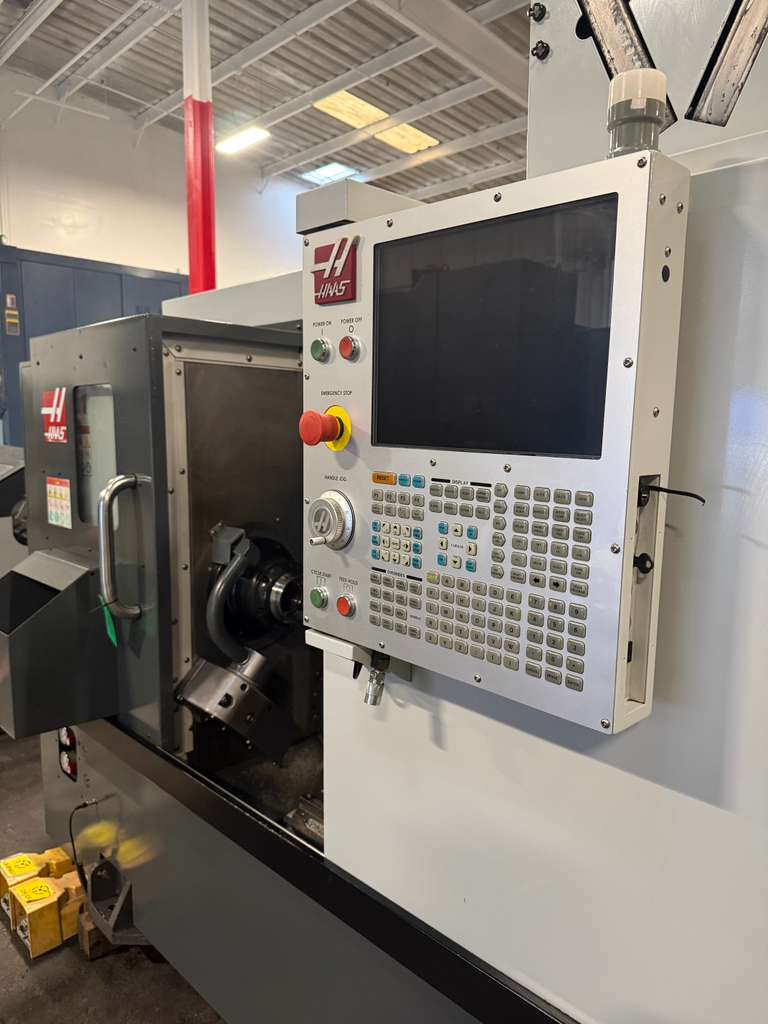

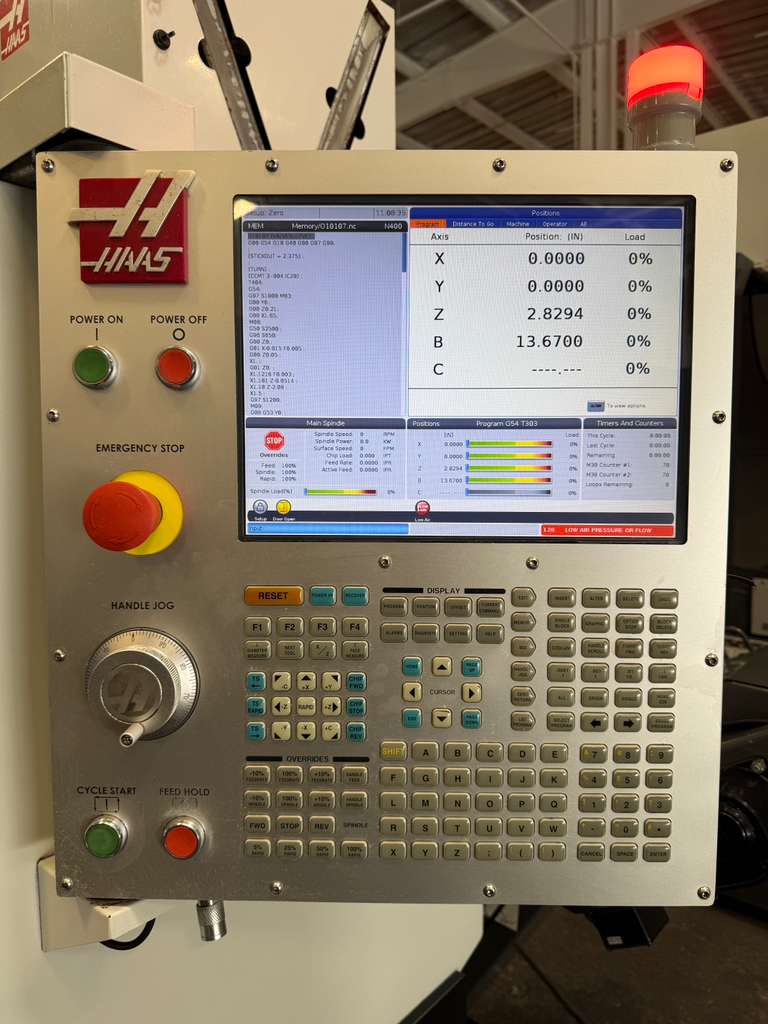

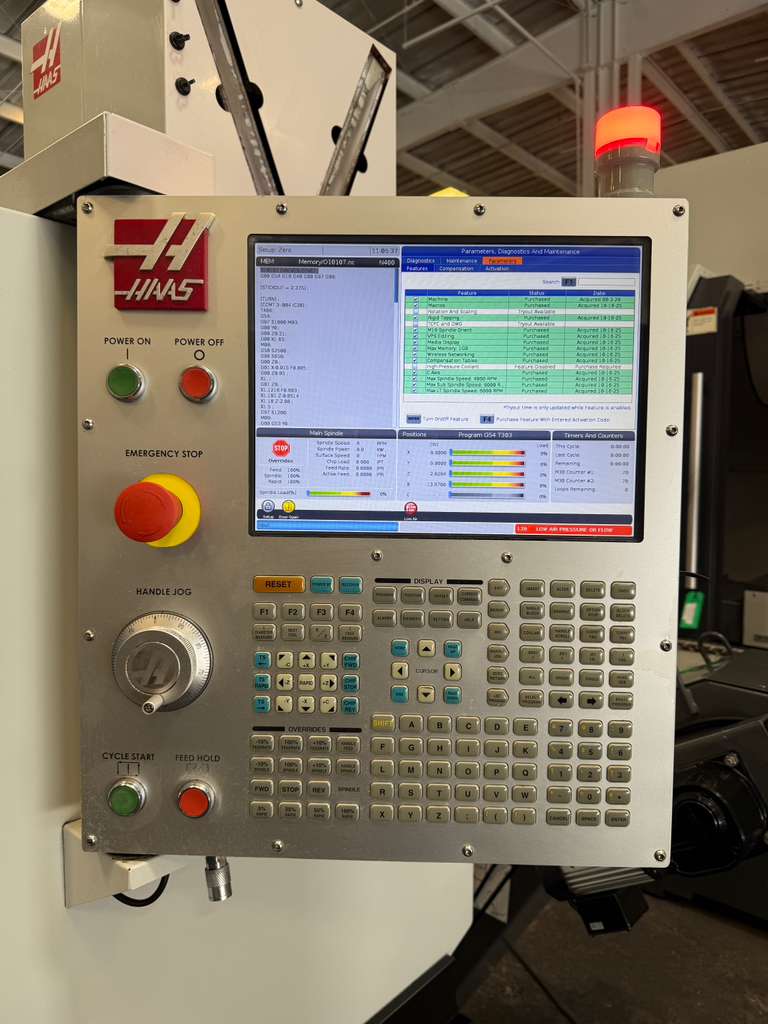

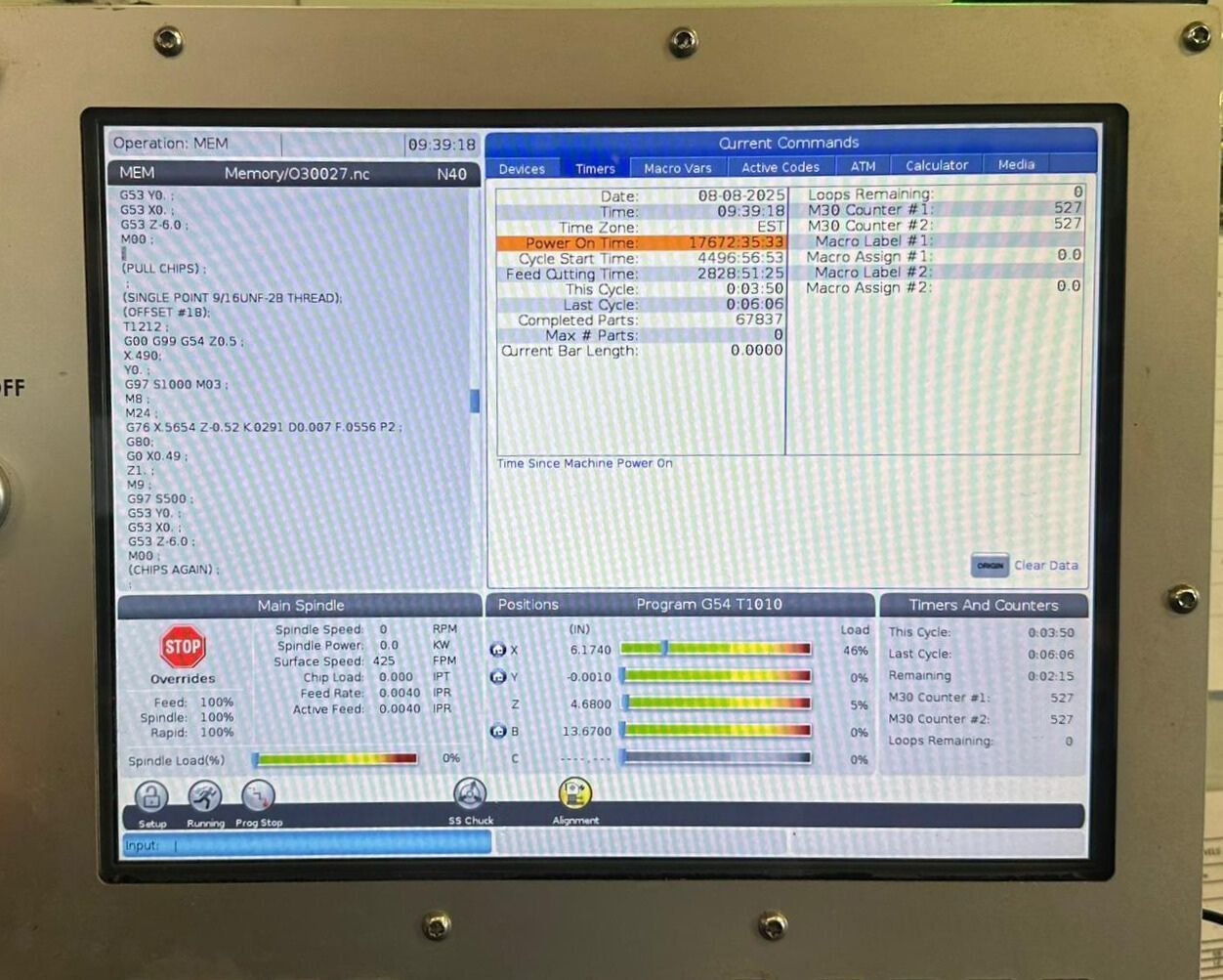

| Haas CNC Control |

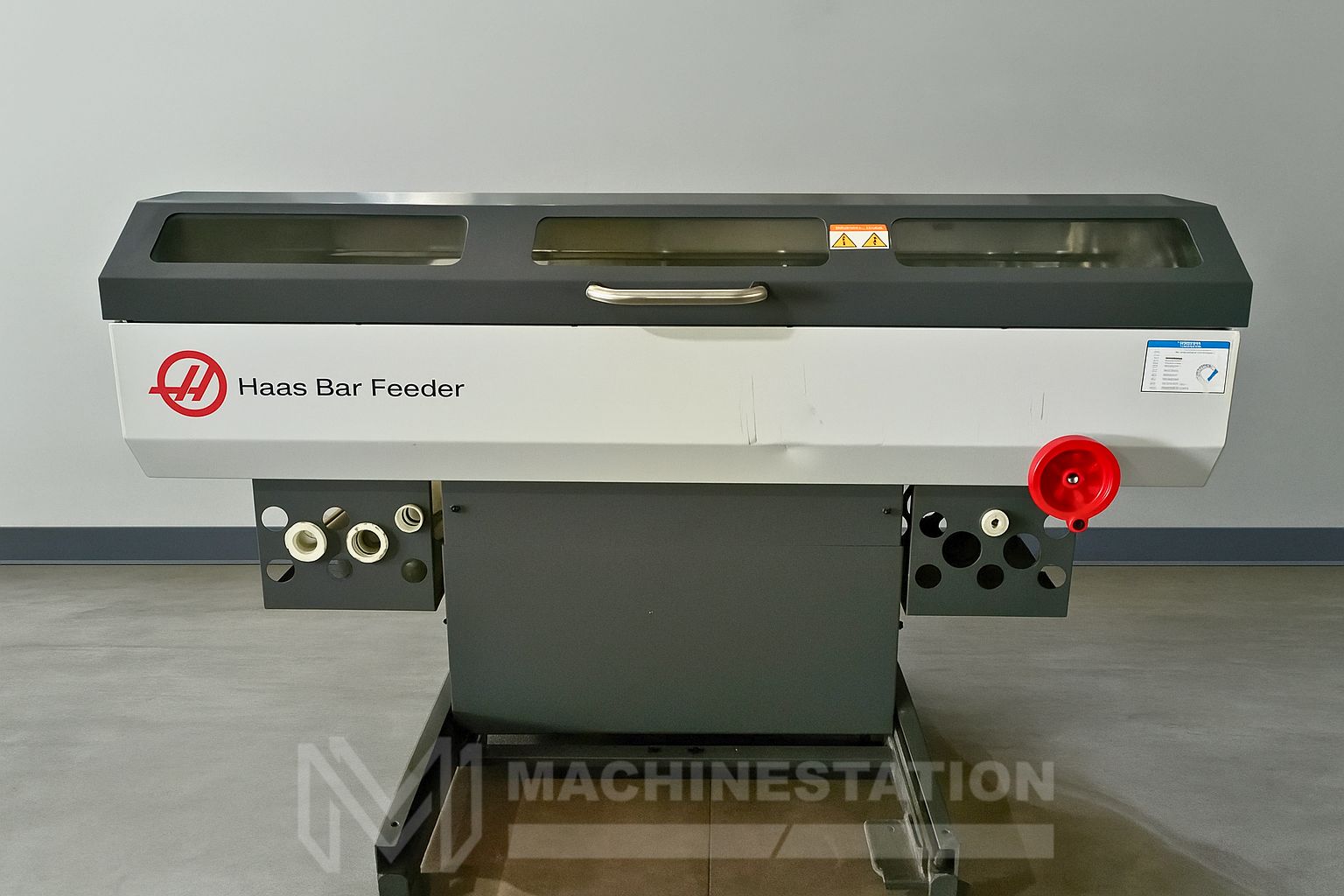

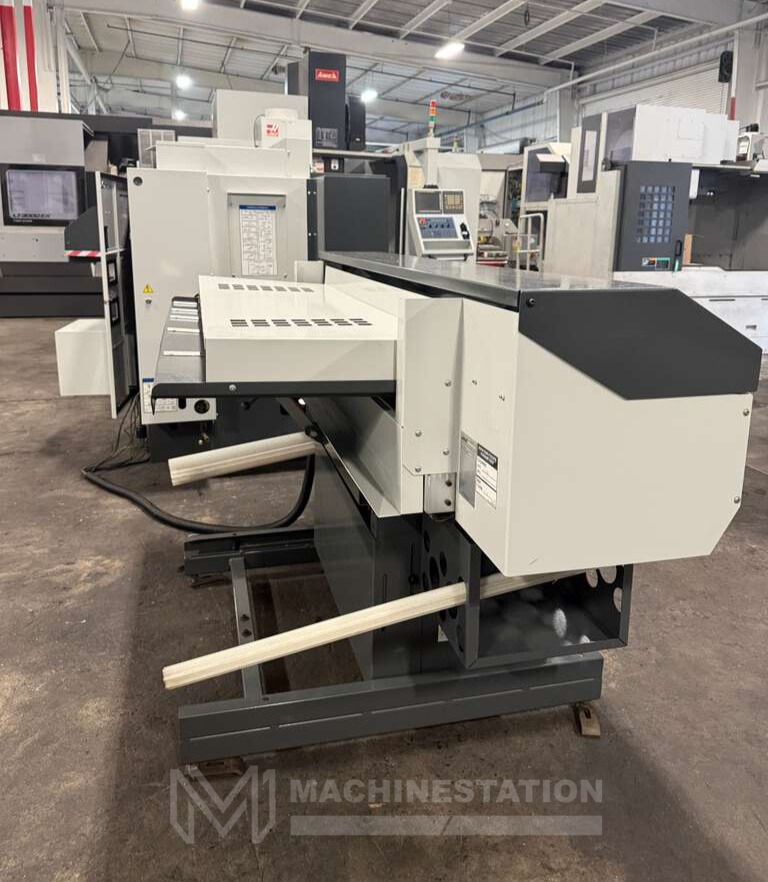

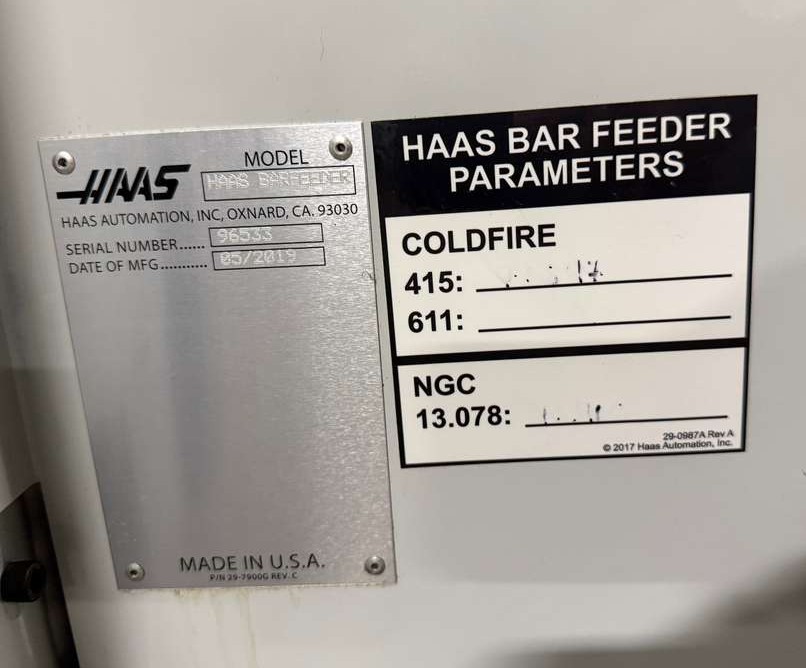

| Haas Servo Bar Feeder (Upgraded $20,995 value Included) – For Automate Part Production |

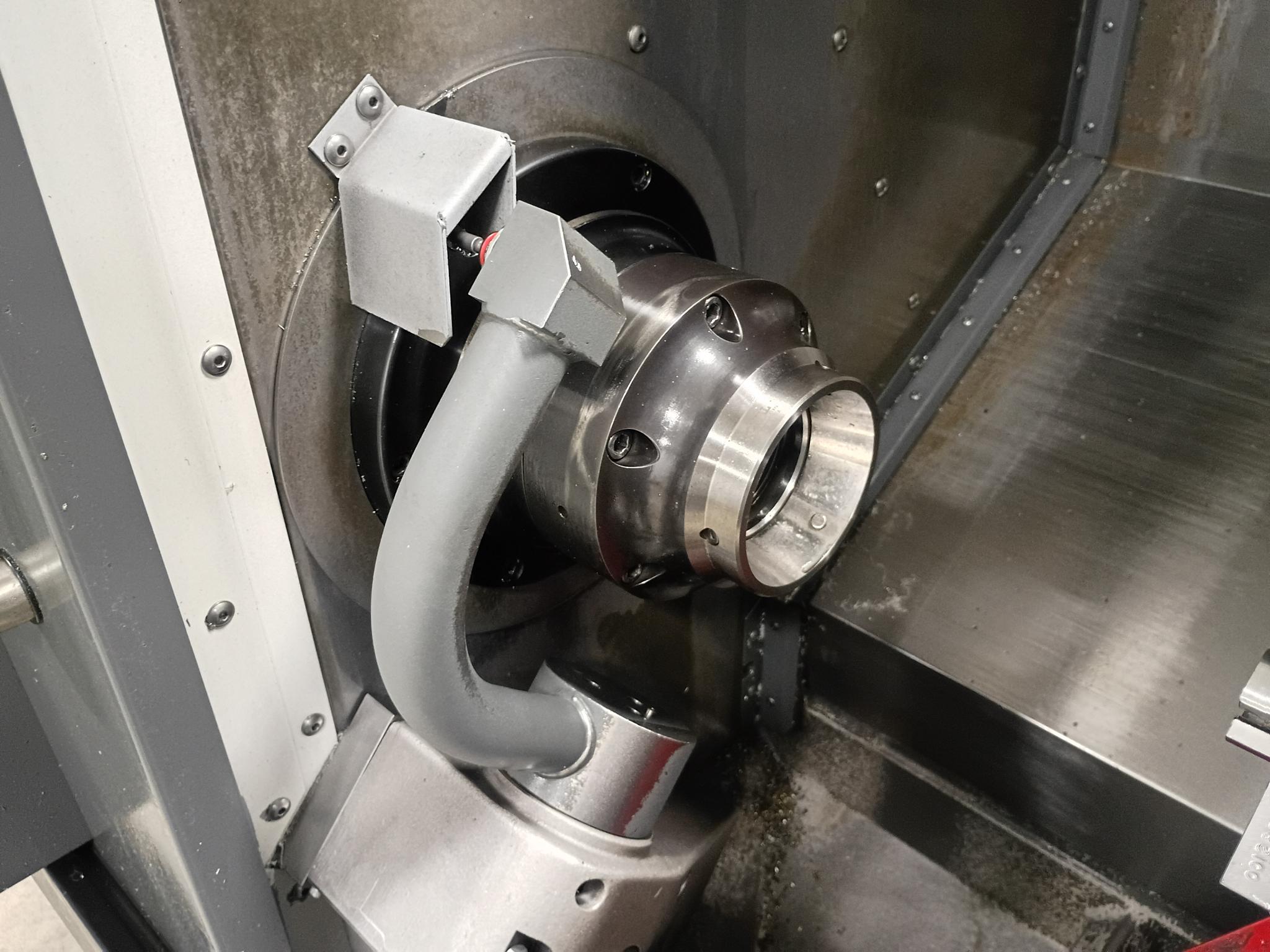

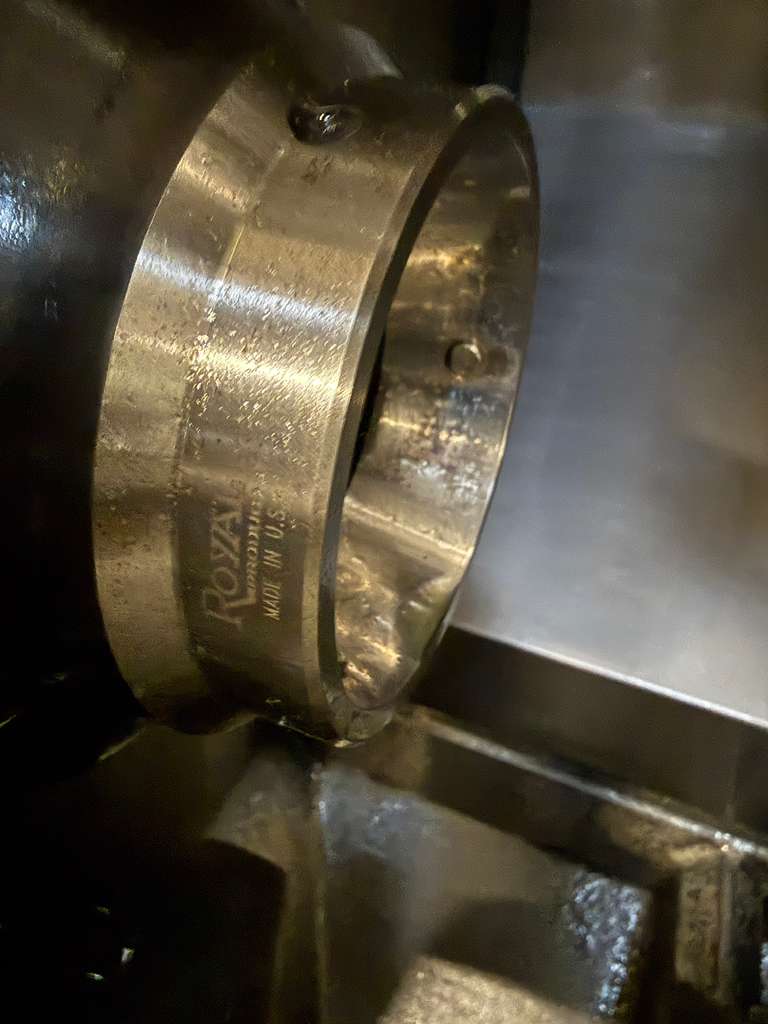

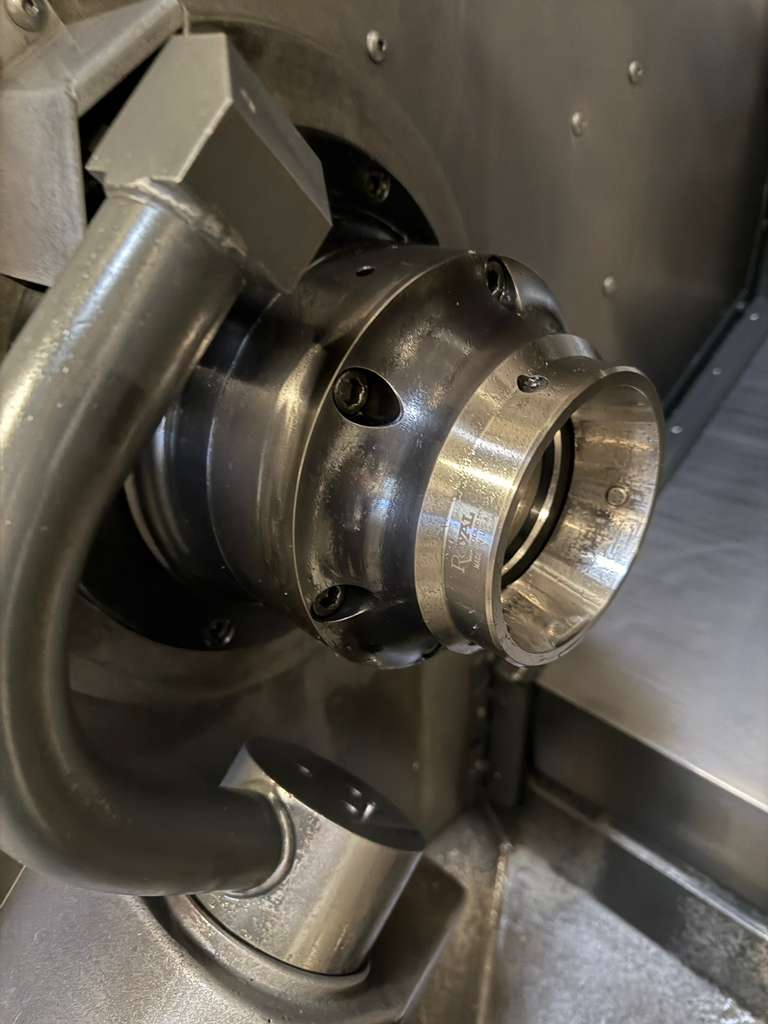

| Collet Chuck on Main Spindle |

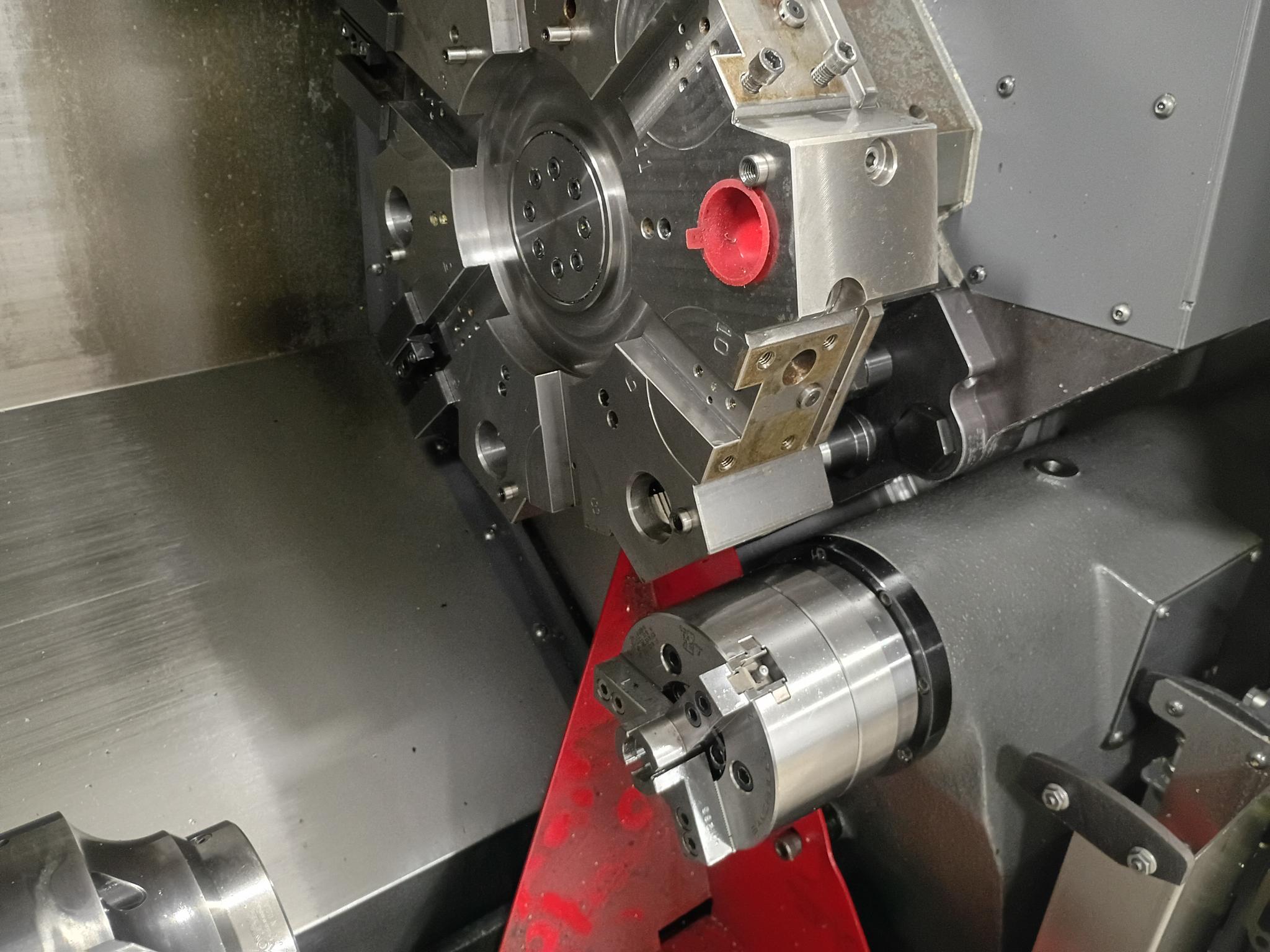

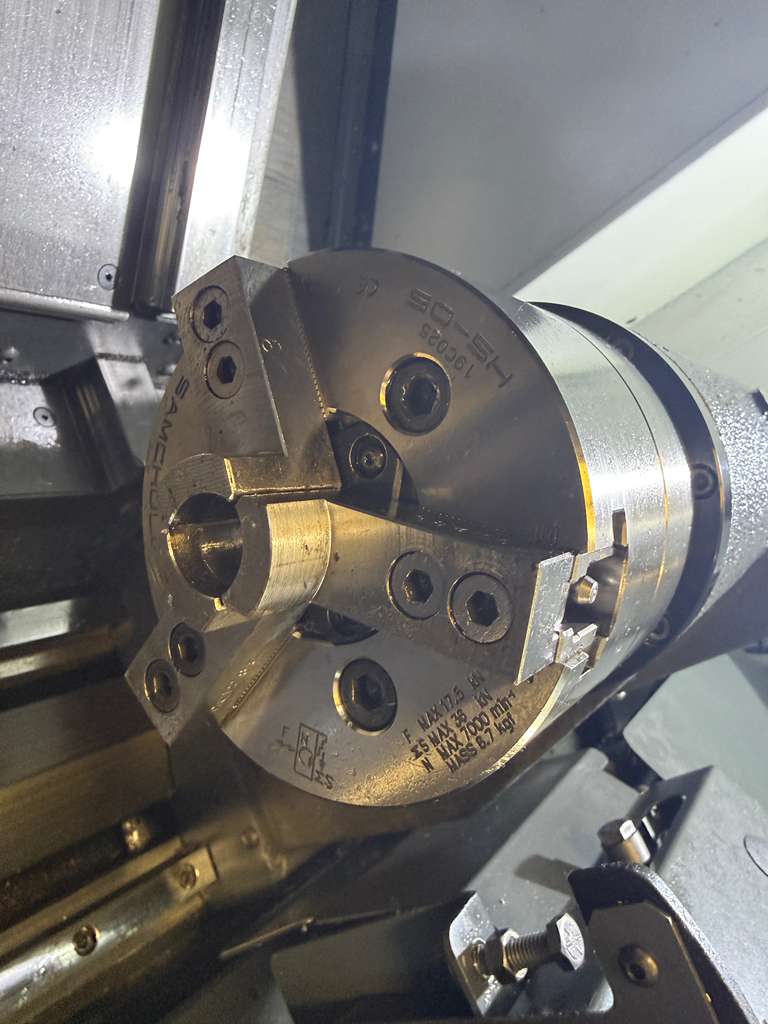

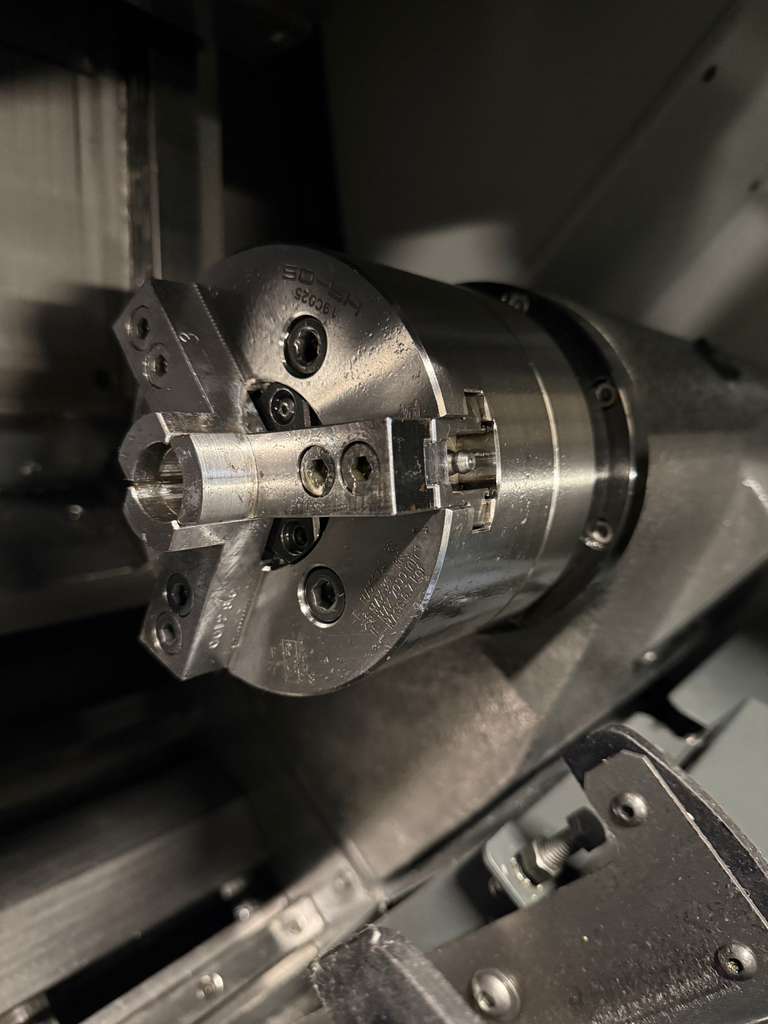

| 6″ 3-Jaw Chuck on Sub Spindle |

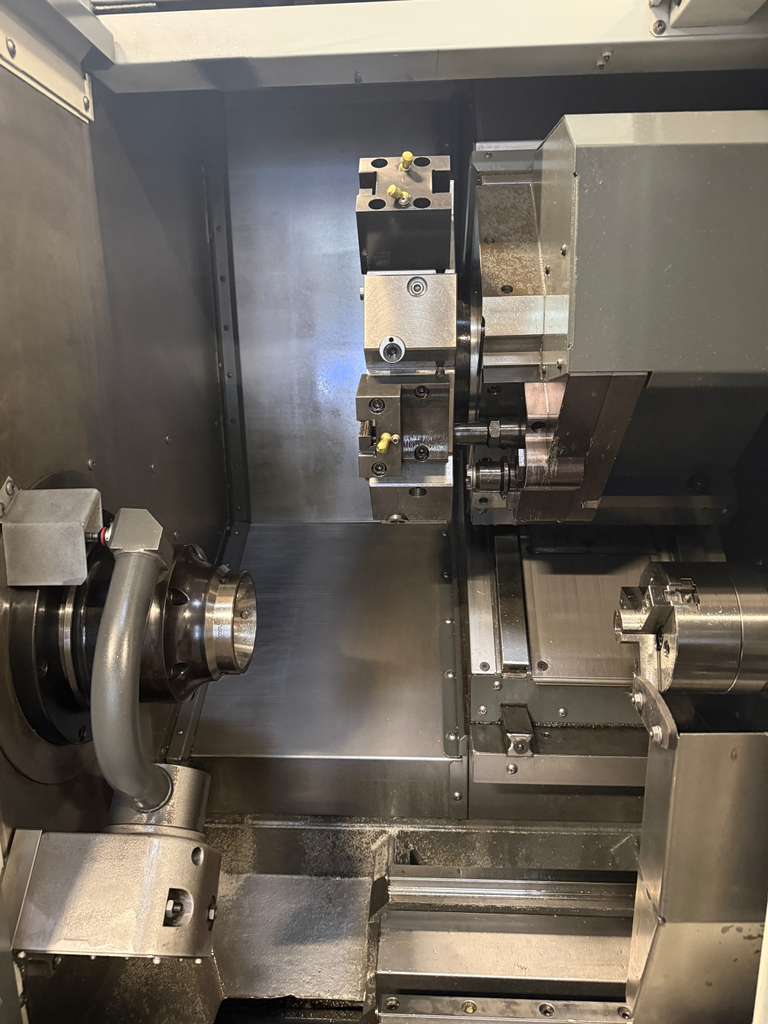

| Sub Spindle (Upgraded $29,295 value Included) – For Finishing the 2nd-op side of the part, |
| Servo Controlled C Axis on Both Spindles |

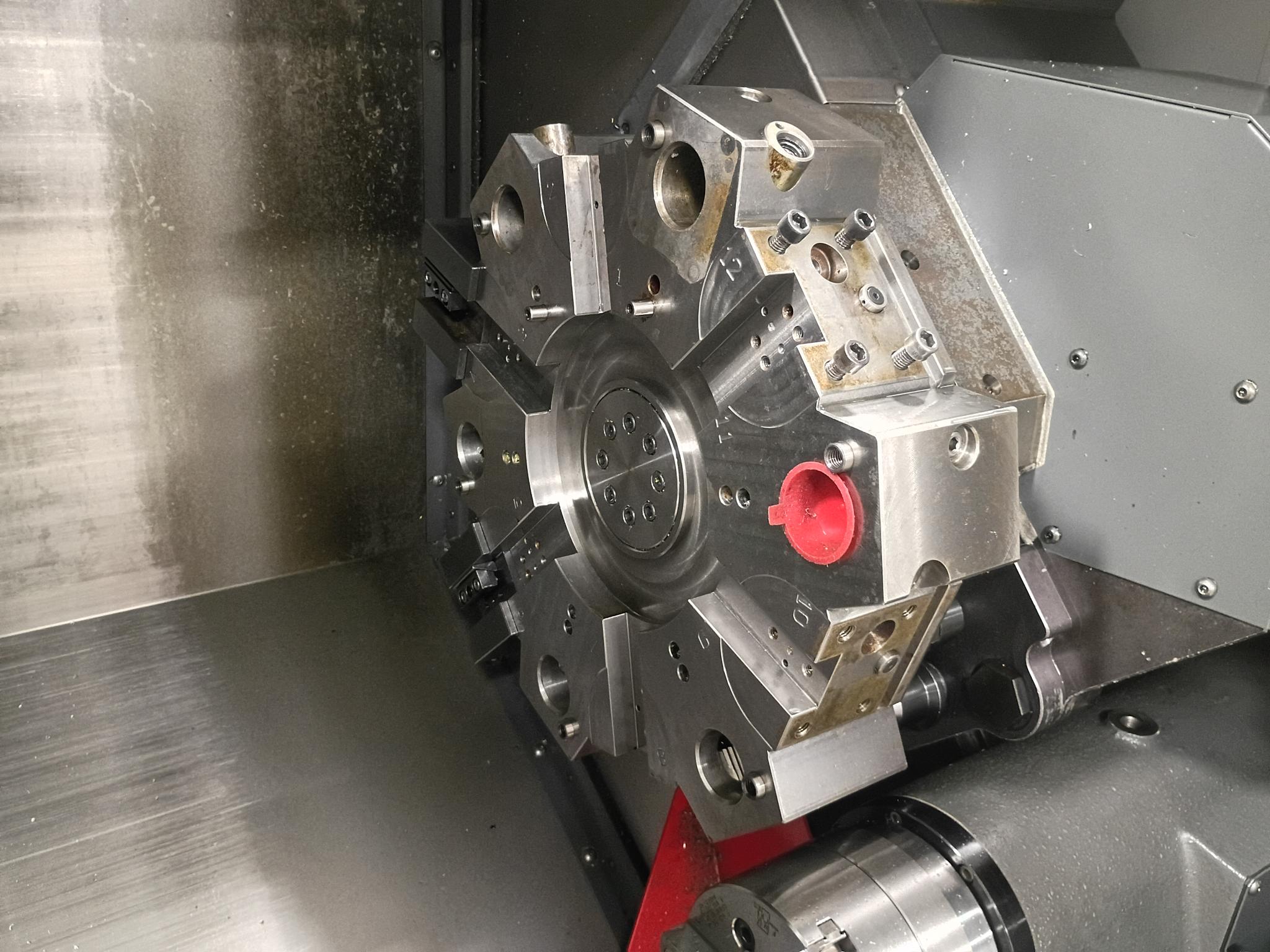

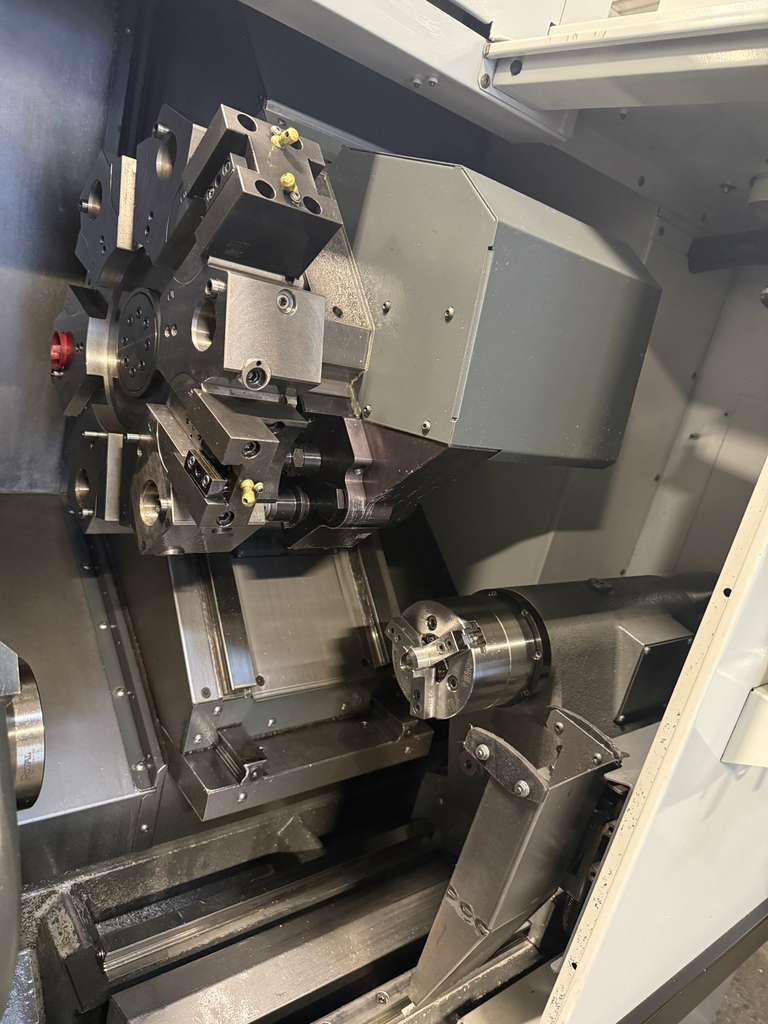

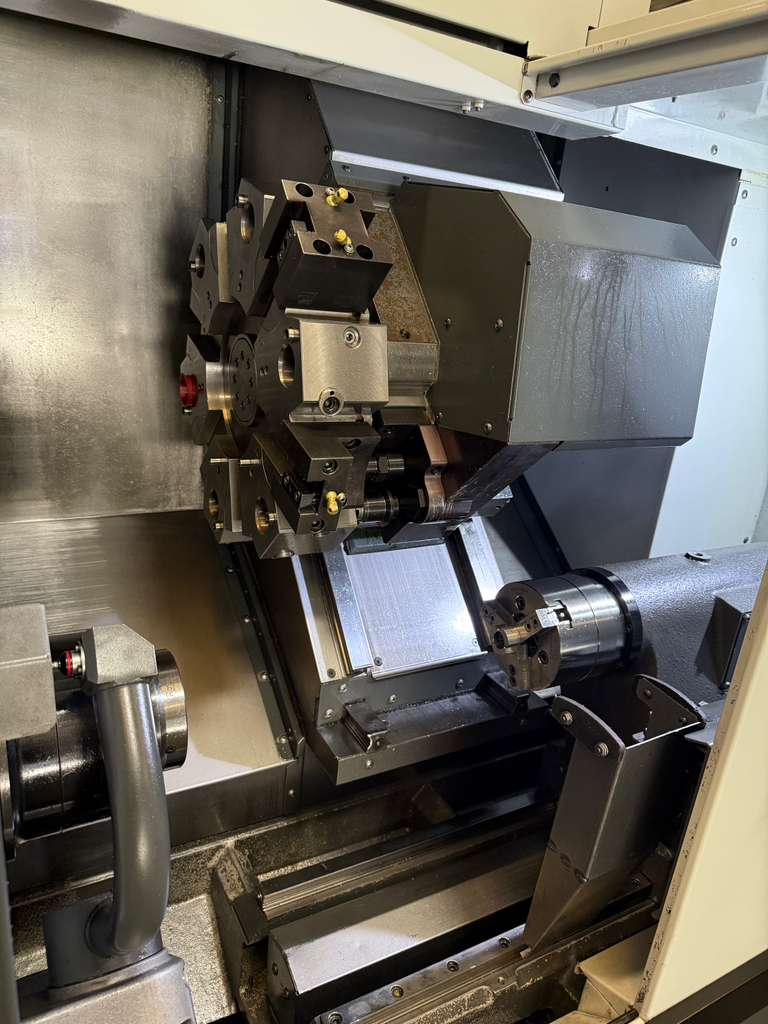

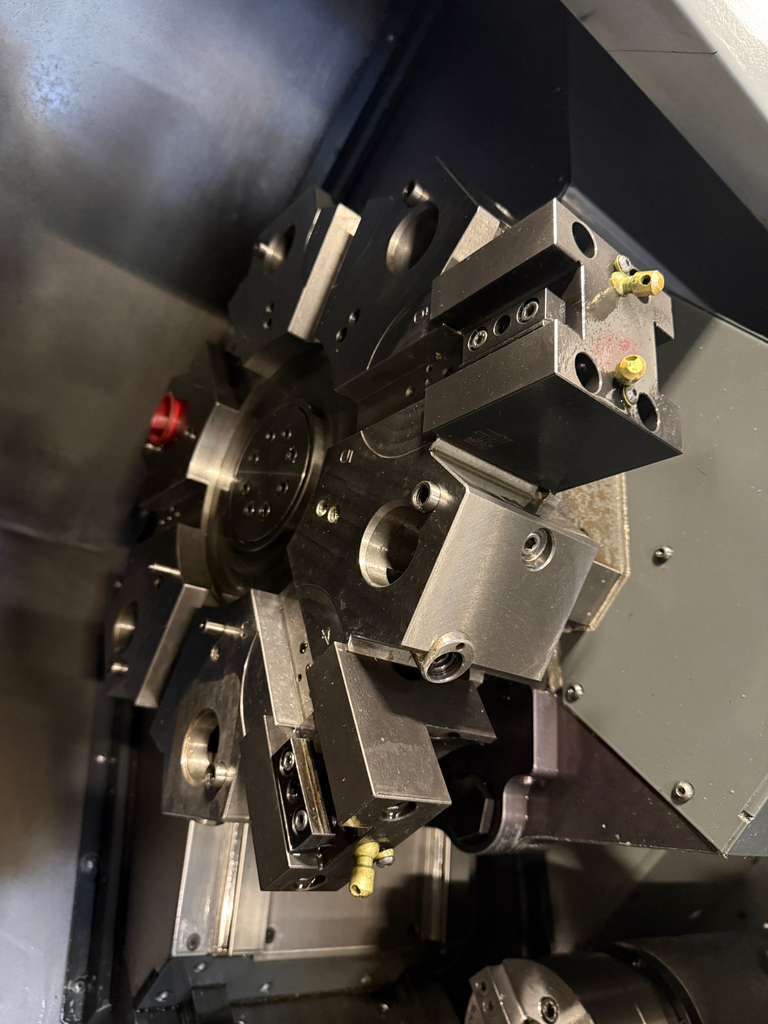

| 12 Station Live Tool Turret |
| Y Axis on Turret |
| Automatic Tool Presetter (Upgraded $5,895 value Included) – Set Tool Length Offsets Quickly |
| Part Catcher (Upgraded $3,595 value Included) – For Catch a Finished Part as it is cut off, allows for unattended machining |

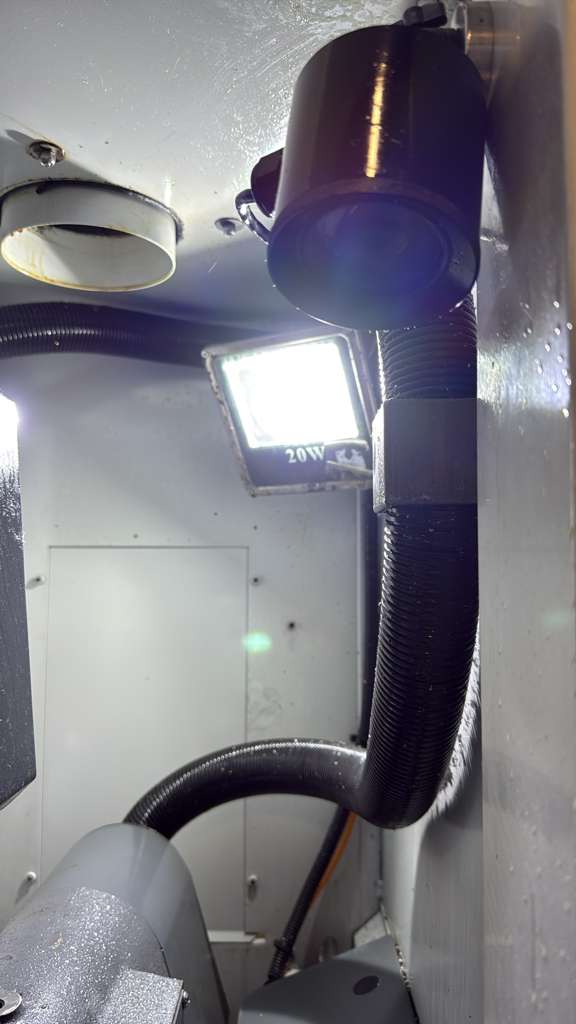

| Enclosure Exhaust System (Upgraded $2,195 value Included) – Keeps the machine’s interior clear of mist and smoke |

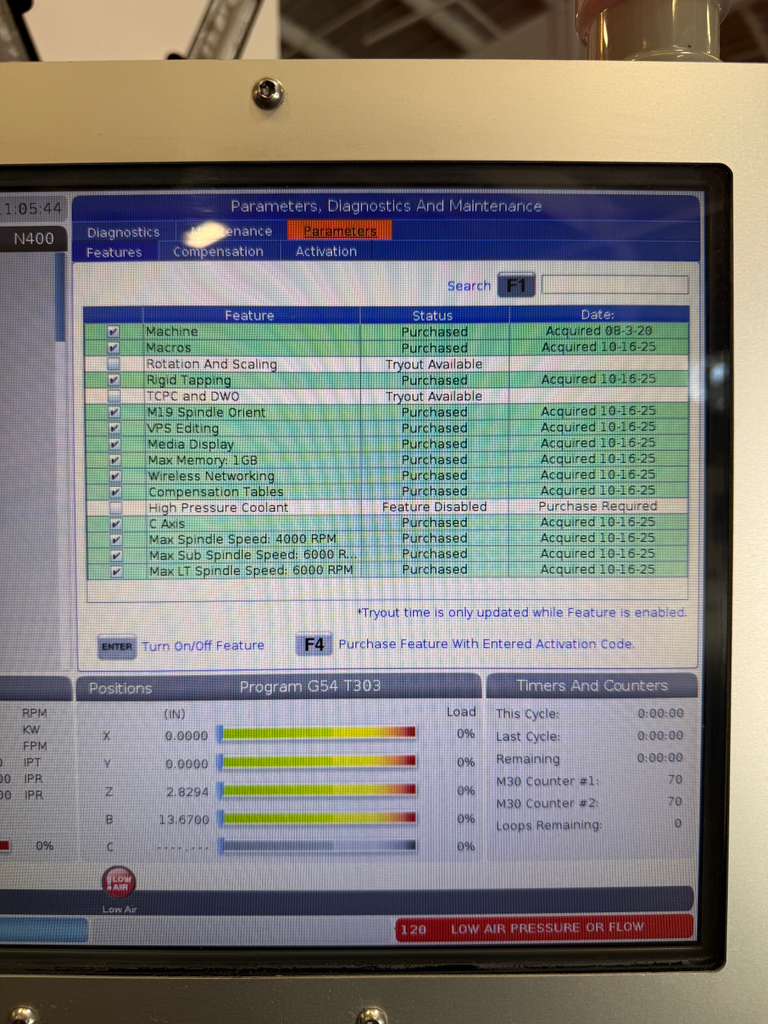

| User Definable Macros |
| Spindle Orientation |
| VPS Editing |
| Media Display |
| 1GB Max Memory |
| Wireless Networking |
| WiFi Camera |
| Compensation Tables |
| Coolant System |

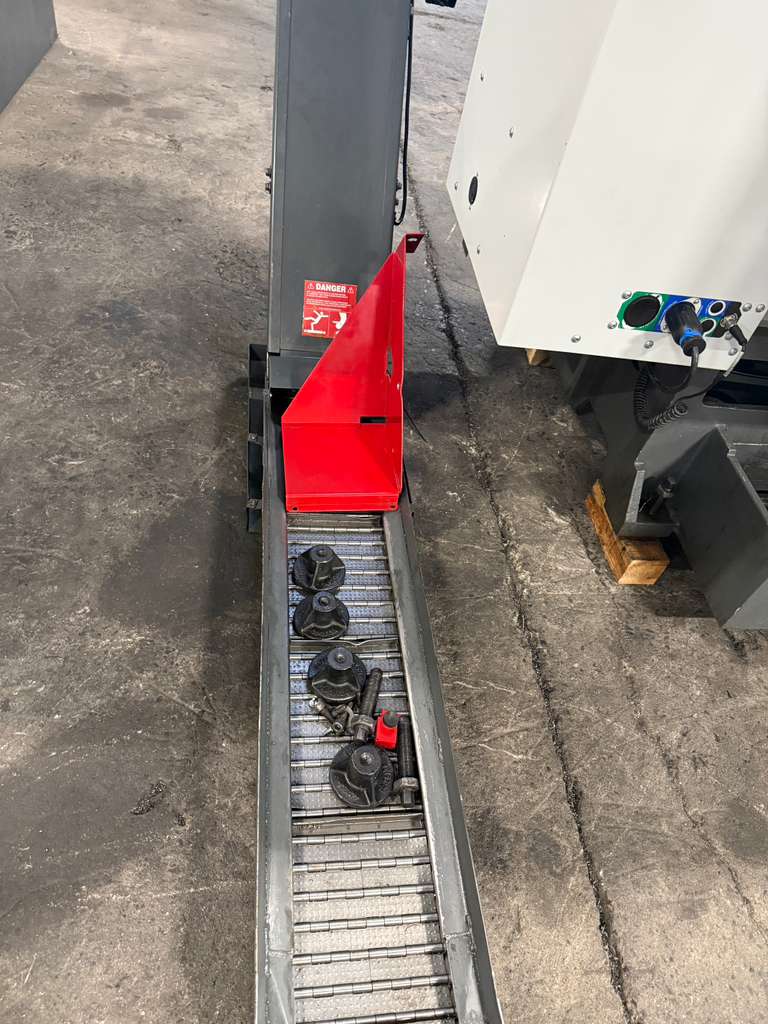

| Belt Type Chip Conveyor (Upgraded $5295 value Included) – High-volume chip removal for increased productivity |
| Capacity: |
|---|
| Max Turning Diameter : 11.0″ |
| Max Swing Over Bed : 16.5″ |
| Max Turning Length: 16.0″ |
| Max Bar Capacity : 2.5″ |
| Travels: |
|---|
| X Axis Travel : 7.88″ |
| Y Axis Travel : ± 2.0″ |
| Z Axis Travel : 16.00″ |
| C Axis (Both Spindles): 0.001 Degree |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 472 IPM |
| Rapid Traverse Y Axis: 472 IPM |
| Rapid Traverse Z Axis: 1200 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 3.5″ |
| Spindle Speed: 4000 RPM |
| Spindle Motor: 20 HP |
| Sub Spindle: |
|---|
| Spindle Nose: A2-5 |
| Spindle Bore: 1.5″ |
| Spindle Speed: 6000 RPM |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Live Tool Speed: 4000 |
| Tool Holders Type: VDI-40 |
| General: |
|---|
| Air Requirement: 4 scfm @ 100 psi |
| Machine Dimensions: 126″ x 70.0″ x 81.0″ High |
| Machine Weight:7,900 lbs Approx. |
