Name: Haas ST-20 CNC Turning Center - 8" Chuck, Tailstock Lathe
SKU: 113531
Availability: InStock

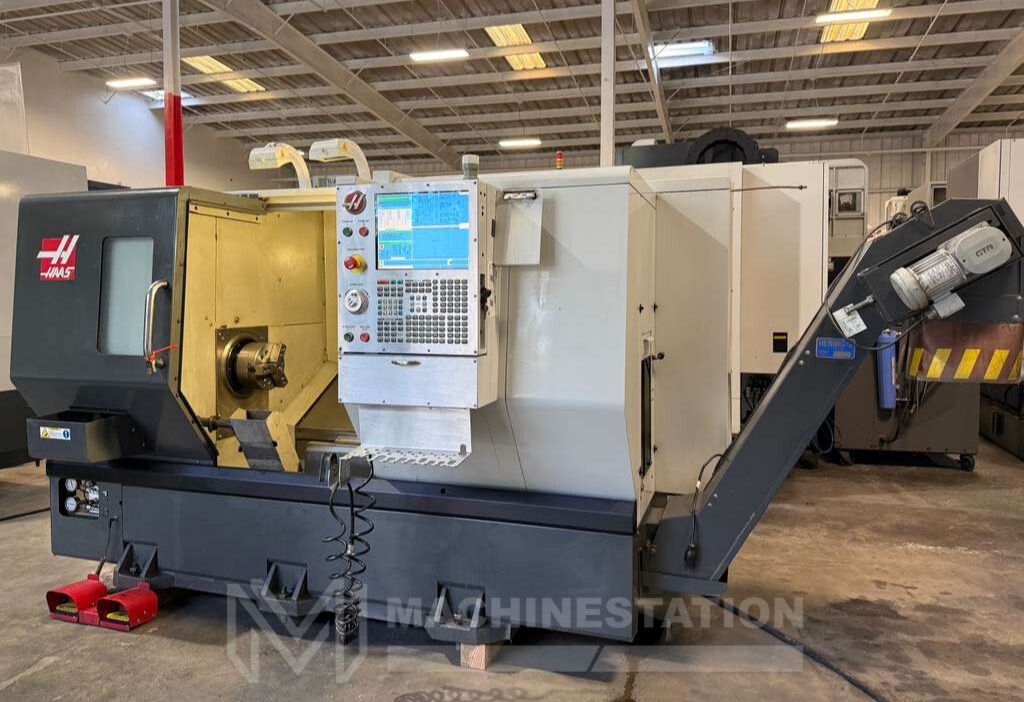

Haas ST-20 CNC Turning Center – 8″ Chuck, Tailstock Lathe

Reserve your machine by paying: $999 (Refundable)

(We’ll hold it for 7 business days while you inspect or finalize your purchase)

$999

1 in stock

Avoid Paying More! New Haas prices just went up 5% as of May 1st 2025— plus, long lead times on new machines mean delays and higher costs. This 2013 Haas ST-20 is fully equipped with 8″ Chuck, 12 Station Turret, Programmable Tailstock, and Chip Conveyor.
One Owner all Original Paint Machine.

“Replacement Cost Over $90,000 with Similar Options”

Location:	Lake Elsinore, CA
SKU:	113531
Make:	Haas
Model:	ST-20
Condition:	Used – Good
Year:	2013 (Sold & Installed 2014)
Video:	No Video

SKU: 113531

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Haas
Model:	ST20
Year:	2013 (Sold & Installed 2014)
Condition:	Used – Good

Equipped With:

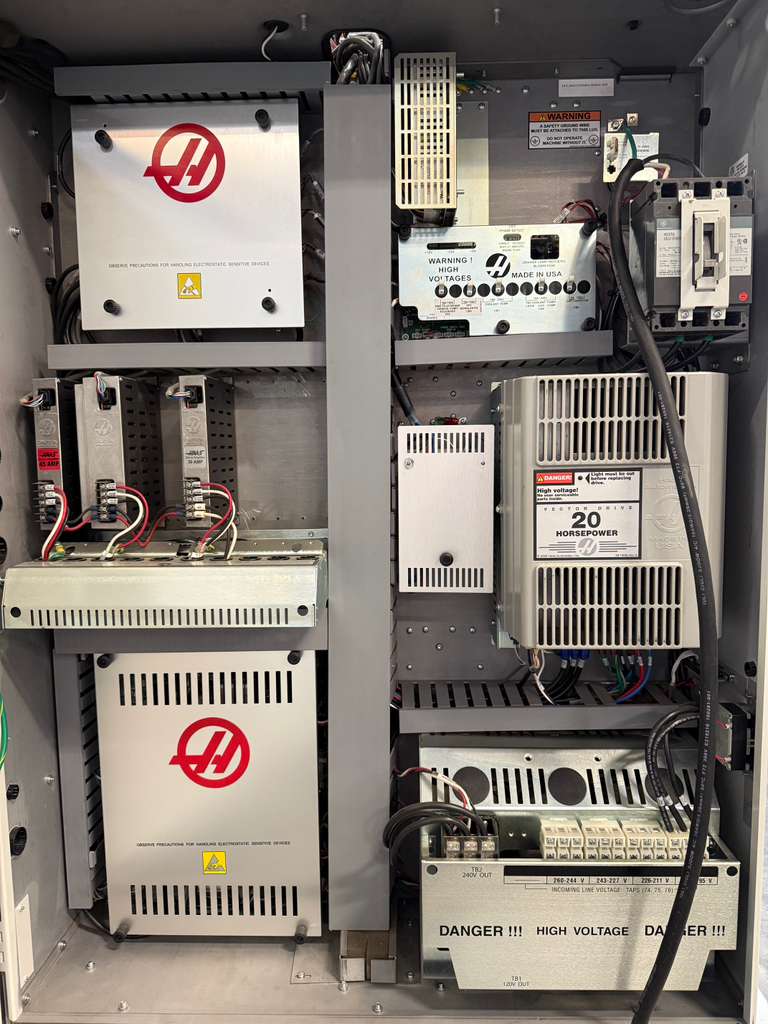

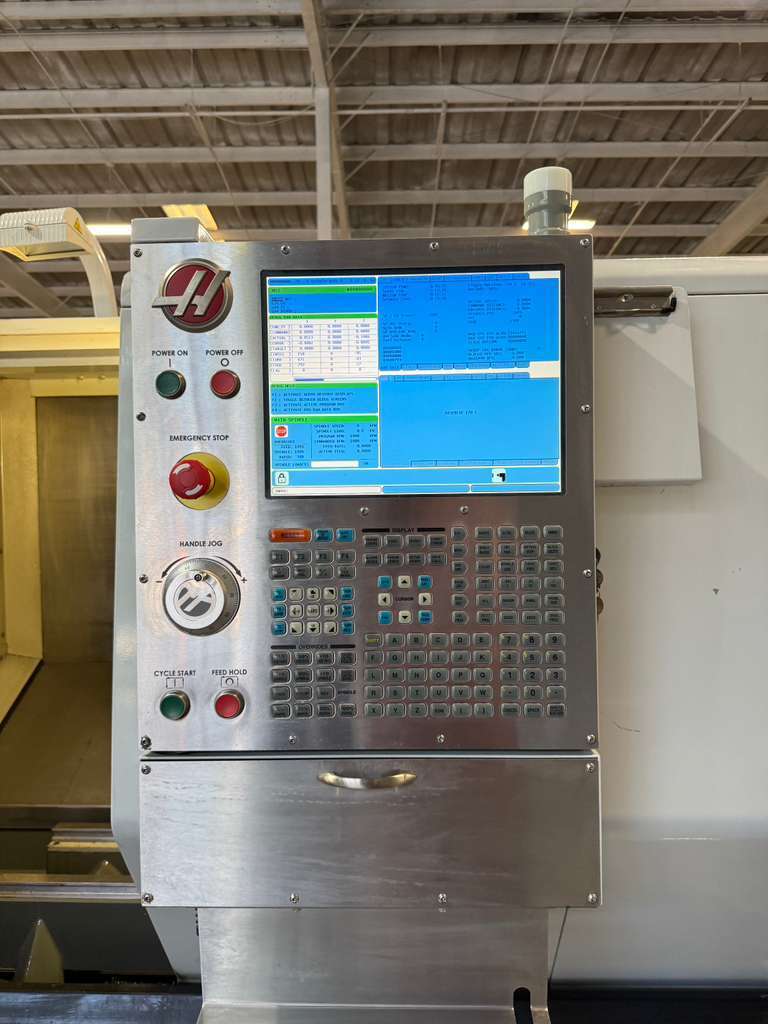

Haas CNC Control

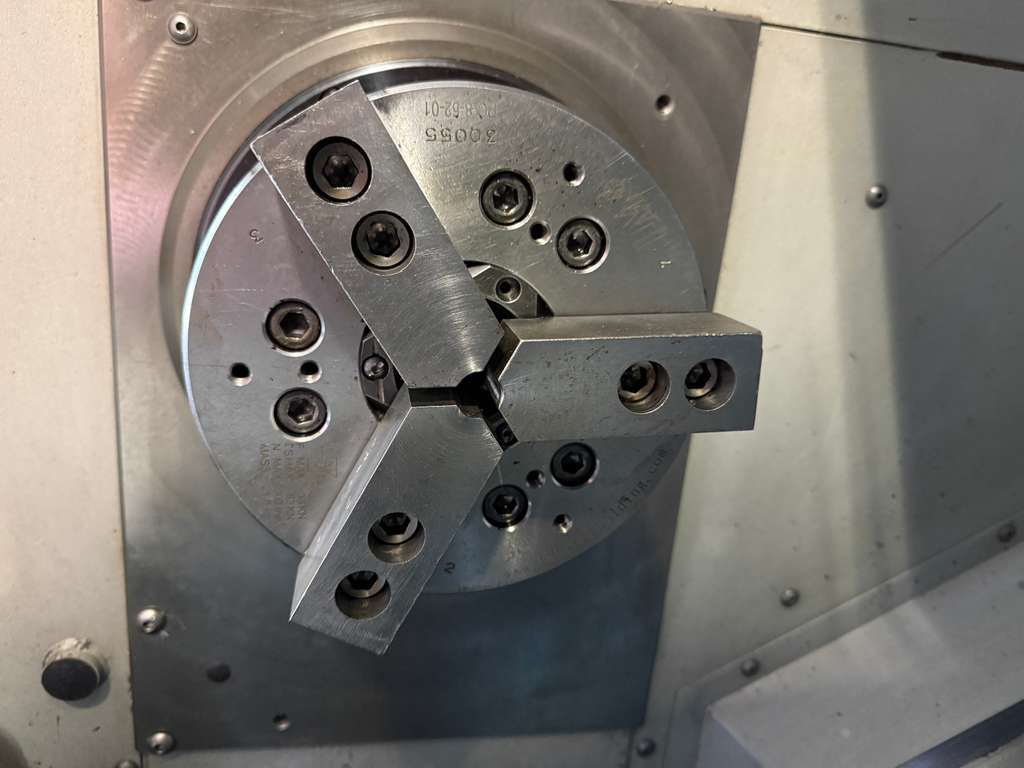

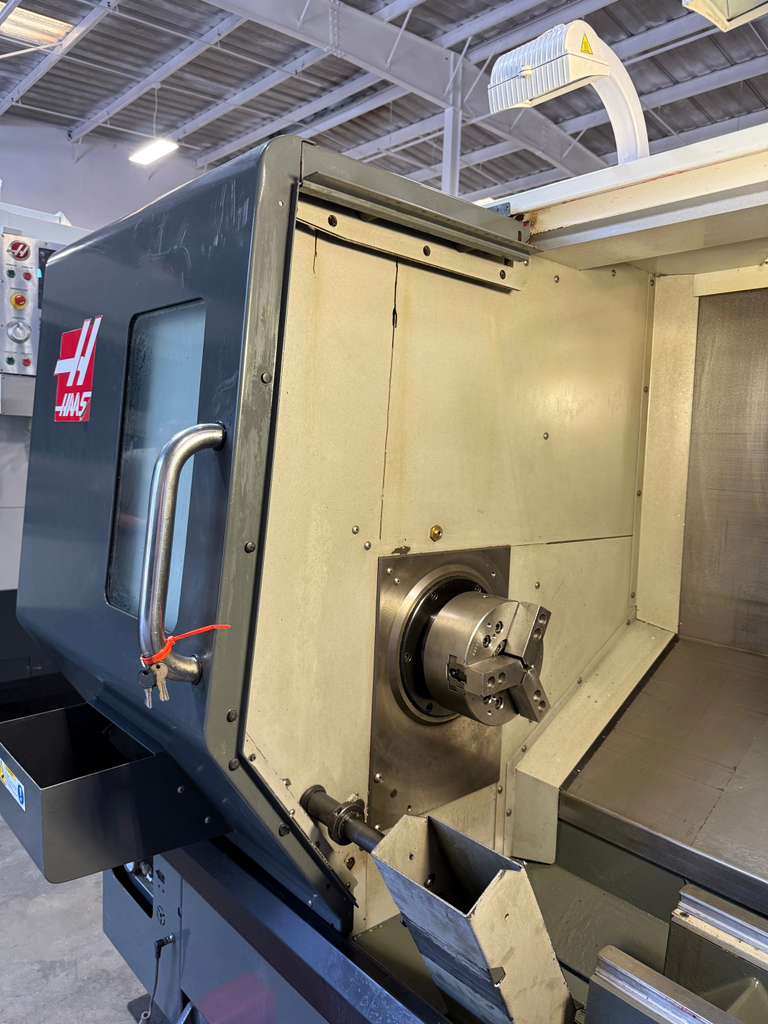

8” 3-Jaw Hydraulic Chuck
A2-6 Spindle Nose

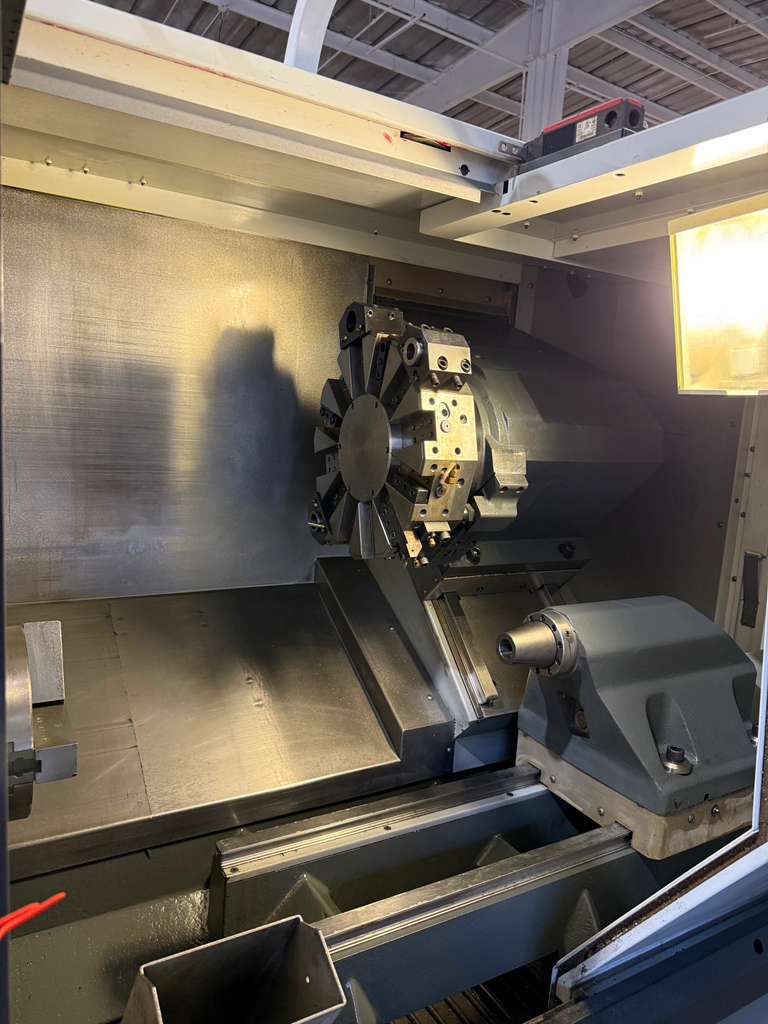

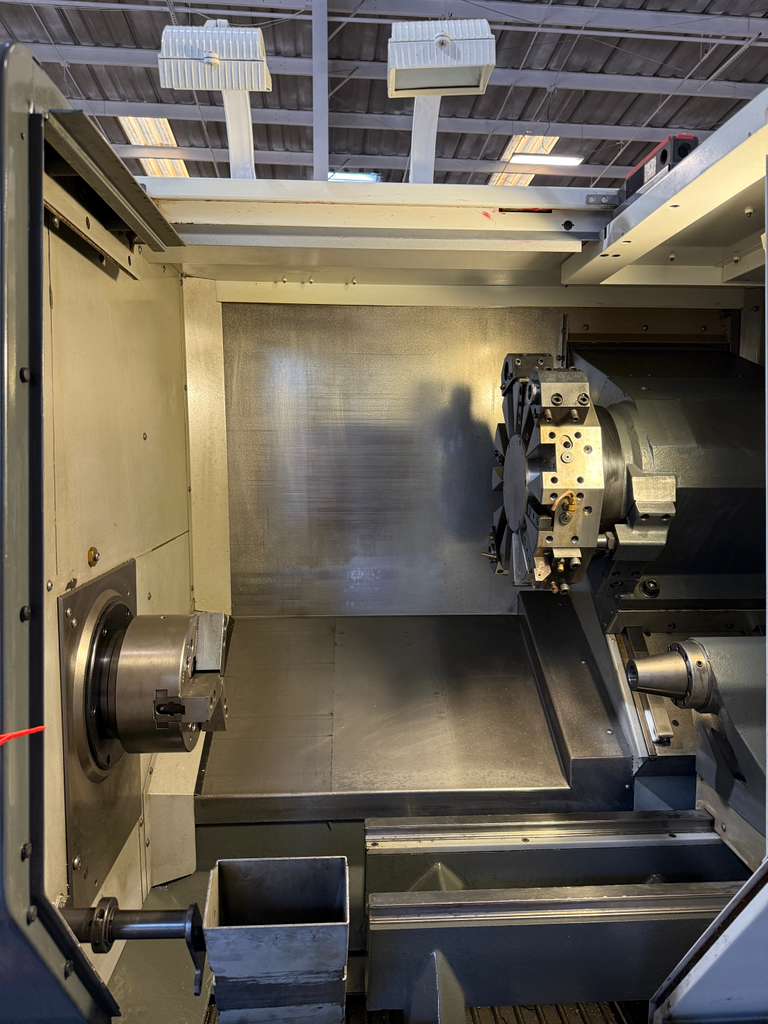

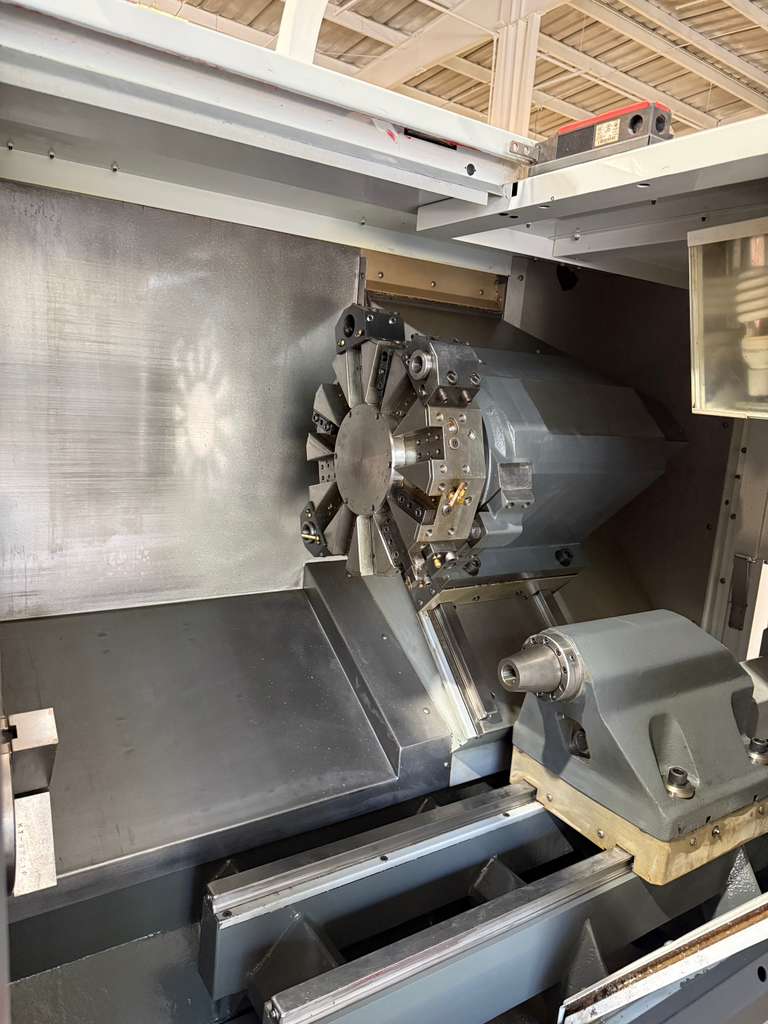

12 Station Automatic Turret
Rigid Tapping
Coolant Tank with Pump
Programmable Hydraulic Tailstock (Upgraded $8,695 value Included) – Excellent For Longer Parts

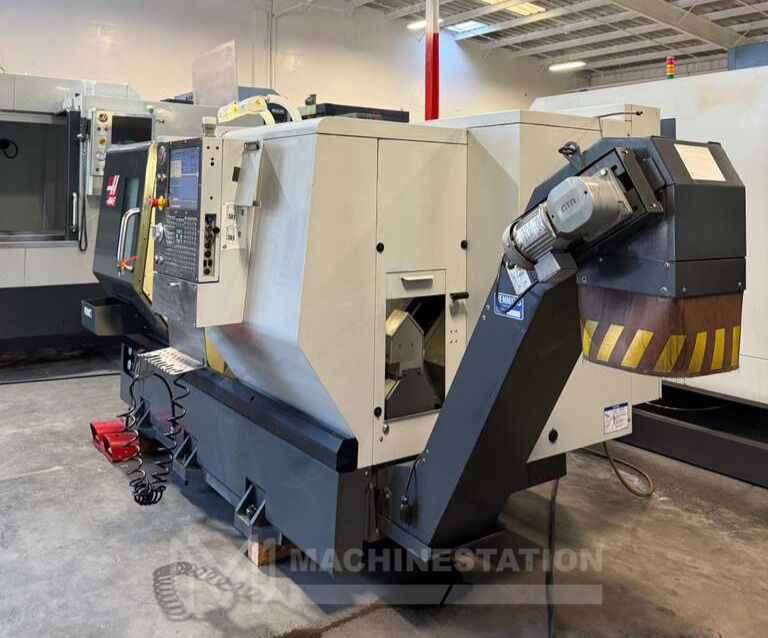

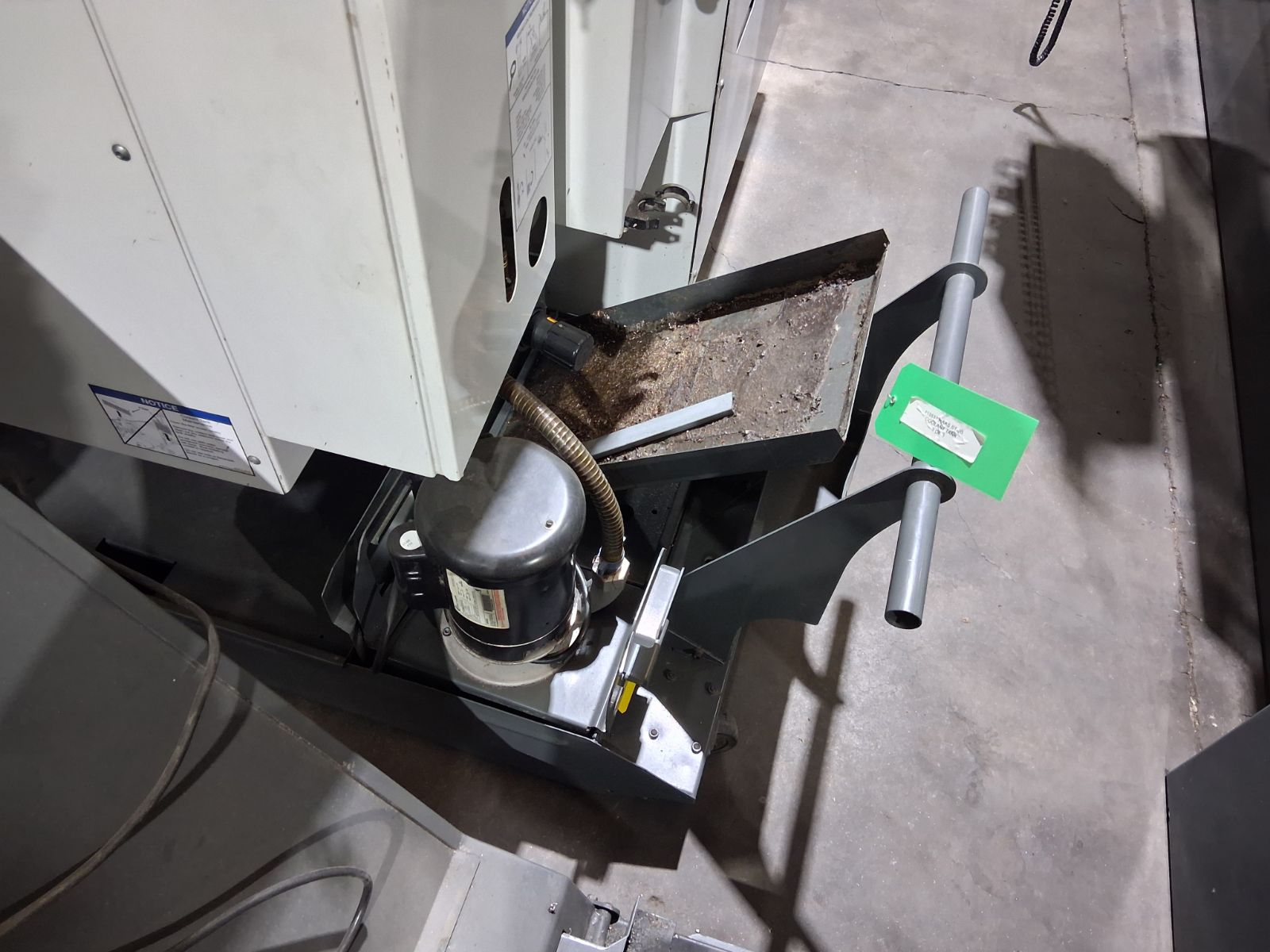

Belt Type Chip Conveyor (Upgraded $6,195 value Included) – For Efficient Chip Removal
Foot Switches

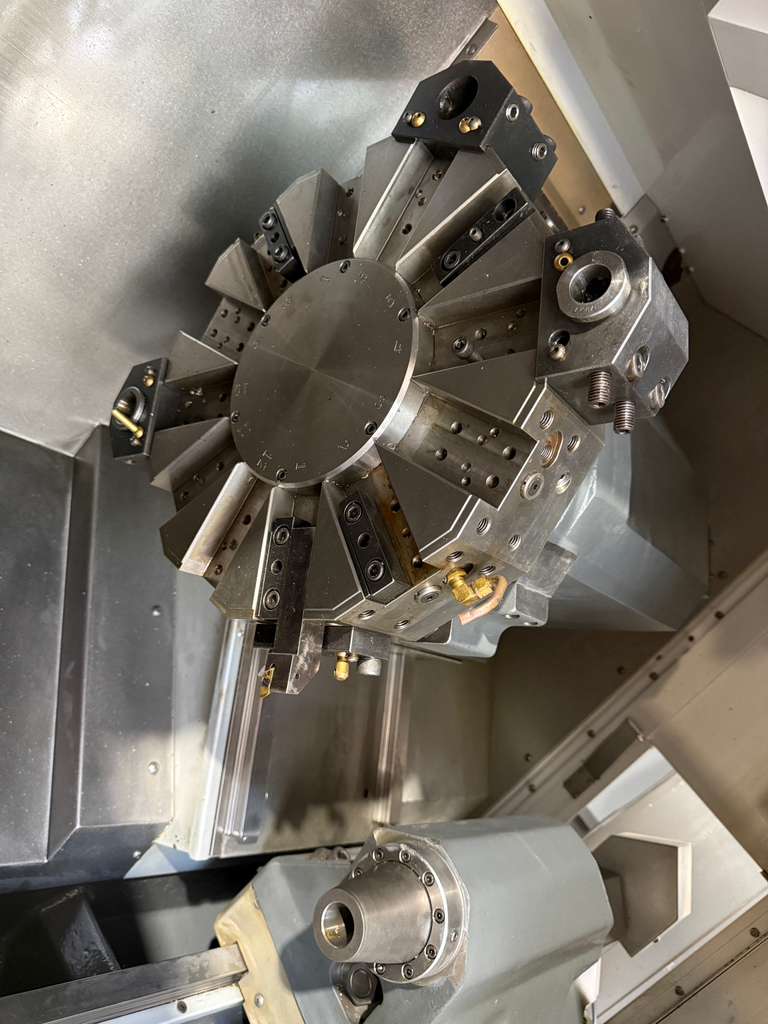

(3) Boring Tool Holders are Mounted on Turret (As shown in the images)

Capacity:
Max Turning Diameter : 13.0″
Max Swing Over Bed : 21.0″
Max Turning Length: 22.5″
Max Bar Capacity : 2.00″

Travels:
X Axis Travel : 8.4″
Z Axis Travel : 22.5″

Feedrate:
Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 945 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.5″
Spindle Speed: 4000 RPM
Spindle Motor: 20 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Turret Type: Bolt On Tool Turret

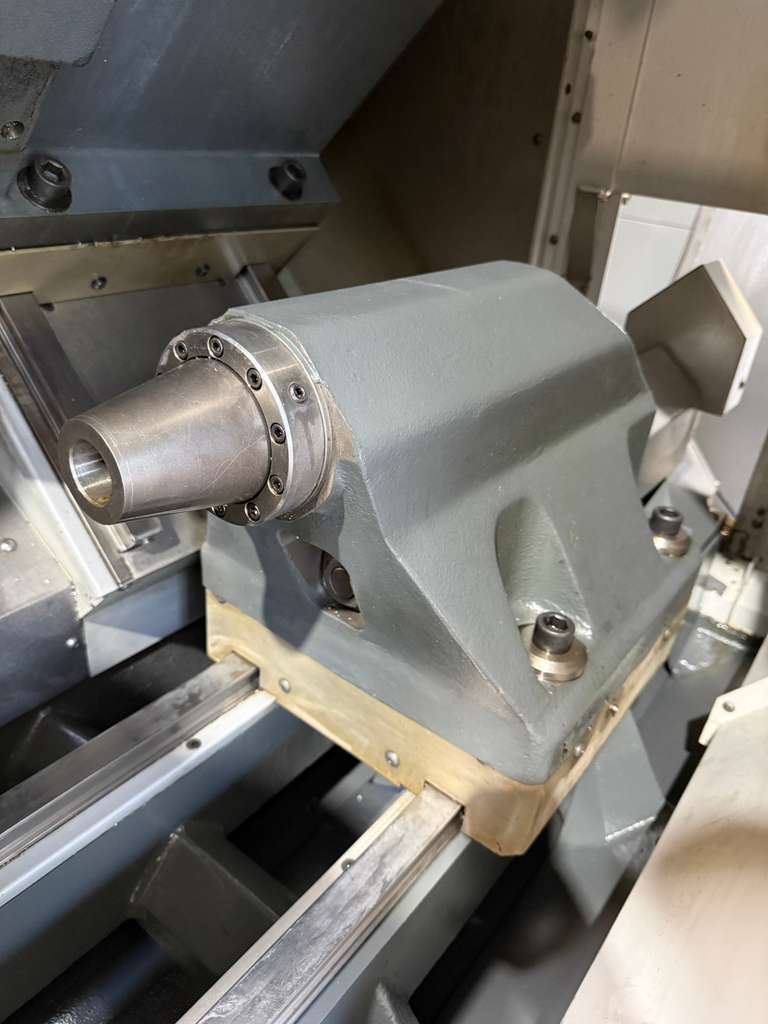

Tailstock:
Tailstock Taper: MT-4
Tailstock Quill Dia.: 2.6″
Tailstock Quill Travel: 3.1″

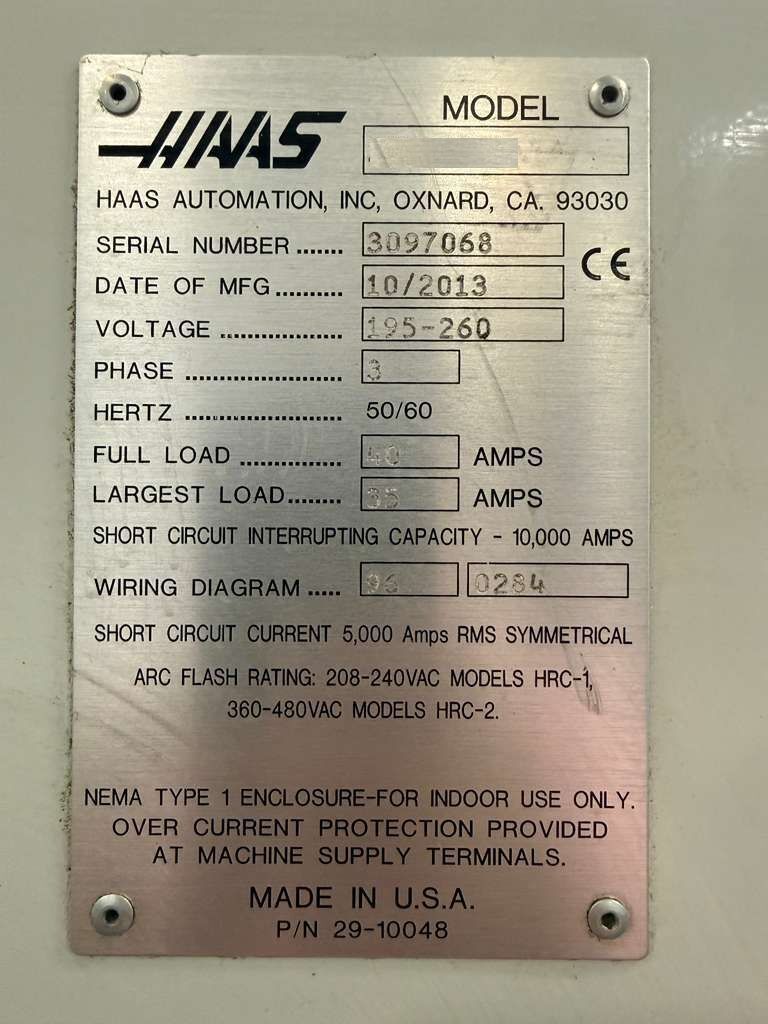

General:
Air Requirement: 4 scfm @ 100 psi
Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 142.5″ x 90″ x 92″ High
Machine Weight: 8820 lbs Approx.
