*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

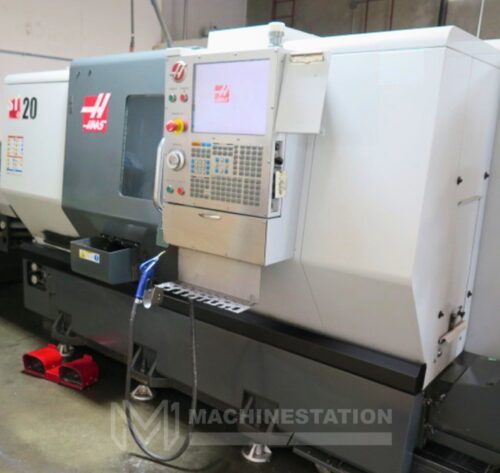

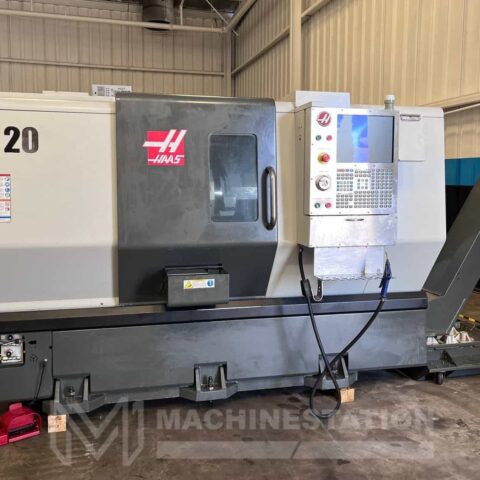

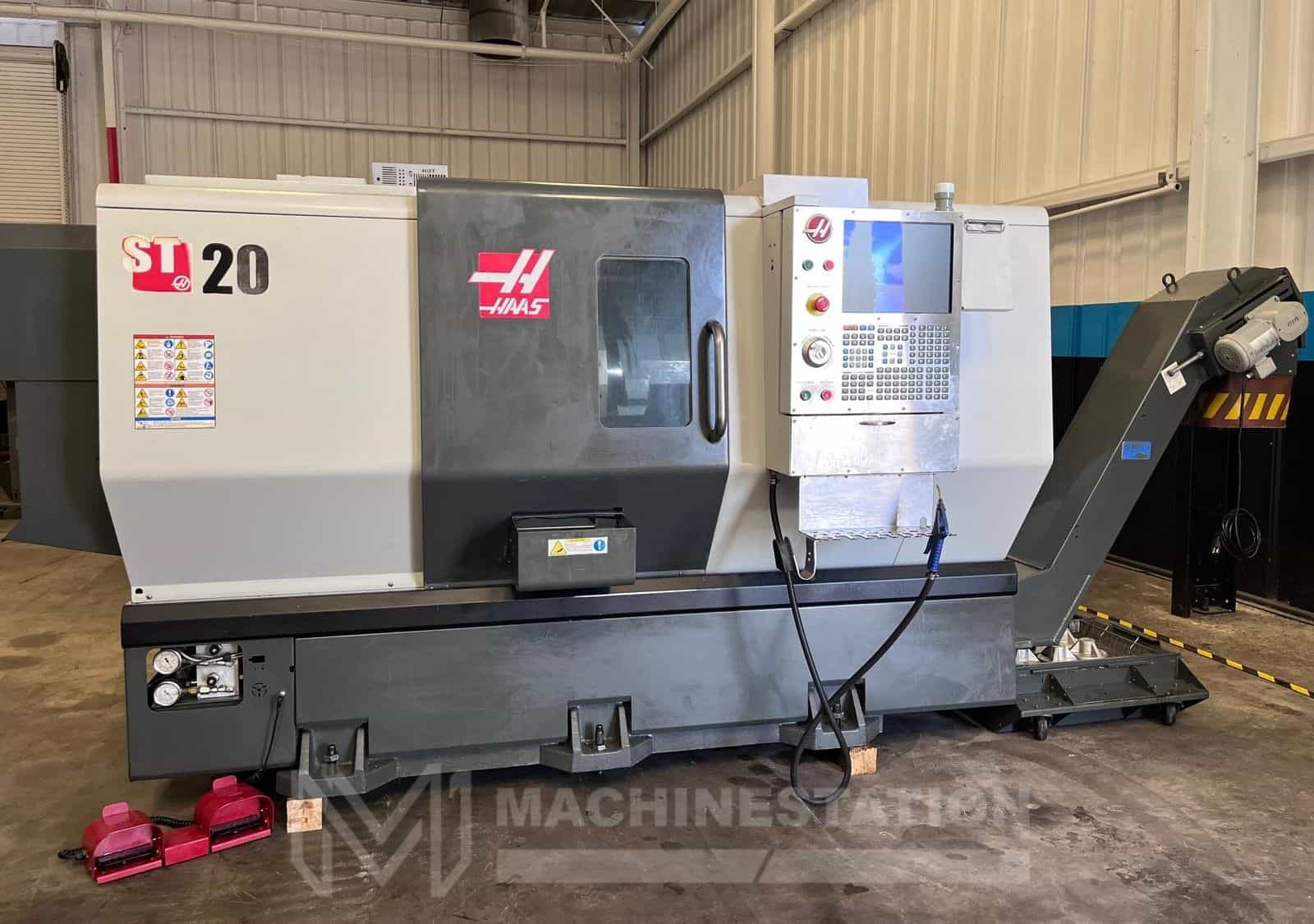

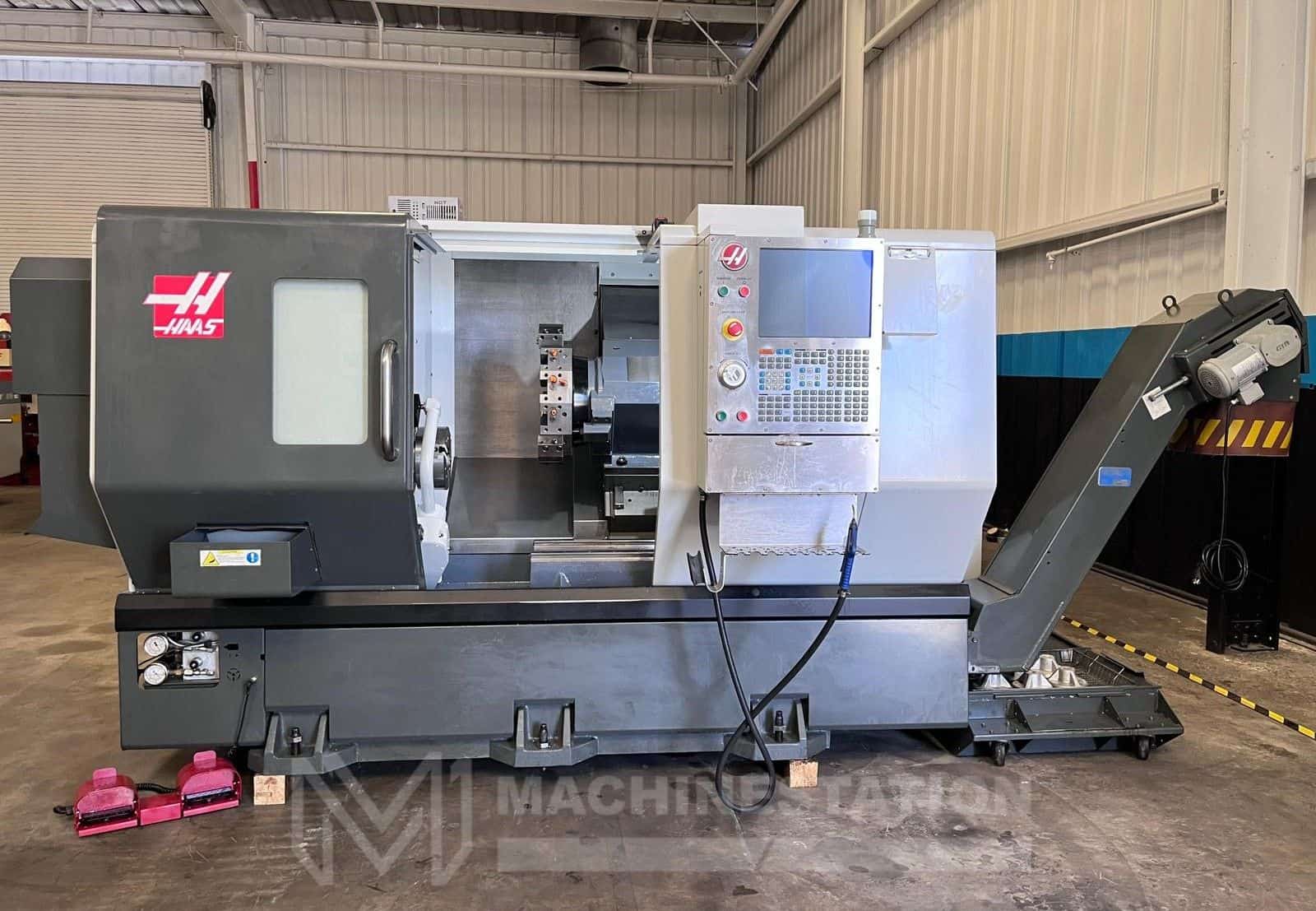

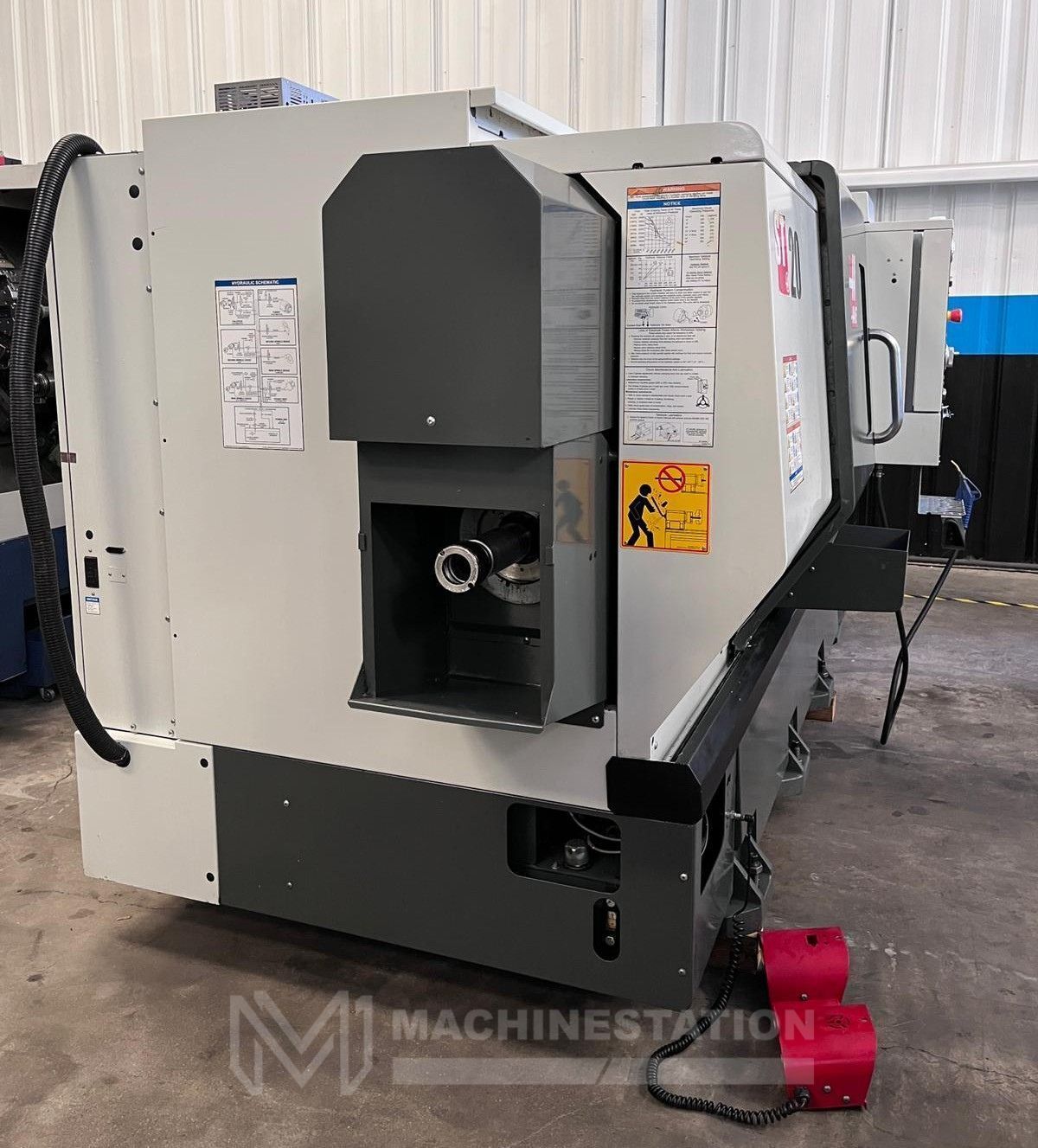

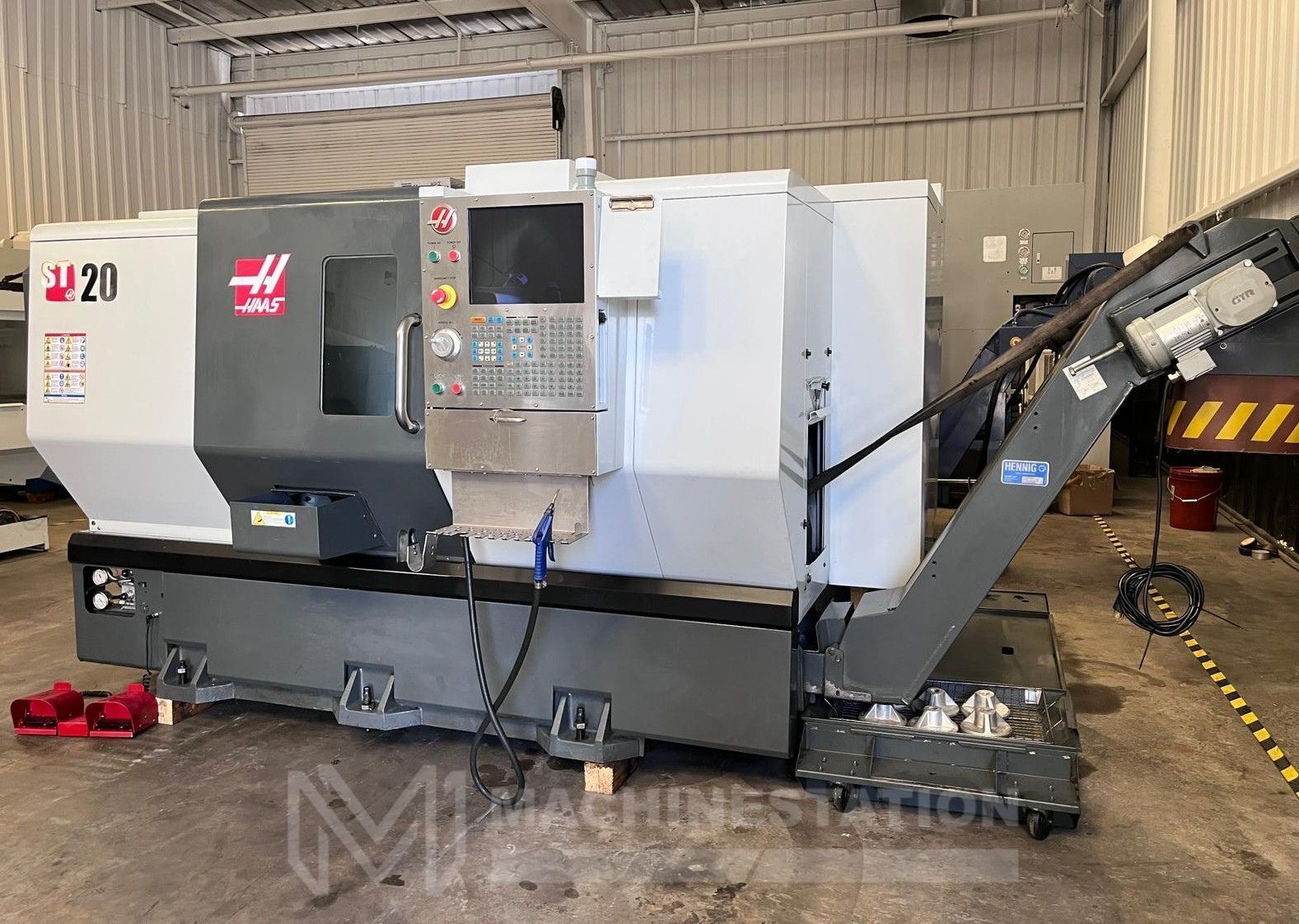

| Make: | Haas |
| Model: | ST20 |
| Year: | 2015 |
| Equipped With: |
|---|

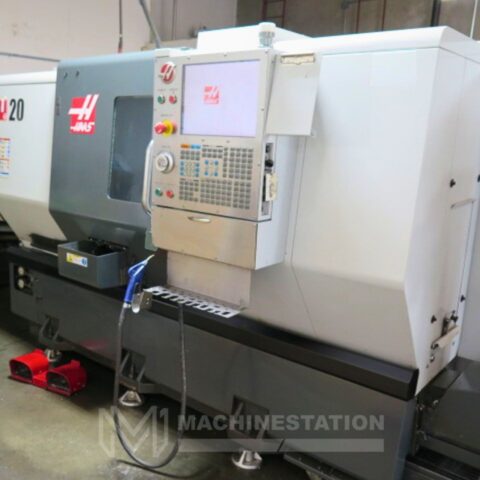

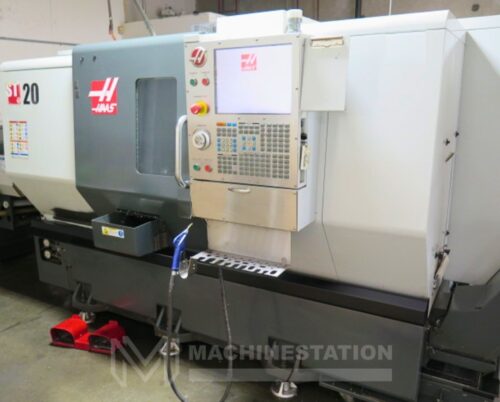

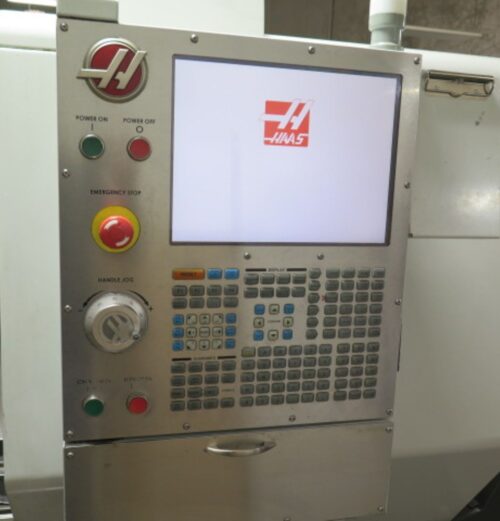

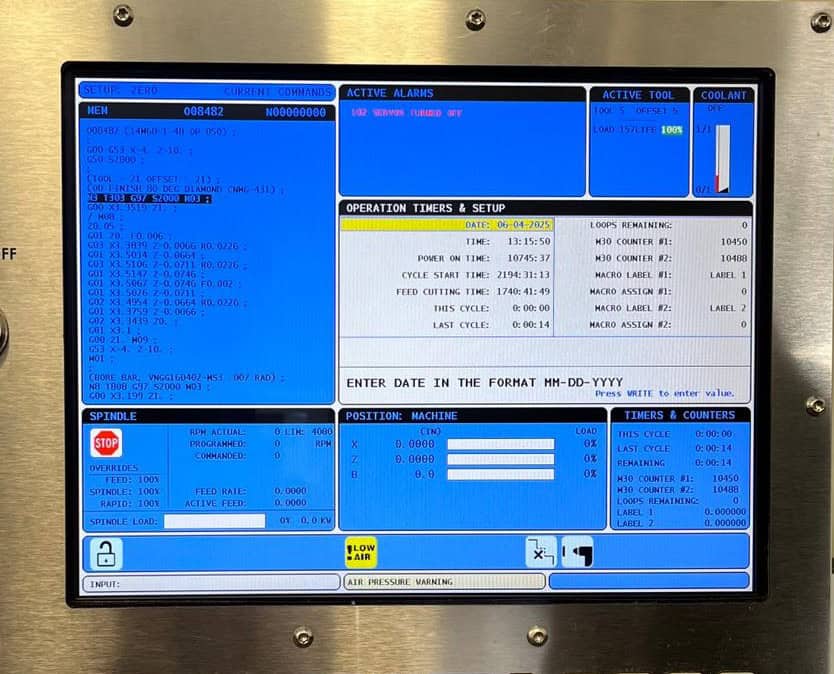

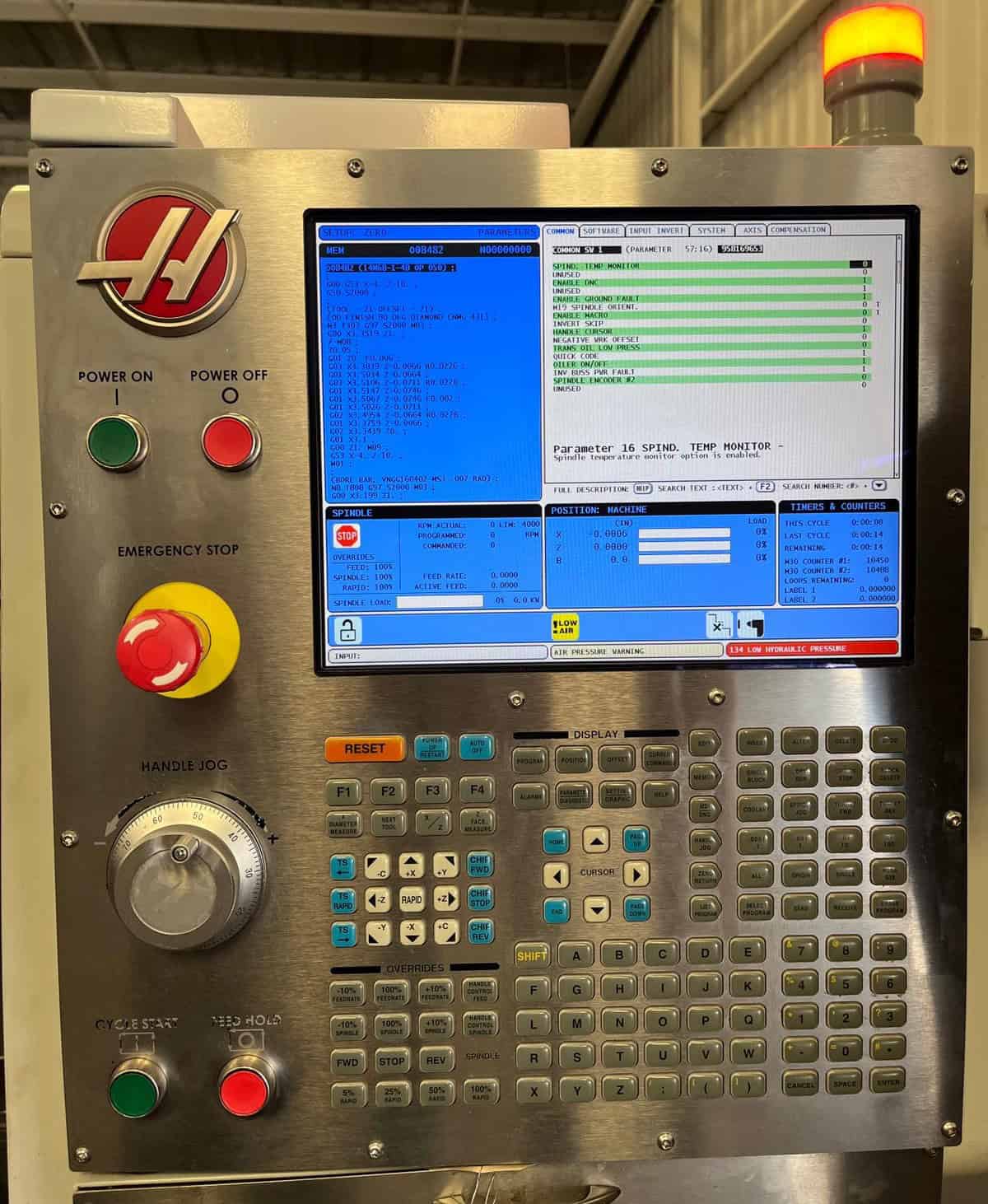

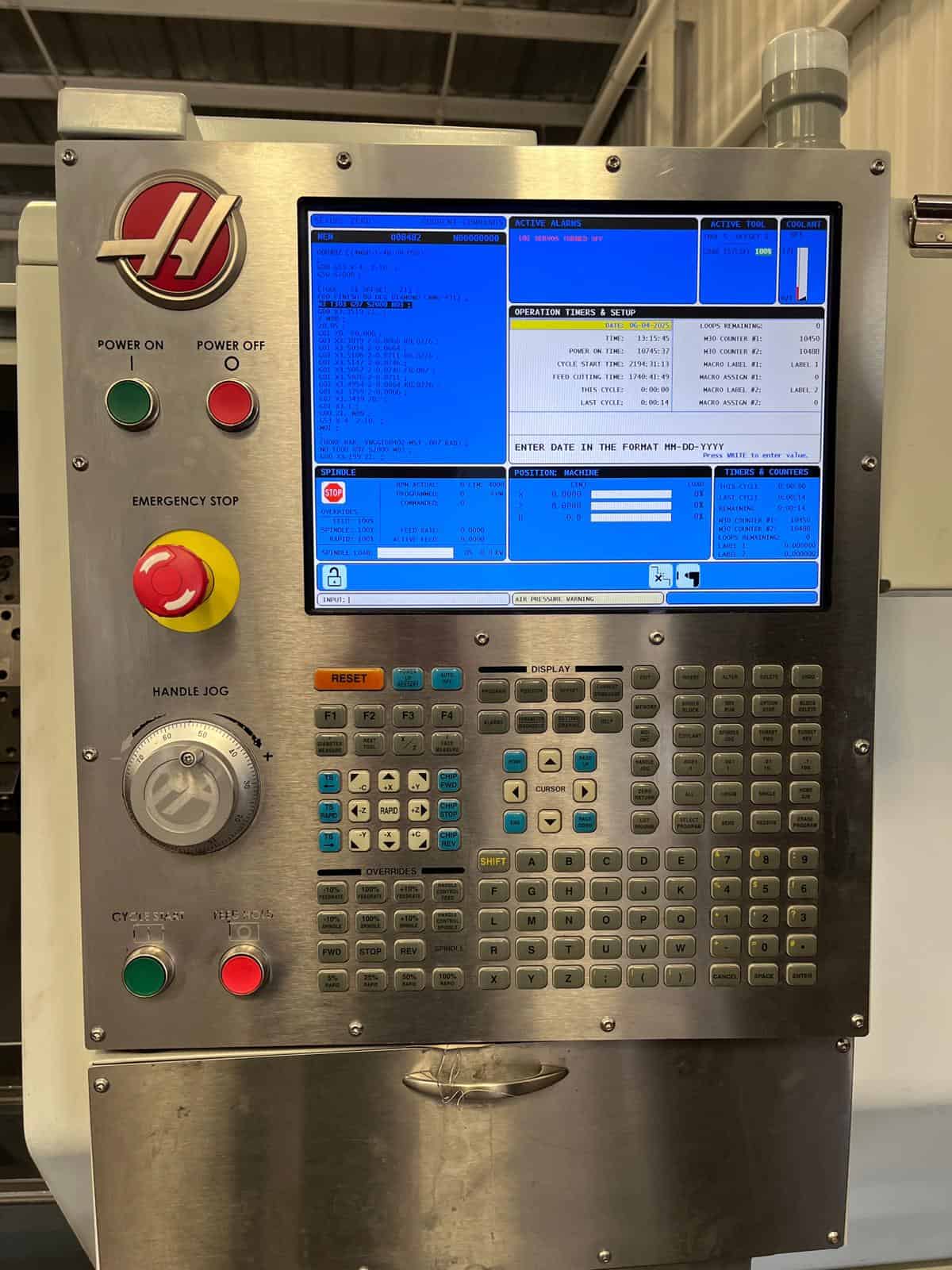

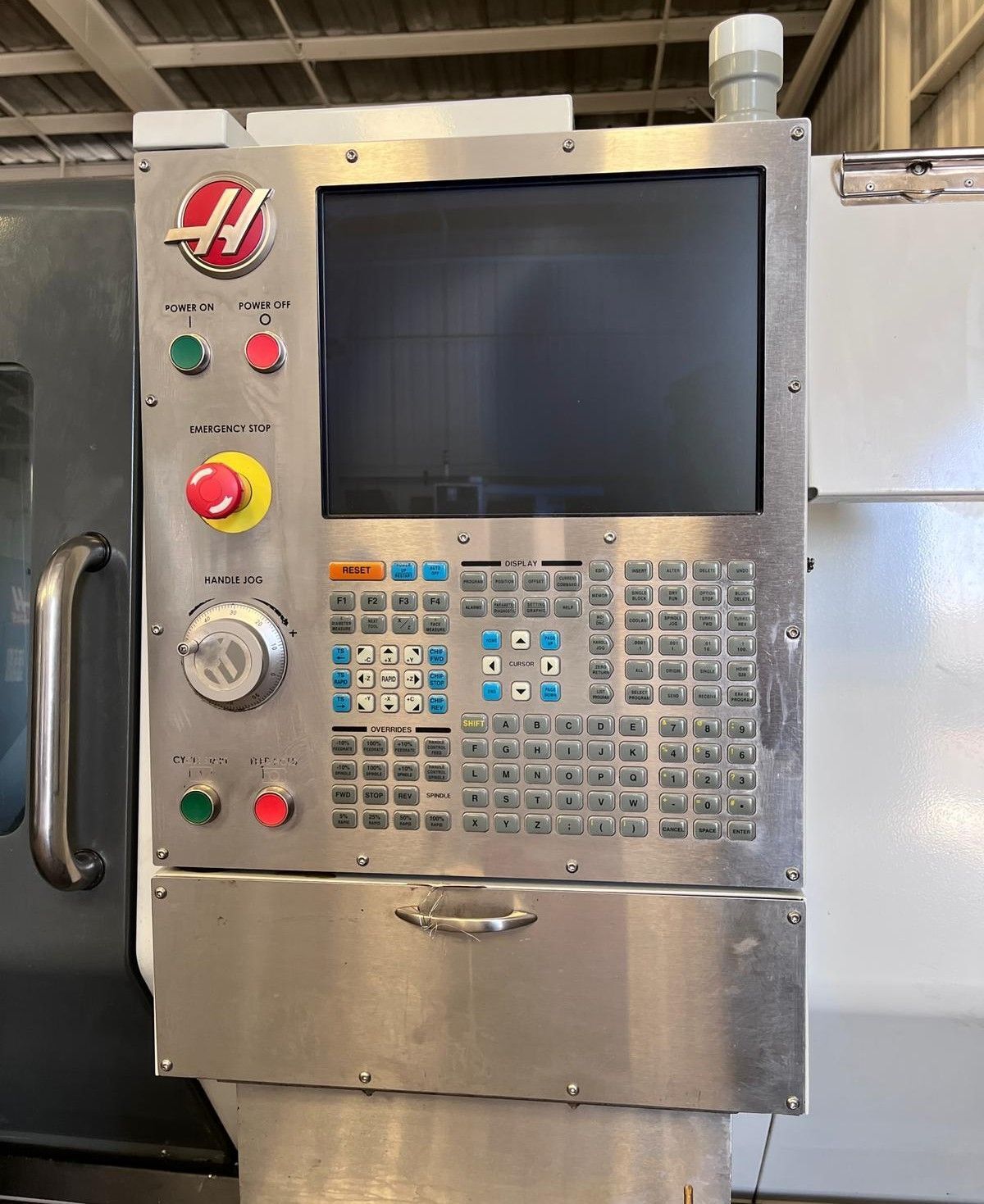

| Haas CNC Control |

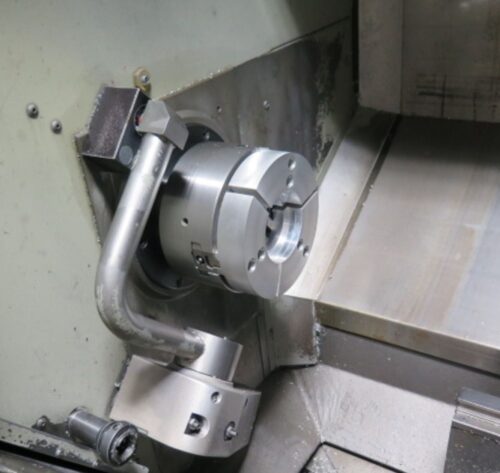

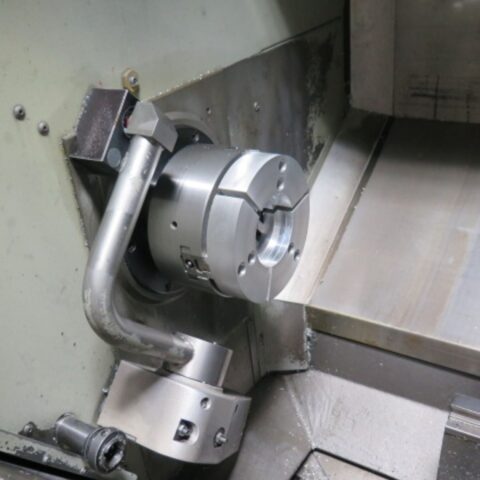

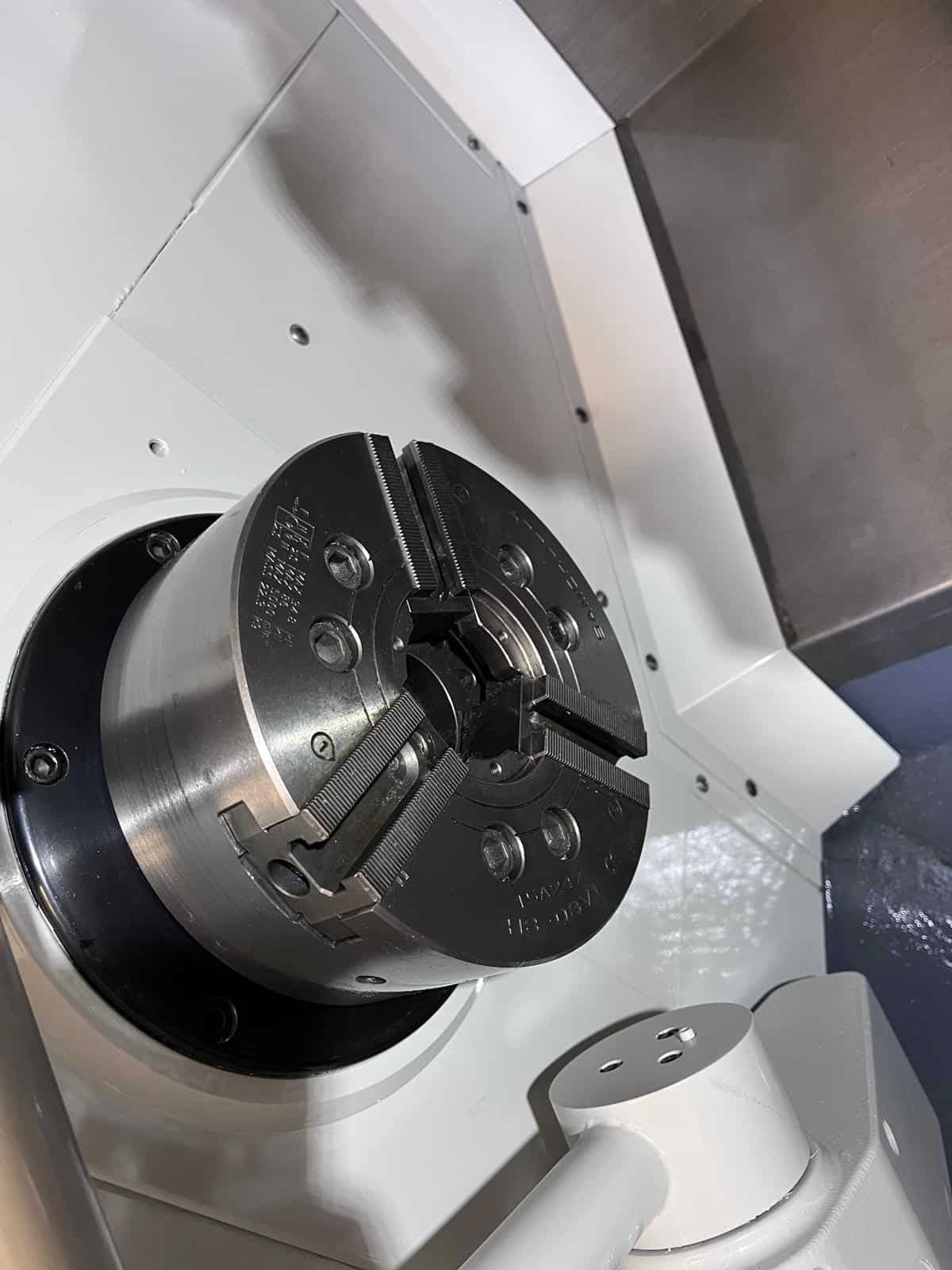

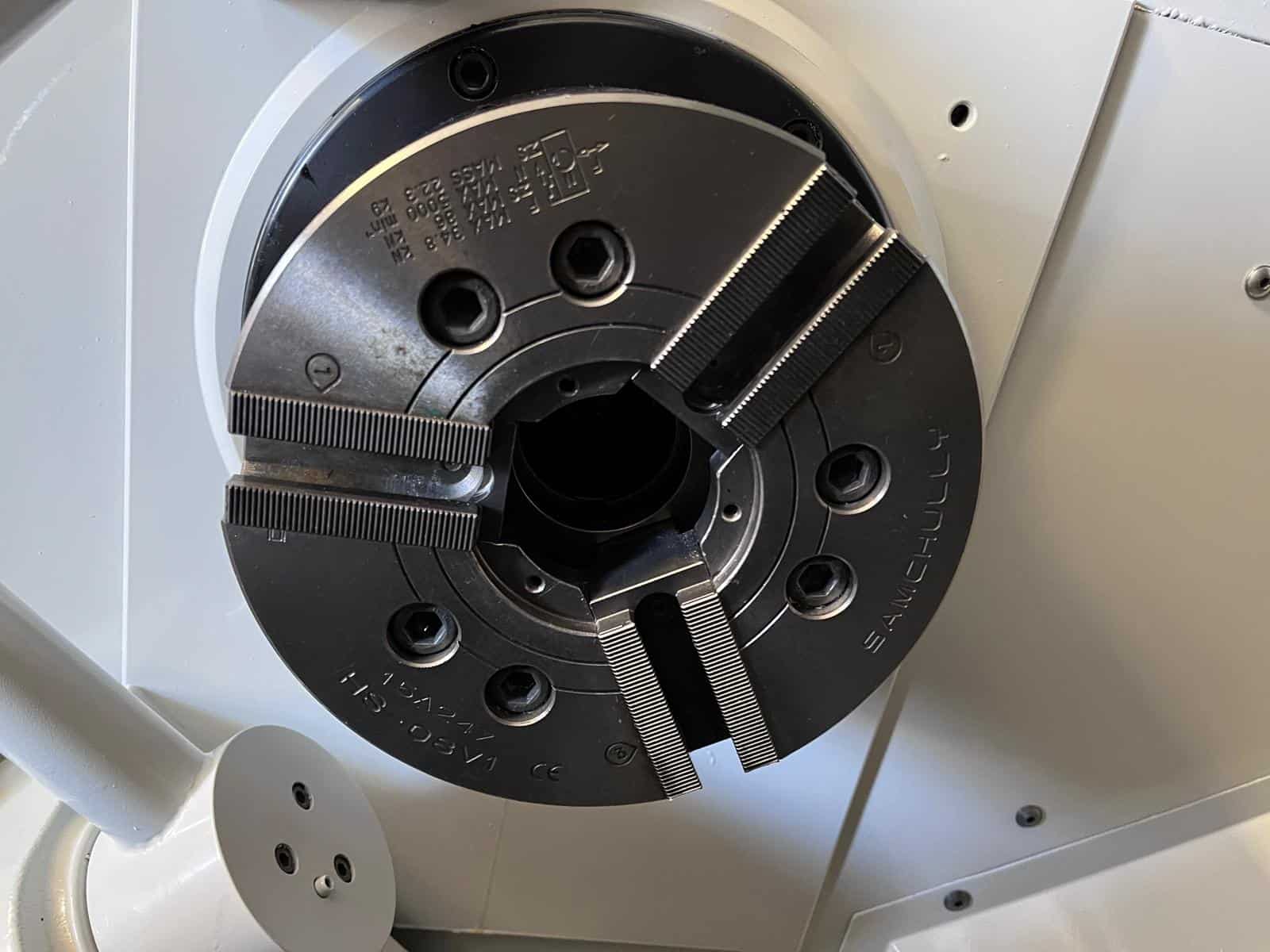

| 8” 3-Jaw Hydraulic Chuck |
| A2-6 Spindle Nose |

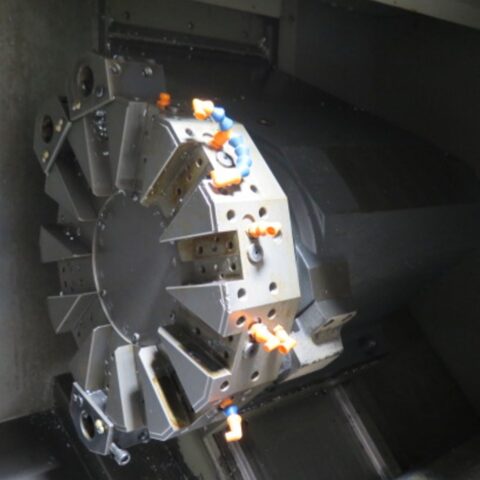

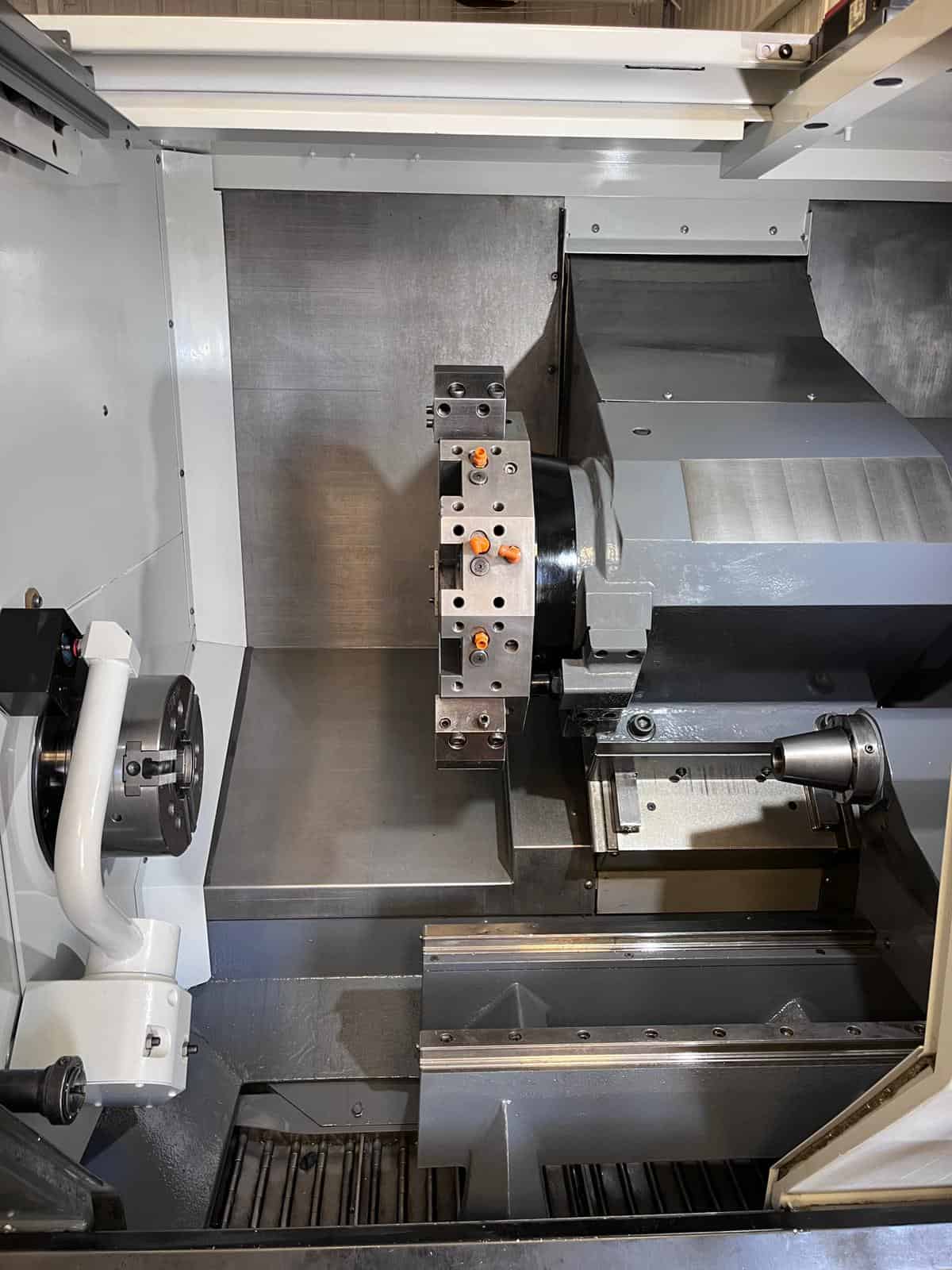

| 12 Station Automatic Turret |
| Tool Presetter (Upgraded $5,895 value Included) – Speeds up Changeovers and Setup |

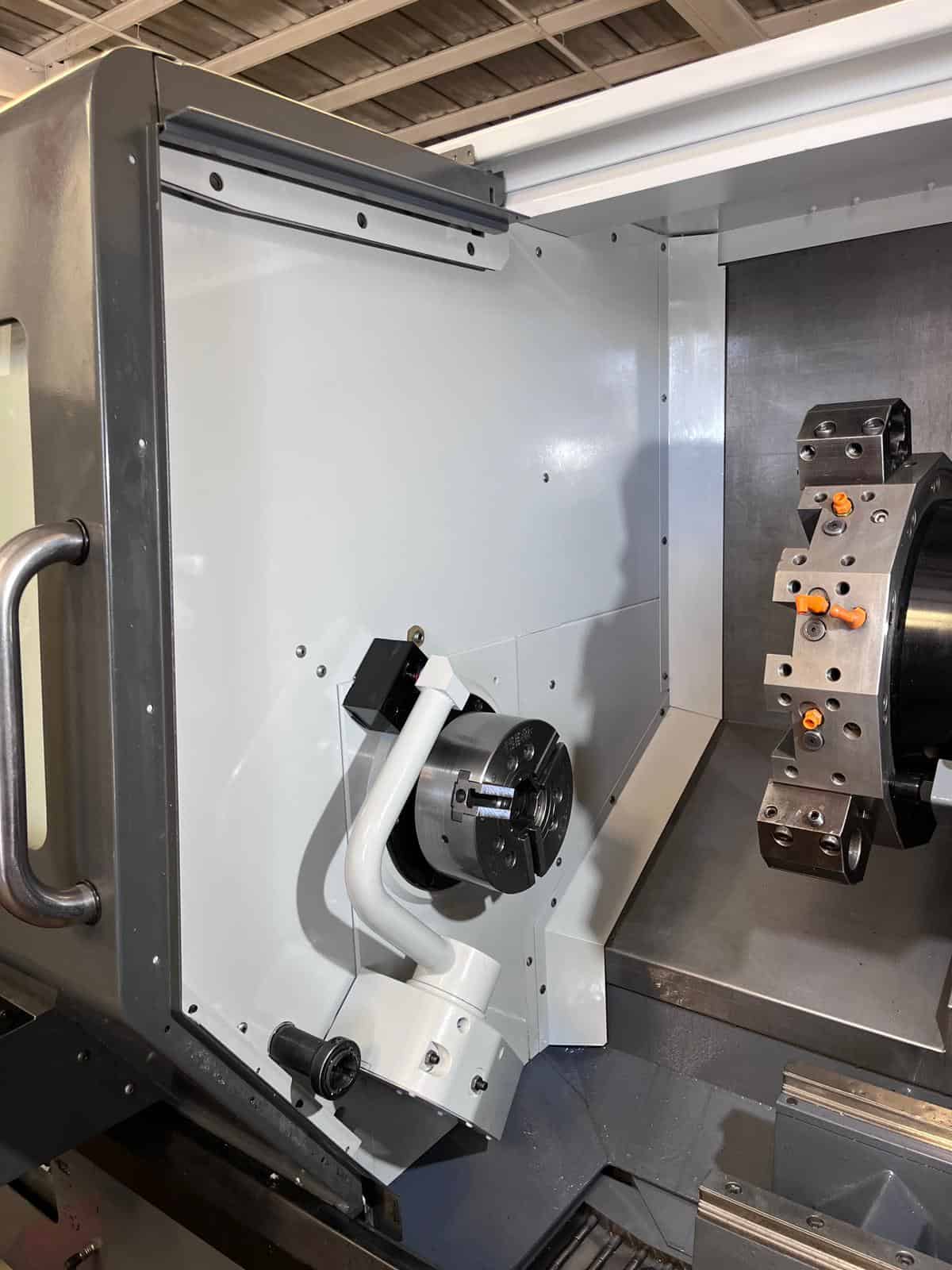

| Part Catcher (Upgraded $3,595 value Included) – Streamlines Part Handling |
| Visual Part Programming System & User-Definable Macro |
| Rigid Tapping |

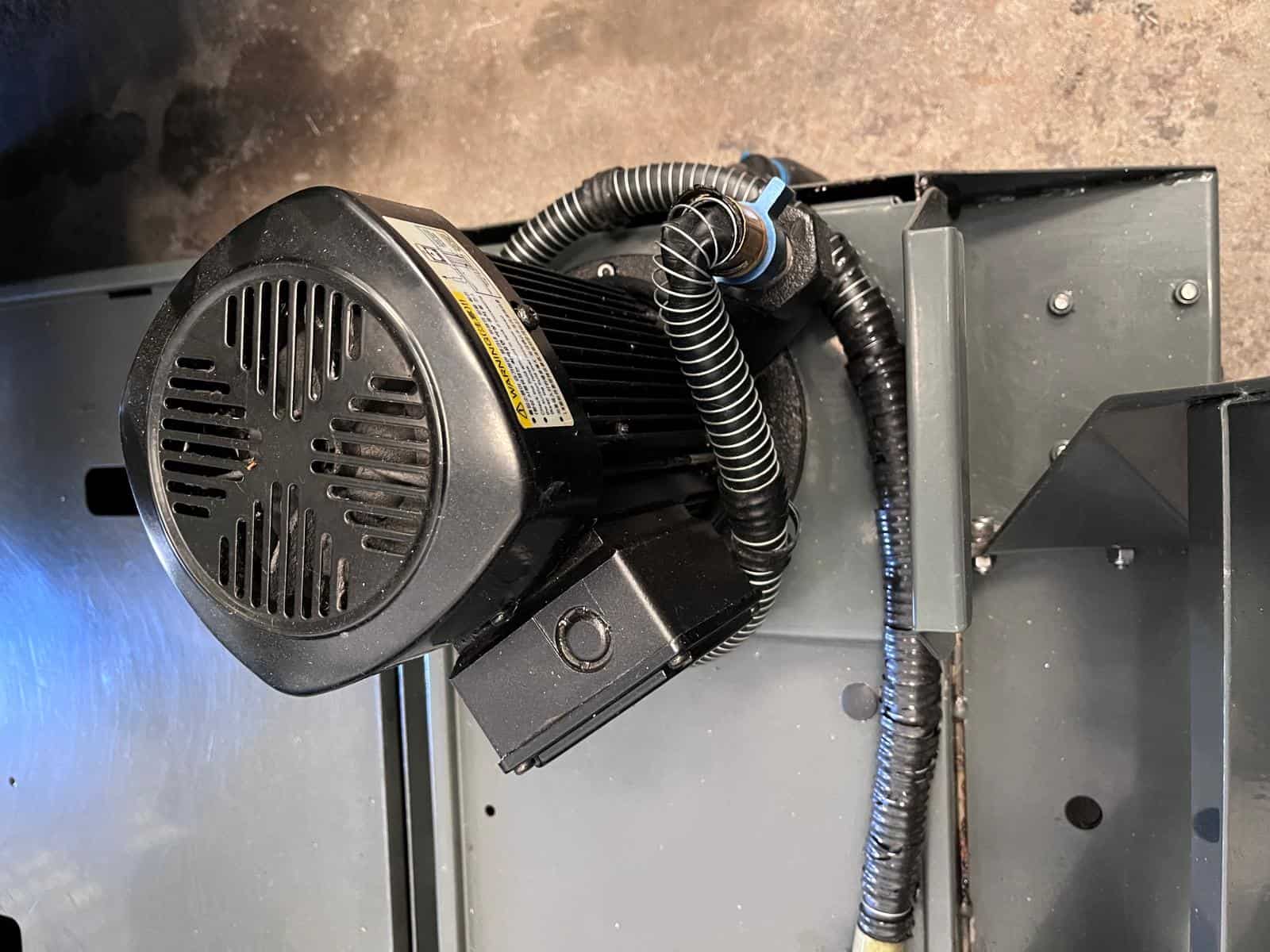

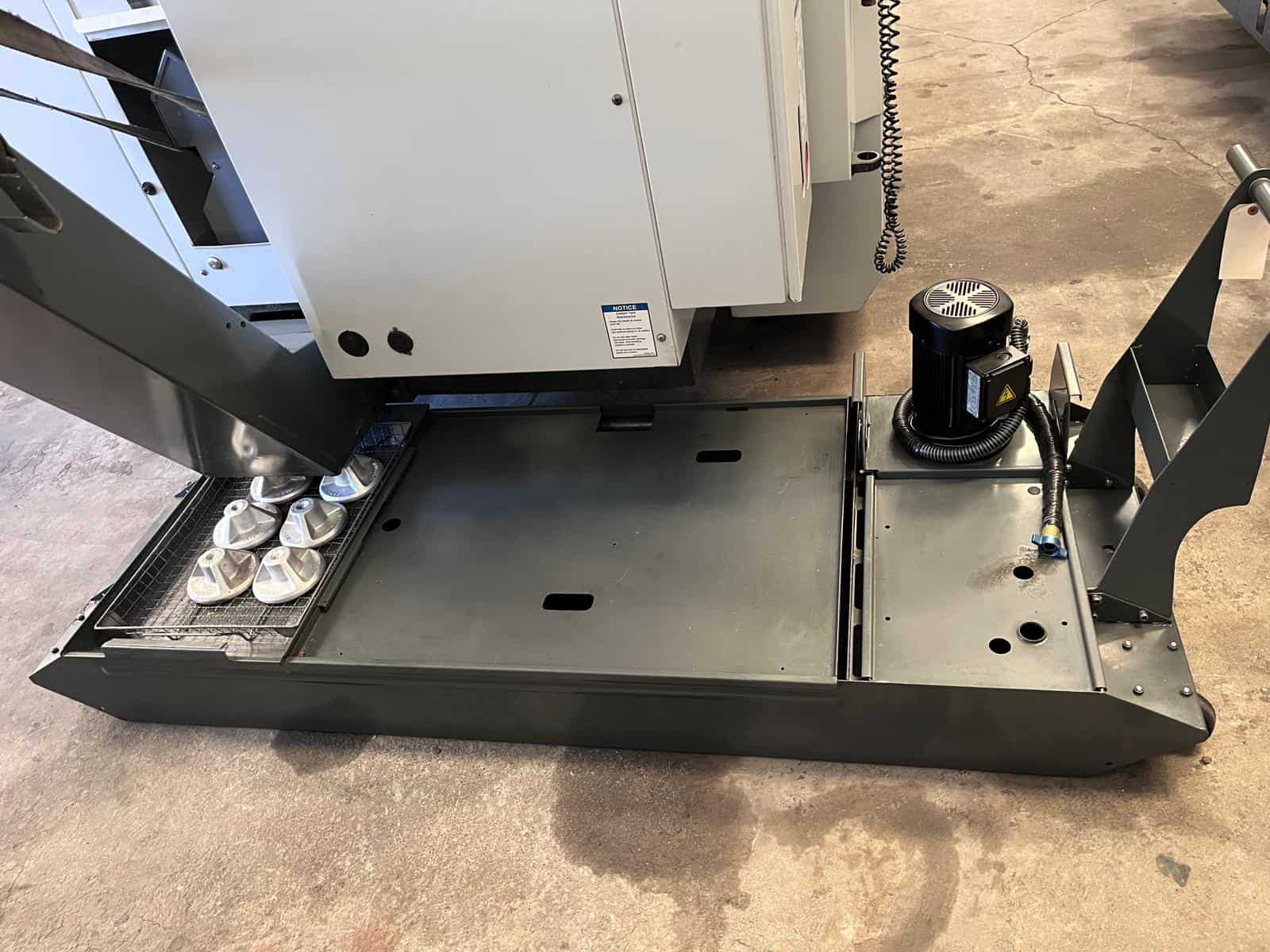

| Coolant Tank with Pump |
| Oil Skimmer (Upgraded $895 value Included) – Keeping Coolant Tank Free of Tramp Oils |
| Programmable Hydraulic Tailstock (Upgraded $8,195 value Included) – Excellent For Longer Parts |
| Bar Feeder Interface – Enabled |

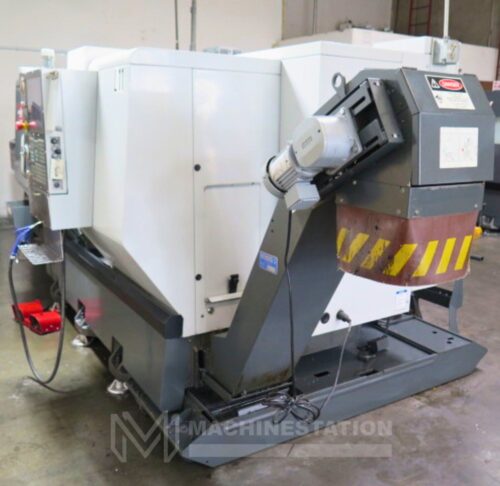

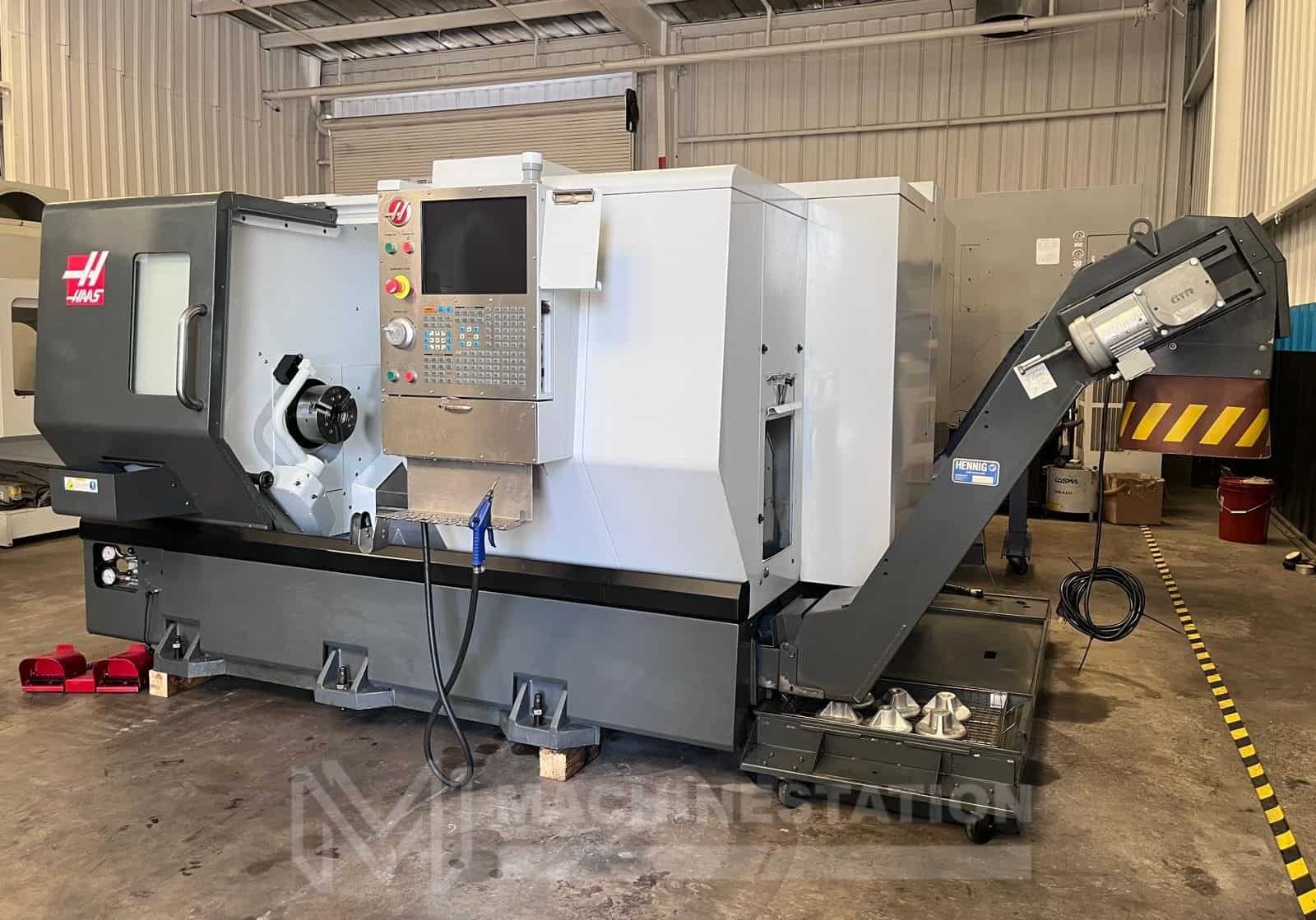

| Belt Type Chip Conveyor (Upgraded $5,895 value Included) – For Efficient Chip Removal |

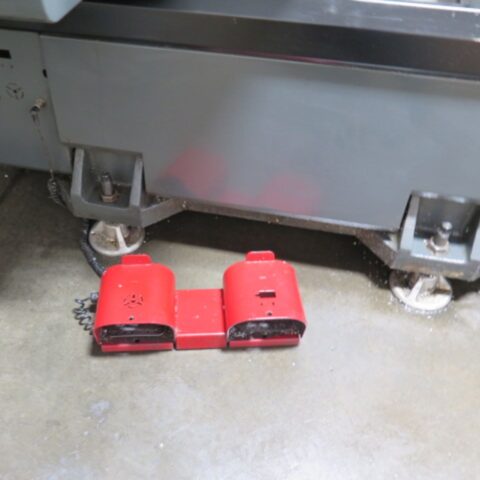

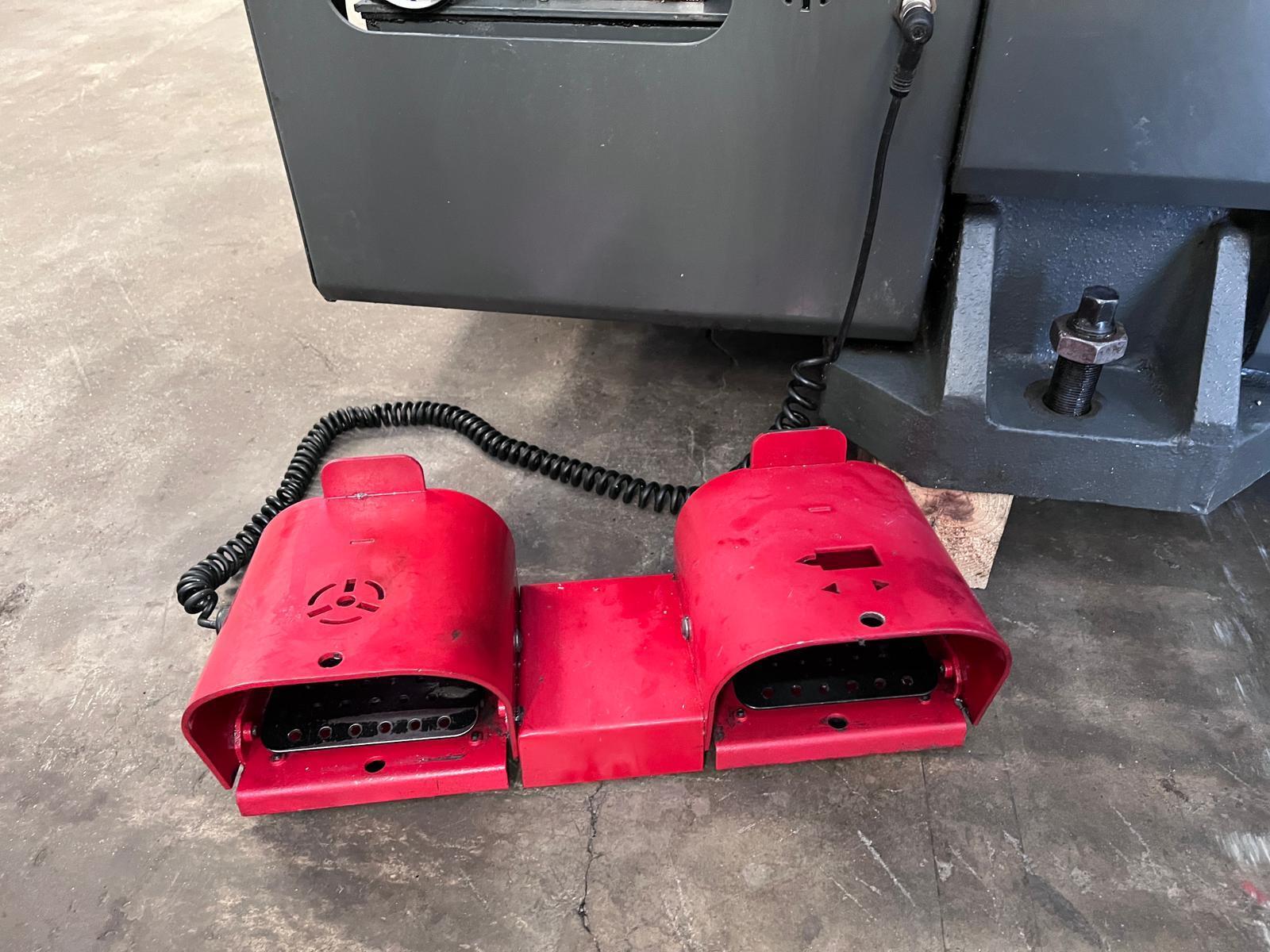

| Foot Switches |
| Levelling Pads |

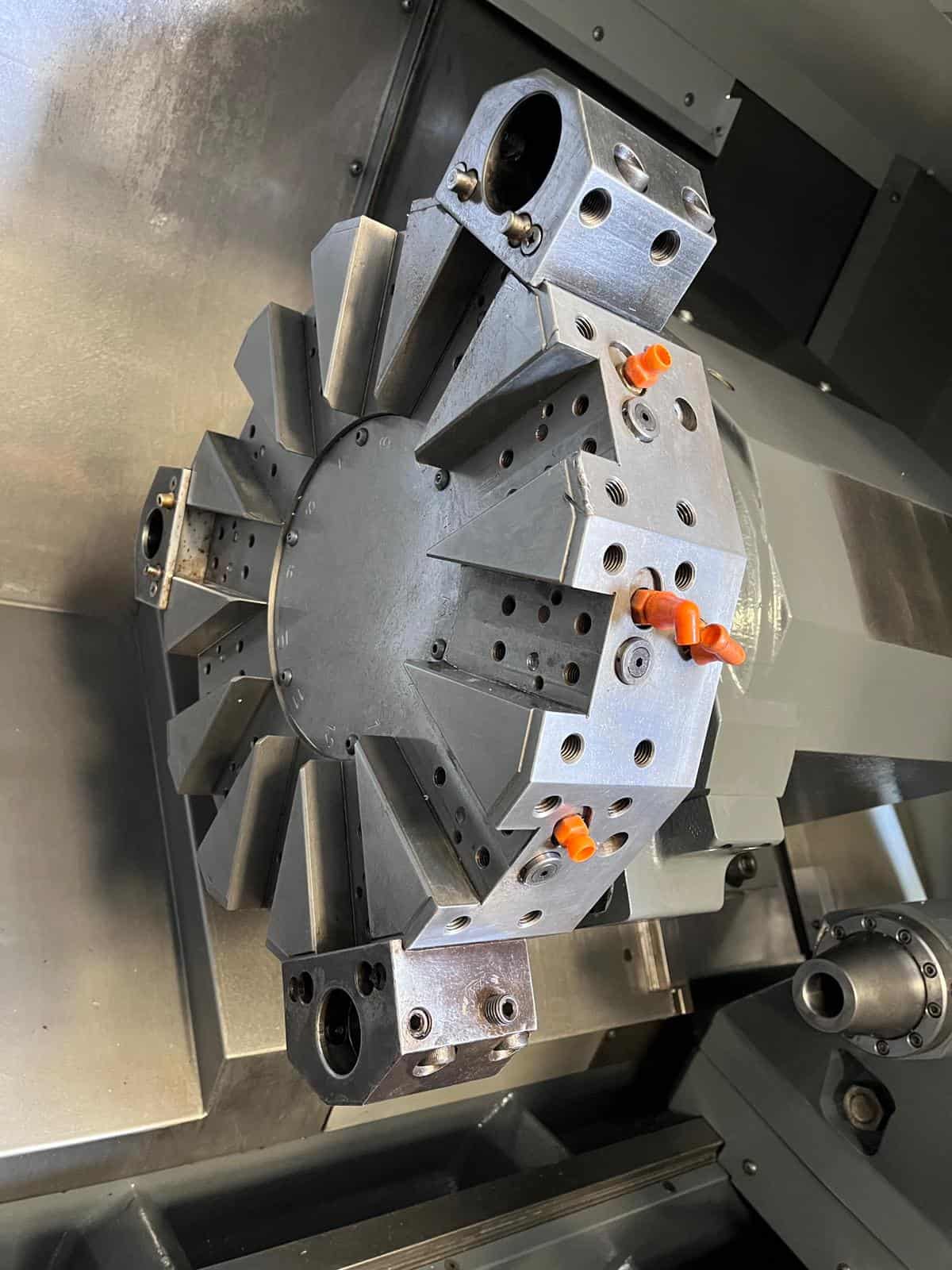

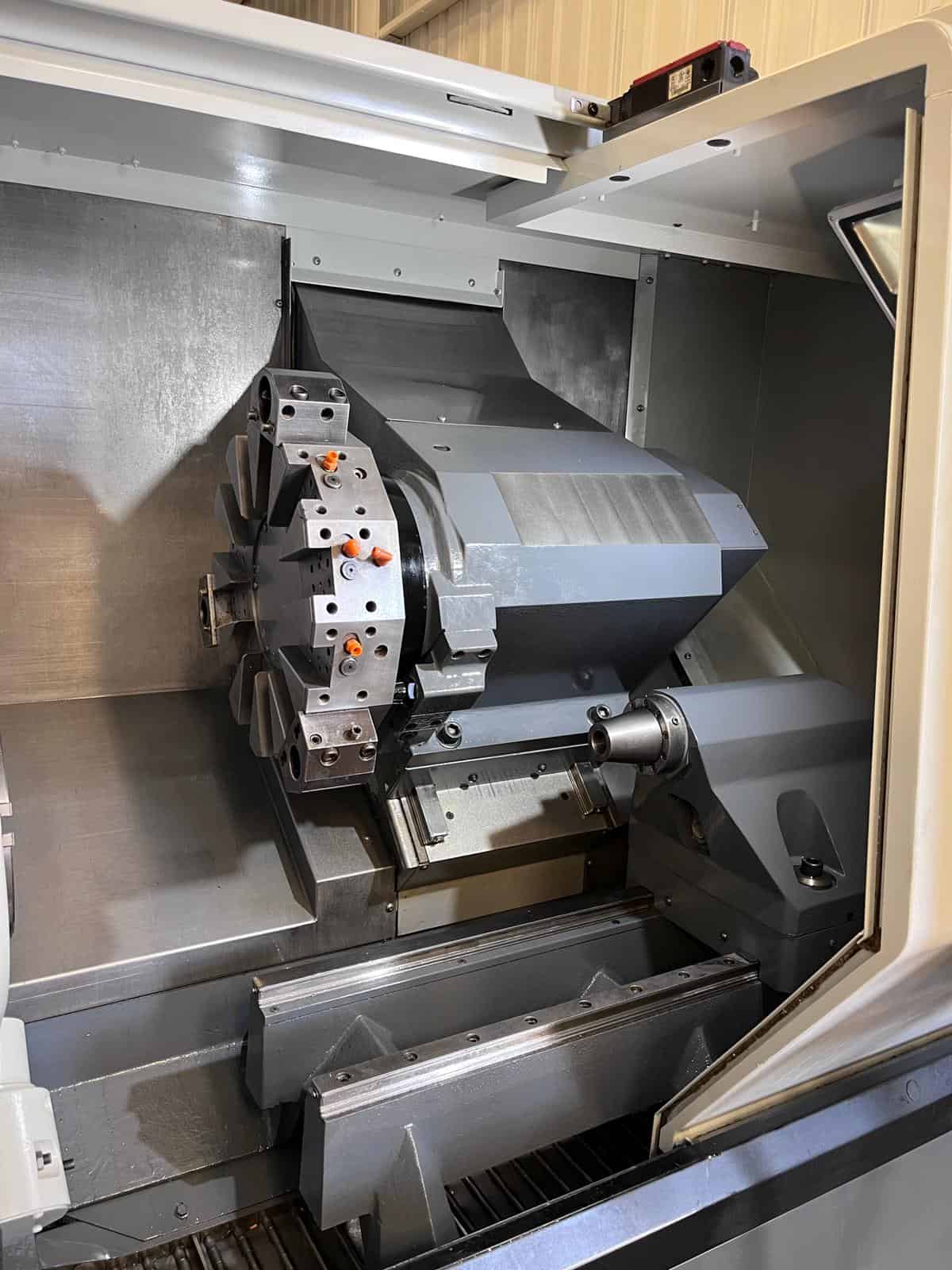

| (3) Boring Tool Holders are Mounted on Turret (As shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter : 13.0″ |
| Max Swing Over Bed : 21.0″ |
| Max Turning Length: 22.5″ |
| Max Bar Capacity : 2.50″ |
| Travels: |
|---|
| X Axis Travel : 8.4″ |
| Z1 Axis Travel : 22.5″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 945 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 3.5″ |
| Spindle Speed: 4000 RPM |
| Spindle Motor: 20 HP |

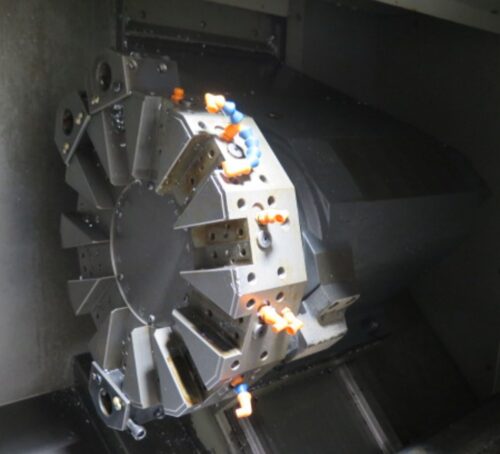

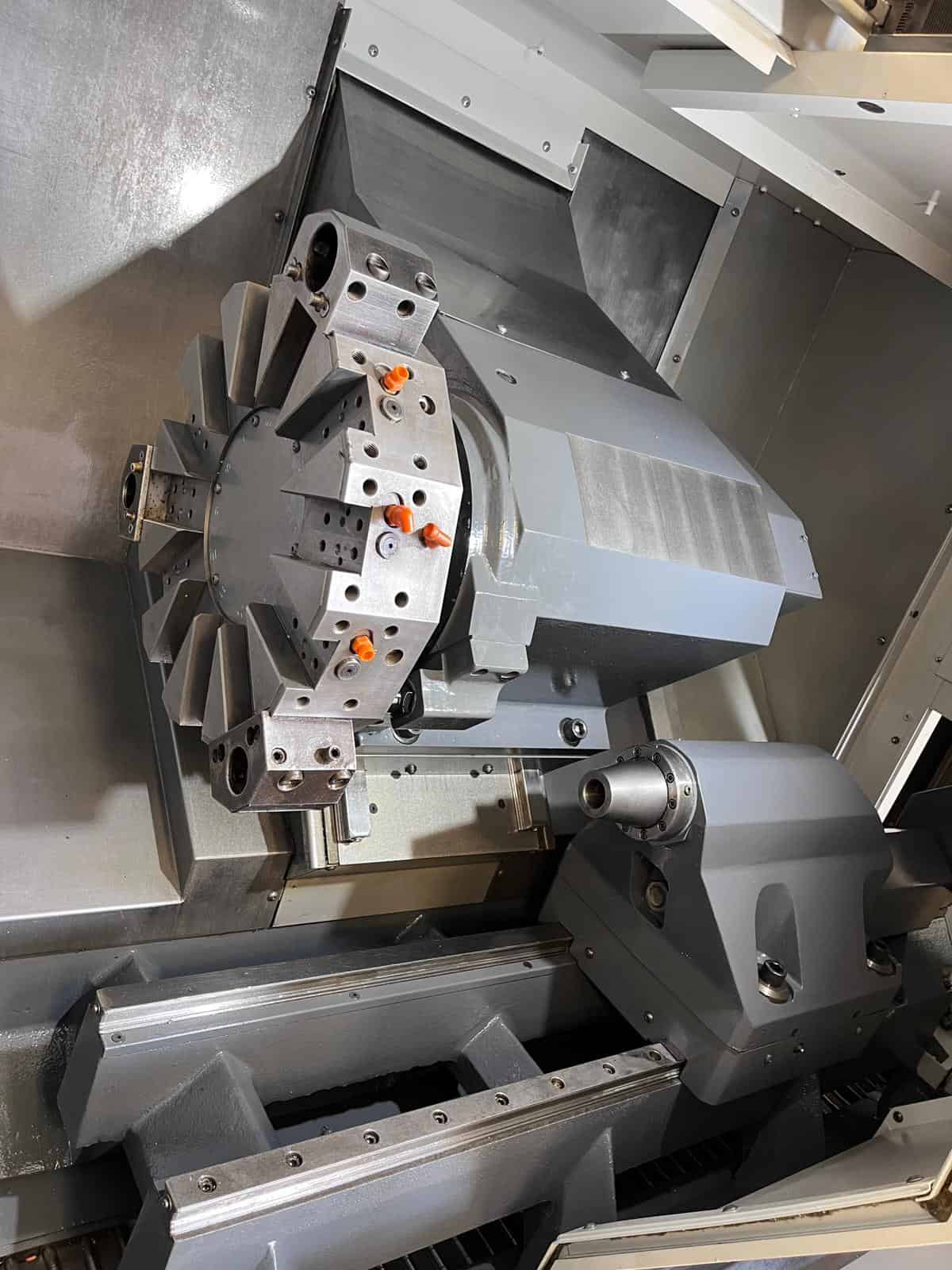

| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 1 Second |
| Turret Holders Type: BMT |
| Tailstock: |
|---|
| Tailstock Taper: MT-4 |
| Tailstock Quill Dia.: 2.6″ |
| Tailstock Quill Travel: 3.1″ |
| General: |
|---|
| Air Requirement: 4 scfm @ 100 psi |

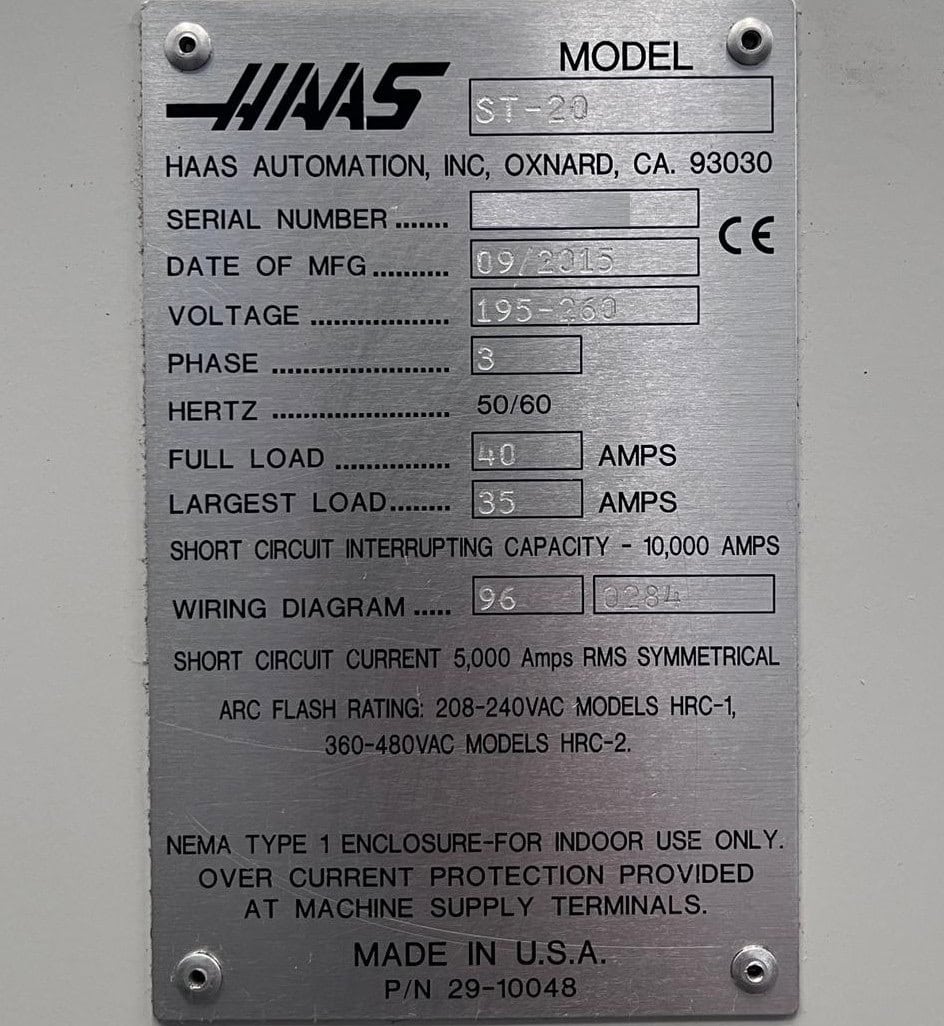

| Power Source: AC 220v / 3-Phase / 60 Hz |
| Machine Dimensions: 142.5″ x 90″ x 92″ High |
| Machine Weight: 8820 lbs Approx. |
