*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

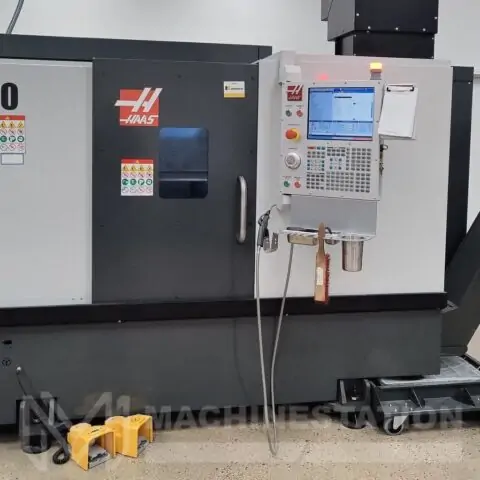

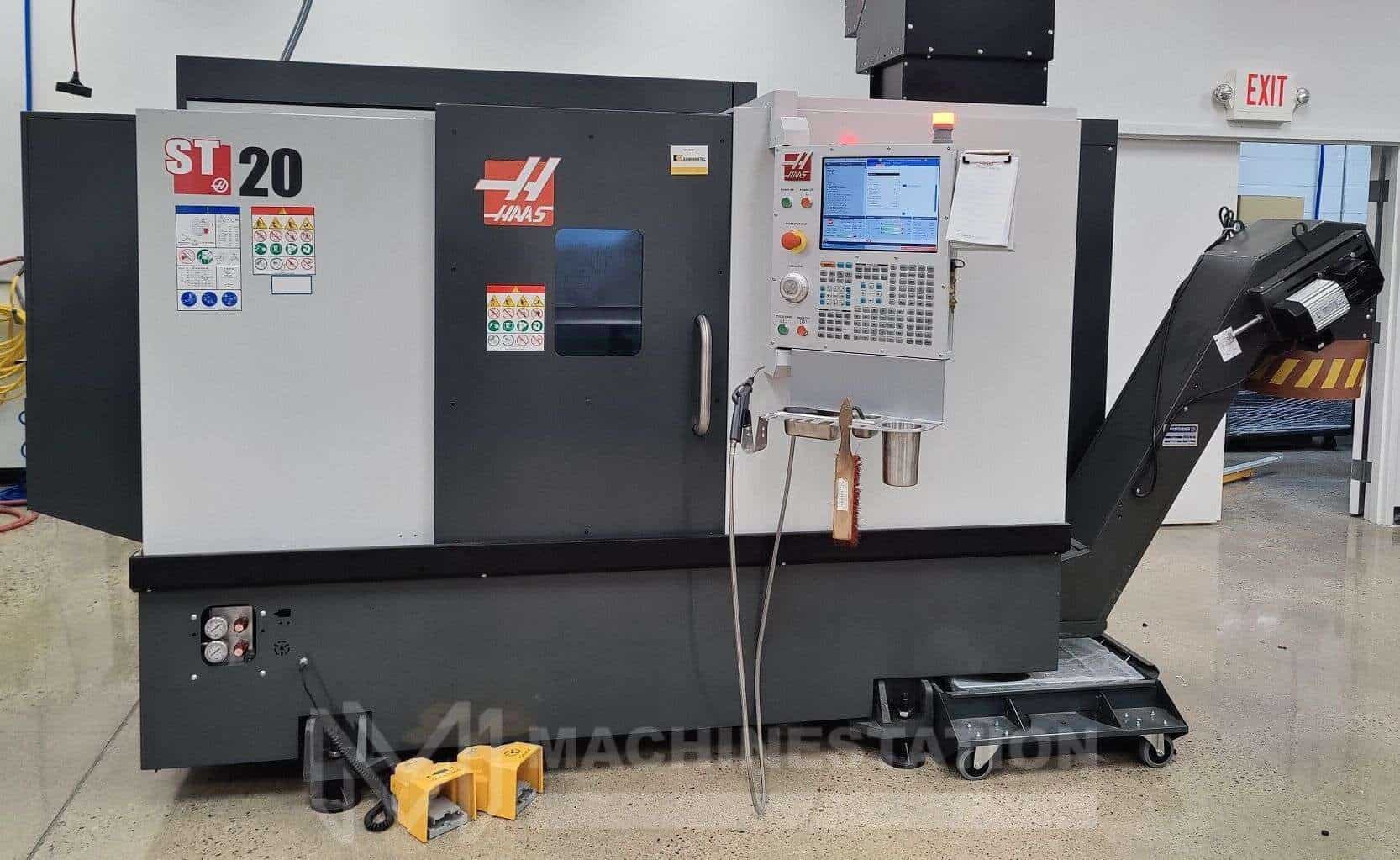

| Make: | Haas |
| Model: | ST-20 |
| Year: | 2021 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

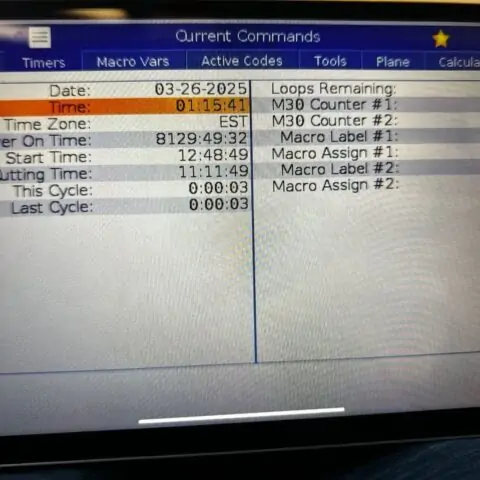

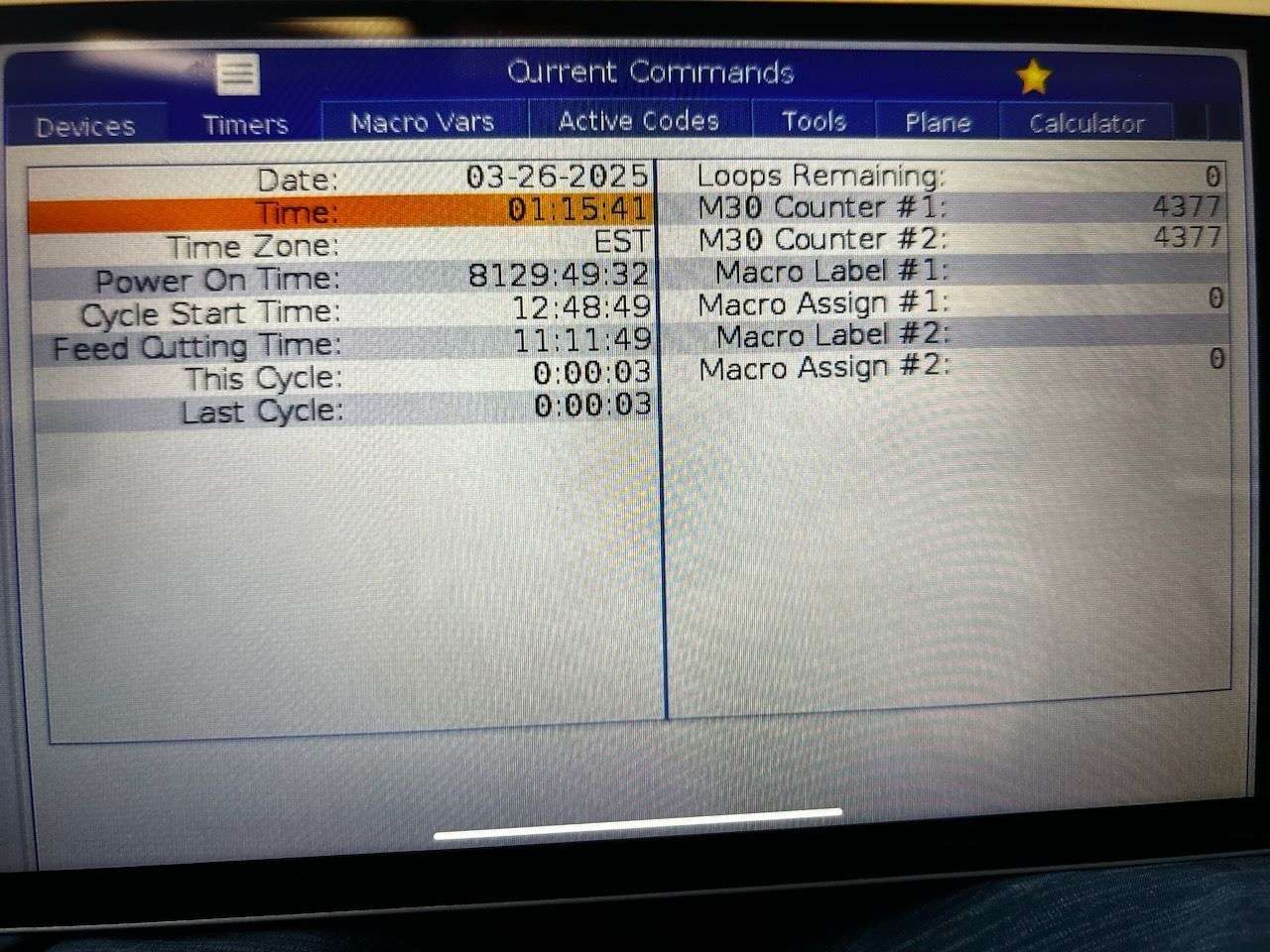

| Haas CNC Control |
| 8” 3-Jaw Hydraulic Chuck |
| A2-6 Spindle Nose |

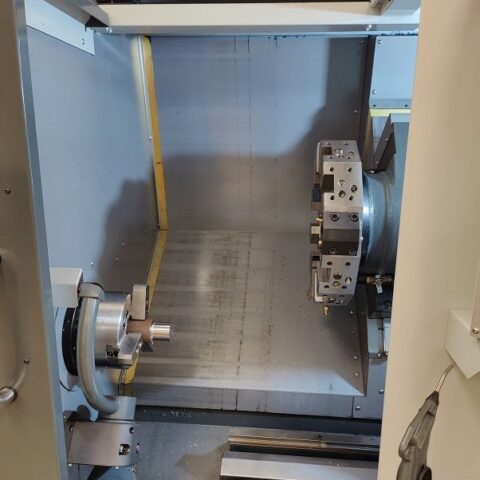

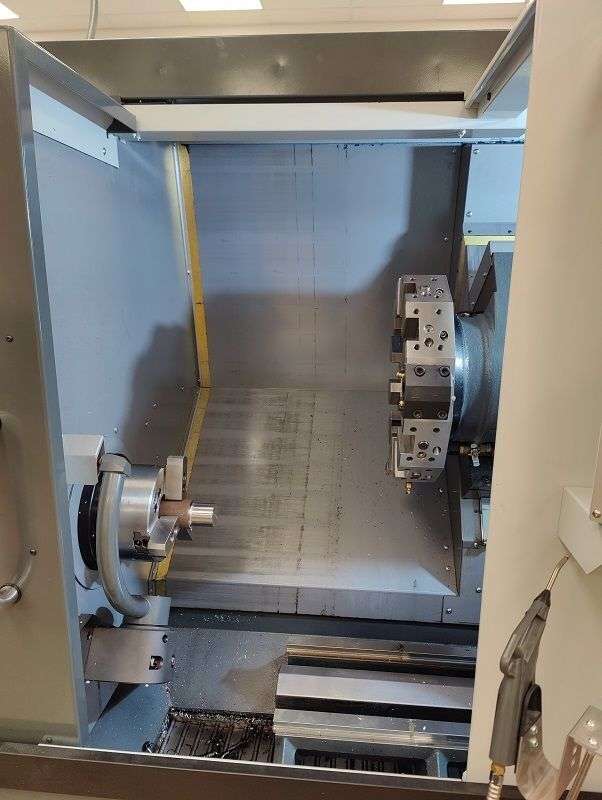

| 12 Station Automatic Turret |
| Tool Presetter (Upgraded $5,595 value Included) |
| Visual Part Programming System & User-Definable Macro |
| Rigid Tapping |
| 55 Gallon Coolant Tank with Pump |
| High-Pressure Coolant |
| Programmable Tailstock (Upgraded $7,795 value Included) |
| Belt Type Chip Conveyor (Upgraded $5,595 value Included) |
| Chip Conveyor (Upgraded $5,595 value Included) |
| Foot Switches |
| Capacity: |
|---|
| Max Turning Diameter : 13.0″ |
| Max Swing Over Bed : 21.0″ |
| Max Turning Length: 22.5″ |
| Max Bar Capacity : 2.50″ |
| Travels: |
|---|
| X Axis Travel : 8.4″ |
| Z1 Axis Travel : 22.5″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 945 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 3.5″ |
| Spindle Speed: 4000 RPM |
| Spindle Motor: 20 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 1 Second |
| Turret Holders Type: BMT |

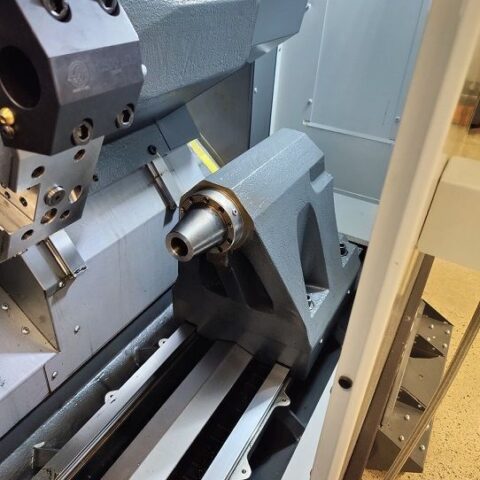

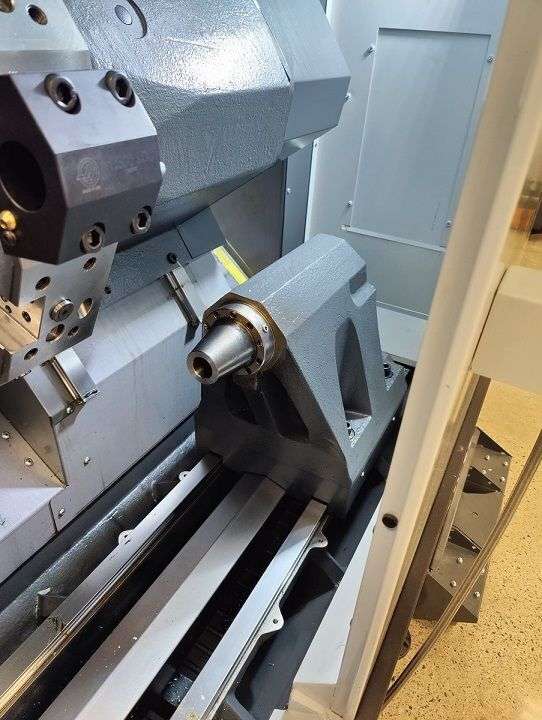

| Tailstock: |
|---|
| Tailstock Taper: MT-4 |
| Tailstock Quill Dia.: 2.6″ |
| Tailstock Quill Travel: 3.1″ |
| General: |
|---|
| Air Requirement: 4 scfm @ 100 psi |
| Power Source: AC 220v / 3-Phase / 60 Hz |
| Machine Dimensions: 142.5″ x 90″ x 92″ High |
| Machine Weight: 8820 lbs Approx. |
