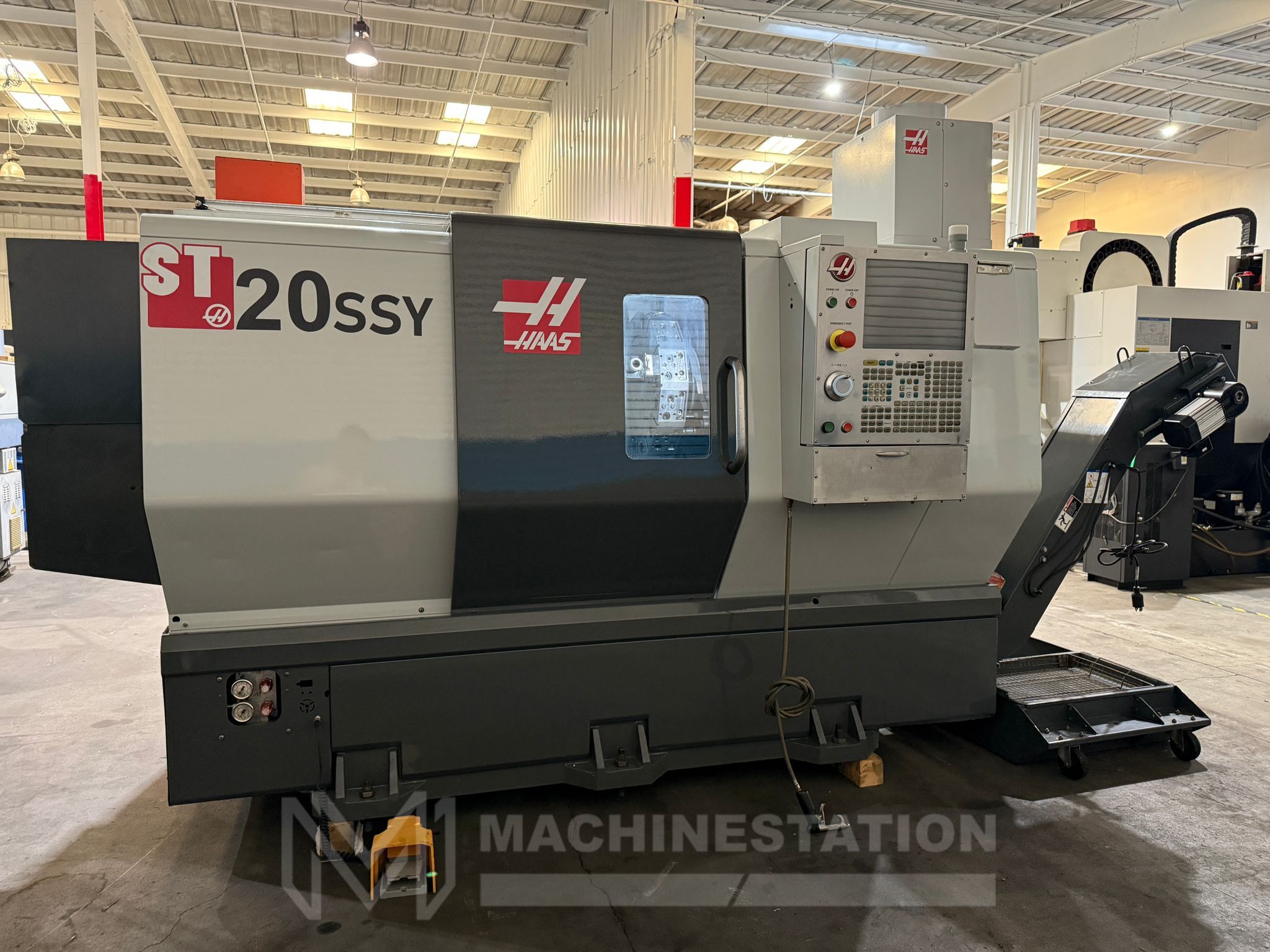

| Make: | Haas |
| Model: | ST20SSY |
| Year: | 2017 |
| Equipped With: |
|---|

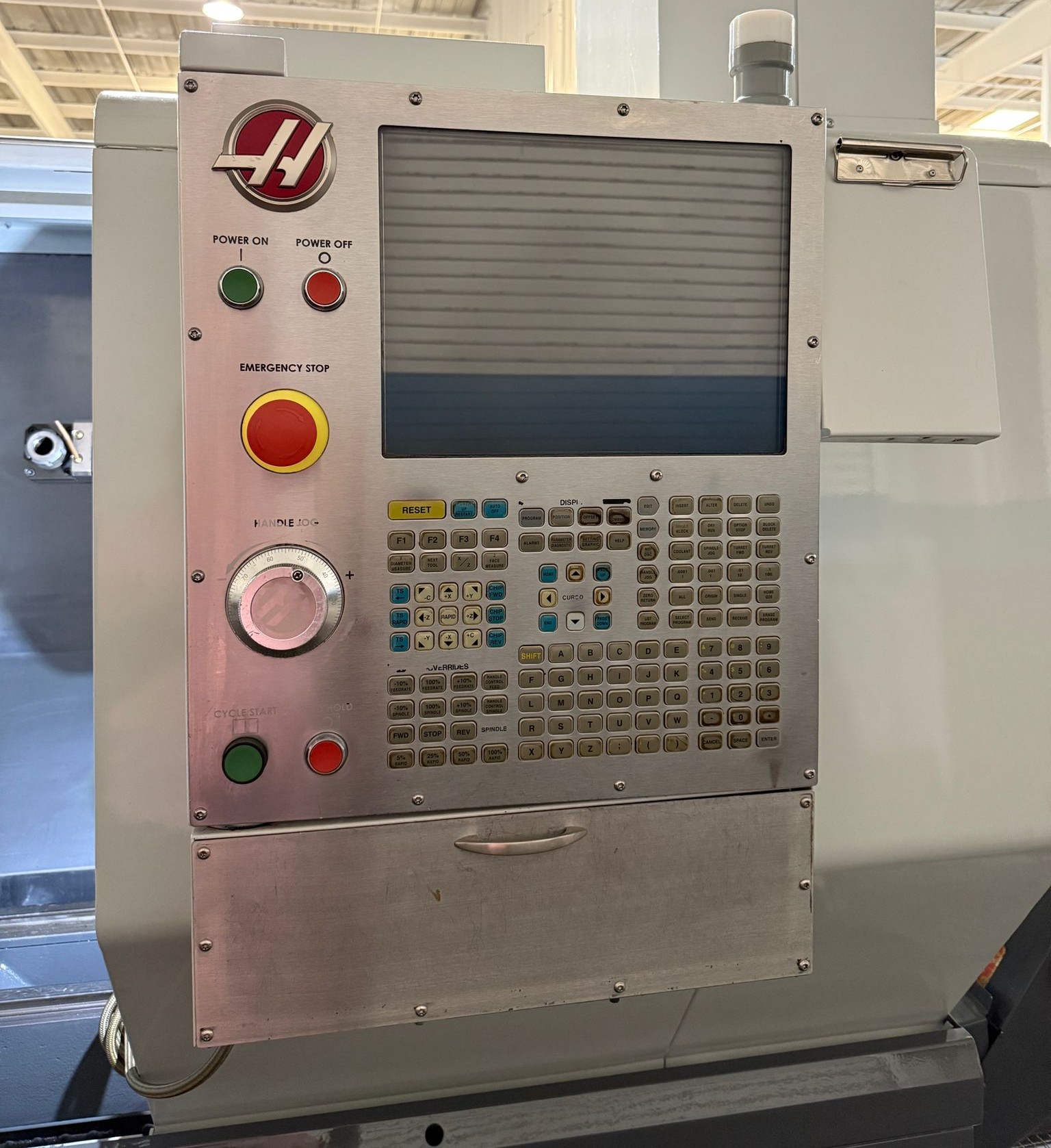

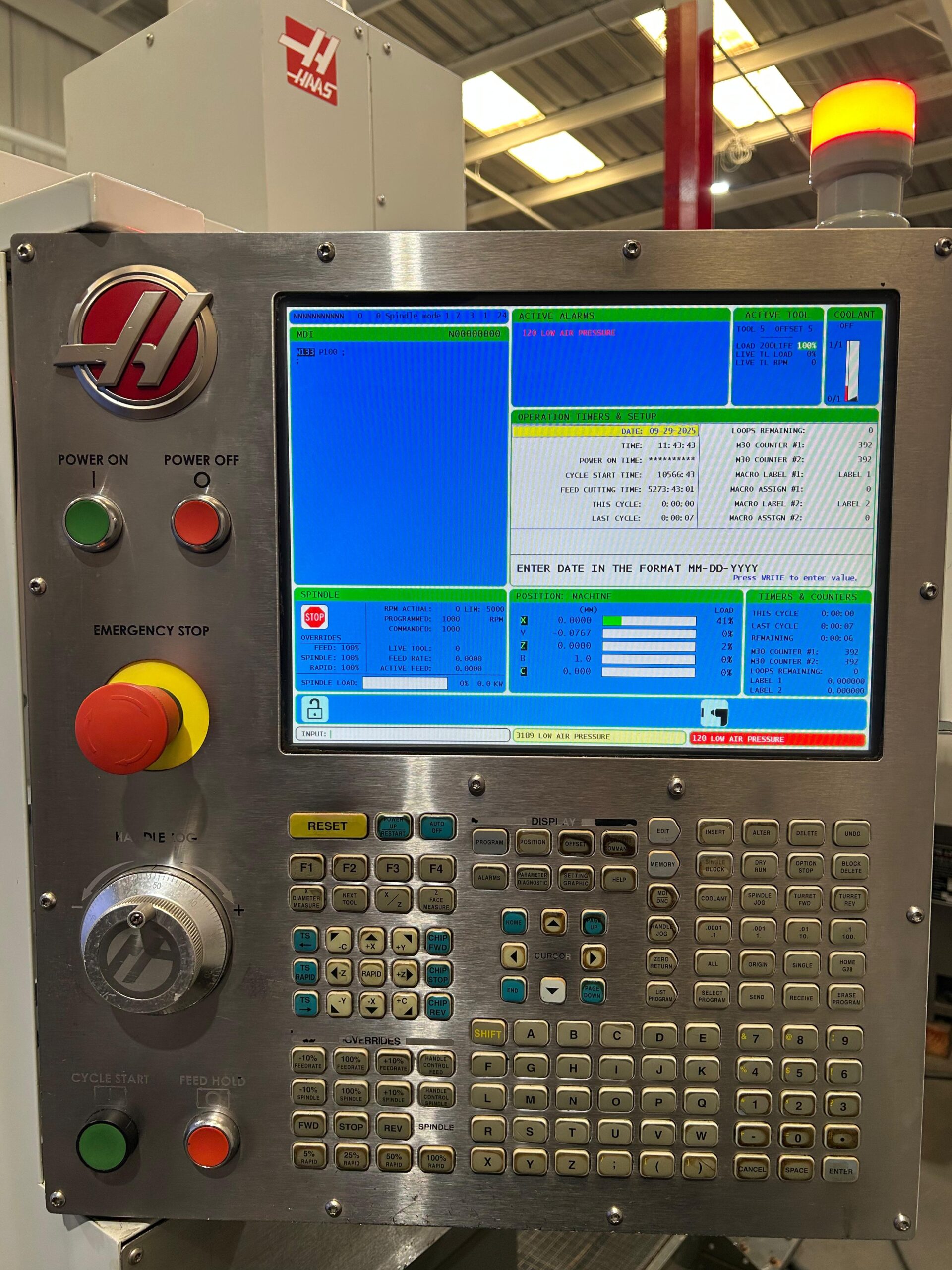

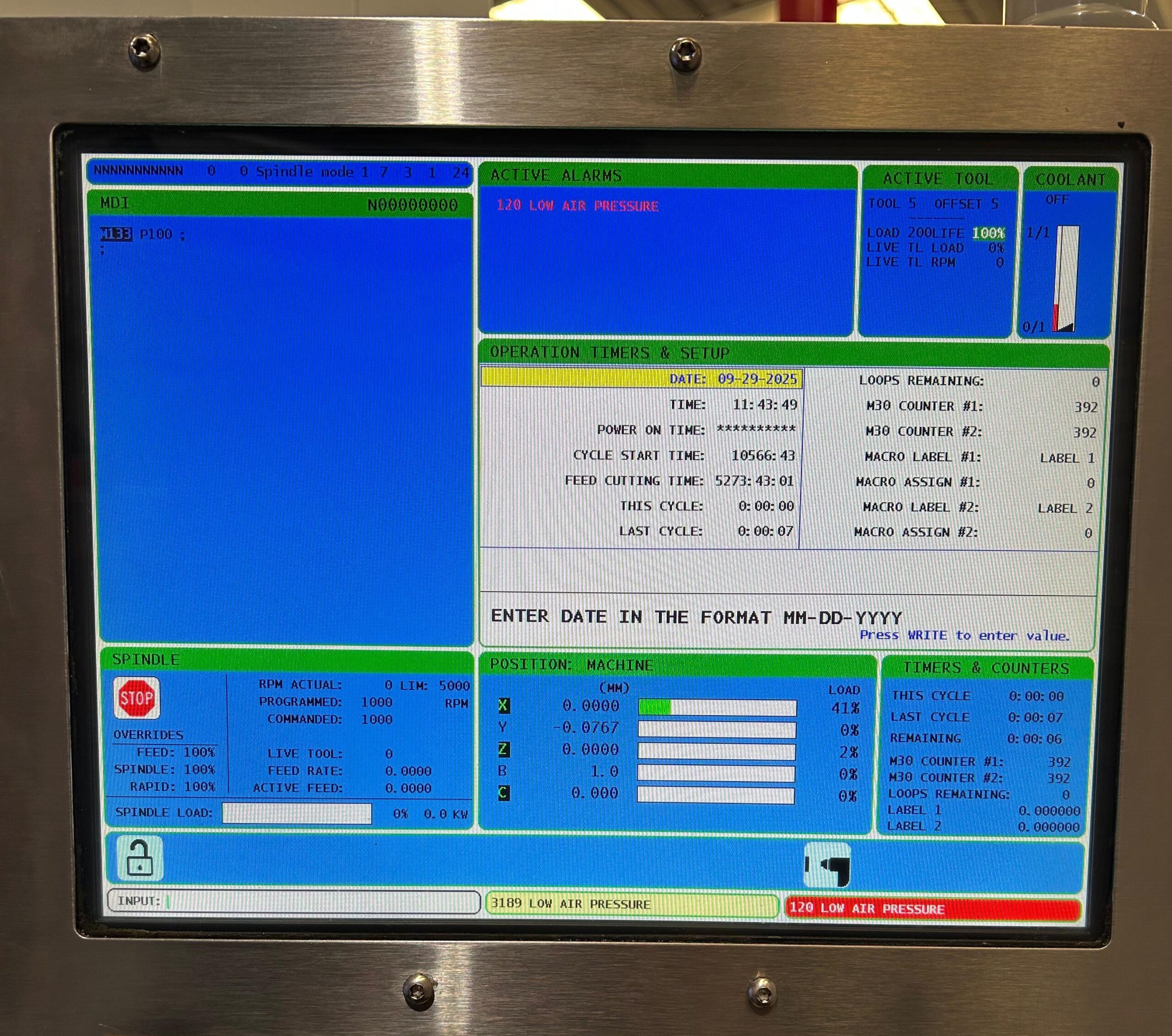

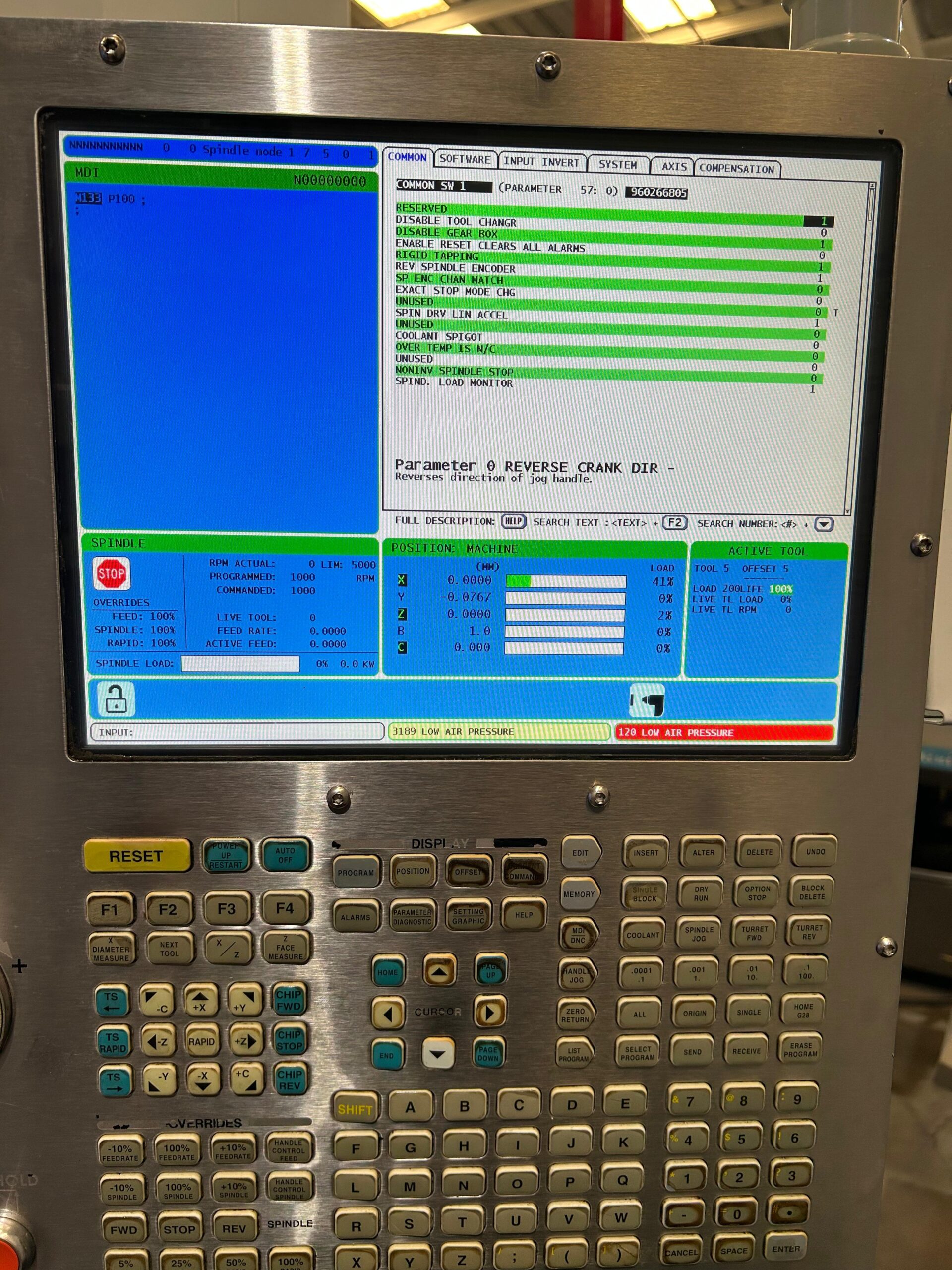

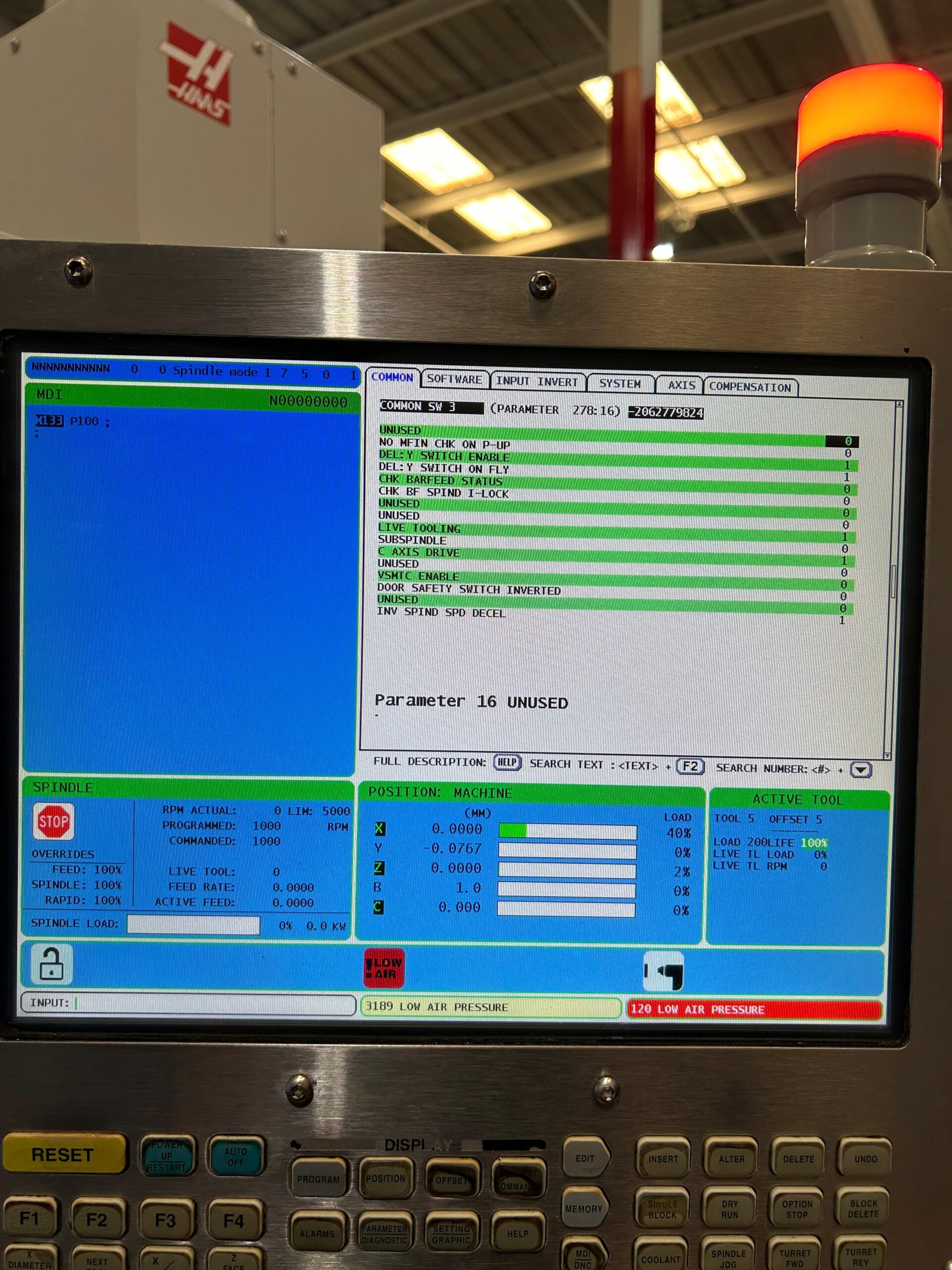

| Haas CNC Control |

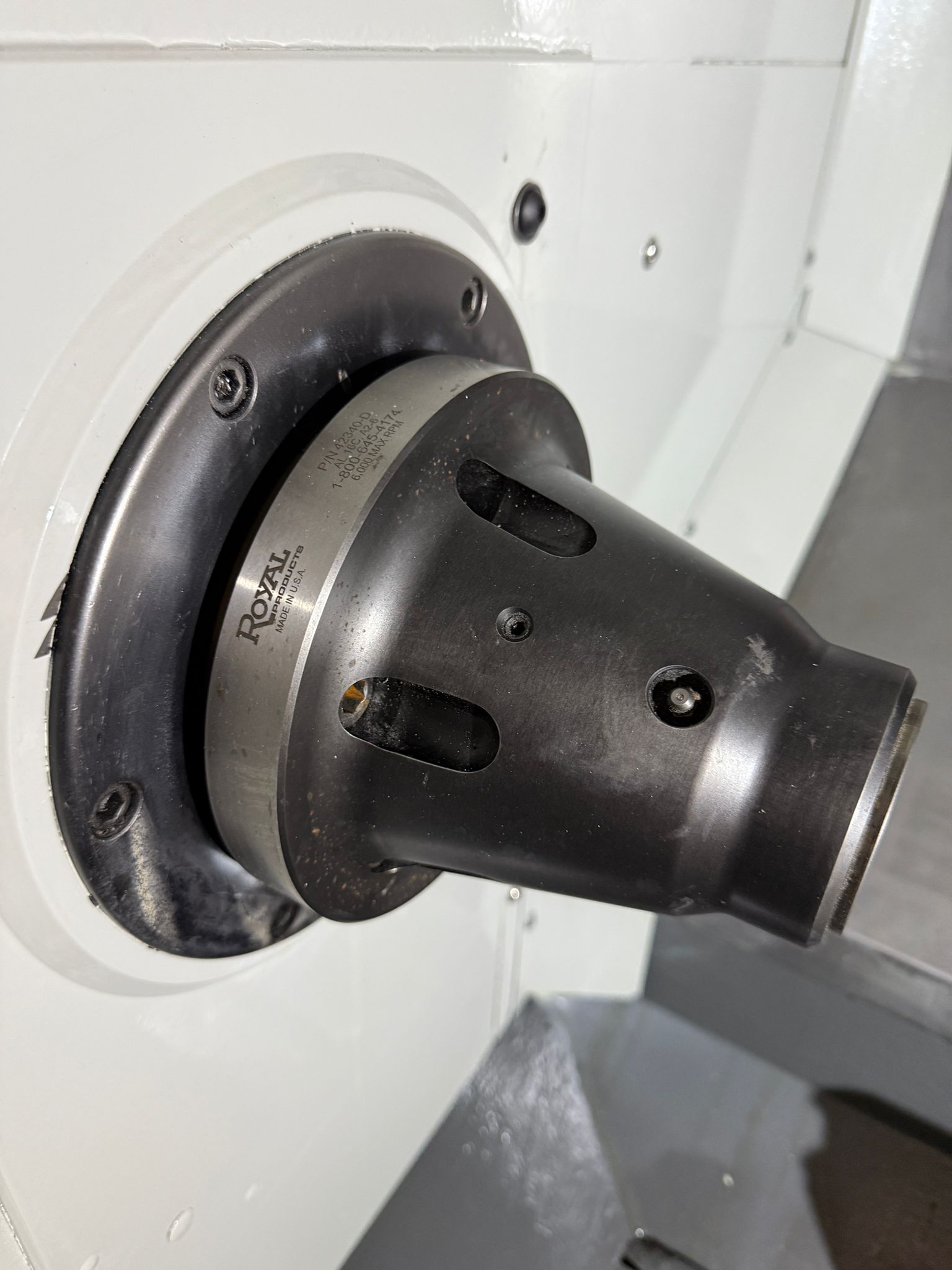

| Royal AL 16C A2-6 Collet Nose (Capable 8” Chuck) |
| 12 Station Live Tool Turret – 24 Positions (Upgraded $5,895 value Included) |
| Y Axis On Turret |
| C Axis On Spindle |
| Quick Code Programming |
| DNC Enabled |
| Visual Part Programming System & User-Definable Macro |
| Rigid Tapping |
| Spindle Orientation |
| Coolant System |
| Programmable Hydraulic Tailstock (Upgraded $8,195 value Included) – Excellent For Longer Parts |
| Enclosure Exhaust System – (Upgraded $2,195 value Included) |

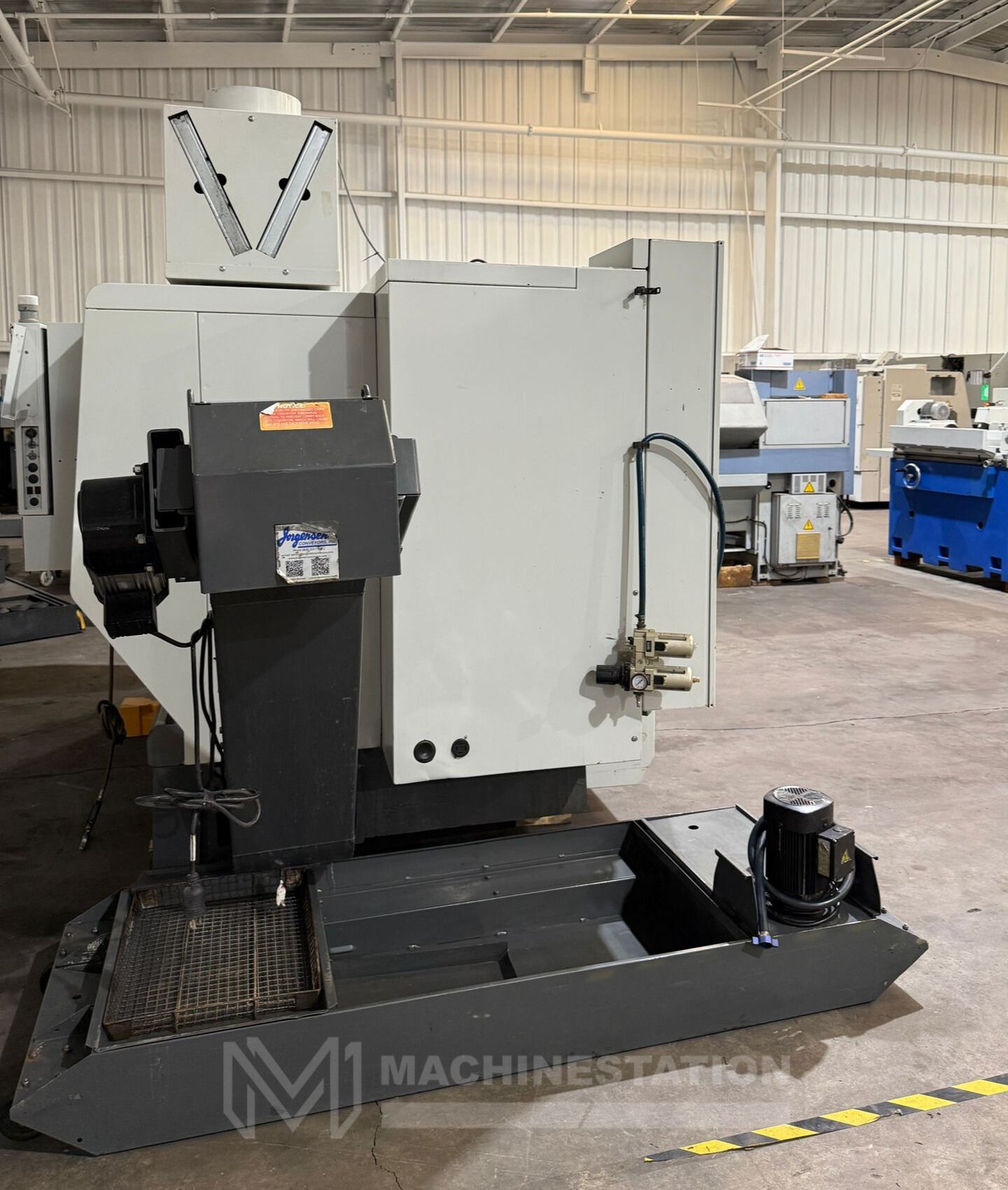

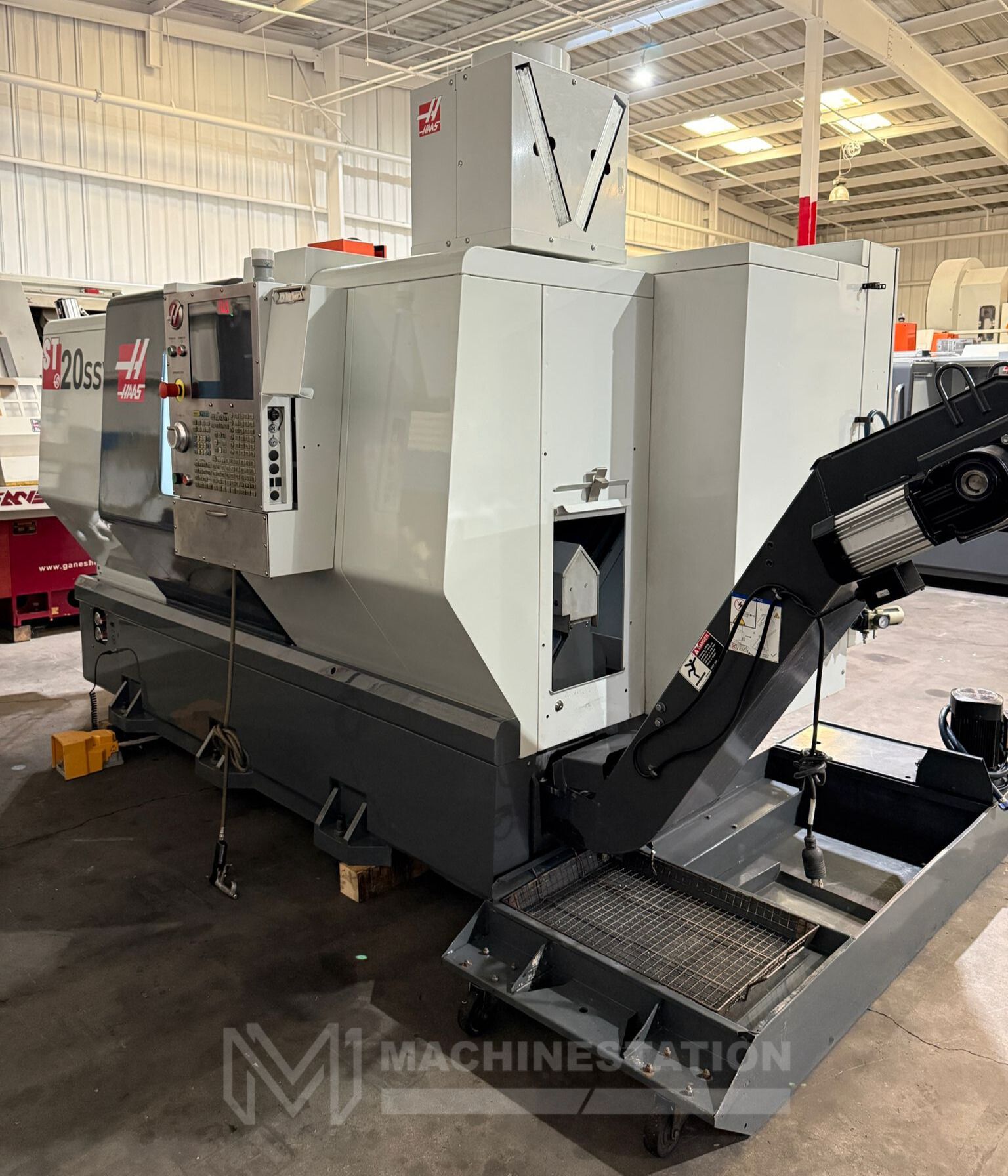

| Belt Type Chip Conveyor (Upgraded $5,895 value Included) – For Efficient Chip Removal |

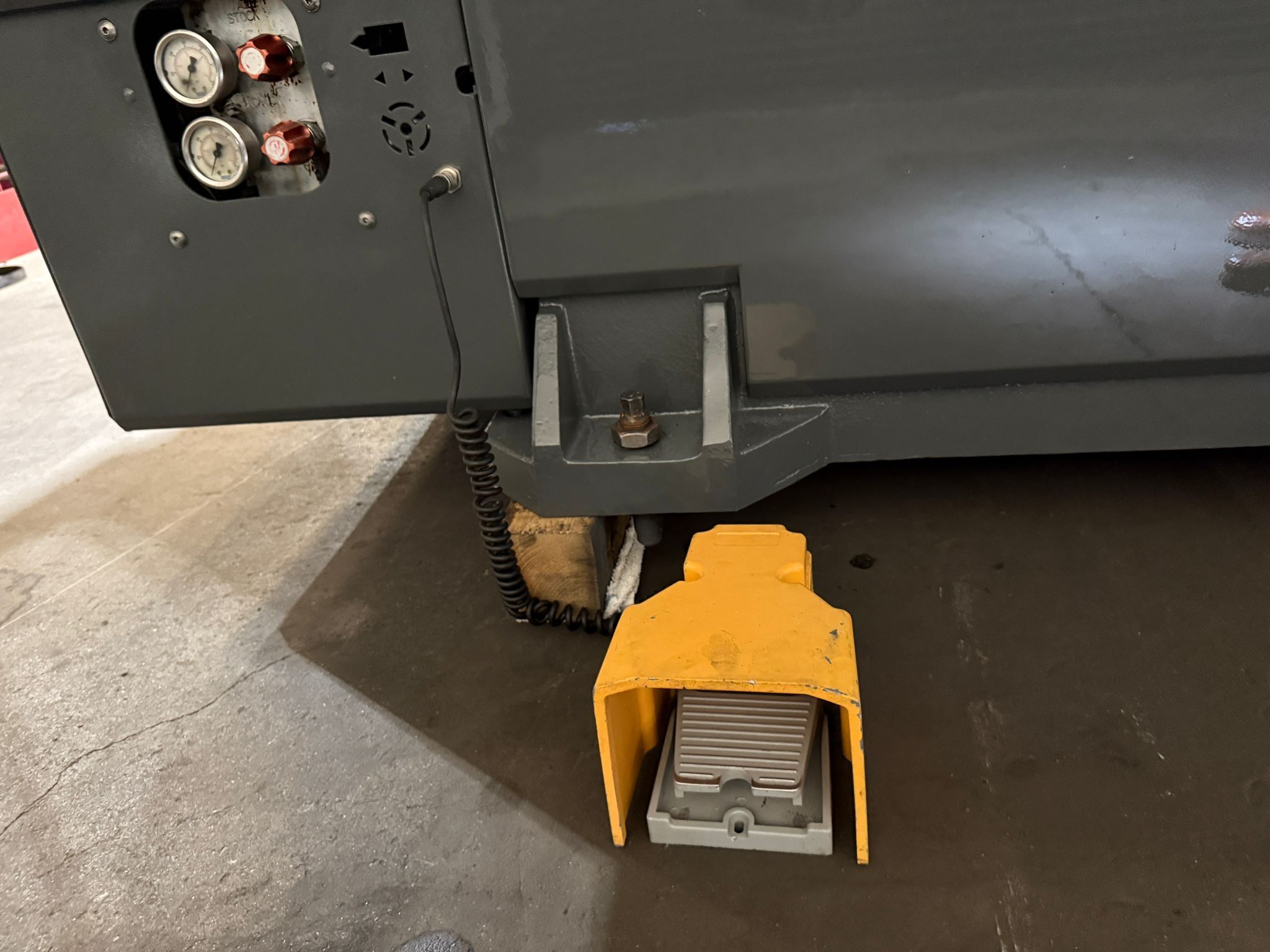

| Foot Switch |

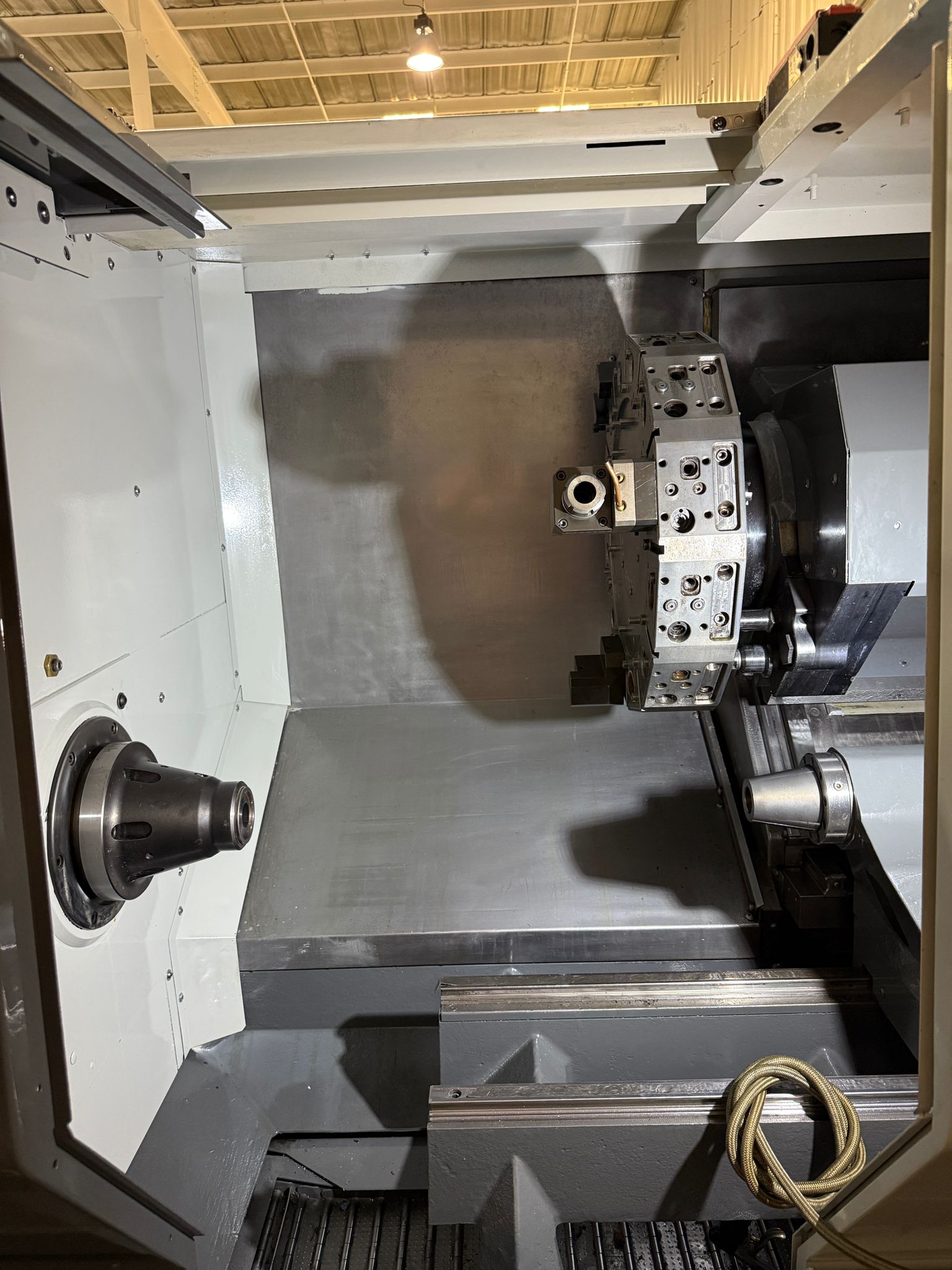

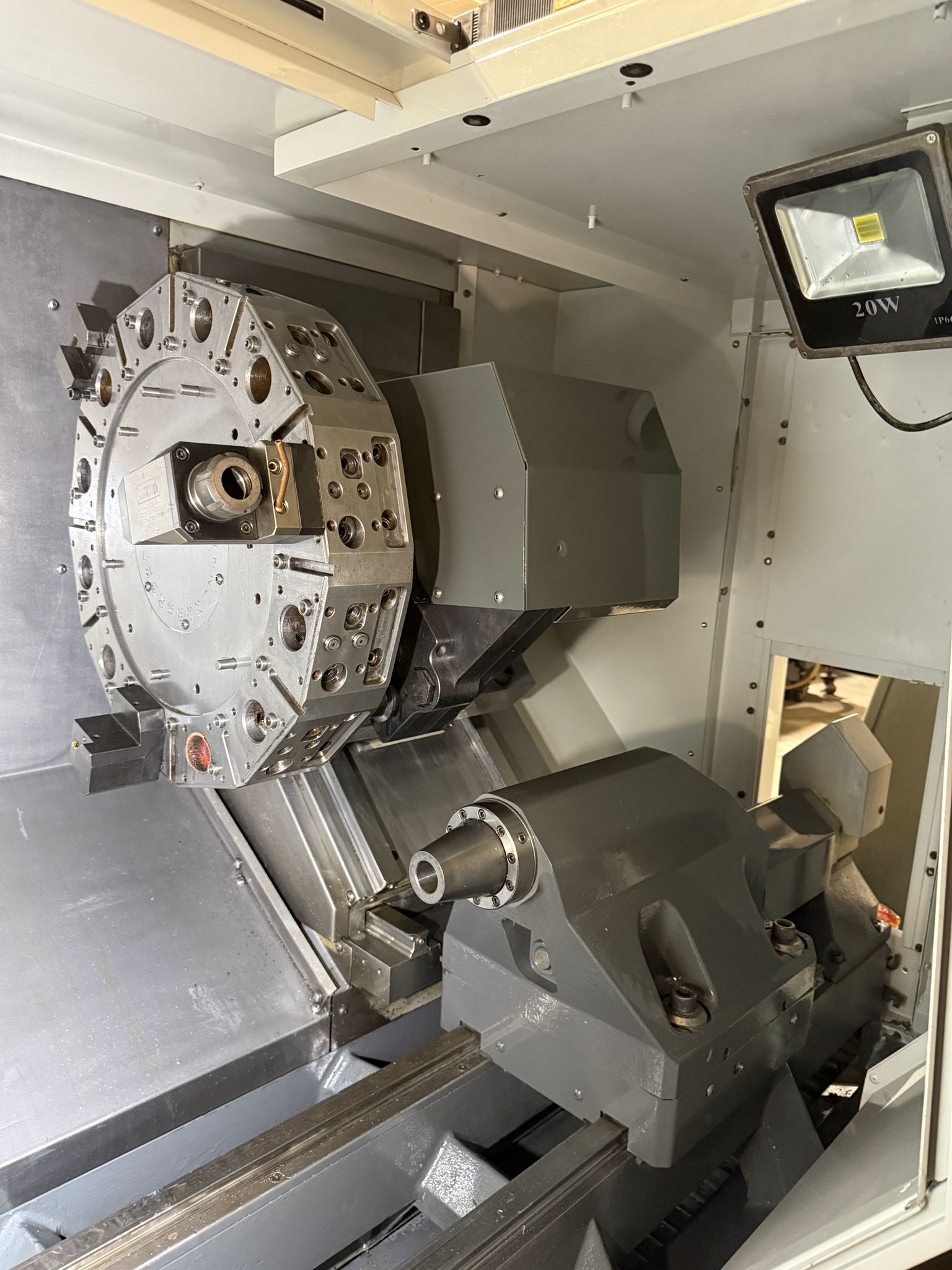

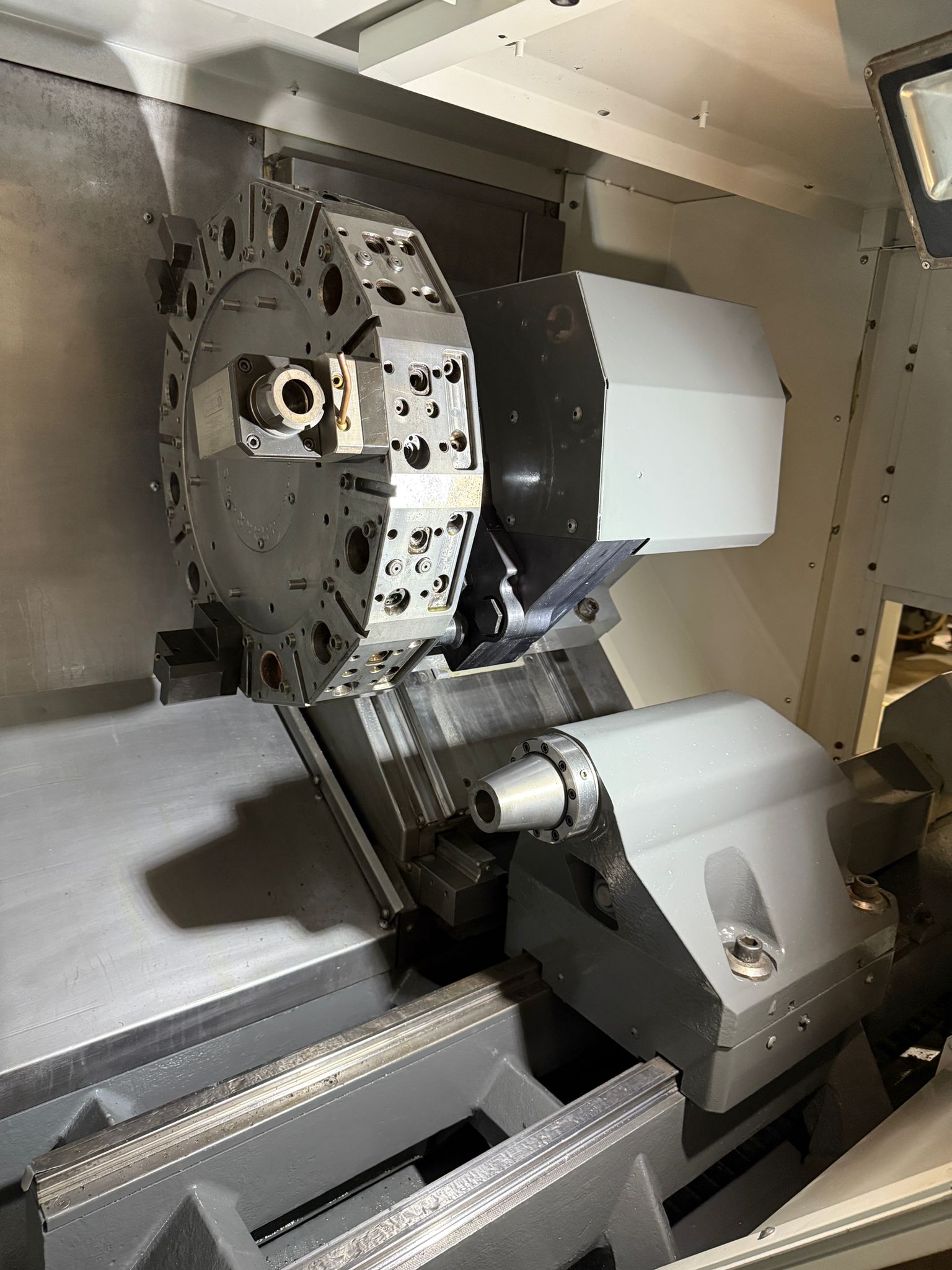

| (1) Live Tool Holder, (2) Statics Tool Holders are Mounted on Turret (As shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter : 11.75″ |
| Max Swing Over Bed : 21.0″ |
| Max Turning Length: 22.5″ |
| Max Bar Capacity : 2.50″ |
| Travels: |
|---|
| X Axis Travel : 8.4″ |
| Y Axis Travel : ± 2.0″ |
| Z Axis Travel : 22.5″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 472 IPM |
| Rapid Traverse Y Axis: 472 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 3.5″ |
| Spindle Speed: 5000 RPM ? |
| Spindle Motor: 30 HP ? |
| Turret: |
|---|
| Turret Capacity: 12 Stations – 24 Positions |
| Turret Holders Type: BMT |
| Live Tool Speed: 4000 RPM |
| Tailstock: |
|---|
| Tailstock Taper: MT-4 |
| Tailstock Quill Dia.: 2.6″ |
| Tailstock Quill Travel: 3.1″ |
| General: |
|---|
| Air Requirement: 4 scfm @ 100 psi |
| Power Source: AC 220v / 3-Phase / 60 Hz |
| Machine Dimensions: 143″ x 90″ x 92″ High |
| Machine Weight: 10,480 lbs Approx. |
