*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

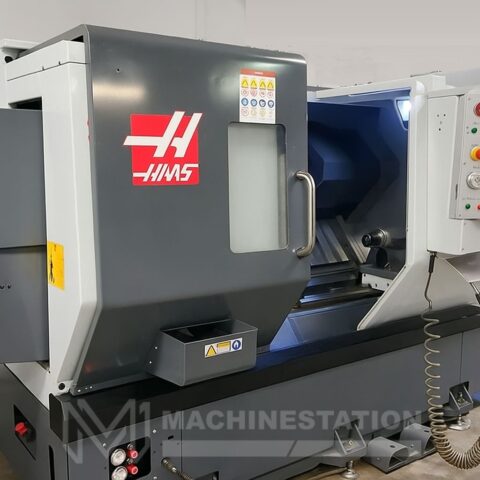

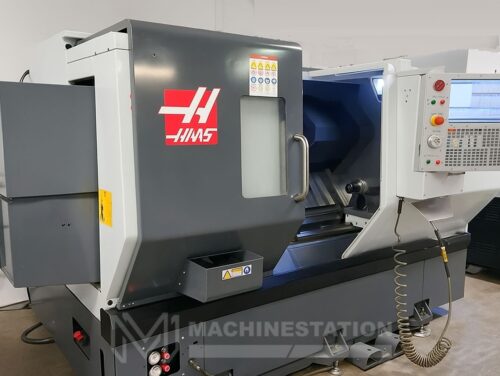

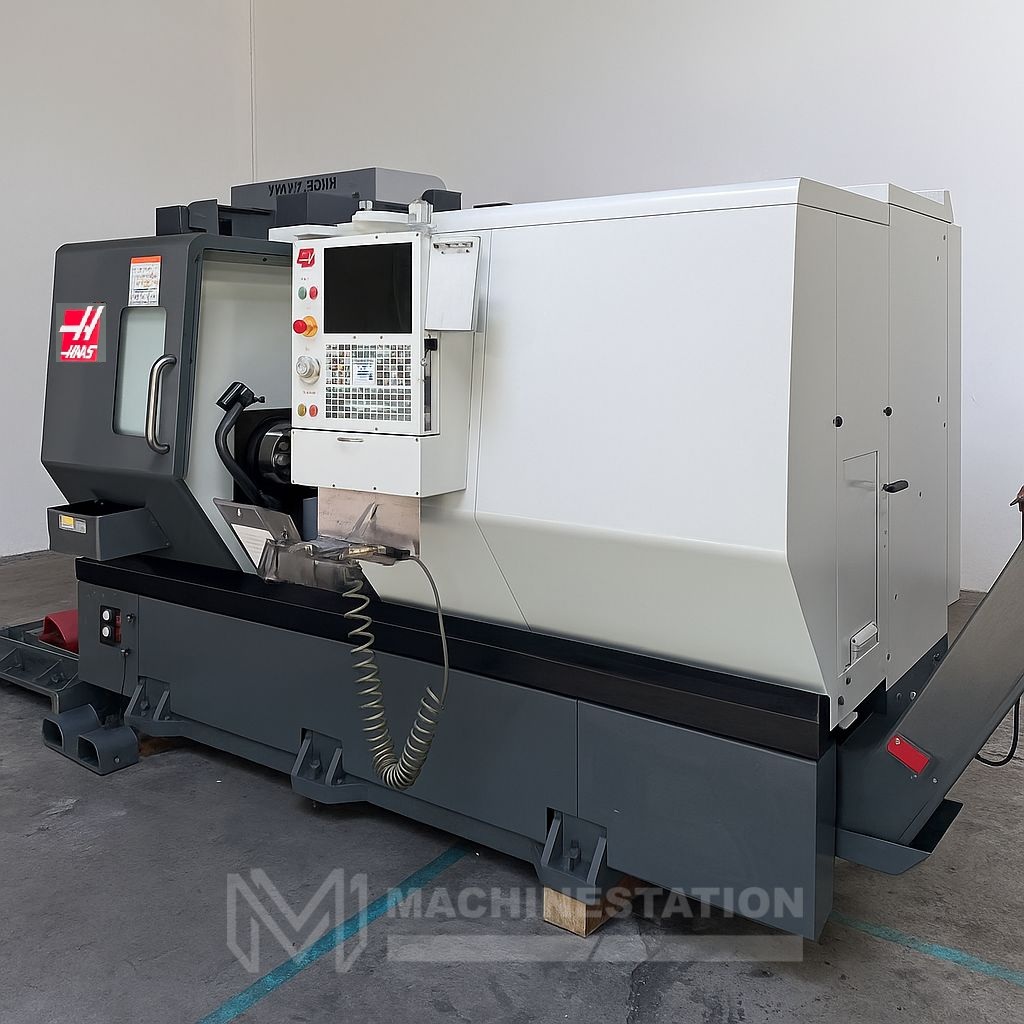

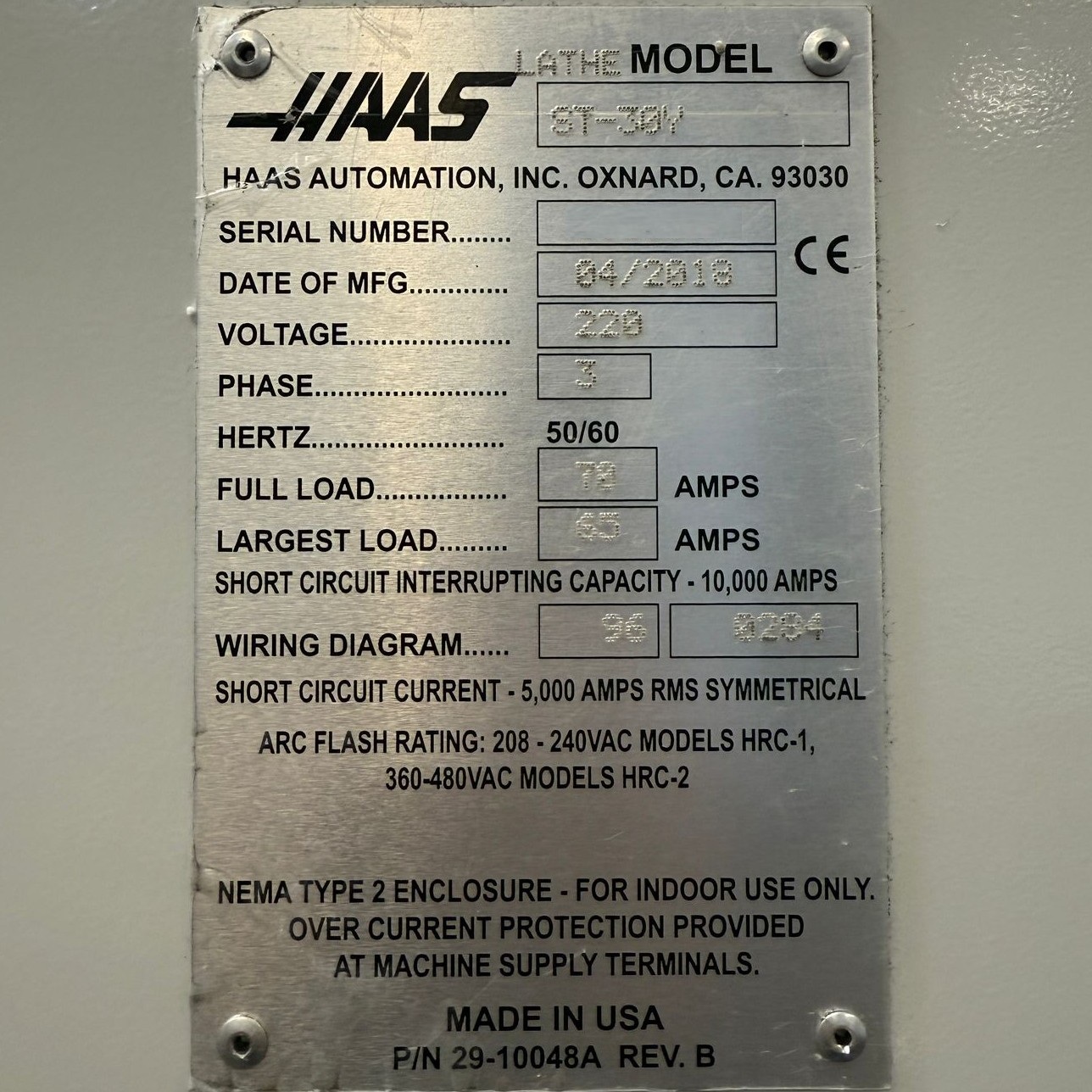

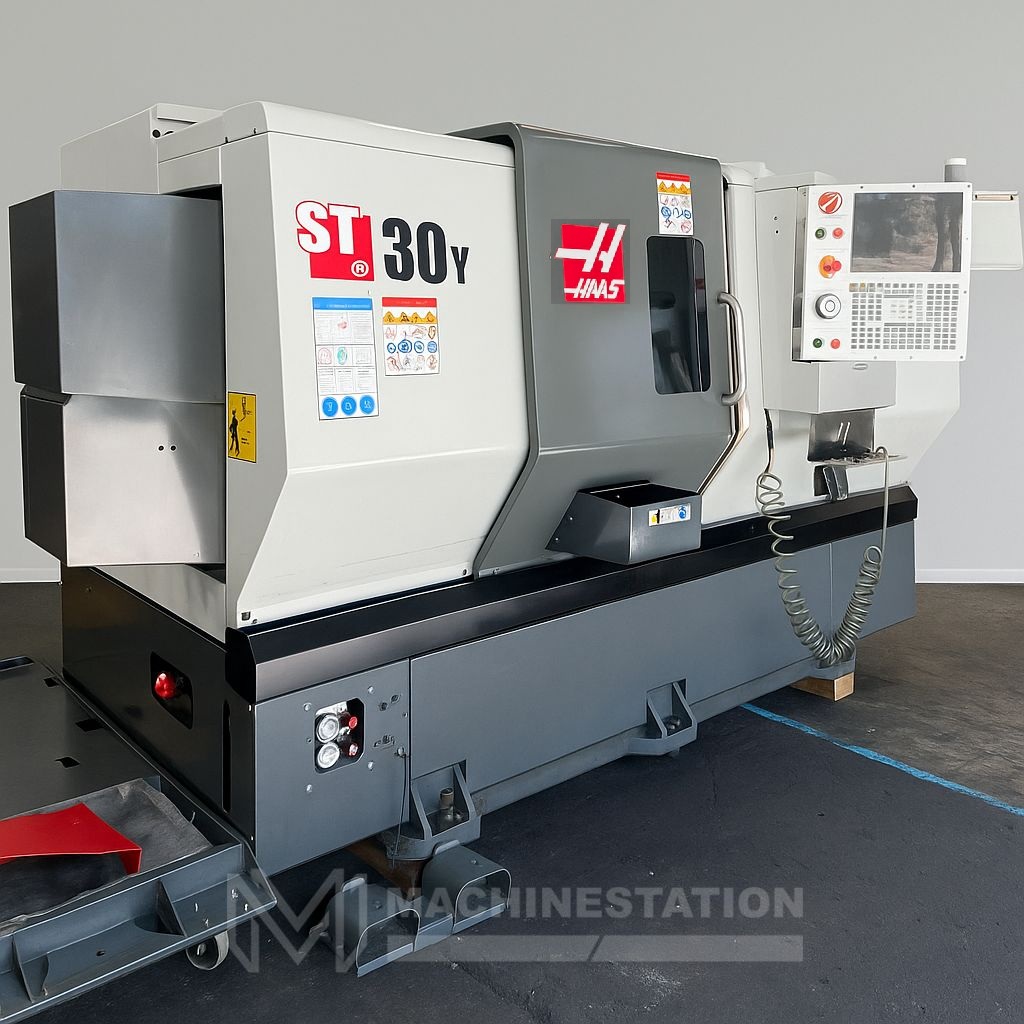

| Make: | Haas |
| Model: | ST-30Y |
| Year: | 2018 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

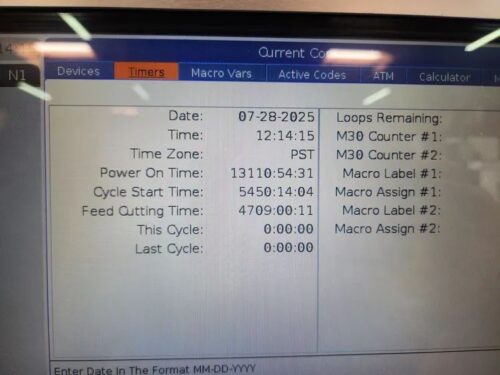

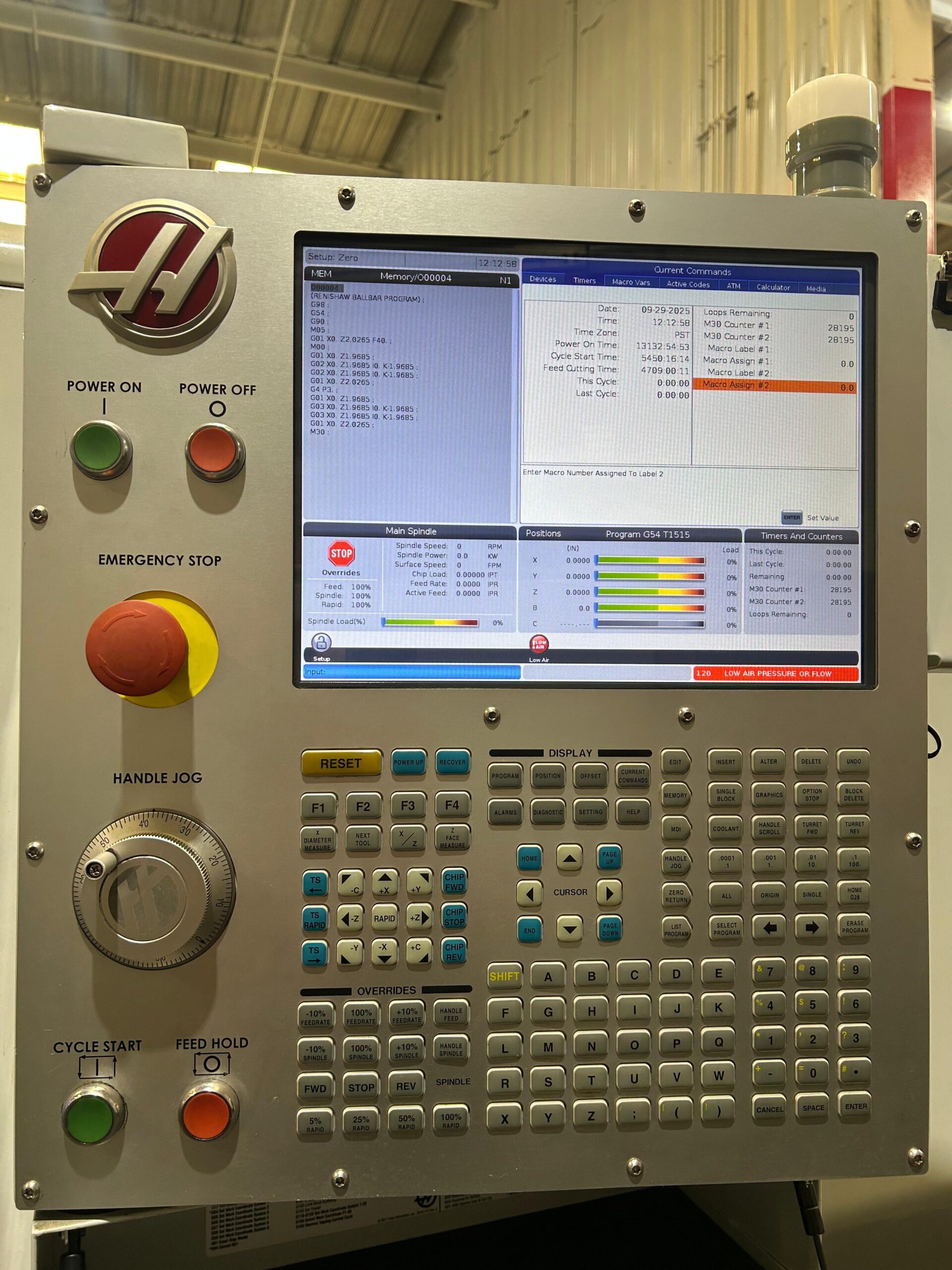

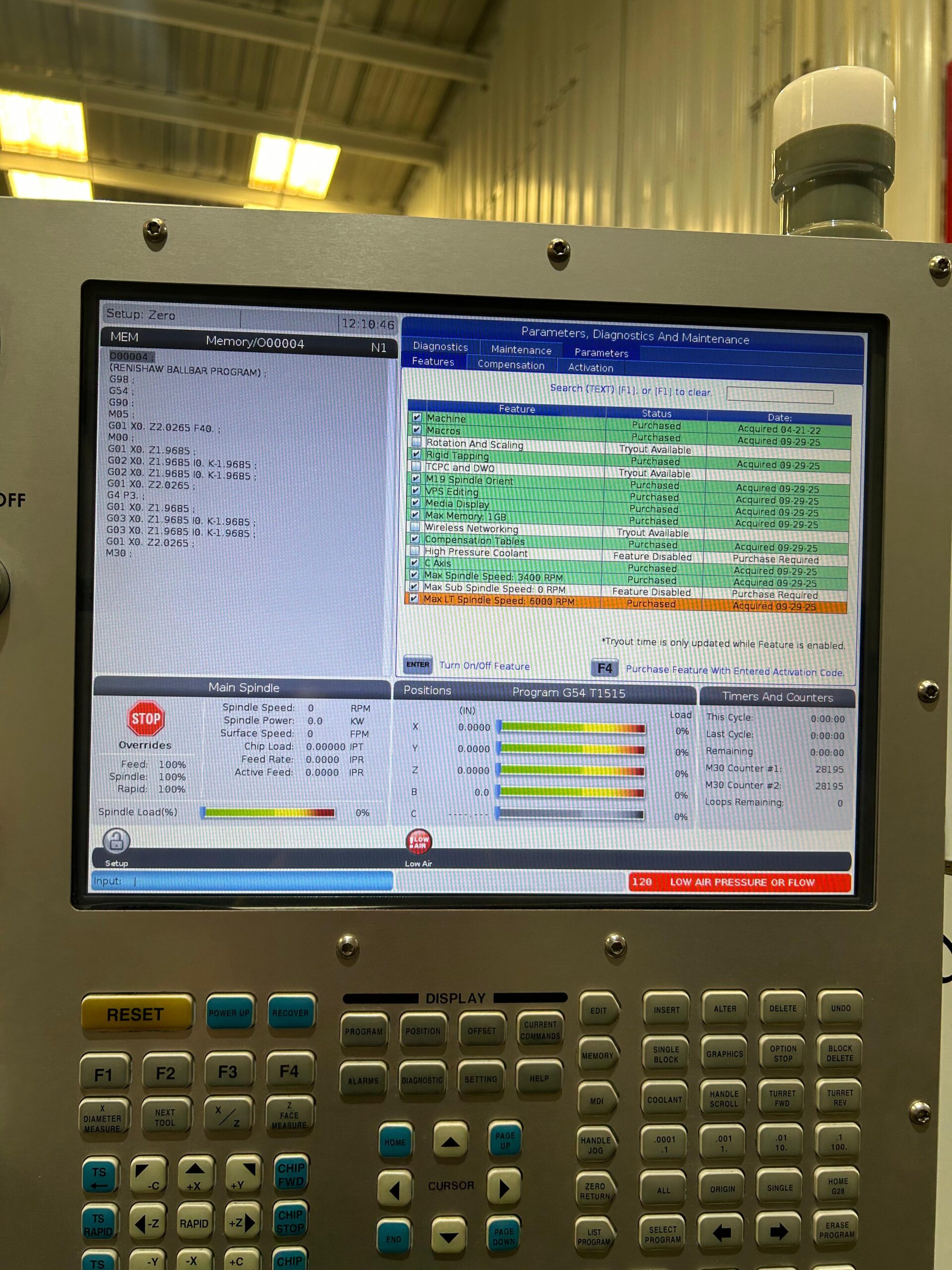

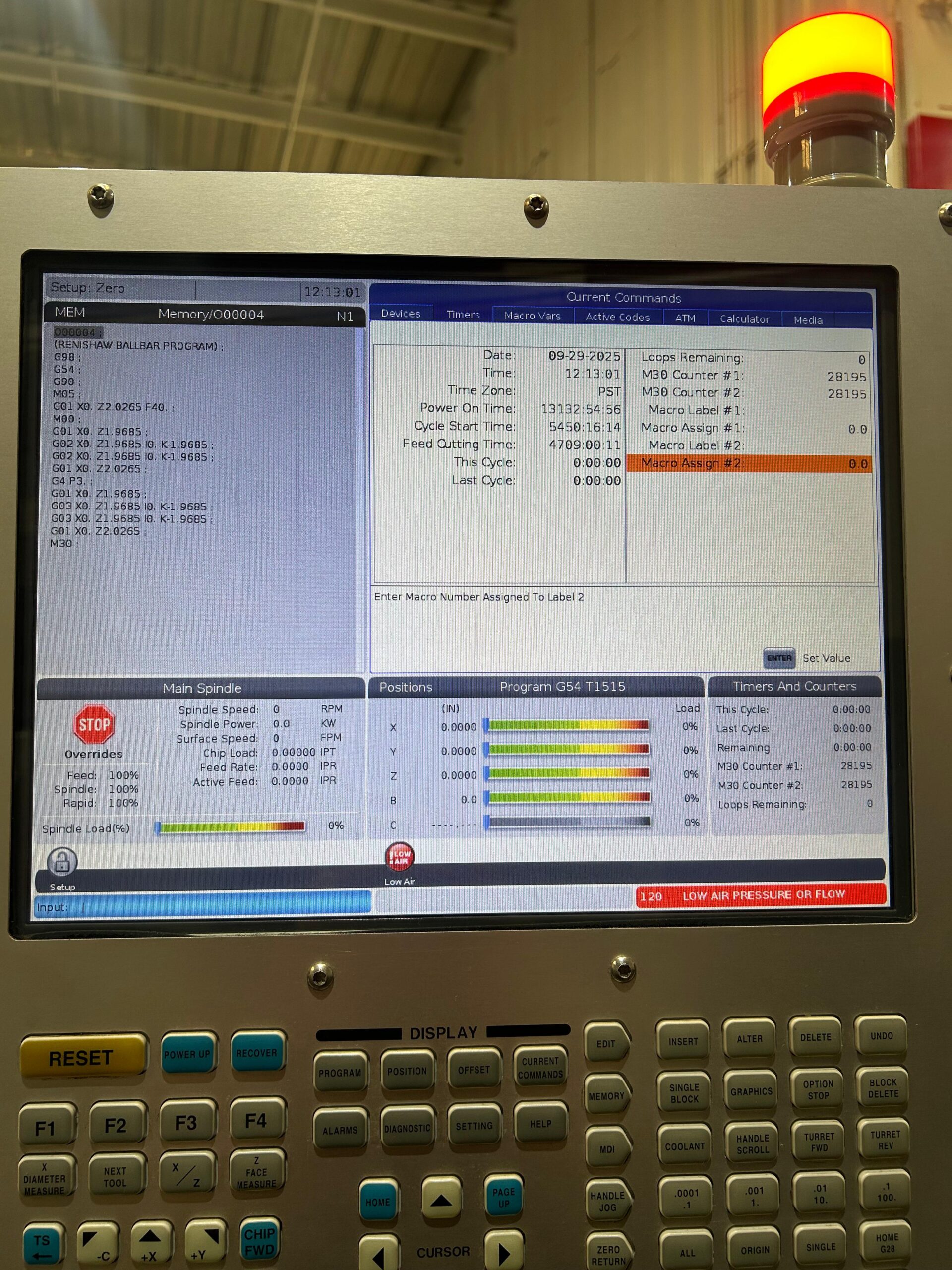

| Haas CNC Control |

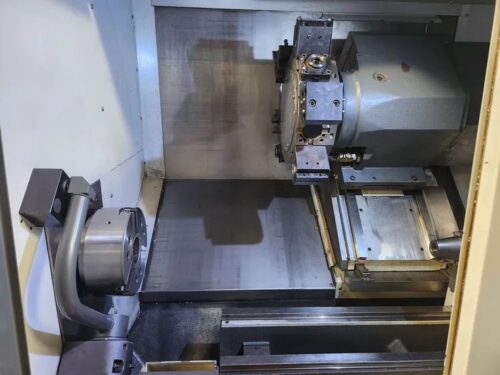

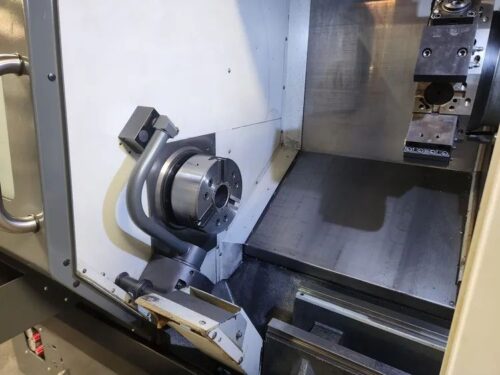

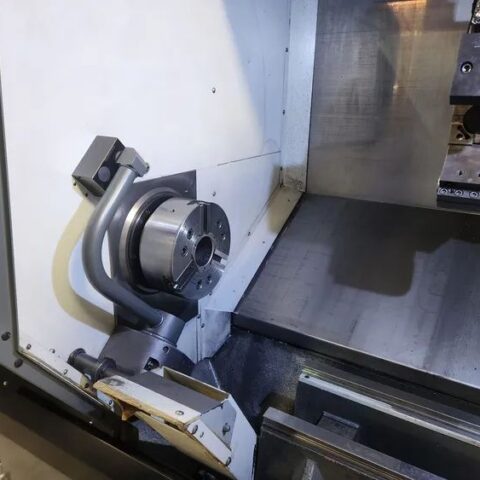

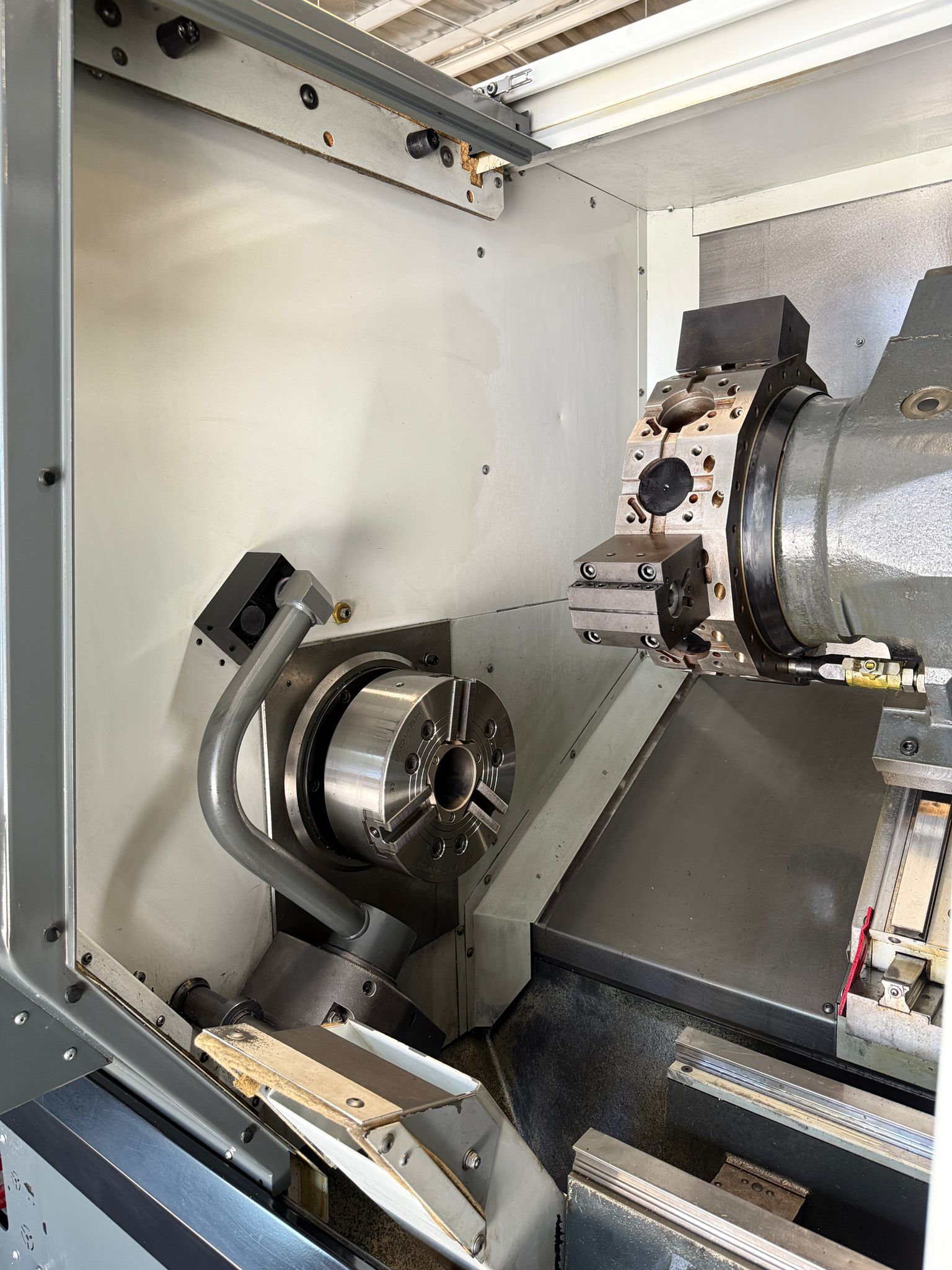

| 10″ 3-Jaw Hydraulic Chuck |

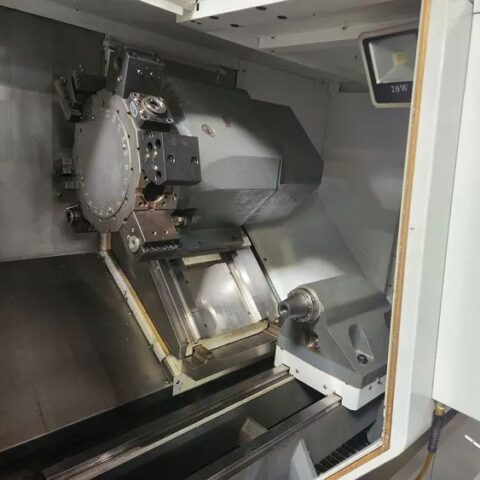

| 12 Station Live Tool Turret – 24 Positions (Upgraded $5,895 value Included) |
| C & Y Axis Capability |
| 6,000 RPM Live Tool Spindle Speed (Upgraded $2,995 value Included) |
| 30 HP Vector Dual Drive |

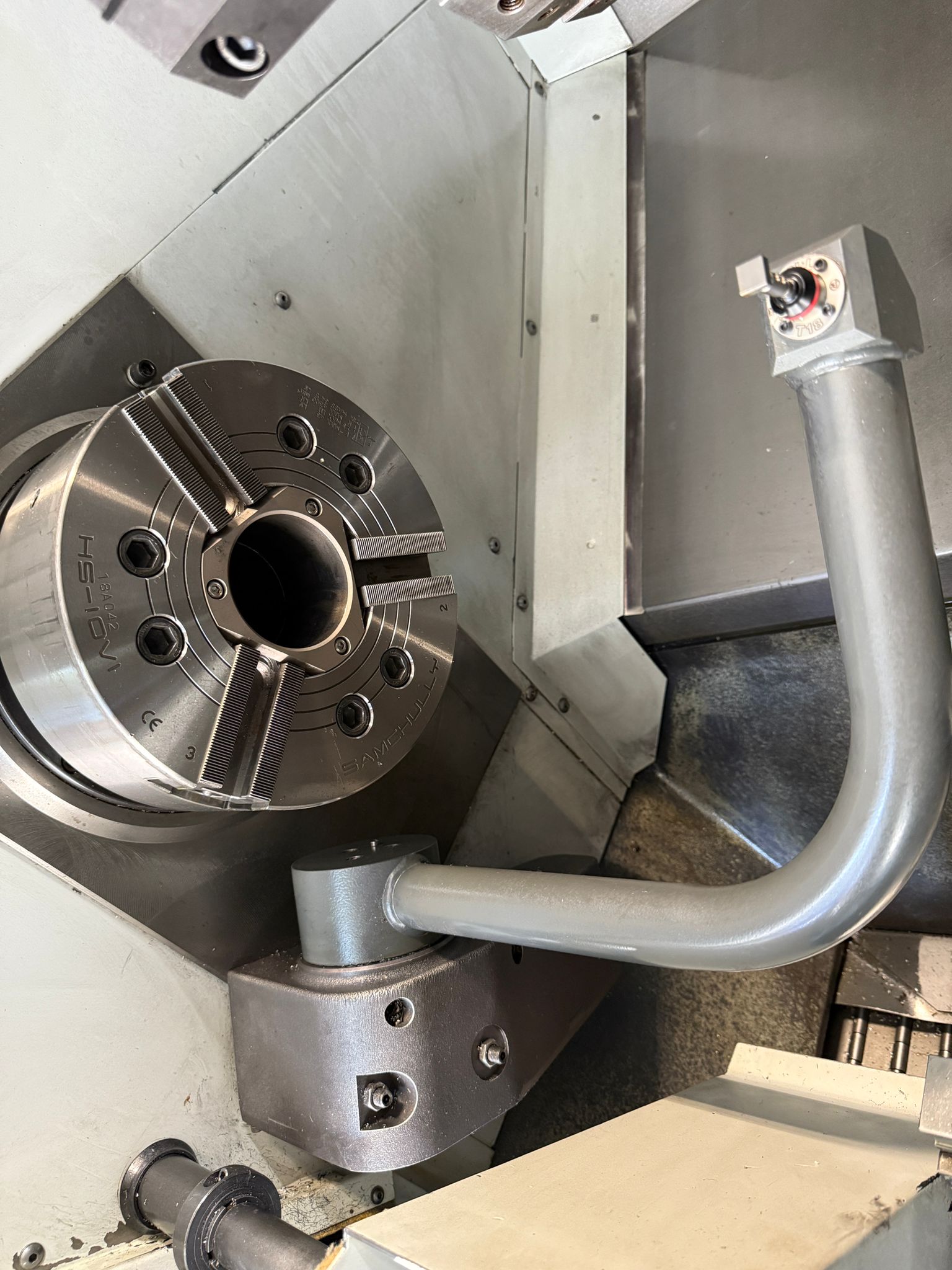

| Tool Presetter (Upgraded $5,895 value Included) – Speeds up Changeovers and Setup |
| Part Catcher (Upgraded $3,595 value Included) – Catch a finished part as it is cut off |
| A2-6 Spindle |
| 3.5″ Big Bore Spindle |
| Rigid Tapping |
| Spindle Orientation |

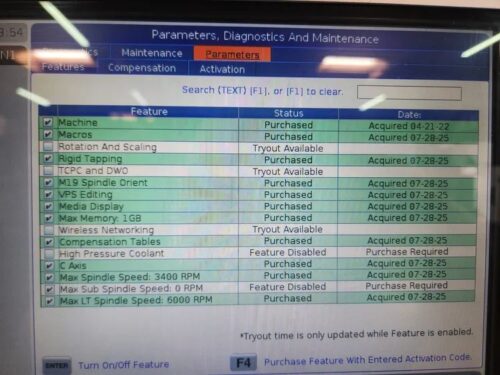

| Visual Part Programming System & User-Definable Macro |
| Media Display |
| 1 GB Max Memory |
| Compensation Tables |
| USB Port |
| Programmable Hydraulic Tailstock (Upgraded $10,495 value Included) – Provides additional support for long workpieces |
| Coolant System |

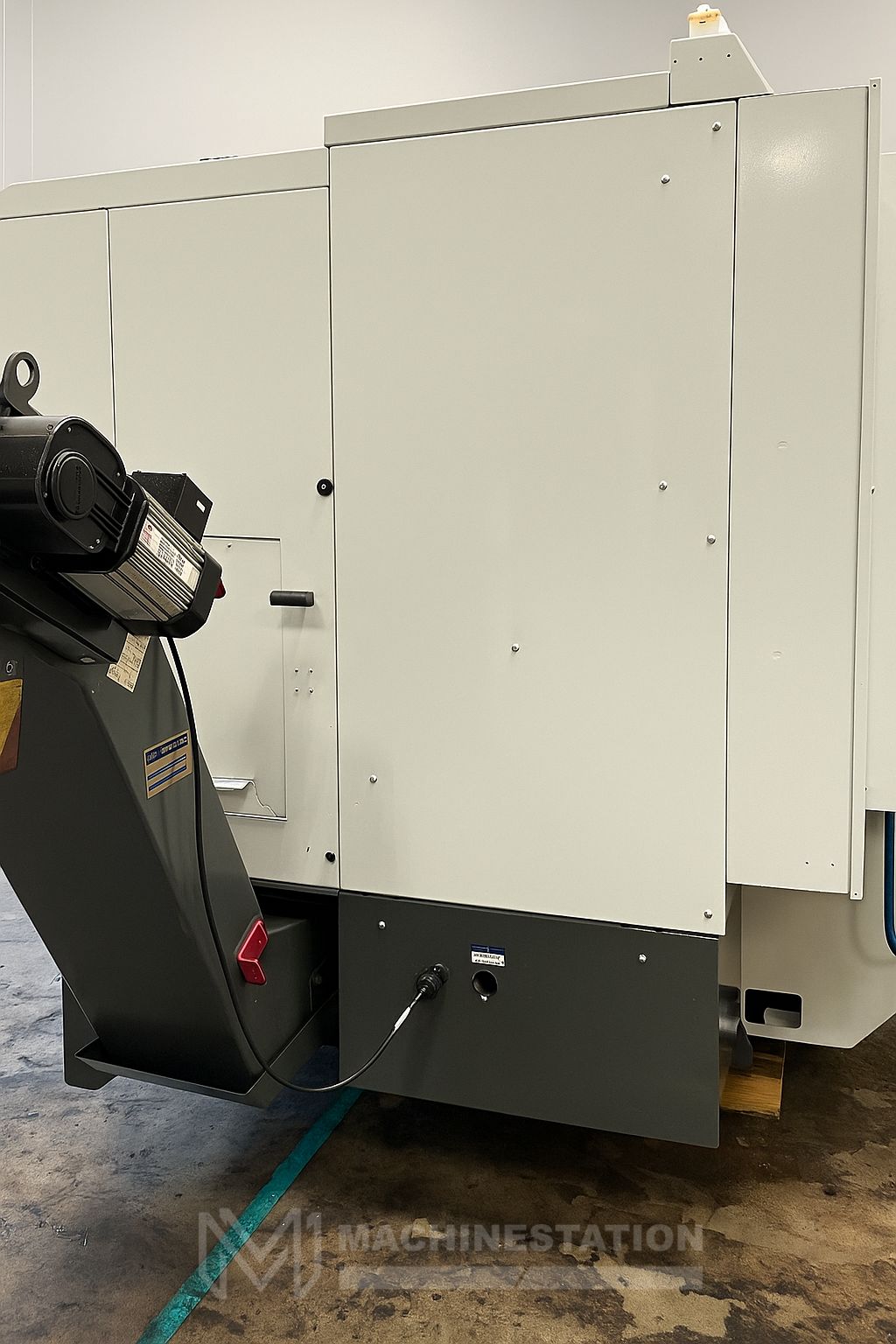

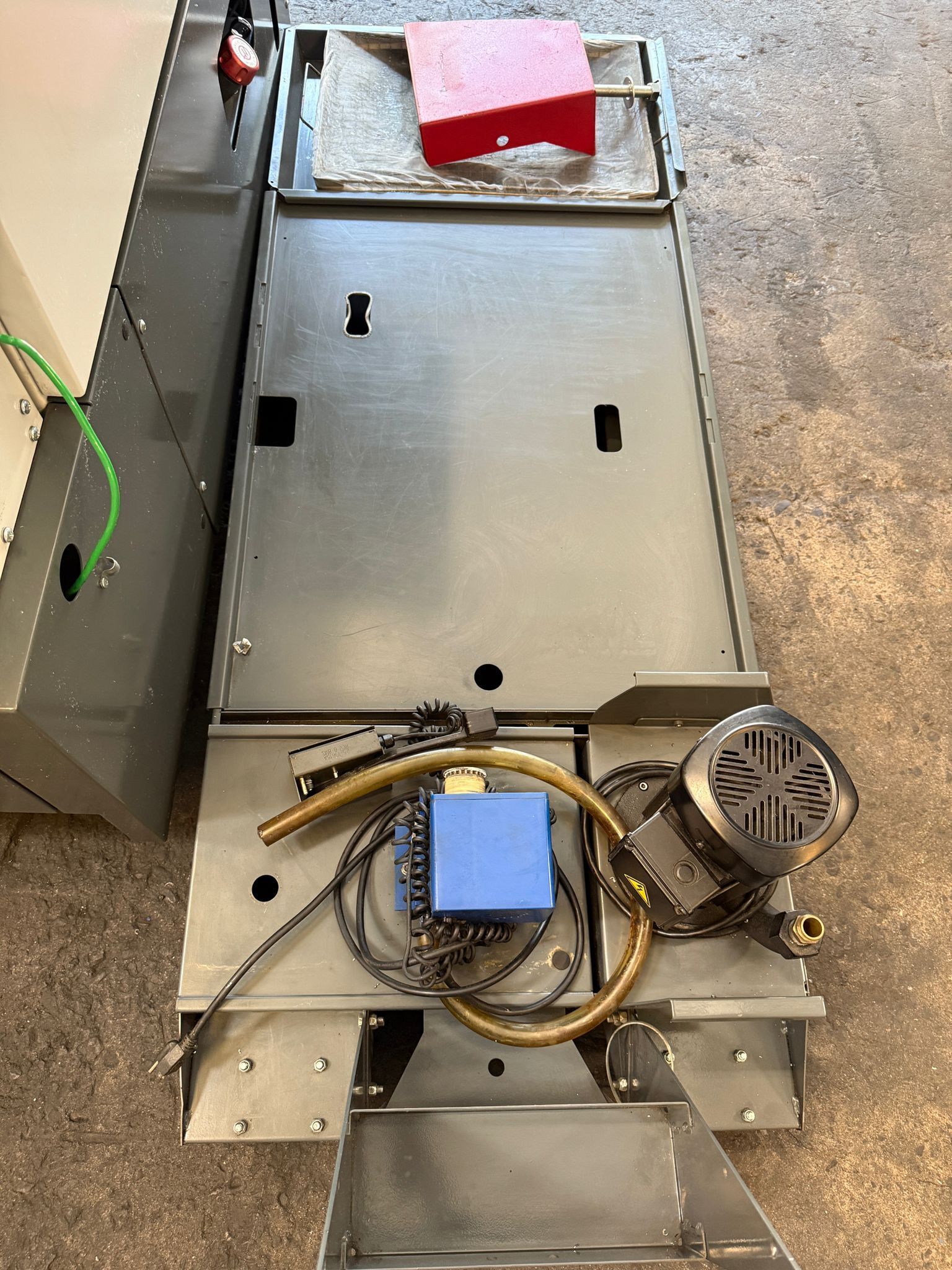

| Belt Type Chip Conveyor (Upgraded $5,295 value Included) – For Efficient Chip Removal |
| Automatic Lubrication system |

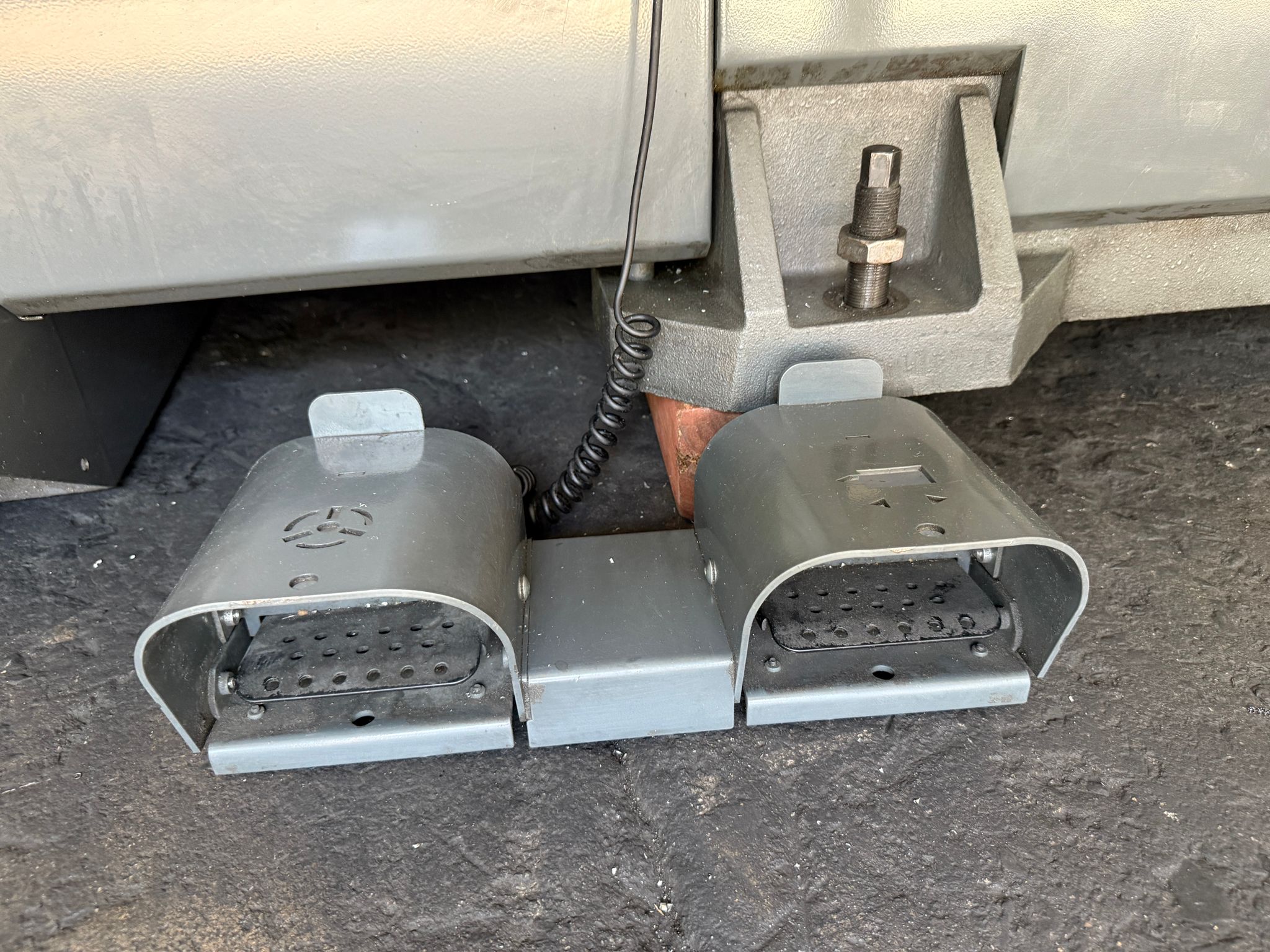

| Foot Switches |

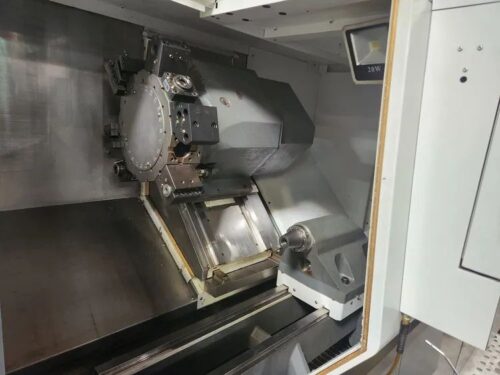

| Live & Statics Tool Holder Mounted on Turret (As shown in the Images) |
| Capacity: |
|---|
| Max Turning Diameter : 13.75″ |
| Max Swing Over Bed : 21.0″ |
| Max Turning Length: 32.5″ |
| Max Bar Capacity : 3.0″ |
| Distance Between Centers : 32.5″ |
| Travels: |
|---|
| X Axis Travel : 9.4″ |
| Y Axis Travel : ± 2.0″ |
| Z Axis Travel : 32.5″ |
| C Axis : 0.01 ° |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 472 IPM |
| Rapid Traverse Y Axis: 472 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 3.5″ |
| Spindle Speed: 3400 RPM |
| Spindle Motor: 30 HP |

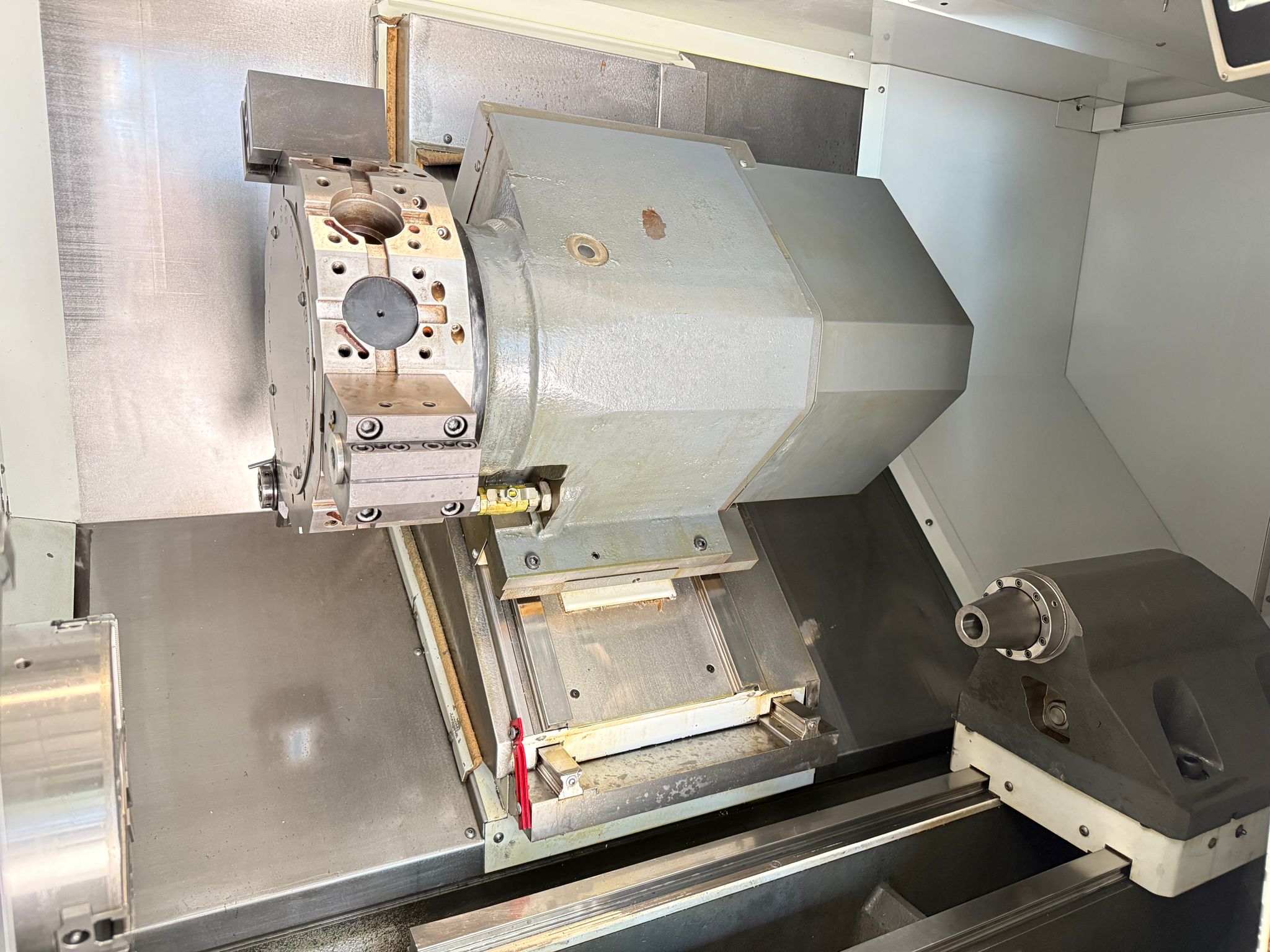

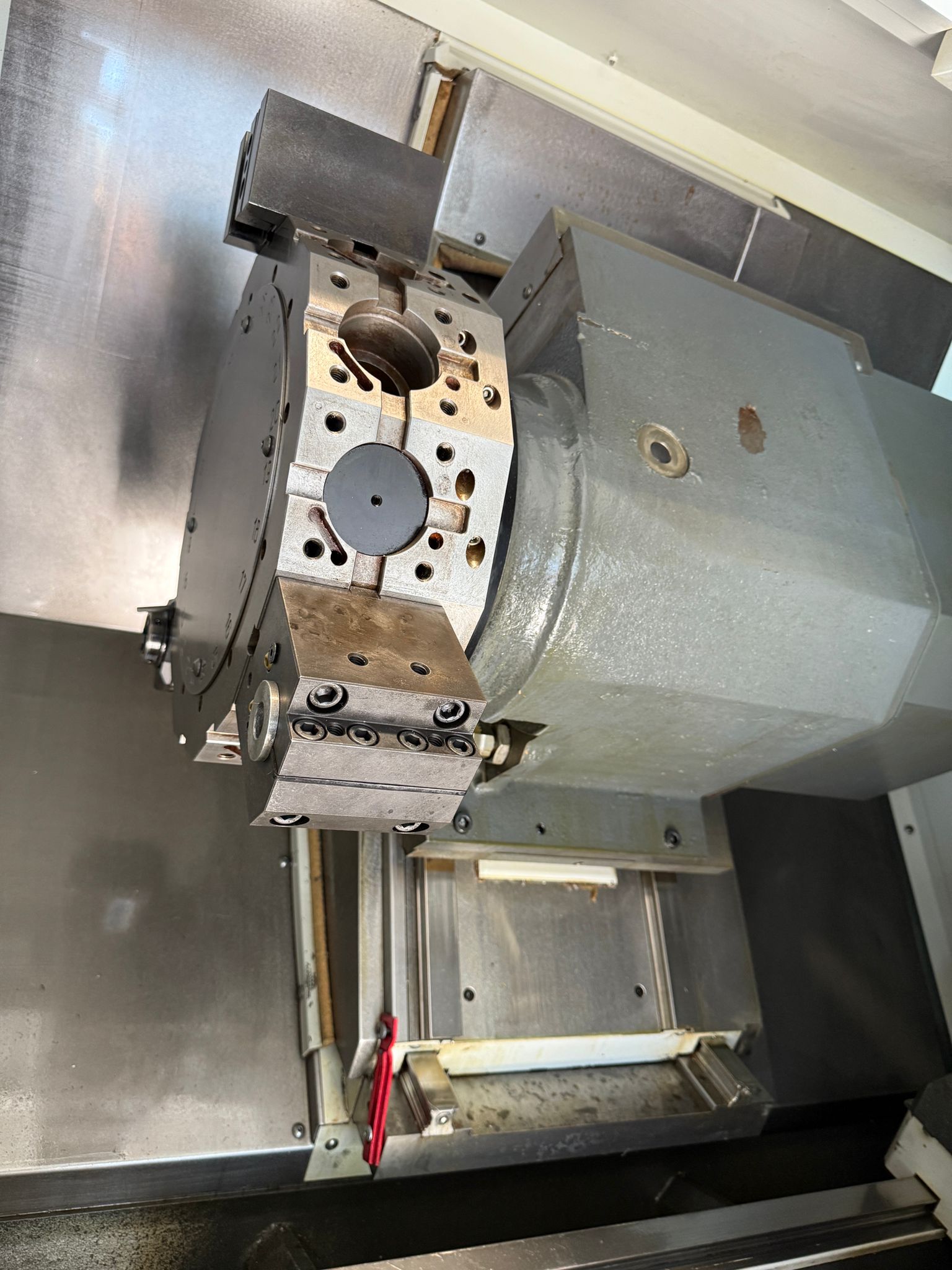

| Turret: |
|---|
| Turret Capacity: 12 Stations – 24 Positions |
| Live Tool Speed: 6,000 RPM |
| Turret Type: BMT-65 |
| Tailstock: |
|---|
| Tailstock Taper: MT-4 |
| Tailstock Quill Dia.: 2.6″ |
| Tailstock Quill Travel: 3.1″ |
| General: |
|---|
| Air Required: 100 psi 4 scfm |
| Power Source: AC 220v / 3-Phase / 60 Hz |
| Machine Dimensions: 170″ x 90″ x 98″ High Approx. |
| Machine Weight: 11,340 lbs Approx. |
