*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

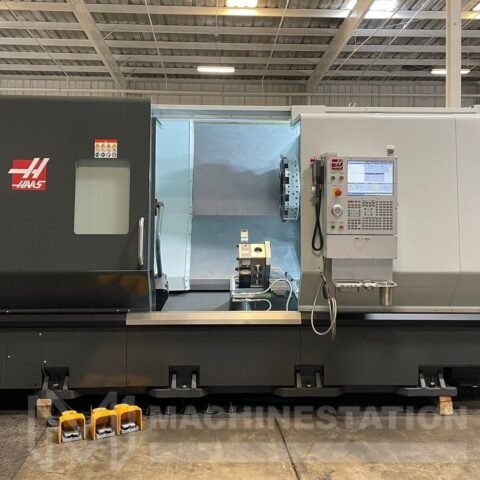

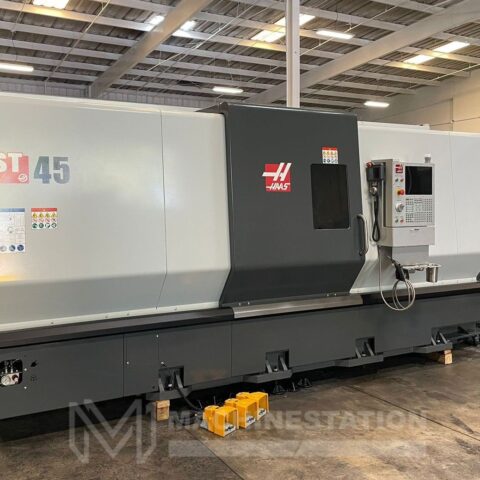

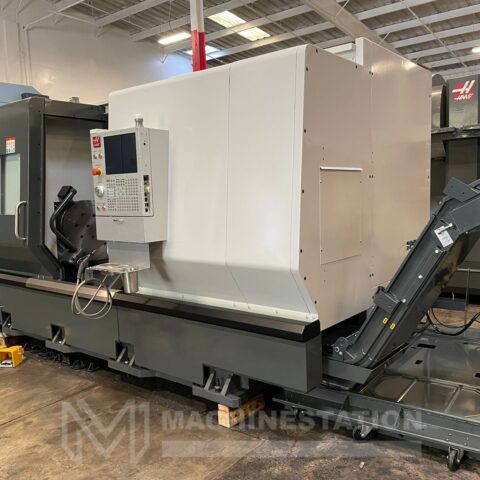

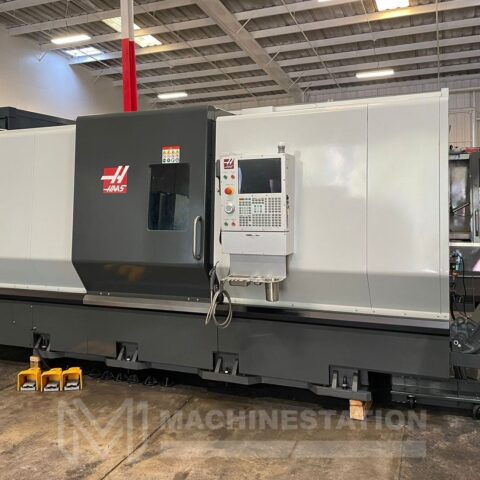

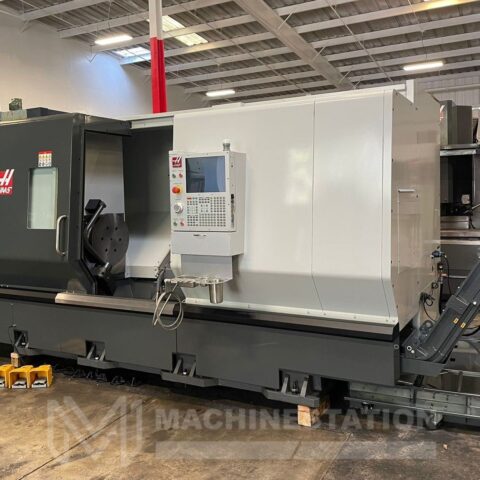

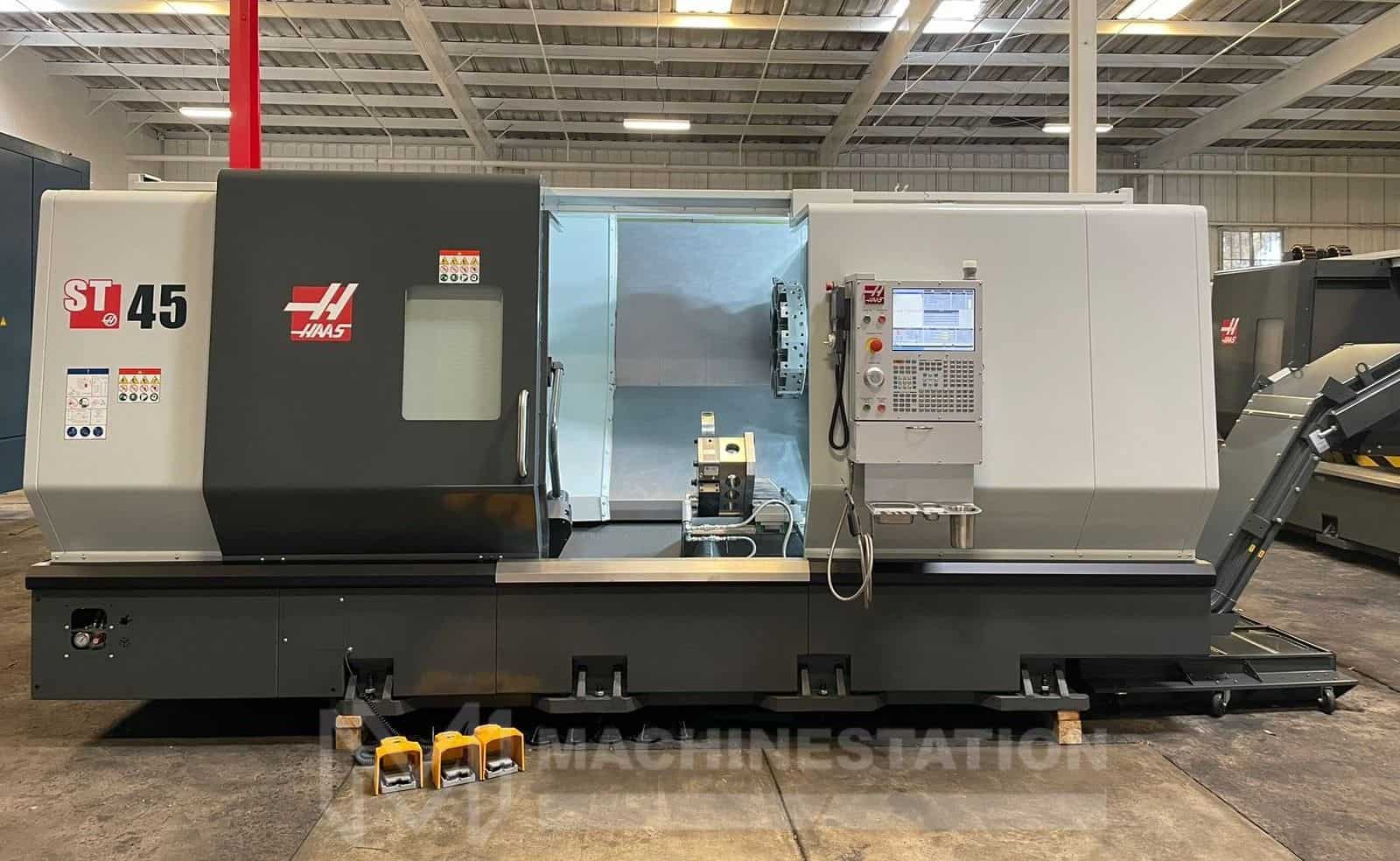

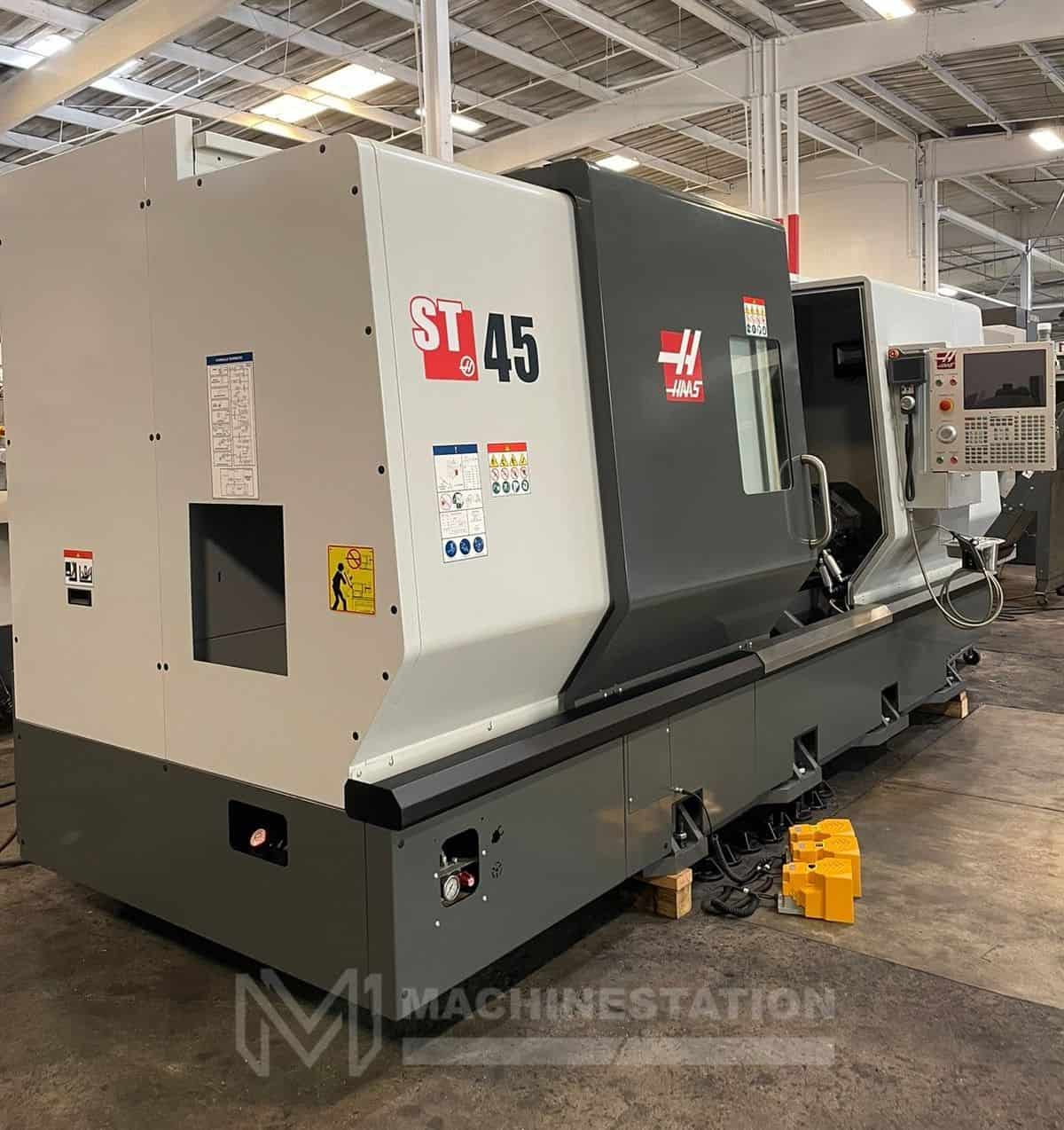

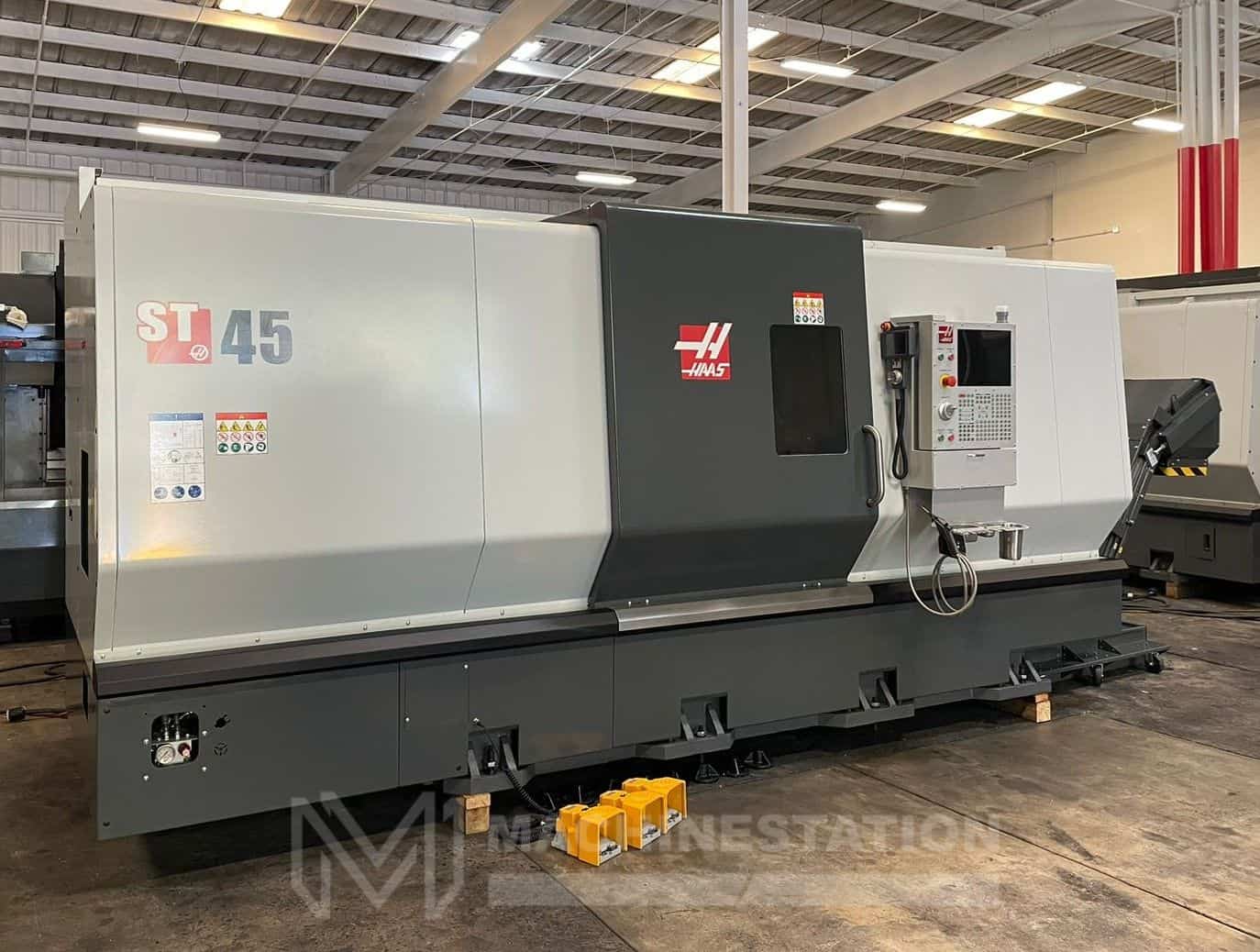

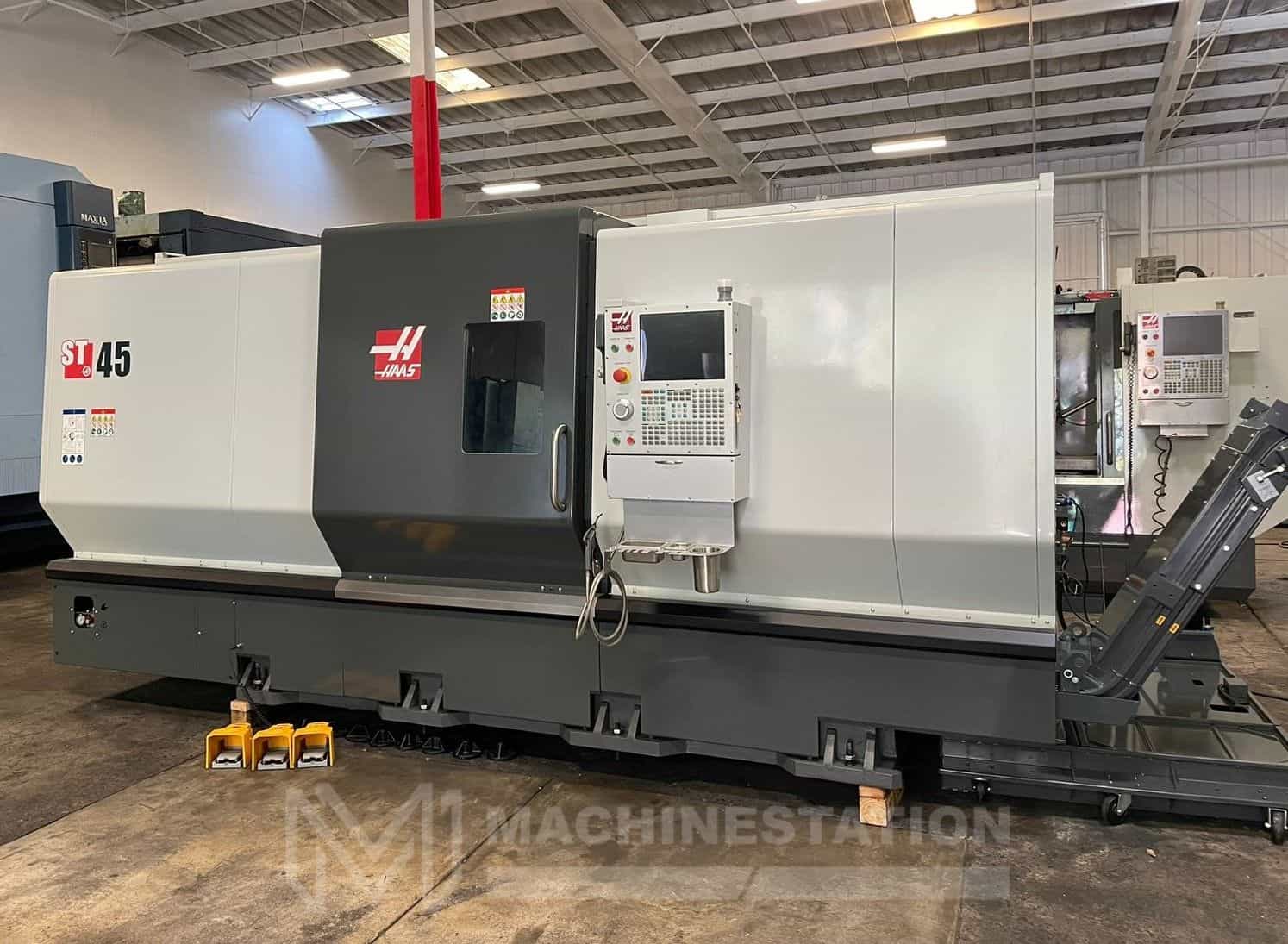

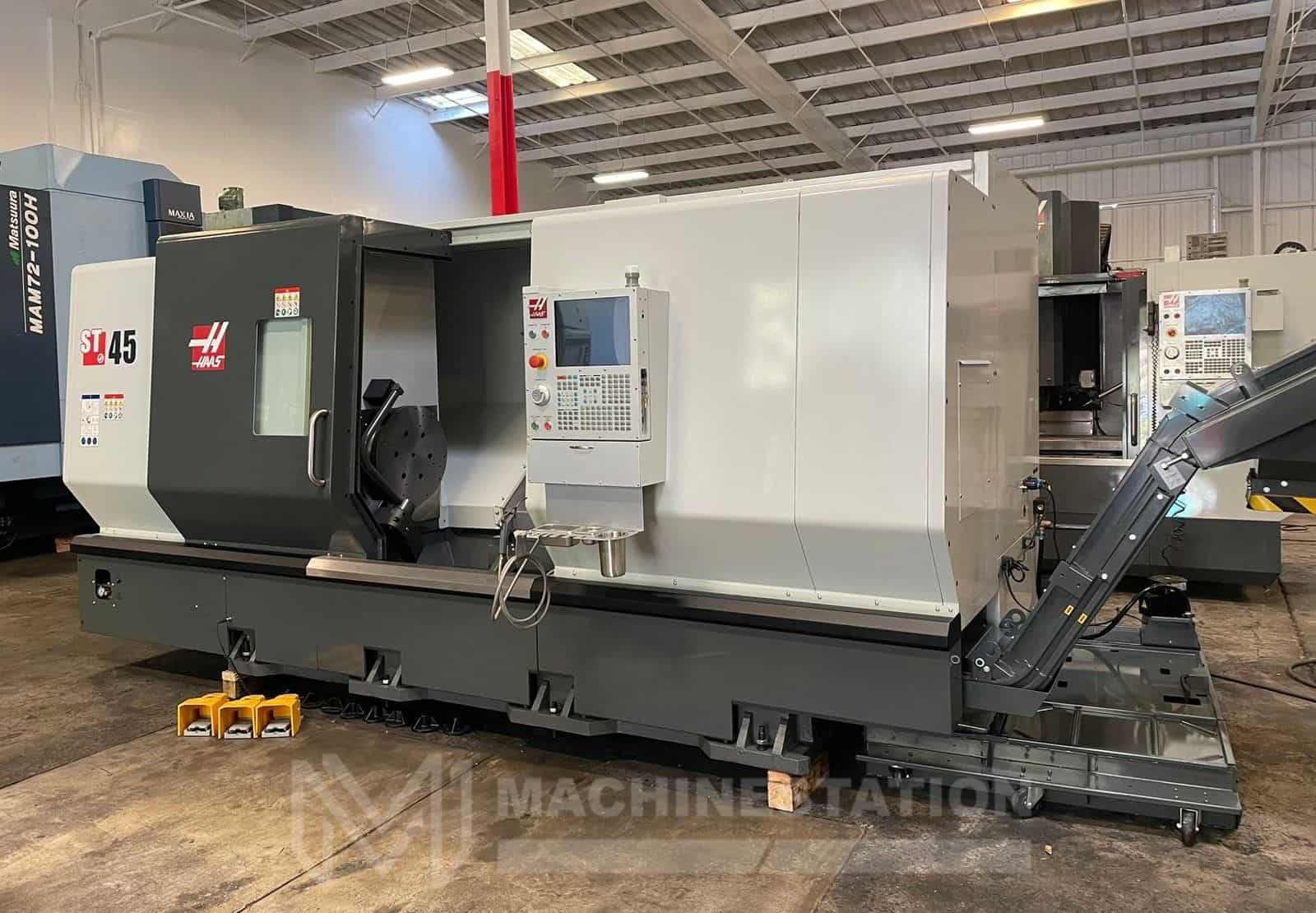

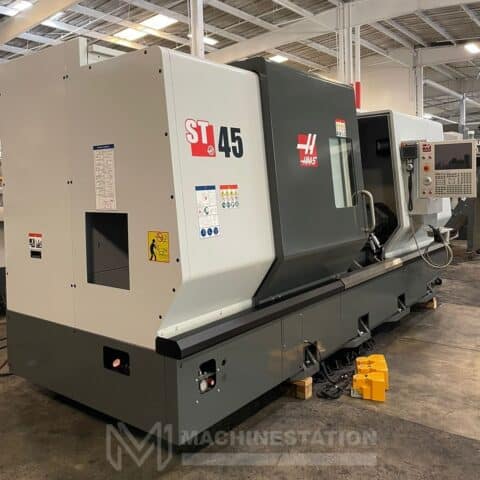

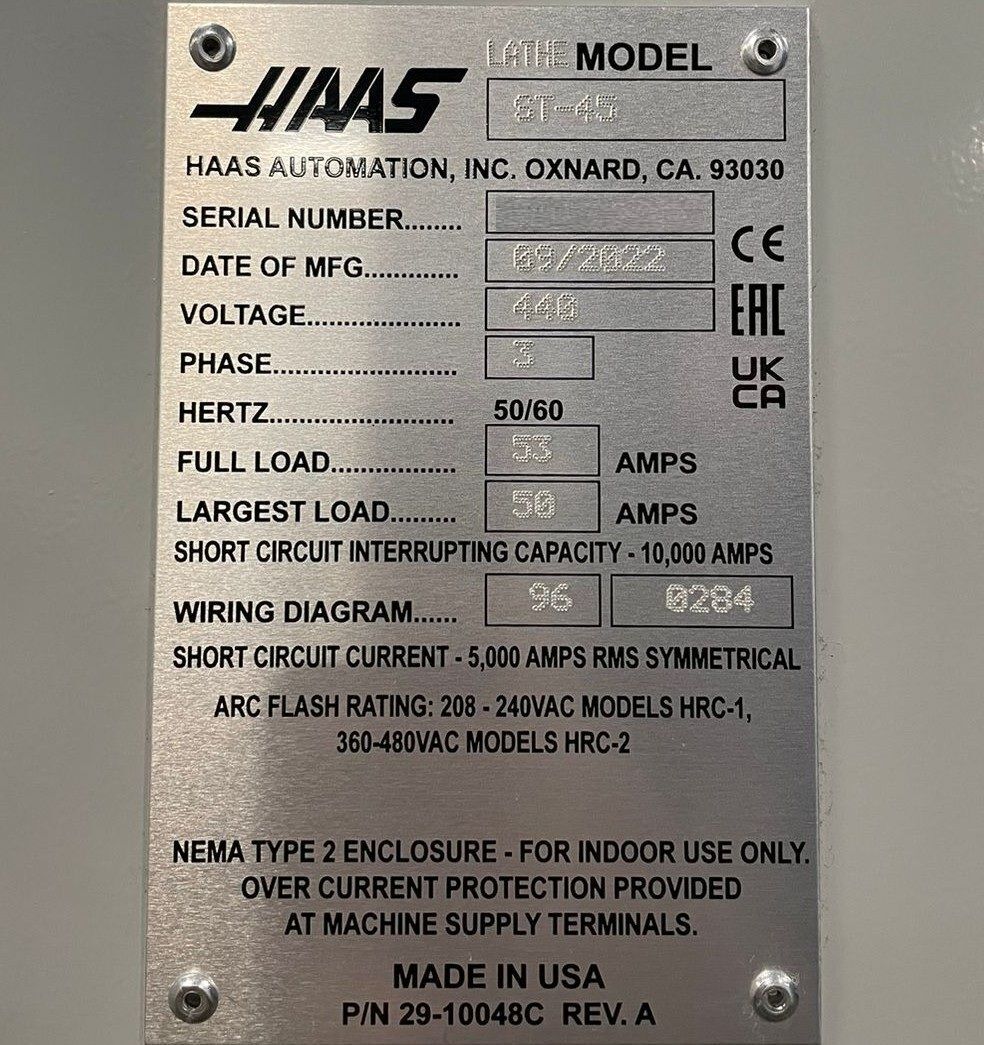

| Make: | Haas |
| Model: | ST-45 |
| Year: | 2022 |
| Condition: | Never Used – As Like New |
| Equipped With: |
|---|

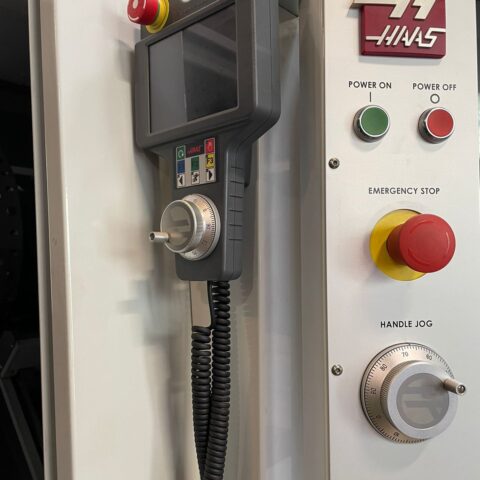

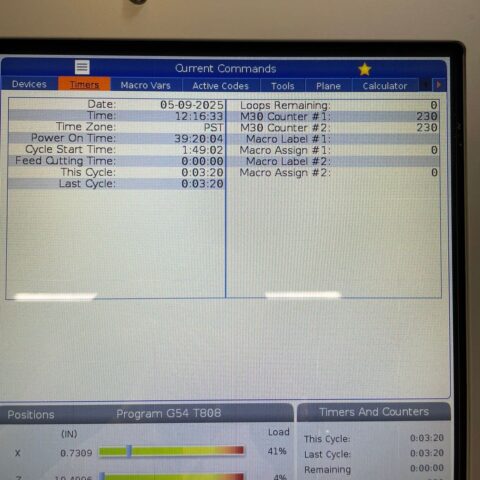

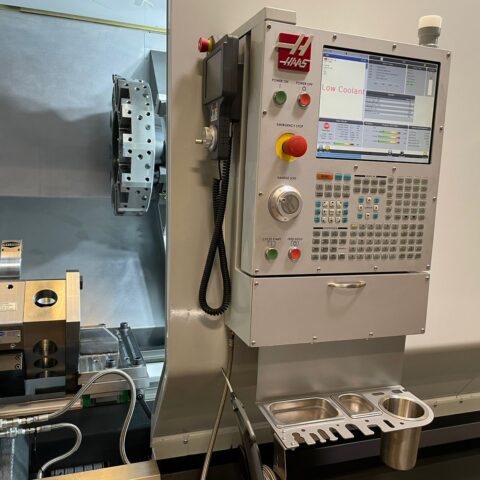

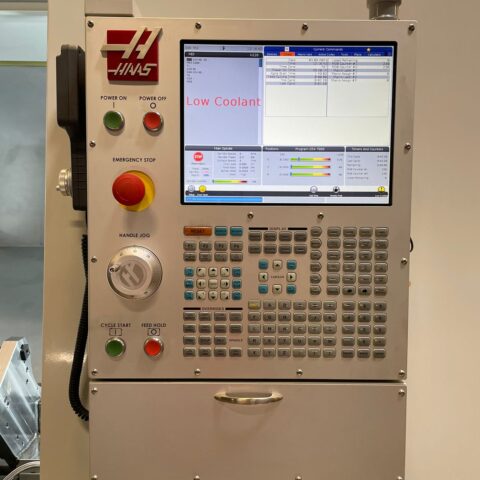

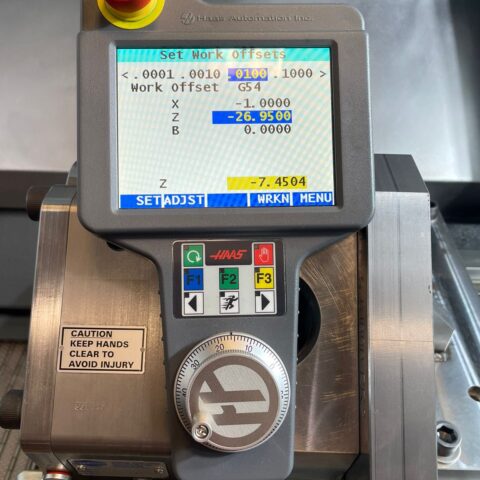

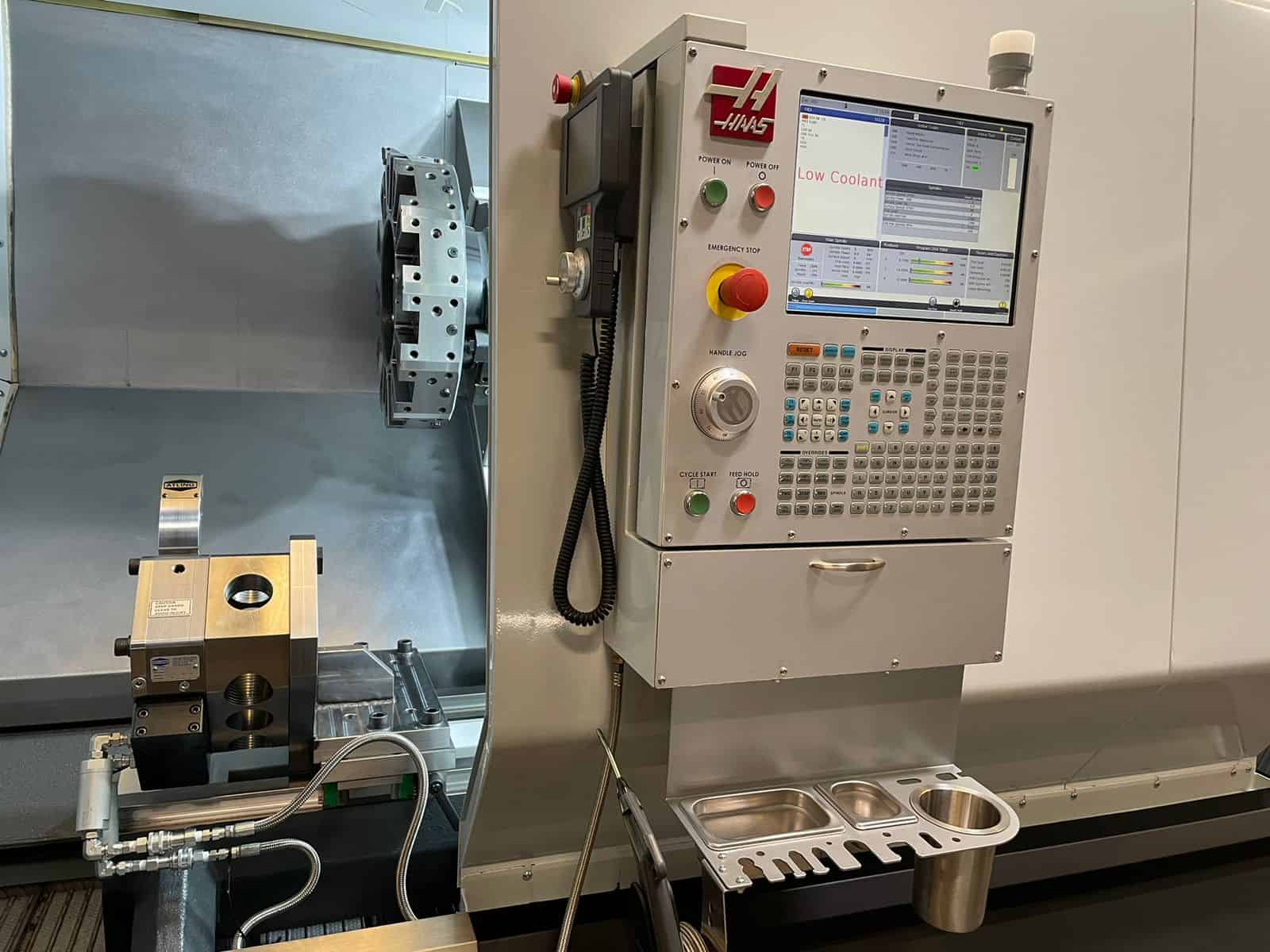

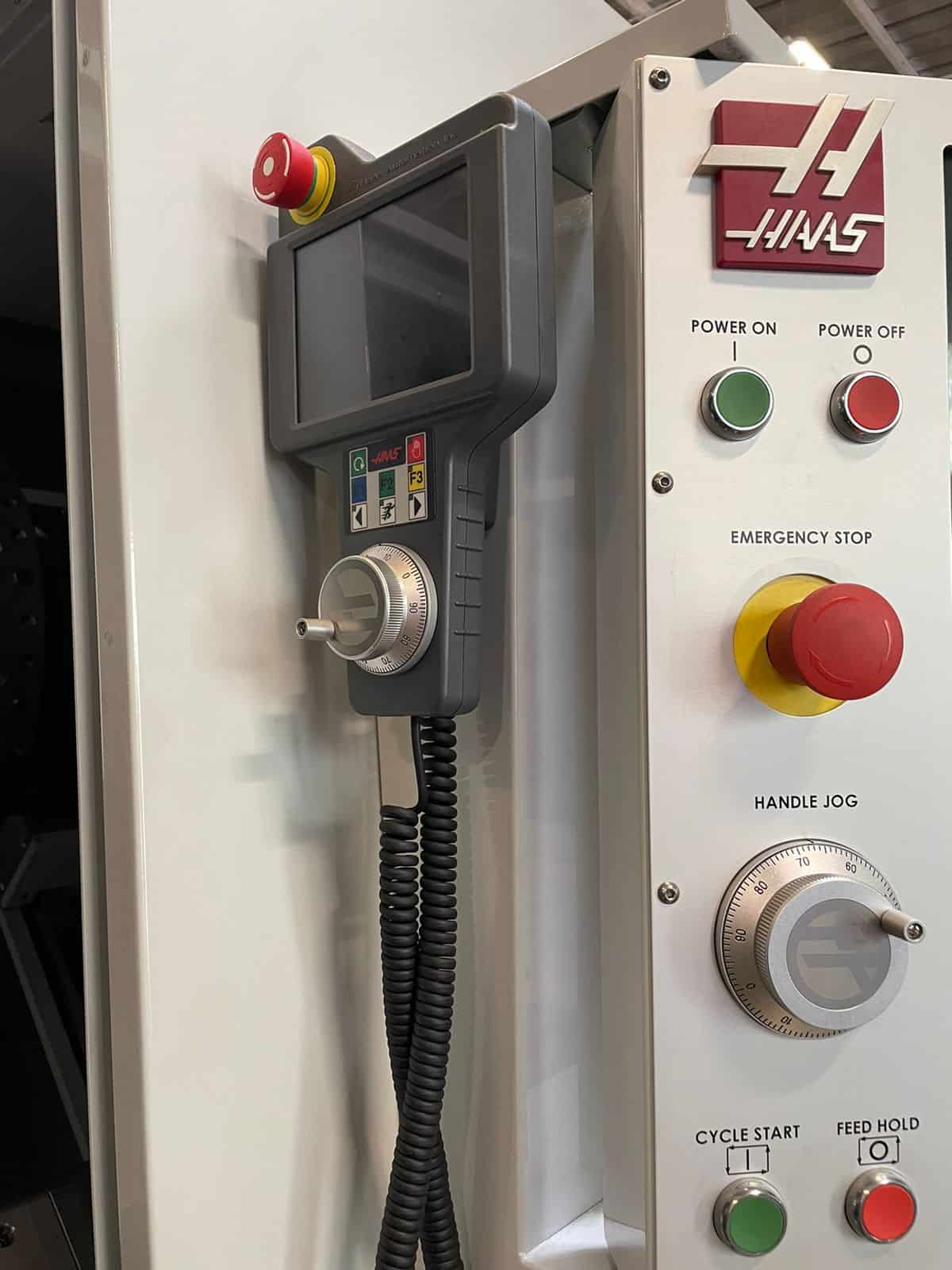

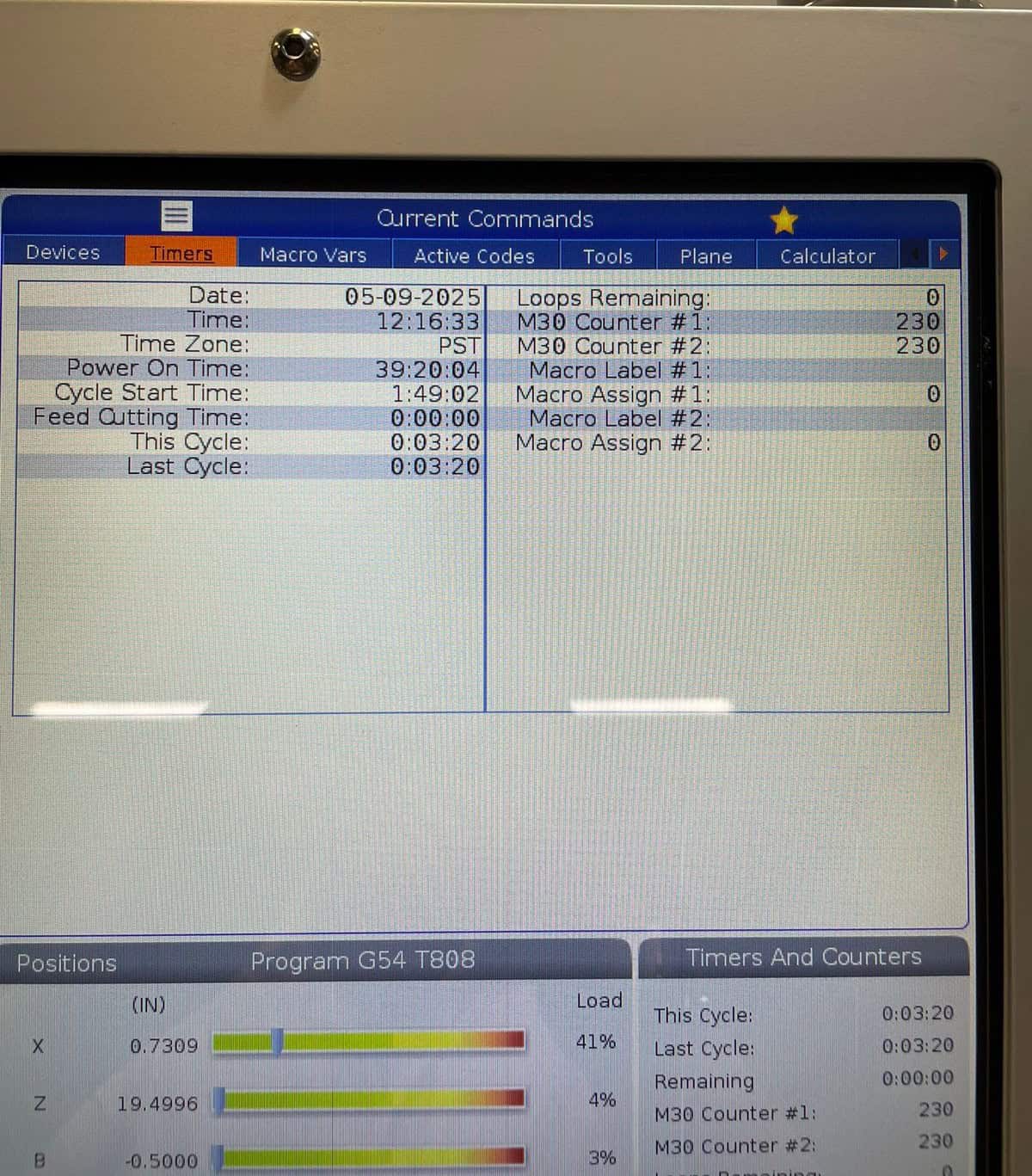

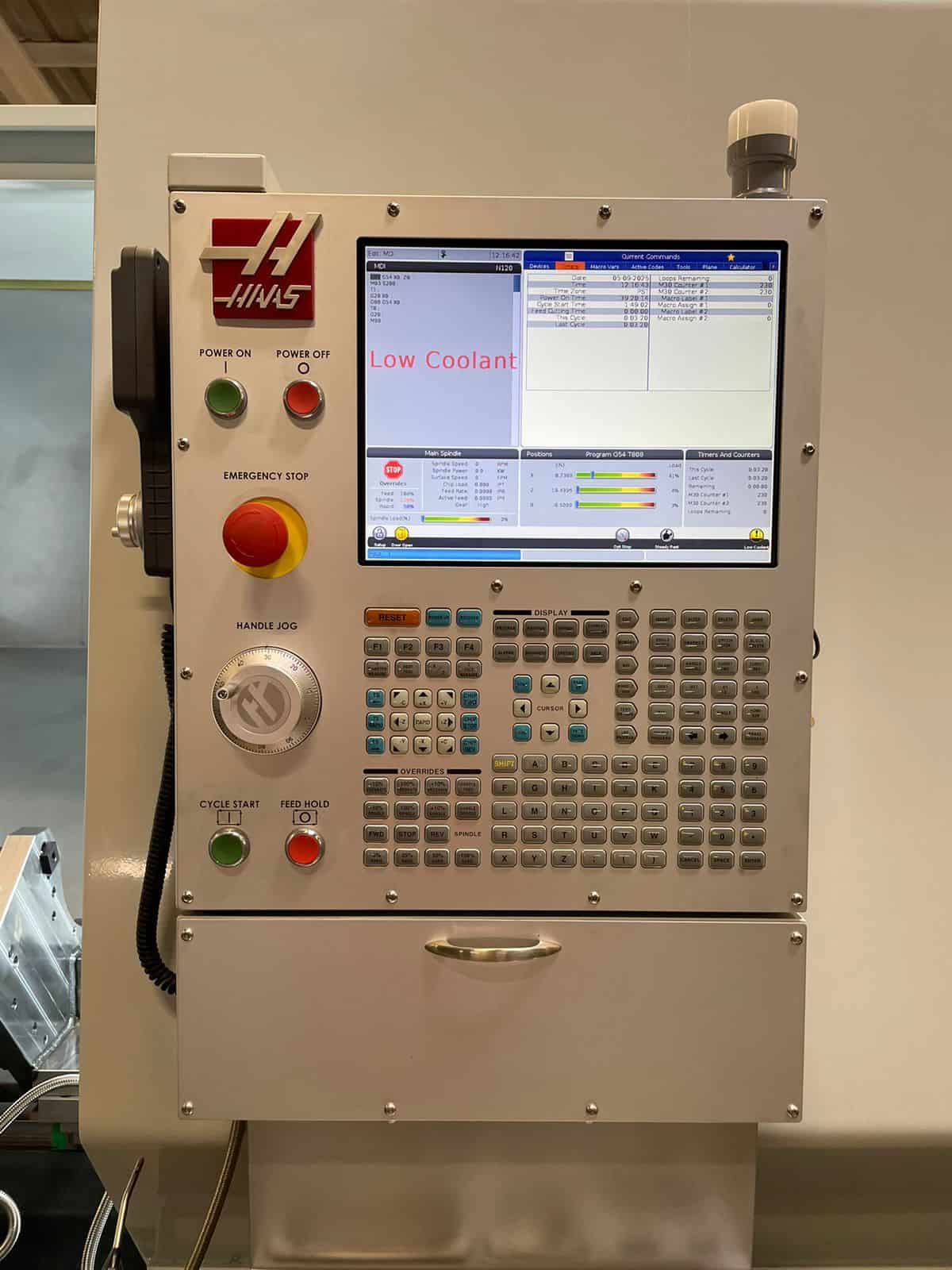

| Haas CNC Control |

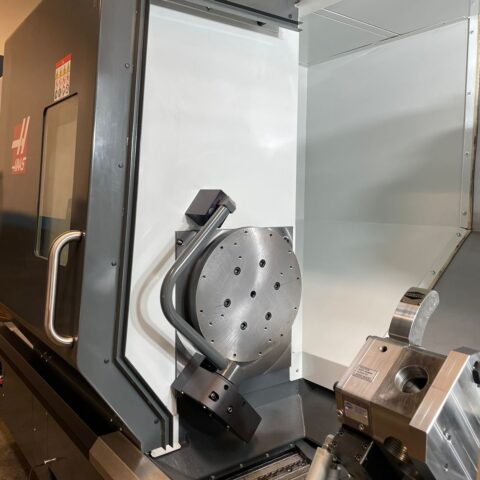

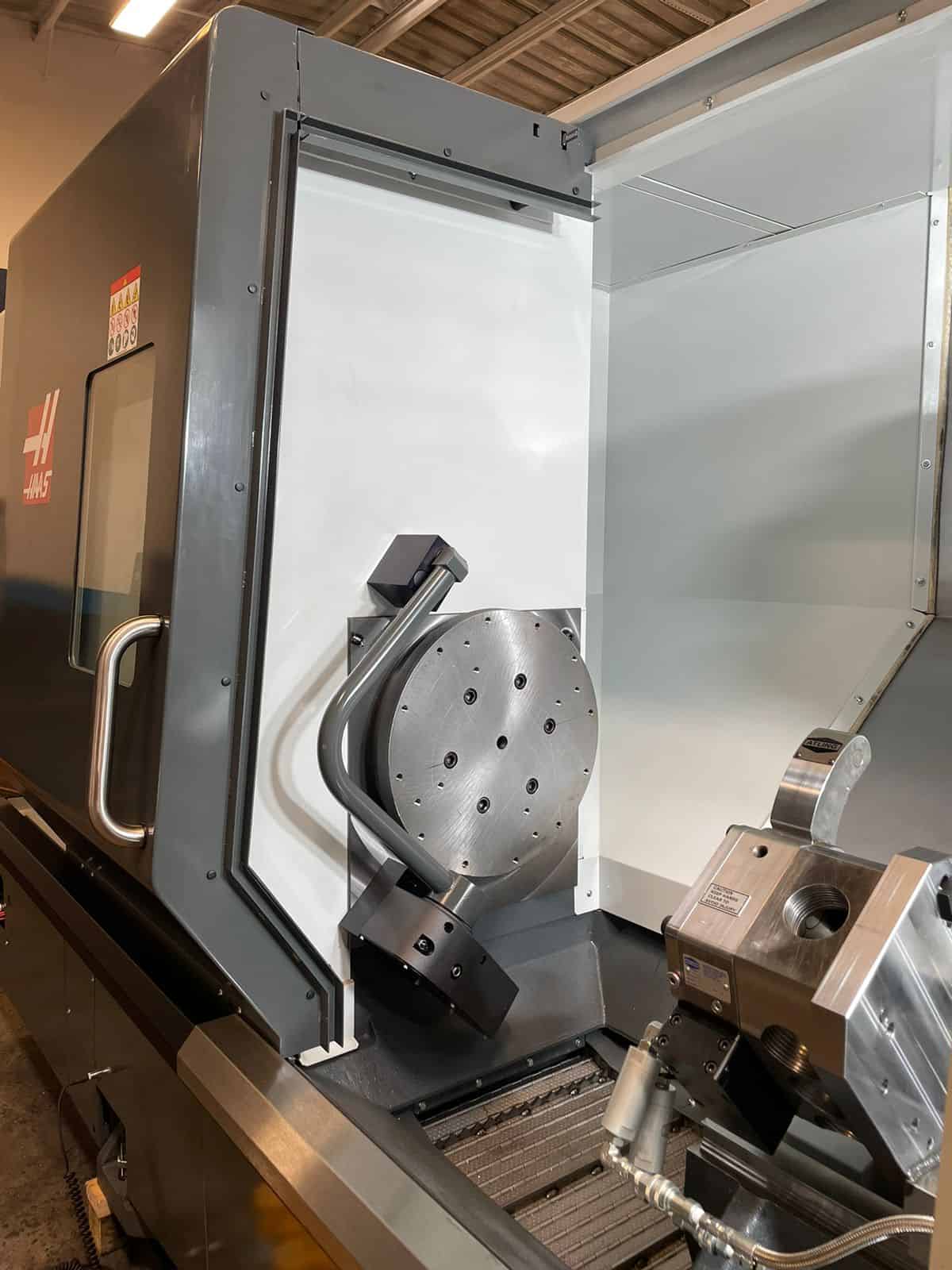

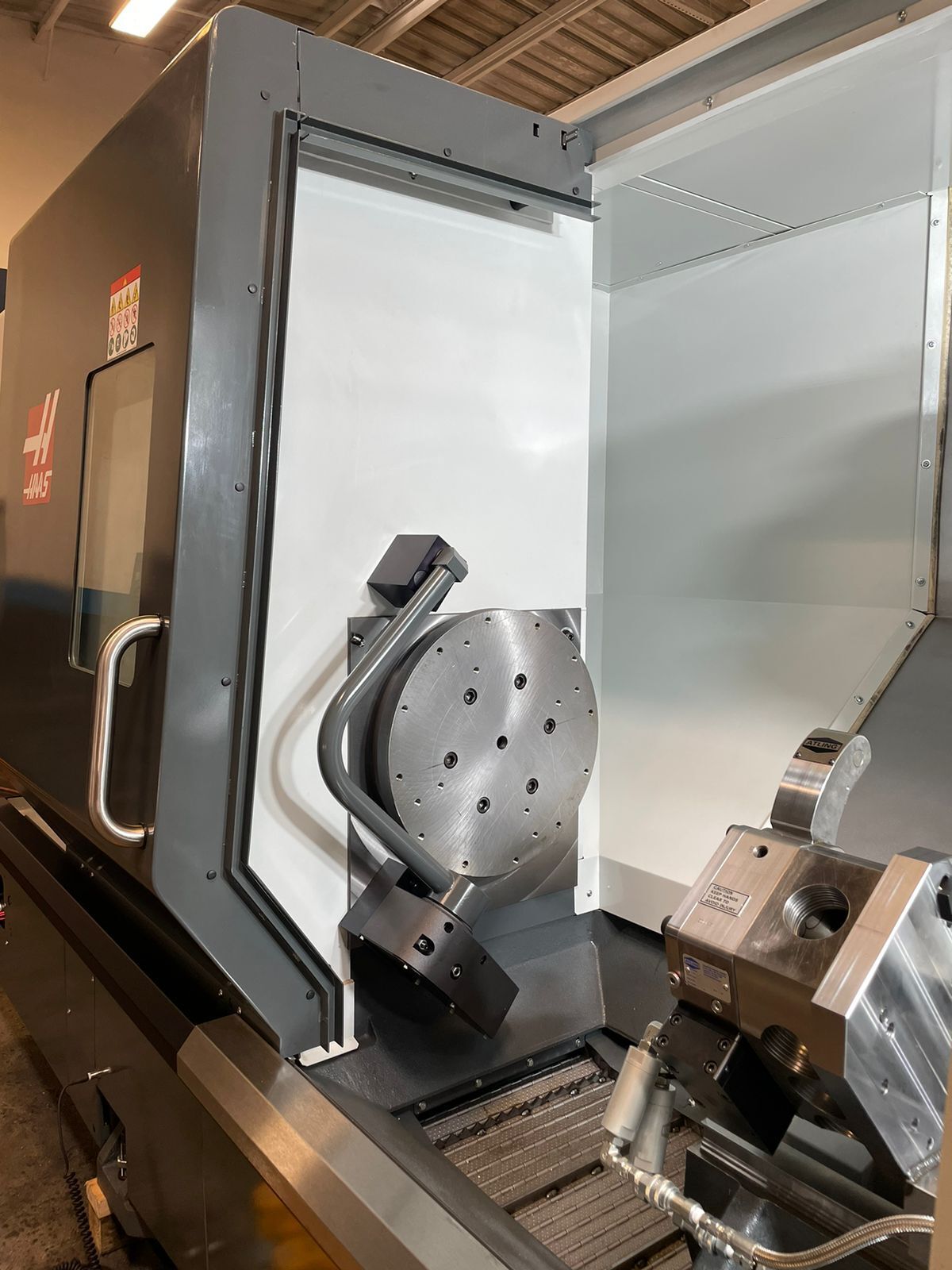

| Face Plate (Capable 18″ Chuck) |

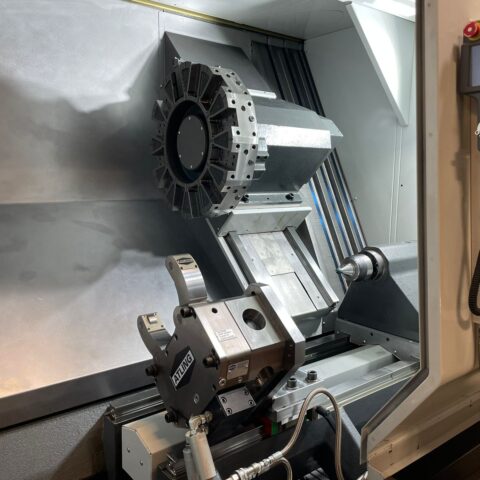

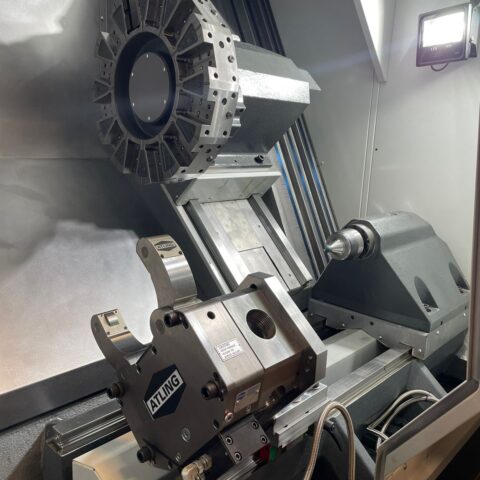

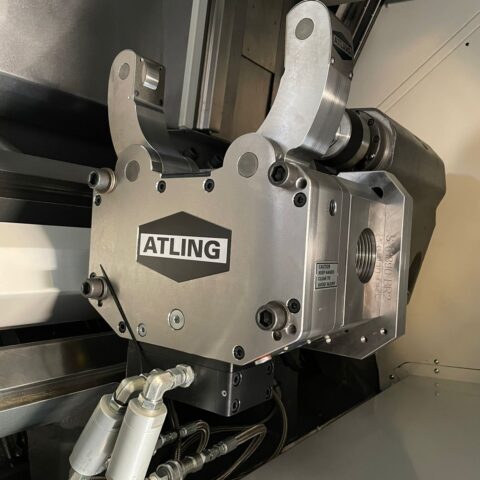

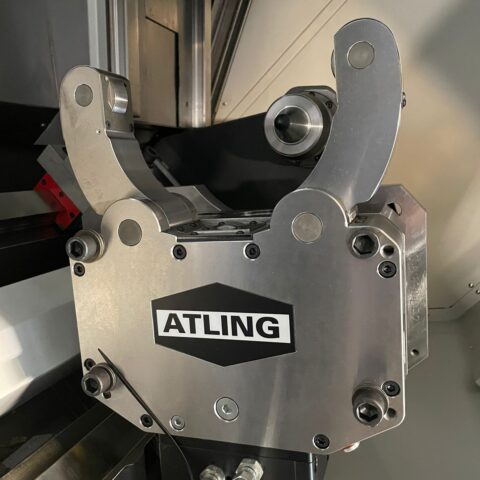

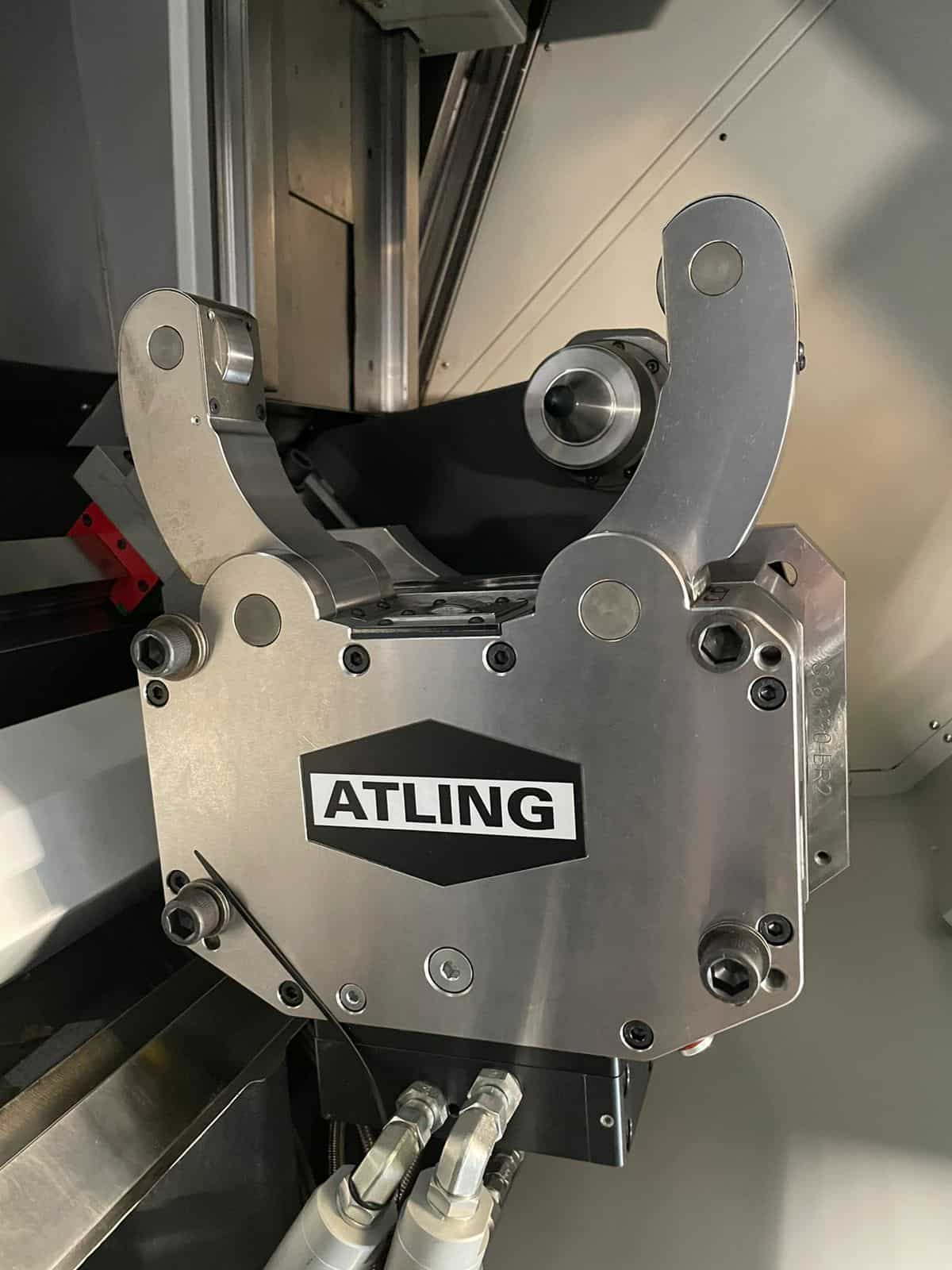

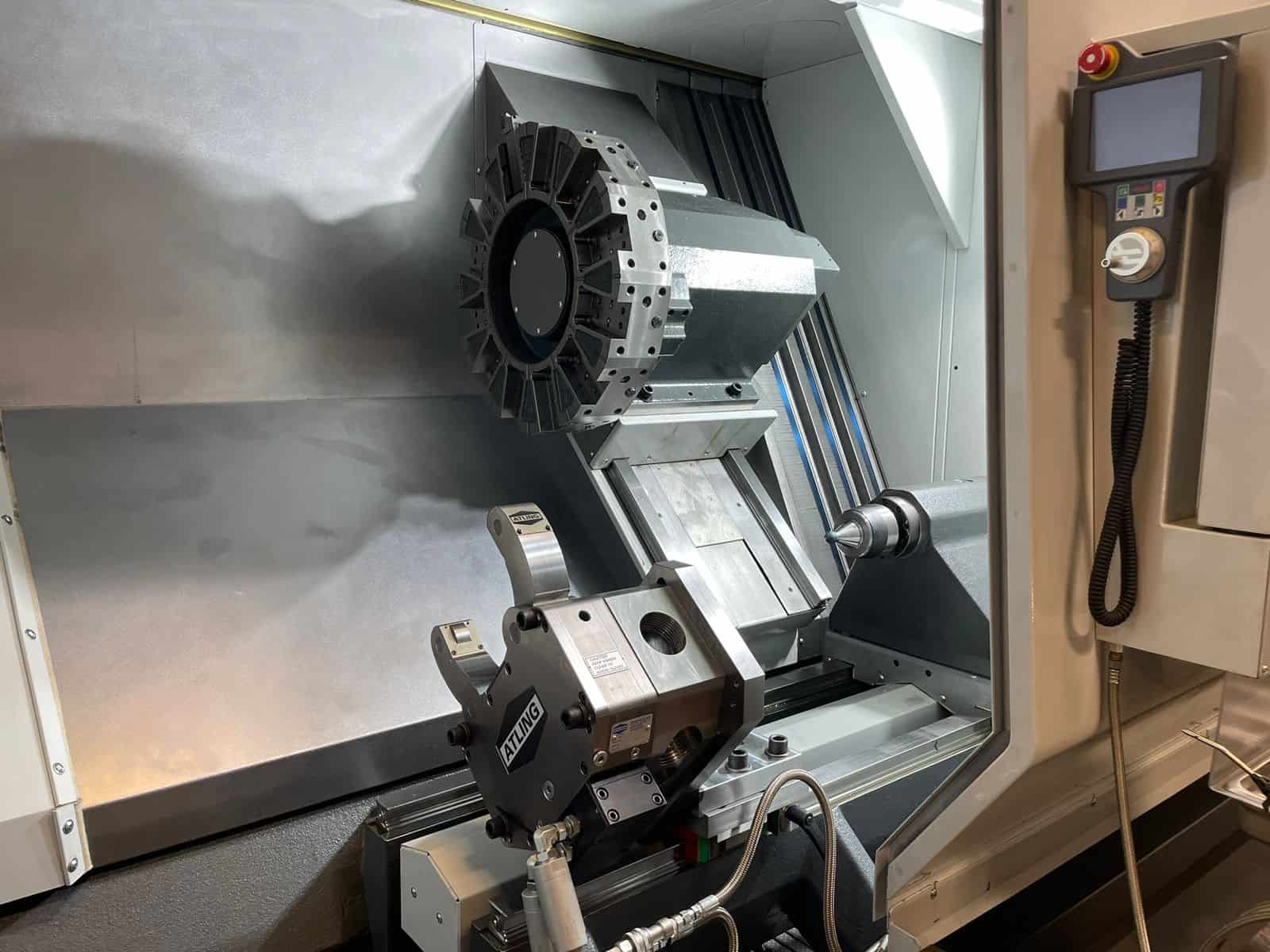

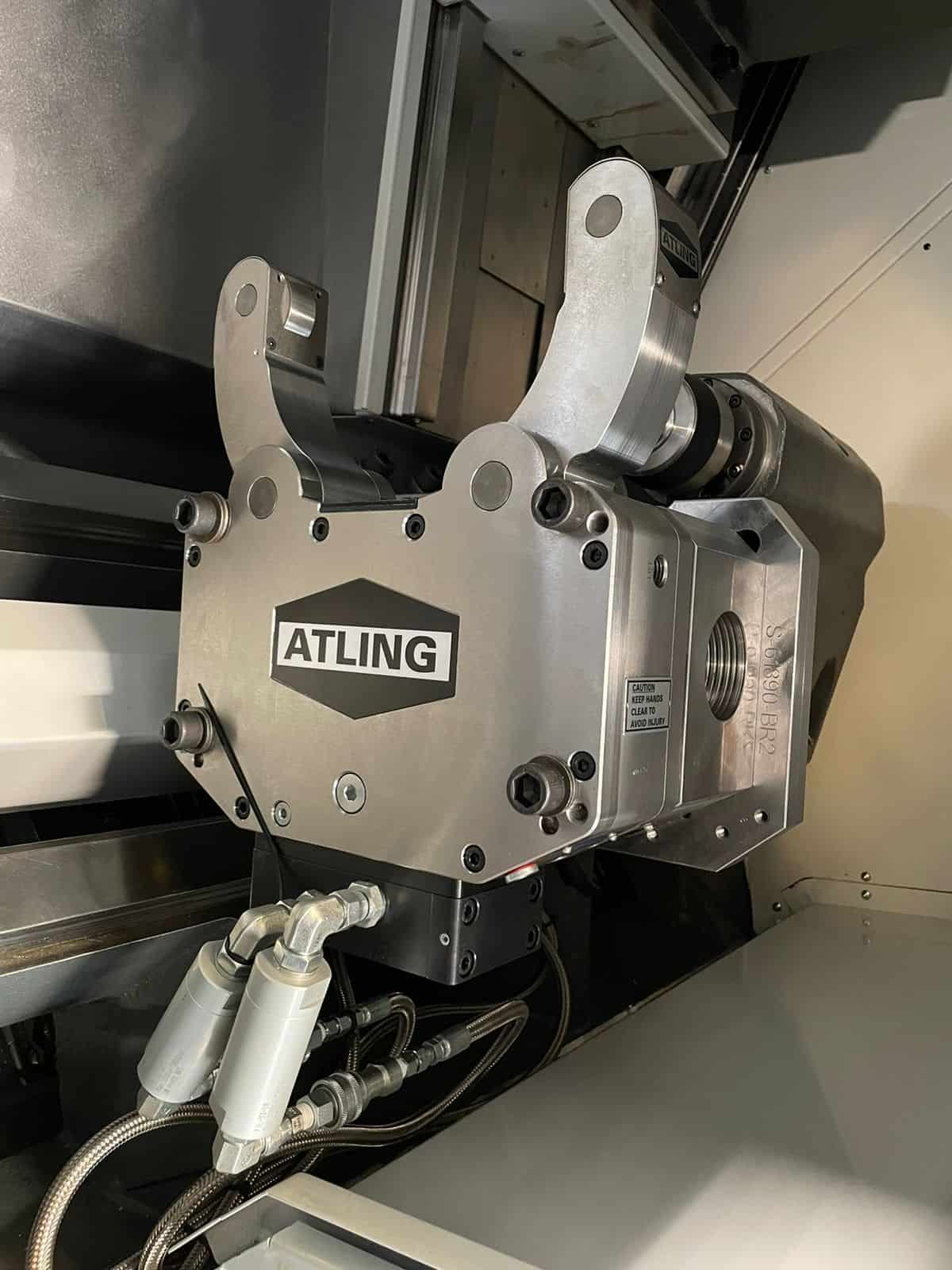

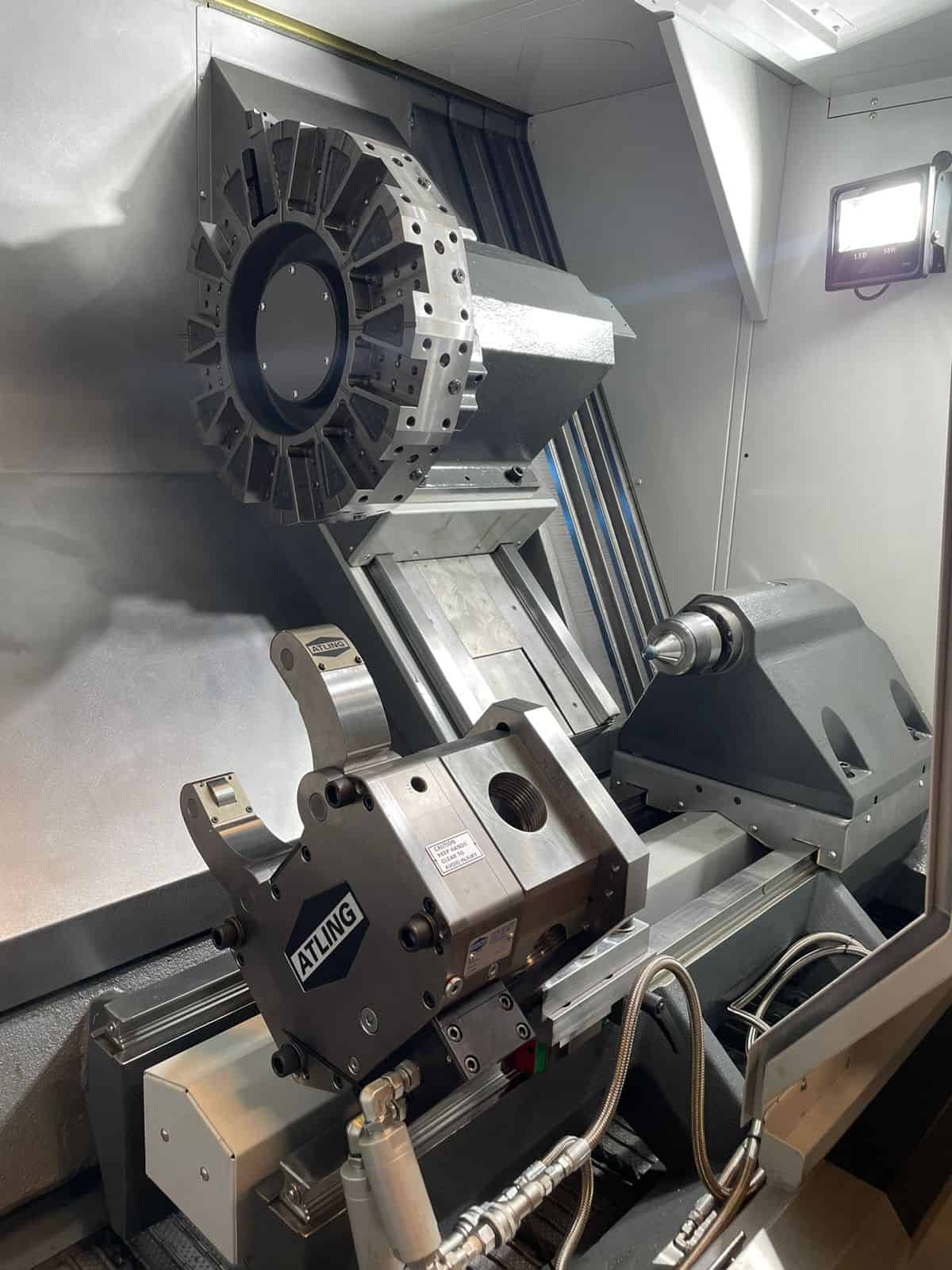

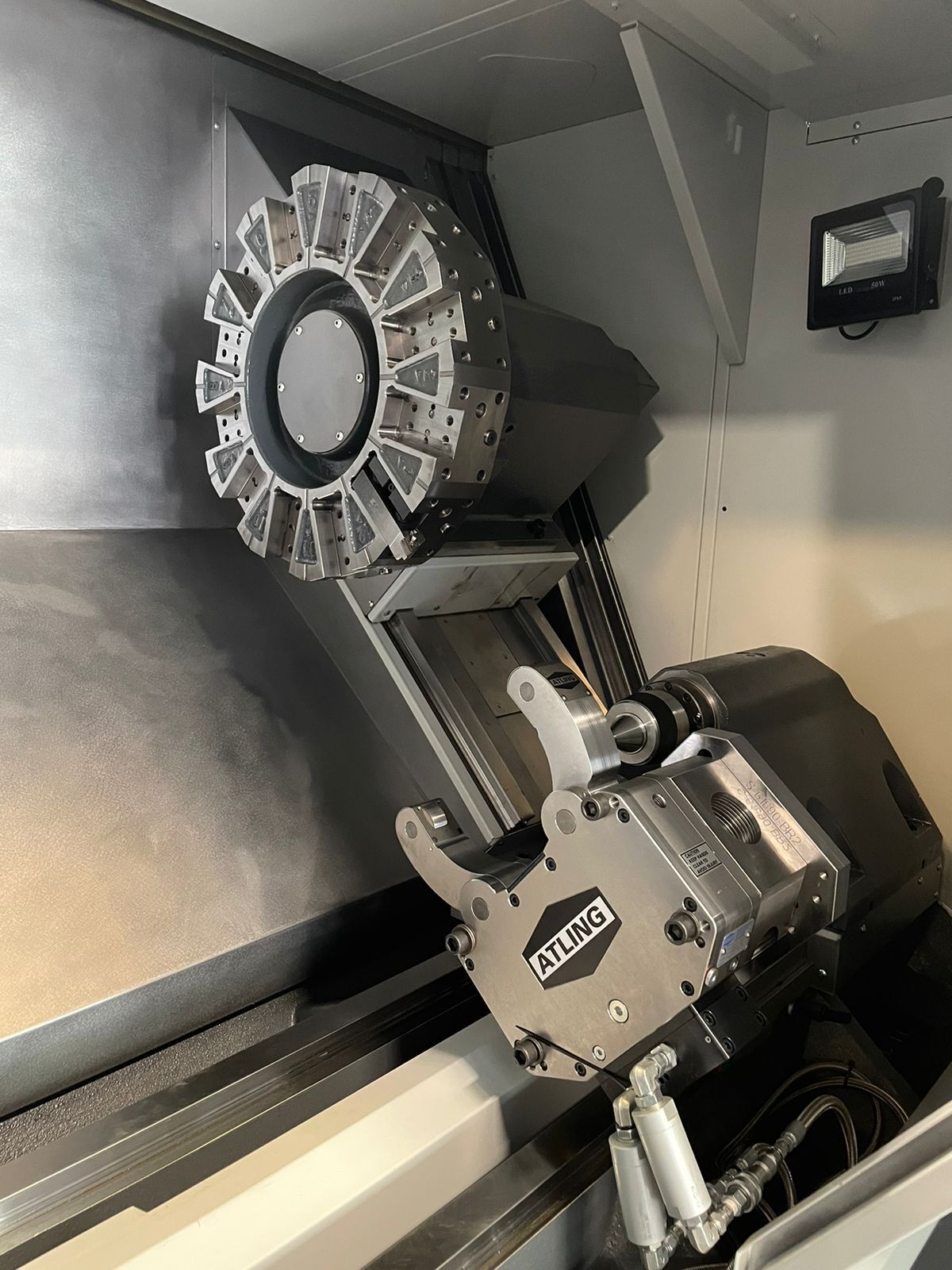

| LMC / Atling AX5 Steady Rest (Upgraded $26,200 value Included) |
| 7.0″ Bore Spindle |
| A2-11 Spindle |
| 1400 RPM Spindle |

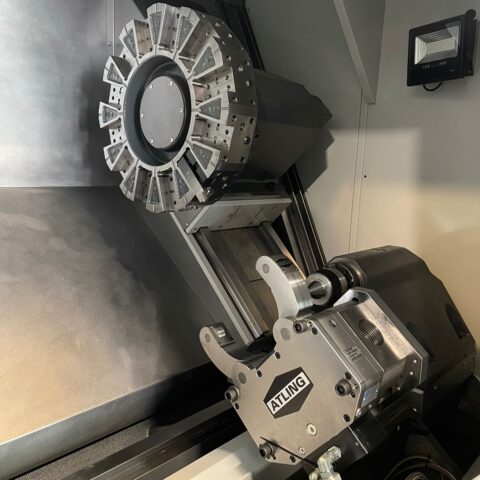

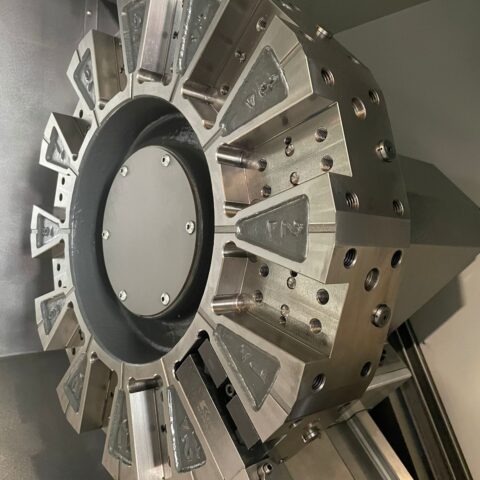

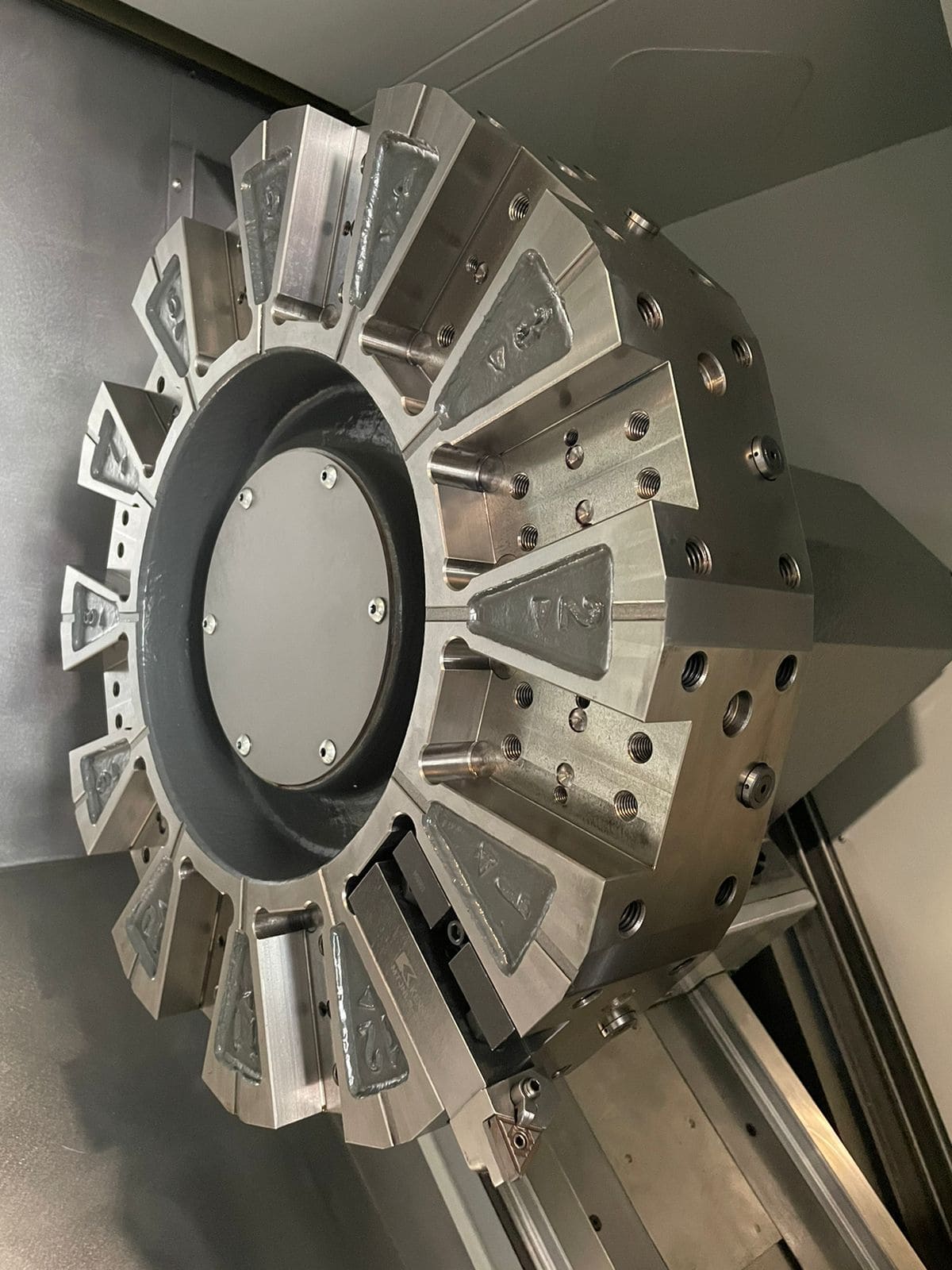

| 12 Station Bolt-on Tool Turret |

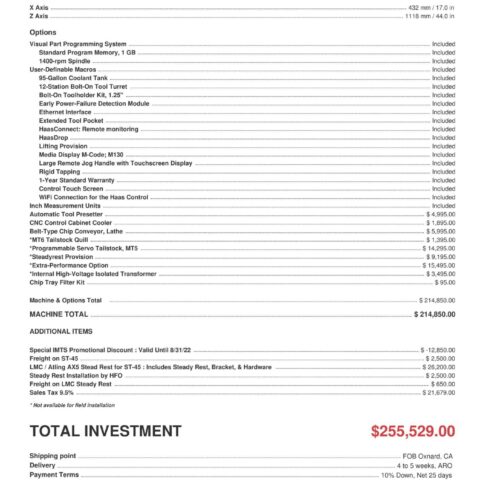

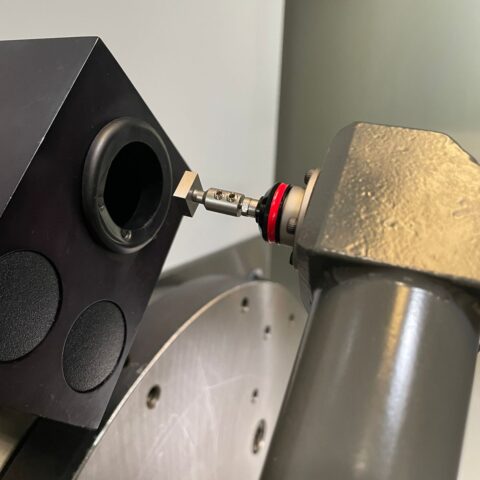

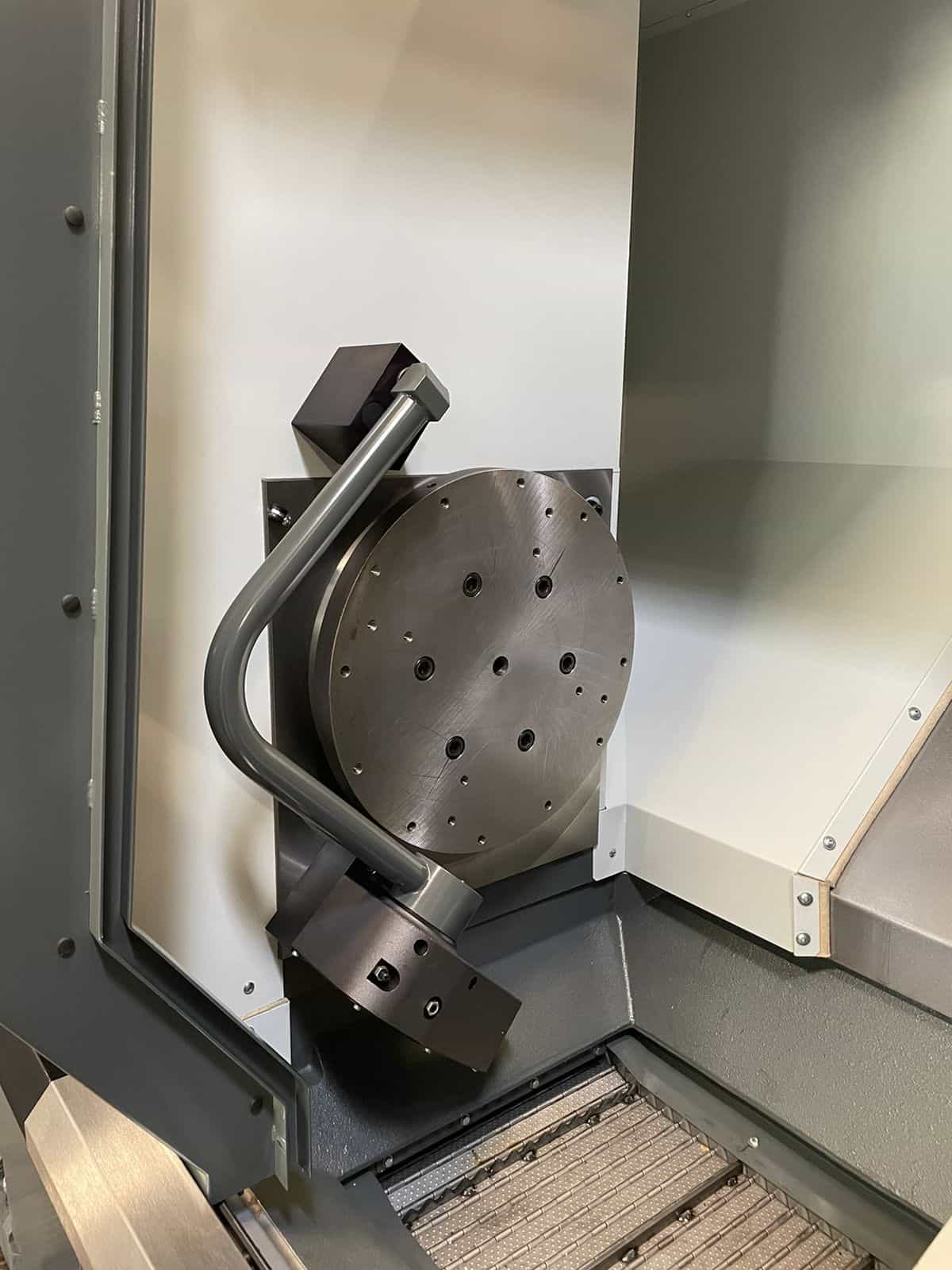

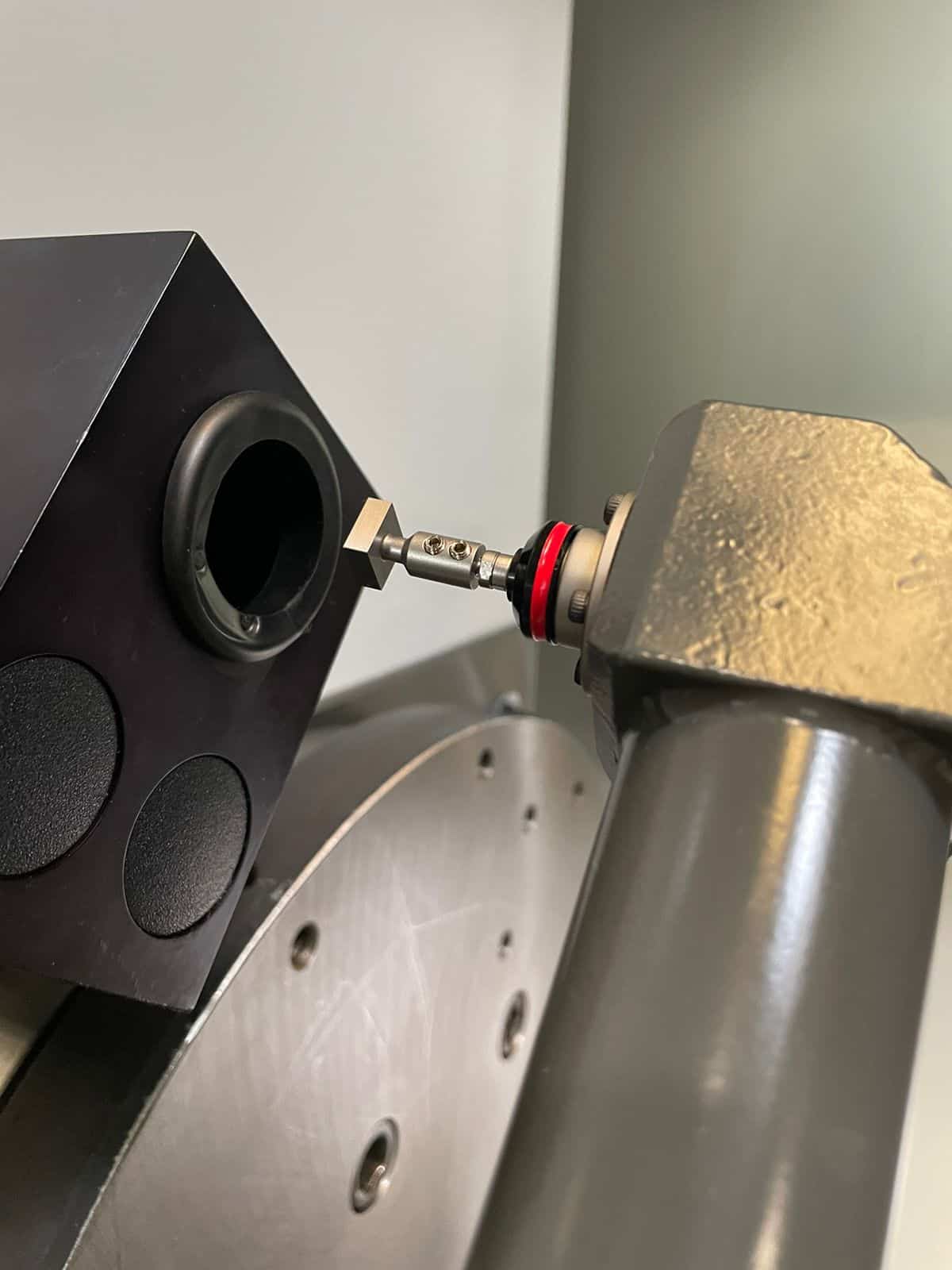

| Automatic Tool Presetter (Upgraded $4,995 value Included) – Speeds up Changeovers and Setup |

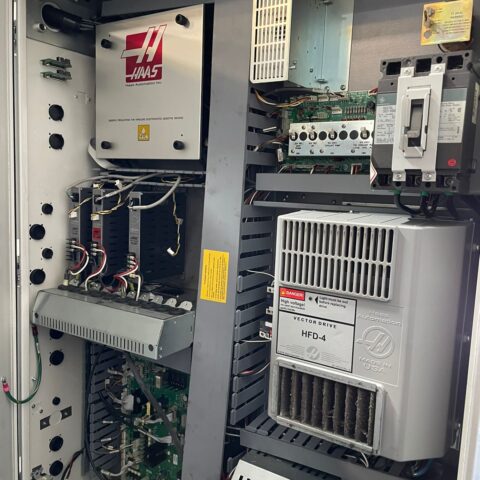

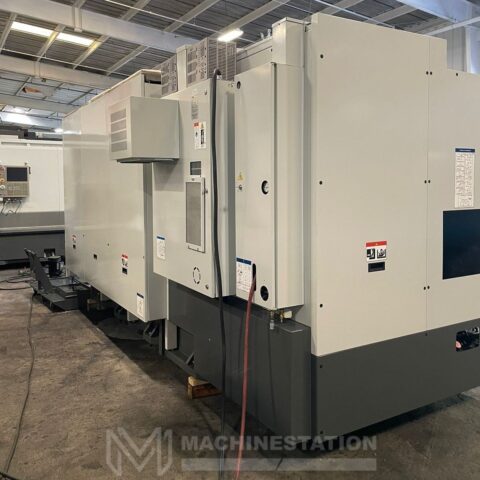

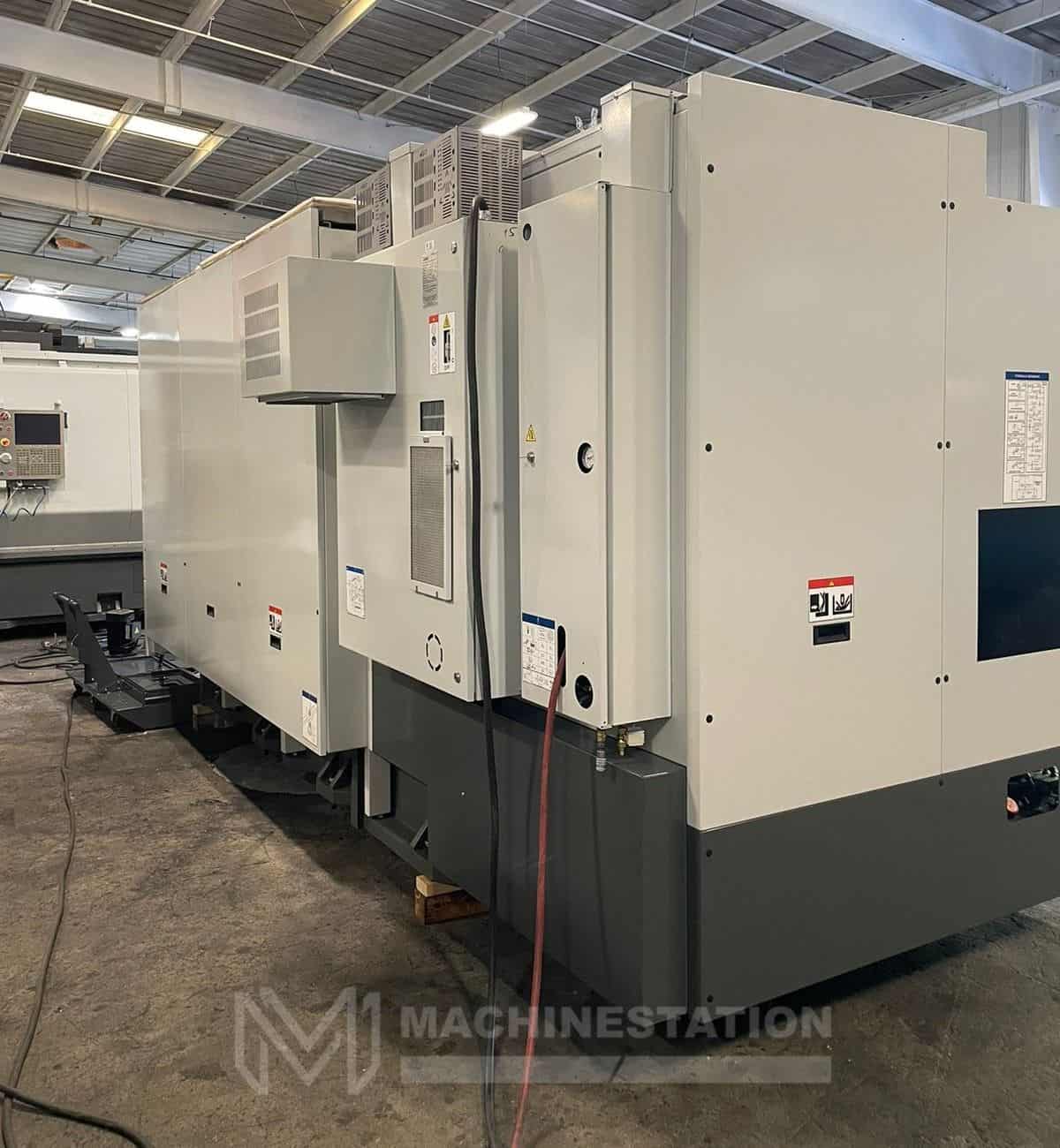

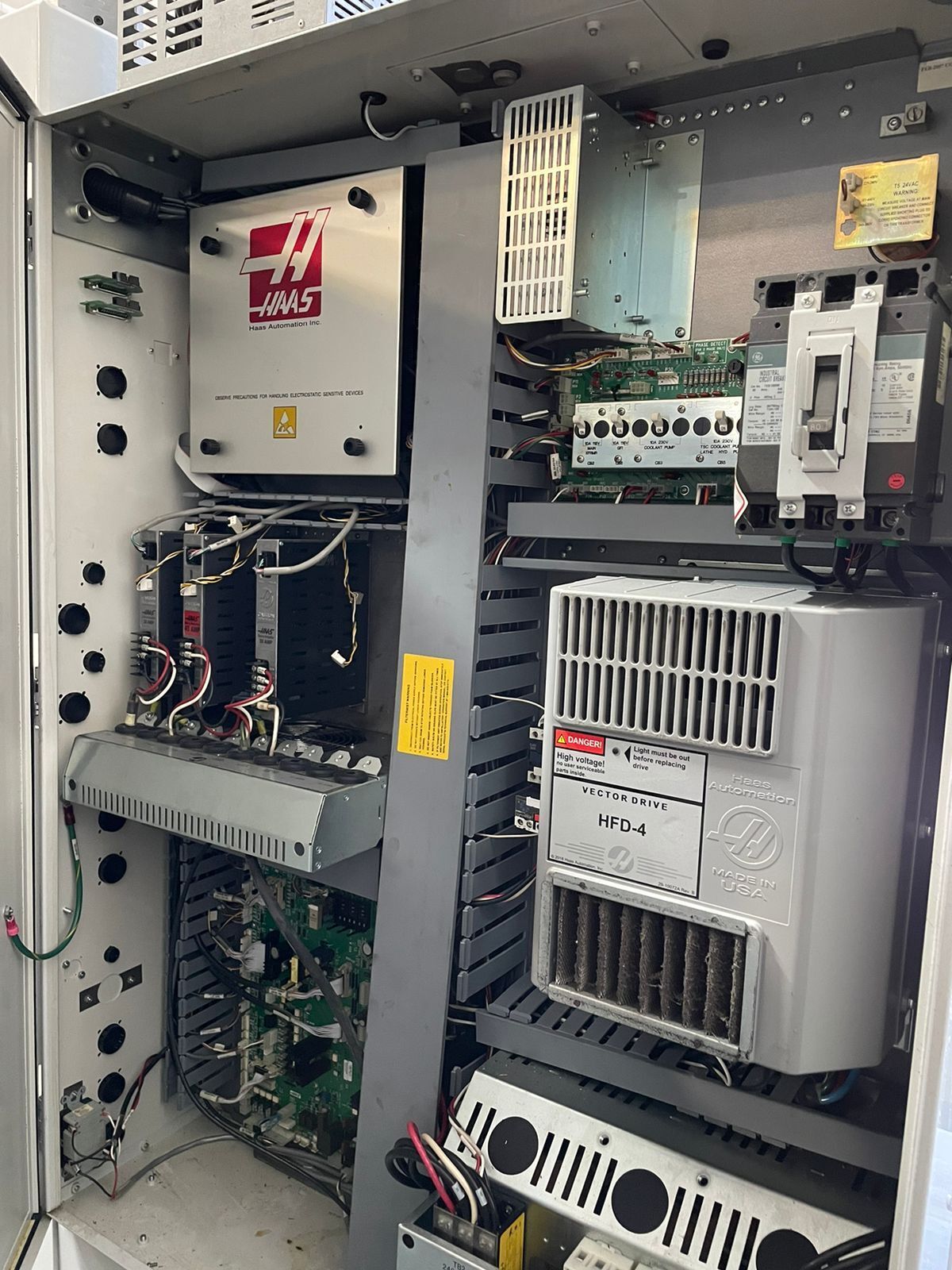

| CNC Control Cabinet Cooler (Upgraded $2,195 value Included) – Reduces the Internal Temperature of the Control Cabinet |

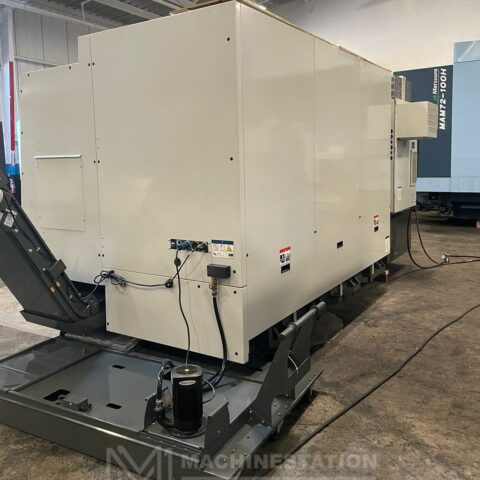

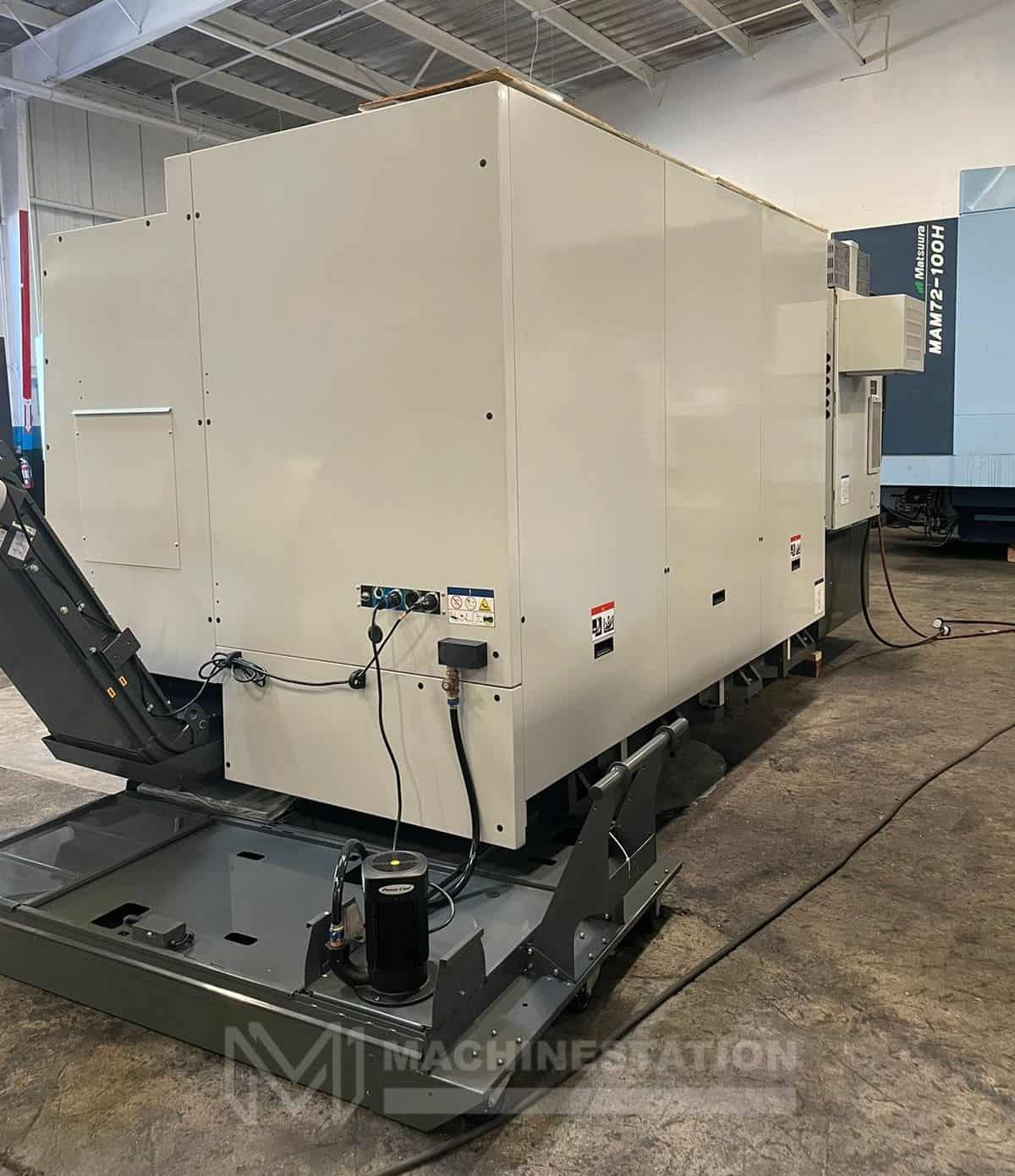

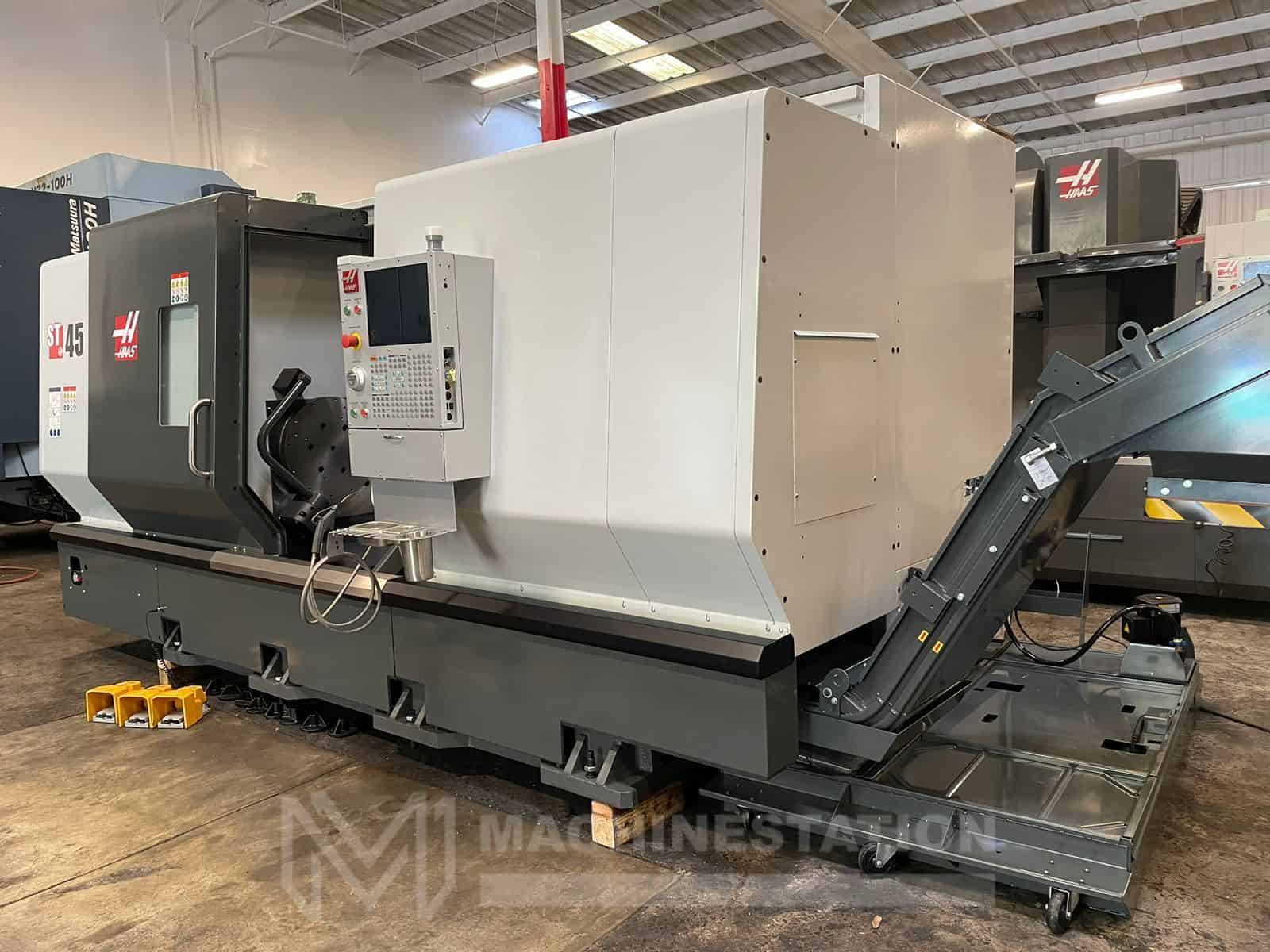

| Belt Type Chip Conveyor (Upgraded $7,095 value Included) For Efficient Chip Removal |
| MT-6 Tailstock Quill (Upgraded $1,695 value Included) – For Increased Support and Additional Weight Capacity. |

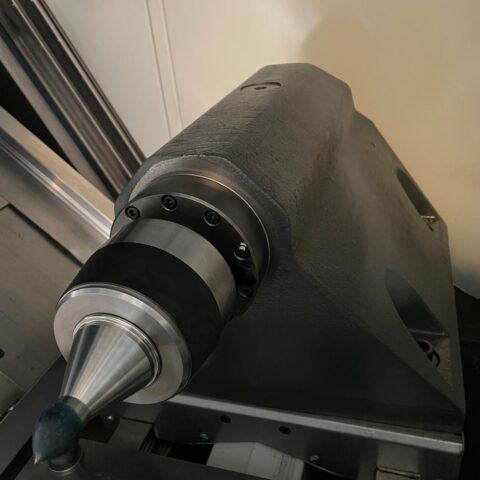

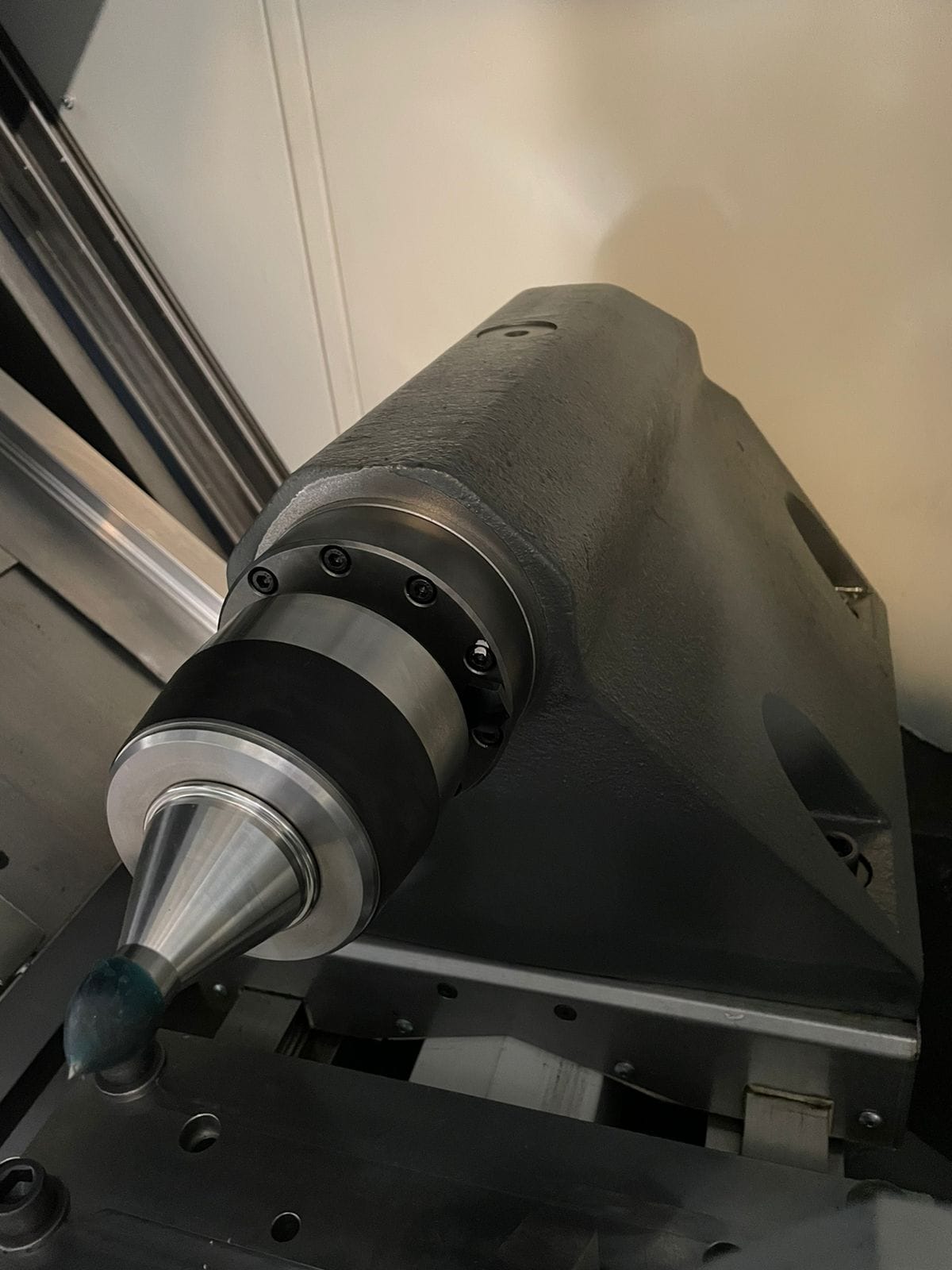

| Programmable Servo Tailstock, MT-5 (Upgraded $16,695 value Included) – Provides Additional Support For Long Workpieces. |
| Steady Rest Provision (Upgraded $10,795 value Included) – Provides the Necessary Mounting Platform |
| Extra Performance Option (Upgraded $1,695 value Included) – 55 HP Spindle |

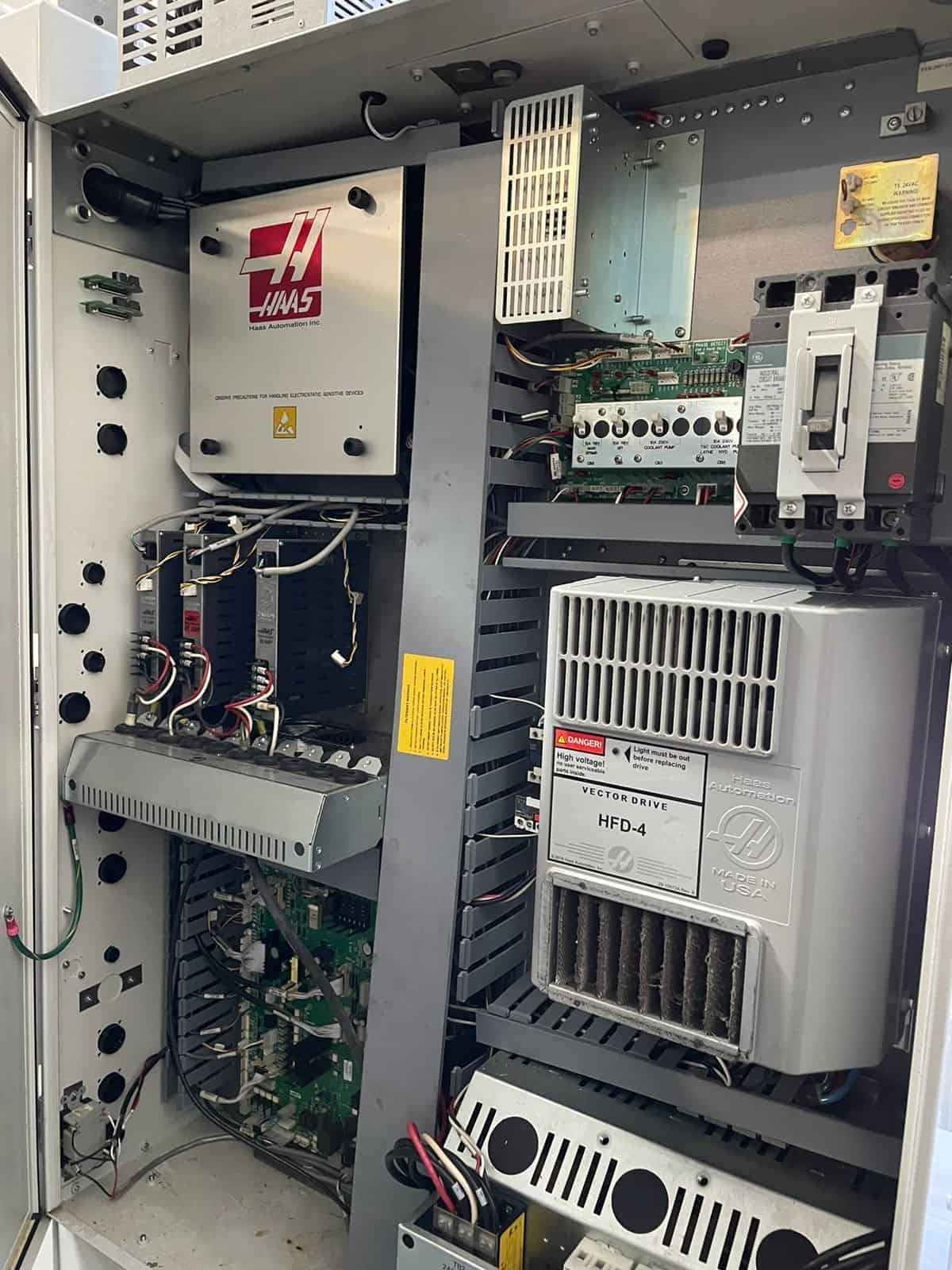

| Internal High-Voltage Isolated Transformer (Upgraded $3,495 value Included) |
| Chip Tray Filter Kit (Upgraded $95 value Included) |

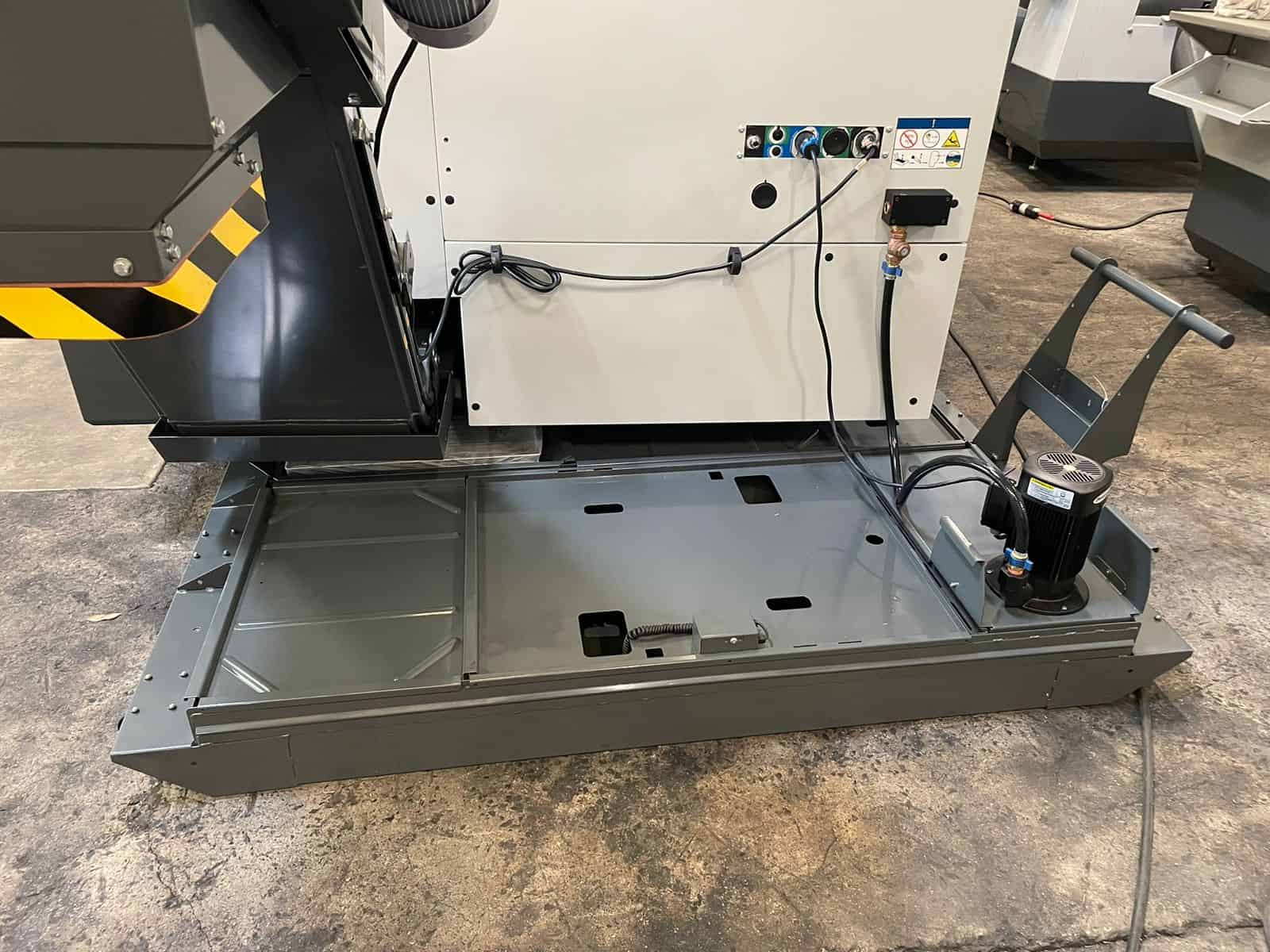

| 95-Gallon Coolant Tank |
| Inch Measurement Unit |
| Haas Connect Remote Monitoring |
| Media Display M-Code; M130 |
| Rigid Tapping |

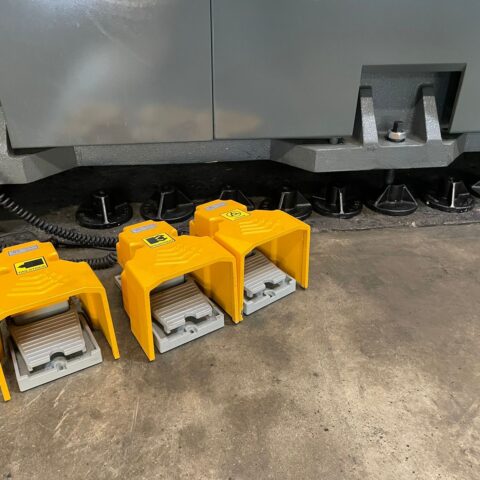

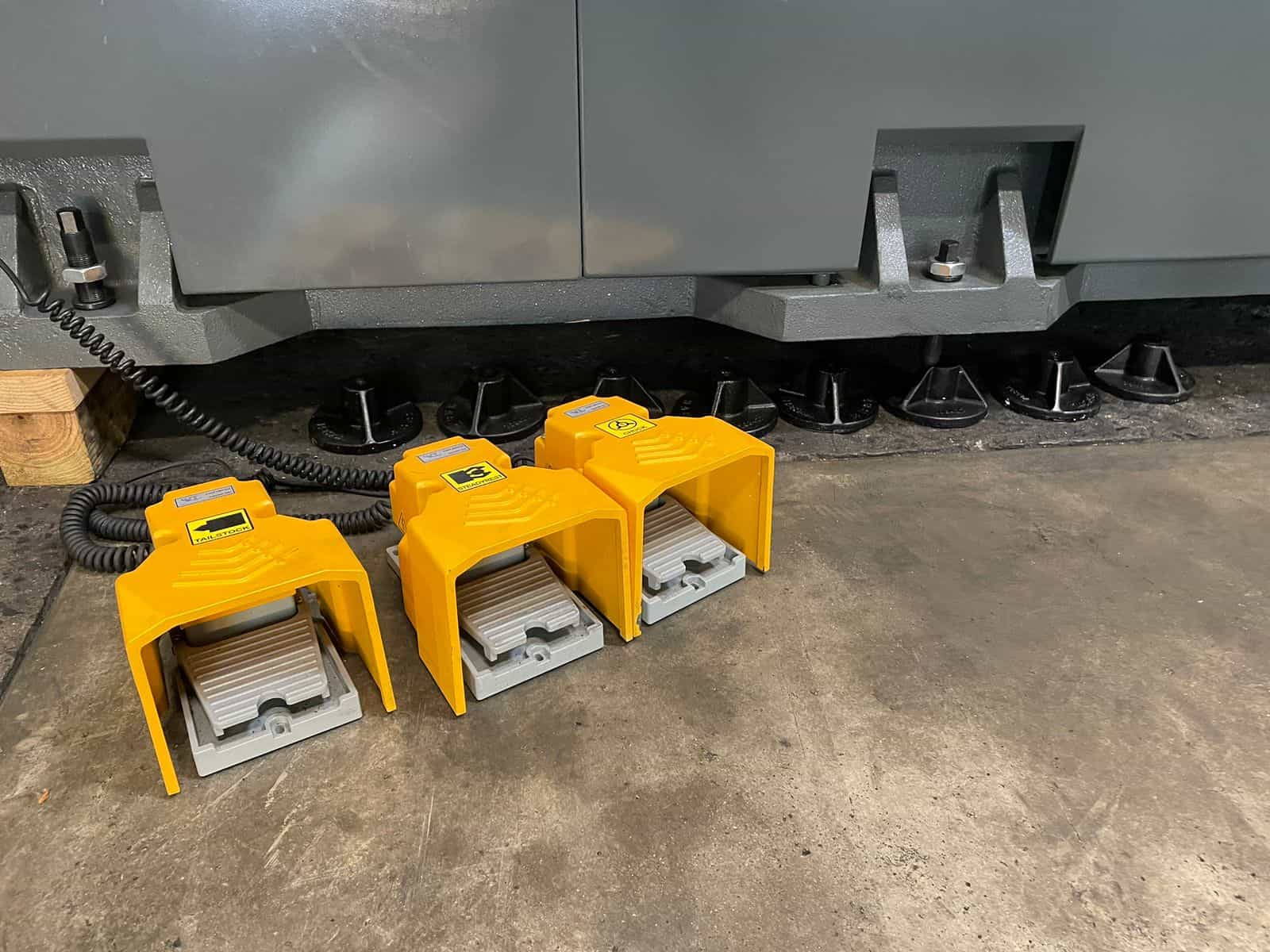

| Foot Switches |
| Levelling Pads |
| Capacity: |
|---|
| Max Turning Diameter : 27.5″ |
| Max Swing Over Bed : 35.5″ |
| Max Turning Length: 44.0″ |
| Max Bar Capacity : 6.5″ |
| Travels: |
|---|
| X Axis Travel : 20″ |
| Z1 Axis Travel : 44.0″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 710 IPM |
| Rapid Traverse Z Axis: 710 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-11 |
| Drive System: 2-Speed Gear Box |
| Spindle Bore: 7.0″ |
| Spindle Speed: 1400 RPM |
| Spindle Motor: 55 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 1 Second |
| General: |
|---|
| Air Required: 4 scfm @ 100 psi |

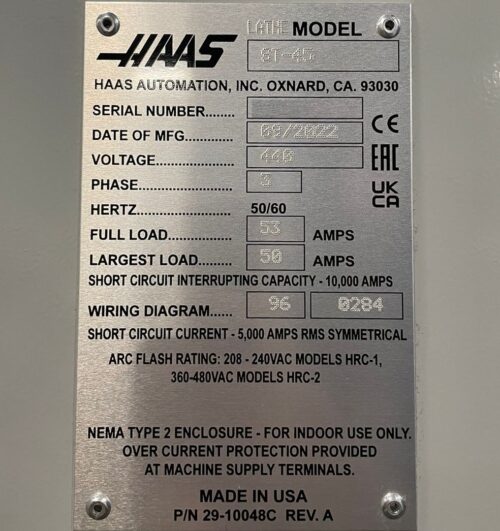

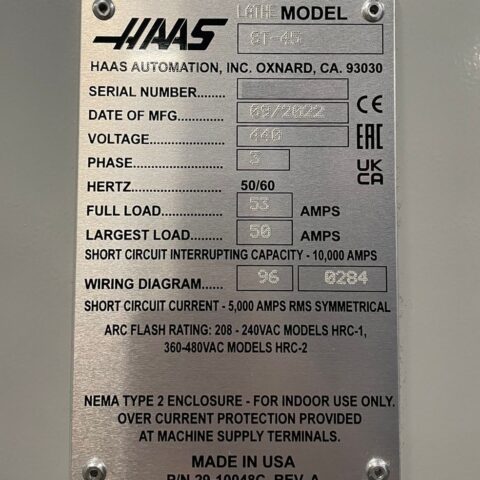

| Power Source: AC 220v / 3-Phase / 60 Hz |
| Machine Dimensions: 217″ x 96″ x 116″ High |
| Machine Weight: 20,800 lbs Approx. |
