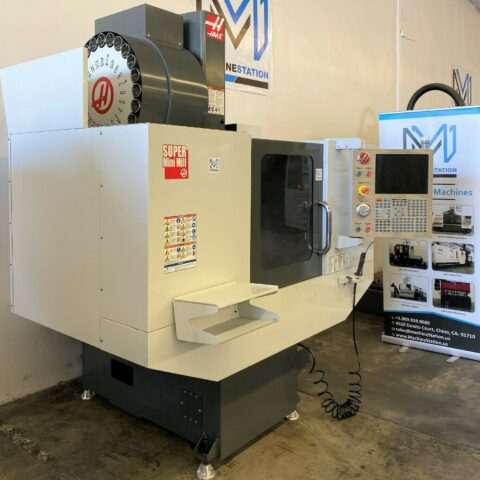

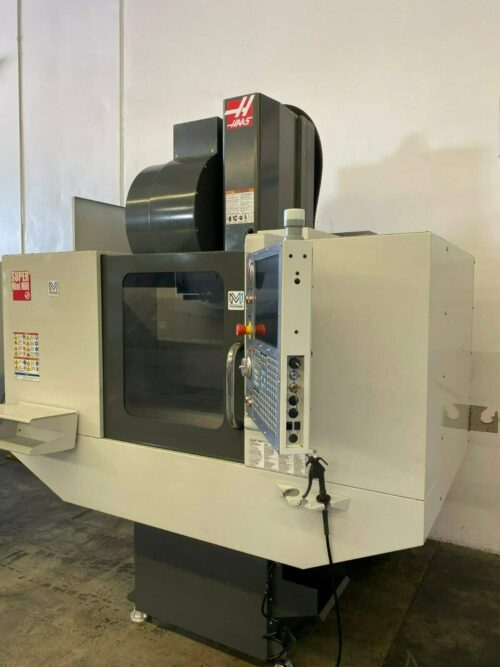

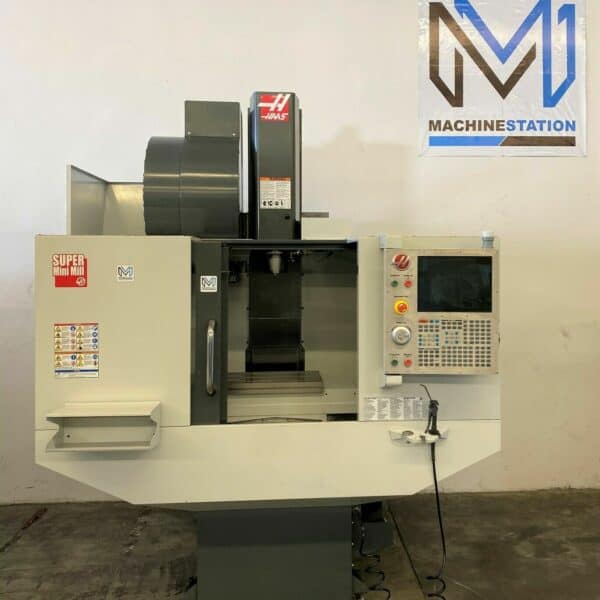

HAAS SUPER MINI MILL 2 VERTICAL MACHINING CENTER | |
---|---|
Make | Haas |
Model No. | Super Mini Mill 2 |
Year | 2013/2014 |

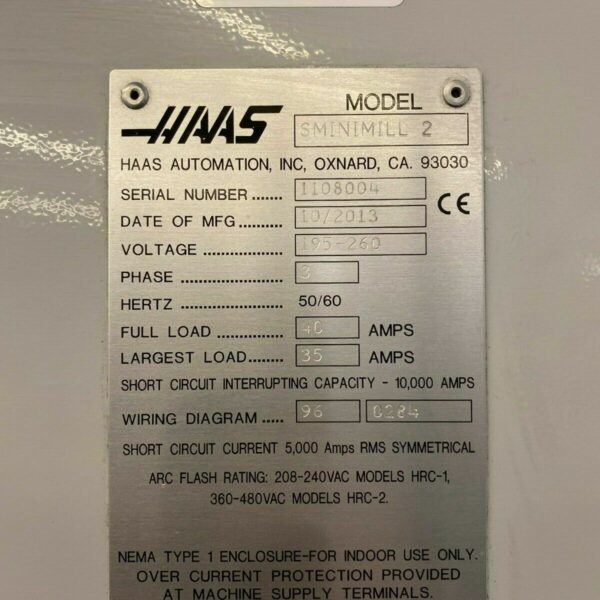

Serial # | 1108004 |
Condition | Almost New |
Cutting Time: | 1088 Hours only |
All specifications are approximations and are subject to verification.
“One Owner Machine, All Original Paint on our Floor now, fully powered / tested & is in Great working condition. Cutting Time: 1088 Hours only”
- Super Mini Mill 2 Features:
- 10,000 RPM Grease Packed Spindle ($2000 option )
- 24 station Side Mount tool changer ( $5000 Option )
- 1200 Inch Per Min.
- Rigid Tapping
- USB Drive
- User Definable Macros
- Spindle Orientation
- Coordinate Rotational Scaling
- Programmable coolant
- Telescopic way covers
- Flood Coolant system
- Tooling Shelves
- Levelling Pads
- Haas Super Mini Mill 2 Specifications:
- Travels:
- X-Axis: 20″
- Y-Axis: 16″
- Z-Axis: 14″
- Rapid Traverse Rates: 1200 Inch Per Minute Cutting
- Feed Rates: 833 Inch Per Minute

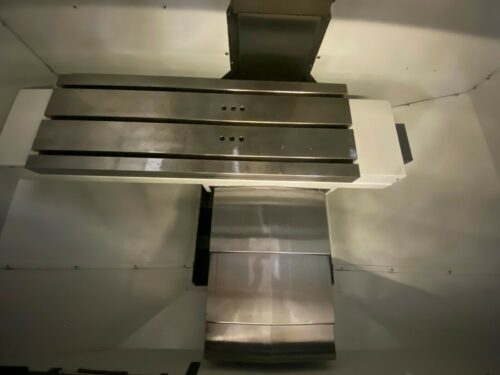

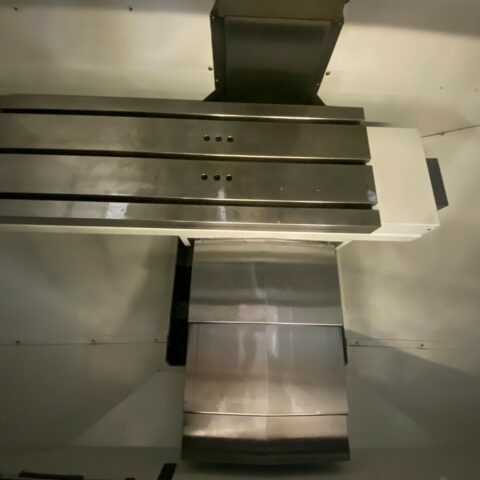

- Table:
- Length: 40″
- Width: 14″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 1500 lbs

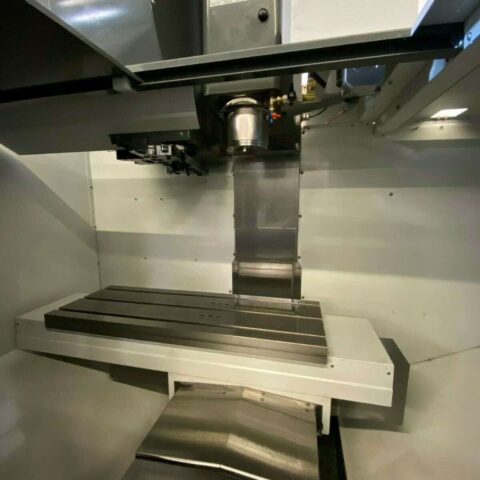

- Spindle:
- Spindle: Taper Size: 40
- Speed Range: 0 – 10,000 RPM
- Spindle Type:
- Spindle Power: 15 HP Vector Dual Drive
- Max Torque: 90ft-lb @ 2000 RPM
- Automatic Tool Changer:
- Capacity: 24 + 1 Max
- Tool Weight: 12 lbs
- Max Tool Dia: 5″
- Max Tool Length: 11″
- Tool Changing Time: 1.6 Seconds
- General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 70″ x 72 x 90″ High
- Weight: 5500 lbs

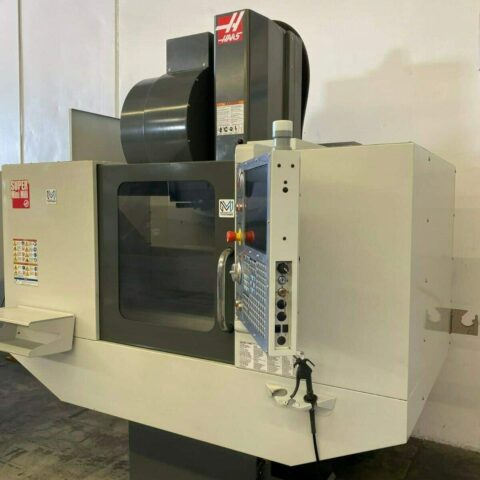

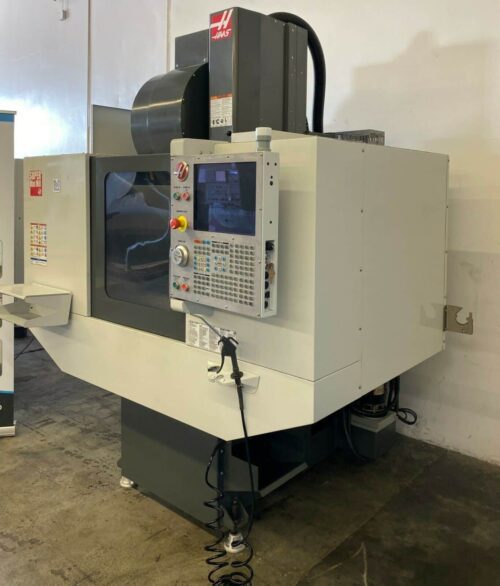

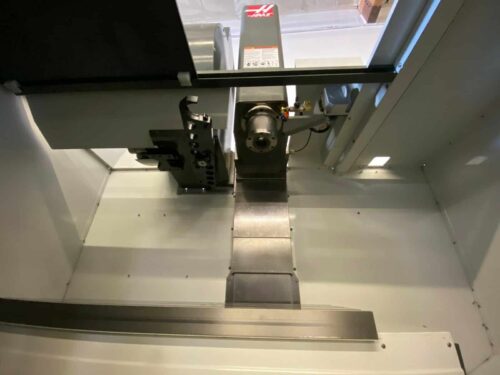

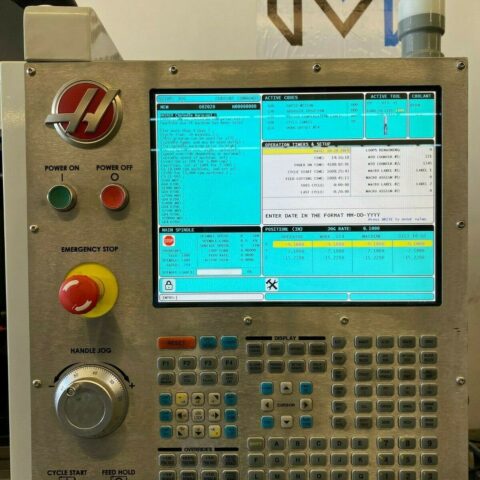

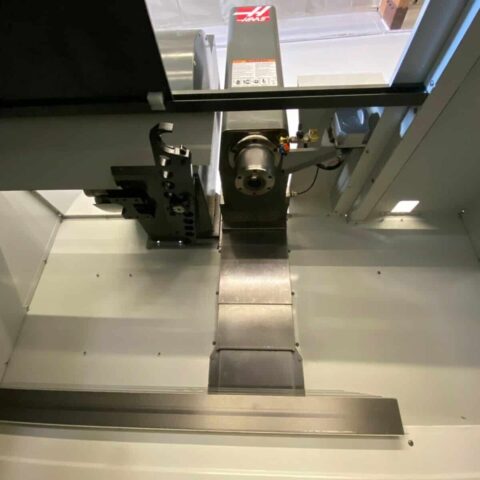

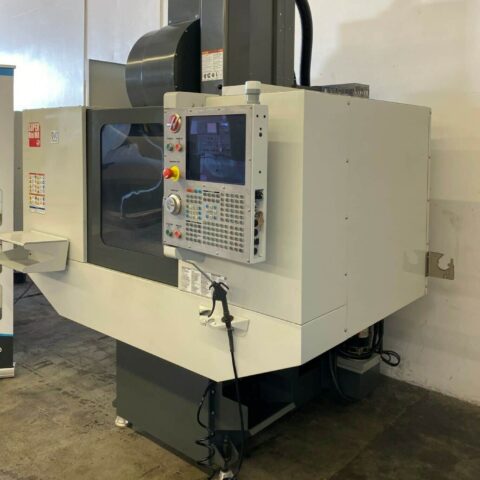

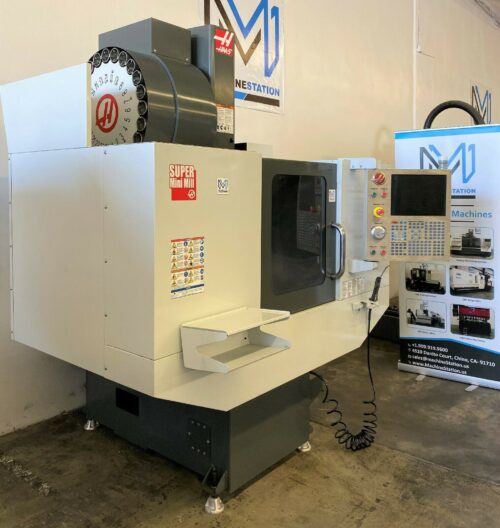

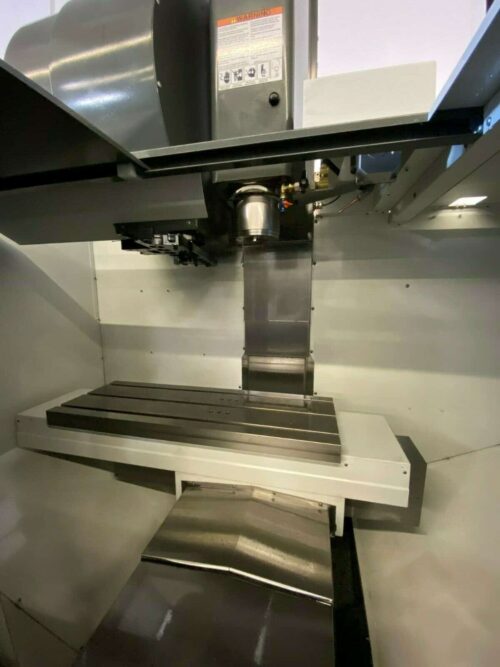

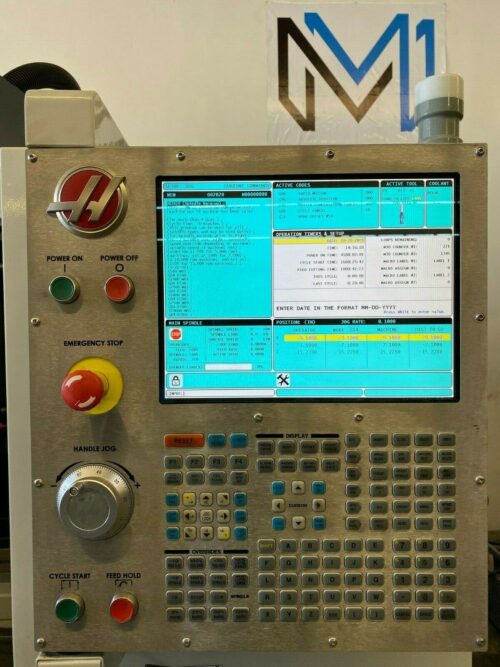

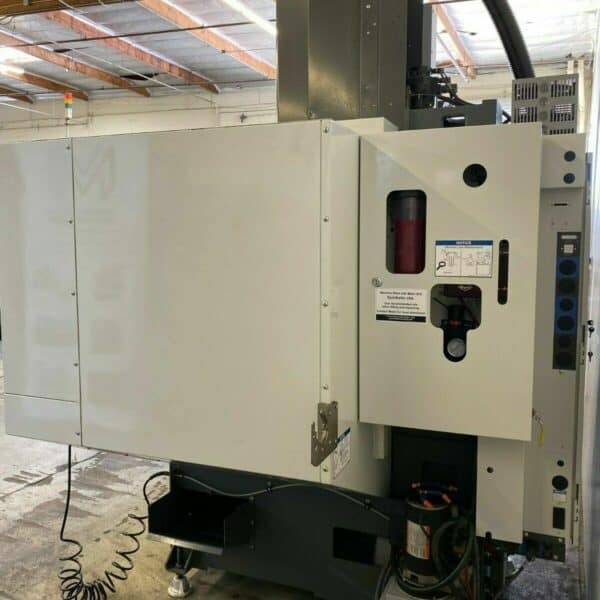

Haas Super Mini Mill 2 Comes as shown in Pictures..
