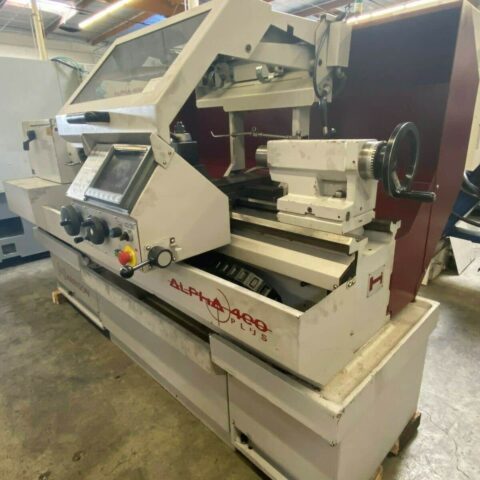

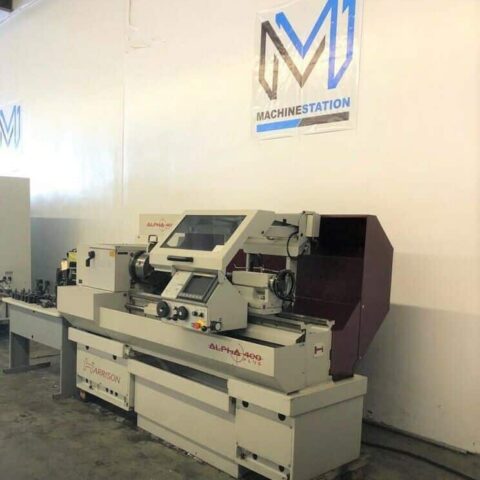

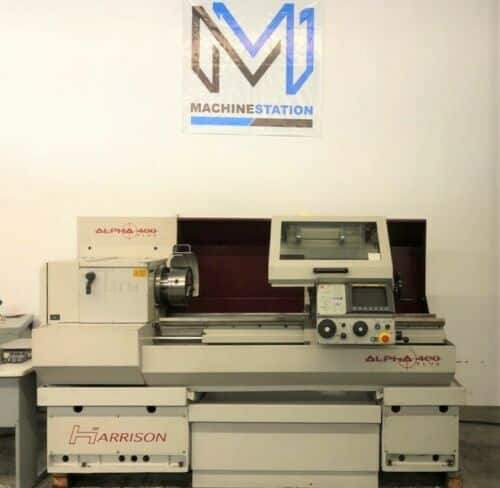

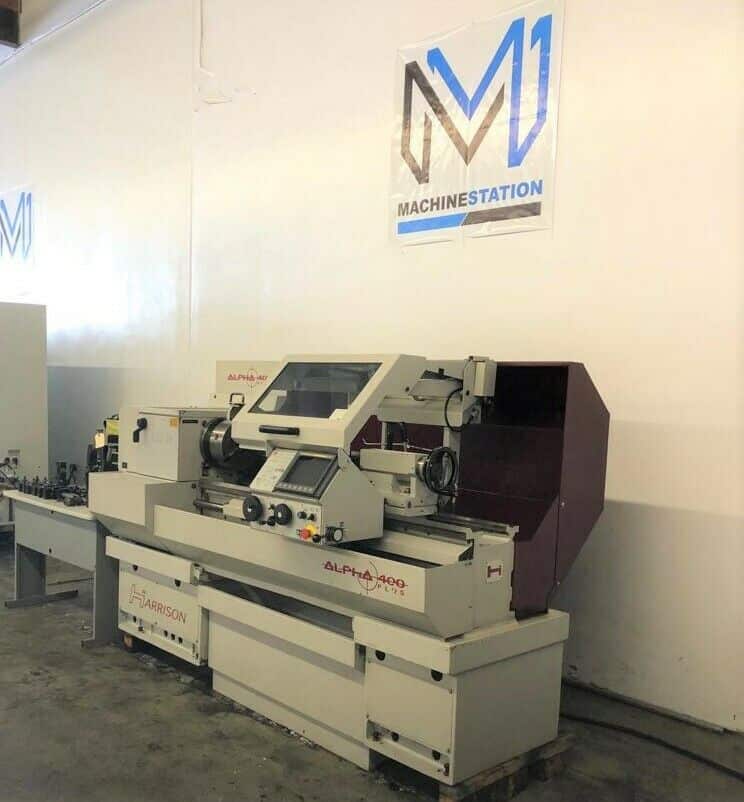

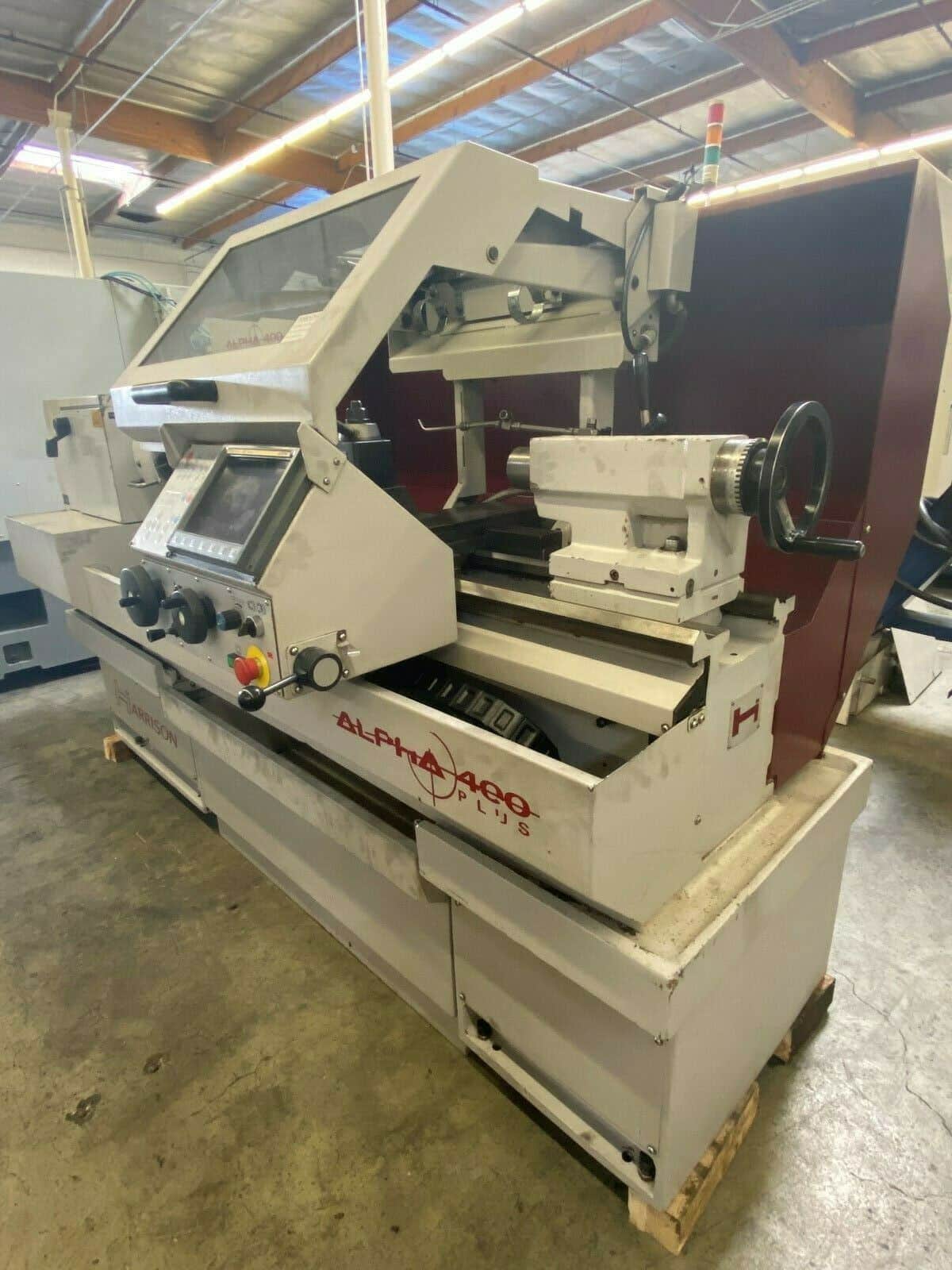

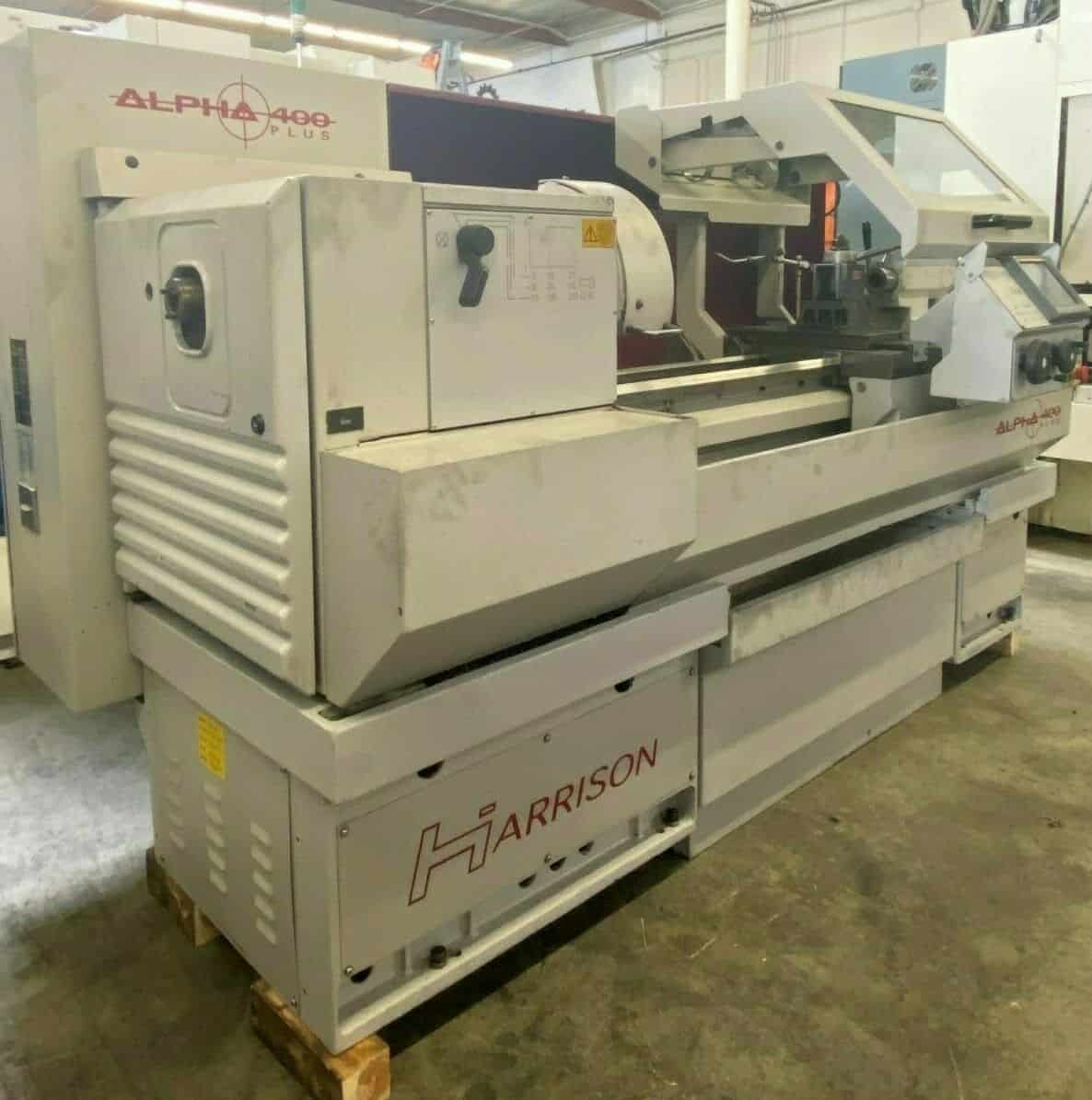

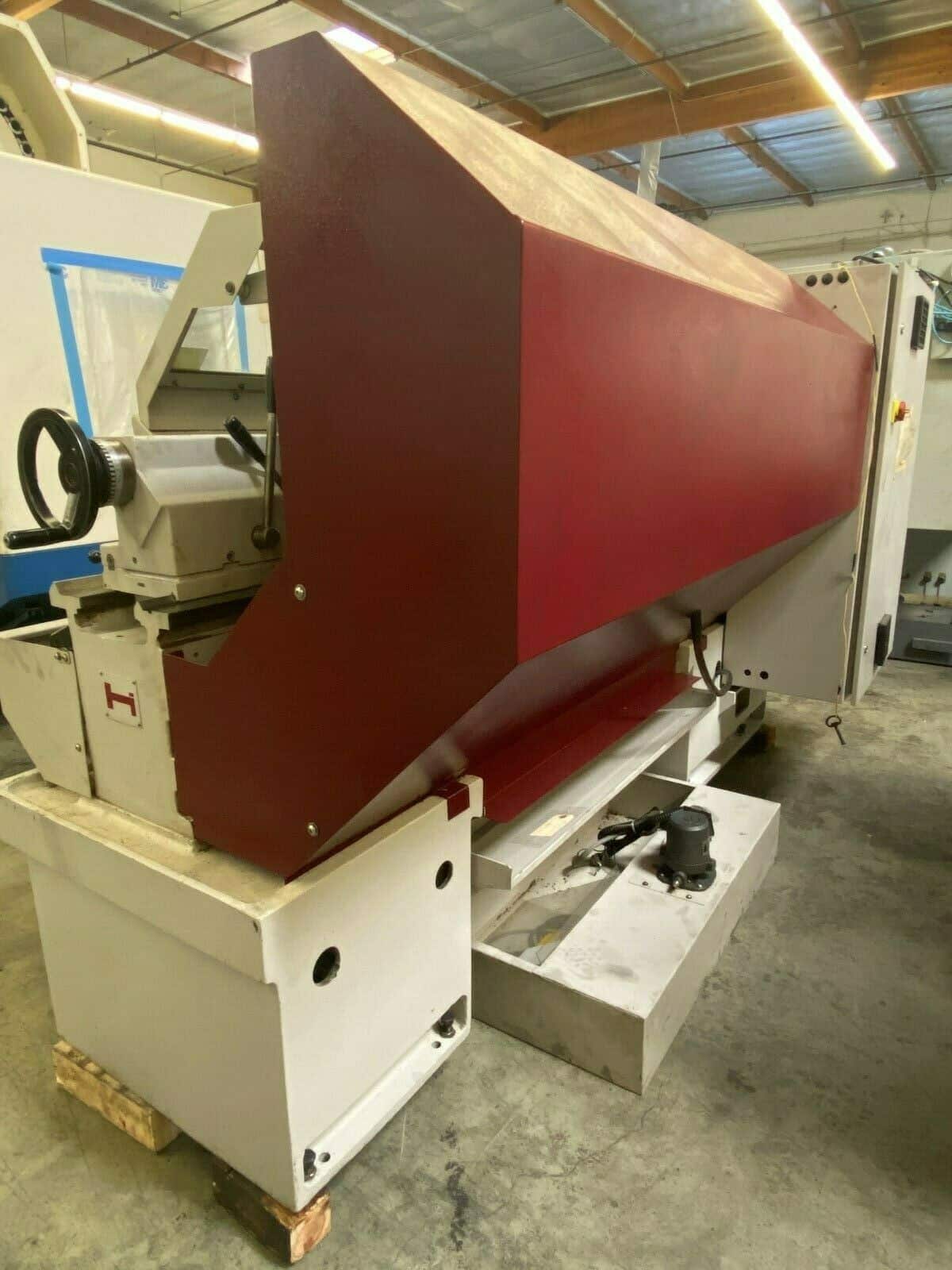

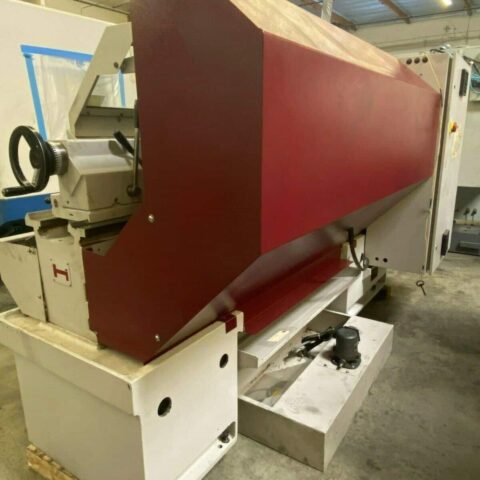

Harrison Alpha 400 CNC Turning Center

$18,000.00

This machine is in very Good running condition. It is equipped with Chuck, Steady Rest, Tool Holders & Tailstock. On Our Floor fully powered / tested & is in Great working condition.”

Qty =

Video

Product Description

HARRISON ALPHA 400 CNC TURNING CENTER

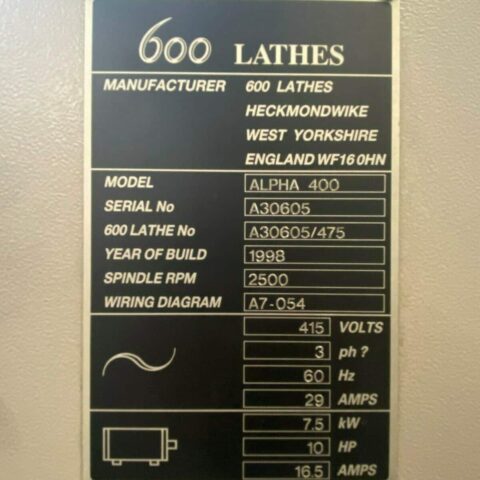

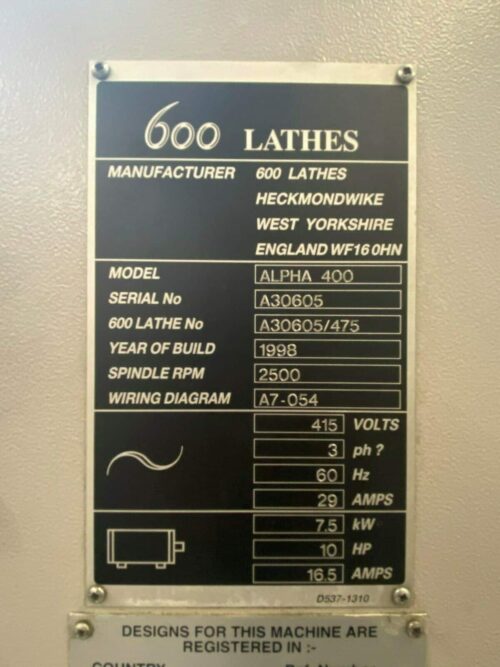

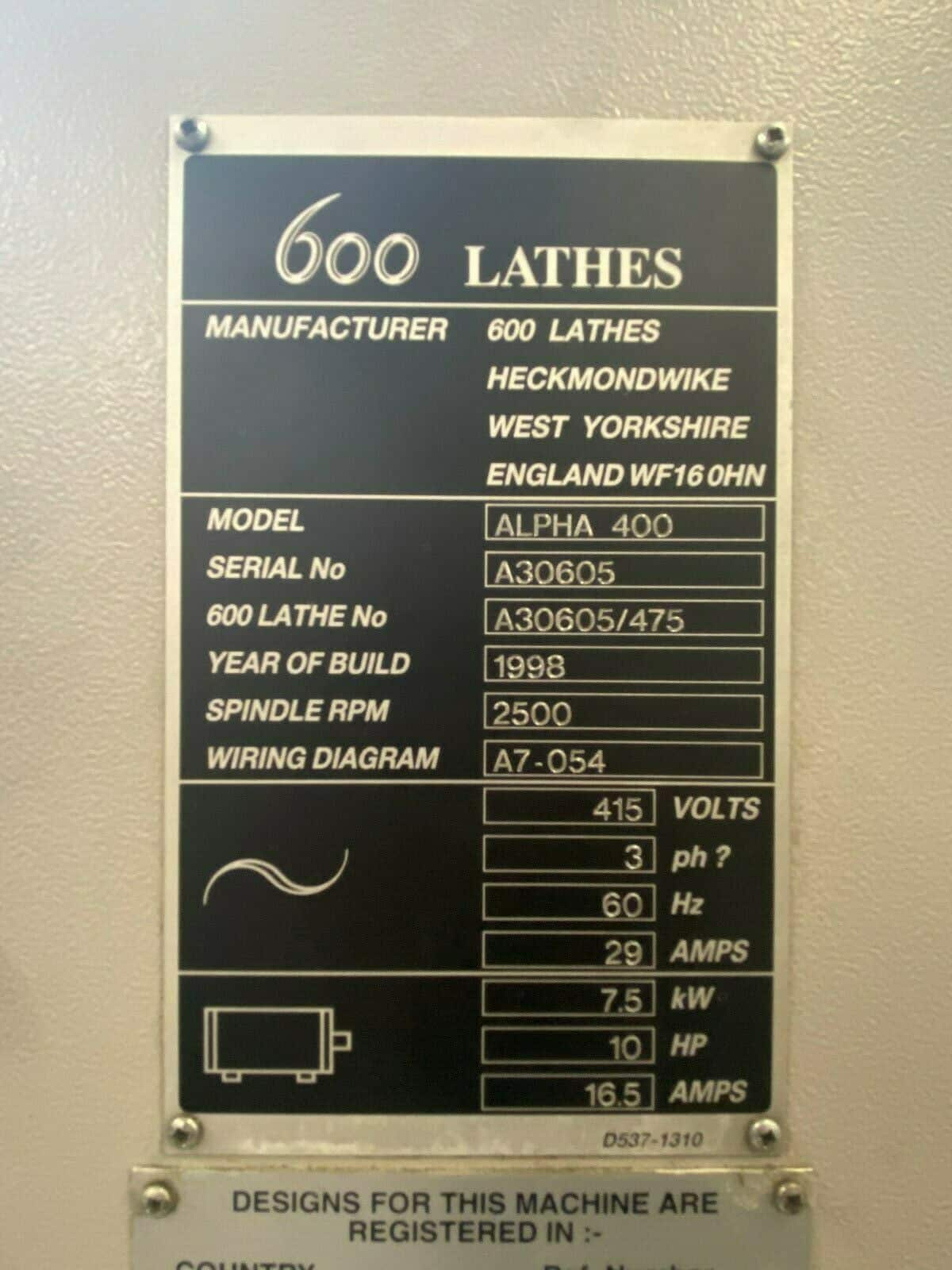

Make: Harrison
Model No.: Alpha 400
Serial No.: A30605
Year: 1998, Installed : 2000
Condition: Excellent

All specifications are approximations, and are subject to verification.

“This machine is in very Good running condition. It is equipped with Chuck, Steady Rest, Tool Holders & Tailstock. On Our Floor fully powered / tested & is in Great working condition.”

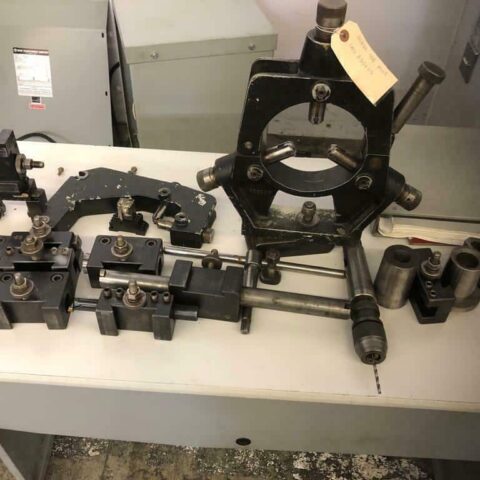

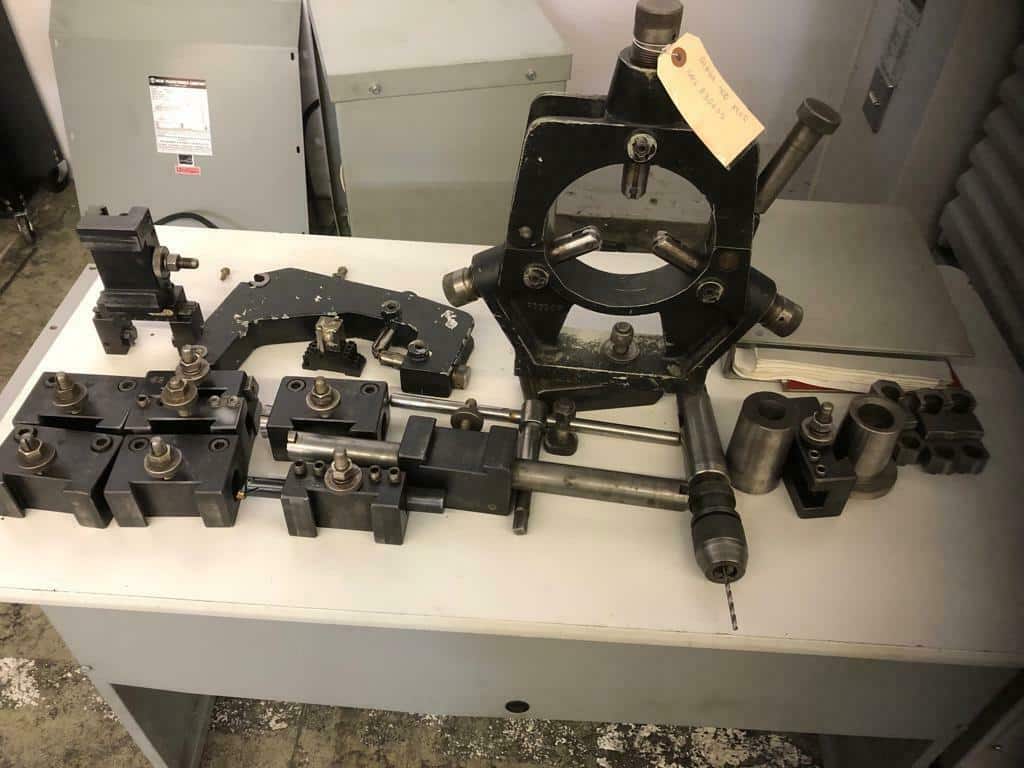

Harrison Alpha 400 Equipped With:

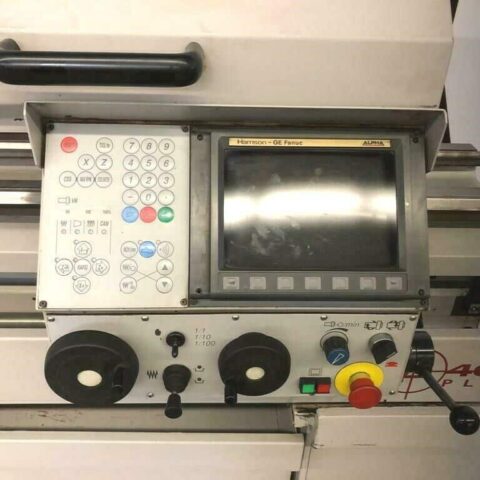

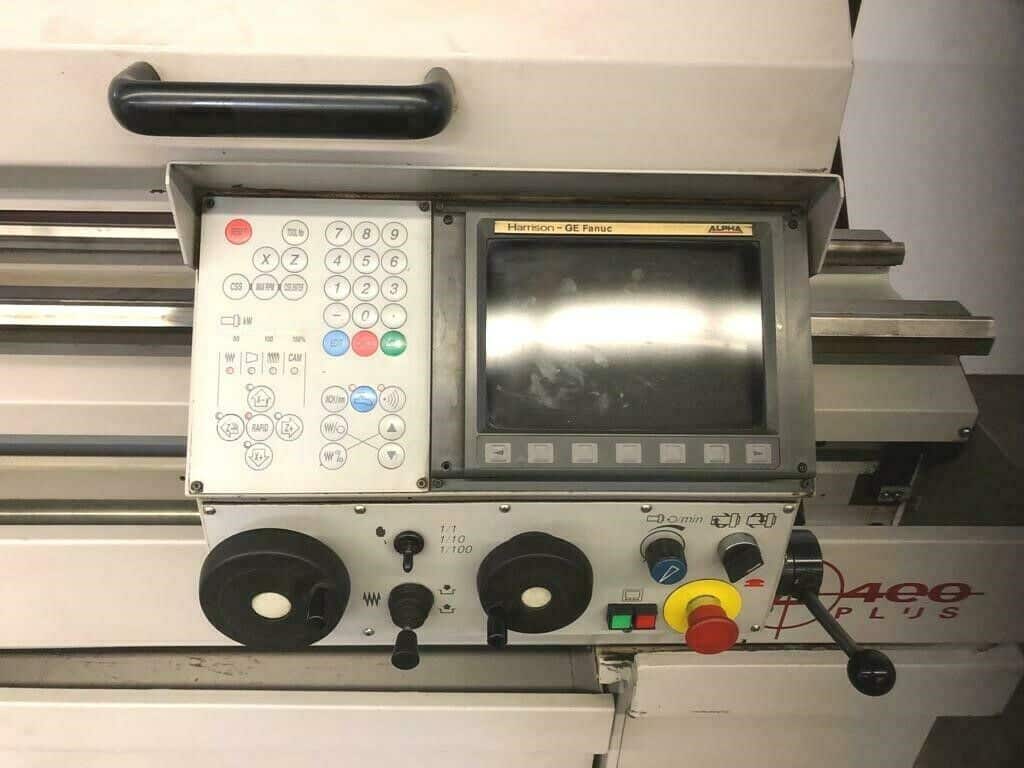

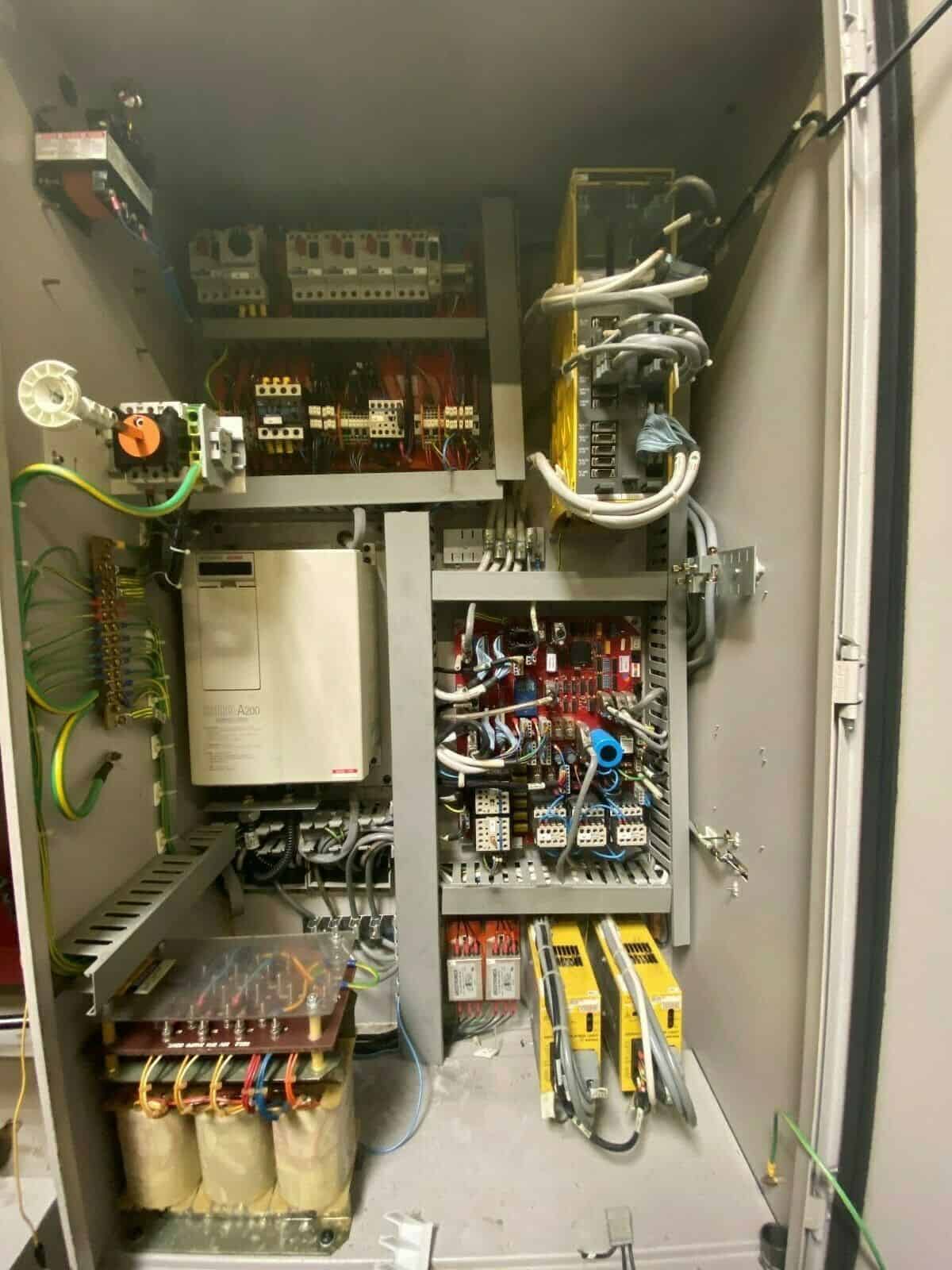

Fanuc 21 Control

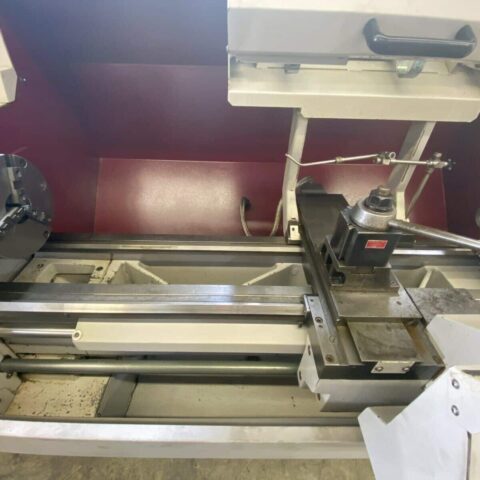

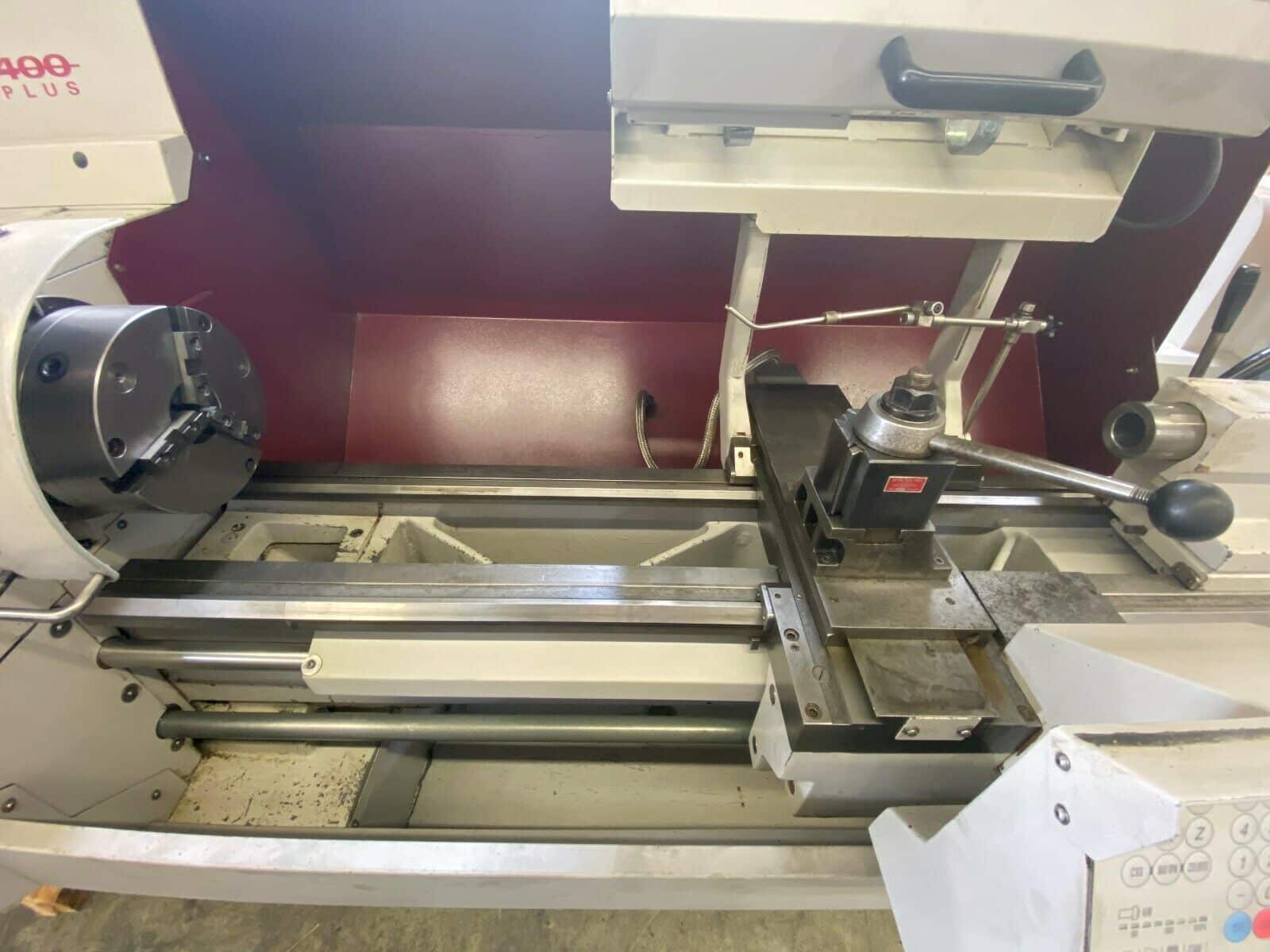

4 Station Quick Change Tool Post
Aloris Tool Holders
3 Point Steady Rest
2 Point Steady Rest

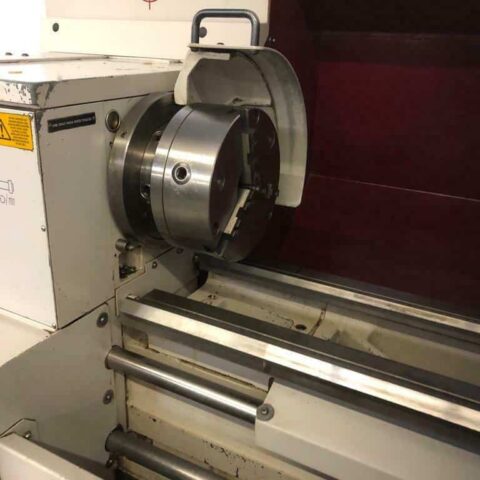

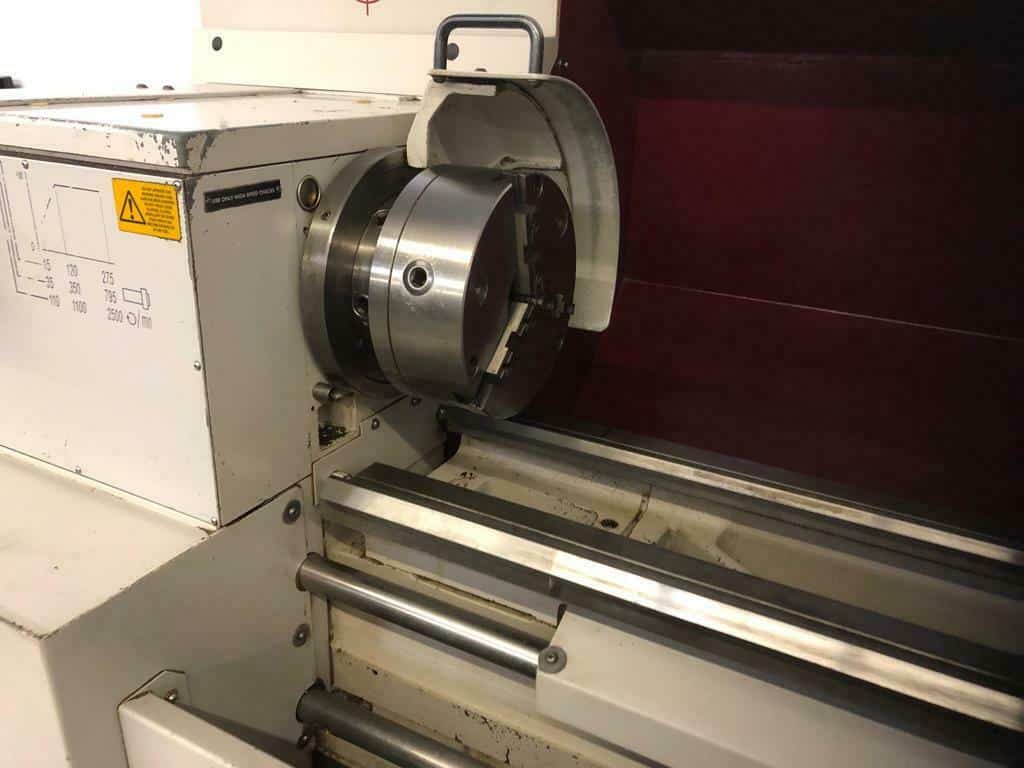

10″ 3 Jaw Check
Tailstock with Quill
Chip Pan and Coolant System
Automatic Lubrication system

Harrison Alpha 400 Specifications:

Max Turning Diameter: 10.63″
Max Turning Length: 50.6″
Max Bar Capacity: 2.04″
Swing Over Slide: 9.65″
Swing Over Bed: 15.72″
Distance Between Centers: 50.0″

Spindle:
Spindle Nose: D1-6
Spindle Bore: 2.04″
Spindle Speed: 45-2500 RPM
Spindle Motor: 10 HP

Turret:
Turret Capacity: 4 Stations

Tailstock:
Tailstock Body Travel: 44.3″
Tailstock Quill Dia.: 3.54″
Tailstock Quill Stroke: 3.93″
Tailstock Taper: MT-4

General:
Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 18 Amps
Overall Dimensions: 110″ x 68″ x 60″ High
Weight : 5500 lbs Approx.

Harrison Alpha 400 CNC Turning Center comes as shown in Pictures….
