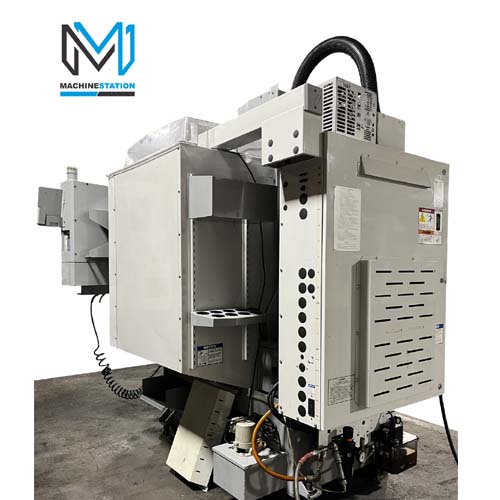

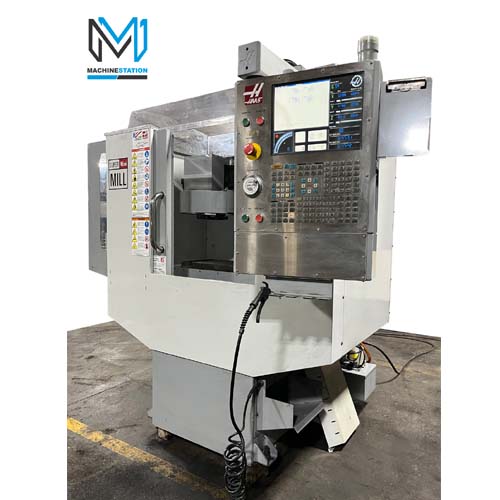

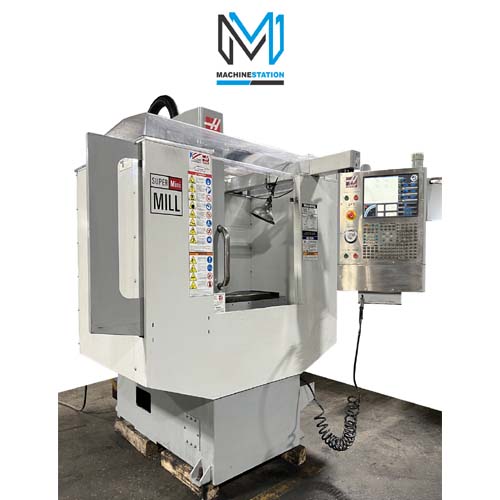

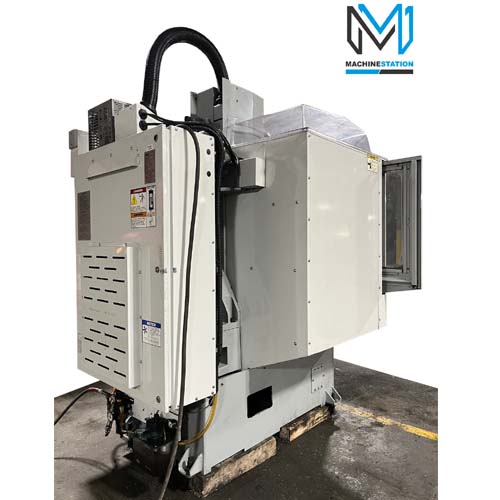

Haas Super Mini Mill CNC VMC

Out of stock

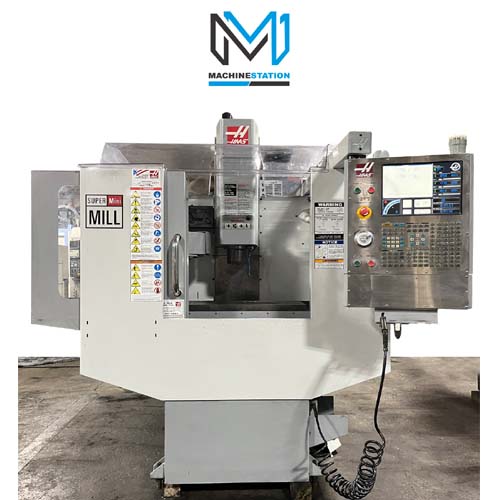

Used Haas Super Mini Mill CNC Vertical Machining Center for Sale. This Haas Super Mini Mill CNC Vertical Machining Center has minimal cutting hours and is in almost new condition.

Location: Byron, IL
SKU: 2314
Make/Model: Haas Super Mini Mill
Video: [fusion_button link=”www.youtube.com/embed/jM2kEeGSTX0?rel=0&showinfo=0&modestbranding=0″ title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_bottom_color=”” button_gradient_top_color_hover=”” button_gradient_bottom_color_hover=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_color=”” accent_hover_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_color=”” border_hover_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=””]Play Video[/fusion_button]
SKU: 2314
SKU: 2314
Make: Haas
Model: Super Mini Mill

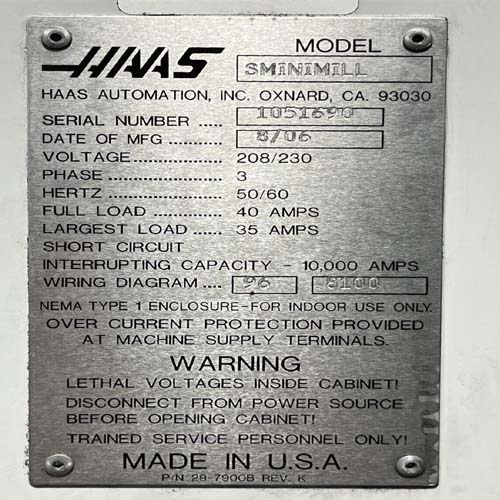

Serial: 1051690
Year: 2006
Condition: Very Good



Features:

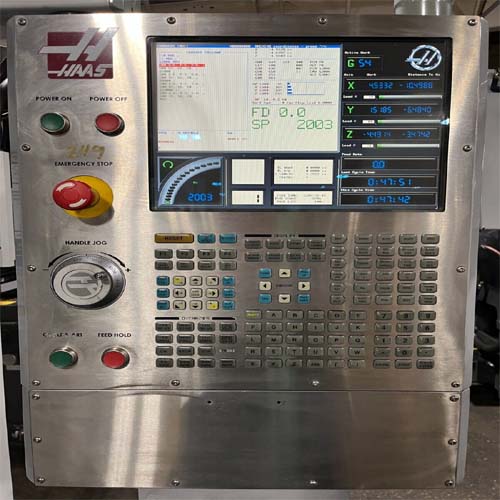

Haas CNC Control
10000 RPM Spindle
10 Station Automatic Umbrella Type Tool Changer
High Speed Machining
USB Drive
Expanded Memory
Rigid Tapping
Spindle Orientation
Programmable Coolant
Telescopic Way Covers
Chip Conveyor

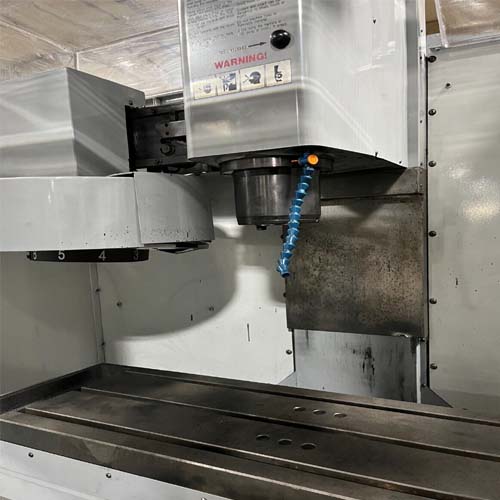

Spindle:
Taper Size: 40
Speed Range: 10,000 RPM
Spindle Power: 15 HP
Vector Dual Drive Max Torque: ft-lb @ RPM

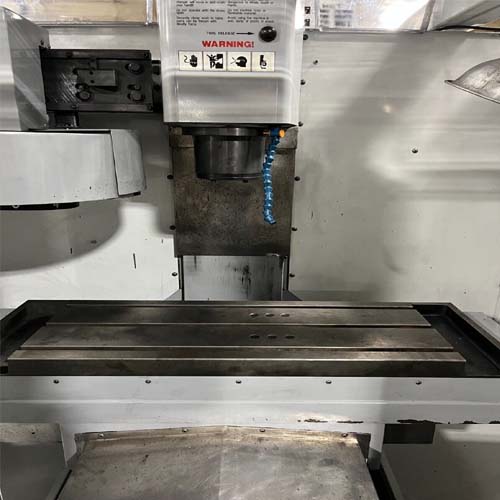

Table:
Length: 36.0″
Width: 12.0″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 500 lbs



Specifications:
X-Axis: 16″
Y-Axis: 12″
Z-Axis: 10″
Rapid Traverse Rates: 1200 Inch Per Minute
Cutting Feed Rates: 833 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 14″



Automatic Tool Changer:
Capacity: 10 Station Umbrella Type
Max Tool Weight: 12 lbs
Max Tool Dia: 3.5″
Max Tool Length: 11″
Tool Changing Time: 2.8 Seconds



General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 90″ x 64″ x 100″ High
Weight: 4000 lbs
