*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 115086 |

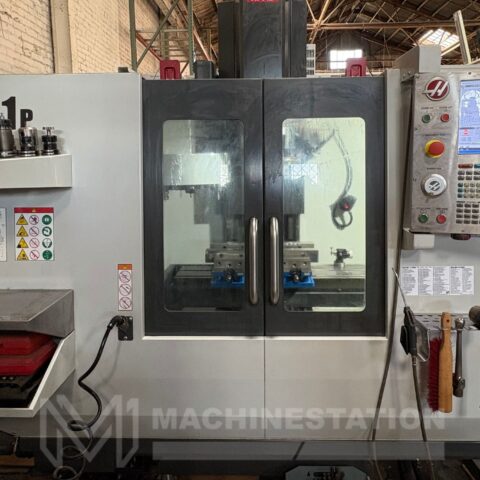

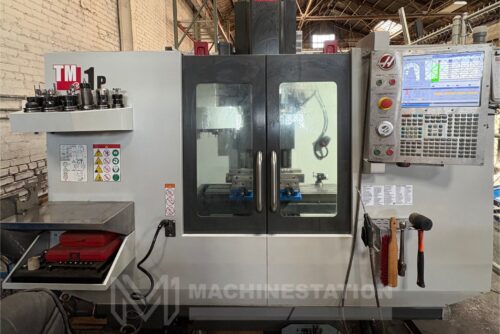

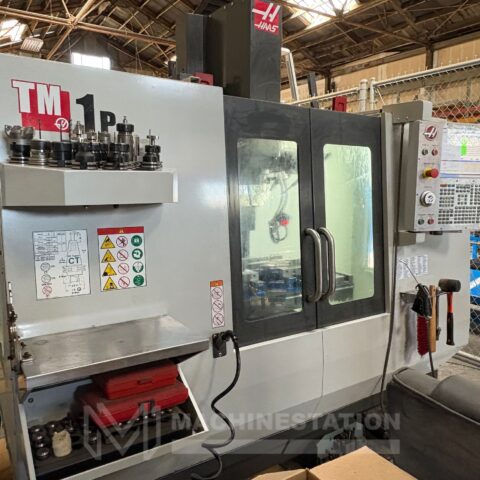

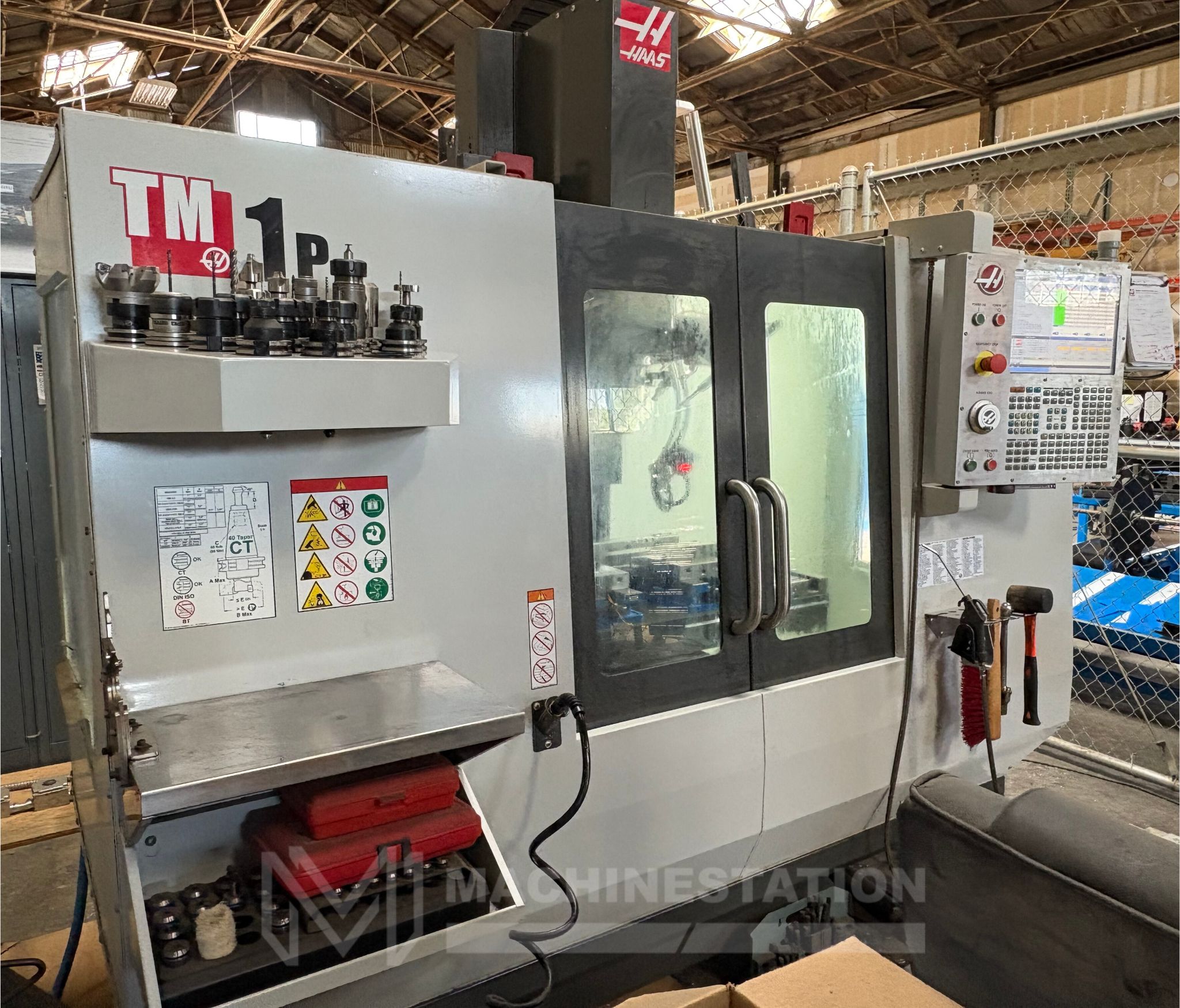

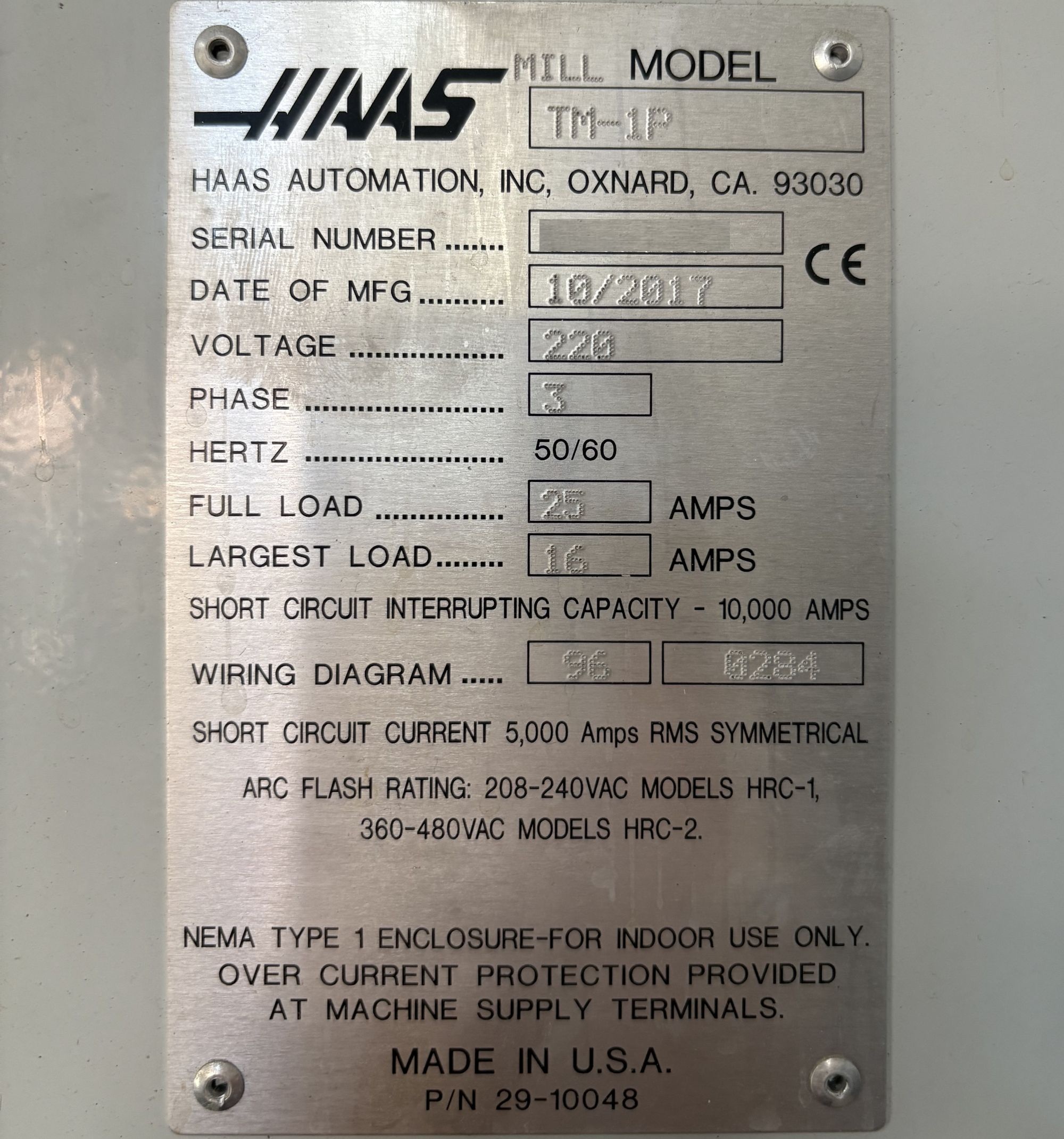

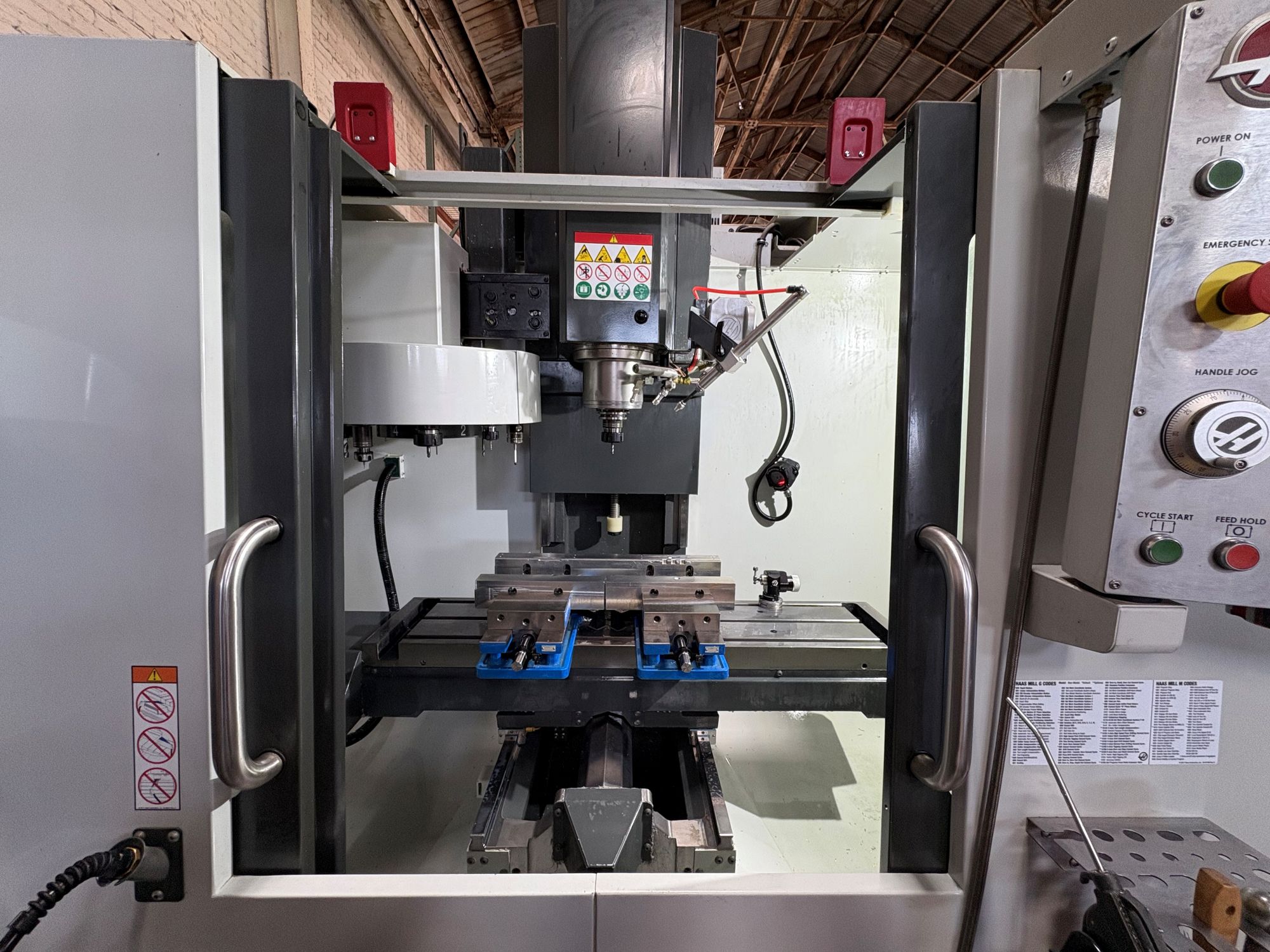

| Make: | Haas |
| Model No.: | TM-1P |
| Year of Manufacture: | 2017 |

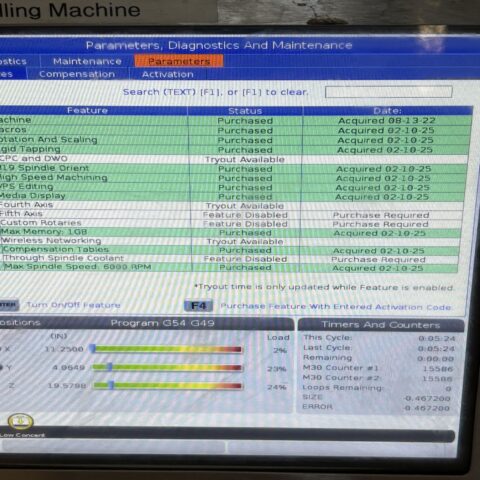

| Equipped With: |
|---|

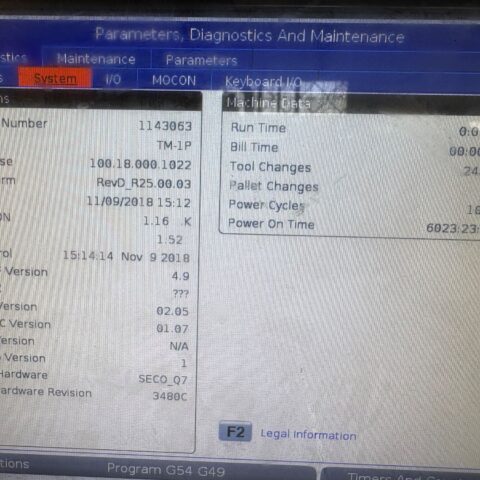

| Haas CNC Control |
| 6000 RPM Spindle |
| 10 Station Automatic Tool Changer |
| 7.5 HP High Torque Spindle |
| WIPS-R Renishaw Probing System (Upgraded $6,395 Approx. value Included) – Reduced Scrap Rates, Minimized Downtime |
| Probe Riser Block – Provides Additional Height For The Tool Probe |
| High Speed Machining (Upgraded $3,895 value Included) – Allows Faster Feedrates and More Complex Toolpaths |
| Programmable Coolant Nozzle (Upgraded $2,395 value Included) – Automatically Directs Coolant Precisely At The Cutting Tool |
| Automatic Air Gun (Upgraded $1,595 value Included) – Provides a Cnstant Air Blast to Clear Chips During Dry Machining |
| Rigid Tapping (Upgraded $1,895 value Included) |
| Spindle Orientation |
| Macros |
| Rotation and Scaling |
| VPS Editing |
| Media Display |
| 1GB Memory |
| Compensation Tables |
| Coolant Tank |
| Levelling Pads |
| Travel: |
|---|
| X-Axis: 30″ |
| Y-Axis: 16″ |
| Z-Axis: 16″ |
| Rapid Traverse Rates: 400 Inch Per Minute |
| Cutting Feed Rates: 400 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 20″ |

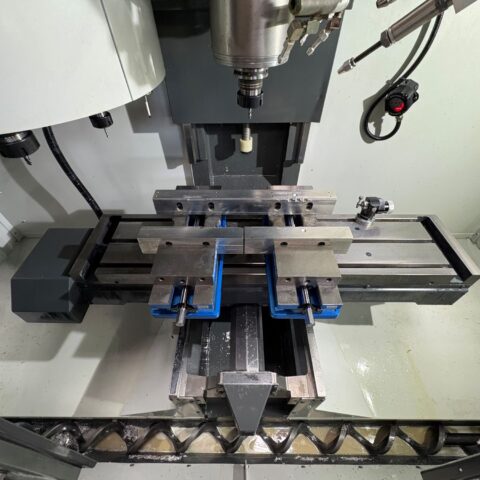

| Table: |
|---|
| Length: 47.8″ |
| Width: 10.5″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 350 lbs |

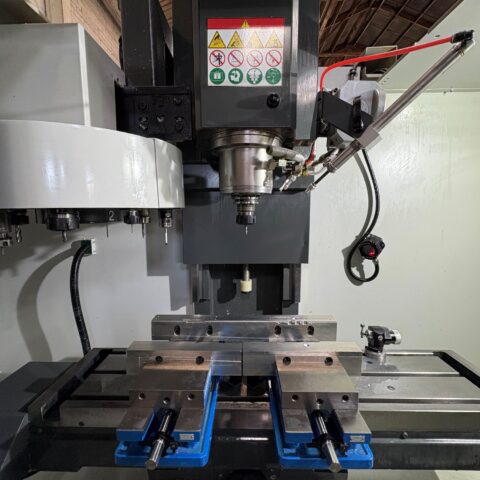

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 6000 RPM |
| Spindle Power: 7.5 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 10 Station |
| Max Tool Diameter: 3.5″ |
| Max Tool Weight: 12 lbs |
| Tool Change Time: 5.7 Sec. |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 112″ x 80″ x 100″ High |
| Weight: 4400 lbs |
