*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

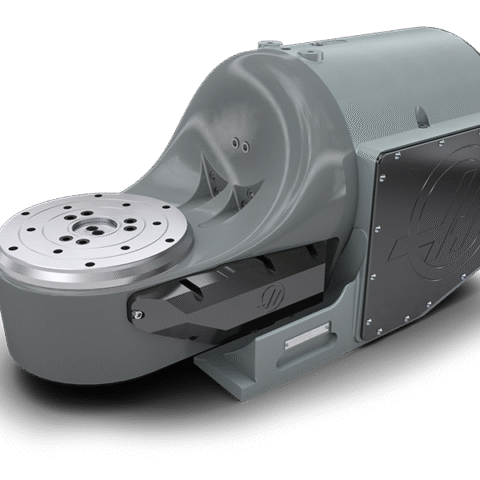

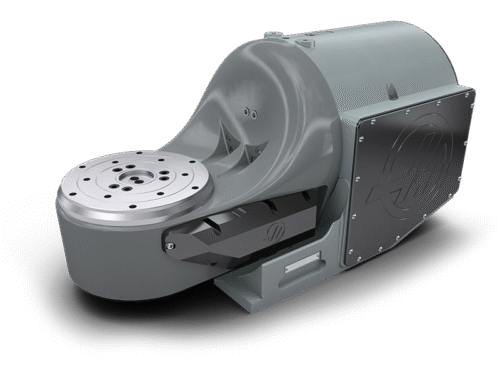

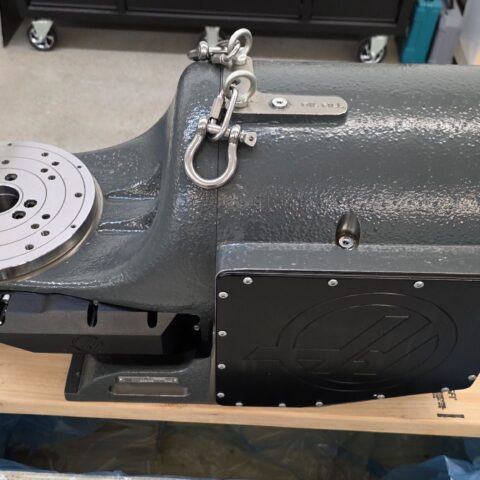

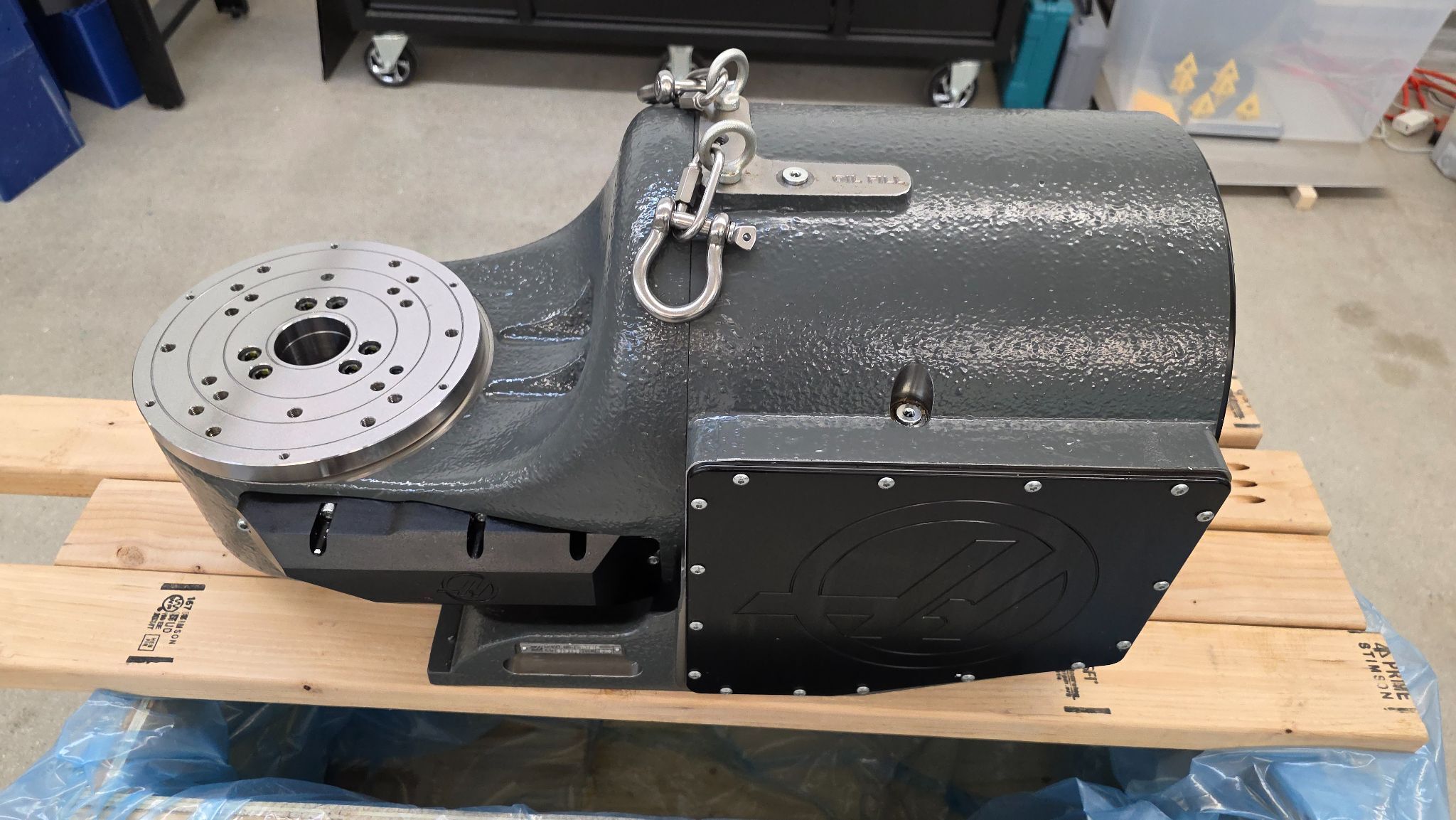

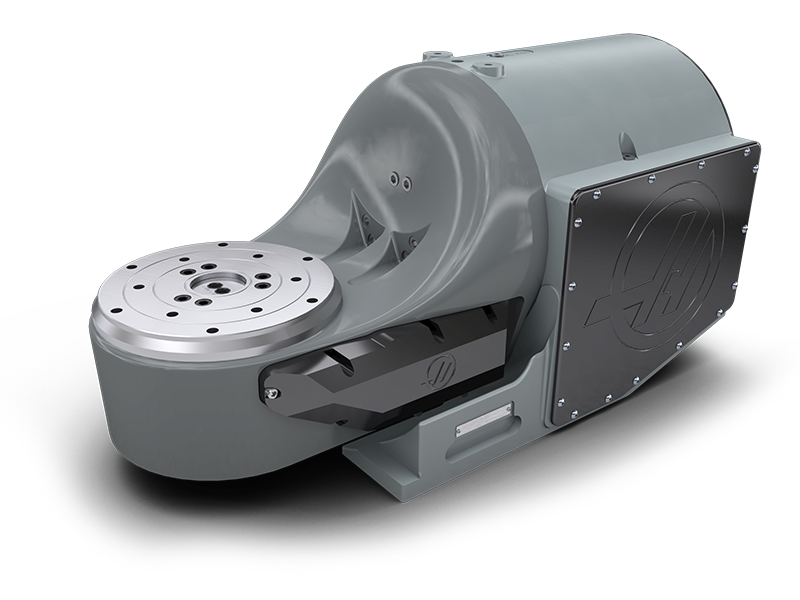

| Make: | HAAS |

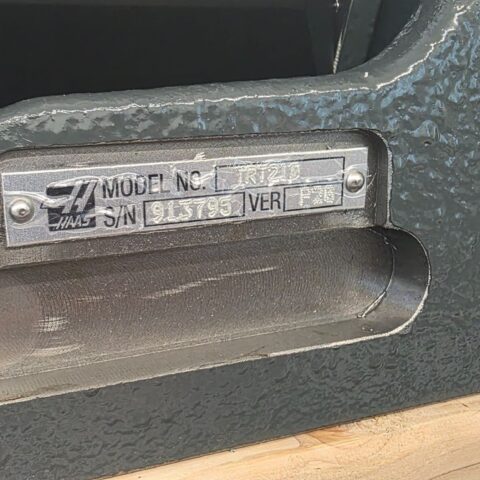

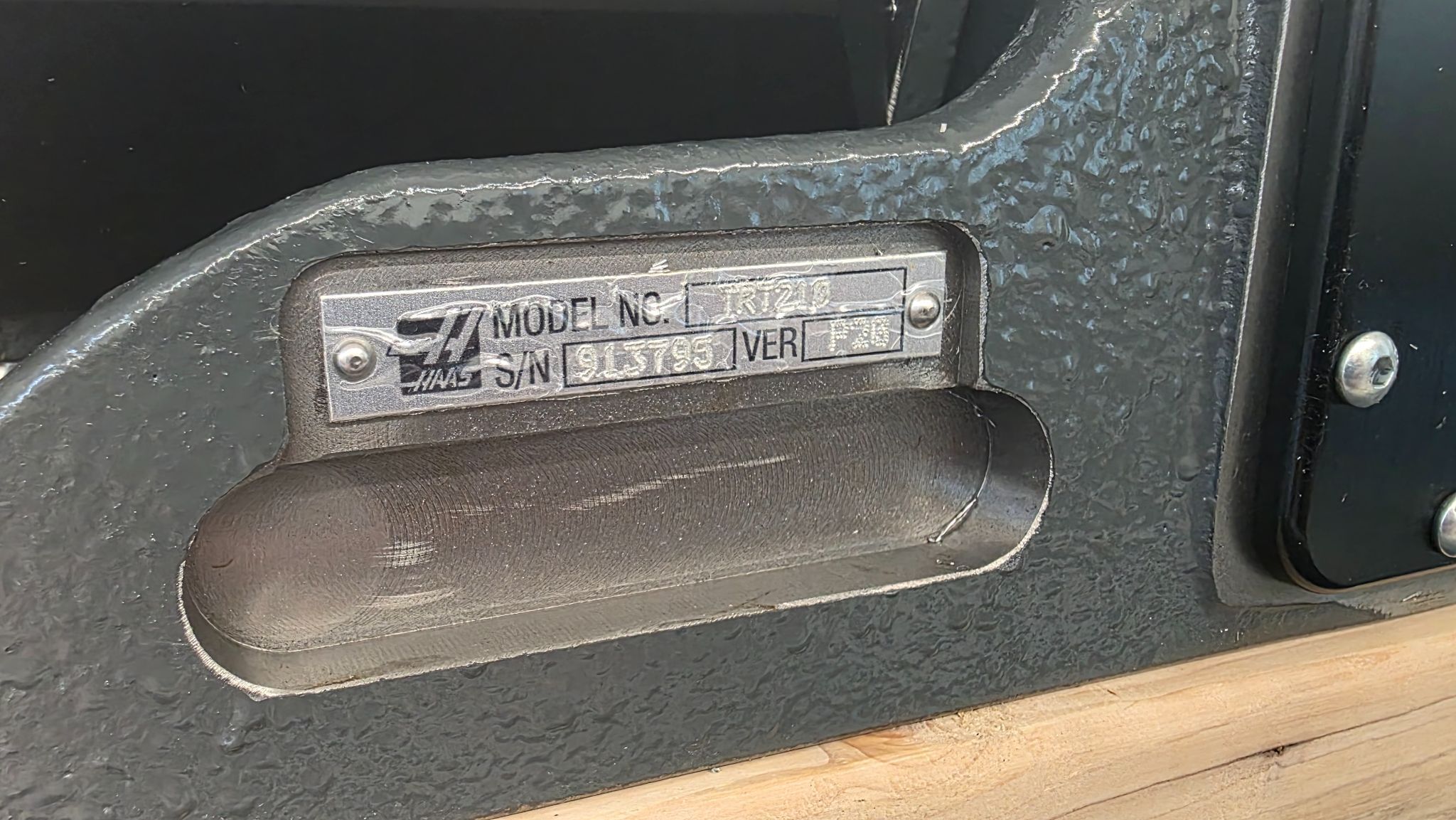

| Model: | TRT210 |
| Year: | 2023 |

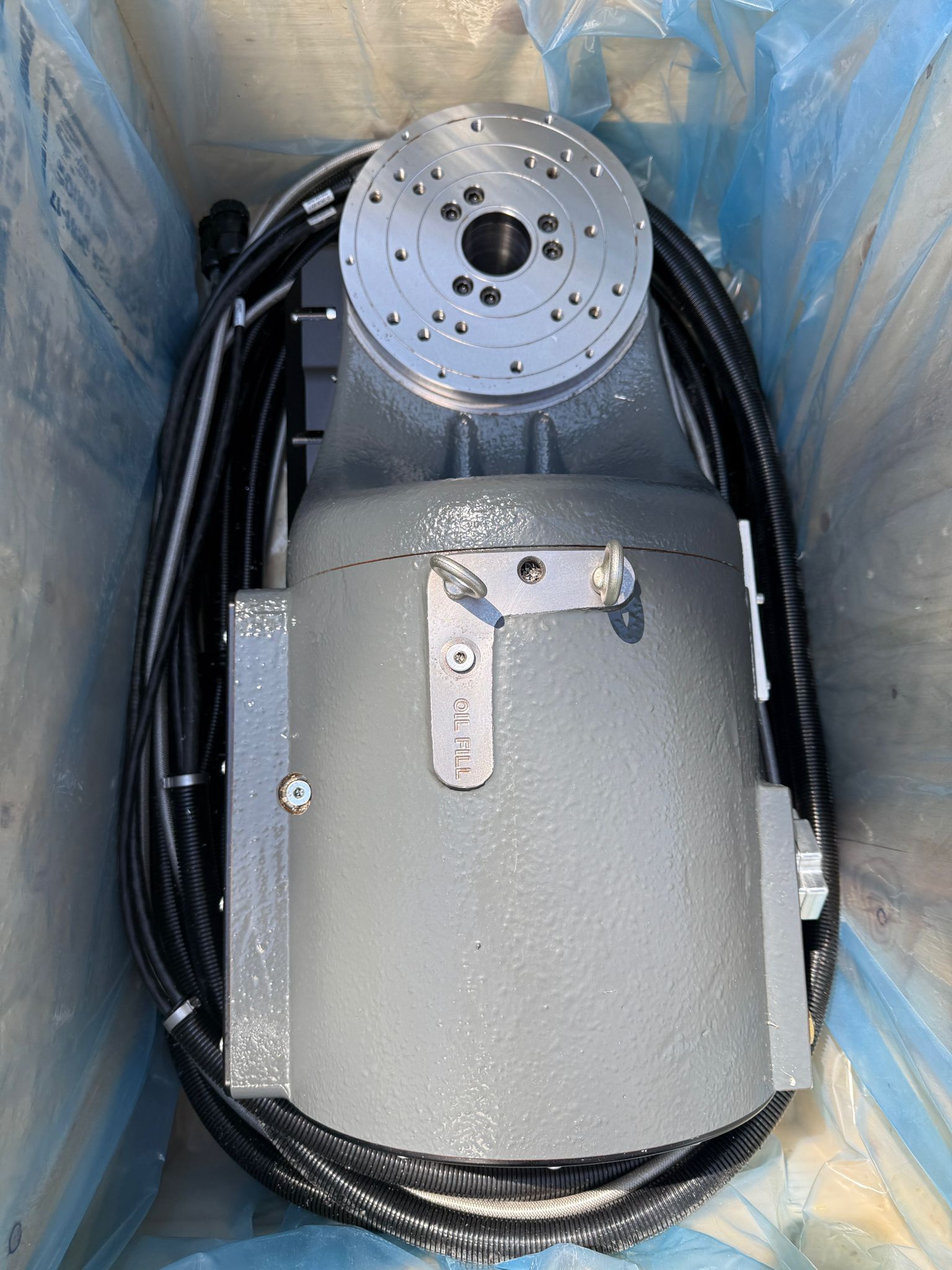

| Condition: | Excellent (Never Used) |
| Features: |
|---|
| Compact Size Fits Easily into Mid-size Mills |
| Easy plug-and-play Connection to Haas Machines |

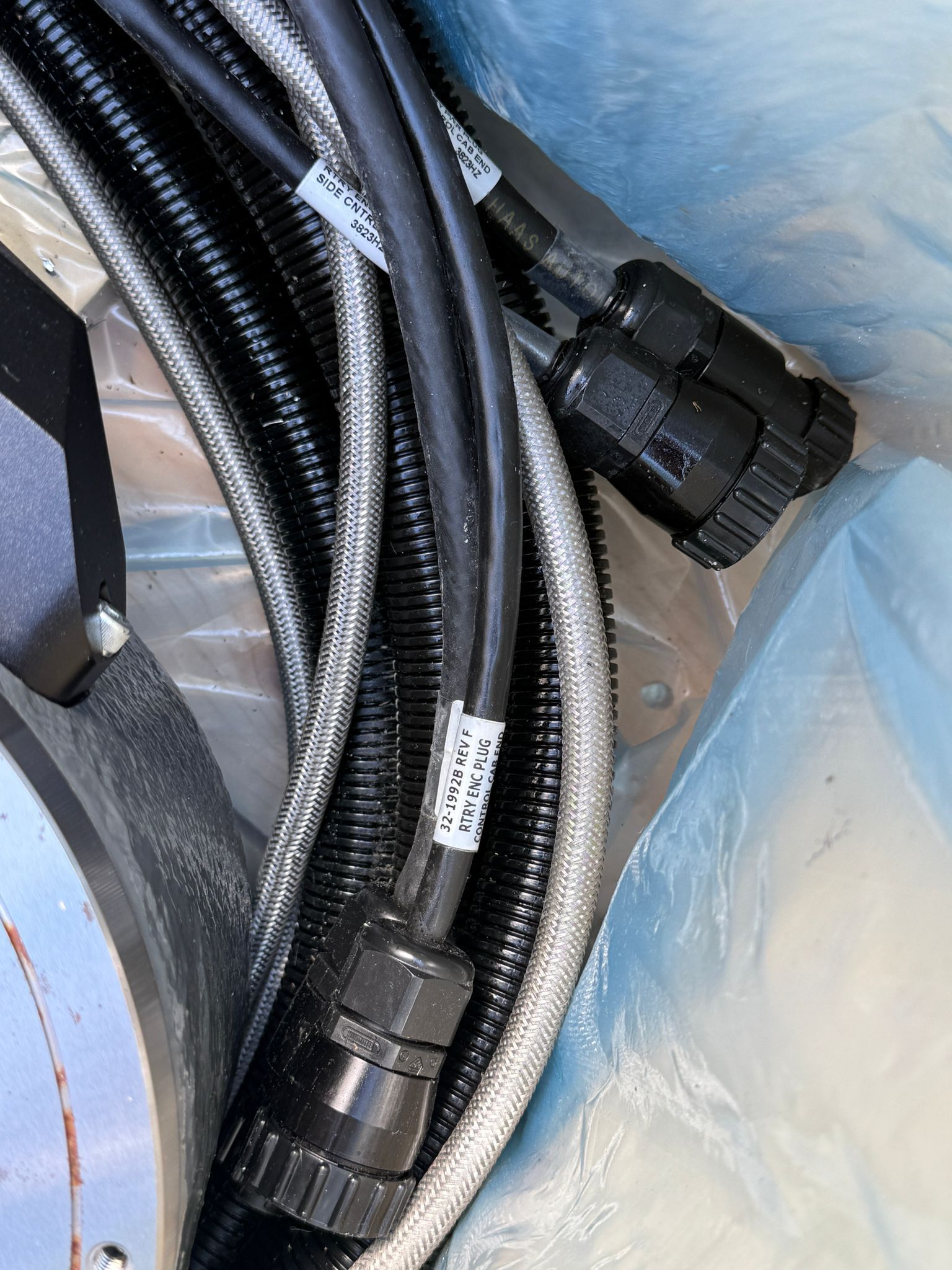

| Cable & Connector |

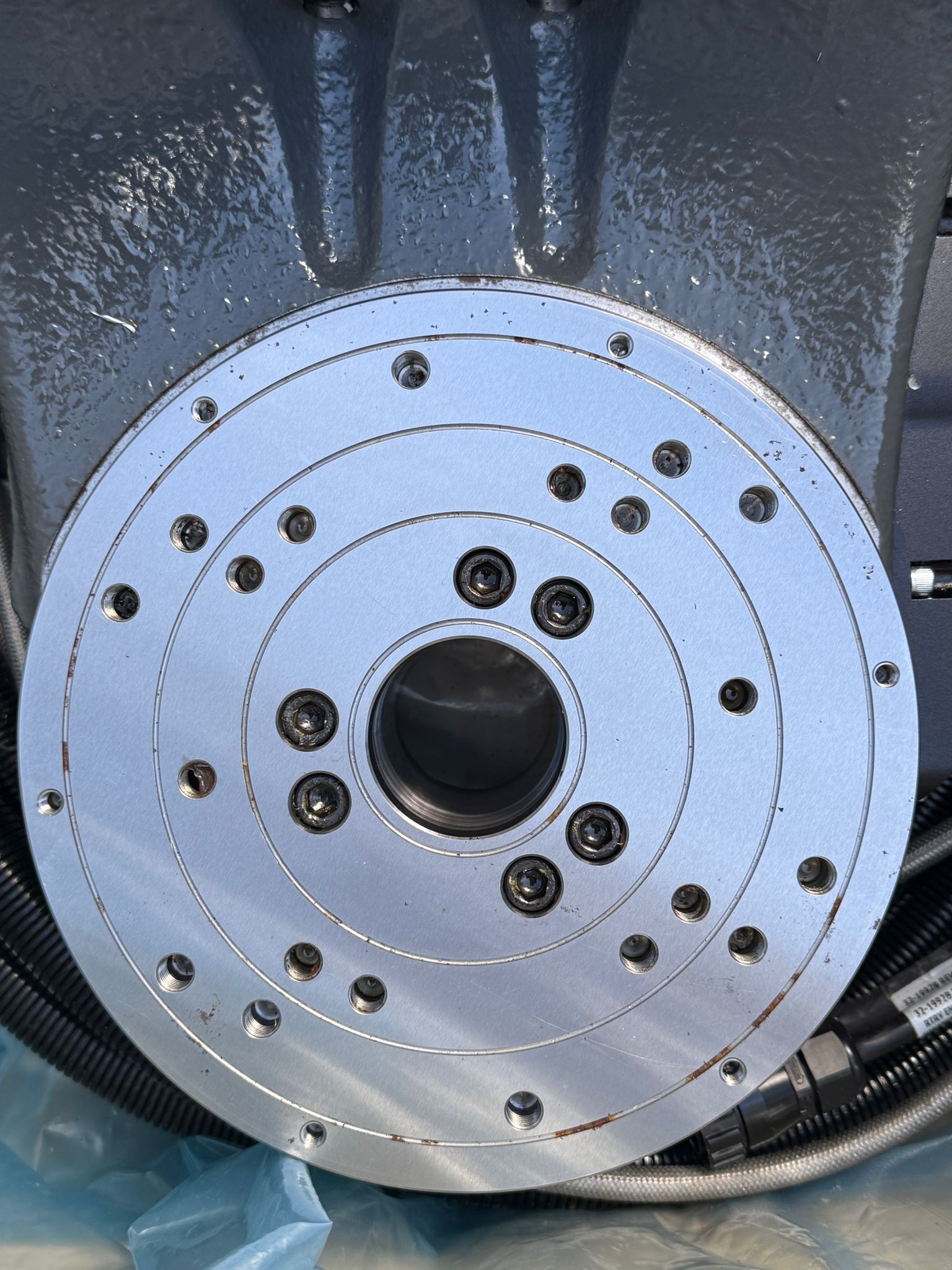

| Platter: |
|---|
| Platter Diameter: 9.10″ |
| Max Weight on Platter: 100 lb |
| Part Swing Max: 14.5″ |
| Hole Pattern: (2) 6-bolt patterns |
| Spindle – A (Tilt): |
|---|
| Max Speed: 80 °/sec |
| Max Torque: 300 ft-lbf |
| Center Height: 7.65″ |
| Backlash: 30 arc-sec |
| Brake Torque @ 100 psi/6.9 bar: 200 ft-lbf |
| Gear Ratio: 90:1 |
| Timing: 2:1 |
| Spindle – B (Rotary): |
|---|
| Max Speed: 100 °/sec |
| Max Torque: 210 ft-lbf |
| Runout Max: 0.0005 in |
| Center Height: 7.025″ |
| Pilot Bore Diameter: 2.0″ |
| Backlash: 30 arc-sec |
| Brake Torque @ 100 psi/6.9 bar: 200 ft-lbf |
| Gear Ratio: 90:1 |
| Timing: 2:1 |
| Indexing – A (Tilt): |
|---|
| Travel: 120 ° to 120- ° |
| Accuracy (±): ± 25 arc-sec |
| Repeatability: 10 arc-sec |
| Resolution: 0.001° |
| Max Rotation/Step: ± 120° |
| Indexing – B (Rotary): |
|---|
| Travel: 360 ° |
| Accuracy (±): ± 15 arc-sec |
| Repeatability: 10 arc-sec |
| Resolution: 0.001° |
| Max Rotation/Step (with rotary control): 999.999 ° |
| General: |
|---|
| Power Requirement: 115 VAC ±10% @ 15 A |
| Air Requirement: 150 psi |
| Dimensions: 35″ x 23″ x 22″ |
| Weight: 480 lb |
