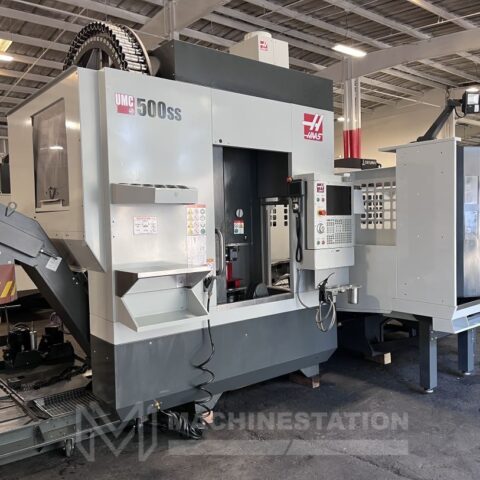

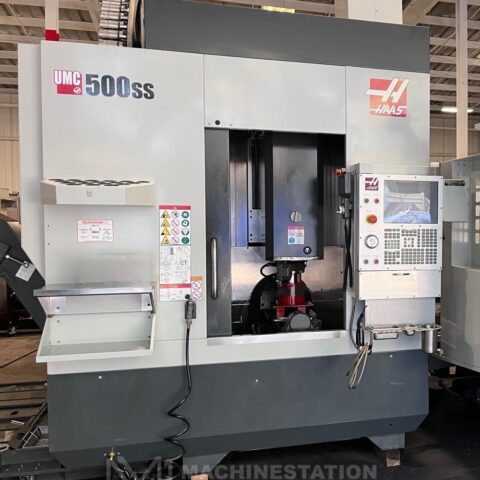

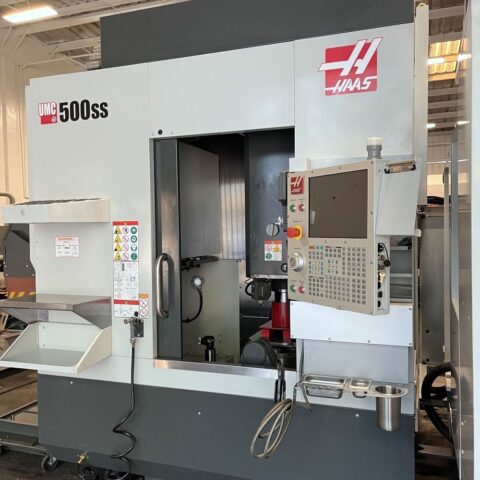

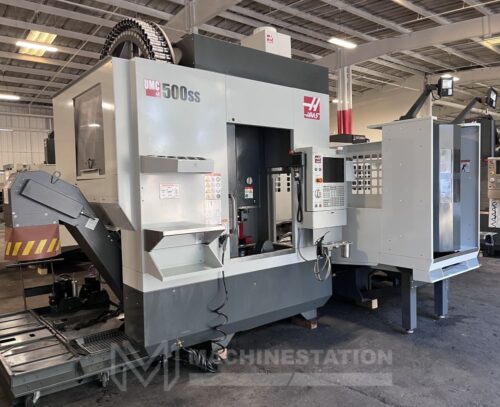

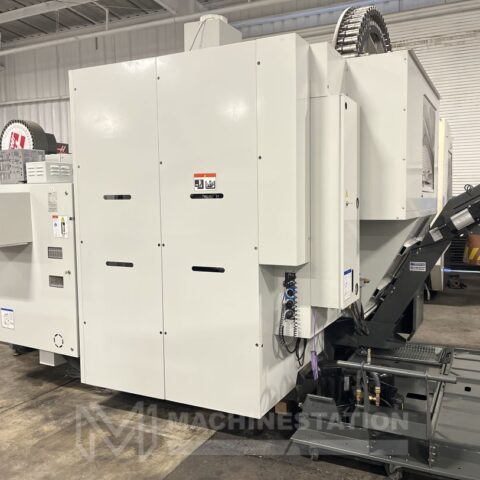

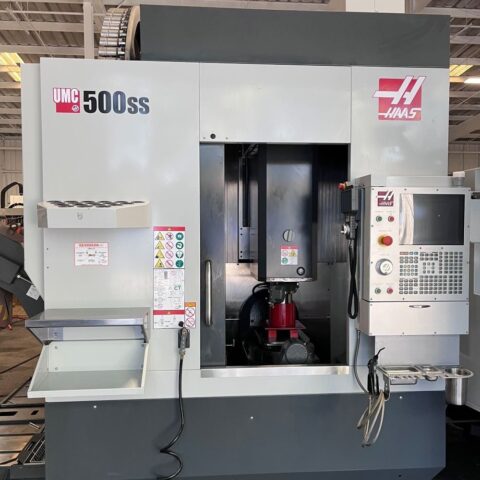

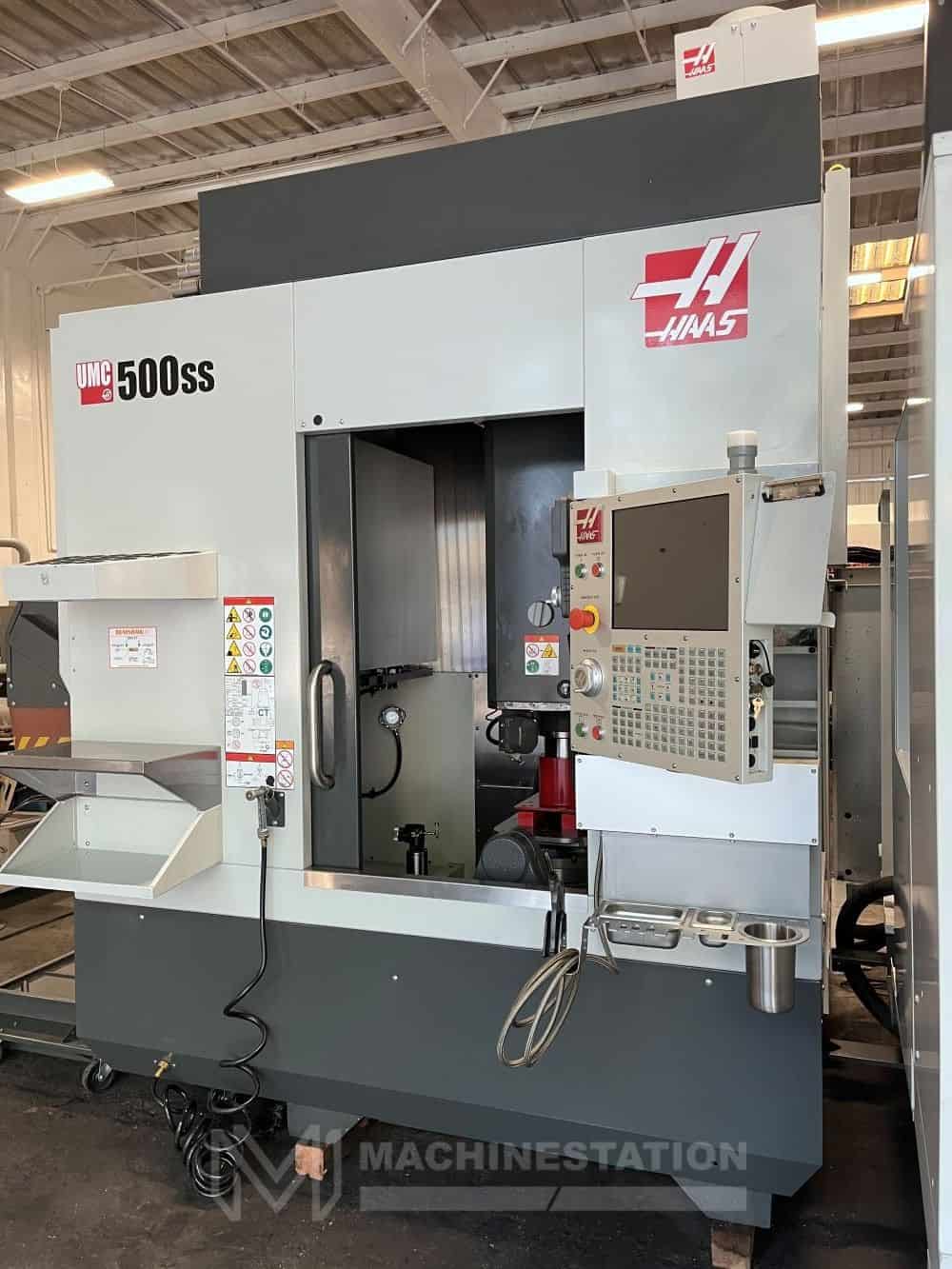

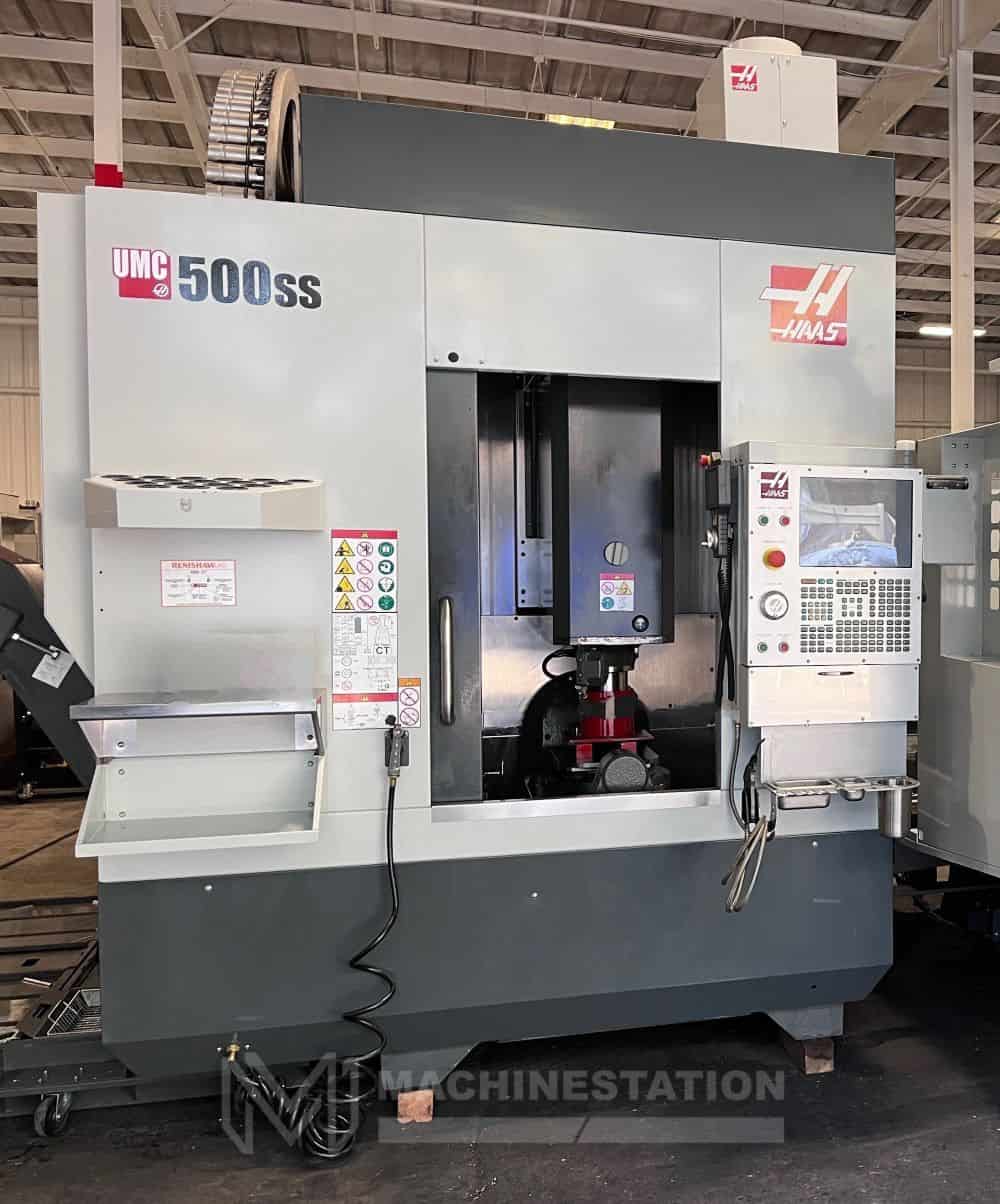

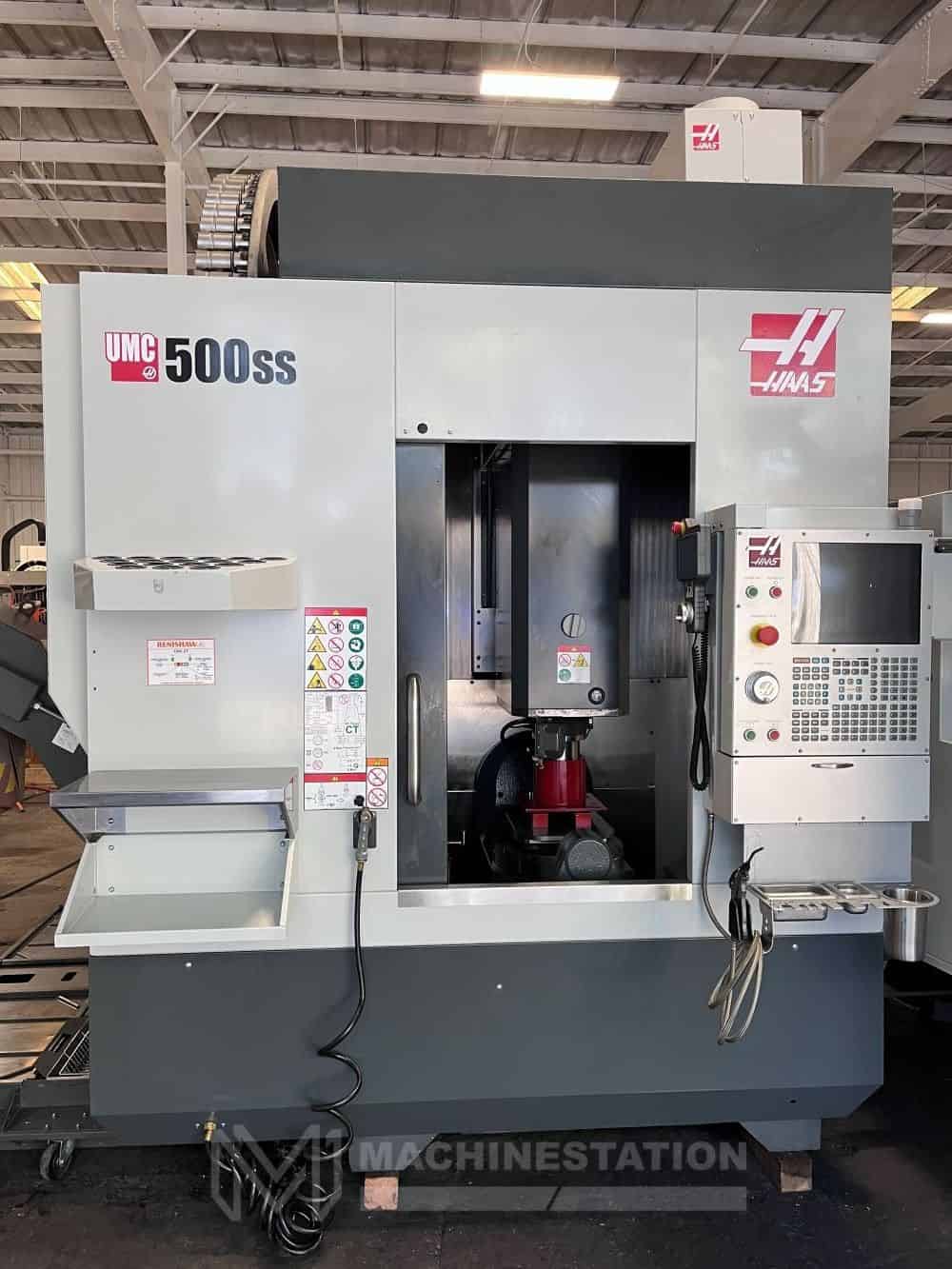

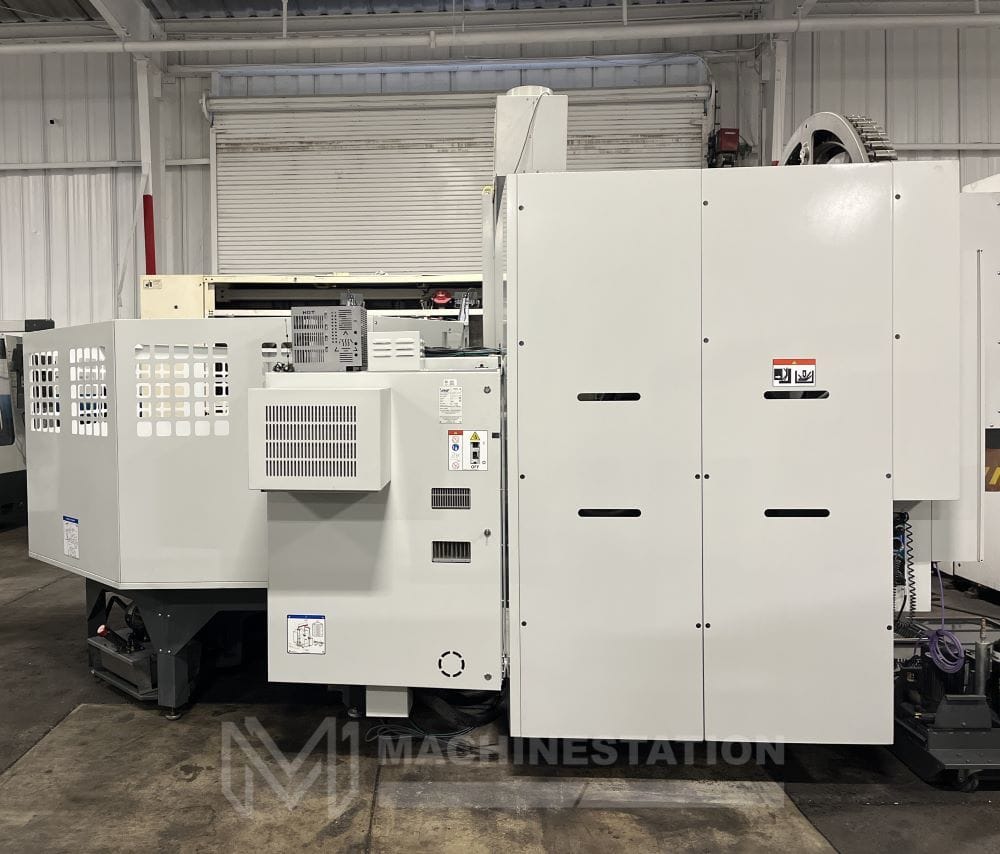

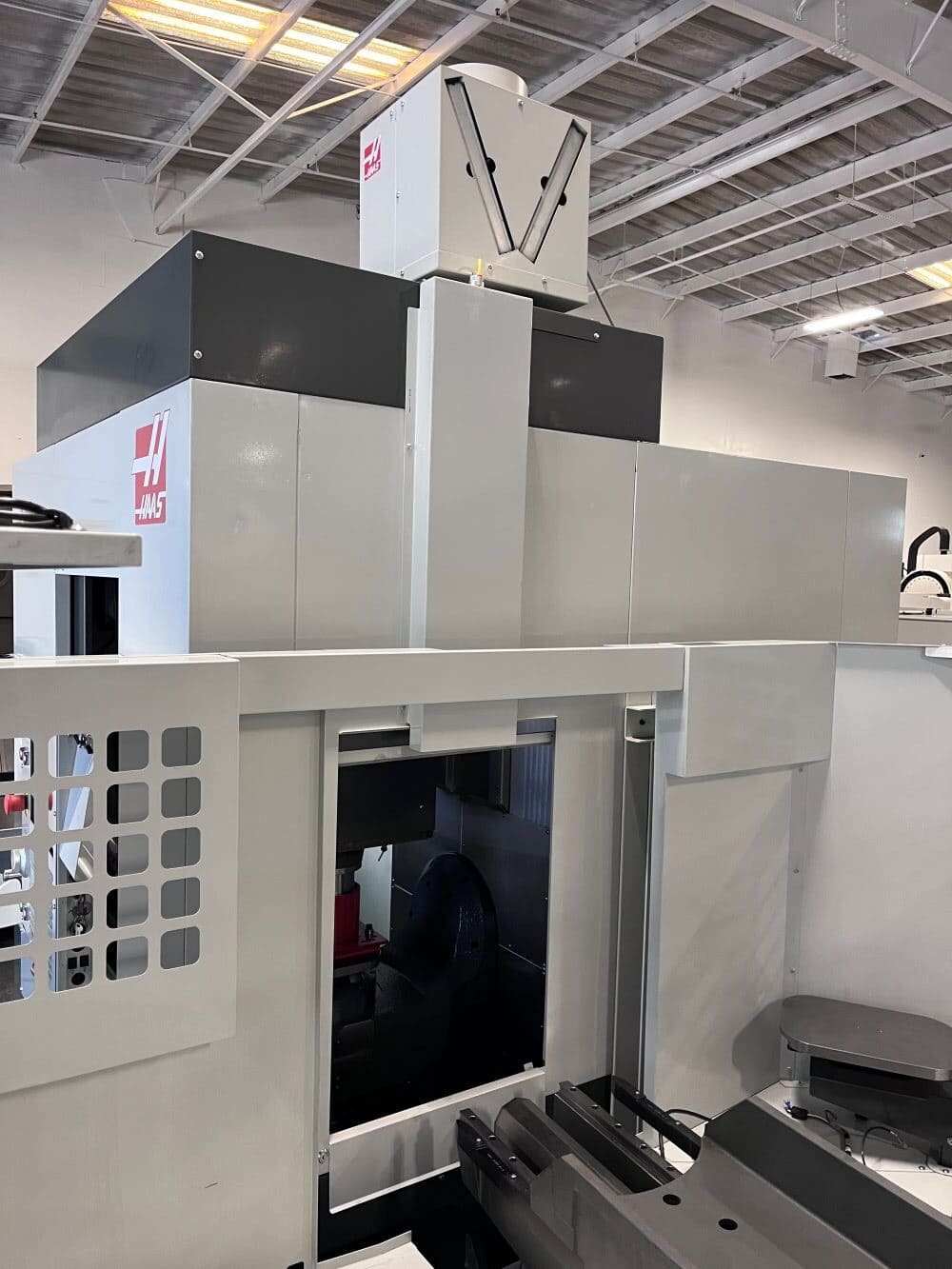

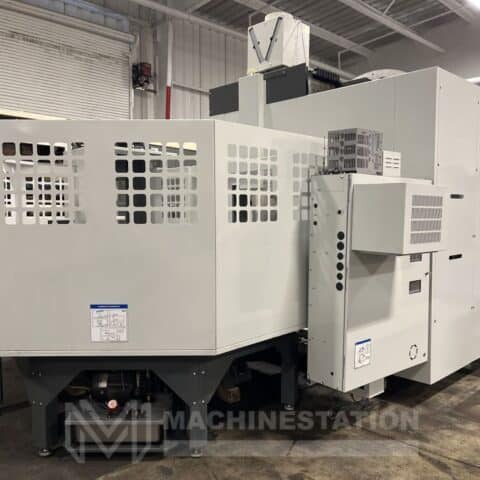

Used Haas UMC-500SS 5-Axis CNC Machining Center (2022)

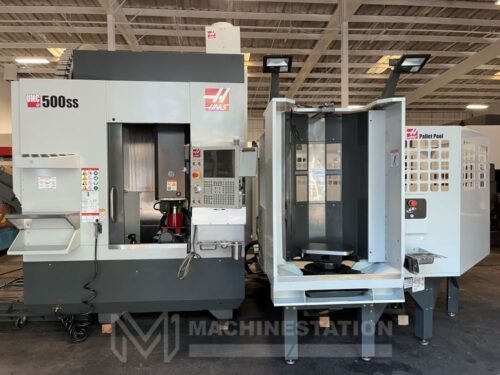

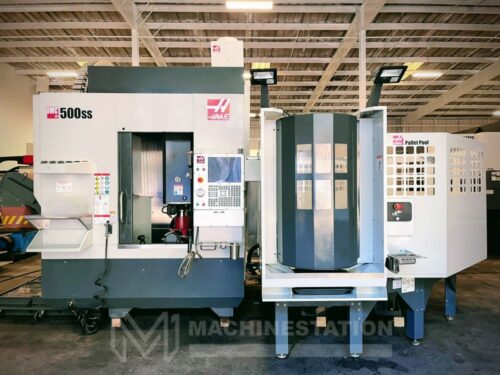

Haas UMC-500SS 5 Axis CNC Universal Machining Center – 10 Pallet Pool Mill

Location Lake Elsinore, CA

SKU 112640

Make/Model Haas UMC-500SS

Year 2022 ( Sold & Installed in 2023)

Video No Video

Out of stock

Location:	Lake Elsinore, CA
SKU:	112640
Make/Model:	Haas UMC-500SS
Year:	2022 ( Sold & Installed in 2023)
Video:	No Video

SKU: 112640

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Haas
Model:	UMC-500SS
Year:	2022 ( Sold & Installed in 2023)
Condition:	Used – Excellent

Travels:
X-Axis: 24″
Y Axis: 16″
Z Axis: 16″
B-Axis (Table Tilt): + 120° – 35°
C Axis: 360° ( Table Rotate )
Rapid Traverse Rates: 1200 Inch Per Minute
Cutting Feed Rates: 650 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 20″

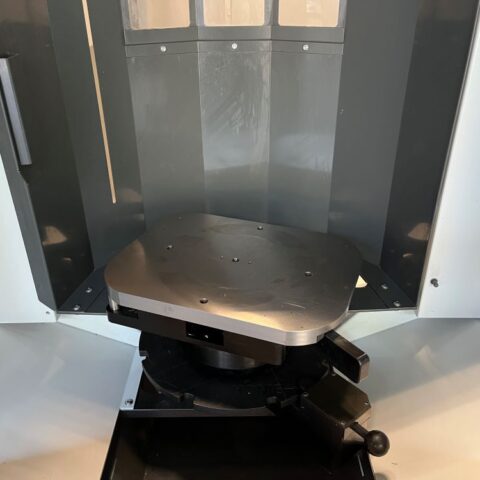

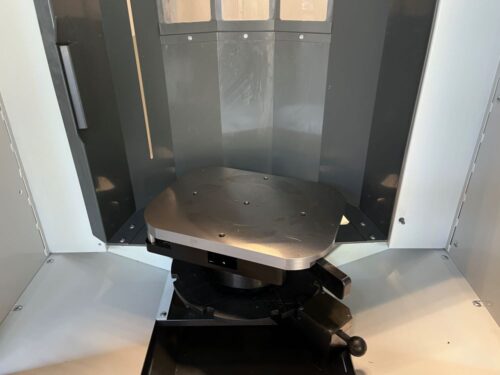

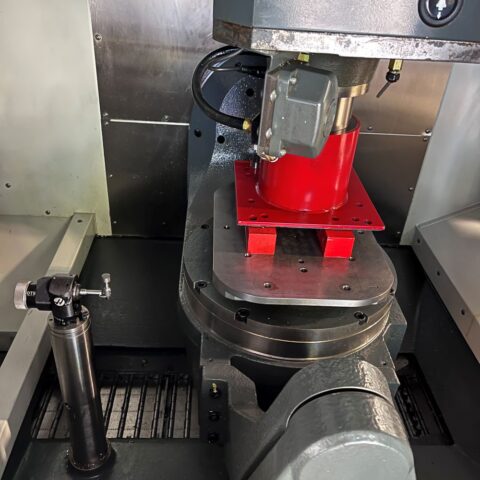

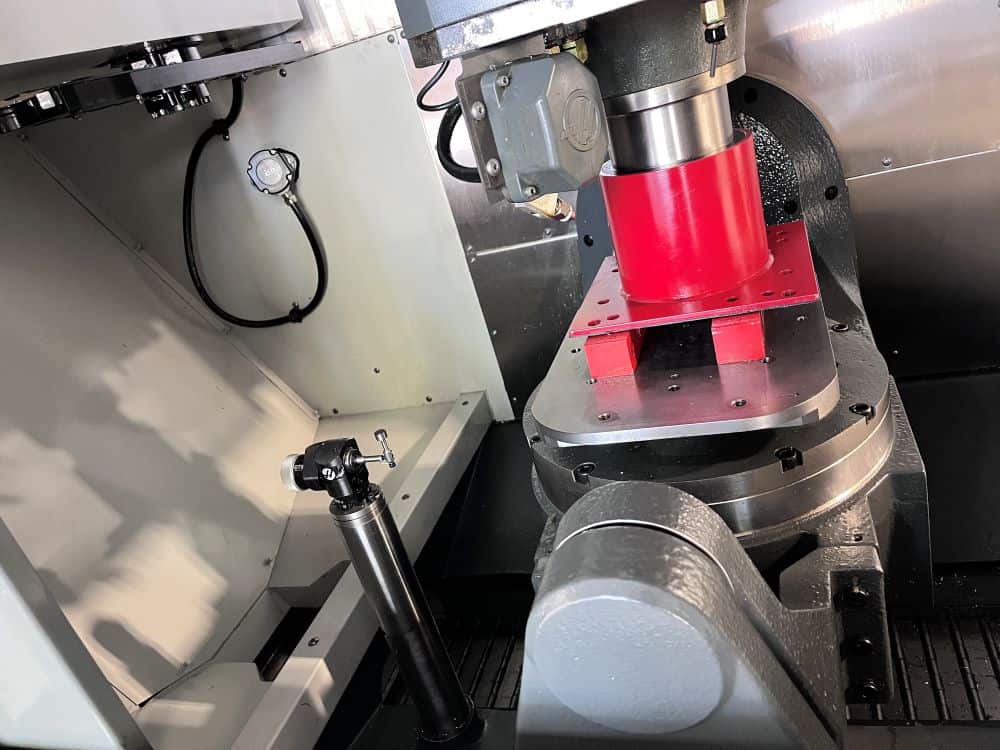

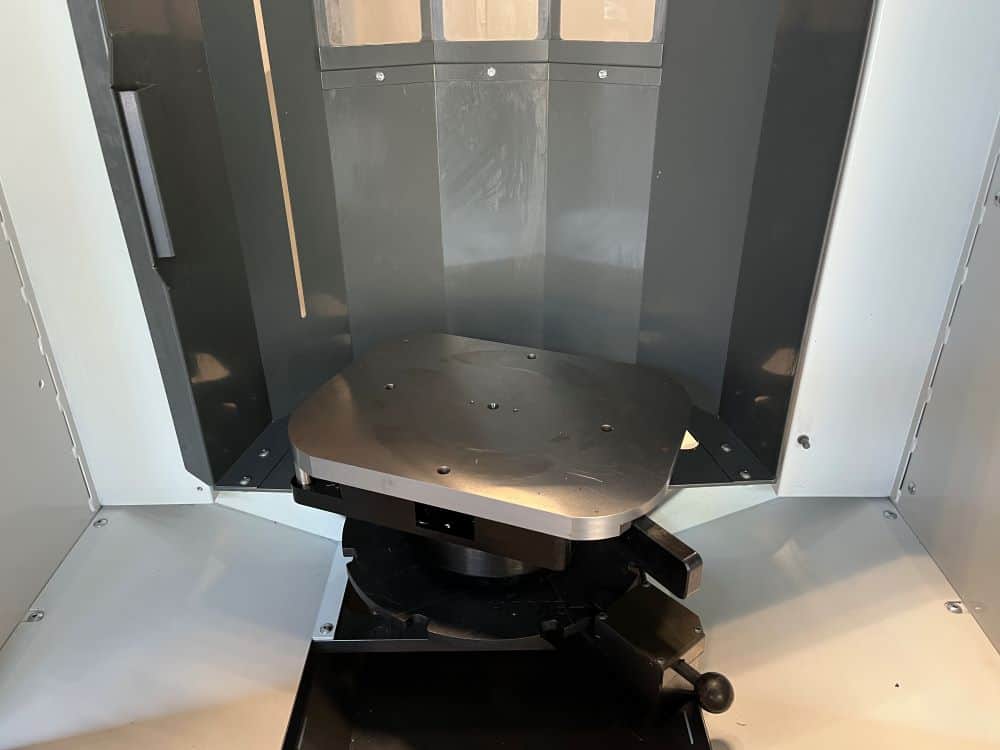

Trunnion Table:
Platter Diameter: 15.70″
Max Weight on Platter: 500 lbs
T-Slot Width: 0.625″ to 0.630″
Number of Std T-Slots: 5

Features:

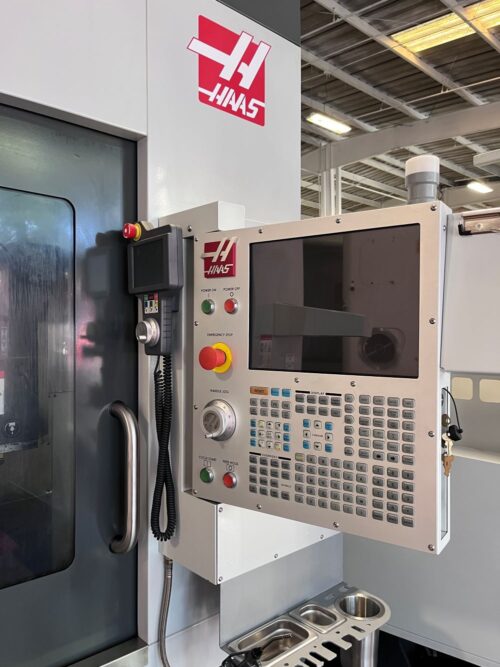

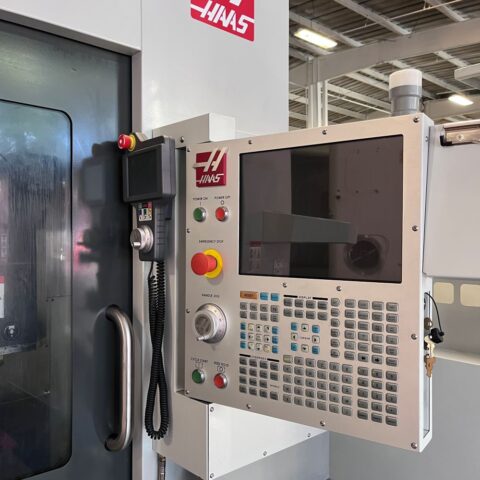

Haas CNC Control

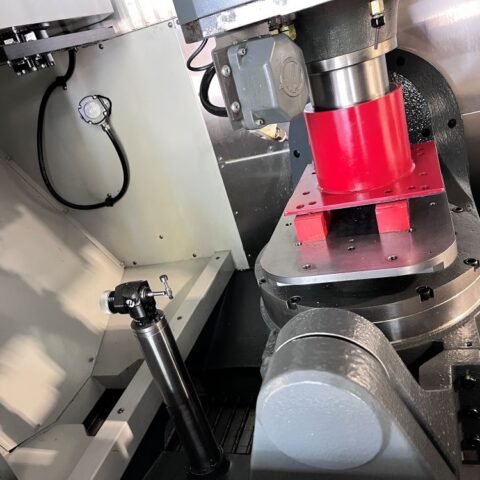

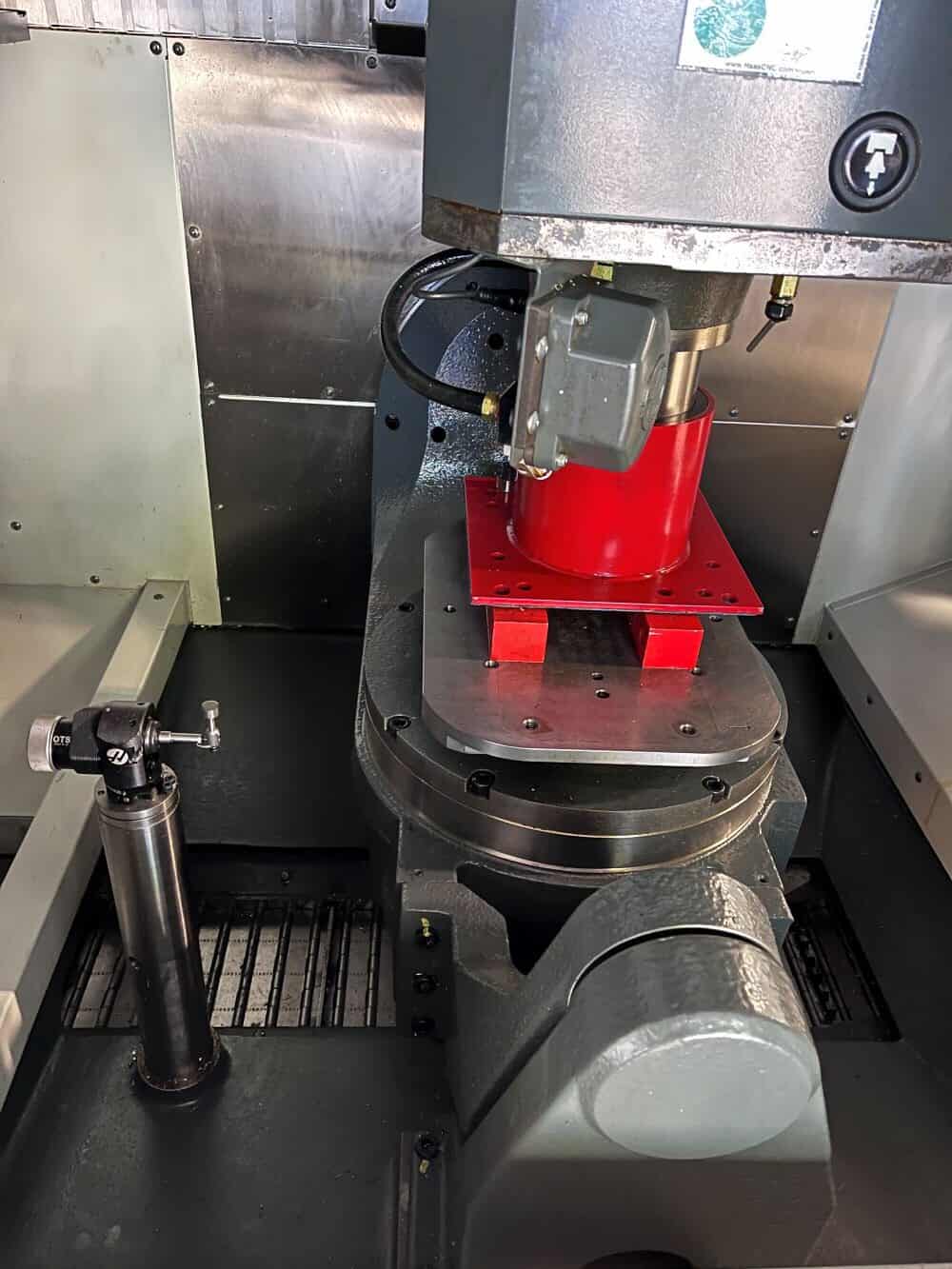

Haas Trunnion Table

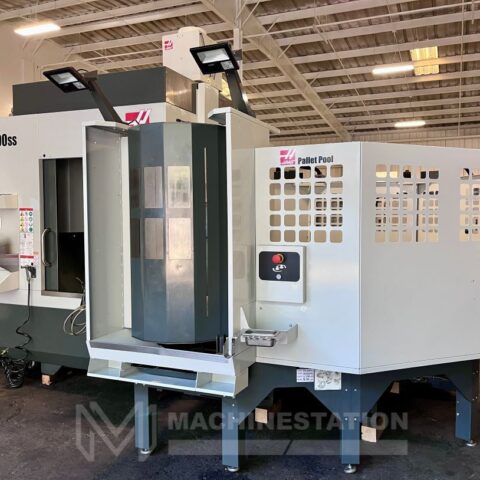

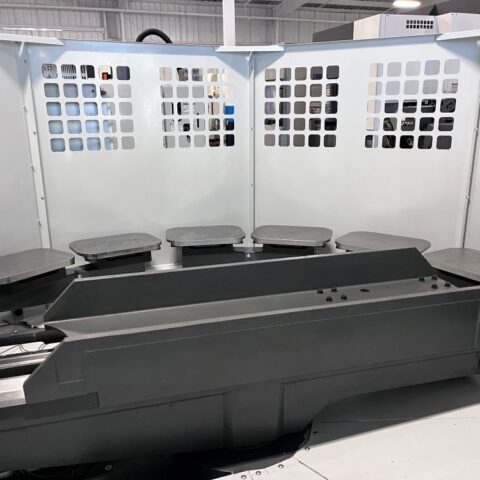

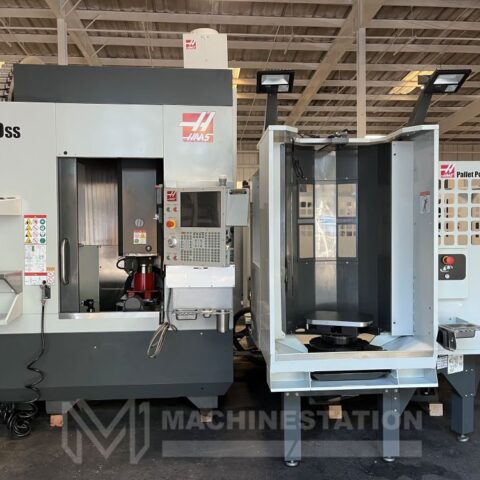

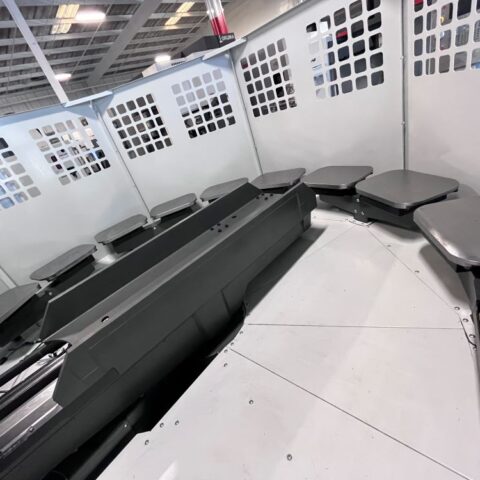

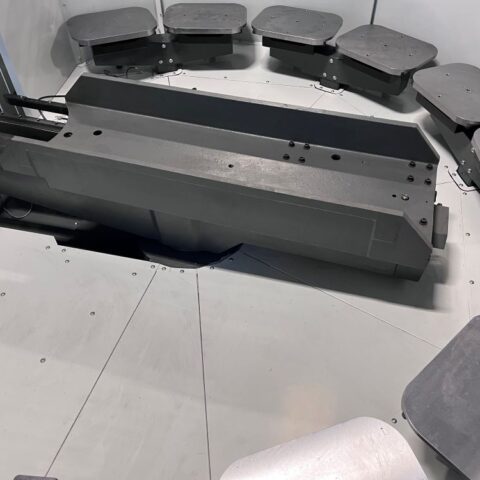

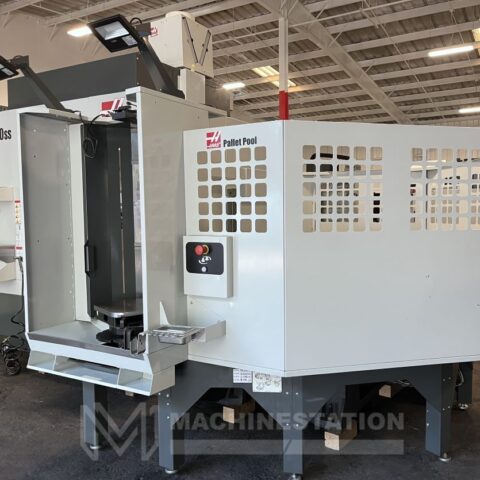

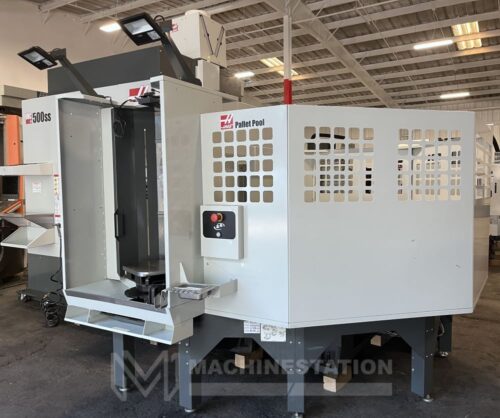

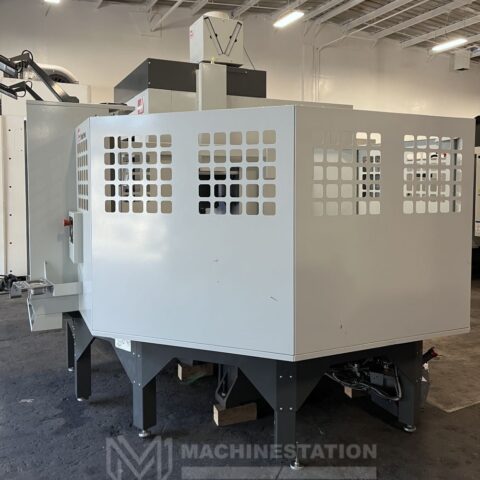

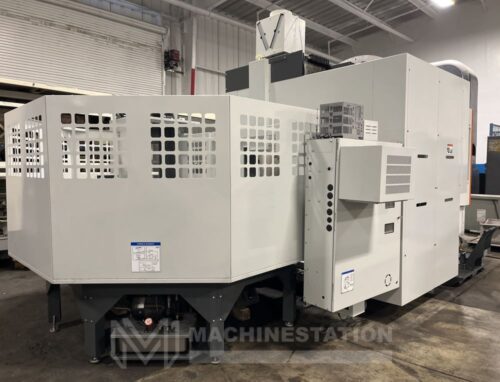

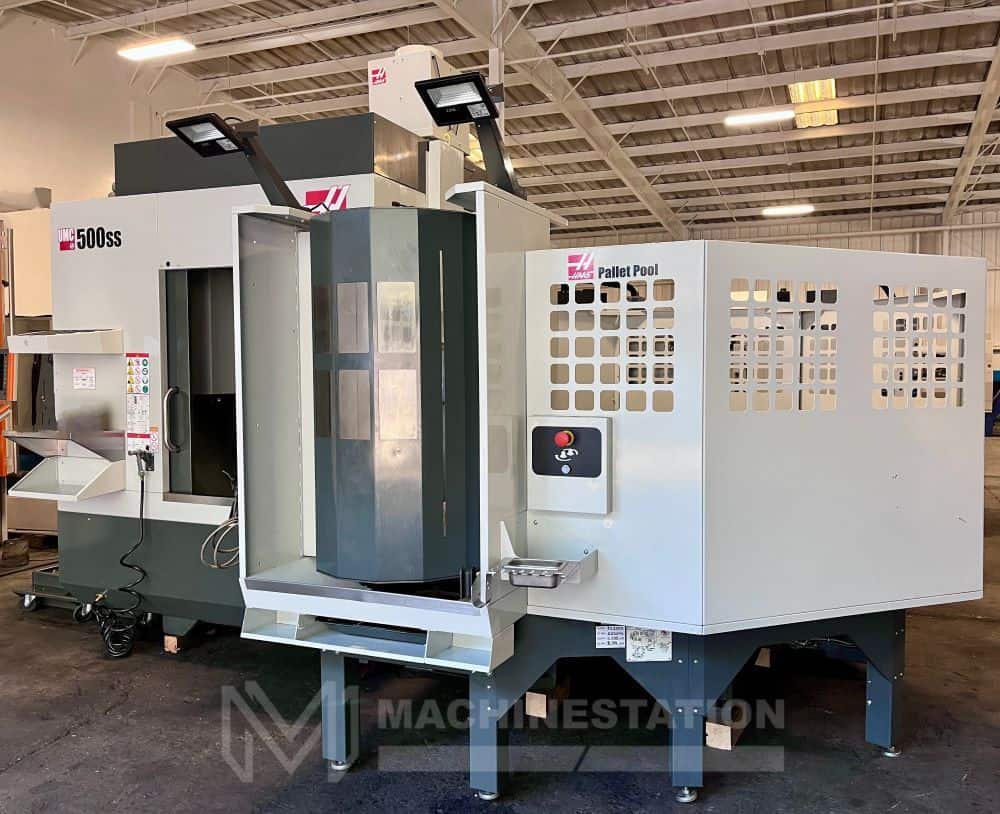

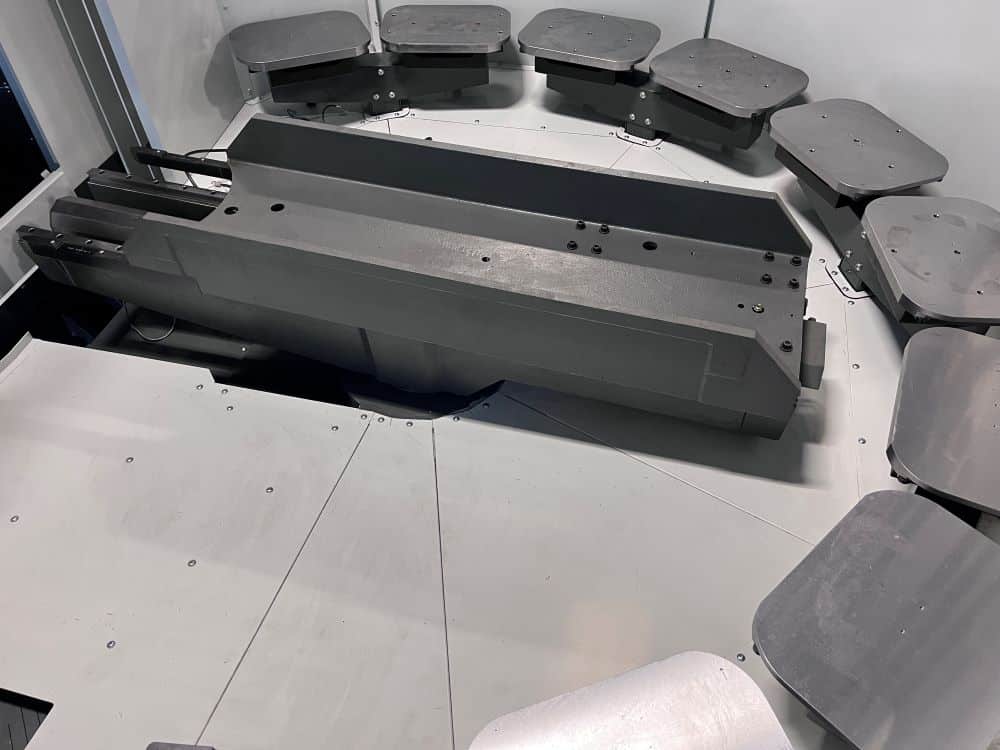

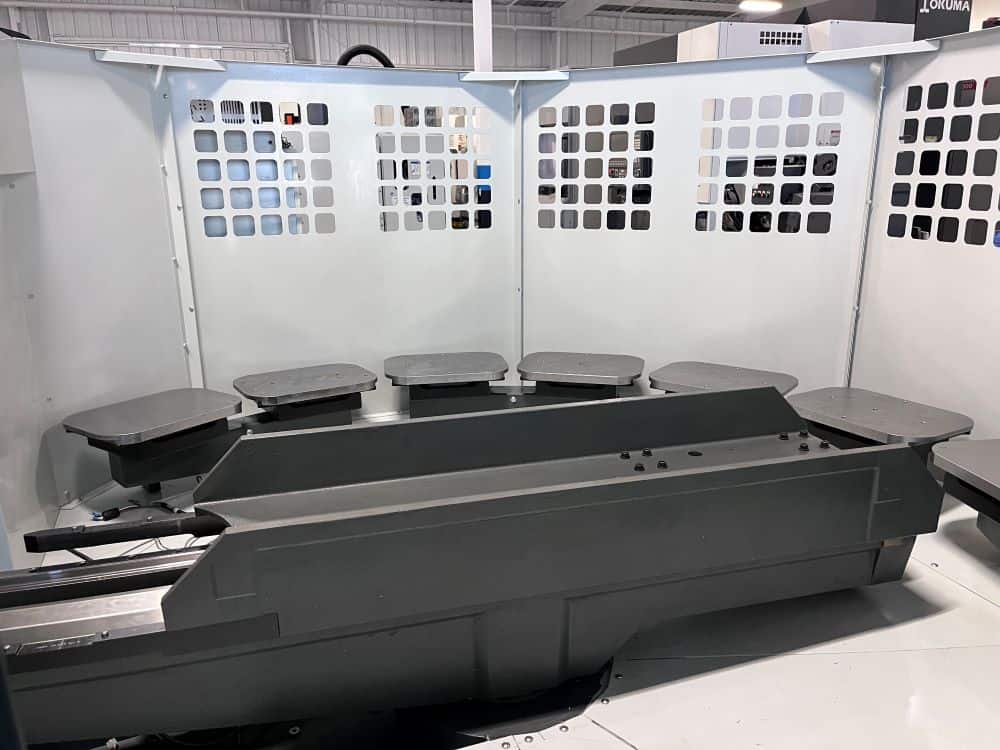

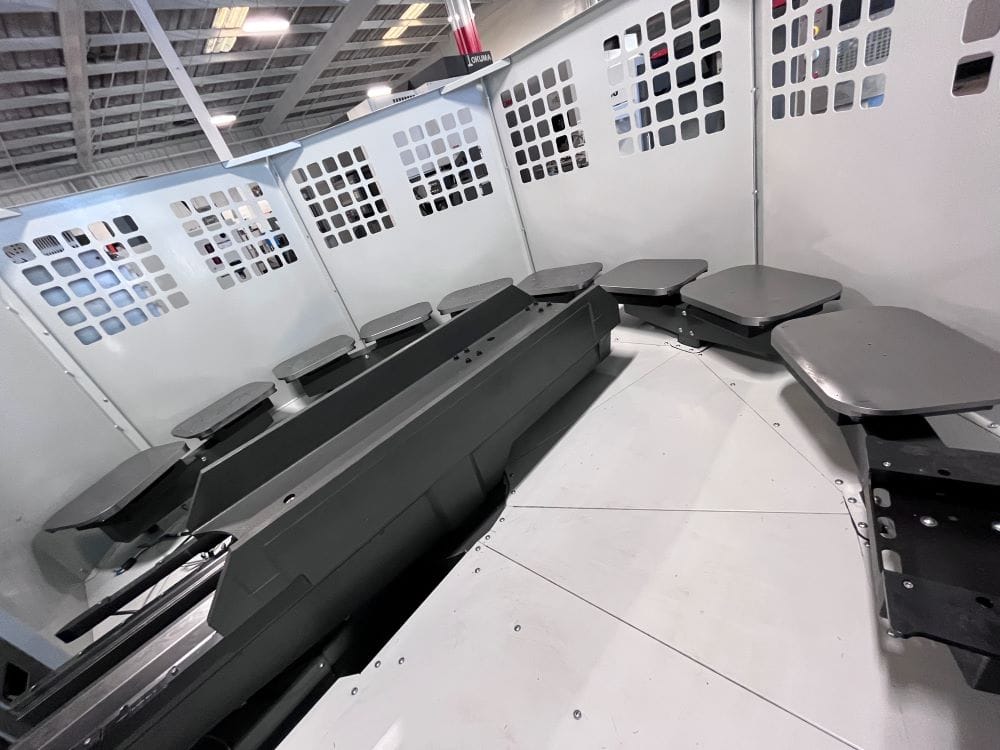

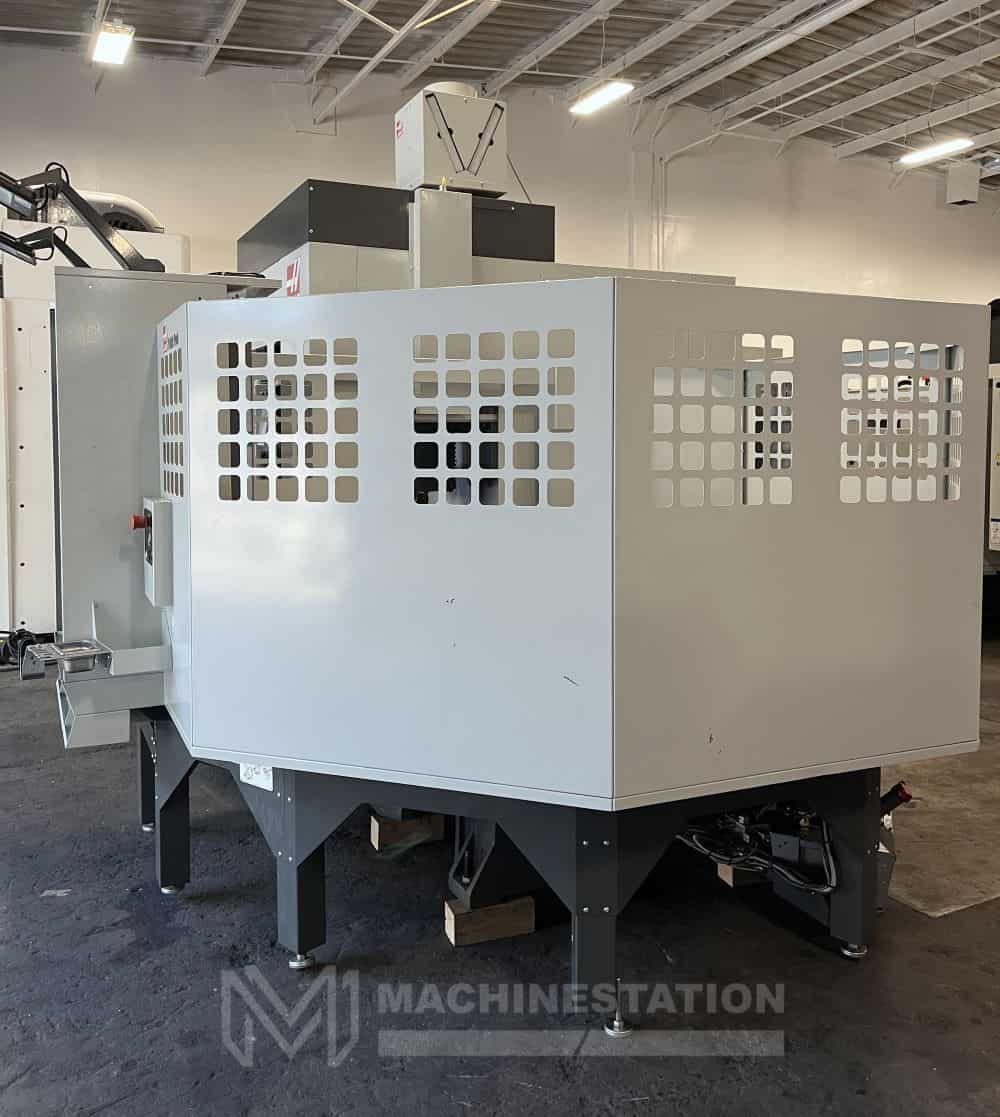

10 Pallet Pool (Upgraded $104,995 value Included)
12,000 RPM High Speed Spindle

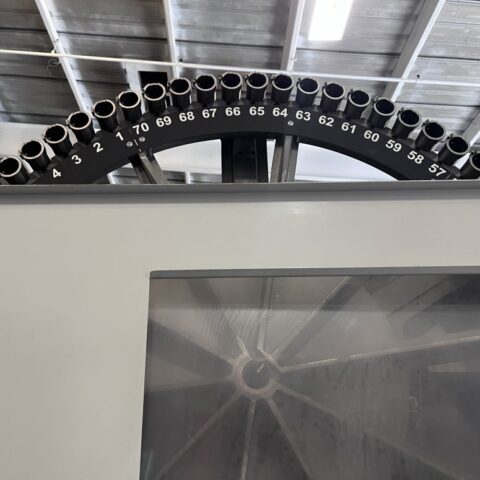

70 Station Super Speed Automatic Tool Changer (Upgraded $31,495 value Included)
High Speed Machining
Through Spindle Coolant – 300 psi (Upgraded $6295 value Included)
Renishaw Probing System Ready

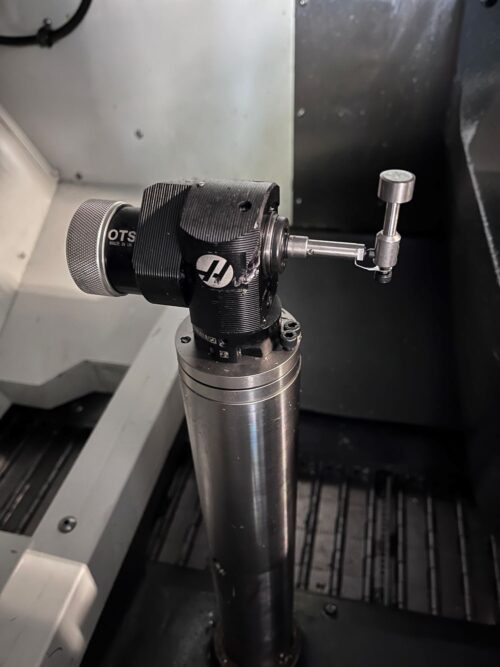

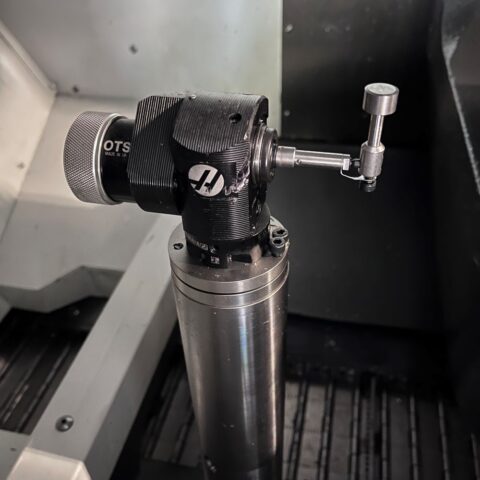

Tool Presetter
30 HP High Torque Spindle
Wireless Networking
Large Remote Jog Handle
Spindle Orientation
Rigid Tapping
Programmable Coolant Nozzle (Upgraded $2095 value Included)
Enclosure Exhaust System (Upgraded $1995 value Included)
Through Tool Air Blast (Upgraded $1395 value Included)

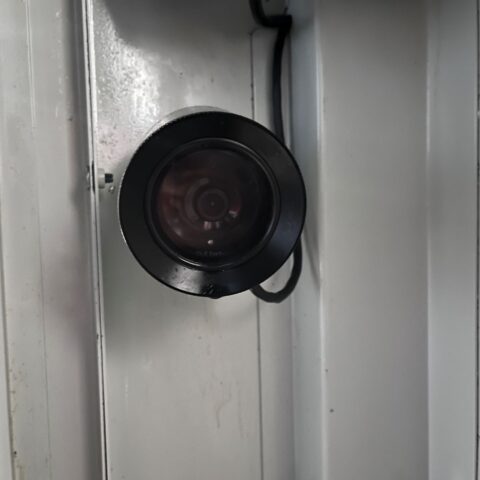

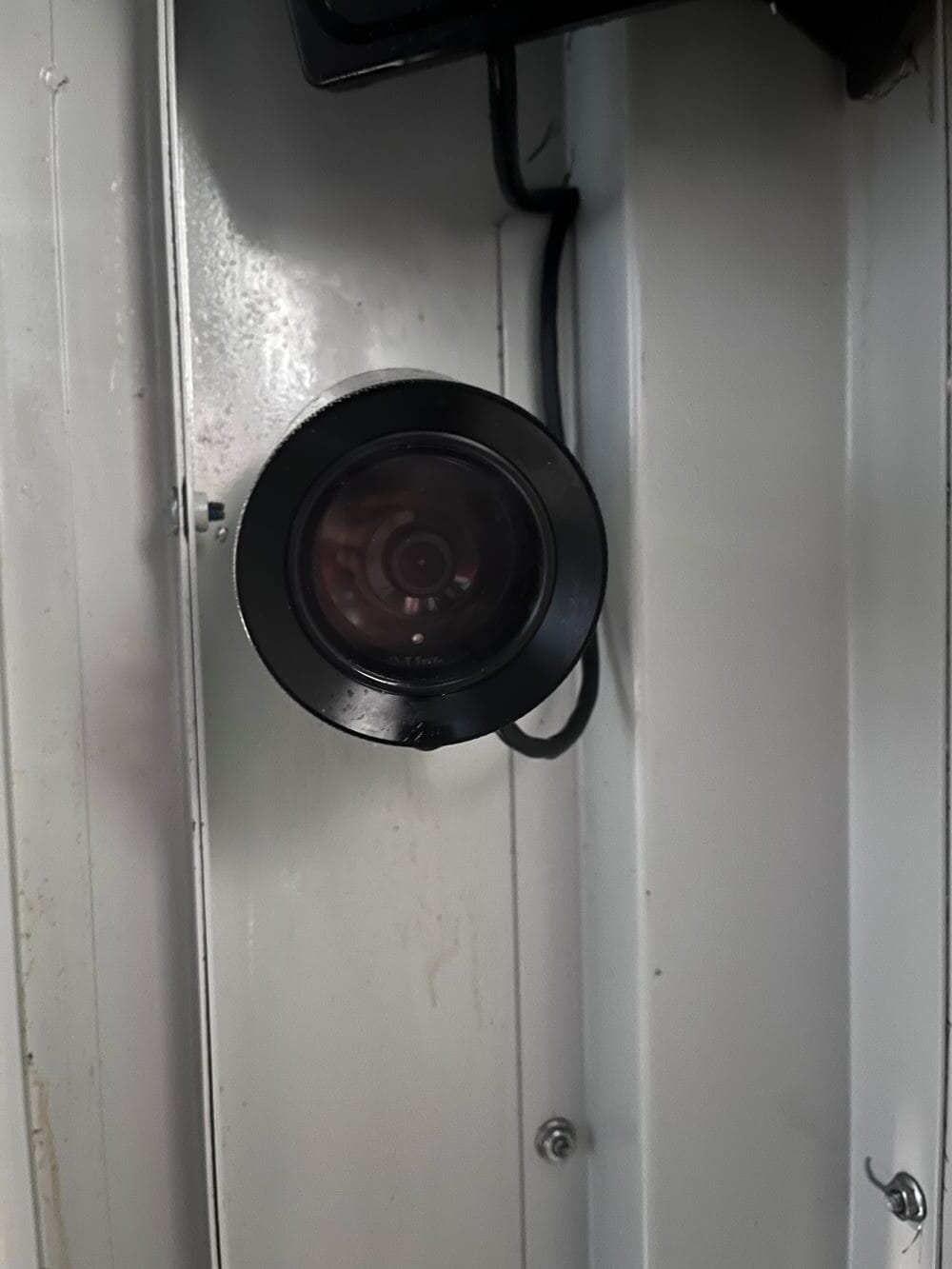

WIFI Camera (Upgraded $795 value Included)
32 GB Expanded Memory (Upgraded $1495 value Included)
Haas HSF-325 (Upgraded $6295 value Included)
Sleeve For Haas HSF-325 (Upgraded $55 value Included)
Rocklock Multiposition Riser (Upgraded $2399 value Included)
Self Centering Vise (Upgraded $1913 value Included)
Rocklock Top Tooling V75100X Vise (Upgraded $1662 value Included)

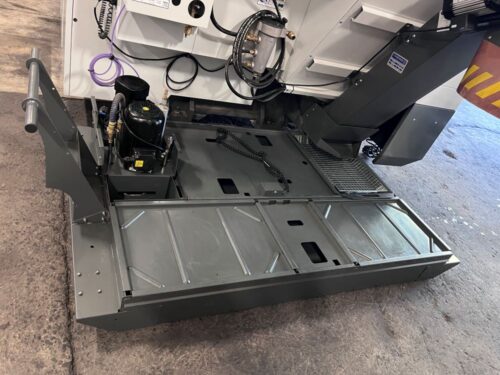

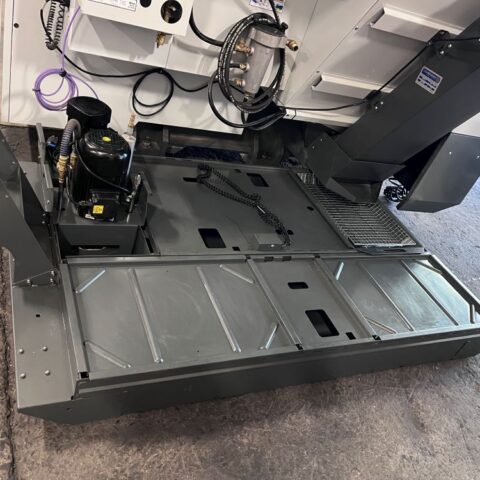

95 Gallon Coolant Tank
Telescopic Way Covers

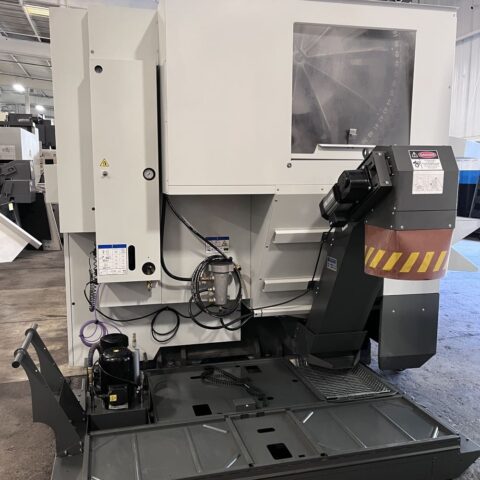

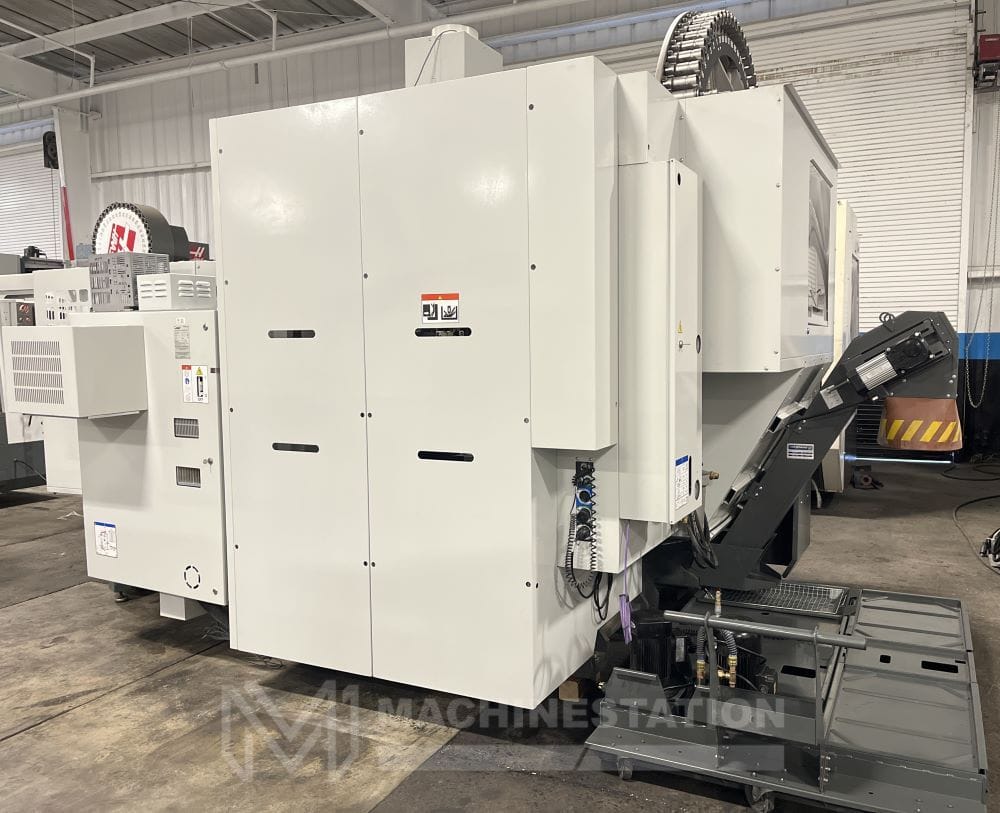

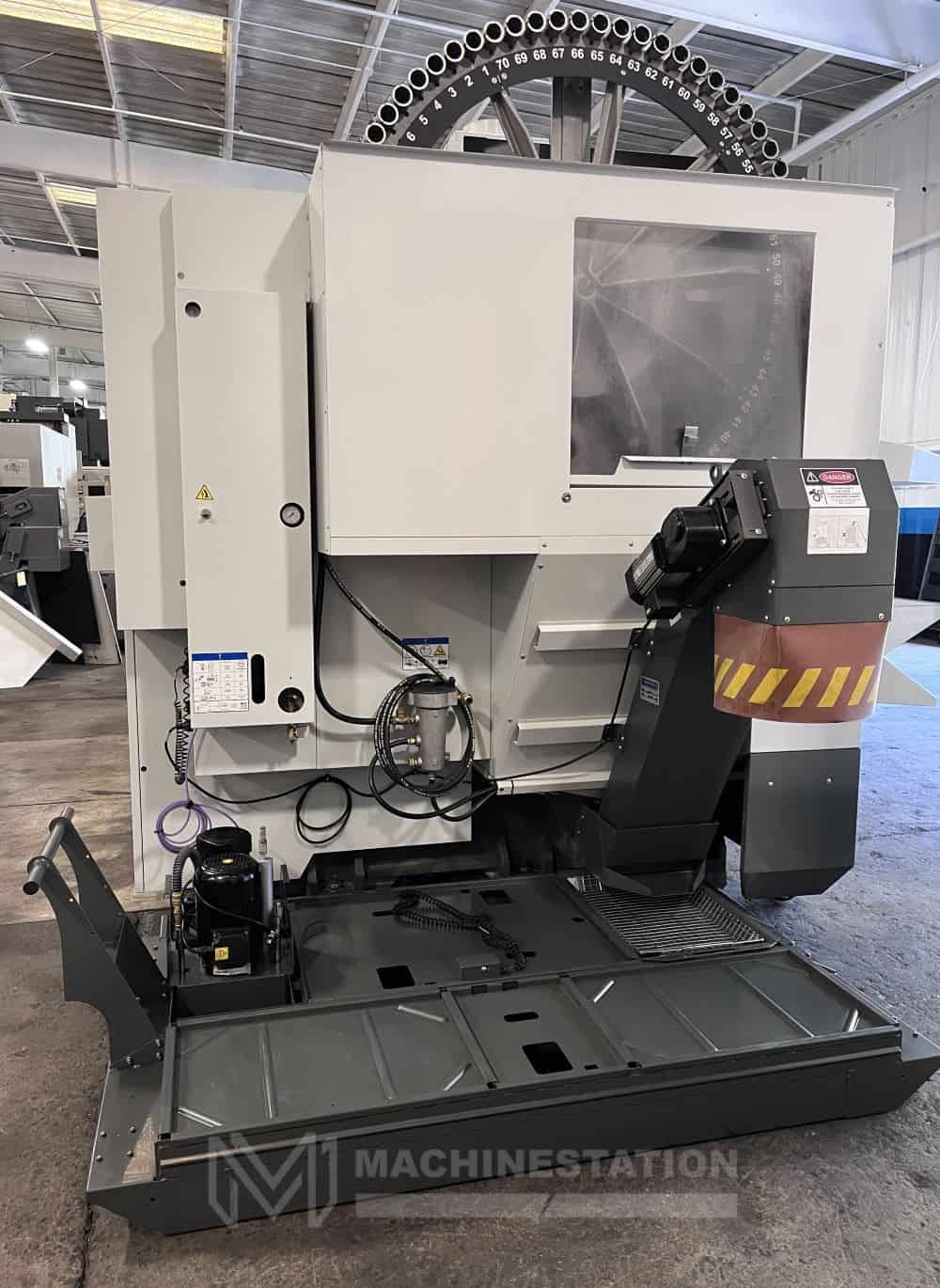

Belt-Type Chip Conveyor (Upgraded $7995 value Included)
Note: Still under Haas warranty for the next six months (until September 2025)

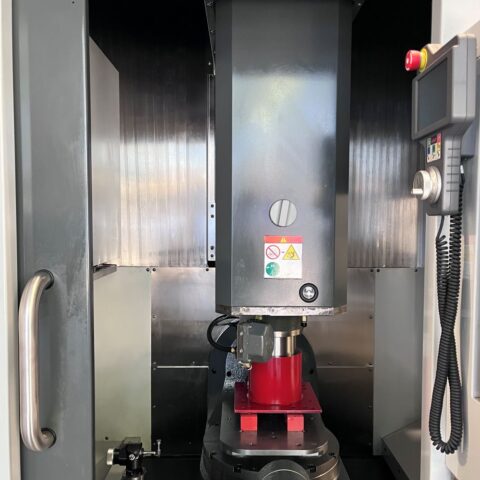

Spindle:
Taper Size: 40
Speed Range: 12,000 RPM
Spindle Power: 30 HP

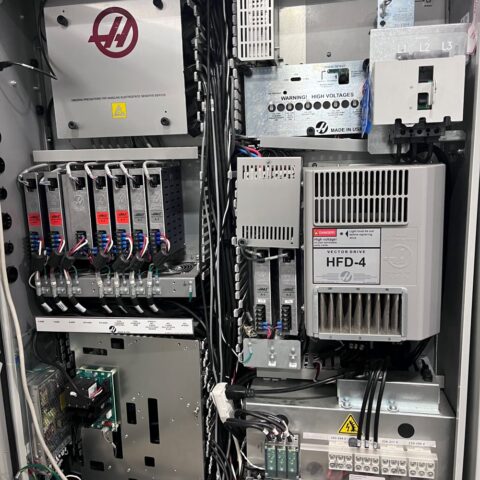

Vector Drive Max Torque: 90ft-lb @ 2000 RPM

Automatic Tool Changer:

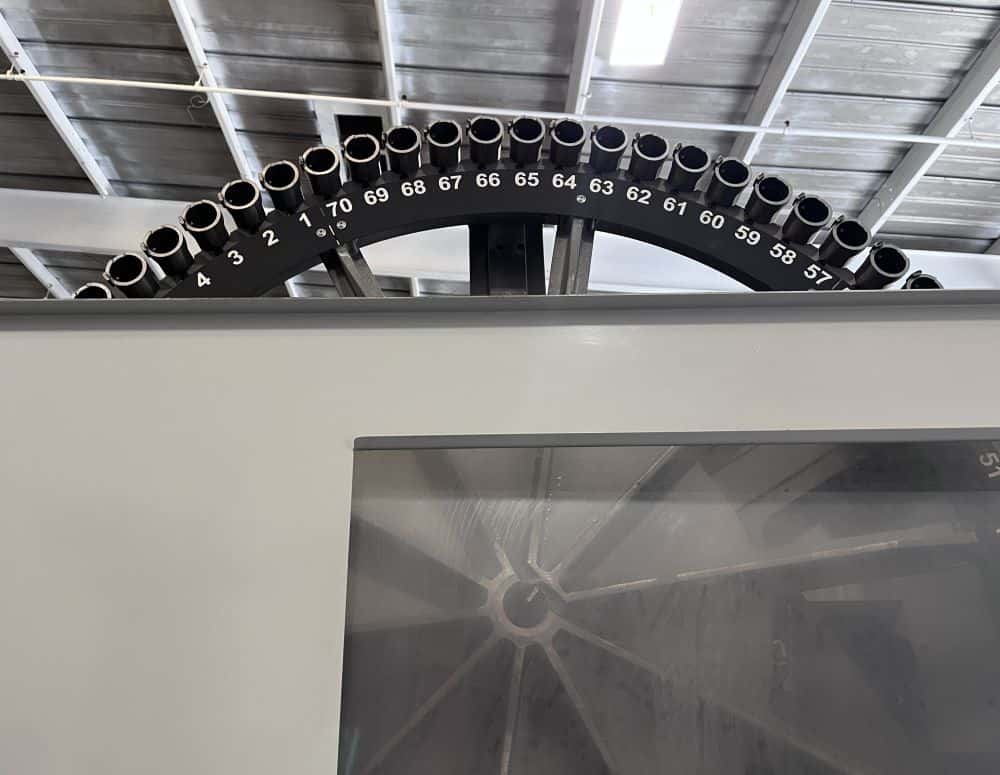

Capacity: 70 Station Side Mounted
Max Tool Weight: 12 lbs
Max Tool Diameter (Full): 2.5″
Max Tool Diameter (adjacent empty): 5″
Max Tool Length: 12″
Tool-to-Tool Changing Time: 1.8 Seconds

General:
Air Required: 100 psi 4 scfm

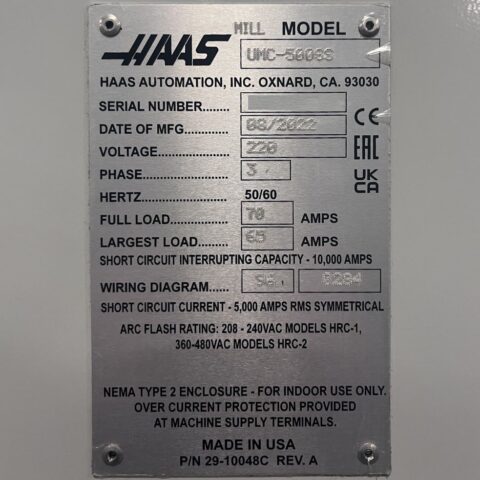

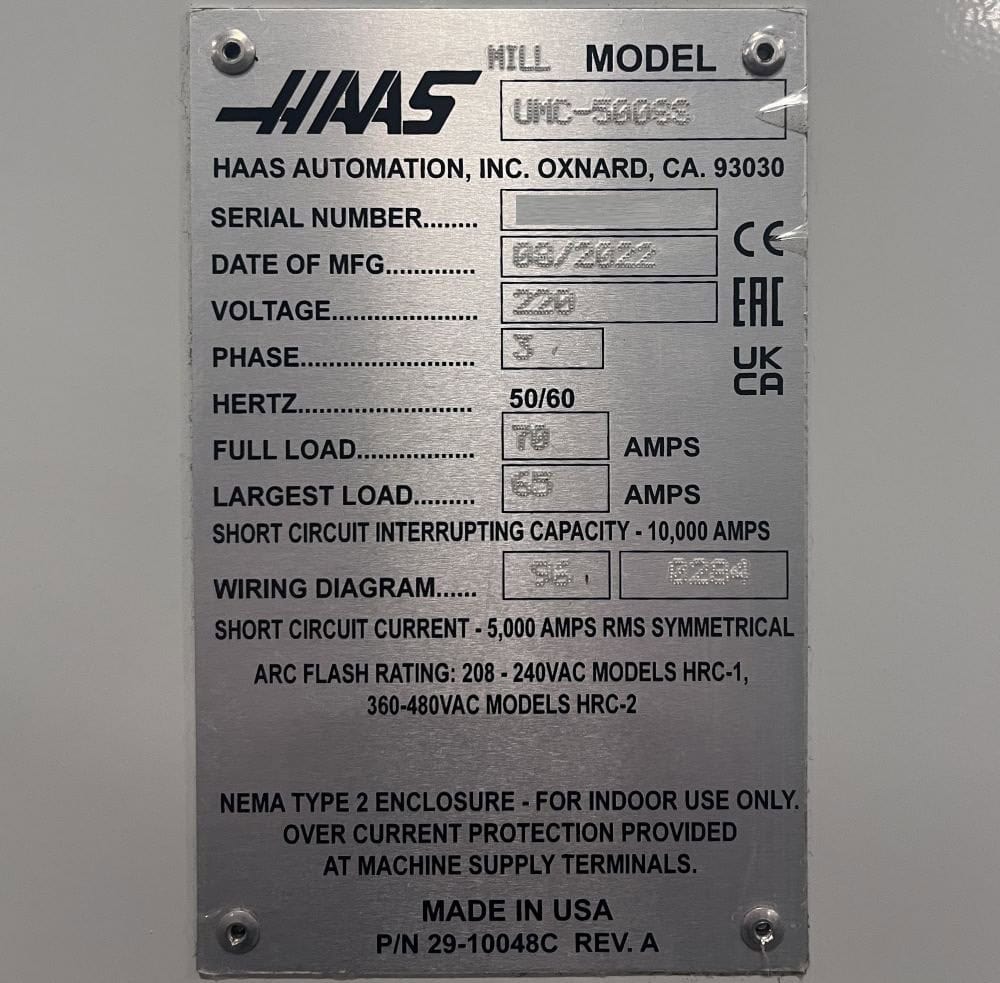

Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 128″ x 101″ x 120″ High (Only Machine)
Weight: 13,320 lbs. (Only Machine)

Travels:
X-Axis: 610 mm
Y Axis: 406 mm
Z Axis: 406 mm
B-Axis (Table Tilt): + 120° – 35°
C Axis: 360° ( Table Rotate )
Rapid Traverse Rates: 1200 Inch Per Minute
Cutting Feed Rates: 650 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 102 mm – 508 mm

Trunnion Table:
Platter Diameter: 399 mm
Max Weight on Platter: 500 lbs
T-Slot Width: 16 mm to 16 mm
Number of Std T-Slots: 5

Spindle:
Taper Size: 40
Speed Range: 12,000 RPM
Spindle Power: 30 HP
Vector Drive Max Torque: 90ft-lb @ 2000 RPM

Automatic Tool Changer:
Capacity: 70 Station Side Mounted
Max Tool Weight: 12 lbs
Max Tool Diameter (Full): 64 mm
Max Tool Diameter (adjacent empty): 127 mm
Max Tool Length: 305 mm
Tool-to-Tool Changing Time: 1.8 Seconds

General:
Air Required: 100 psi 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 3,251 mm x 2,565 mm x 3,048 mm High (Only Machine)
Weight: 13,320 lbs. (Only Machine)

Make	Haas
Model	UMC-500SS

Haas CNC Control
Haas Trunnion Table
10 Pallet Pool (Upgraded $104,995 value Included)
12,000 RPM High Speed Spindle
70 Station Super Speed Automatic Tool Changer (Upgraded $31,495 value Included)
High Speed Machining
Through Spindle Coolant - 300 psi (Upgraded $6295 value Included)
Renishaw Probing System Ready
Tool Presetter
30 HP High Torque Spindle
Wireless Networking
Large Remote Jog Handle
Spindle Orientation
Rigid Tapping
Programmable Coolant Nozzle (Upgraded $2095 value Included)
Enclosure Exhaust System (Upgraded $1995 value Included)
Through Tool Air Blast (Upgraded $1395 value Included)
WIFI Camera (Upgraded $795 value Included)
32 GB Expanded Memory (Upgraded $1495 value Included)
Haas HSF-325 (Upgraded $6295 value Included)
Sleeve For Haas HSF-325 (Upgraded $55 value Included)
Rocklock Multiposition Riser (Upgraded $2399 value Included)
Self Centering Vise (Upgraded $1913 value Included)
Rocklock Top Tooling V75100X Vise (Upgraded $1662 value Included)
95 Gallon Coolant Tank
Telescopic Way Covers
Belt-Type Chip Conveyor (Upgraded $7995 value Included)
Note: *Still under Haas warranty for the next six months (until September 2025)*

Payment Terms

A booking deposit secures the machine, with the remaining balance due prior to loading or shipment. We accept bank transfer, wire transfer, and approved payment methods.
