Haas UMC-500SS 5-Axis CNC Universal Machining Center

SKU 11444

Make/Model Haas UMC-500SS

Year 2020

Video On Request

Out of stock

SKU:	11444
Make/Model:	Haas UMC-500SS
Year:	2020
Video:	On Request

SKU: 11444

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Haas
Model No.:	UMC-500SS
Year:	2020
Machine Type:	5-Axis CNC Universal Machining Center

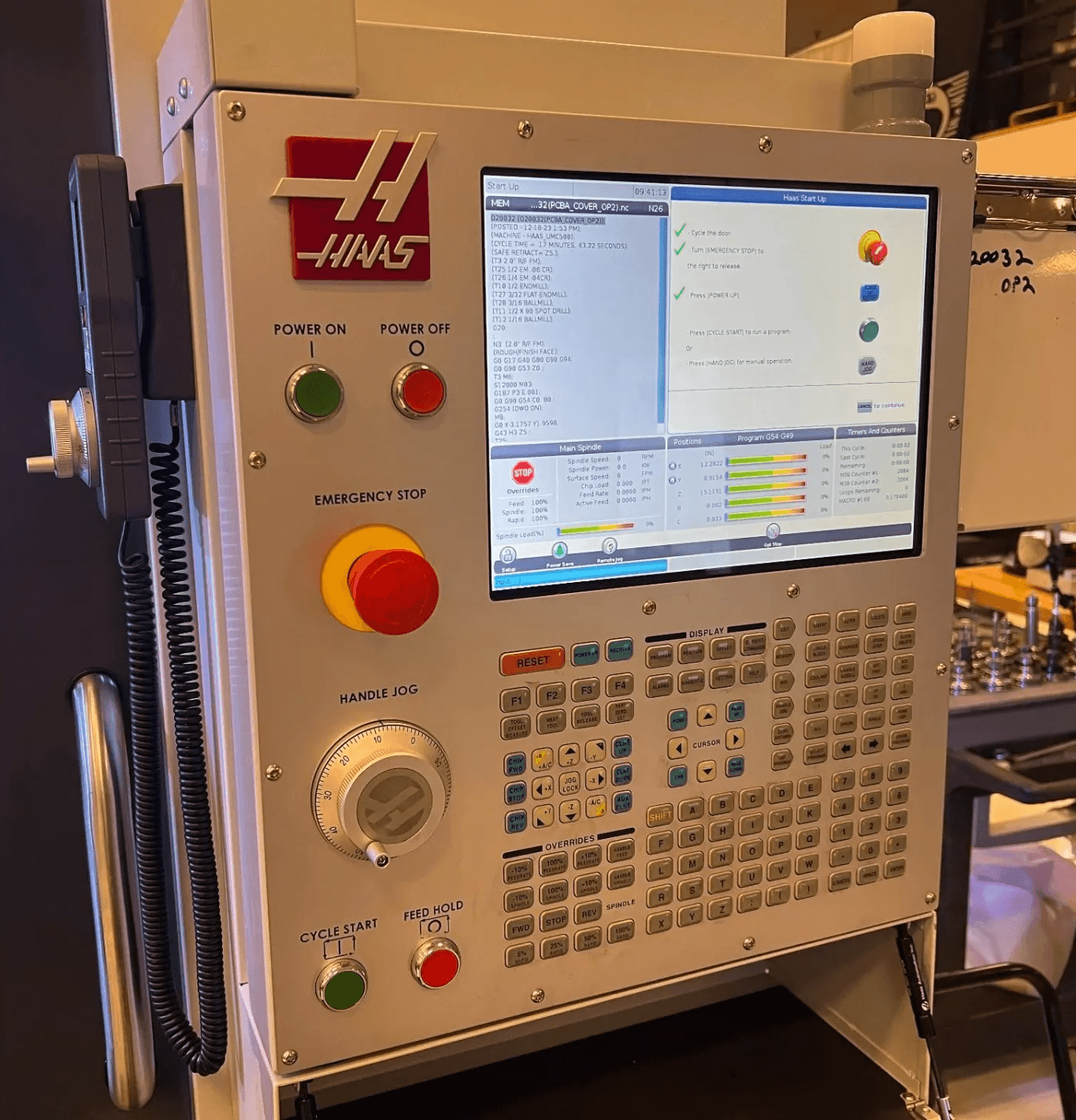

Control:	Haas CNC Control
Country of Origin:	USA

Travels:
X-Axis Travel: 24″
Y-Axis Travel: 16″
Z-Axis Travel: 16″
B-Axis Travel: +120° / -35°
C-Axis Rotation: 360°

Features:
300 PSI Through-Spindle Coolant
15,000 RPM High-Speed Spindle
30 HP Vector Drive
30+1 Side-Mount Automatic Tool Changer
Wireless Intuitive Probing System (Renishaw)
Renishaw Tool Setter
Belt-Type Chip Conveyor
Enclosure Exhaust System
High-Pressure Flood Coolant
WiFi Camera
32 GB Expanded Memory
Chip Tray Filter Kit
Hydraulic Vise Ready
Picatinny Dovetail Top Tooling
Aluminum 96MM Riser
Programmable Coolant Nozzle
Remote Jog Handle
Rigid Tapping
High-Speed Machining
Full Enclosure

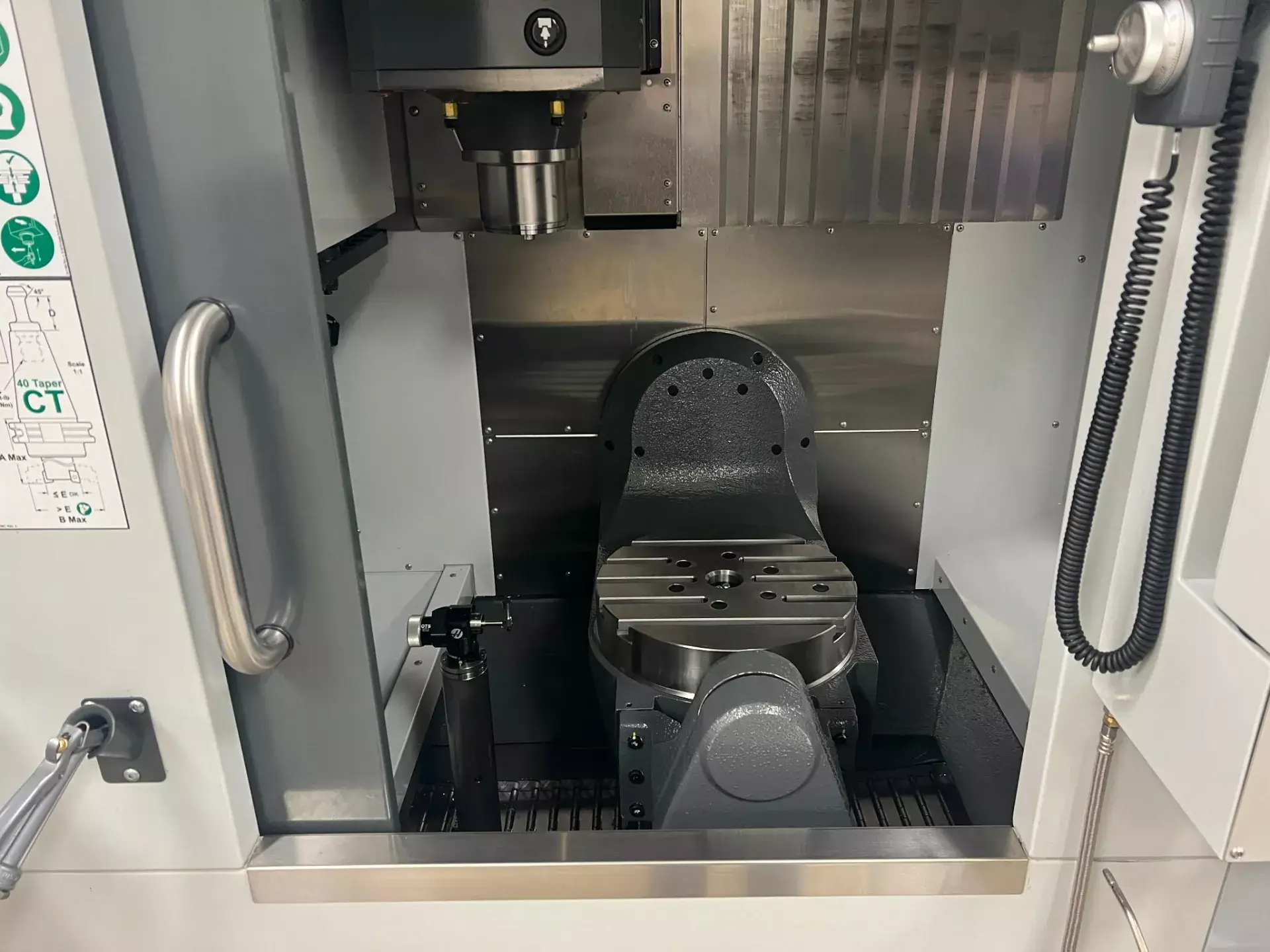

Table:
Table Diameter: 15.7″
Maximum Table Load: 500 lbs

Spindle:
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: CAT 40

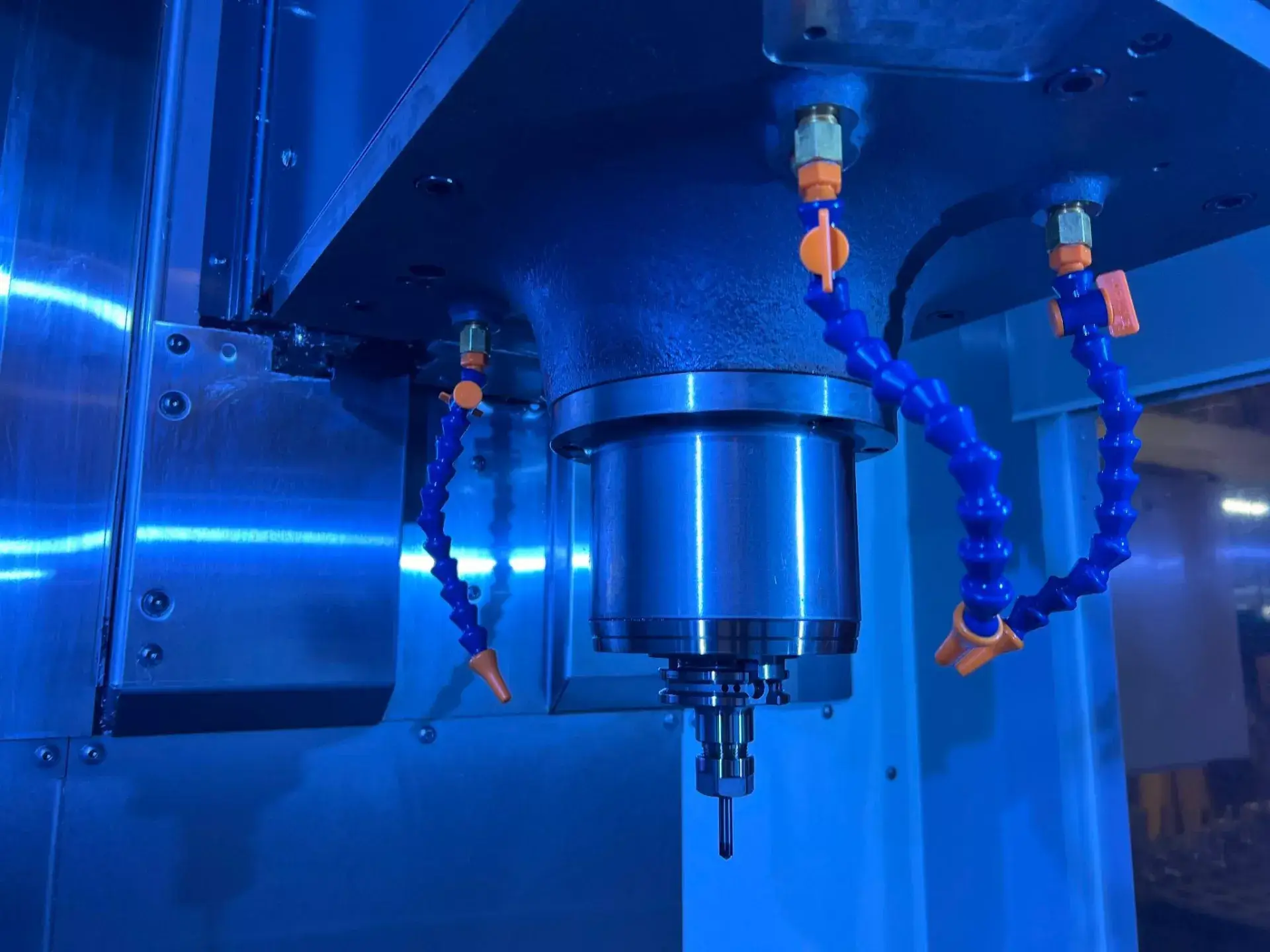

Inline Direct-Drive Spindle

Tool Changer:
Tool Changer Capacity: 30+1 ATC
High-Speed Side-Mount Tool Changer

Machine Hours:
Run Time: 932 Hours
Power On Time: 5,509 Hours
Cycle Start Time: 1,298 Hours
Feed Cutting Time: 948 Hours

General:
Air Required: 100 PSI, 4 SCFM

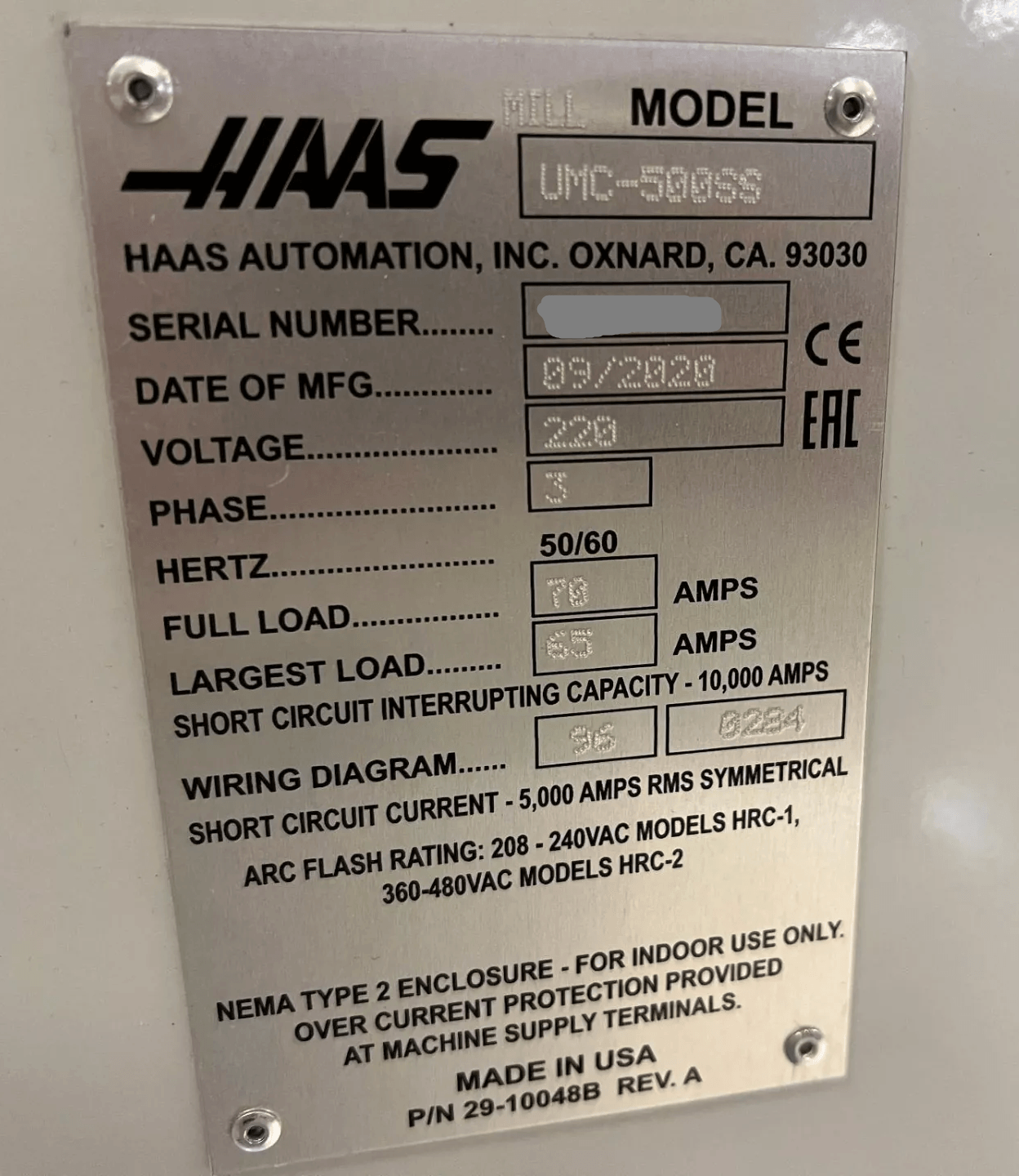

Power Requirement: 220V / 70A / 3-Phase
Overall Dimensions: 118″ x 90″ x 107″ High
Approximate Weight: 13,000 lbs

Travels:
X-Axis Travel: 610 mm
Y-Axis Travel: 406 mm
Z-Axis Travel: 406 mm
B-Axis Travel: +120° / -35°
C-Axis Rotation: 360°

Table:
Table Diameter: 399 mm
Maximum Table Load: 500 lbs

Spindle:
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: CAT 40
Inline Direct-Drive Spindle

Tool Changer:
Tool Changer Capacity: 30+1 ATC
High-Speed Side-Mount Tool Changer

Machine Hours:
Run Time: 932 Hours
Power On Time: 5,509 Hours
Cycle Start Time: 1,298 Hours
Feed Cutting Time: 948 Hours

General:
Air Required: 100 PSI, 4 SCFM
Power Requirement: 220V / 70A / 3-Phase
Overall Dimensions: 2,997 mm x 2,286 mm x 2,718 mm High
Approximate Weight: 13,000 lbs

Categories	CNC Multi Axis Machining Center
Make	Haas
Model	UMC-500SS

300 PSI Through-Spindle Coolant
15,000 RPM High-Speed Spindle
30 HP Vector Drive
30+1 Side-Mount Automatic Tool Changer
Wireless Intuitive Probing System (Renishaw)
Renishaw Tool Setter
Belt-Type Chip Conveyor
Enclosure Exhaust System
High-Pressure Flood Coolant
WiFi Camera
32 GB Expanded Memory
Chip Tray Filter Kit
Hydraulic Vise Ready
Picatinny Dovetail Top Tooling
Aluminum 96MM Riser
Programmable Coolant Nozzle
Remote Jog Handle
Rigid Tapping
High-Speed Machining
Full Enclosure

Payment Terms

A booking deposit secures the machine, with the remaining balance due prior to loading or shipment. We accept bank transfer, wire transfer, and approved payment methods.
