*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

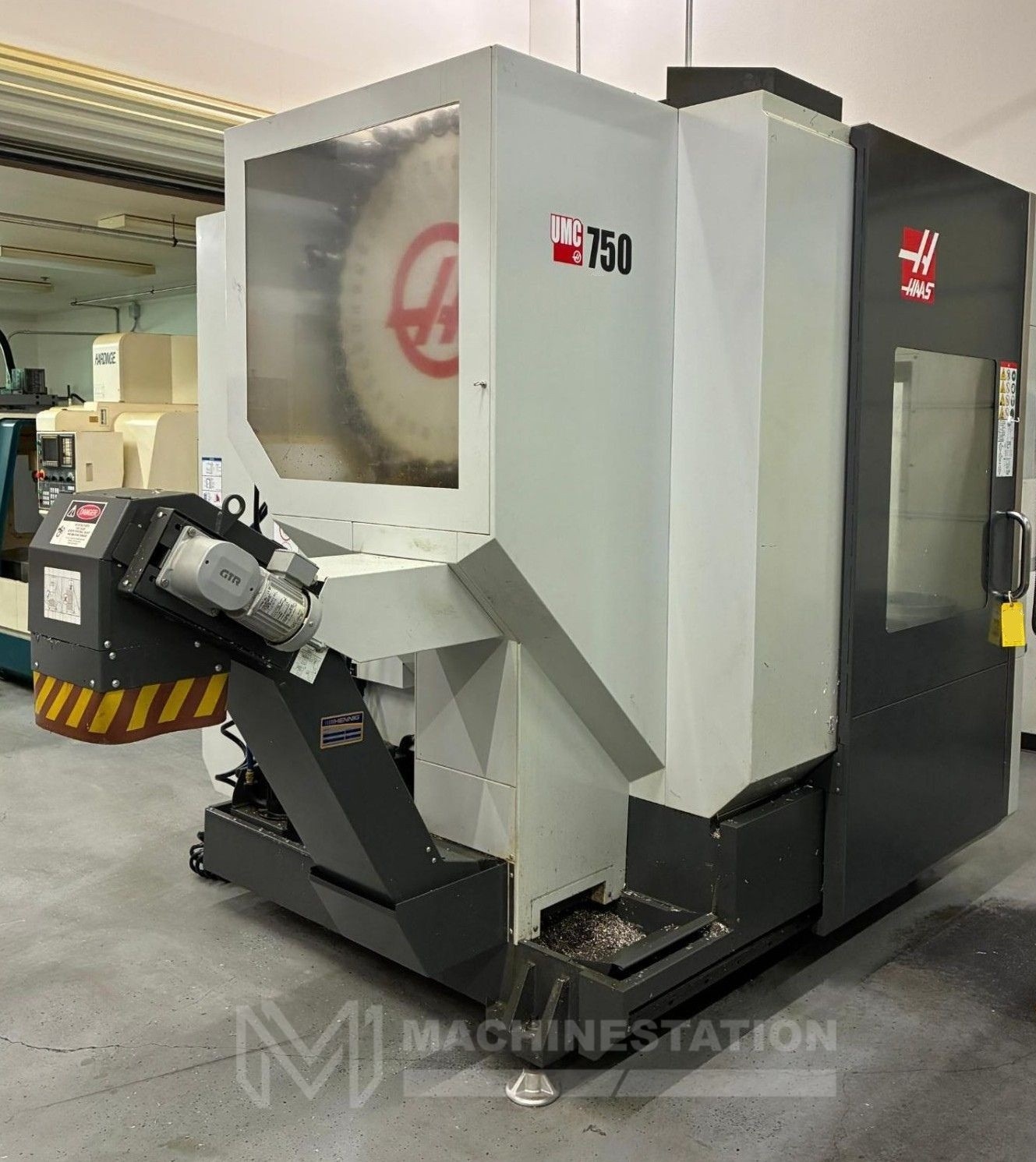

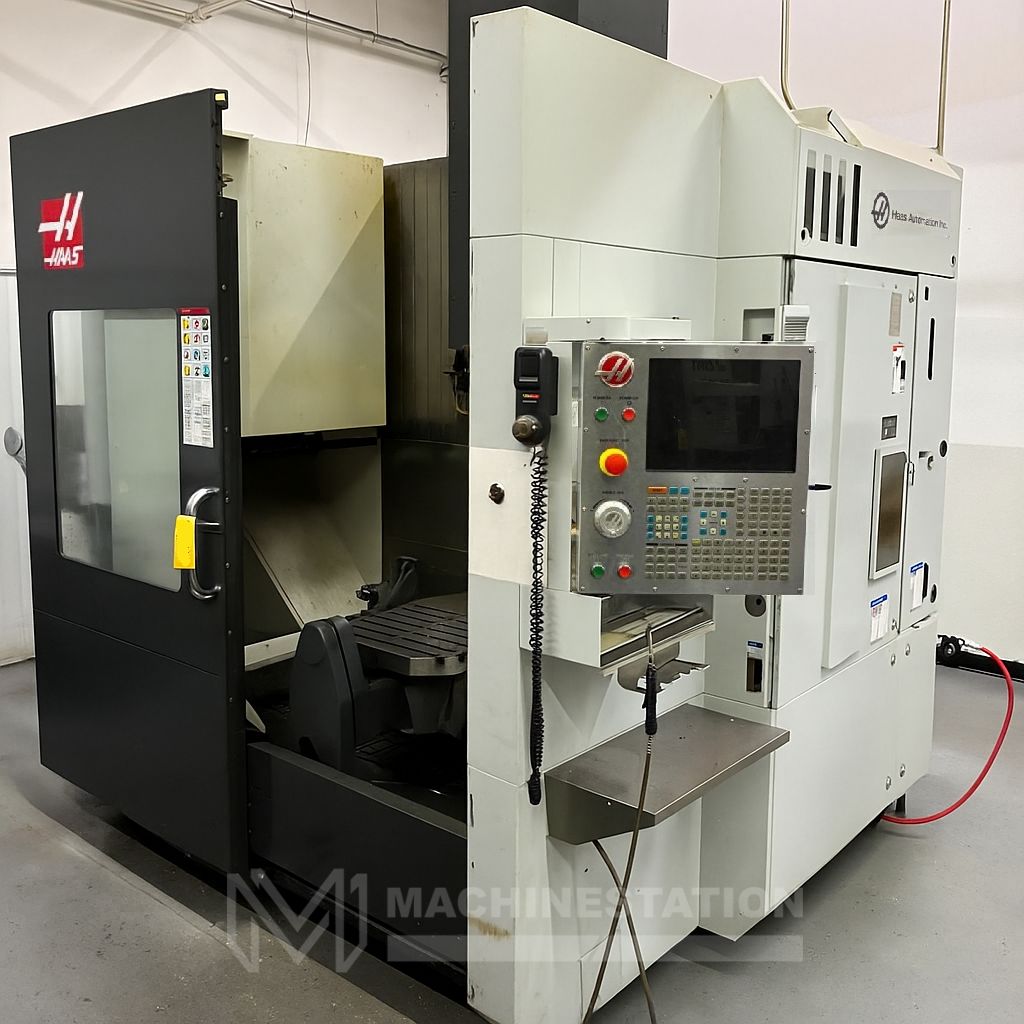

| Make: | Haas |
| Model: | UMC-750 |
| Year: | 2016 |
| Condition: | Used – Good |
Features:

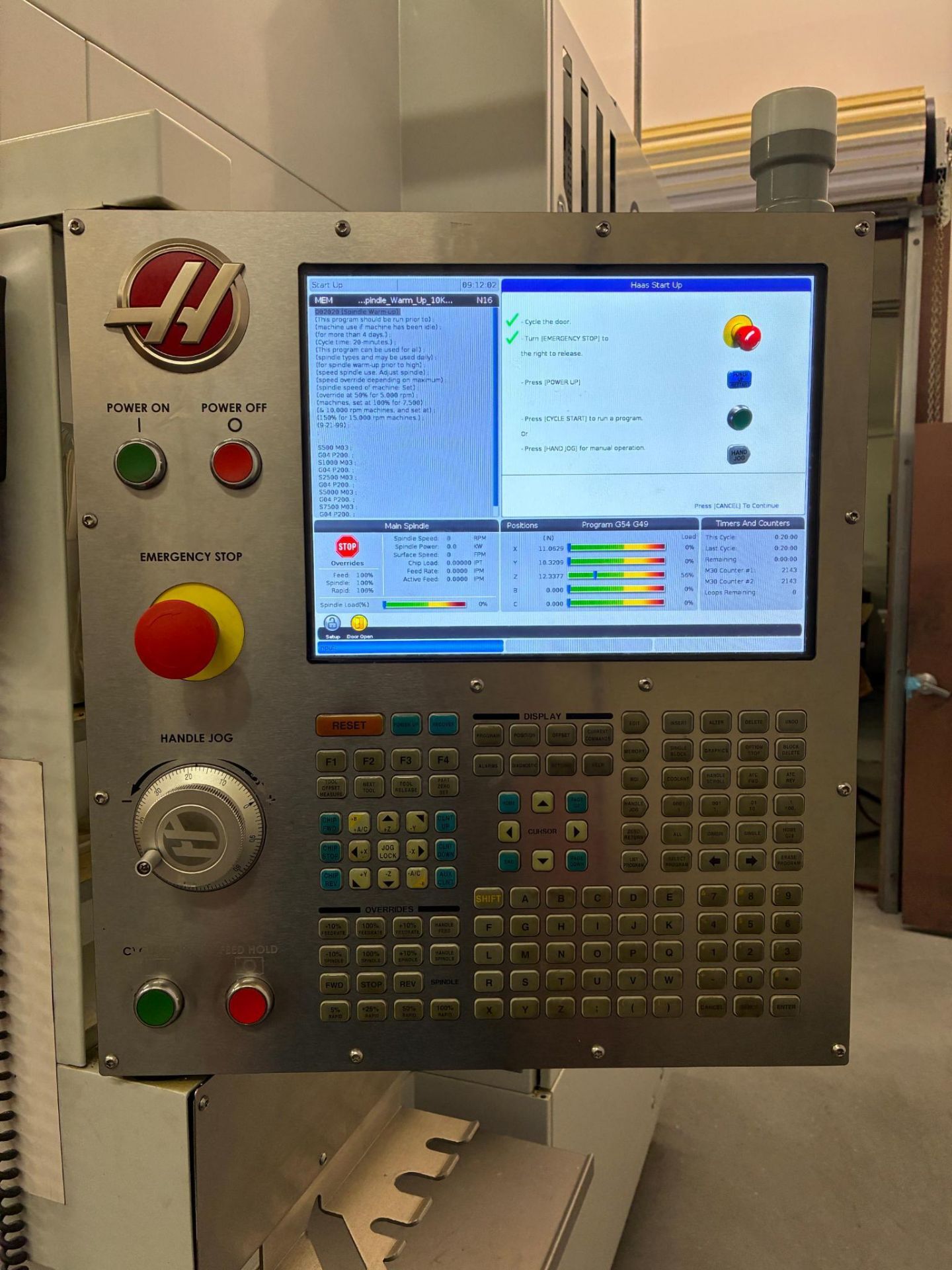

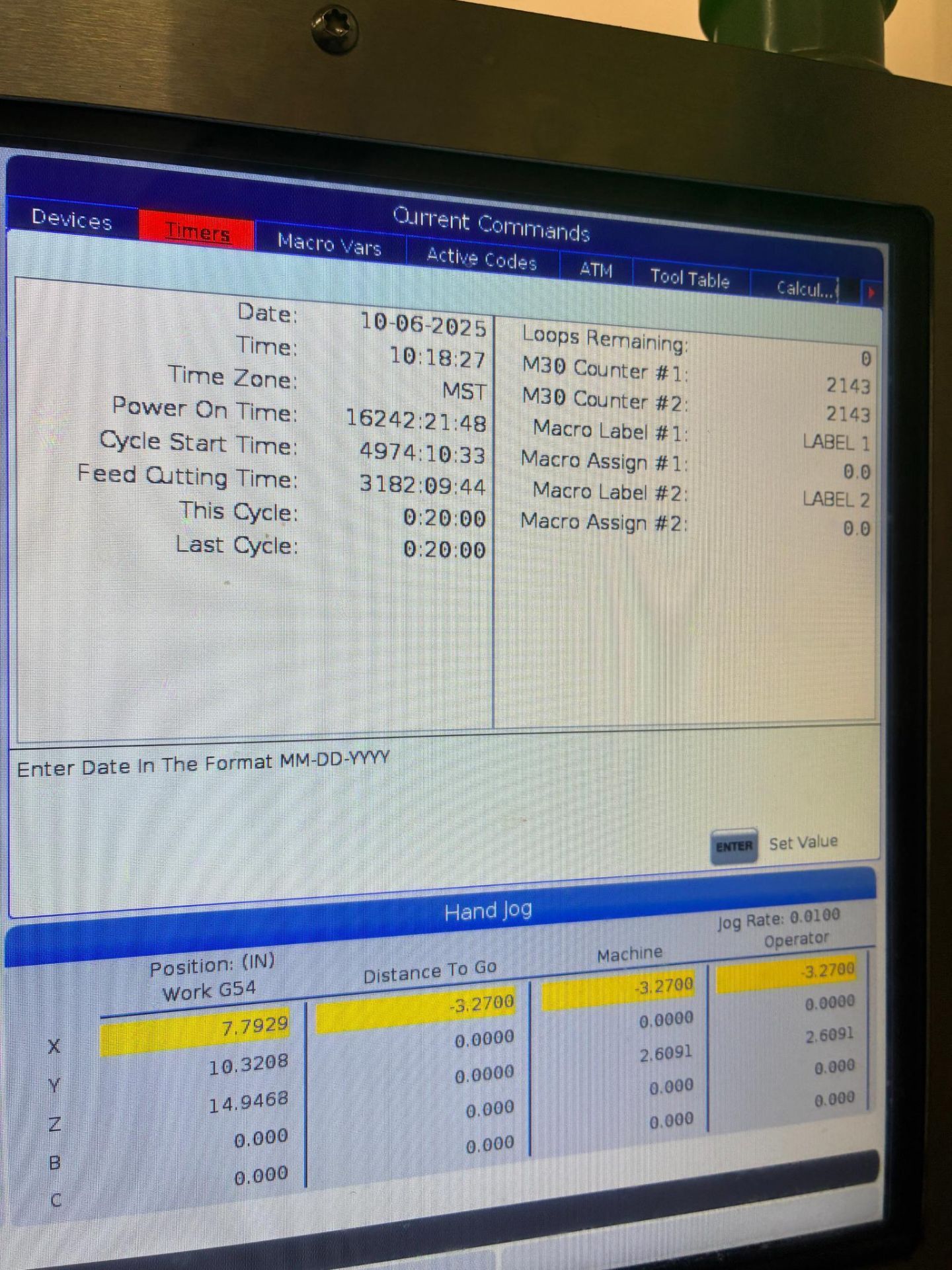

- Haas CNC Control
- Haas Trunnion Table
- 12,000 RPM High Speed Spindle (Upgraded $11,195 Approx. value Included)
- 40 Station Automatic Tool Changer (Upgraded $11,995 Approx. value Included)
- Through Spindle Coolant – 300 psi (Upgraded $7,095 value Included)
- High Speed Machining (Upgraded $3,895 value Included)
- Renishaw Probing System (Probe Needed)
- Tool Presetter
- 30 HP High Torque Spindle
- Remote Jog Handle
- Rigid Tapping
- Programmable Coolant Nozzle (Upgraded $2,395 value Included)
- 32 GB Expanded Memory (Upgraded $1,695 value Included)
- Media Display M-Code
- Coolant Tank

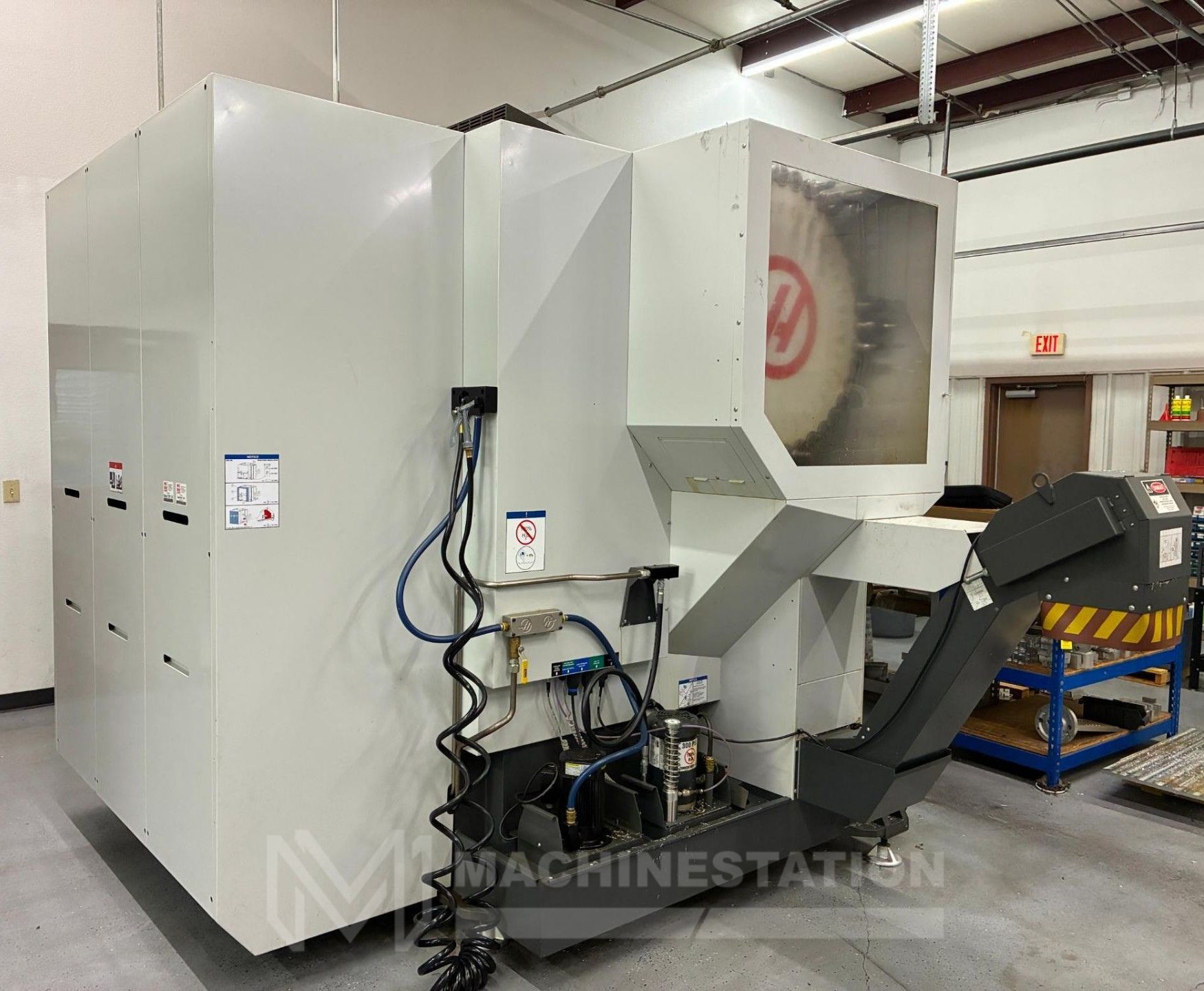

- Belt-Type Chip Conveyor (Upgraded $7,995 value Included)
|
Travels:
- X-Axis: 30″
- Y Axis: 20″
- Z Axis: 20″
- B-Axis (Table Tilt): + 120° – 35°
- C Axis: 360° ( Table Rotate )
- Rapid Traverse Rates: 900 Inch Per Minute
- Cutting Feed Rates: 650 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 24″
|

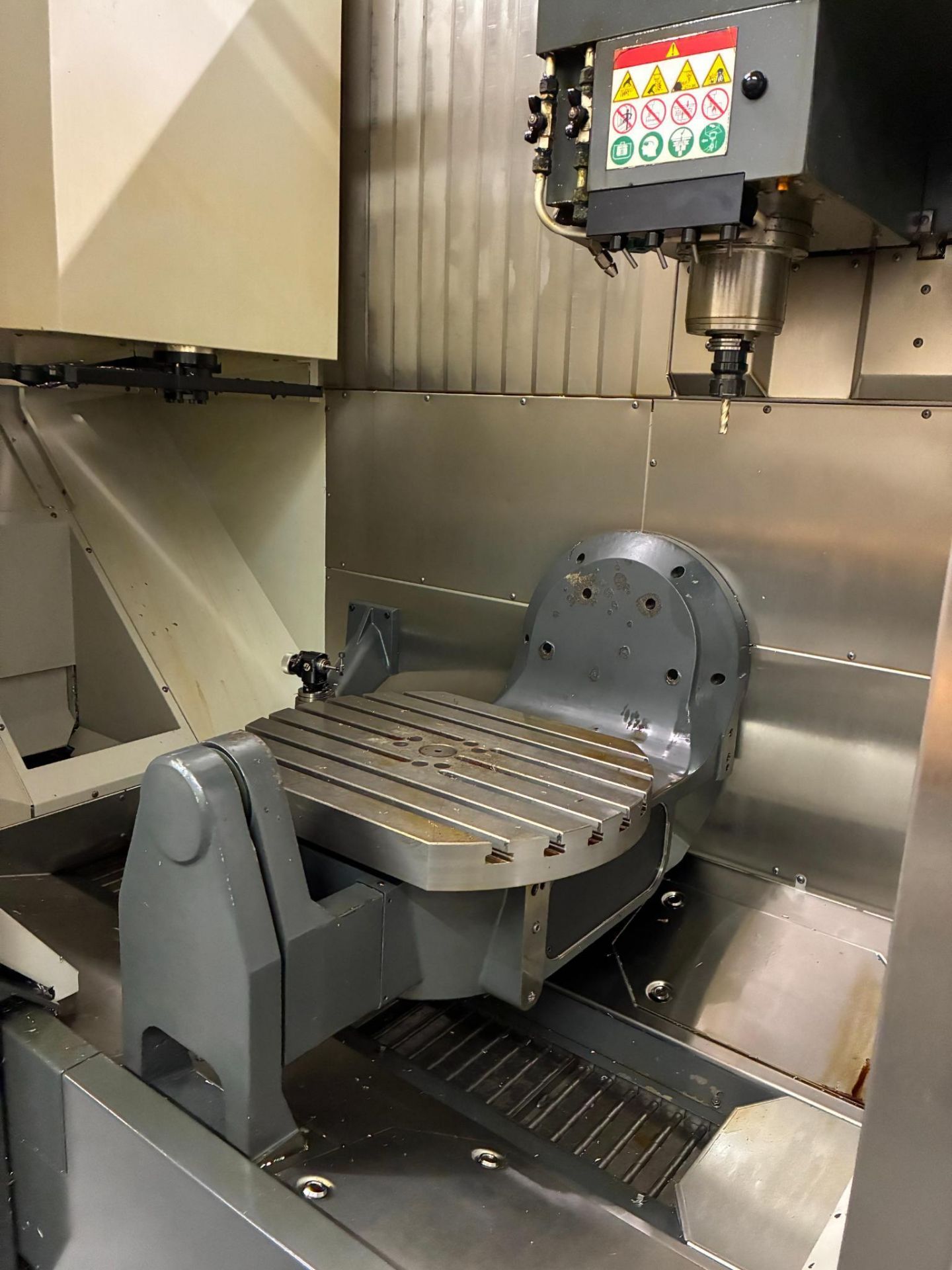

Trunnion Table:
- Platter Diameter: 19.70″
- Max Weight on Platter: 660 lbs
- T-Slot Width: 0.626″ to 0.630″
- Number of Std T-Slots: 7
|
Spindle:
- Taper Size: CAT-40
- Speed Range: 12,000 RPM
- Spindle Power: 30 HP
|

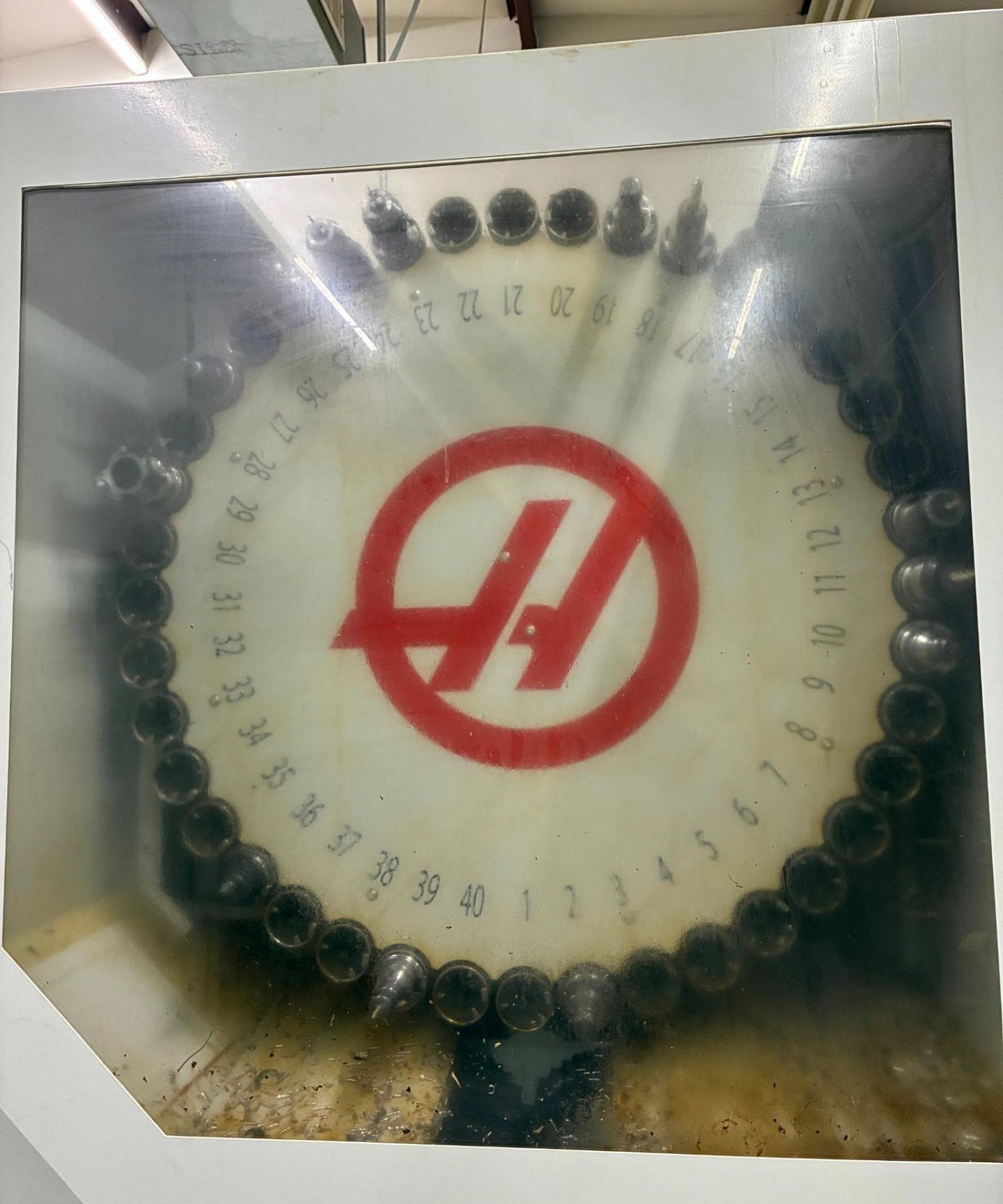

Automatic Tool Changer:
- Capacity: 40 Station Side Mounted
- Max Tool Weight: 12 lbs
- Max Tool Diameter (Full): 2.5″
- Max Tool Diameter (adjacent empty): 5″
- Max Tool Length: 12″
- Tool-to-Tool Changing Time: 2.8 Seconds
|
General:
- Air Required: 100 psi 4 scfm

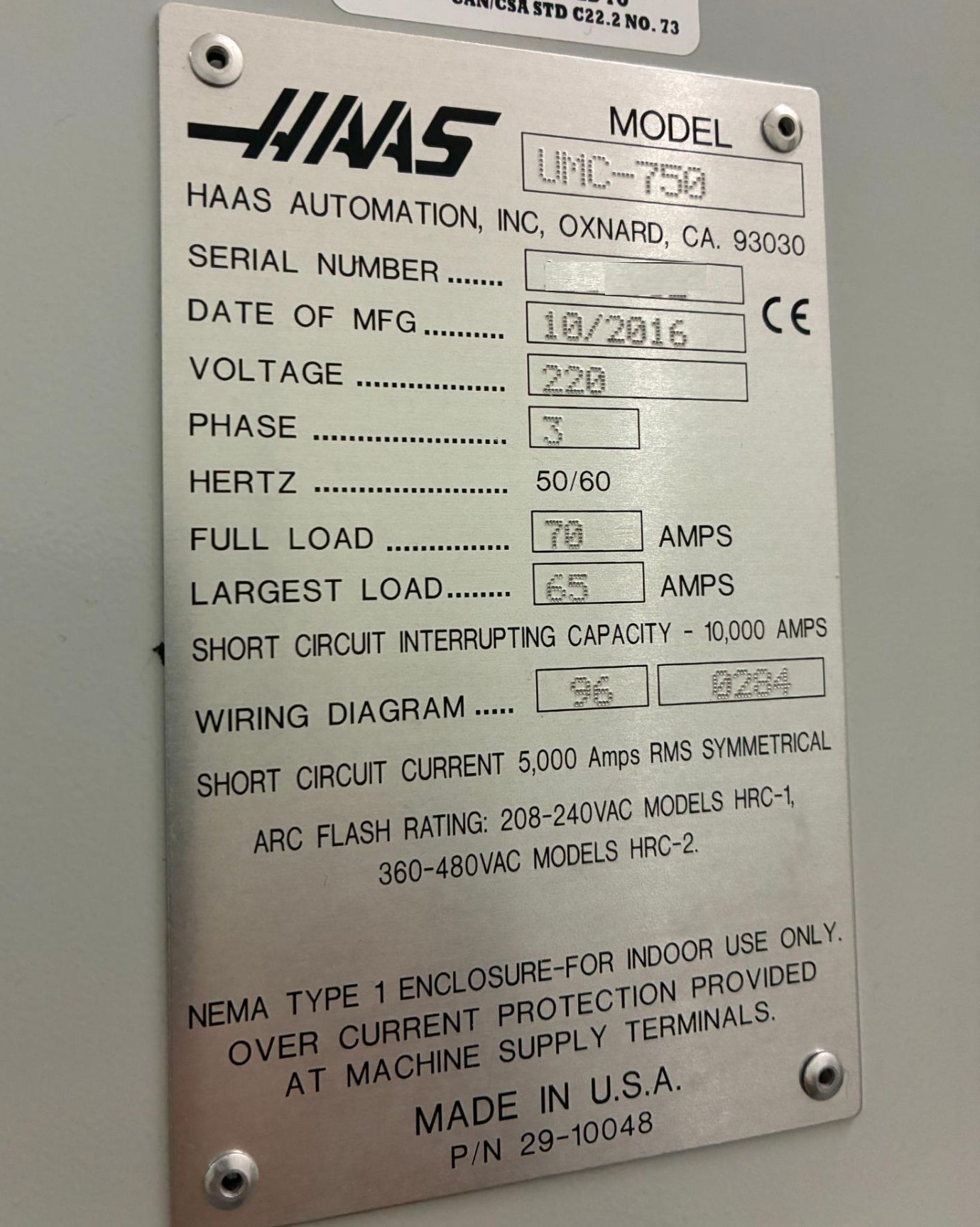

- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 168″ x 92.5″ x 110″ High
- Weight: 14,250 lbs.
|
