*All specifications are approximations and are subject to verification.
| SKU | 2010 |

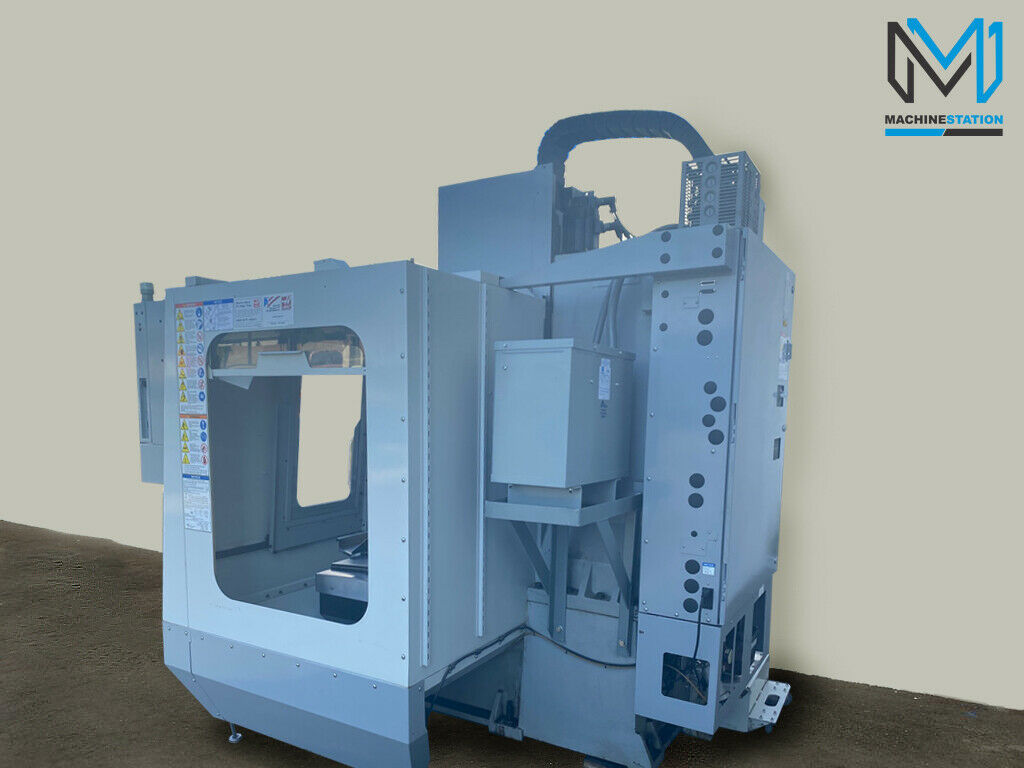

| Make | Haas |
| Model No. | VF-1D |

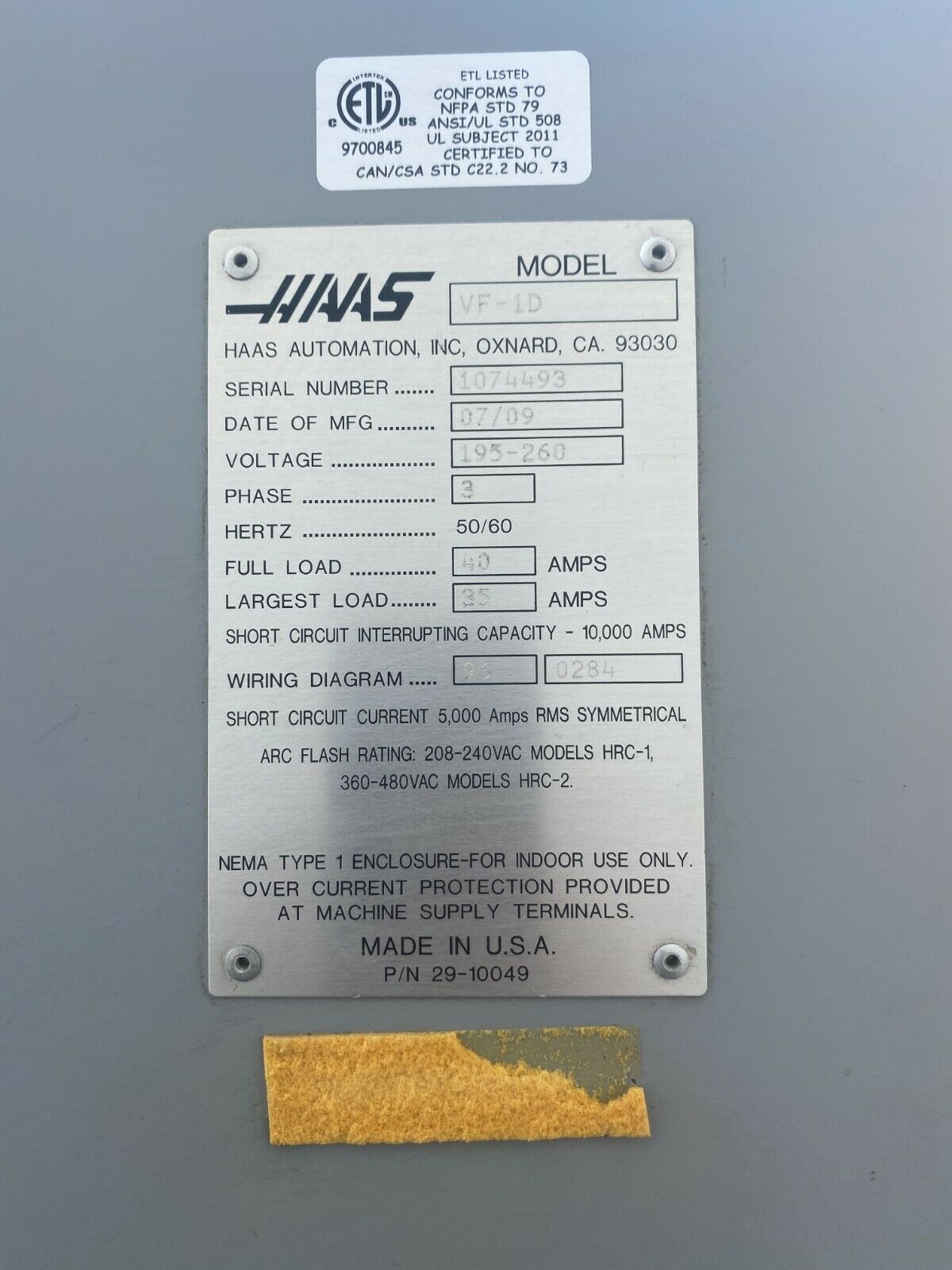

| Serial # | 1074493 |
| Year | 2009 |
| Condition | Very Good |

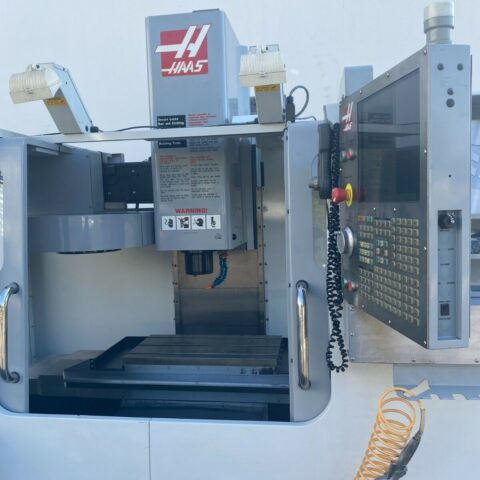

| HAAS VF- 1D Features: |
|---|
| Haas CNC Control |
| 20 HP High Torque Spindle Motor |
| 7500 RPM Spindle |
| 20 Automatic tool changer |
| 1000 inch per minute rapids |
| USB Drive |

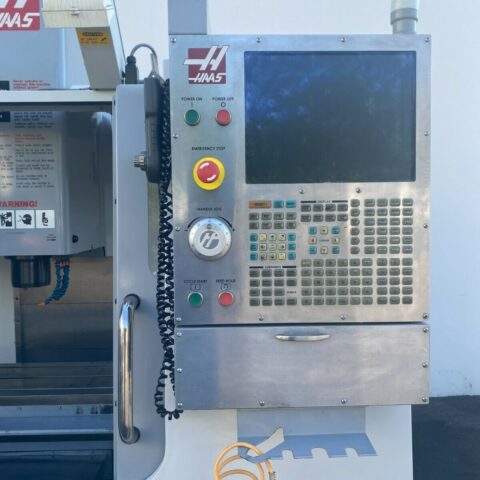

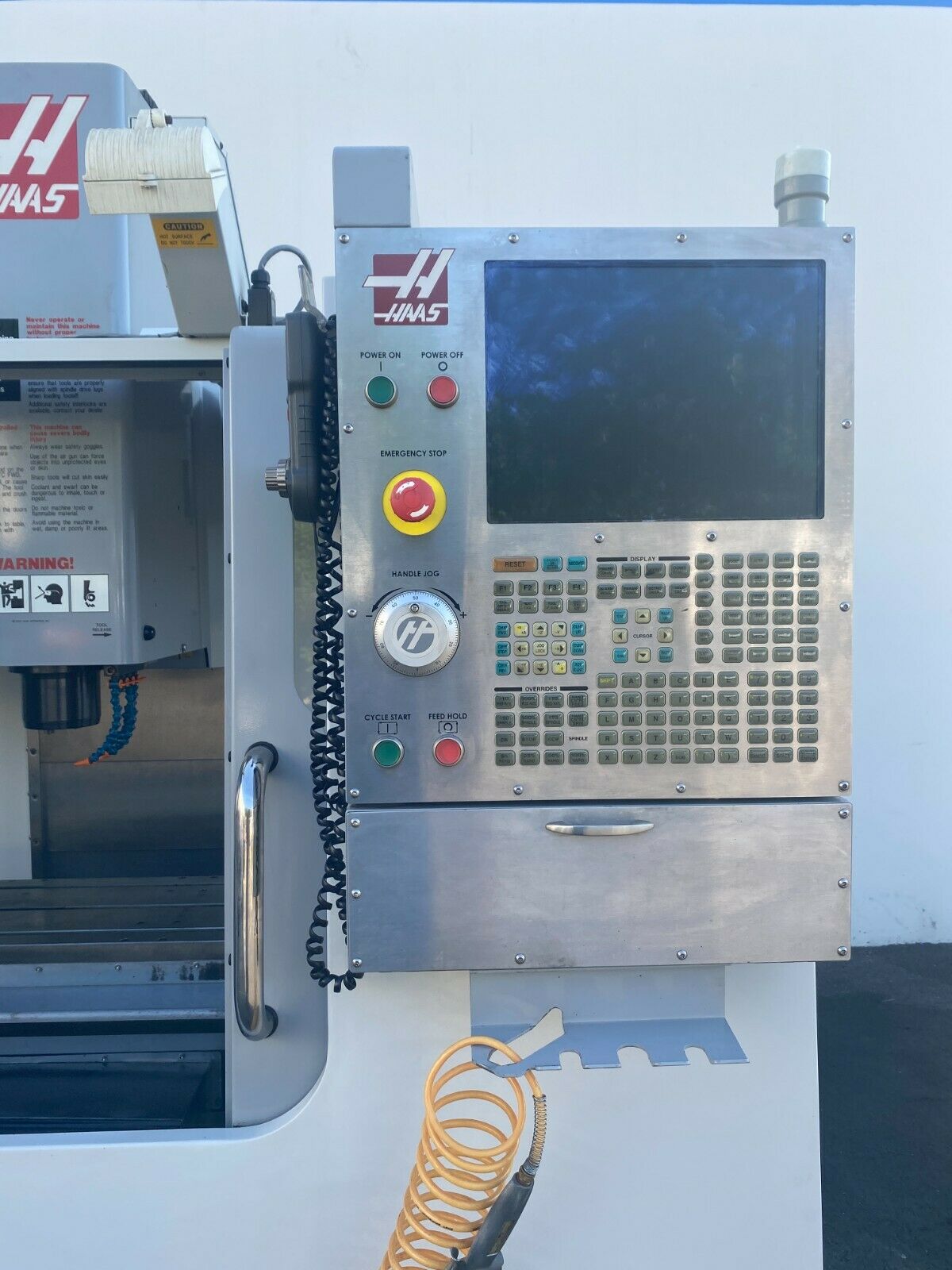

| MPG Control |
| Rigid Tapping |
| Spindle Orientation |
| Brushless-type servo drive motors on all axis |

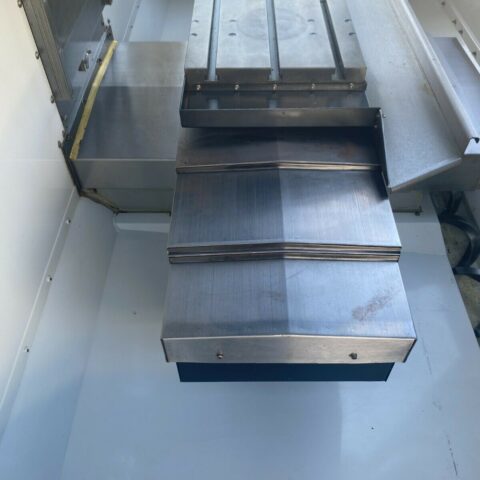

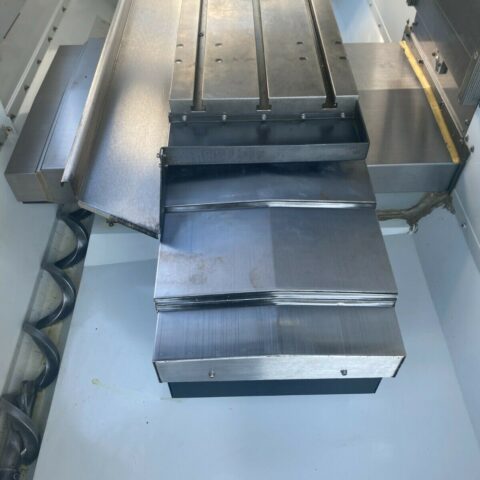

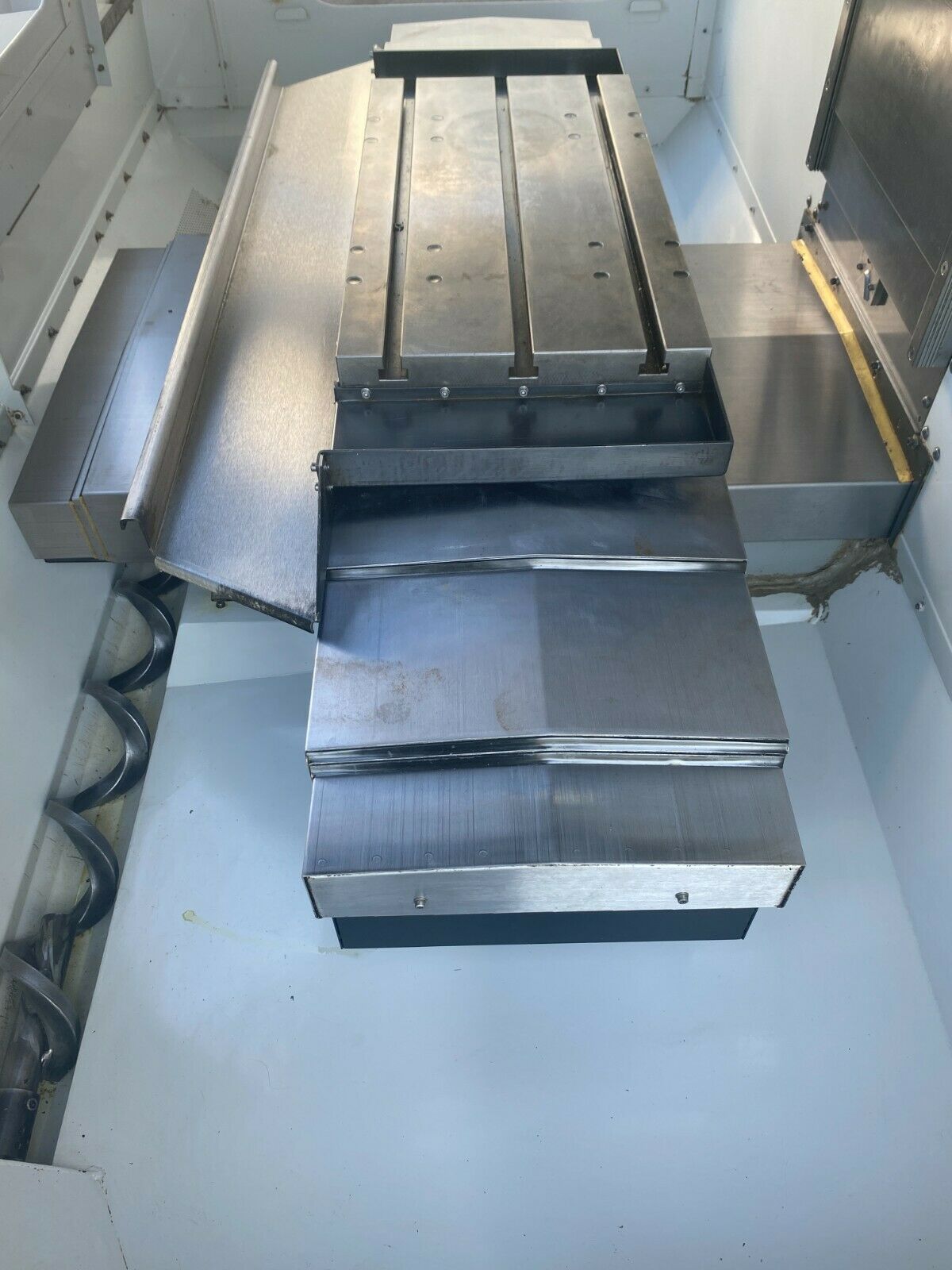

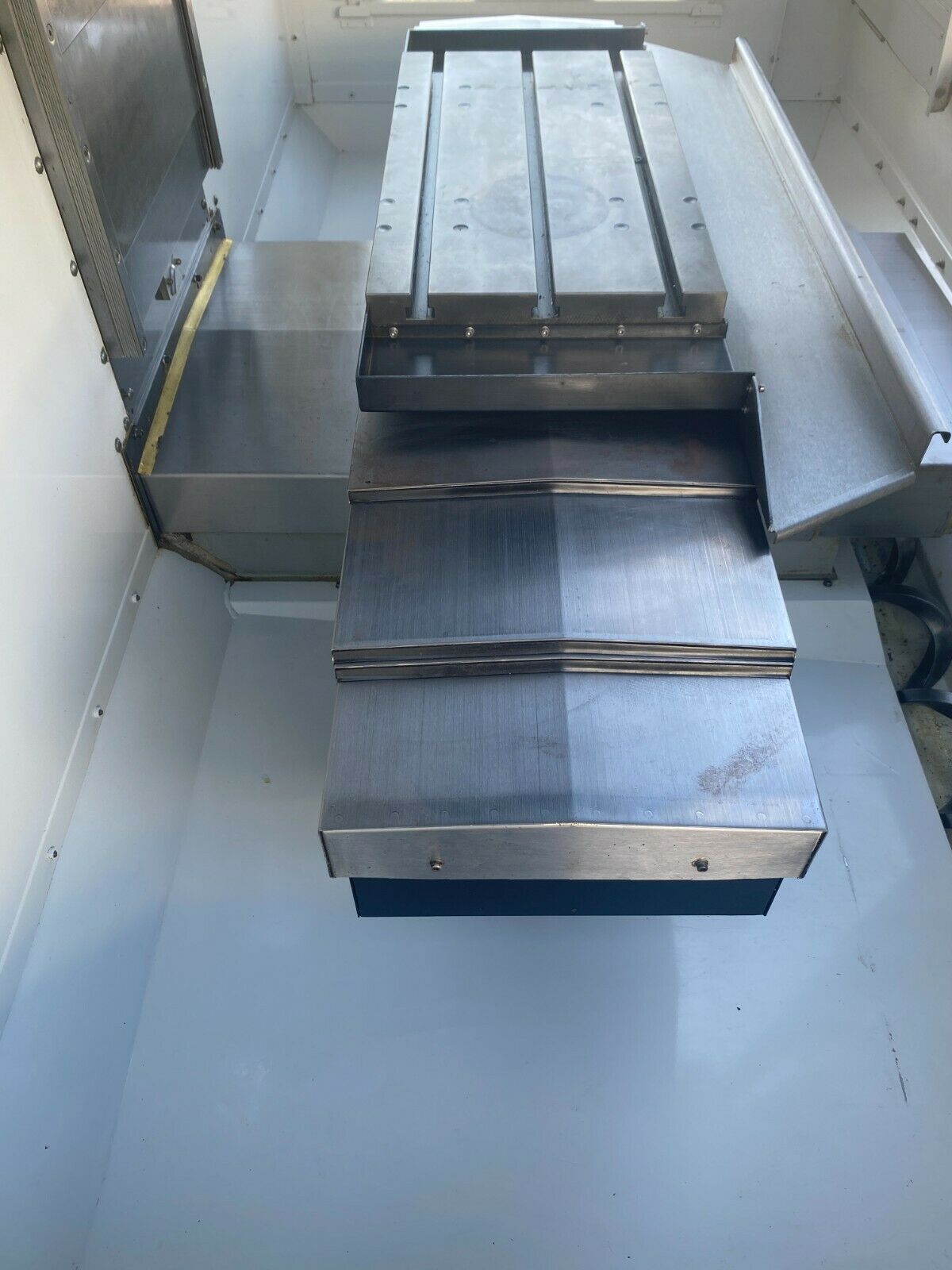

| Telescopic way covers |

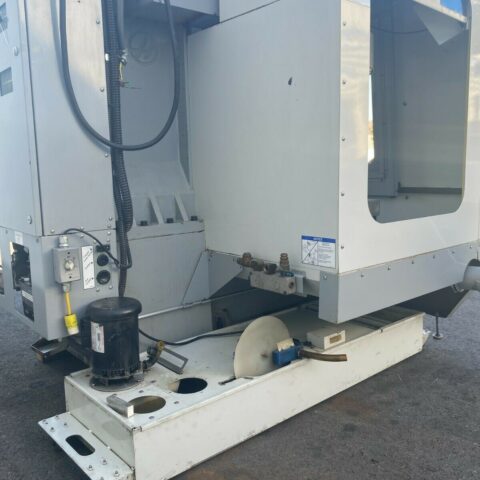

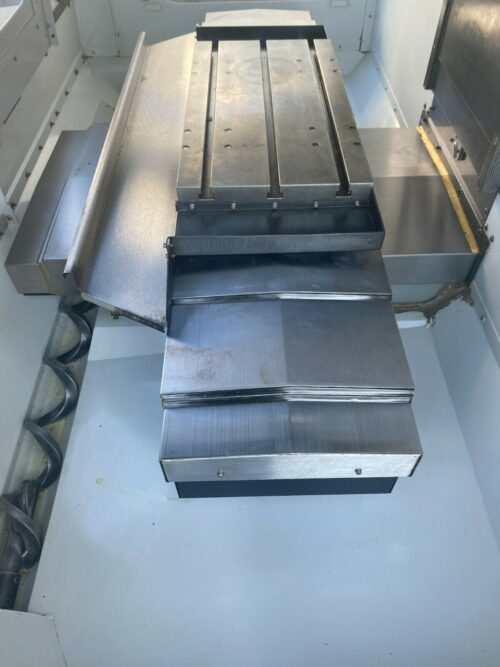

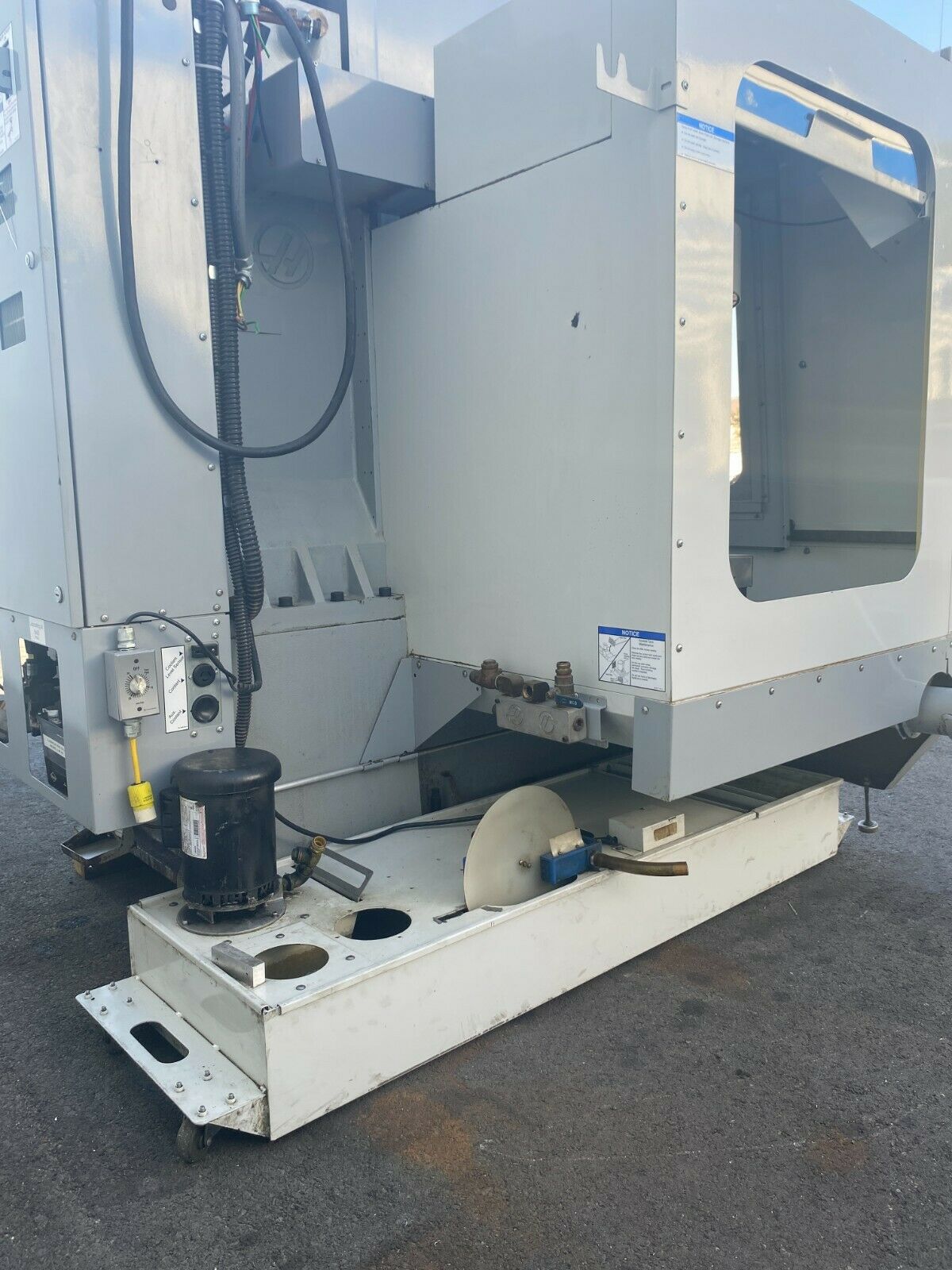

| Chip auger |
| Work Lights |
| Travels: |
|---|
| X-Axis: 20″ |
| Y-Axis: 16″ |
| Z-Axis: 20″ |
| Rapid Traverse Rates: 1000 Inch Per Minute |
| Cutting Feed Rates: 630 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 24″ |

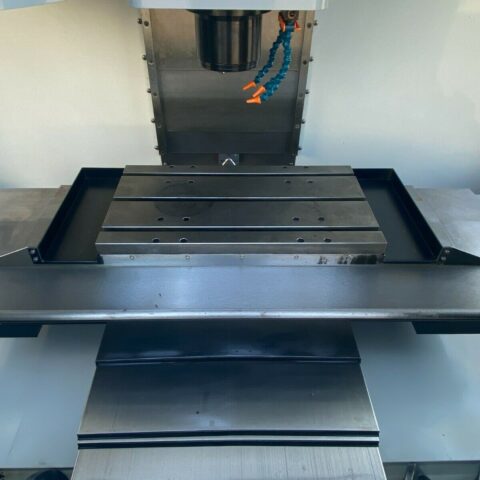

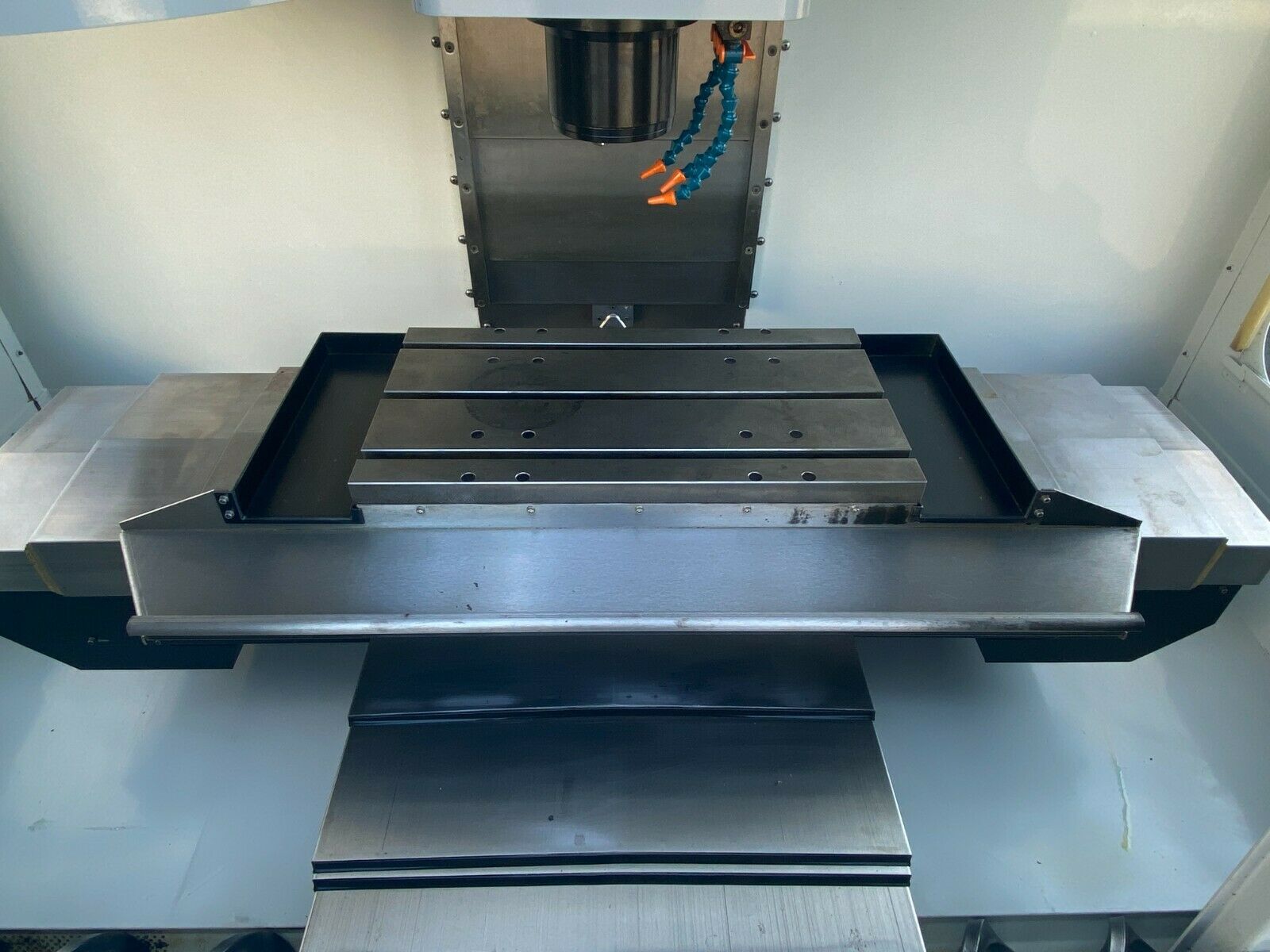

| Table: |
|---|
| Length: 26″ |
| Width: 14″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1800 lbs |

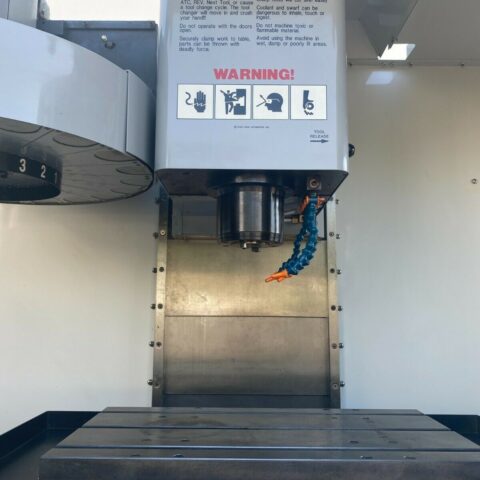

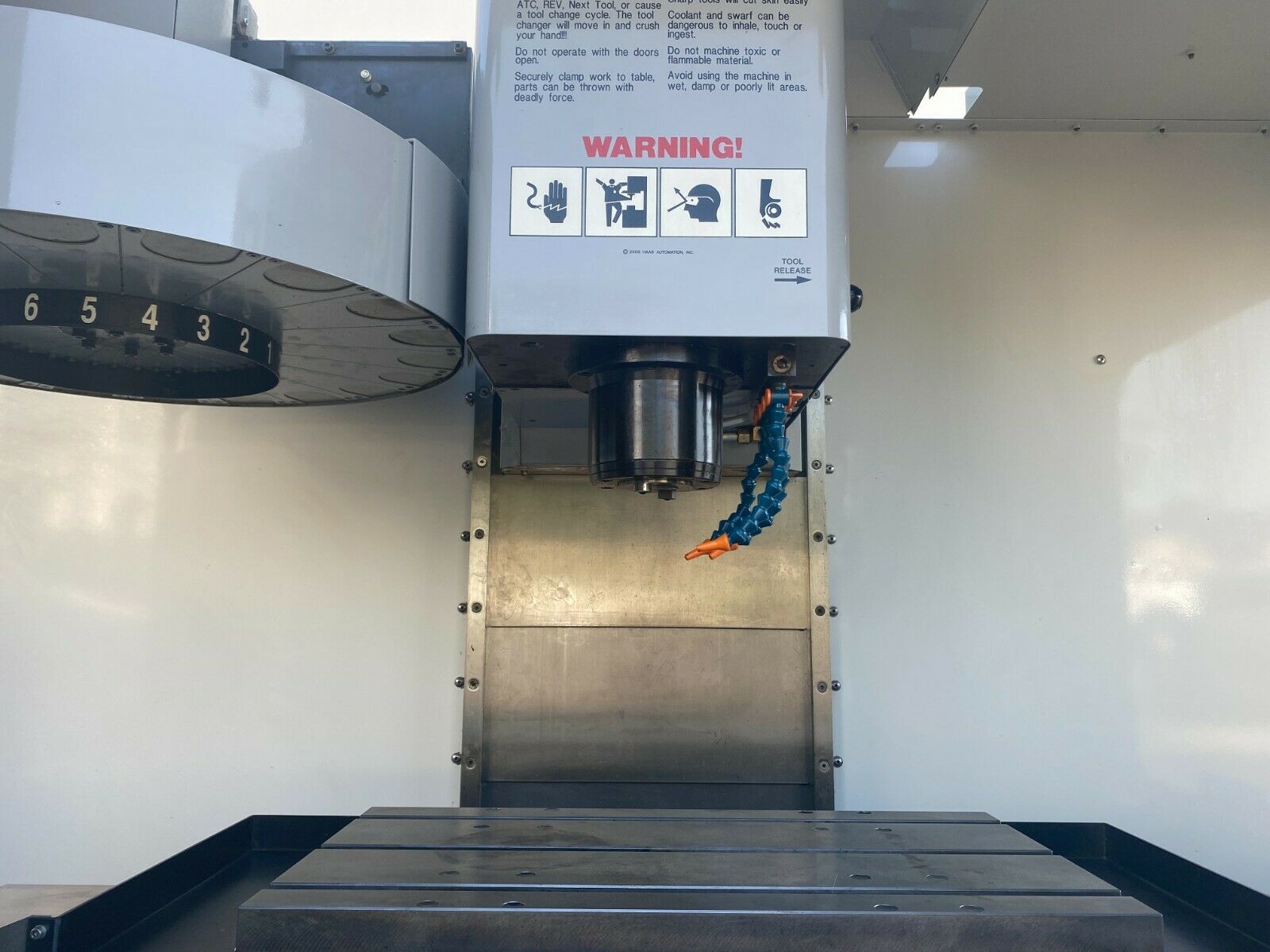

| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 7500 RPM |
| Spindle Power: 20 HP |
| Vector Dual Drive Max Torque: 90ft-lb @ 2000RPM |
| Automatic Tool Changer: |
|---|
| Capacity: 20 |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 3.6″ |
| Max Tool Length: 11″ |
| Tool Changing Time: 2.2 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

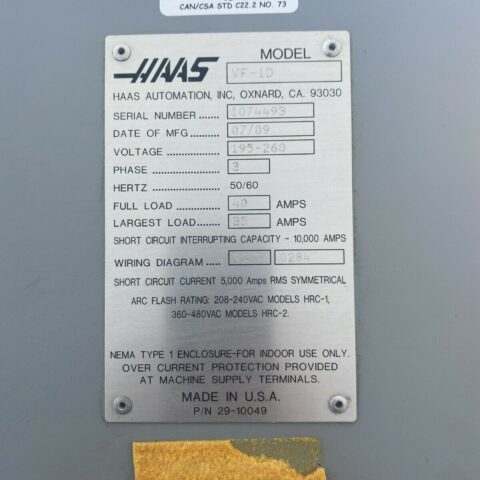

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 90″ x 80″ x 100″ High |
| Weight: 8000 lbs |
“No Charges for loading at list Price”

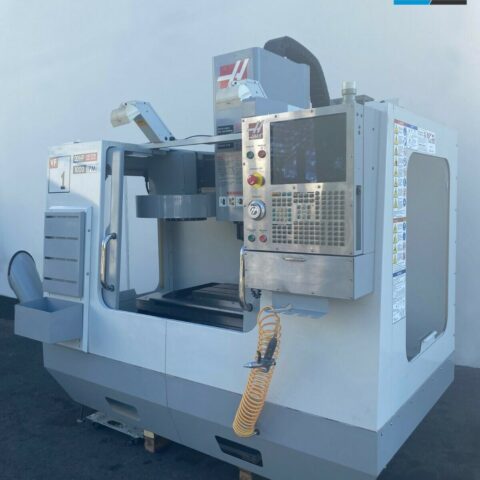

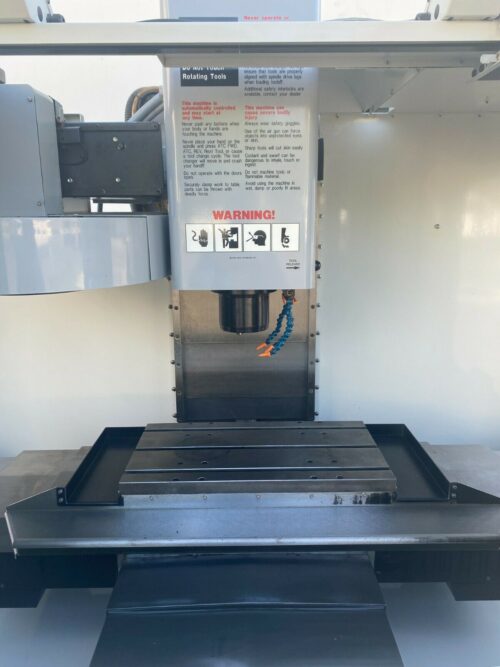

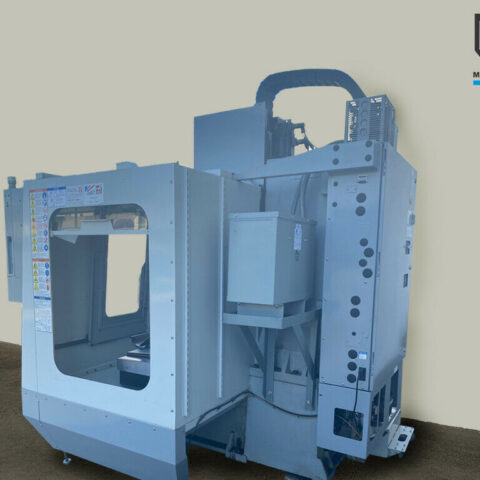

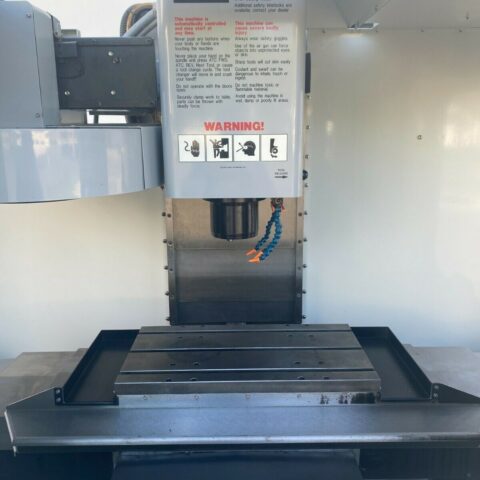

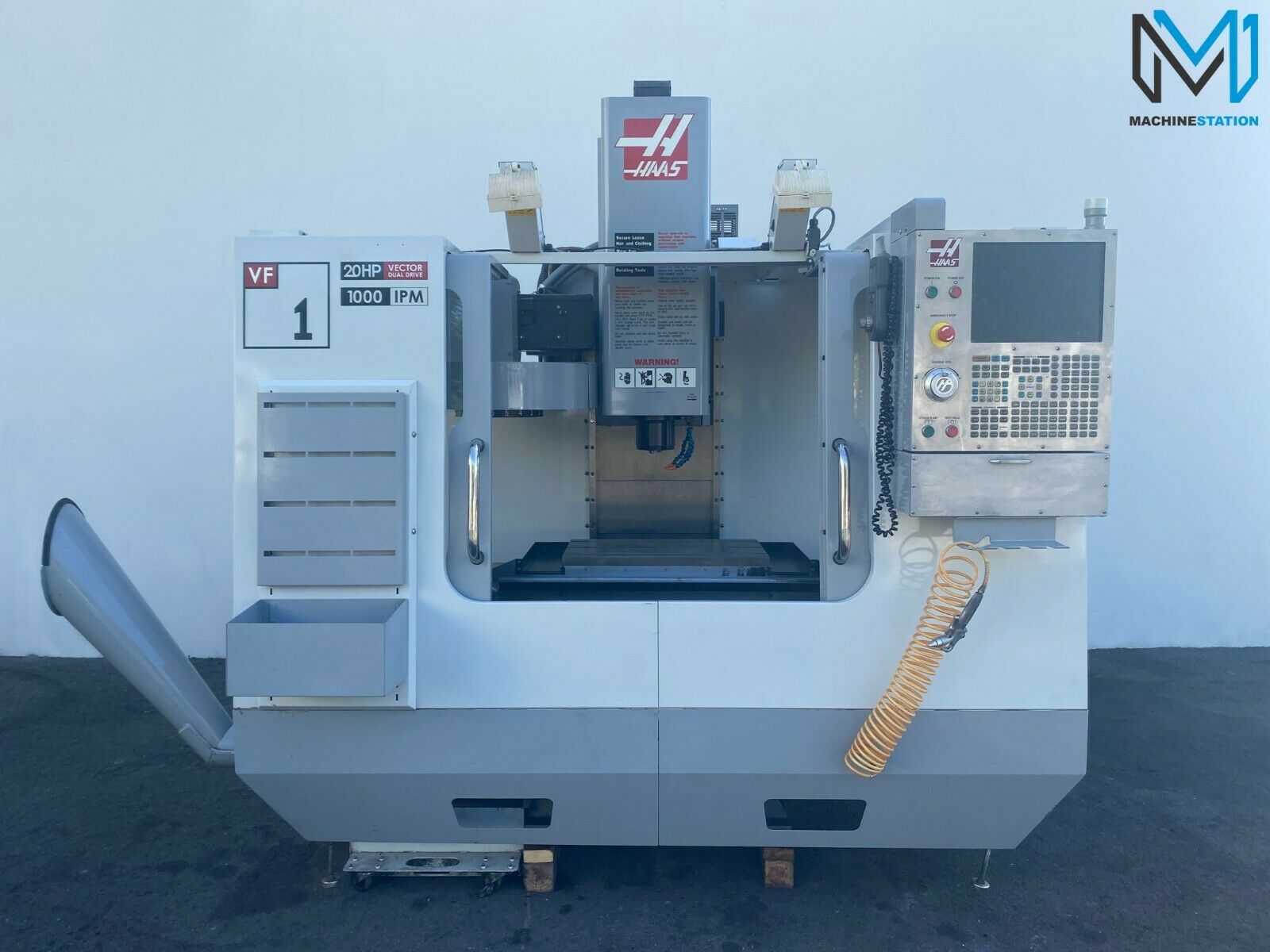

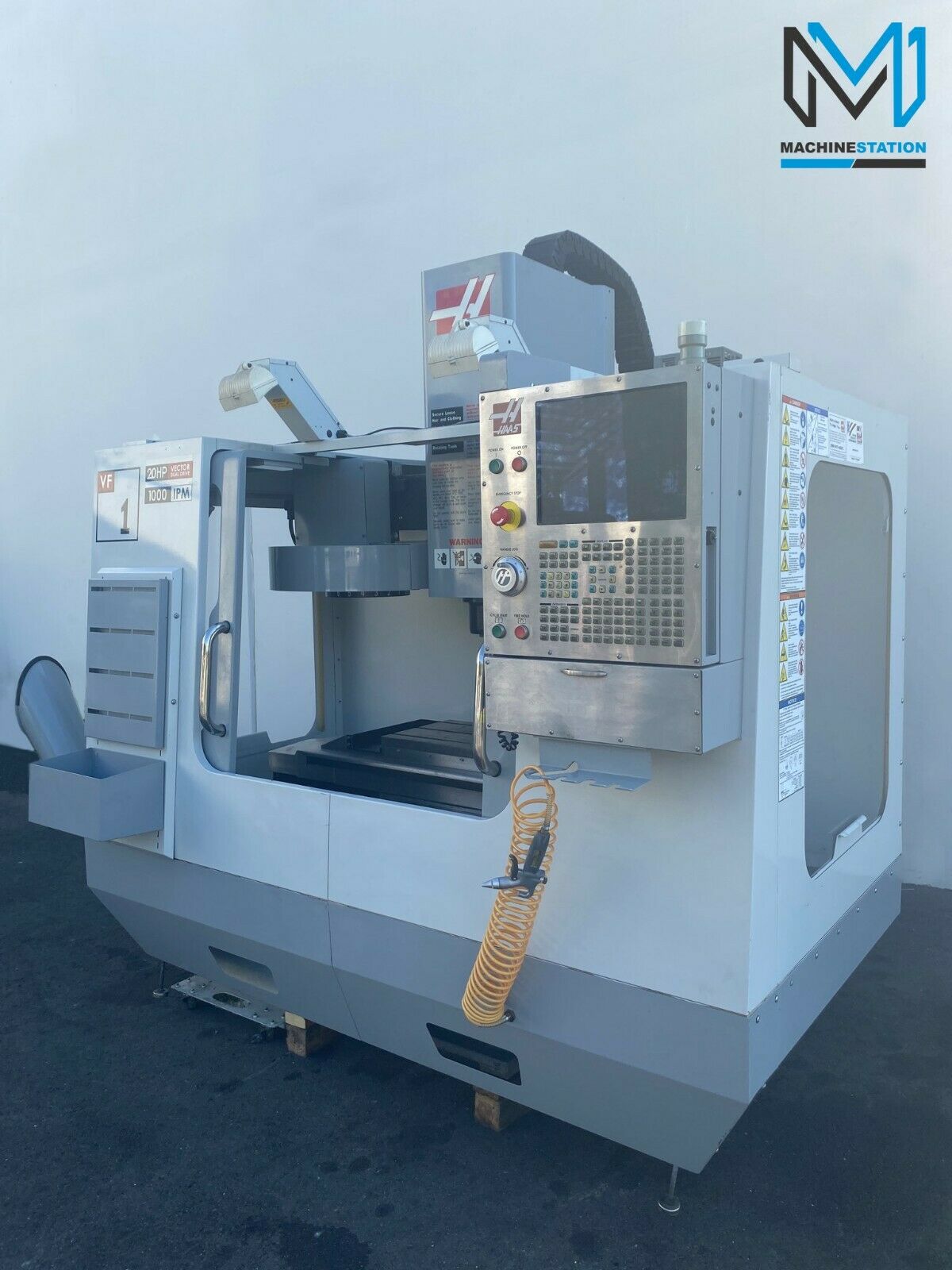

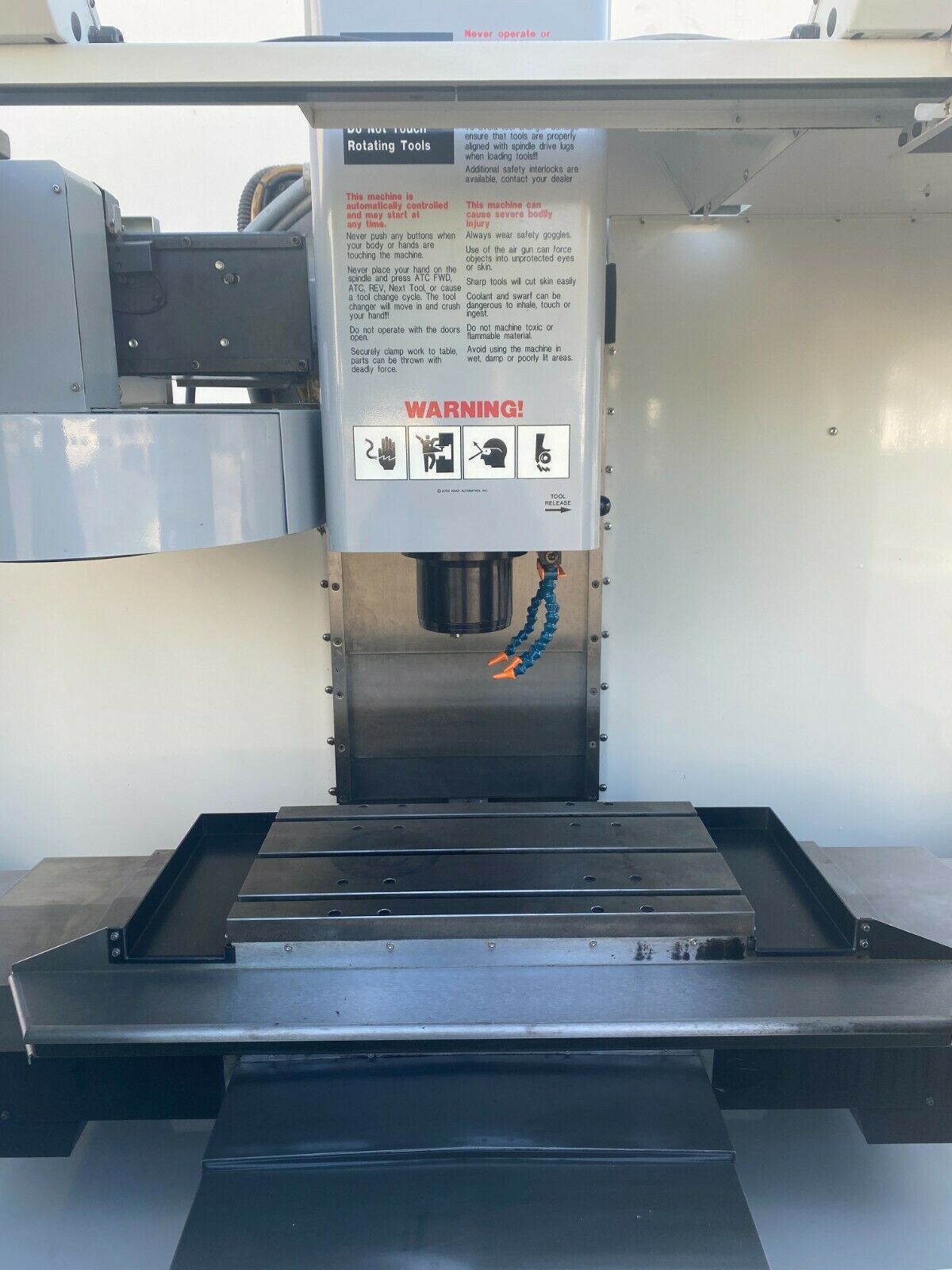

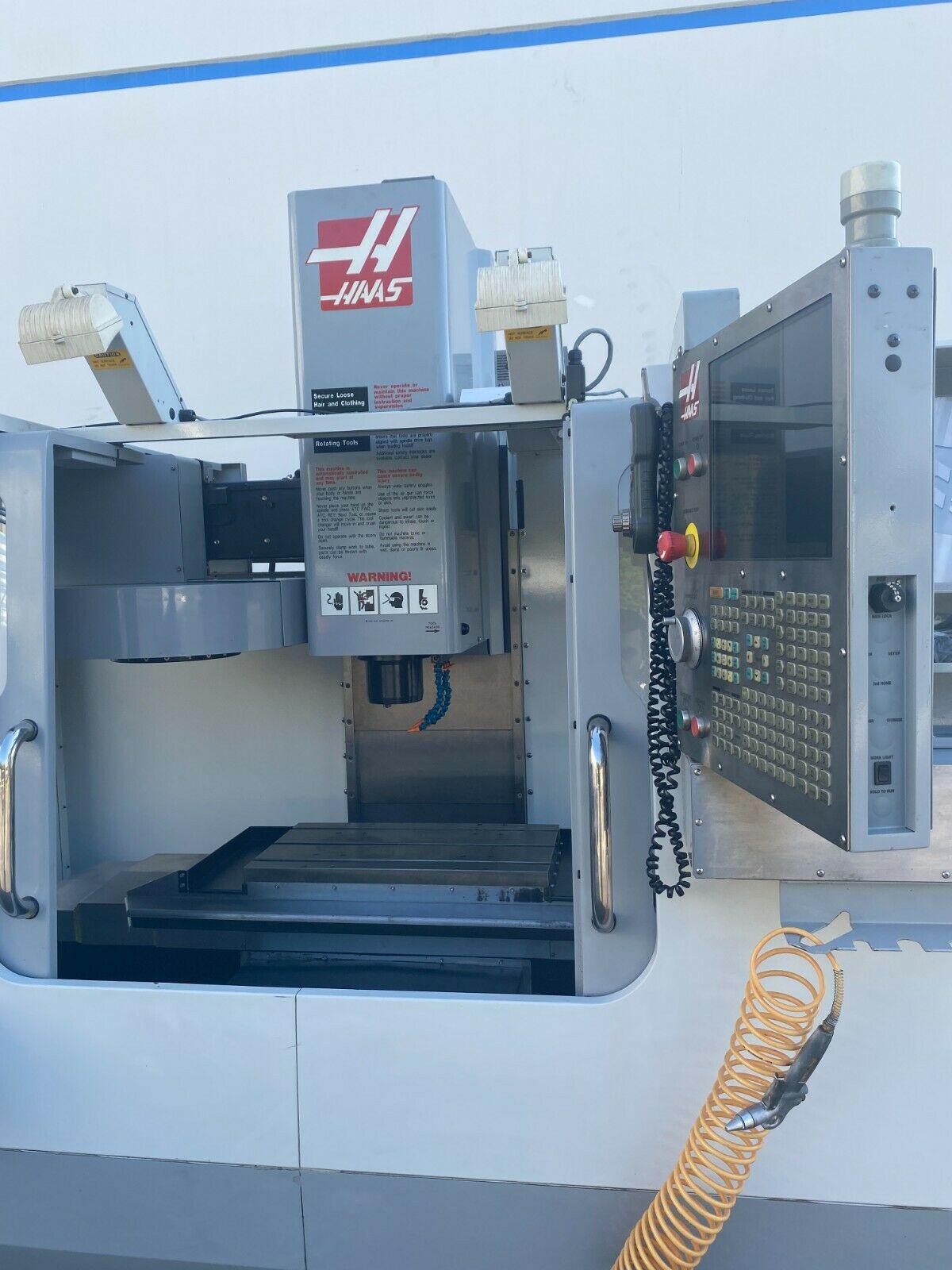

Comes as shown in pictures..
