| SKU: | 2229 |

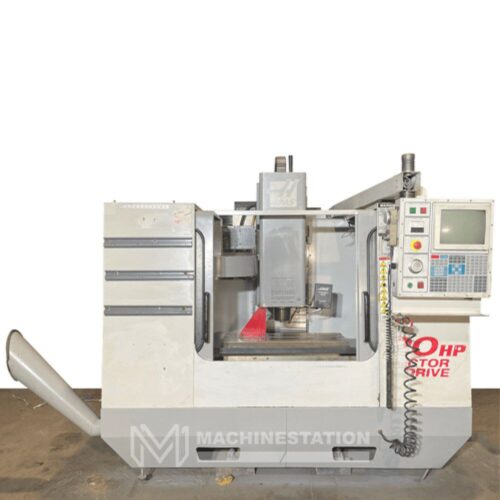

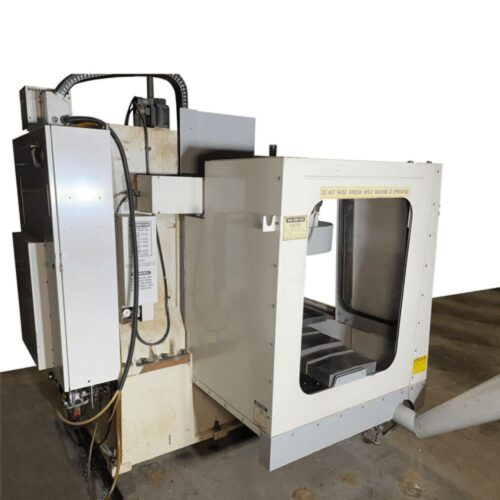

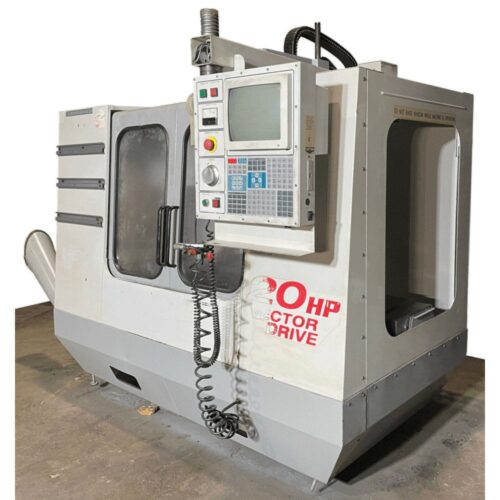

| Make: | Haas |
| Model: | VF-2 |

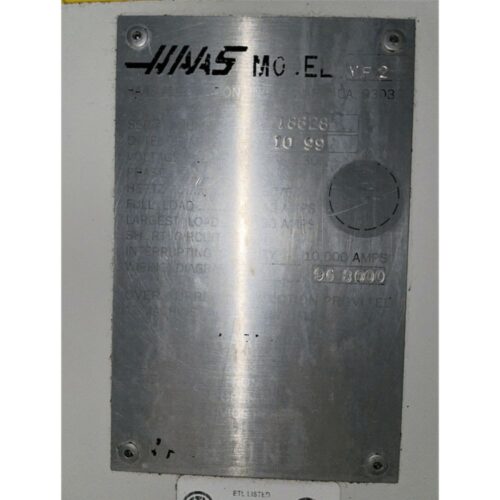

| Serial: | 18828 |
| Condition: | Very Good |
| Equipped With: |
|---|

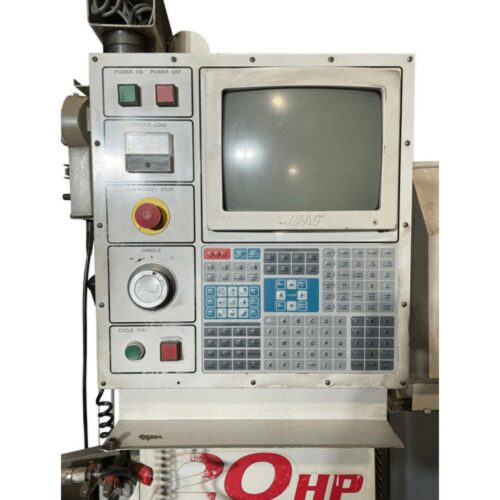

| Haas CNC Control |
| 7500 RPM Spindle |
| MPG Control |
| 4th Axis Ready |
| 20 Position ATC |
| Rigid Tapping |
| Spindle Orientation |
| Programmable Coolant |
| Automatic Chip Auger |
| Coolant Tank and Pump |
| Spindle Drive Upgraded* |

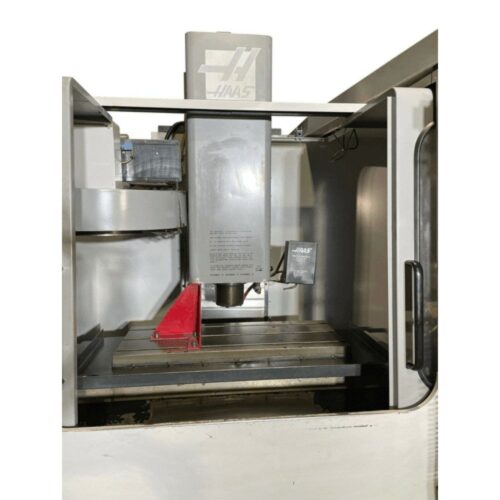

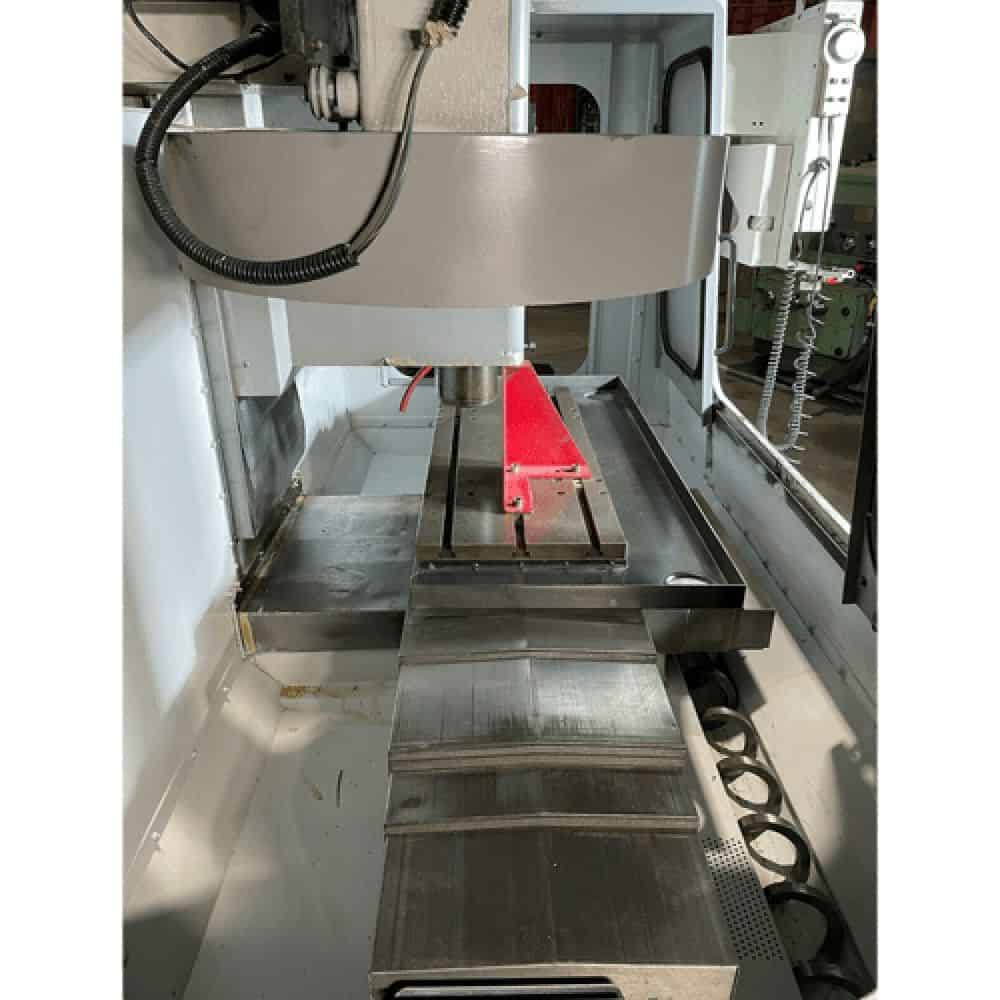

| Table: |
|---|
| Length: 36.0″ |
| Width: 14.0″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: “ |
| Max Weight on Table: 1500 lbs |
| Travels: |
|---|
| X-Axis: 30″ |
| Y-Axis: 16″ |
| Z-Axis: 20″ |
| Rapid Traverse Rates: 833 Inch Per Minute |
| Cutting Feed Rates: 720 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 24″ |

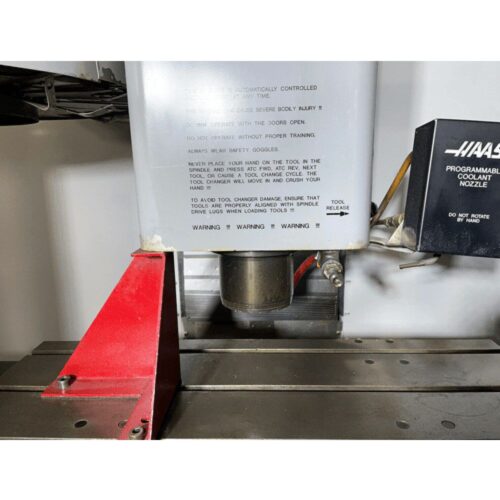

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 7500 RPM |
| Spindle Power: 20 HP |
| Vector Dual Drive Max Torque: ft-lb @ RPM |
| Automatic Tool Changer: |
|---|
| Capacity: 20 |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 5″ |
| Max Tool Length: 11″ |
| Tool Changing Time: 2.6 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: ” x ” x ” High |
| Weight: 9200 lbs |
