*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

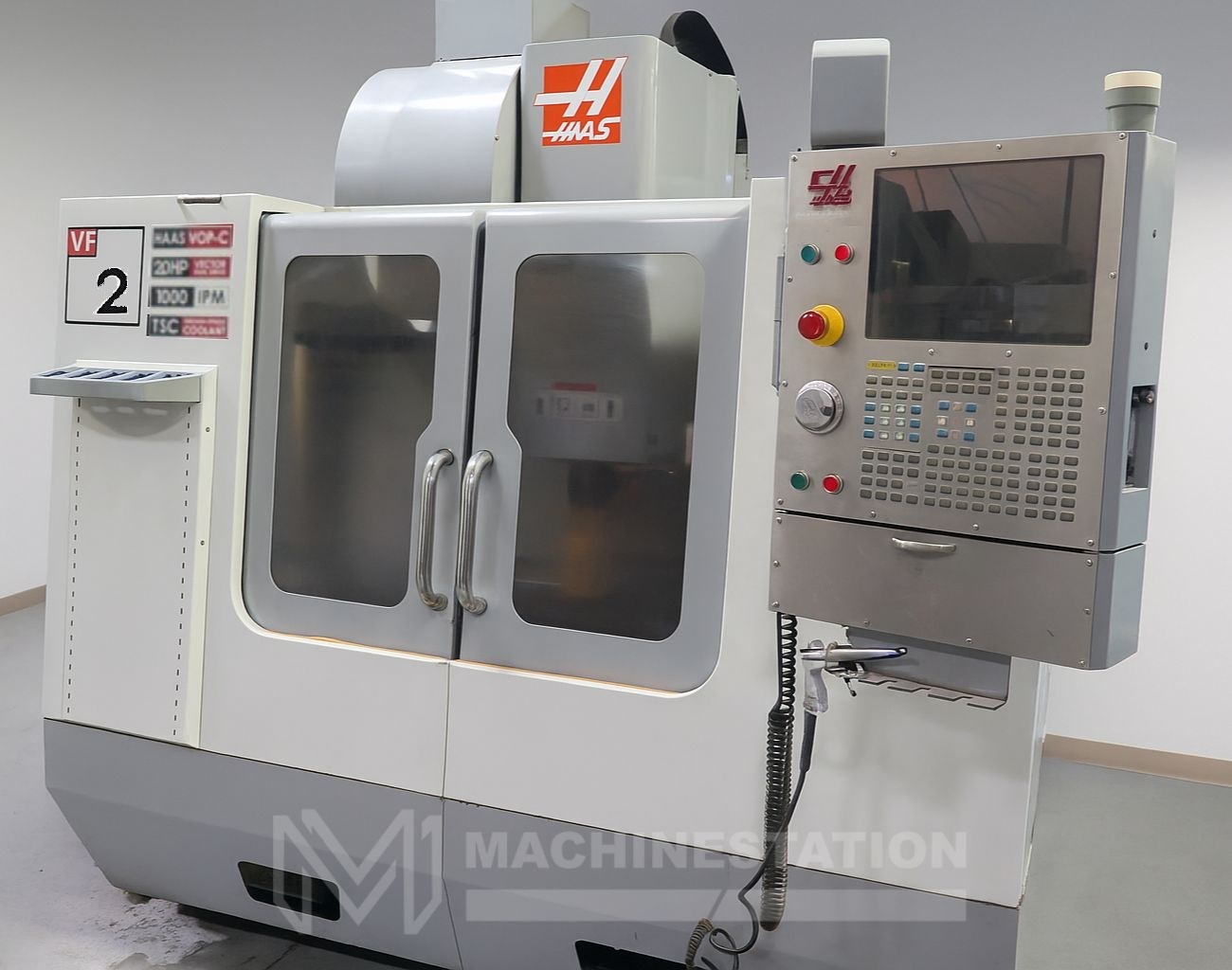

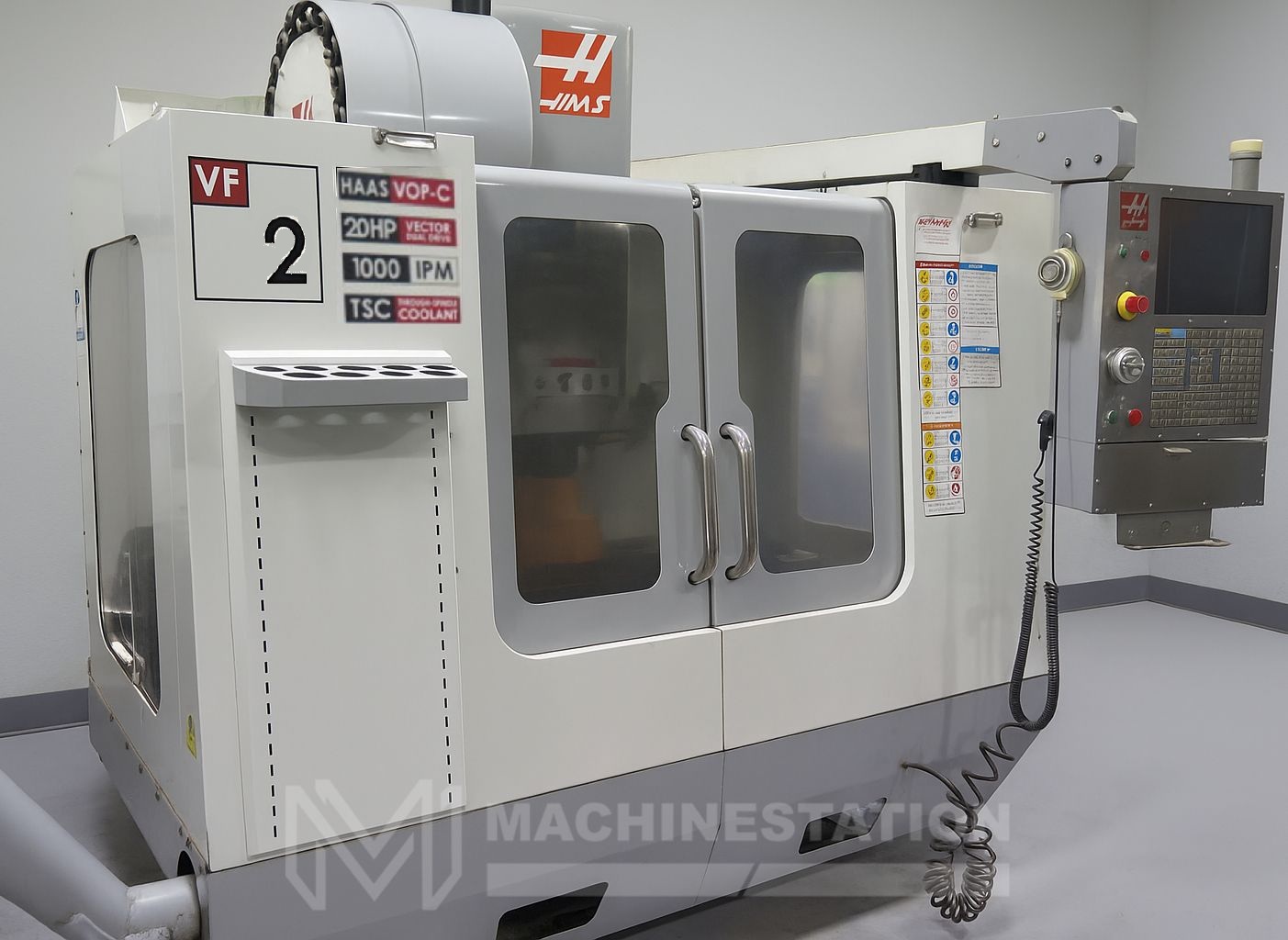

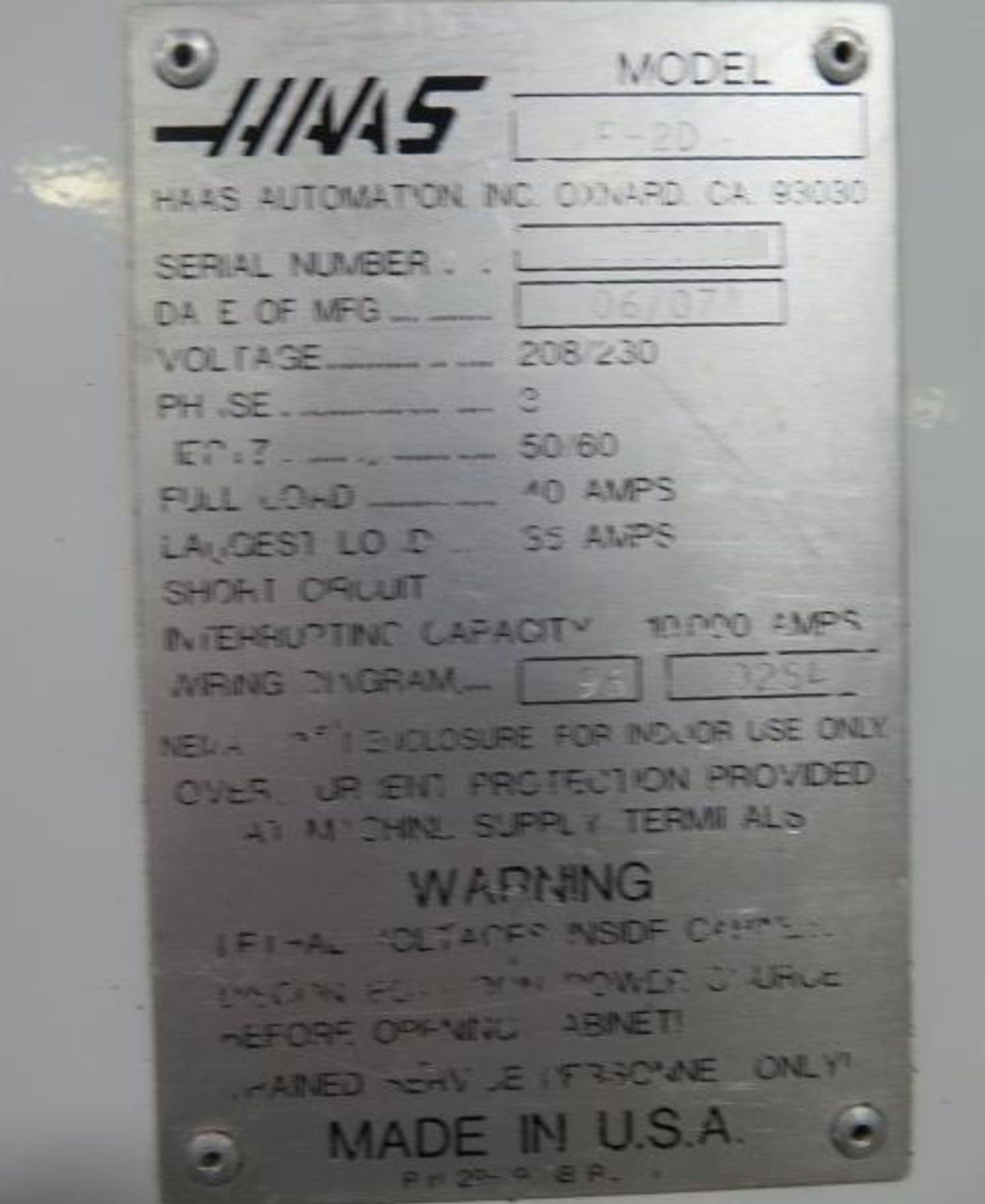

| Make | Haas |
| Model: | VF2D |
| Year: | 2007 |
| Features: |
|---|

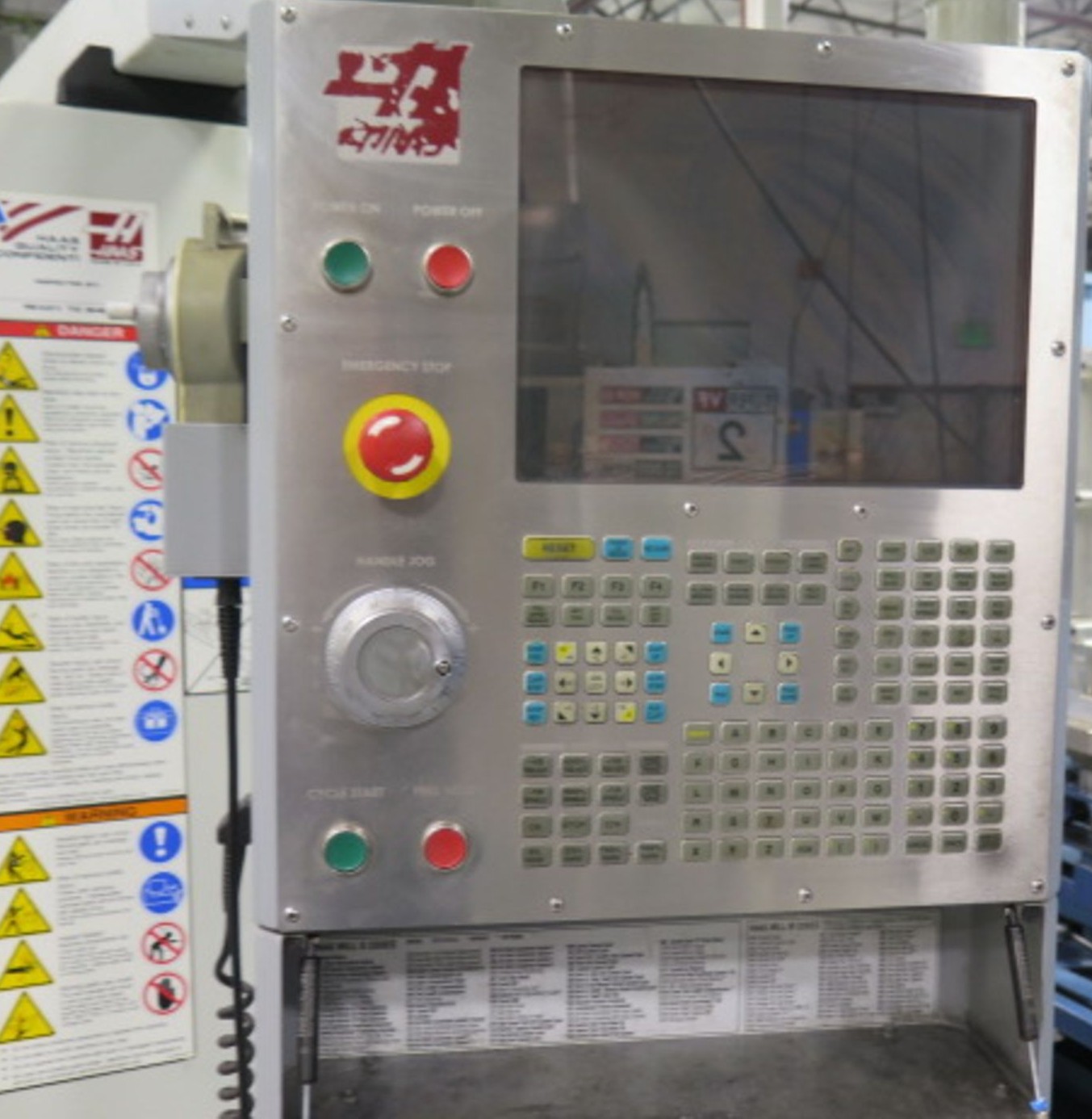

| Haas CNC Control |
| 4th & 5th Axis Activated |
| Haas VOP-C Package |
| Through Spindle Coolant |
| 20 HP Vector Dual Drive |
| 1000 IPM Rapids |
| 24 Station Side Mount Automatic tool changer |
| Programmable Coolant Nozzle |
| MPG Handwheel Control |
| Coolant System |
| Chip Auger |
| Travels: |
|---|
| X-Axis: 30″ |
| Y-Axis: 16″ |
| Z-Axis: 20″ |
| Spindle Nose to Table (Min.- Max.): 4″ – 24″ |
| Rapid Traverse Rates: 1000 Inch Per Minute |
| Cutting Feed Rates: 650 Inch Per Minute |

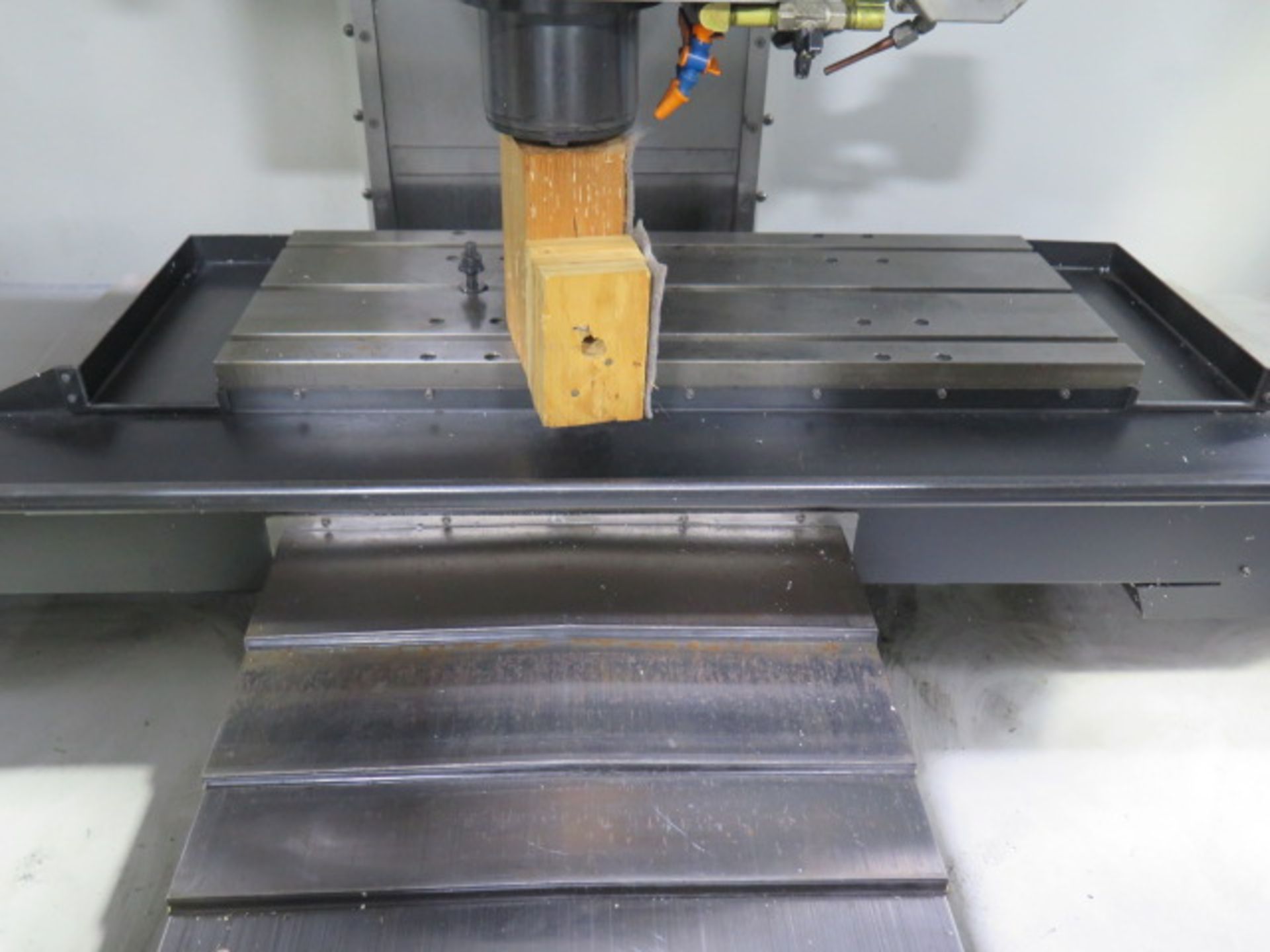

| Table: |
|---|
| Length: 36.0″ |
| Width: 14.0″ |
| Max Weight on Table: 3000 lbs |

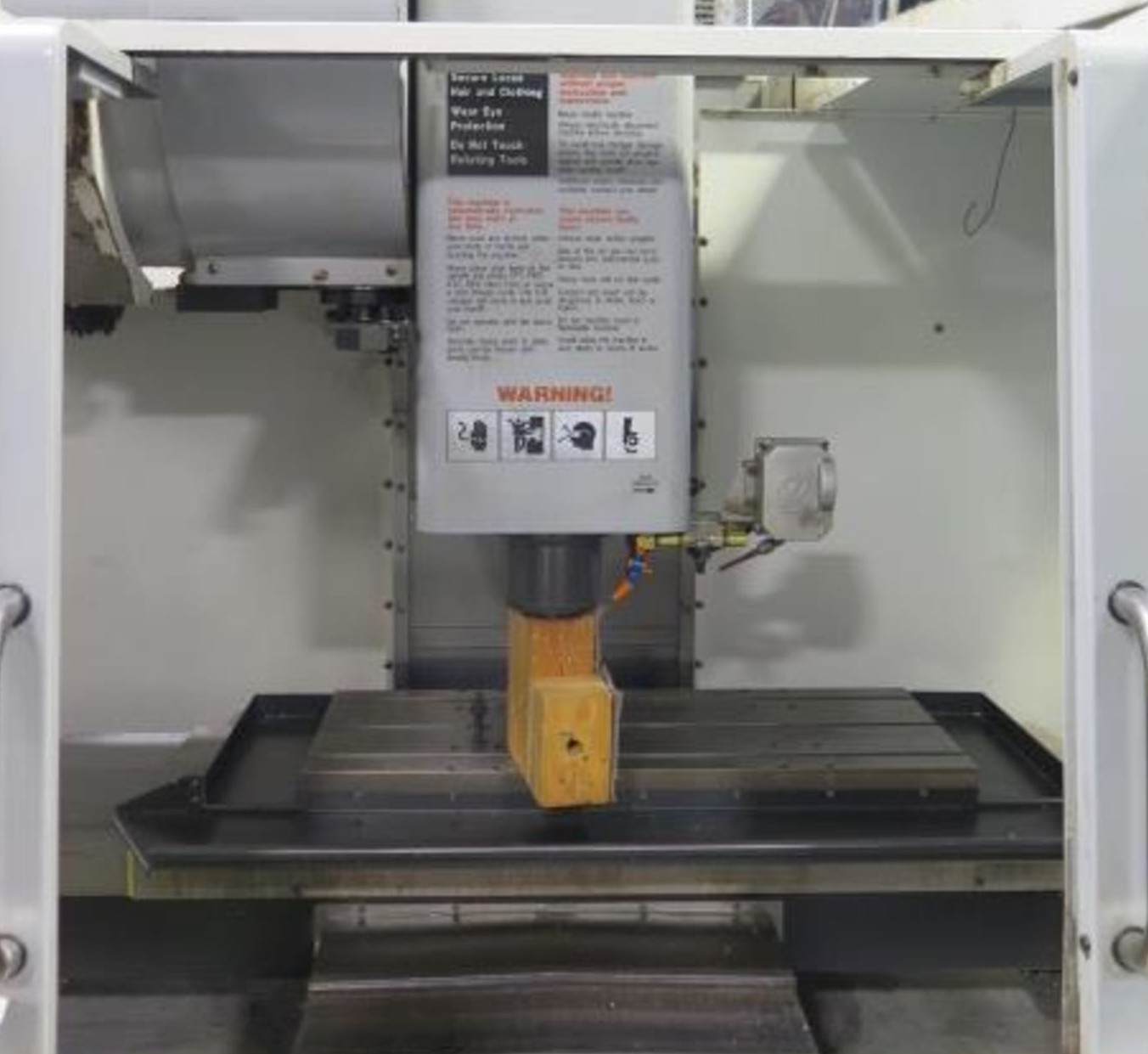

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 7,500 RPM |
| Spindle Power: 20 HP |
| Vector Drive Max Torque: 90 ft-lb @ 2000 RPM |

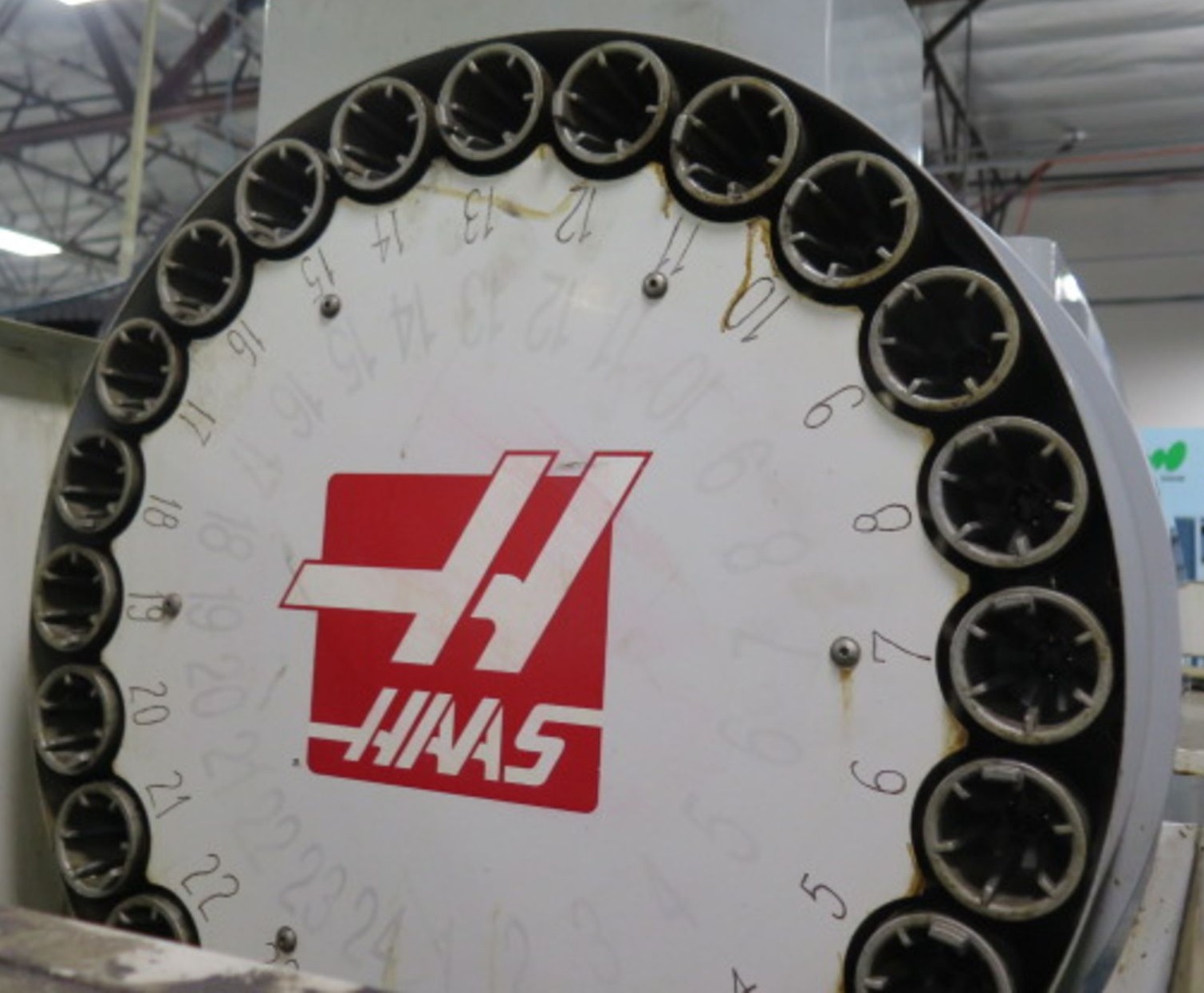

| Automatic Tool Changer: |
|---|
| Capacity: 24 |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 3.5″ |
| Max Tool Length: 11″ |
| Tool Changing Time: 2.8 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

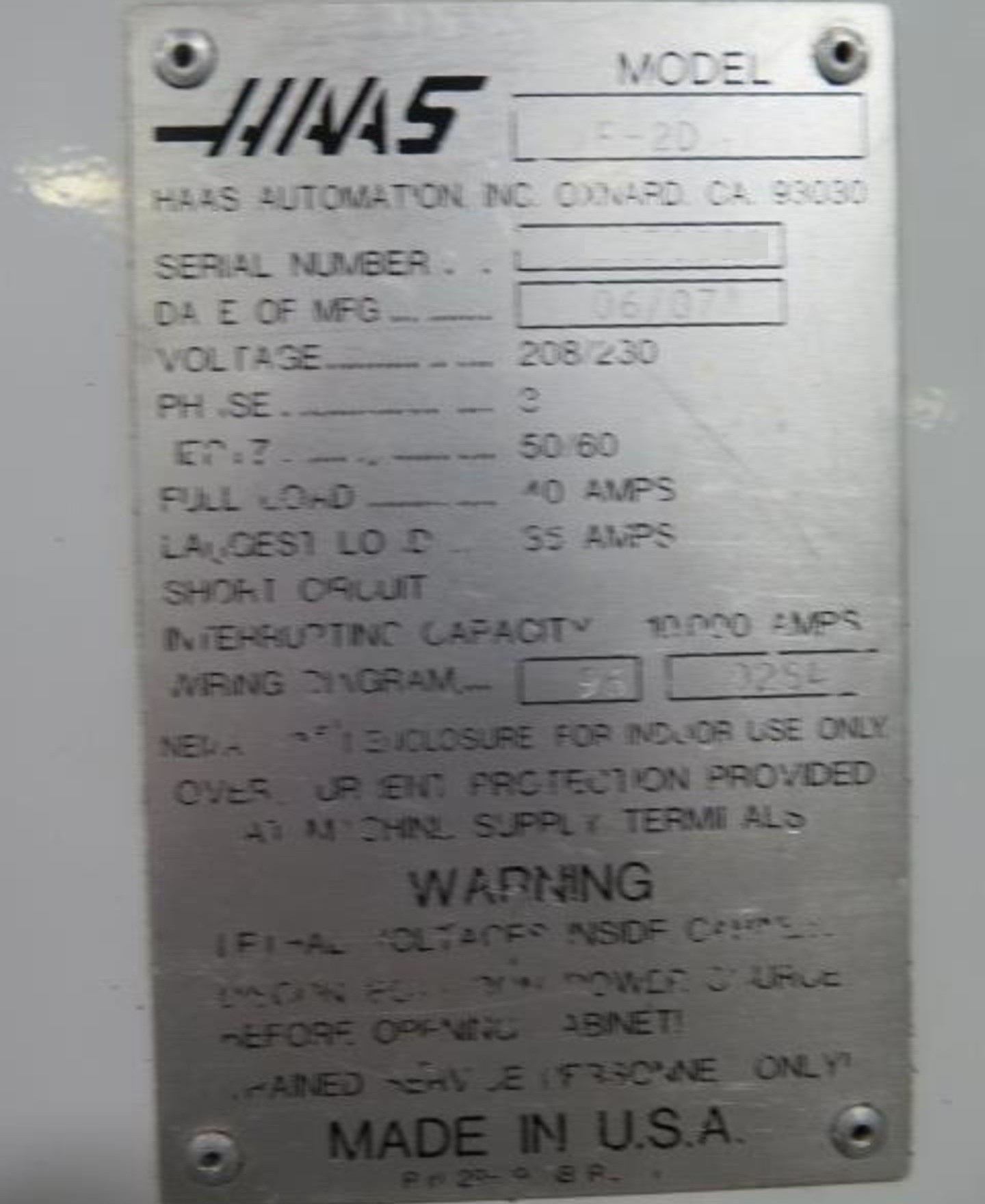

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 101″ x 99″ x 101″ High |
| Machine Weight: 8000 lbs |
