Sold

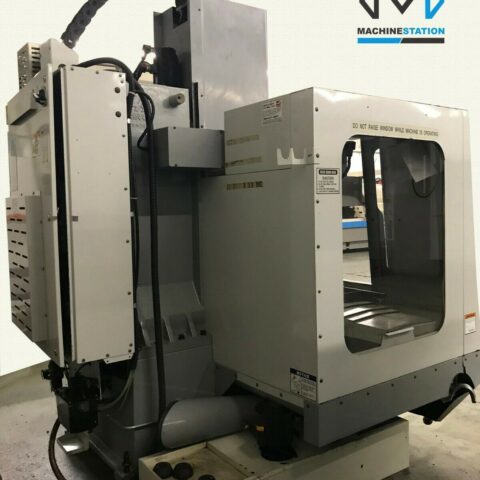

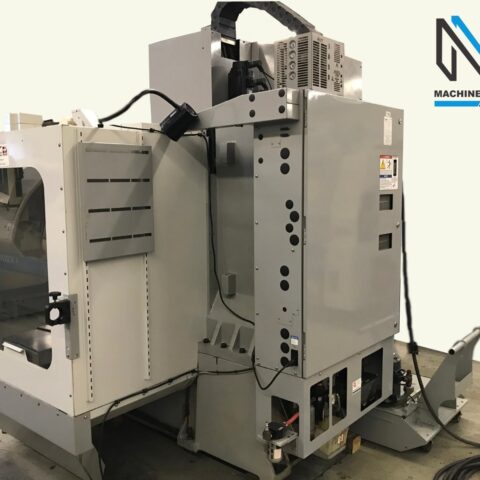

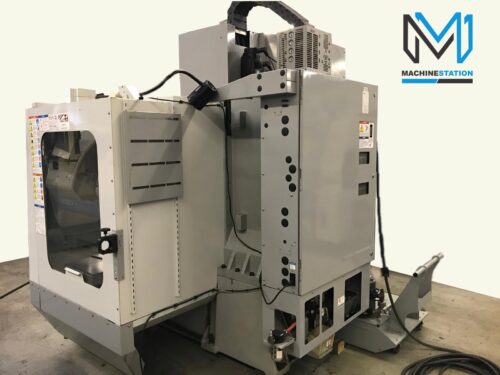

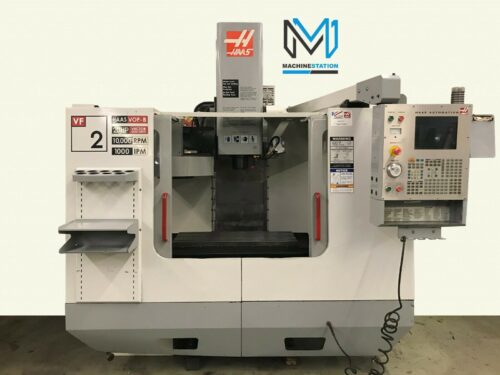

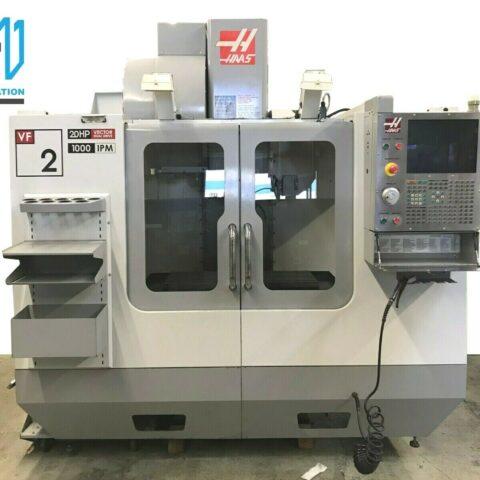

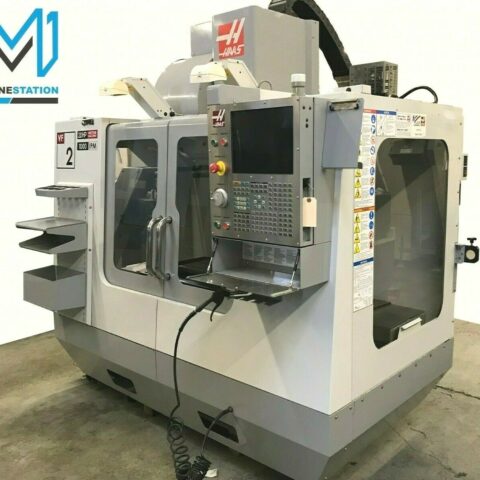

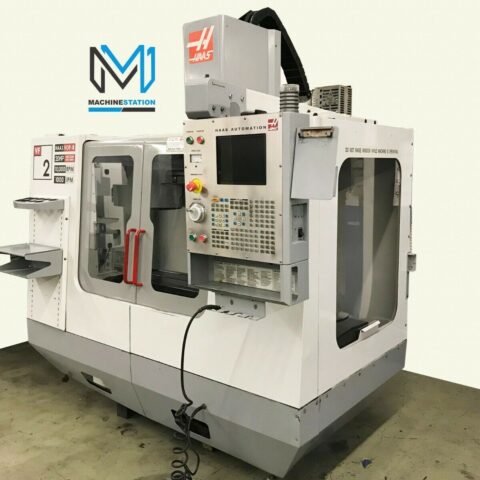

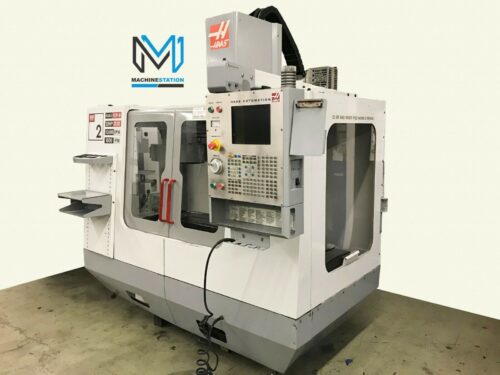

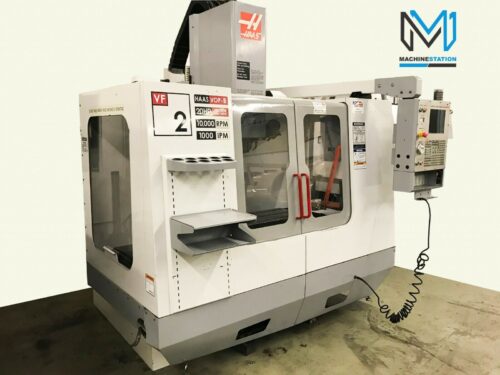

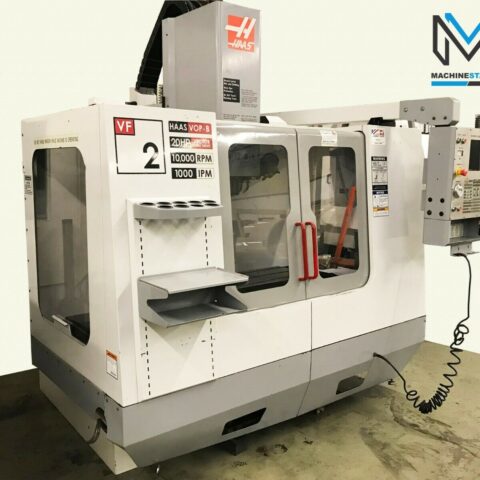

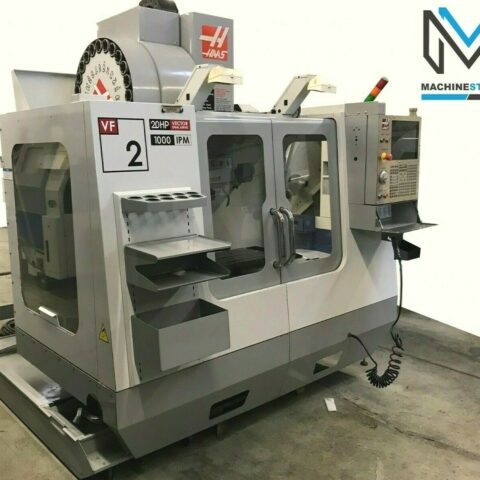

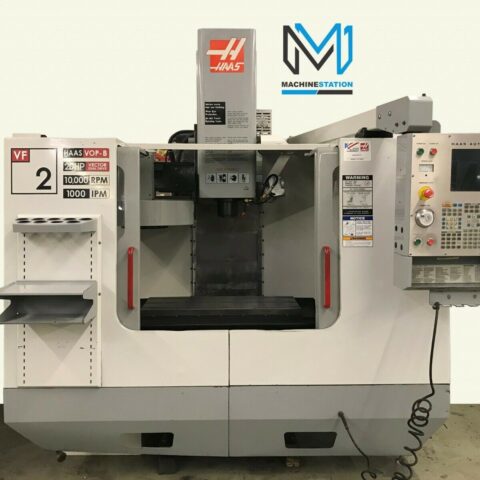

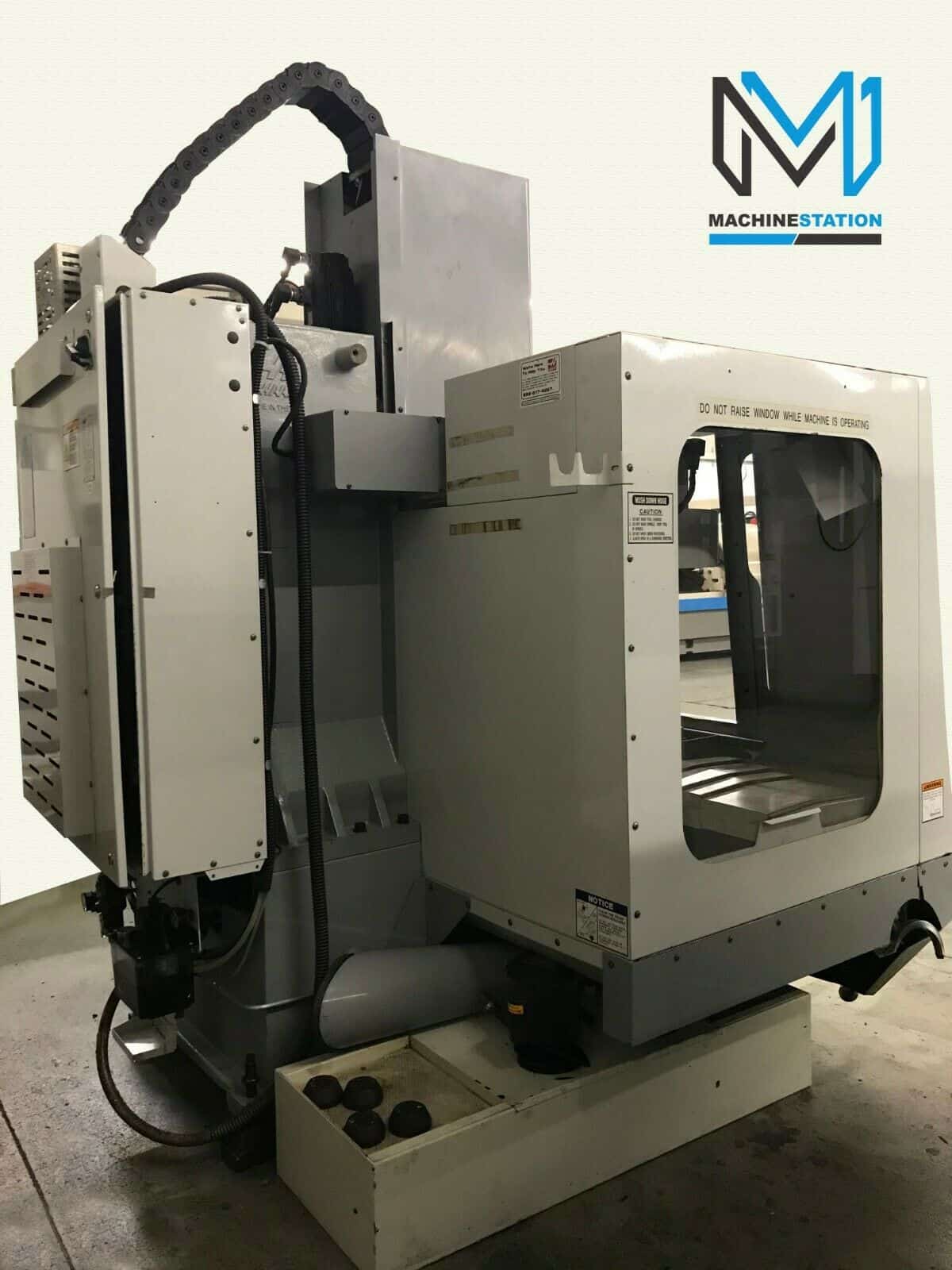

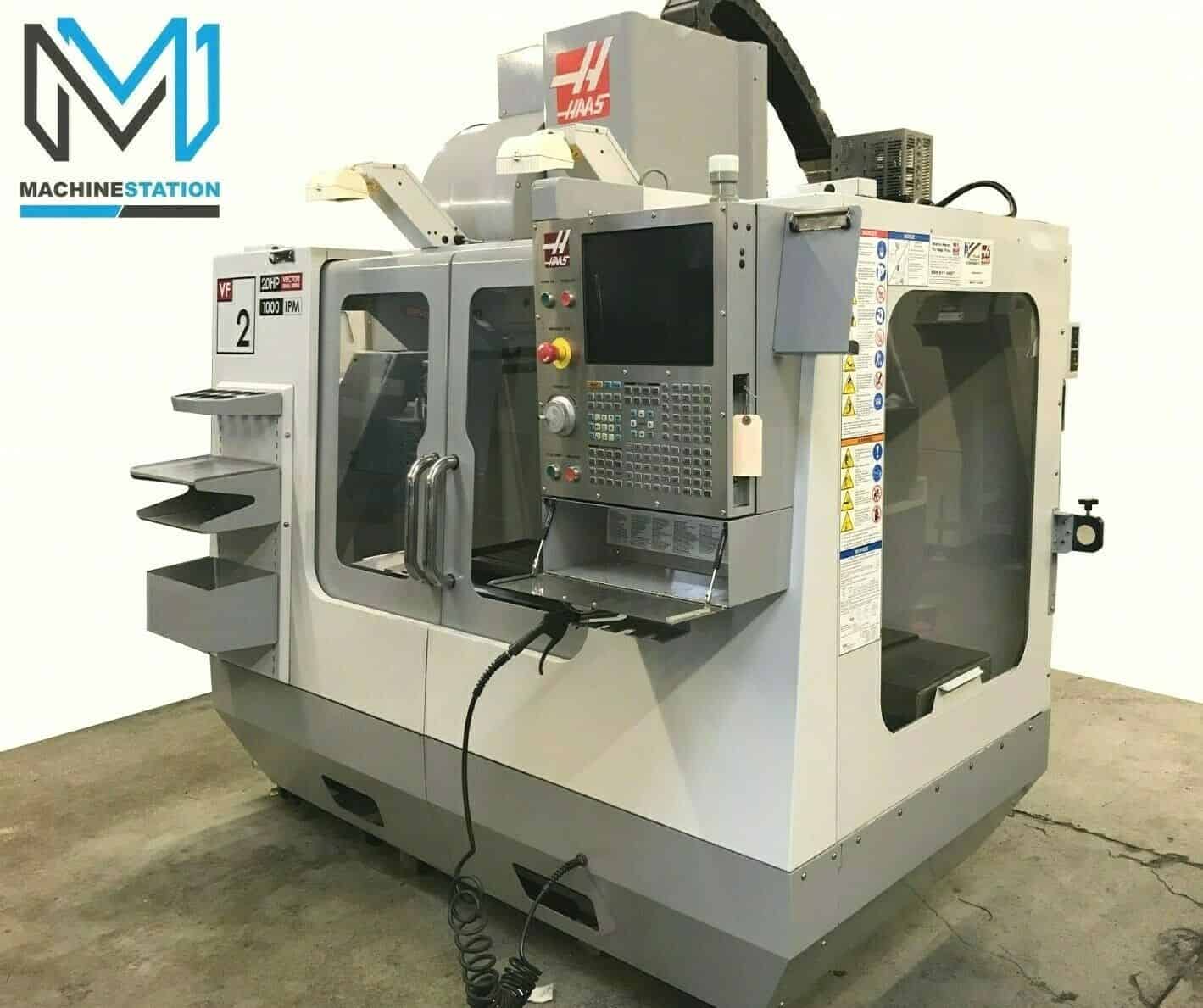

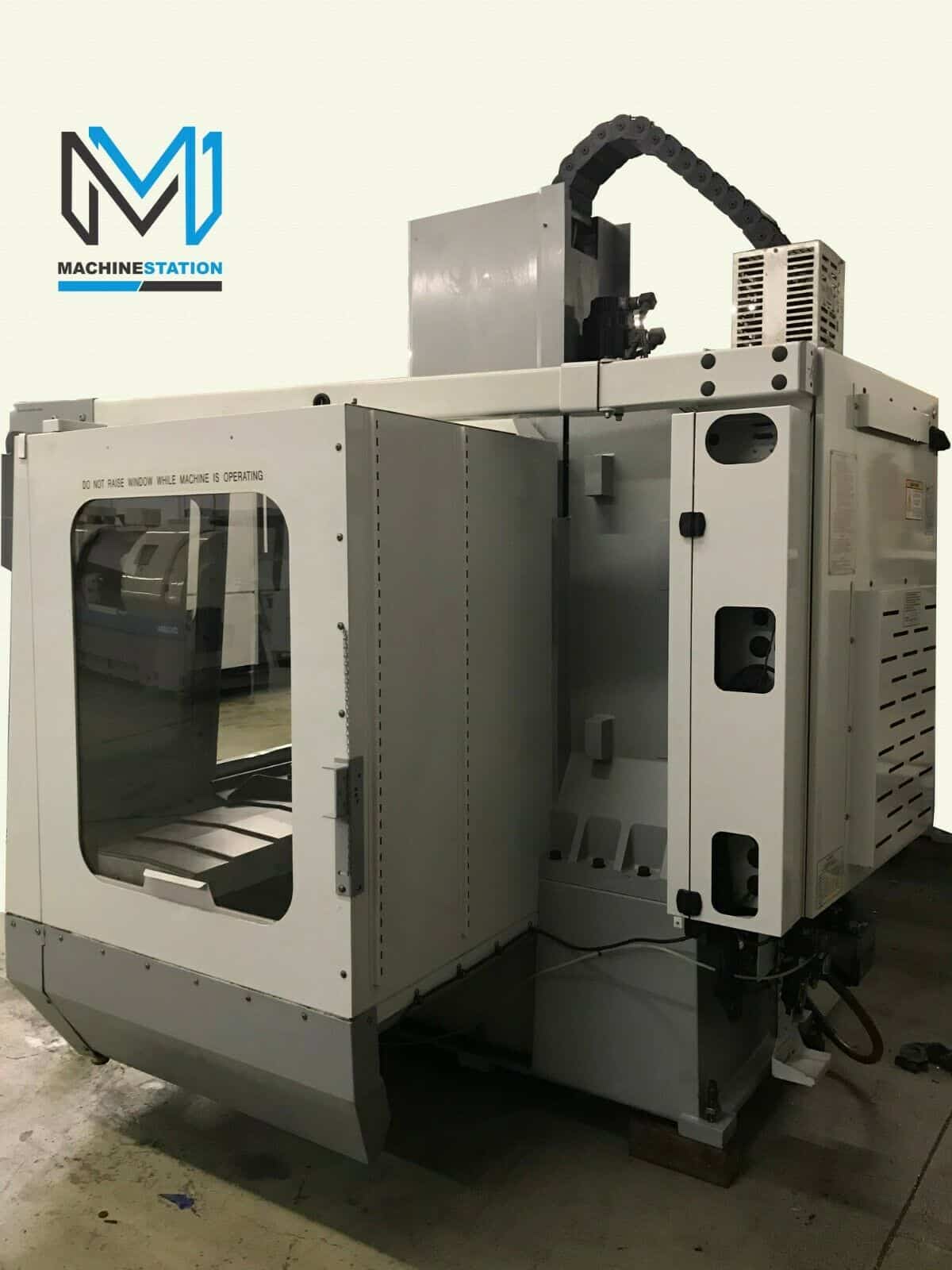

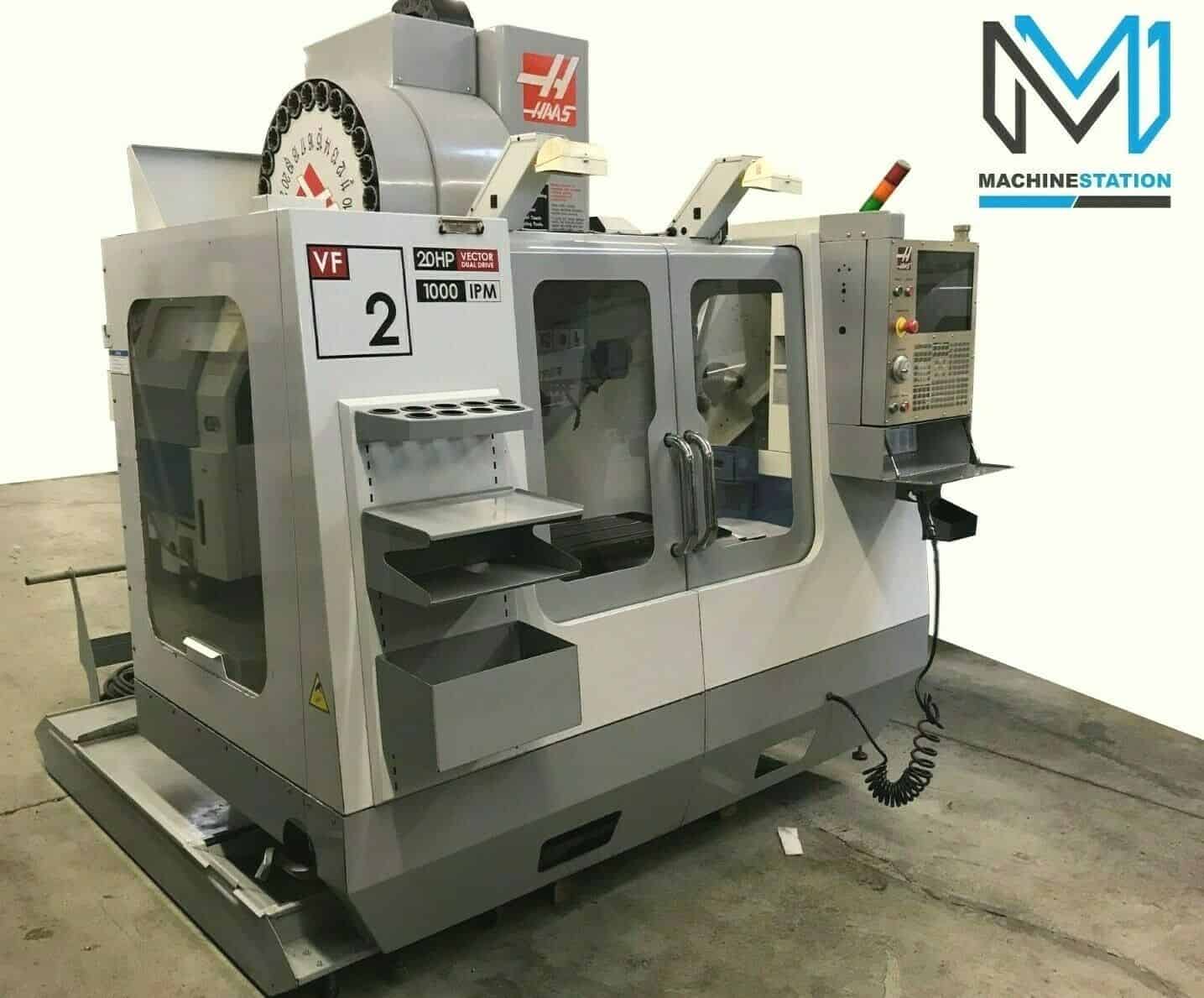

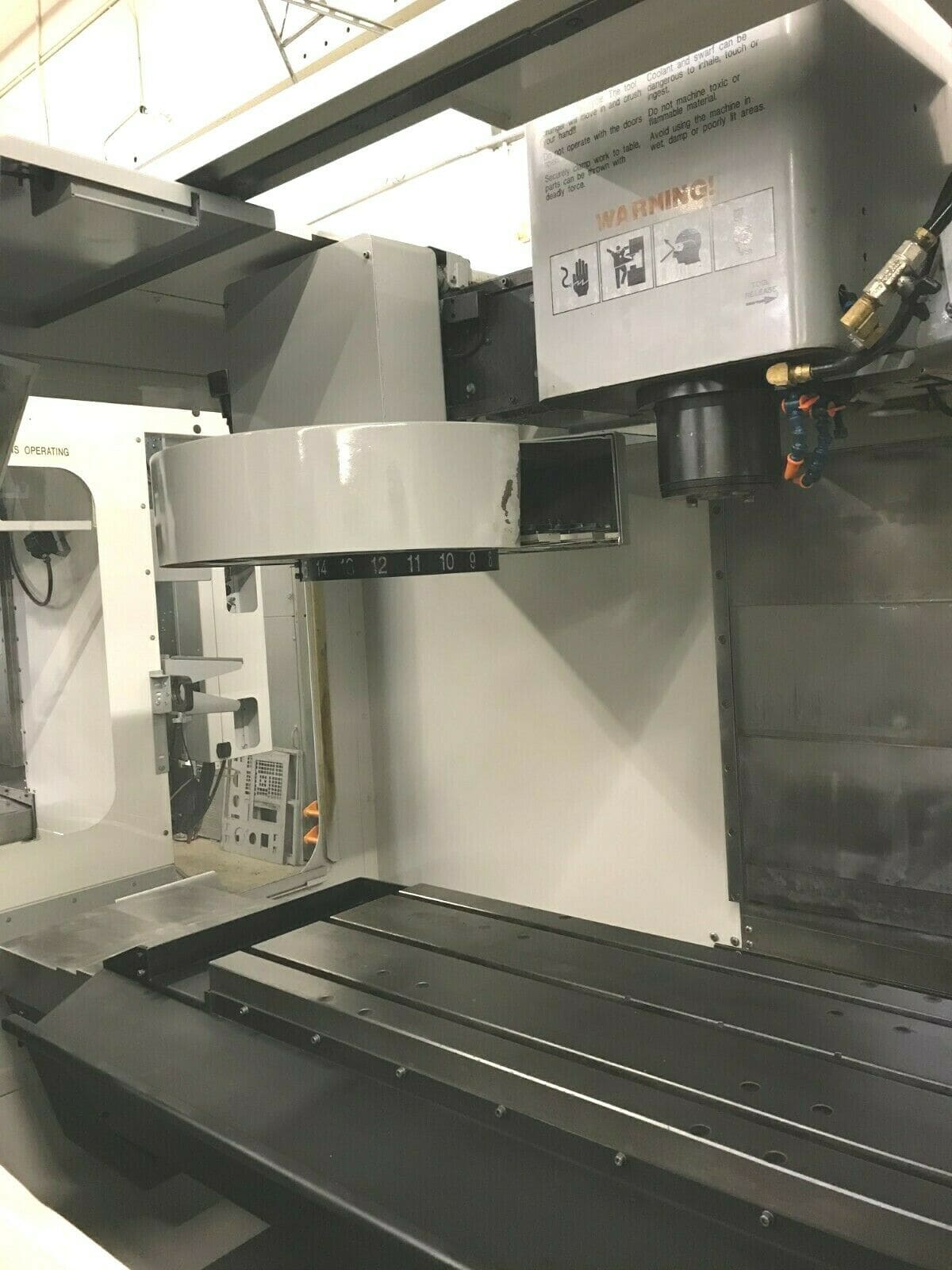

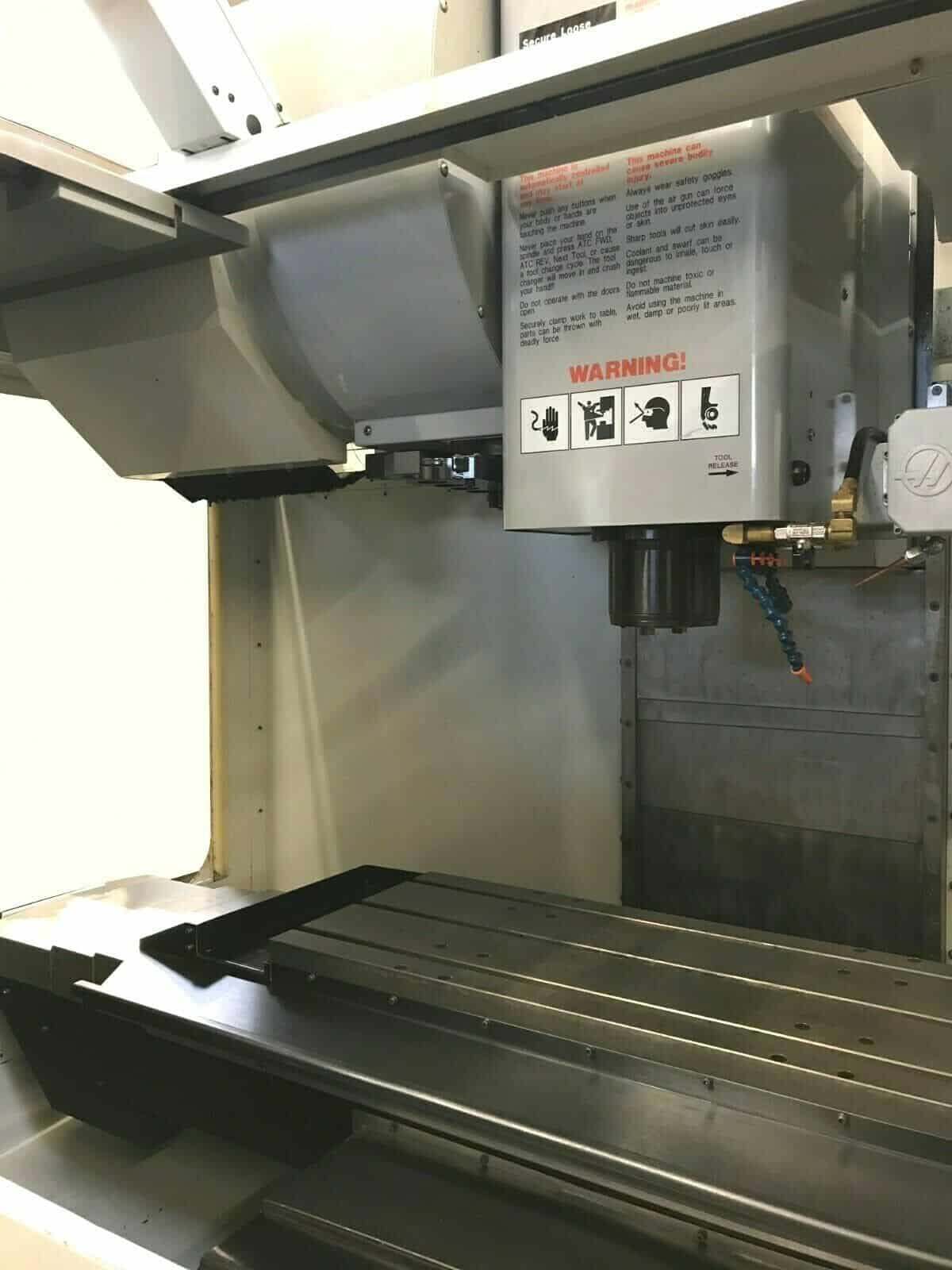

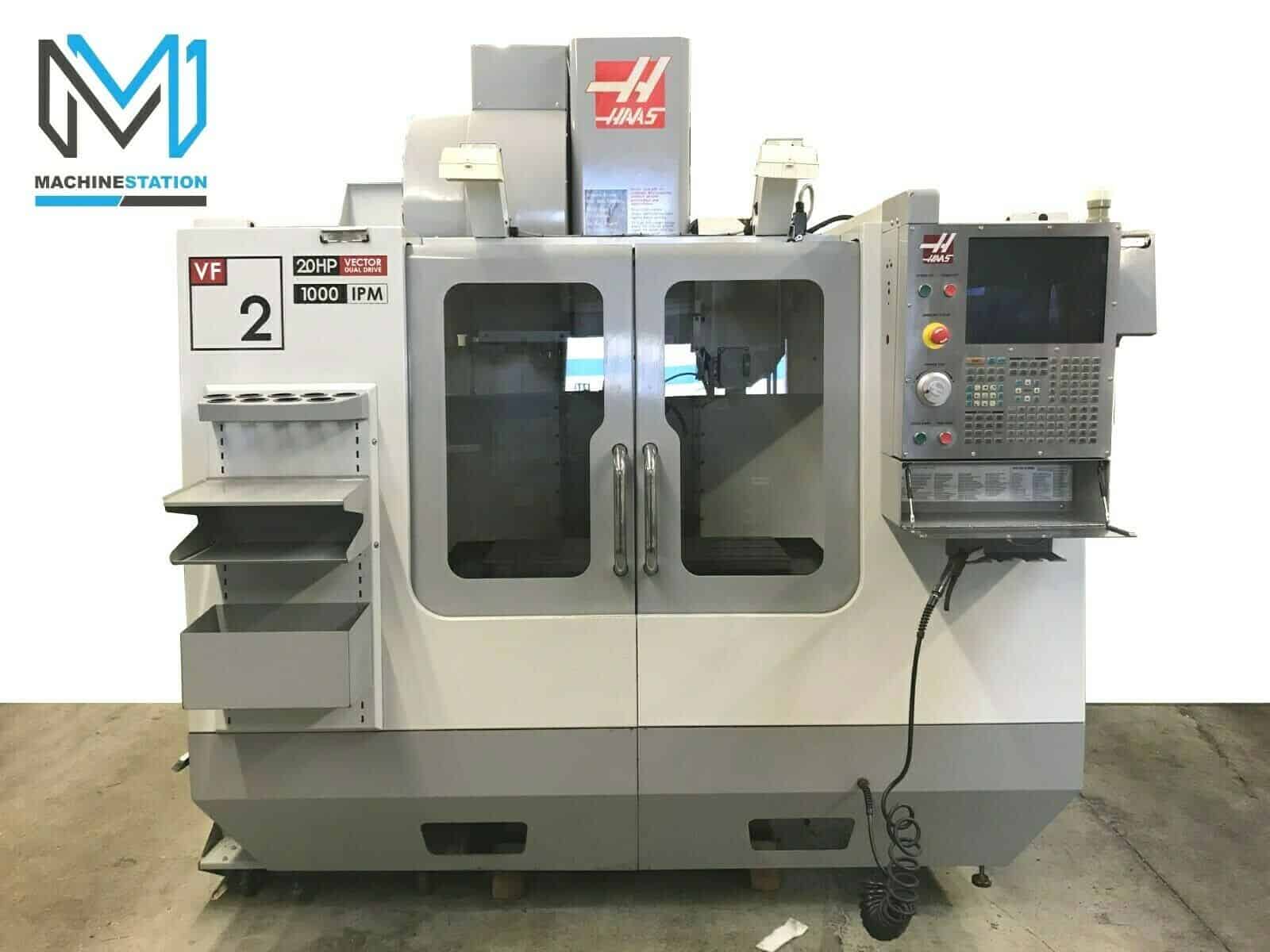

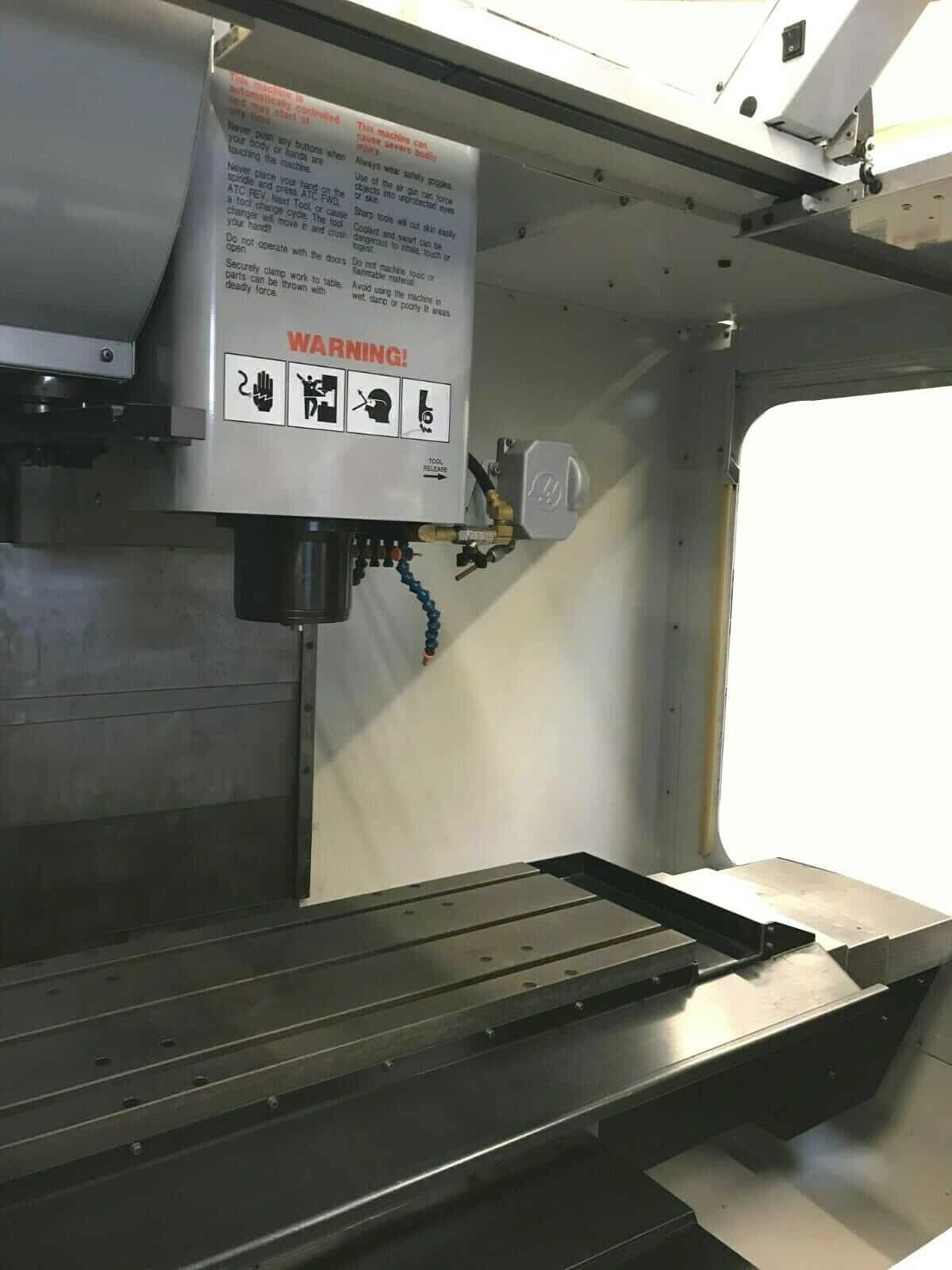

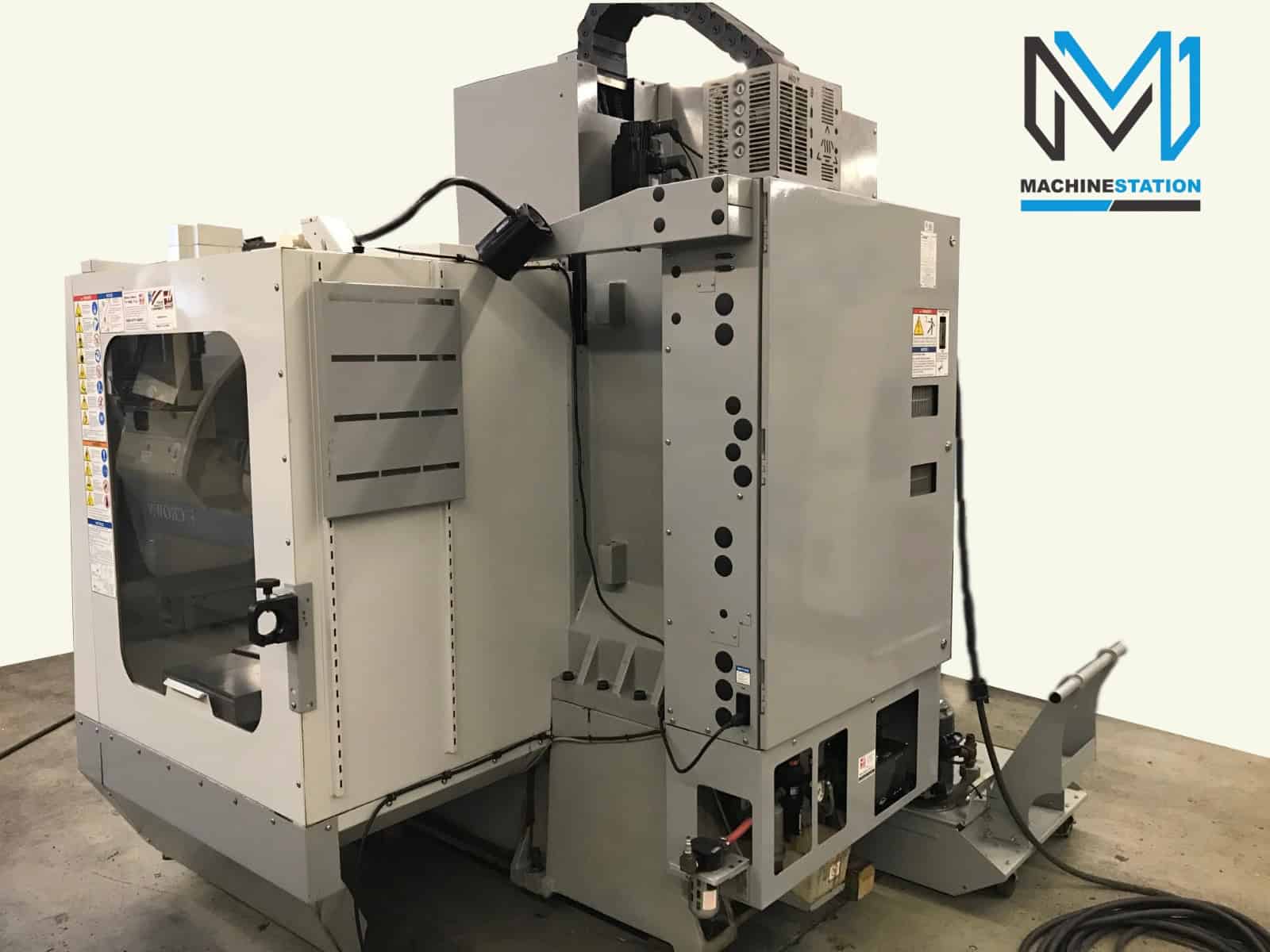

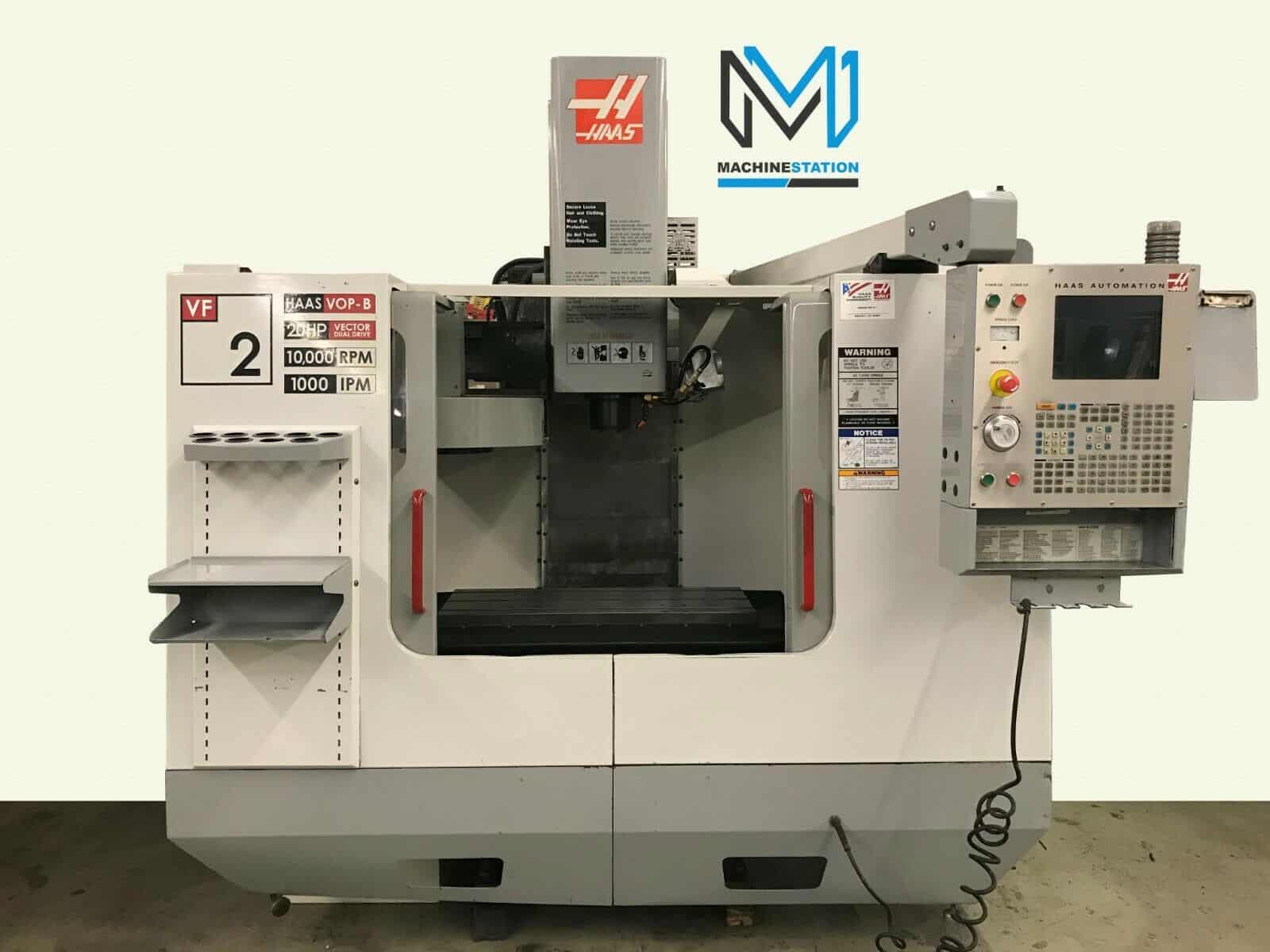

Haas VF-2D CNC Vertical Machining Center
Out of stock
| SKU | 2077 |
|---|
| Make | Haas |
|---|
| Model No. | VF-2D |
|---|
| Year | 11/2008 installed 2009 |
|---|
| Serial # | 1071913 |
|---|
| Condition | Very Good |
|---|
| Cutting Hours: | 924 |
|---|
| Servo Time | 3599 |
|---|
| SKU | 2077 |
|---|
| Make | Haas |
|---|
| Model No. | VF-2D |
|---|
| Year | 11/2008 installed 2009 |
|---|
| Serial # | 1071913 |
|---|
| Condition | Very Good |
|---|
| Cutting Hours: | 924 |
|---|
| Servo Time | 3599 |
|---|
- Haas VF-2D CNC Vertical Machining Center Features:

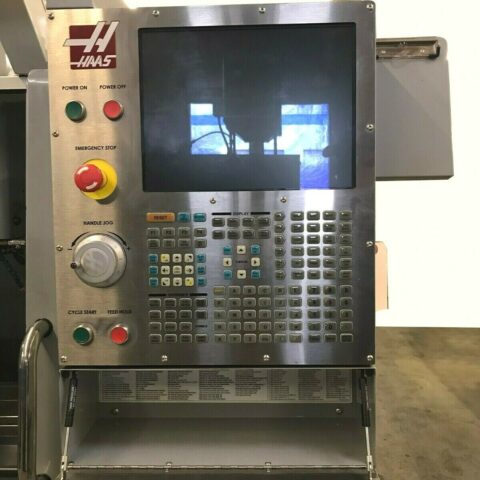

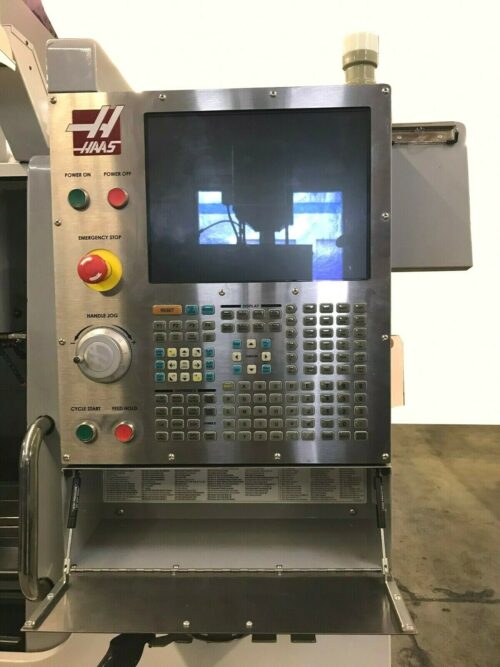

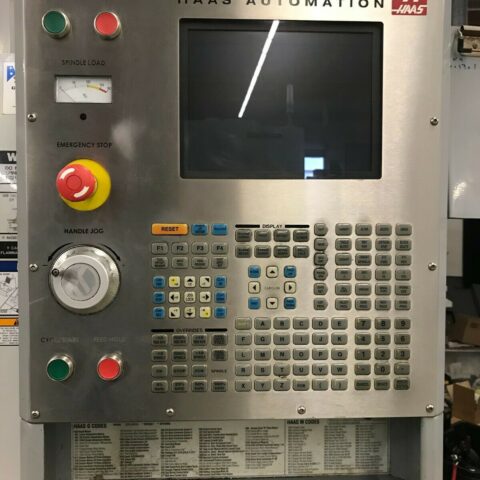

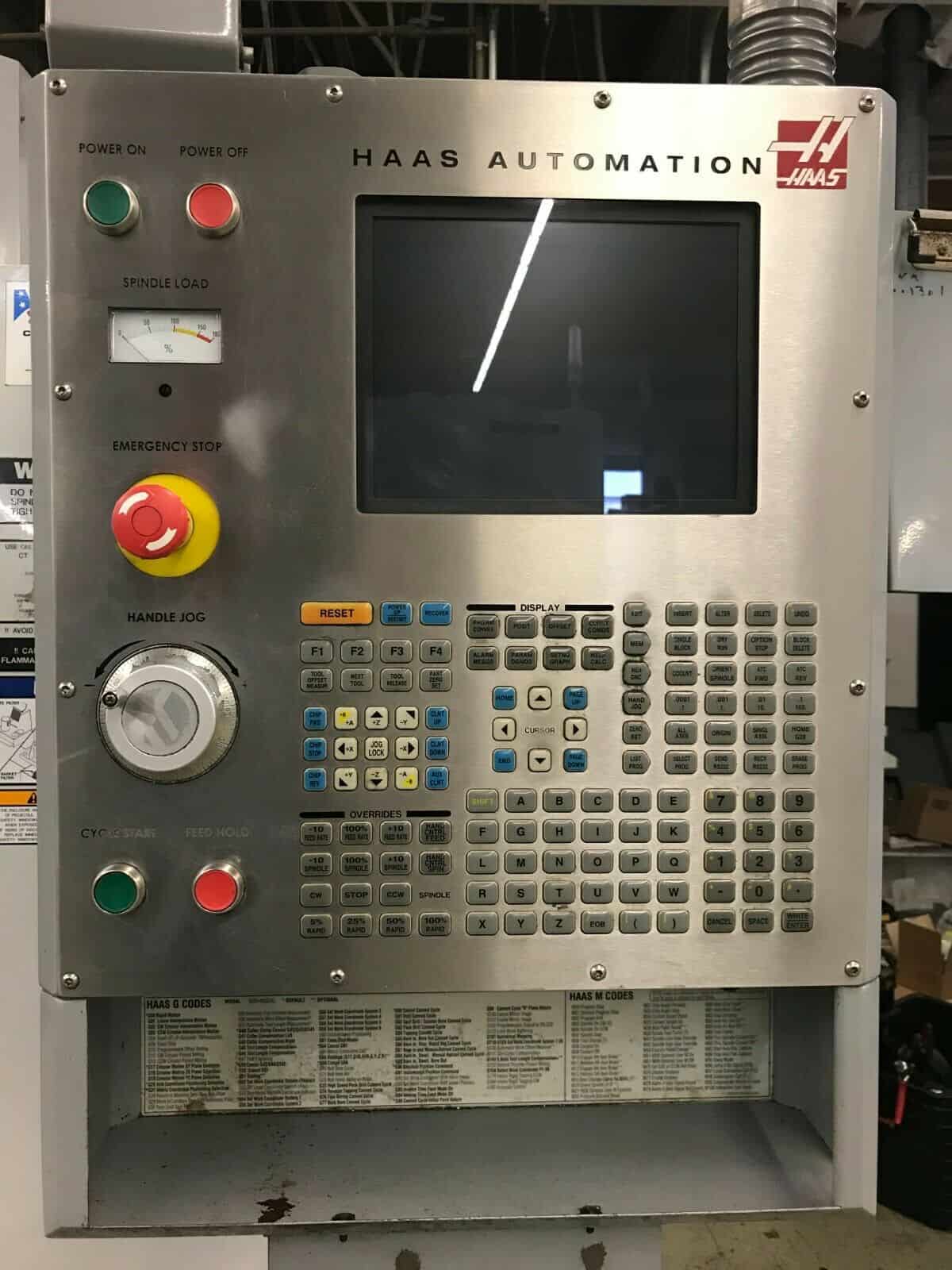

- Haas CNC Control
- 20 HP High Torque Spindle Motor
- 7500 RPM Spindle

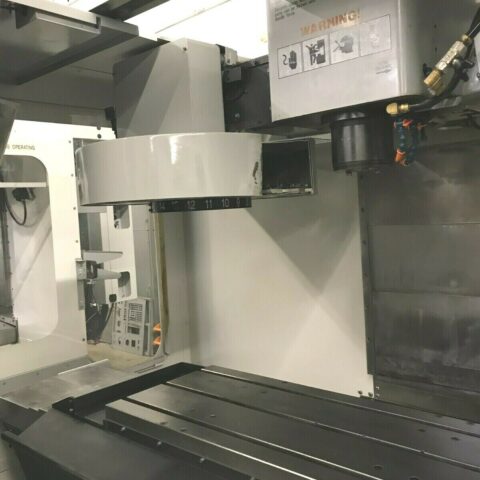

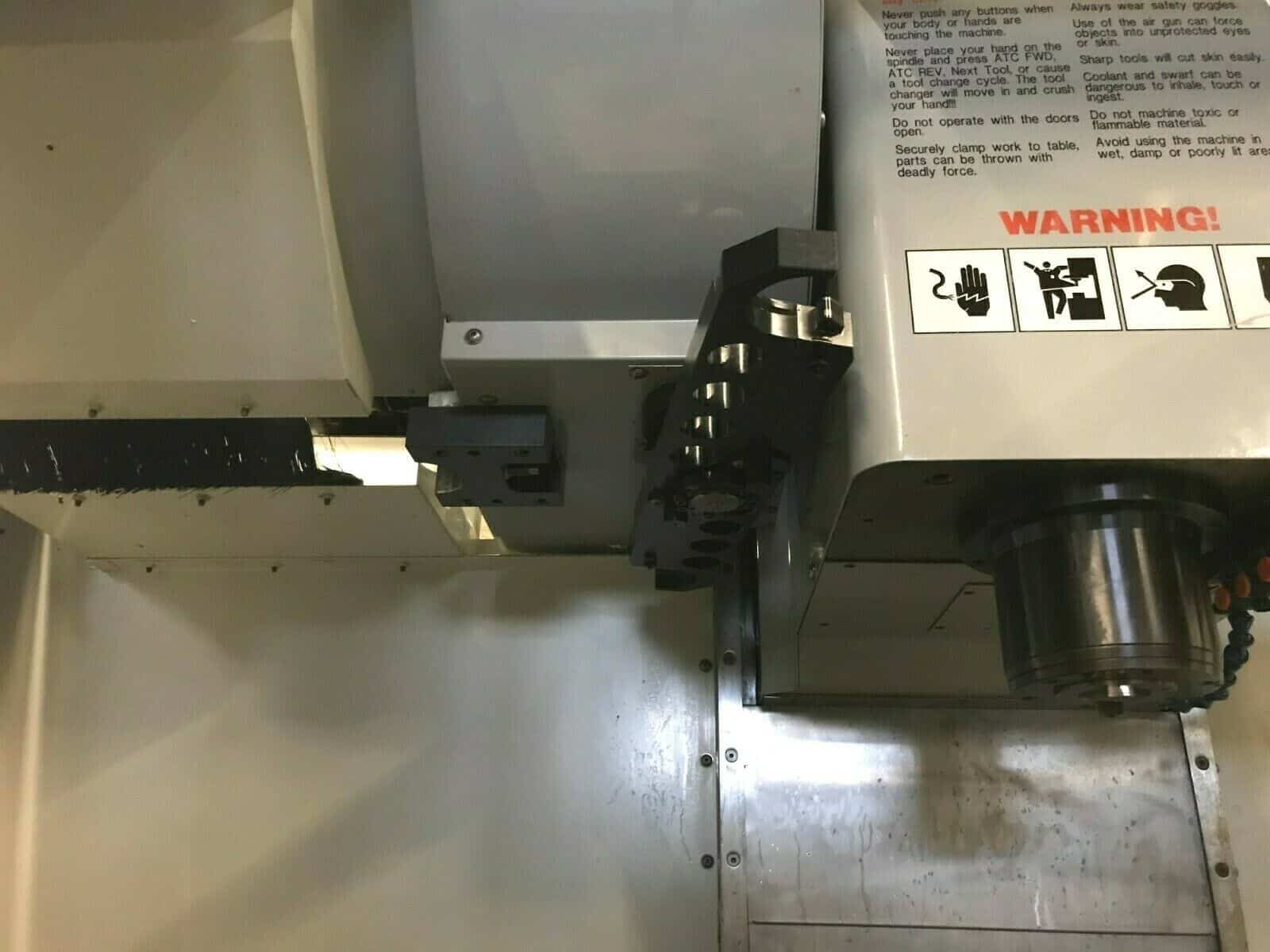

- 24 Side Mount Automatic tool changer
- 1000 inch per minute rapids
- USB Drive
- Rigid Tapping
- Spindle Orientation
- Programmable Coolant

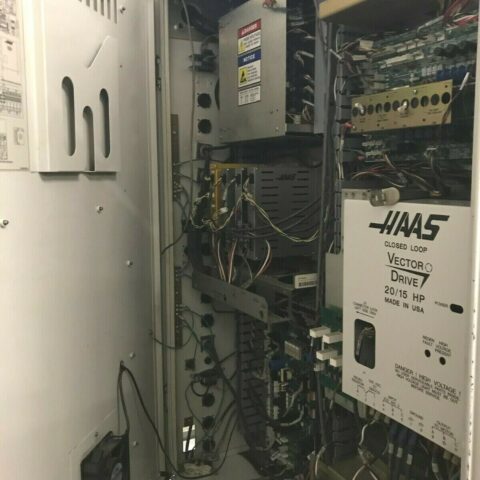

- Brushless-type servo drive motors on all axis
- Telescopic way covers
- Chip auger
- Work Lights
- Tool Holder Racks
- Haas VF-2D CNC Vertical Machining Center Specifications:
- Travels:
- X-Axis: 30″
- Y-Axis: 16″
- Z-Axis: 20″
- Rapid Traverse Rates: 1000 Inch Per Minute
- Cutting Feed Rates: 630 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 24″

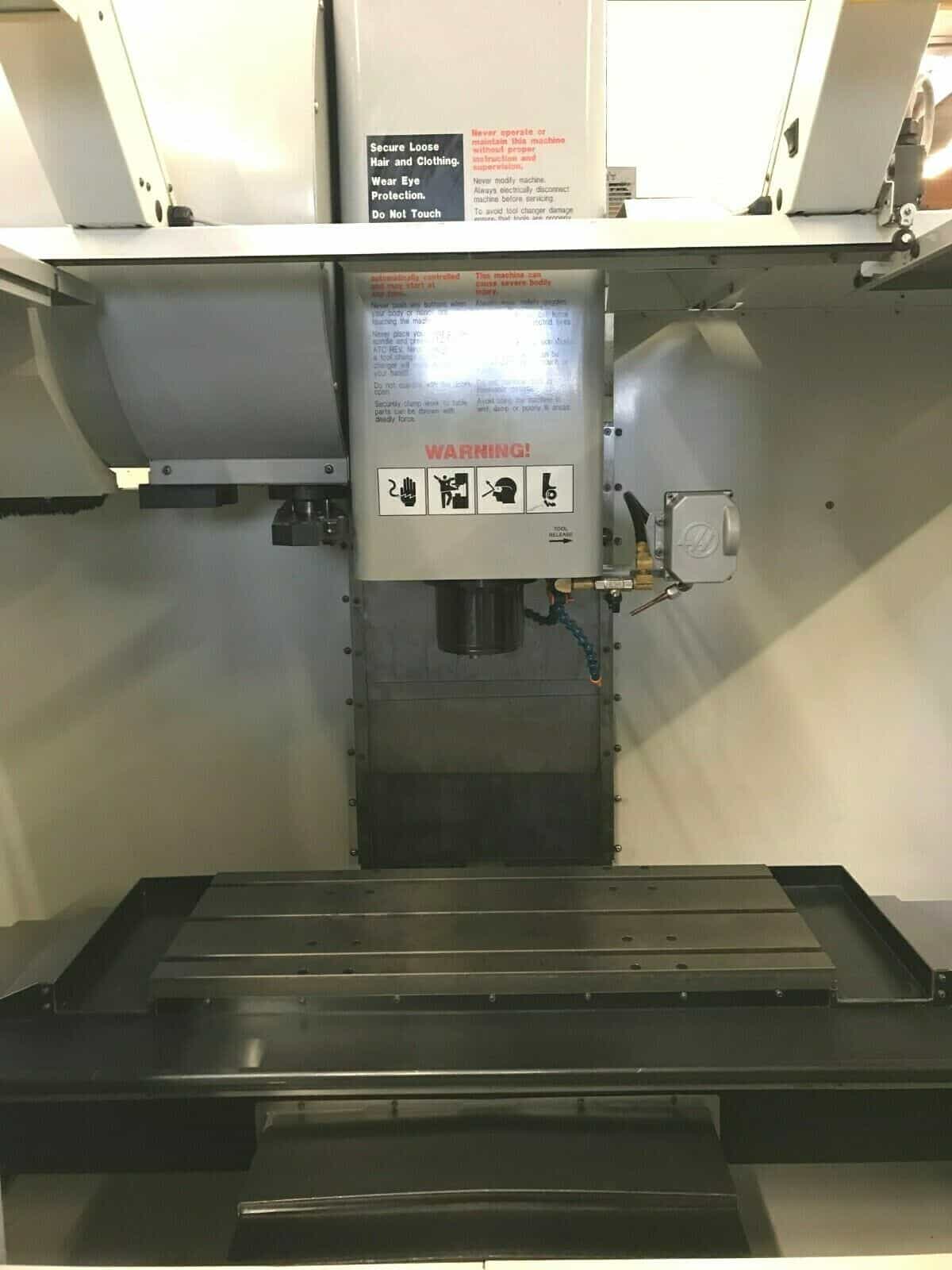

- Table:
- Length: 36″
- Width: 14″
- Number of Std T-Slots: 3
- T-Slot Width: 5/8″
- Max Weight on Table: 1800 lbs
- Spindle:
- Taper Size: 40
- Speed Range: 7500 RPM
- Spindle Power: 20 HP

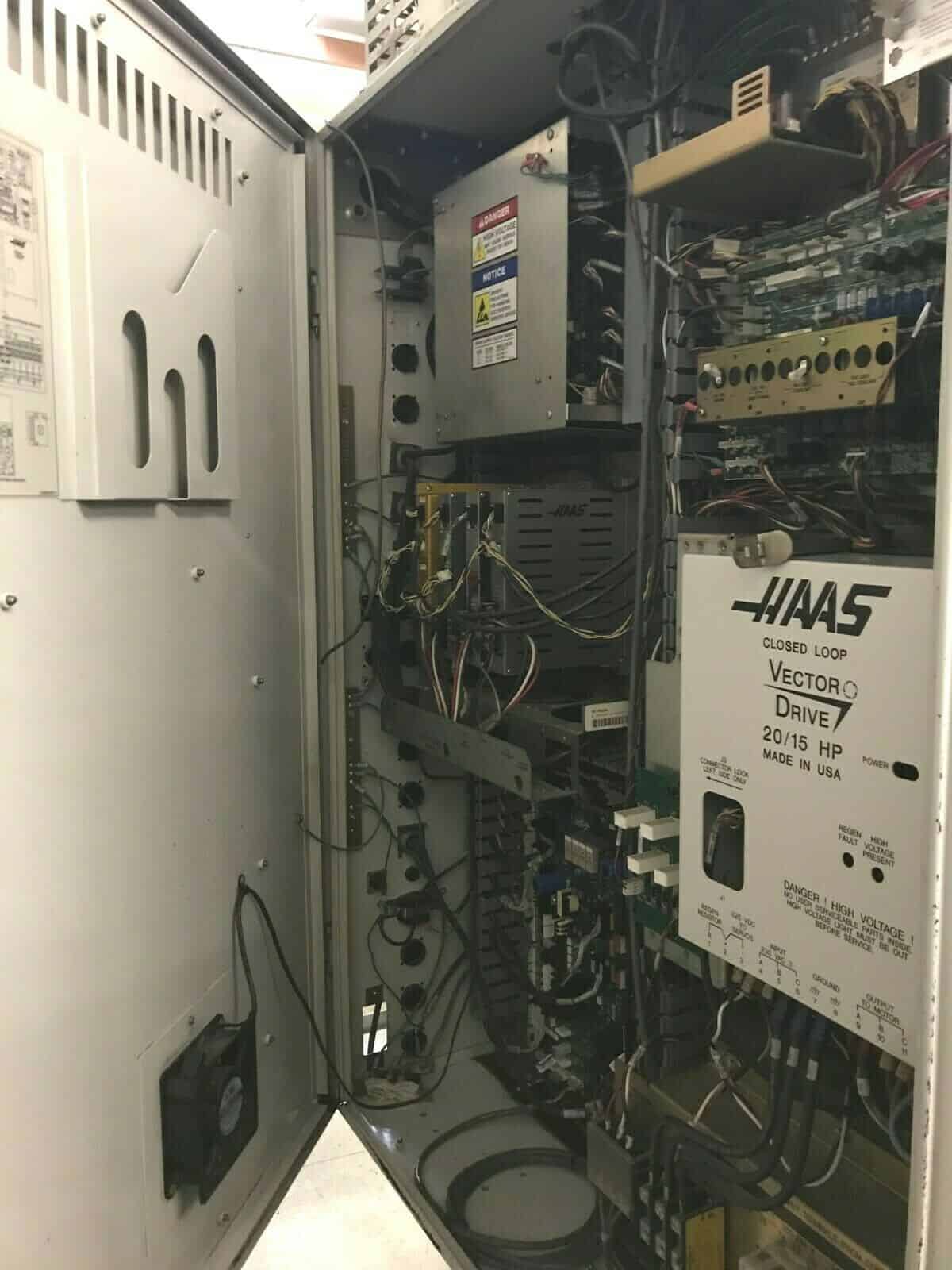

- Vector Dual Drive Max Torque: 90ft-lb @ 2000RPM

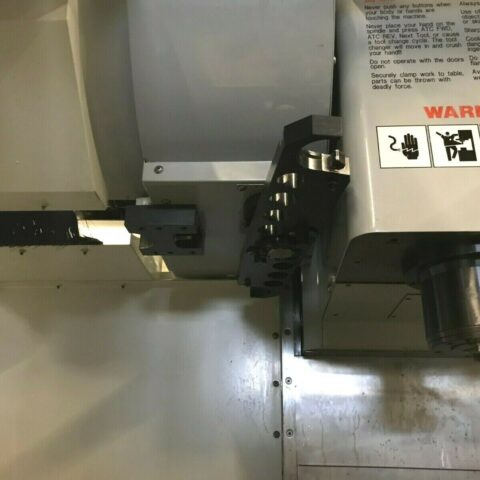

- Automatic Tool Changer:
- Capacity: 24
- Max Tool Weight: 12 lbs
- Max Tool Dia: 3.6″
- Max Tool Length: 11″
- Tool Changing Time: 2.2 Seconds
- General:
- Air Required: 100 psi, 4 scfm

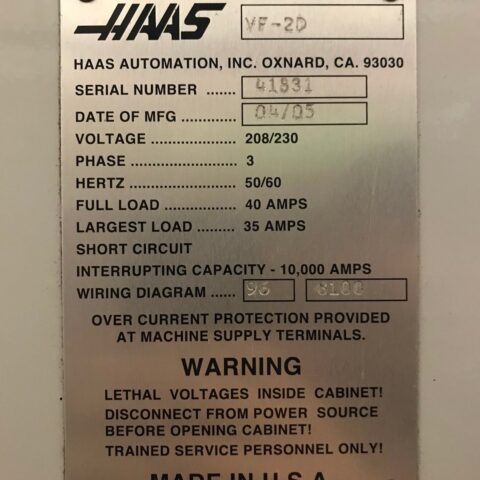

- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 90″ x 80″ x 100″ High
- Weight: 9200 lbs
