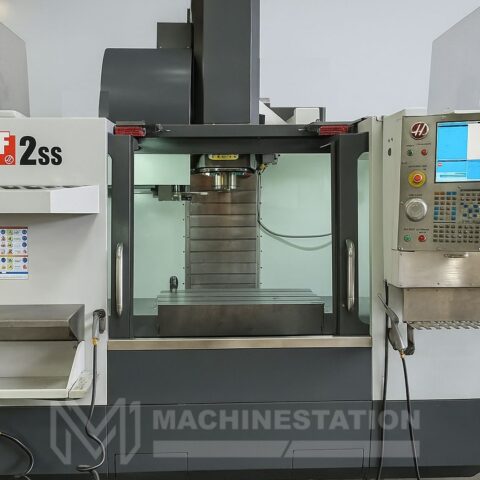

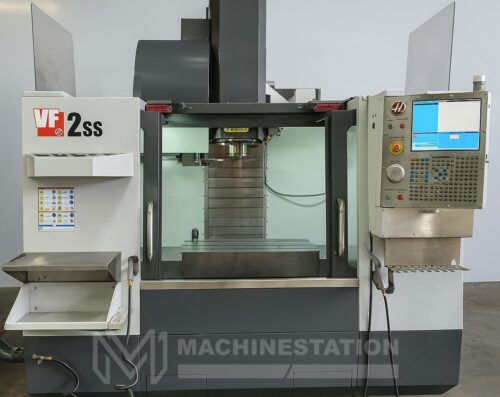

Haas VF-2SS CNC Vertical Machining Center – 4th Axis Ready Mill
1 in stock
Used Haas VF-2SS CNC Vertical Machining Center for Sale.
| SKU: | 115087 |
| Make & Model: | Haas VF-2SS |
| Year: | 2015 |
| Condition: | Used – Good |

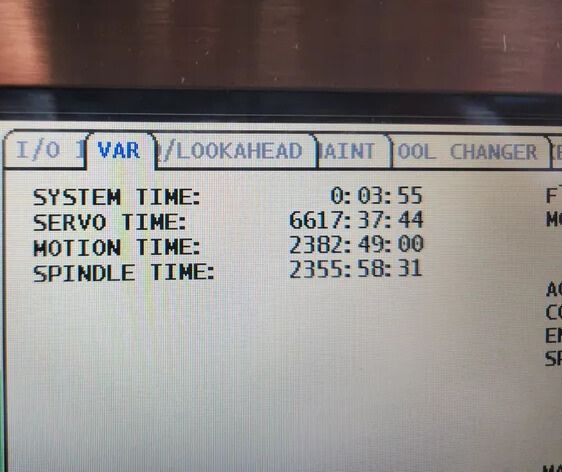

| Spindle Time: | 2,355 Hours |
| Video: | No Video |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 115087 |
| Make: | Haas |
| Model No.: | VF-2SS |
| Year of Manufacture: | 2015 |
| Condition | Used – Good |
| Equipped With: |
|---|

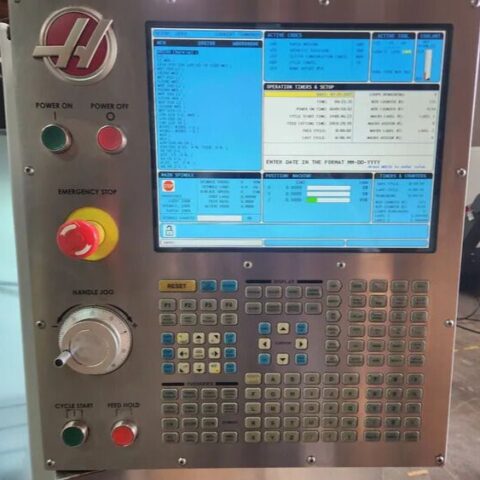

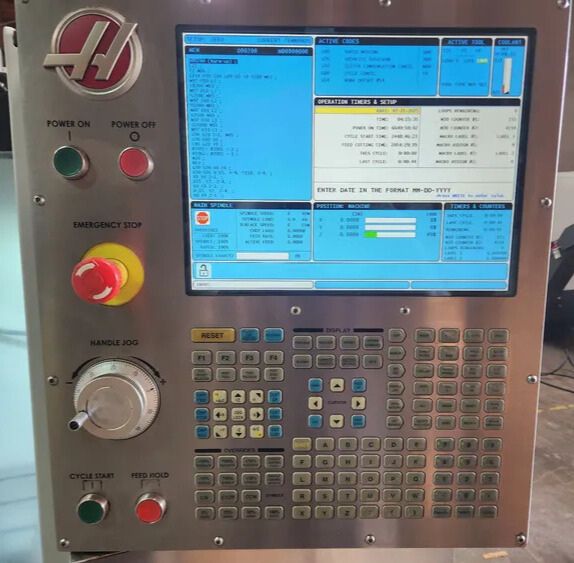

| Haas CNC Control |
| 12000 RPM High Speed Inline Direct Drive Spindle |
| 4th Axis Ready |
| 30 HP High Torque Spindle Drive |
| 24 Station Super Speed Side Mount Automatic tool changer |
| 1400 IPM Fast Rapid |
| WIPS-R Renishaw Probing System Ready (Probe Needed) |
| Probe Riser Block |
| High Speed Machining |
| Rigid Tapping |
| Coolant System |
| Chip Auger |

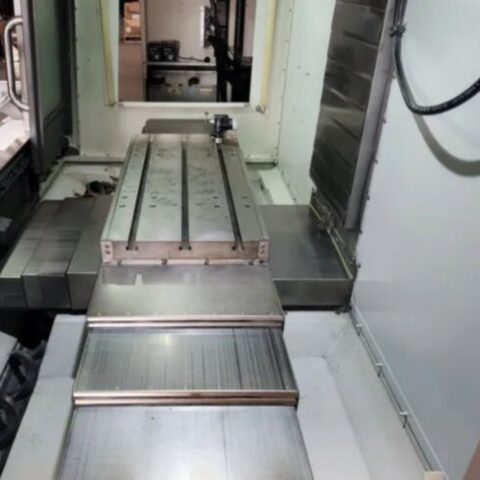

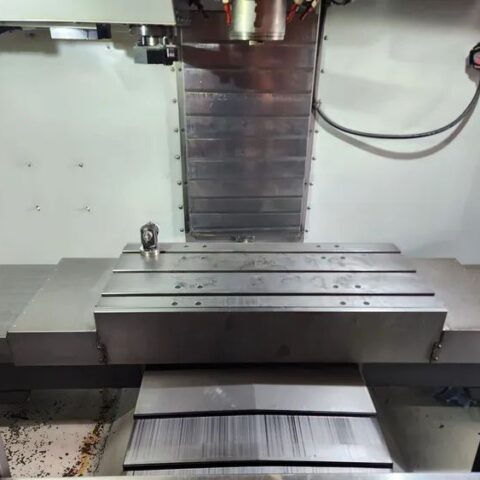

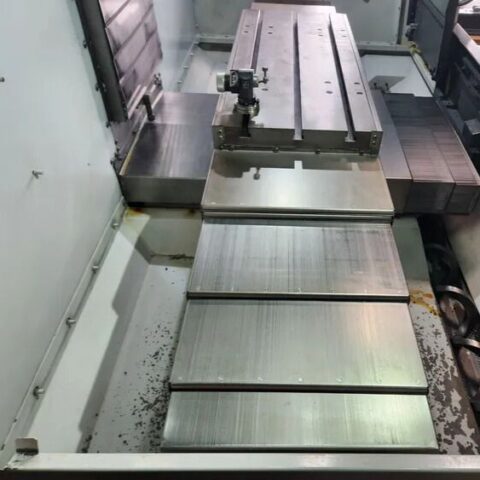

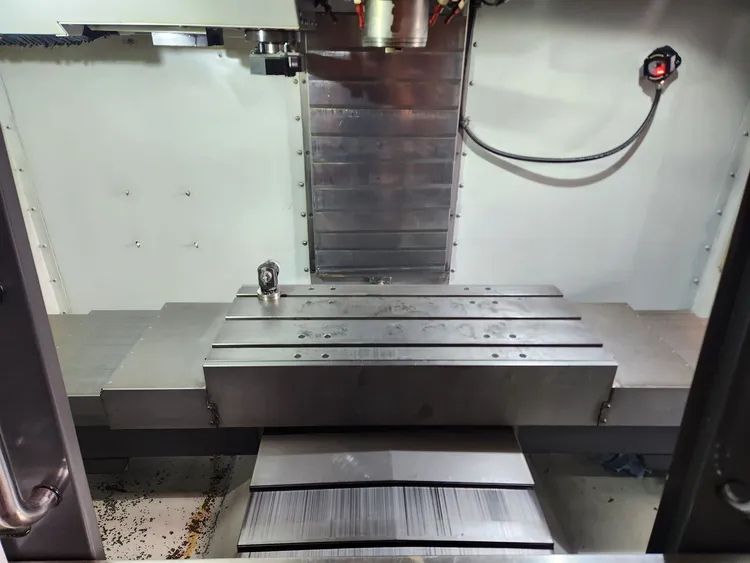

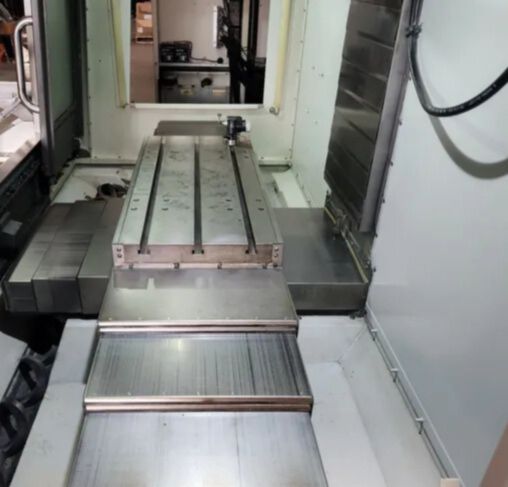

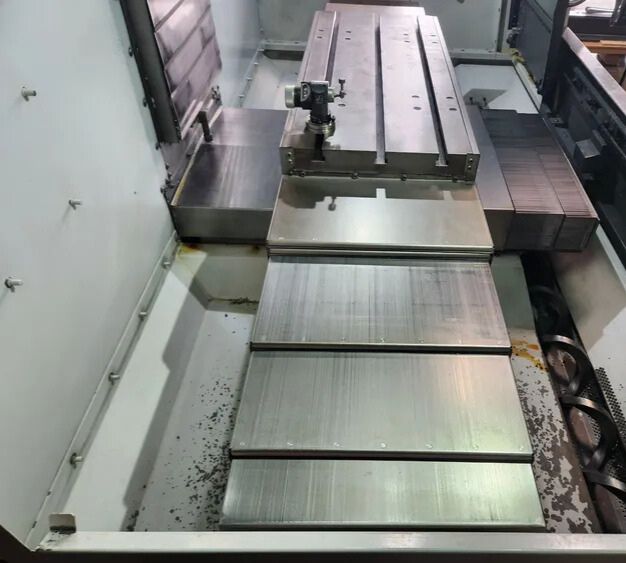

| Table: |
|---|
| Length: 36.0″ |
| Width: 14.0″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1500 lbs |
| Travel: |
|---|
| X-Axis: 30″ |
| Y-Axis: 16″ |
| Z-Axis: 20″ |
| Rapid Traverse Rates: 1400 Inch Per Minute |
| Cutting Feed Rates: 883 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 24″ |
| Automatic Tool Changer: |
|---|
| Capacity: 24 |
| Max Tool Weight: 12 lbs |
| Max Tool Diameter (full): 2.5″ |
| Max Tool Diameter (adjacent empty): 5″ |
| Max Tool Length: 11″ |
| Tool Changing Time: 1.8 Seconds |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 12000 RPM |
| Spindle Power: 30 HP |
| Vector Drive Max Torque: 90 ft-lb @ 2000 RPM |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 101″ x 99″ x 101″ High |
| Weight: 8380 lbs |
| Make | |
|---|---|
| Model | VF-2SS |
| Categories | CNC Vertical Machining Center |
