*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 115056 |
| Make: | Haas |
| Model: | VF2SS |
| Year of Manufacture: | 2022 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

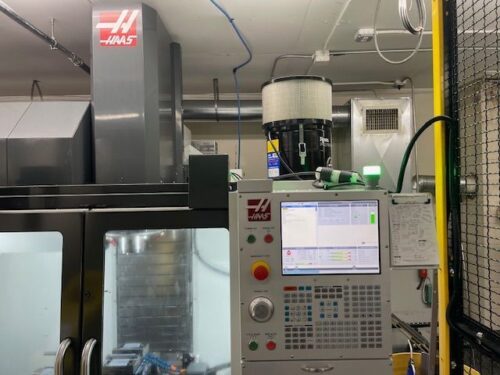

| Haas CNC Control |

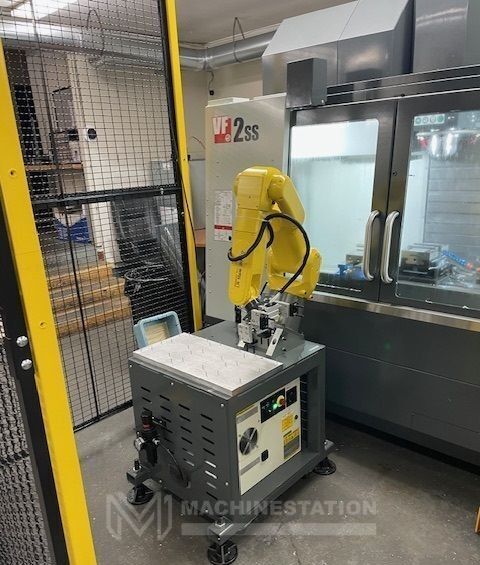

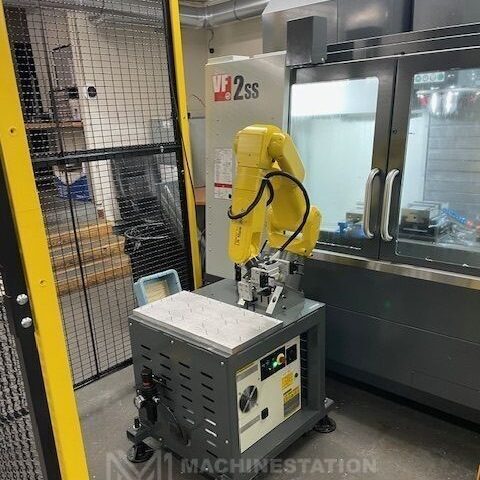

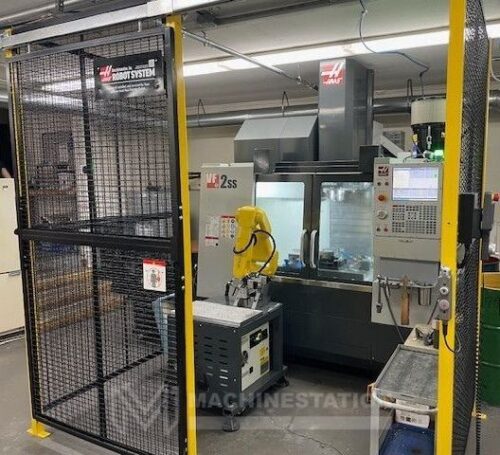

| Haas Robot Package 1 (Upgraded $52,495 value Included) |
| Through Spindle Coolant (Upgraded $7,095 value Included) |
| Wireless Intuitive Probing System Ready (Probe Needed) (Upgraded $3,995 value Included) |
| Probe Riser Block (Upgraded $695 value Included) |

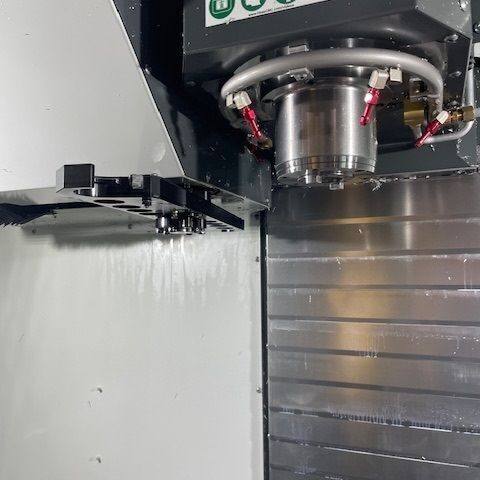

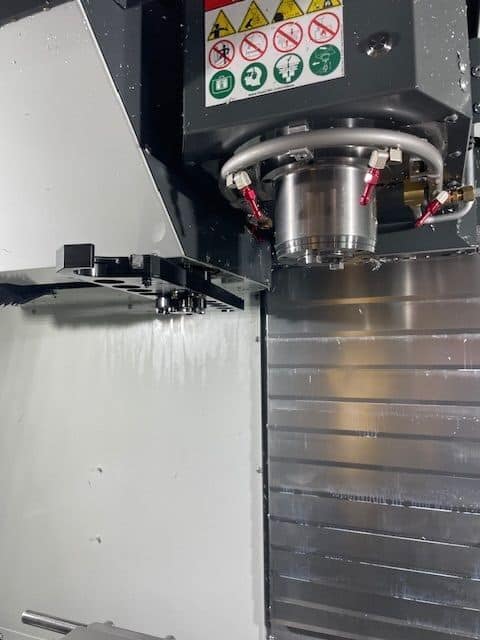

| 12000 RPM High Speed Inline Direct Drive Spindle |
| 30 Station Super Speed Side Mount Automatic tool changer |
| 1400 IPM Fast Rapid |
| High Speed Machining (Upgraded $3,895 value Included) |
| Auxiliary Coolant Filter (Upgraded $3,195 value Included) |
| Programmable Air (Upgraded $1,395 value Included) |
| Rigid Tapping |
| Spindle Orientation |
| Coordination Rotation and Scaling |
| Haas Visual Programming System |
| User-Definable Macros |
| Remote Jog Handle – Touch Screen |
| Coolant System |

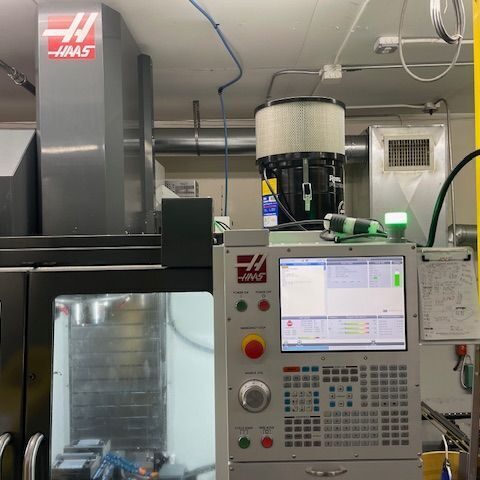

| Royal 30115 FX-575 Filtermist Unit (Upgraded $3,795 value Included) |
| Filtermist Motor Starter Kit (208/230V) (Upgraded $717 value Included) |
| Filtermist FX-575 After Filter (Upgraded $355 value Included) |

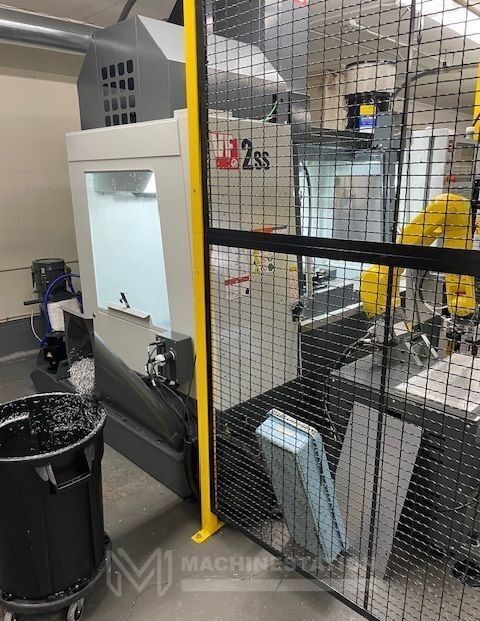

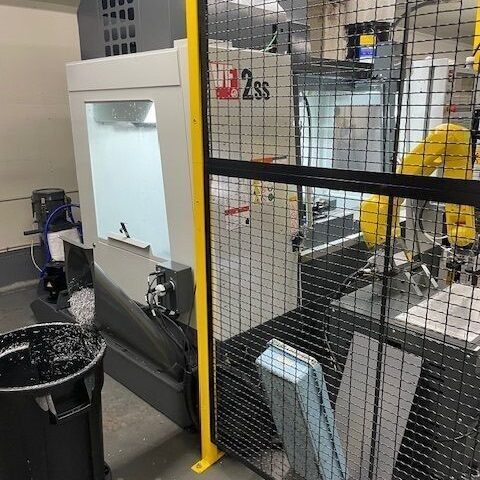

| Chip Auger (Upgraded $4,095 value Included) |
| Chip Strainer |
| Chip Deflector (Upgraded $105 value Included) |

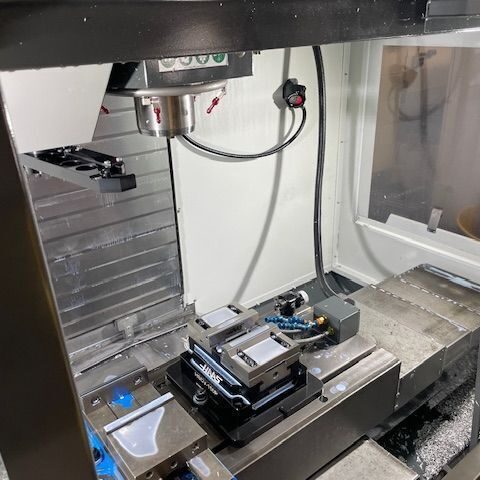

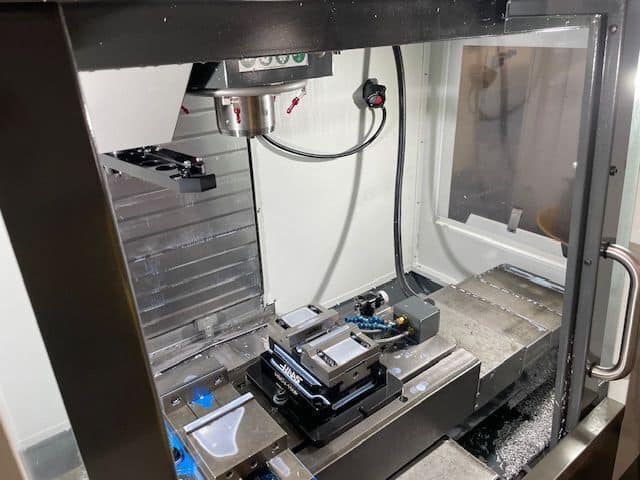

| Note: Vice Is Not Included With The Machine |
| Table: |
|---|
| Length: 36.0″ |
| Width: 14.0″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1500 lbs |
| Travels: |
|---|
| X-Axis: 30″ |
| Y-Axis: 16″ |
| Z-Axis: 20″ |
| Rapid Traverse Rates: 1400 Inch Per Minute |
| Cutting Feed Rates: 833 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 24″ |
| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 12000 RPM |
| Spindle Power: 30 HP |
| Max Torque: 90 ft-lb @ 2000 RPM |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 12 lbs |
| Max Tool Diameter (Full): 2.5″ |
| Max Tool Diameter (Adjacent empty): 5.0″ |
| Max Tool Length: 11″ |
| Tool Changing Time: 1.8 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 101″ x 99″ x 101″ High |
| Weight: 9200 lbs |
