*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model: | VF-3D |
| Year: | 2006 |
| Condition: | Used – Good |

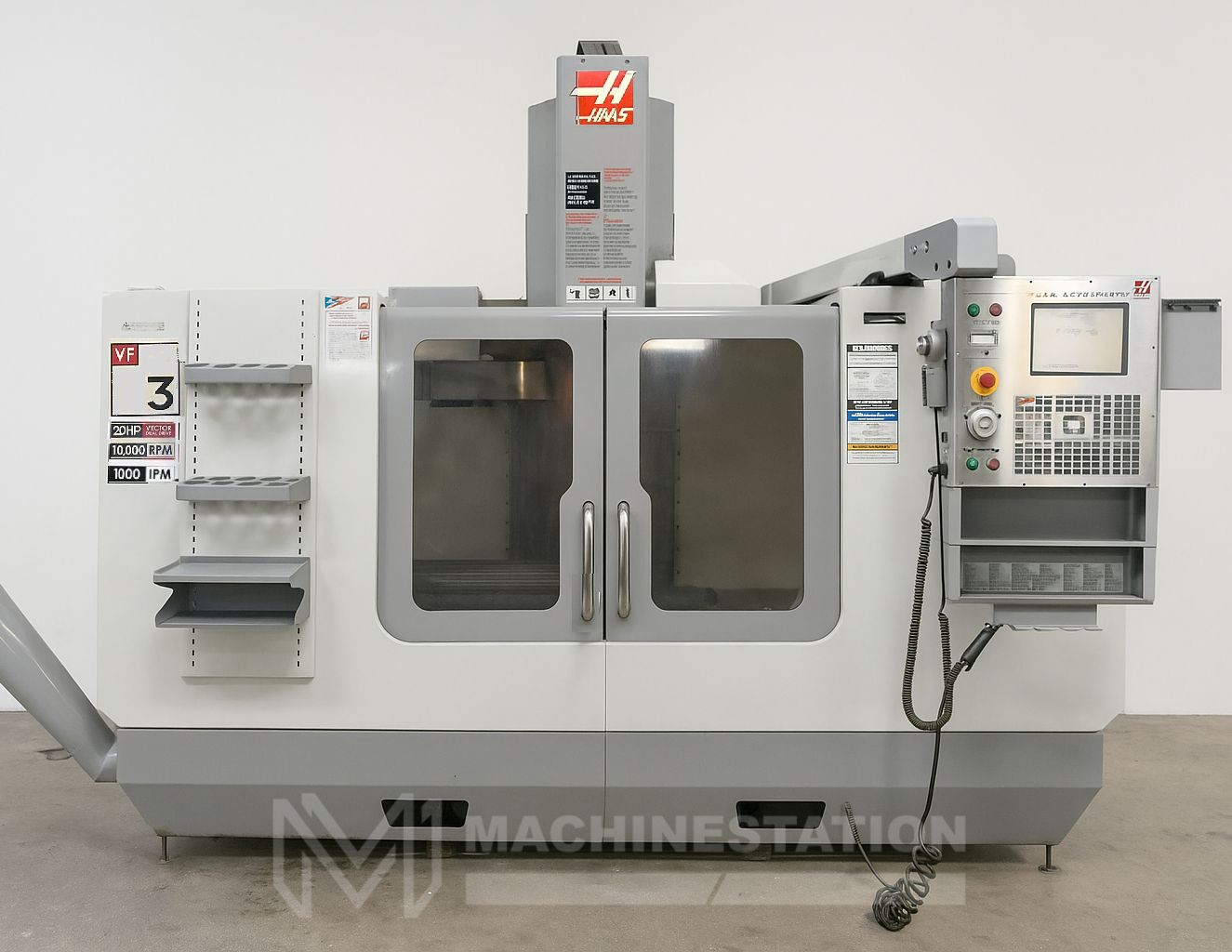

Key Features of the Haas VF-3D

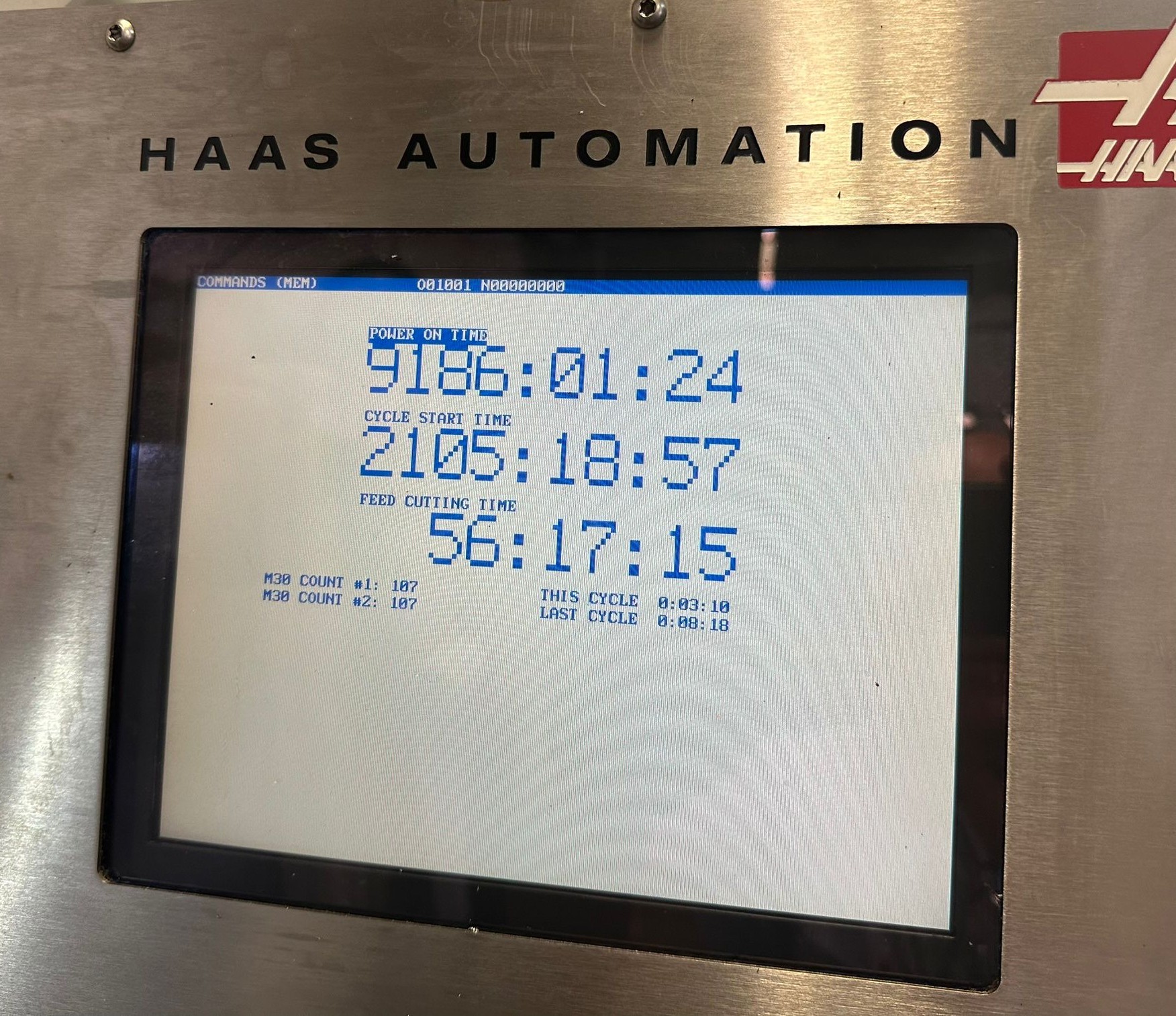

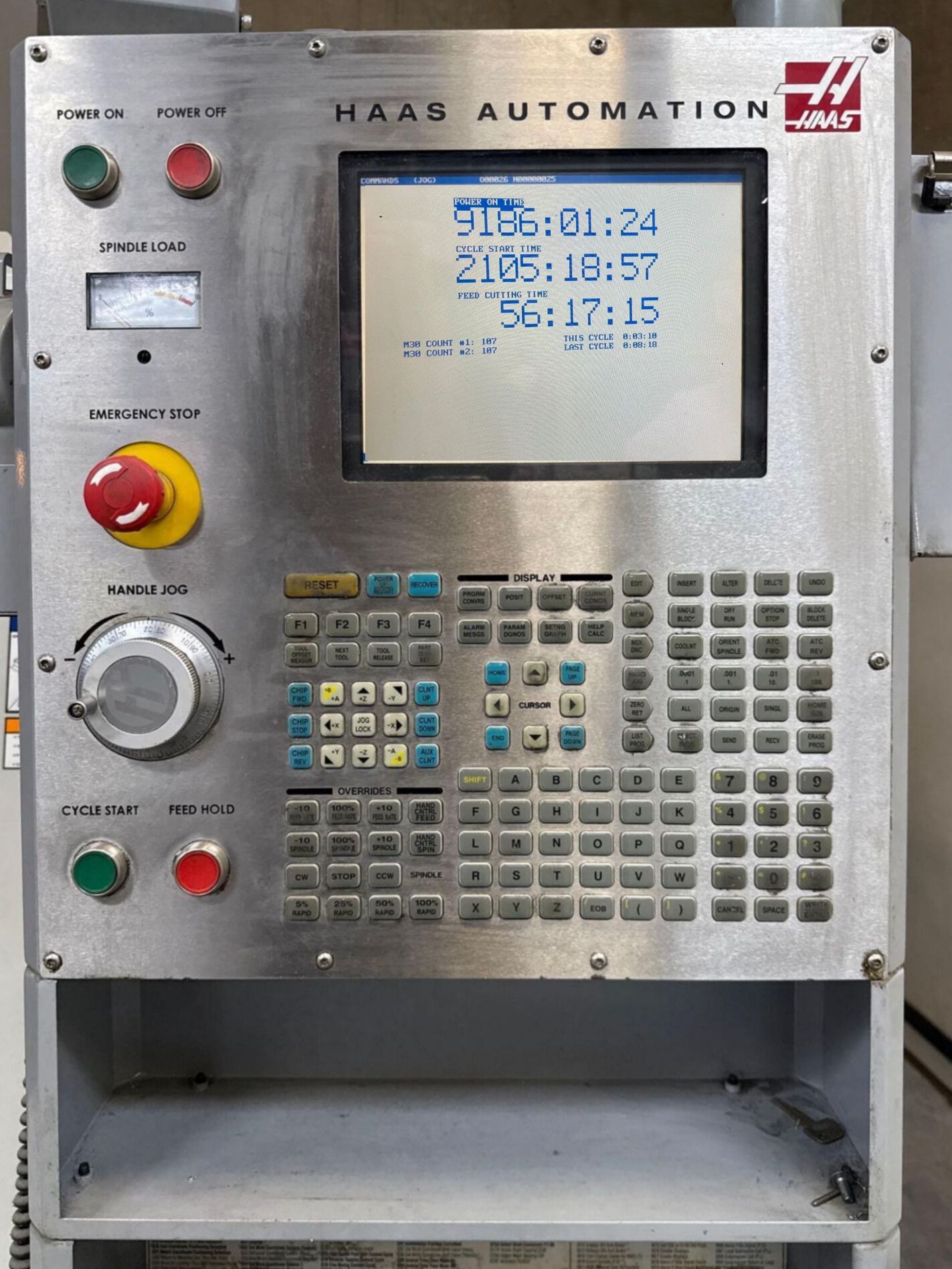

- Haas CNC Control
- 10,000 RPM High-Speed Spindle
- 20 HP 2-Speed Gear Drive
- 1000 IPM Rapid Traverse
- 20 Station Automatic Tool Changer
- Rigid Tapping
- Coolant System
- Chip Auger
|
Travel:
- X-Axis: 40″
- Y-Axis: 20″
- Z-Axis: 25″
- Rapid Traverse Rates: 1000 Inch Per Minute
- Cutting Feed Rates: 650 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4.2″ – 29.2″
|

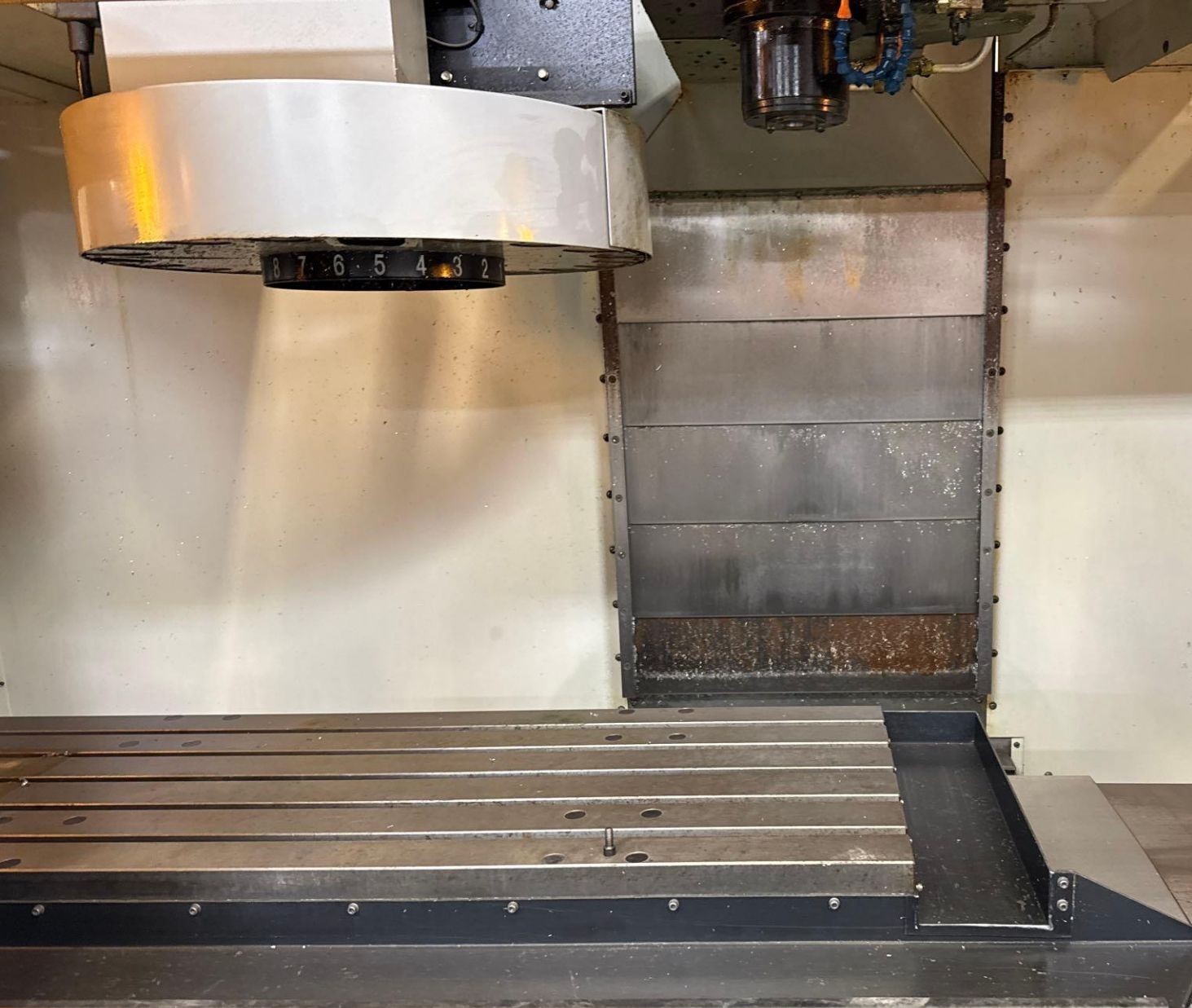

Table:
- Length: 48″
- Width: 18″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 3500 lbs
|
Spindle:
- Taper Size: 40
- Speed Range: 10,000 RPM
- Spindle Power: 20 HP
|
Automatic Tool Changer:
- Capacity: 20 Tools
- Max Tool Weight: 12 lbs
- Max Tool Dia: 2.5″ – 5.0″
- Max Tool Length: 13″
- Tool Changing Time: 1.80 Seconds
|

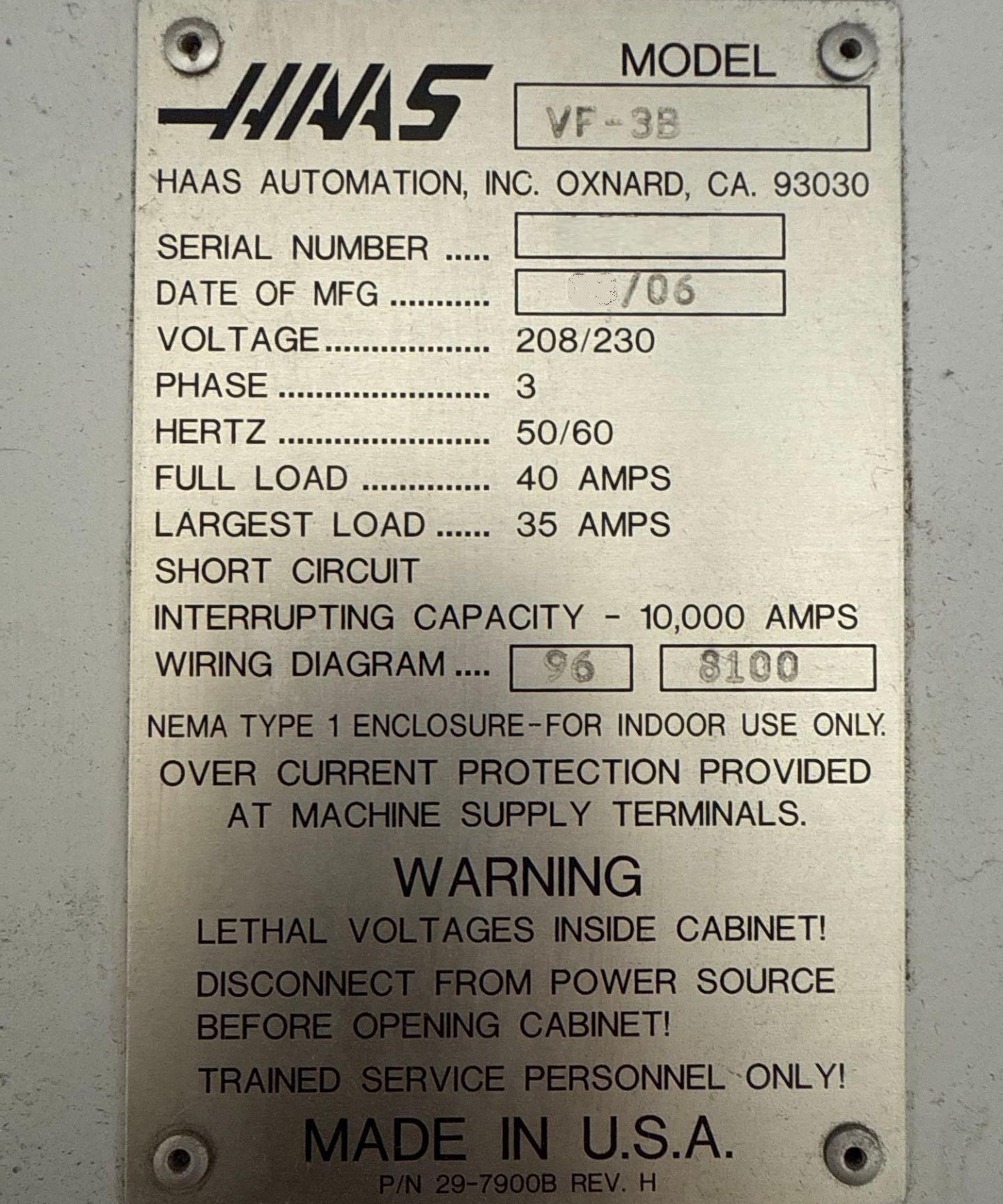

General:
- Air Required: 100 psi 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 152″ x 99″ x 106″ High Approx.
- Weight: 11,720 lbs Approx.
|
