Haas VF-3SS Vertical Machining Center

Haas VF-3SS Vertical Machining Center

Out of stock

SKU: 1789
Make/Model: Haas VF-3SS
Video:



SKU: 1789 Category:

Description

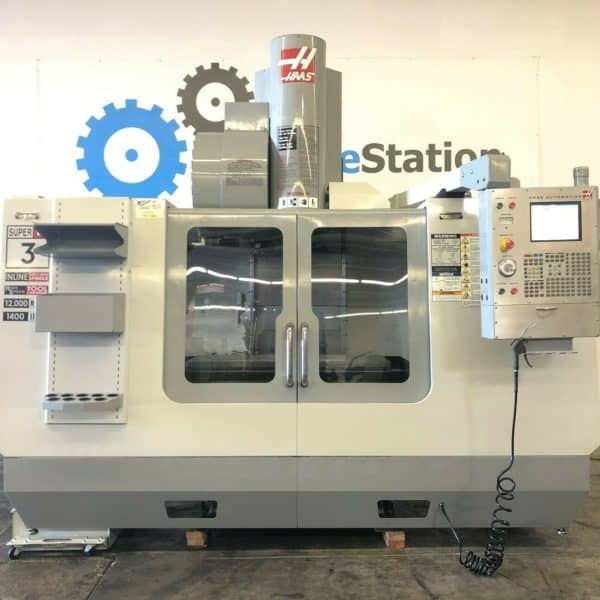

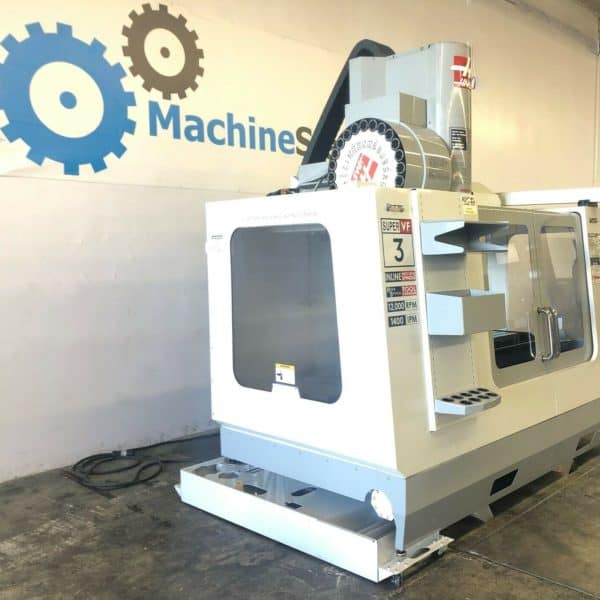

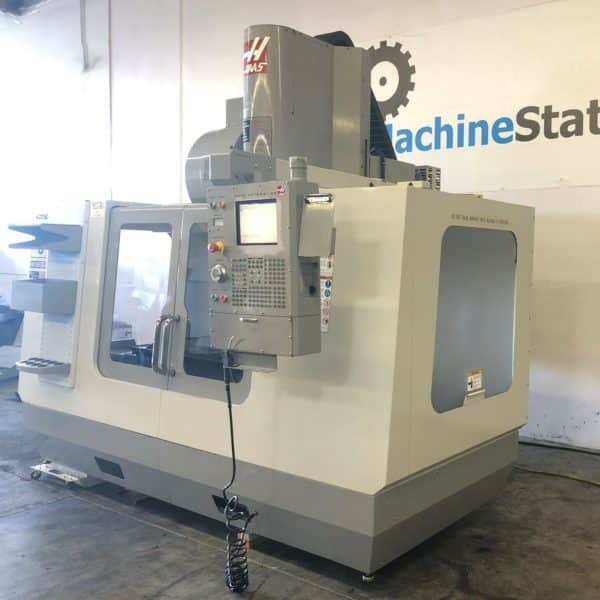

HAAS VF-3SS VERTICAL MACHINING CENTER
MakeHaas
Model No.VF-3SS
Year of Manufacture:09/2005

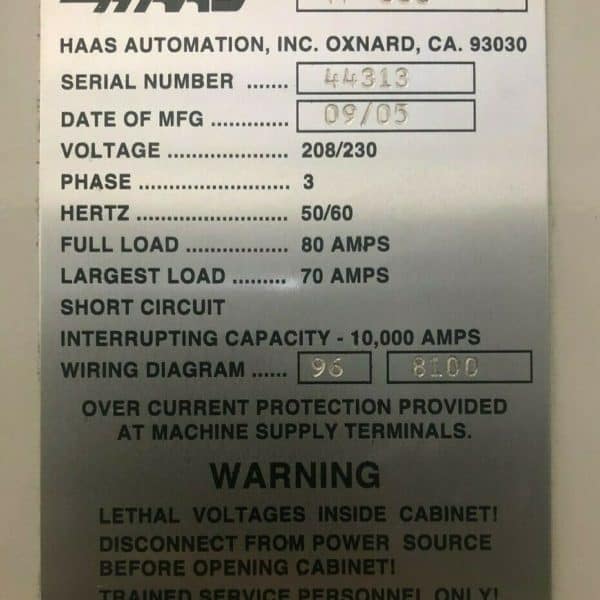

Serial #44313
ConditionVery Good

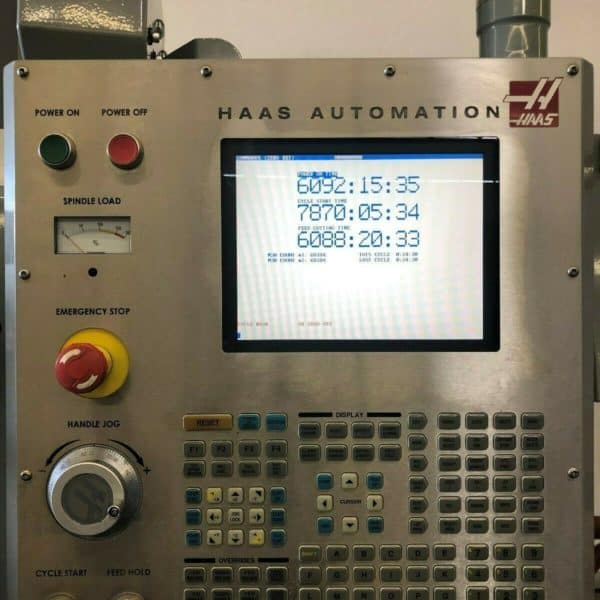

Cutting Hours:6088
  • Haas VF-3SS Features:
  • 12,000 RPM Direct Drive Spindle
  • 1400 Inch Per Min. Rapid
  • 4th Axis Ready
  • Rigid Tapping
  • USB Drive
  • User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling
  • Brushless servo drive motors on all axis
  • 24 + 1 automatic high speed tool changer
  • Programmable coolant
  • Telescopic way covers
  • Flood Coolant system
  • Levelling Pads
  • Haas VF-3SS Specifications:
  • Travels:
  • X-Axis: 40″
  • Y-Axis: 20″
  • Z-Axis: 25″
  • Rapid Traverse Rates: 1400 Inch Per Minute
  • Cutting Feed Rates: 833 Inch Per Minute
  • Spindle Nose to Table (Min.- Max.): 4″ – 24″

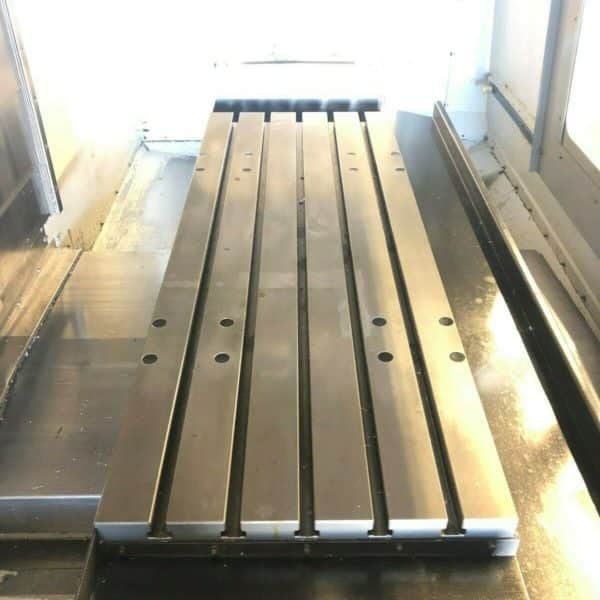

  • Table:
  • Length: 48″
  • Width: 18″
  • Number of Std T-Slots: 5
  • T-Slot Width: 5/8″
  • Max Weight on Table: 1750 lbs

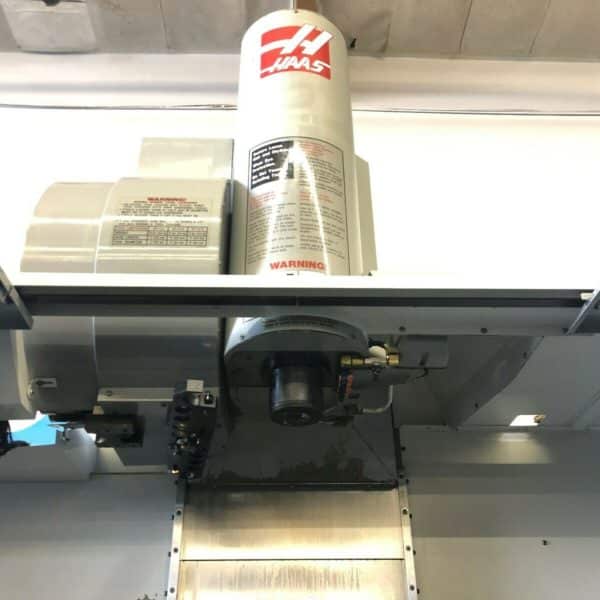

  • Spindle:
  • Taper Size:  40
  • Speed Range: 0 – 12000 RPM
  • Spindle Type: Gear Head

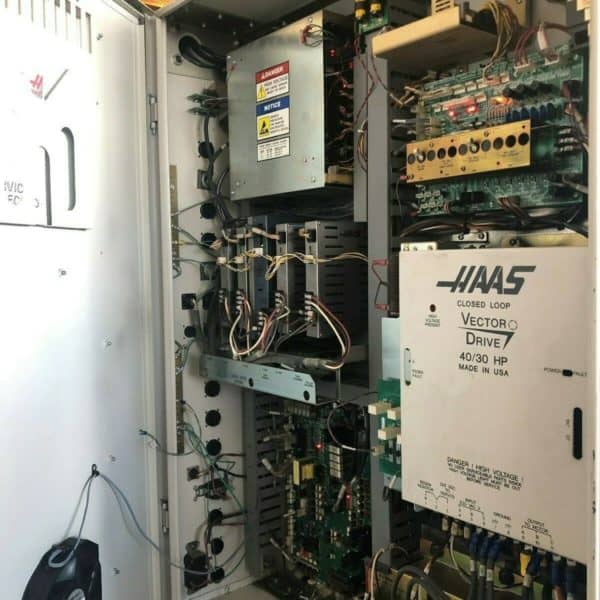

  • Spindle Power: 30 HP Vector Dual Drive
  • Max Torque: 90ft-lb @ 2000 RPM
  • Automatic Tool Changer:
  • Capacity: 24 + 1
  • Max Tool Weight: 12 lbs
  • Max Tool Dia: 5″
  • Max Tool Length: 11″
  • Tool Changing Time: 1.6 Seconds
  • General:
  • Air Required: 100 psi, 4 scfm
  • Power: 220v / 66FLA / 3-Phase
  • Overall Dimensions: 118″ x 96″ x 100″ High
  • Weight: 12500 lbs
